Common Information
TASK 72-00-32-450-015 LPC/Intermediate Case Module Components - Install The IDG Oil Temperature Thermocouple, Installation-022
General
This TASK gives the procedure to install the IDG oil temperature thermocouple.
Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha-variants refer to the IPC.
For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.
Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-039 ENGINE OIL , unless other lubricants are referred to in the procedure.
For the torque tightening procedures, refer to the SPM TASKS TASK 70-41-00-400-501 and SPM TASK 70-41-01-400-501.
For lockwire data and procedures refer to the SPM TASK 70-42-05-400-501.
For safety cable data and procedures refer to the SPM TASK 70-42-08-400-501.
Safety the threaded fasteners in the ATA Chapter/Section/Subject 71-51-41 as applicable with CoMat 02-274 SAFETY CABLE KIT or CoMat 02-275 SAFETY CABLE KIT.
After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and attach parts. Use the correct color of the air dying enamel. Refer to the SPM TASK 70-38-21-380-501.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-274 SAFETY CABLE KIT | LOCAL | CoMat 02-274 | ||
| CoMat 02-275 SAFETY CABLE KIT | LOCAL | CoMat 02-275 | ||
| CoMat 07-038 AIR DRYING ENAMEL | K3504 | CoMat 07-038 | ||
| CoMat 10-039 ENGINE OIL | LOCAL | CoMat 10-039 |
Safety Requirements
NONEProcedure
Refer to Figure.
Lubricate the new IDG OIL TEMPERATURE THERMOCOUPLE (24-21-15, 01-120) sealing ring 1 off with clean CoMat 10-039 ENGINE OIL.
Install the sealing ring to the IDG oil temperature thermocouple IDG OIL TEMPERATURE THERMOCOUPLE (24-21-15, 01-100).
Install the two bolts IDG OIL TEMPERATURE THERMOCOUPLE (24-21-15, 01-110).
SUBTASK 72-00-32-450-061 Install the IDG Oil Temperature Thermocouple to the Fuel Cooled IDG Oil Cooler (IDG FCOC)
Refer to Figure.
Connect the electrical connector of the EEC harness EEC Fan Harness (71-51-41, 01-005) to the IDG oil temperature thermocouple IDG OIL TEMPERATURE THERMOCOUPLE (24-21-15, 01-100).
SUBTASK 72-00-32-430-051 Connect the Electrical Connector
Do an oil leak test on the IDG FCOC, refer to TASK 71-00-00-700-003.
SUBTASK 72-00-32-790-051 Do an Oil Leak Test
Do an EEC system static test, refer to TASK 71-00-00-700-005.
SUBTASK 72-00-32-750-051 EEC System Test

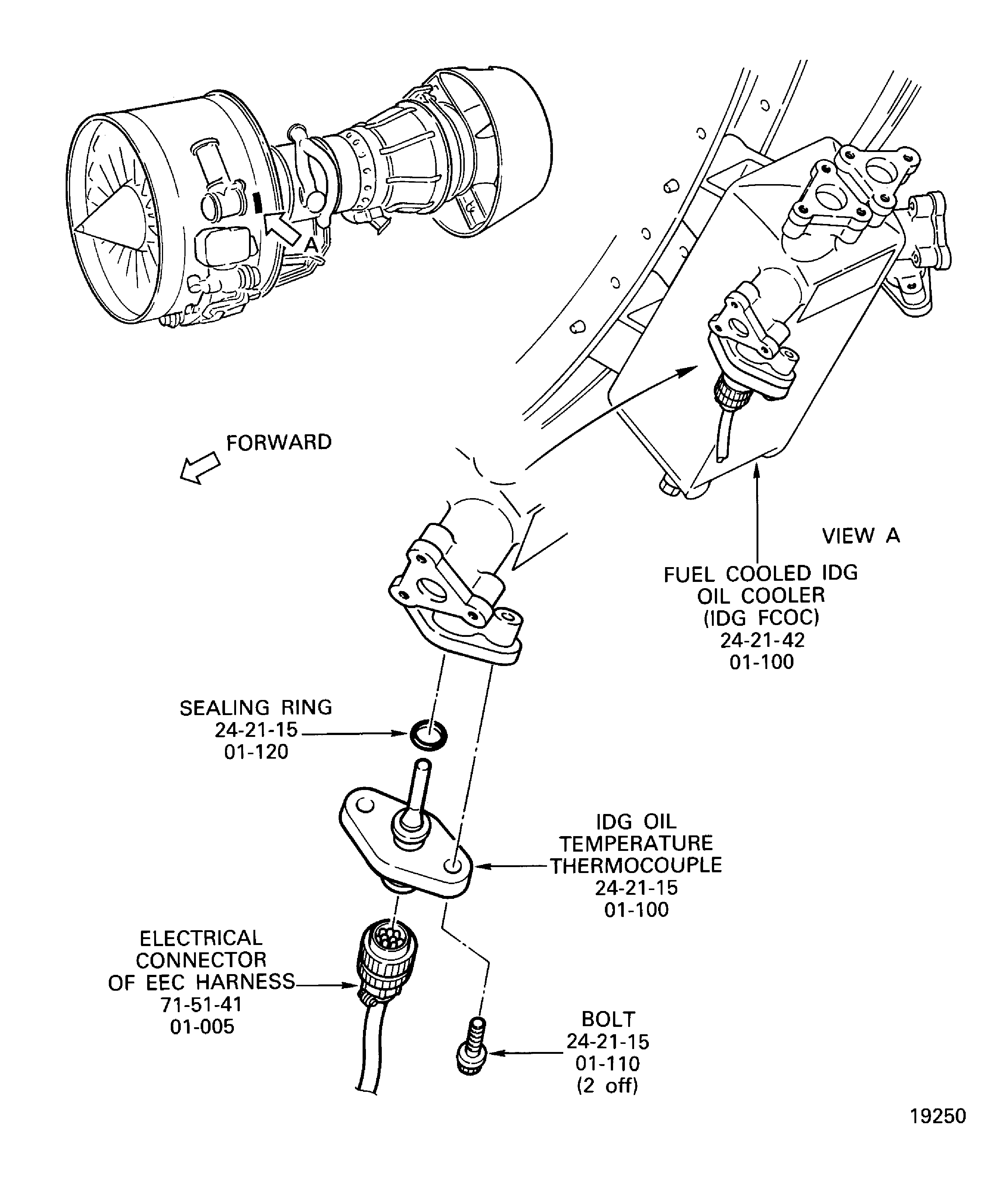

Figure: IDG oil temperature thermocouple
IDG oil temperature thermocouple
