TASK 72-32-00-030-006-D00 LPC/Intermediate Case Module - Remove The LPC Booster Stage Assembly To Gain Access To The Front Bearing Compartment Area, Disassembly-006

DMC:V2500-A0-72-32-0000-06C-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-00-030-006-D00 LPC/Intermediate Case Module - Remove The LPC Booster Stage Assembly To Gain Access To The Front Bearing Compartment Area, Disassembly-006

General

This TASK gives the procedure to remove the LP compressor booster stage assembly from the LP compressor/intermediate case module to gain access to the front bearing compartment area.

This procedure uses a method that does not require separation of the HP system module and the external gearbox module from the LP compressor/intermediate case module.

Where this TASK is used for removal of the LP compressor booster stage assembly, it is recommended to use TASK 72-32-00-430-010-D00 (ASSEMBLY-010, CONFIG-004).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1J12026 Turning handle0AM53IAE 1J120261
IAE 1J12105 Cantileer sling0AM53IAE 1J121051
IAE 1J12106 Aligning pin set0AM53IAE 1J121061
IAE 1J12108 Sling adapter0AM53IAE 1J121081
IAE 1J12139 Puller bolt set0AM53IAE 1J121391
IAE 1J12188 Puller bolt0AM53IAE 1J121881
IAE 1J12533 Storage stand0AM53IAE 1J125331
IAE 1J12541 Holding support0AM53IAE 1J125411
IAE 1J12182 Retaining protector0AM53IAE 1J12182

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-030-262 Make sure that the Inlet Cone Fairing and the Inlet Cone are Removed from the Engine

    1. Make sure that the inlet cone fairing and the inlet cone are removed. If they are not removed, remove them. Refer to TASK 72-38-11-020-001 (REMOVAL).

    2. SUBTASK 72-32-00-030-263 Make sure that the LP Compressor (Fan) Module is Removed from the Engine

    1. Make sure that the LP compressor (fan) module is removed. Refer to TASK 72-00-31-020-001 (REMOVAL).

    3. SUBTASK 72-32-00-030-264 Remove the Front Liner Panels, the Rear Fairing, the FEGV's and the Splitter Fairing from the Engine

    1. Refer to Figure.

    2. Remove the 10 front liner panels, the rear fairing, the 20 FEGV's and the splitter fairing. Refer to TASK 72-32-00-030-002-B00 (DISASSEMBLY-002, CONFIG-002).

    4. SUBTASK 72-32-00-030-265 Remove the LPC Inlet Guide Vane Assembly from the Engine

    1. Refer to Figure.

    2. Remove the LPC inlet guide vane assembly. Refer to TASK 72-32-00-030-003-B00 (DISASSEMBLY-003, CONFIG-002).

    5. SUBTASK 72-32-00-030-266 Prepare the LP Compressor Booster Stage Assembly (LPC Assembly) for Removal

      1. Assemble IAE 1J12105 Cantileer sling 1 off and IAE 1J12108 Sling adapter 1 off into the sling assembly, Figure.

      1. Install sling adapter to cantilever sling with the pin (part of the cantilever sling).

      2. Prepare the LPC assembly for removal.

      1. NOTE

        Remove the 20 bolts at the holes except the holes C and E, Figure.

        Remove 20 of the 24 bolts which attach the front end of the LPC assembly to the rotor center shaft, Figure.

      3. Remove the retaining protector and install the aligning pins.

      1. NOTE

        The retaining protector was installed in SUBTASK 72-32-00-020-263 (step 4).

        Remove the IAE 1J12182 Retaining protector 1 off from the stub shaft, Figure.

      2. Install the three aligning pins (part of the IAE 1J12106 Aligning pin set 1 off) in to three of the 24 nuts of the rotor center shaft through the holes B, Figure and Figure.

      3. Turn each aligning pin until the R mark line on the pin reaches the bottom of the curvic teeth.

    6. SUBTASK 72-32-00-030-267 Remove the LPC Assembly from the LP Compressor Stage 2.5 Stator Assembly (Stage 2.5 Stator)

      1. Adjust the angular position of the LPC stage 1.5-2.5 disk.

      1. Install IAE 1J12026 Turning handle 1 off to the stub shaft with the two washers and wing bolts, Figure. Tighten the wing bolts.

      2. Turn the LPC stage 1.5-2.5 disk with the turning handle so that the correlation mark * on the LPC stage 1.5-2.5 disk becomes at the top position, Figure.

      3. Remove the turning handle from the stub shaft.

      2. Remove the LPC assembly from the stage 2.5 stator.

        1. Attach the four supports (part of the IAE 1J12541 Holding support 1 off) to the front flange of the LPC assembly, Figure.

        1. Attach each support to the front flange of the LPC assembly with the two bolts and wing nuts. Tighten the wing nuts.

        2. Release the LPC assembly from the stage 2.5 stator, Figure and Figure.

        1. Remove the 62 bolts and washers which attach the rear end of the LPC assembly to the stage 2.5 stator.

        2. Install the four puller bolts (part of the IAE 1J12139 Puller bolt set 1 off) into the four of the eight threaded holes in the stage 2.5 stator. The four puller bolts must be installed at 90 degrees apart from each other.

        3. Tighten the four puller bolts equally until the LP compressor front case touches the supports.

      3. Attach the LP compressor front case to each support with the bolt, nut and the two washers, Figure.

      4. Remove the four puller bolts.

    7. SUBTASK 72-32-00-030-268 Install the Sling Assembly to the LPC Assembly

    1. Refer to Figure, Figure and Figure.

    2. Turn the adjustment handle (part of the cantilever sling) to align the witness hole in the side plate (part of the cantilever sling) with the S3-mark on the beam (part of the cantilever sling).

    3. Lift the sling assembly with two hoists. Adjust the two hoists to turn the sling assembly to horizontal position. Remove the hoist from the link (part of the sling adapter).

    4. Attach the sling adapter to the front flange of the LPC assembly with the three bolts and washers (part of the sling adapter) at three of the six threaded holes C. Tighten the bolts.

    5. Turn the adjustment handle to align the witness hole in the side plate with S4-mark on the beam.

    8. SUBTASK 72-32-00-030-269 Remove the LPC Assembly from the Rotor Center Shaft

    1. Refer to Figure and Figure.

    2. Remove the four remaining bolts which attach the front end of the LPC assembly to the rotor center shaft at the holes E.

    3. Install the three puller bolts (part of IAE 1J12188 Puller bolt 1 off) in to the three remaining threaded holes C.

    4. Tighten the three puller bolts equally until the LPC assembly is released from the rotor center shaft.

    5. Remove the puller bolts.

    6. Move the sling assembly and the LPC assembly forward until it is clear of the fan case.

    9. SUBTASK 72-32-00-030-270 Install the LPC Assembly on to the Storage Stand

    1. Refer to Figure, Figure and Figure.

    2. Attach a hoist to the link (part of the sling adapter).

    3. Adjust the two hoists to turn the LPC assembly to the vertical position.

    4. Lower and put the LPC assembly on to IAE 1J12533 Storage stand 1 off.

    5. Remove the three bolts and washers which attach the sling adapter to the front flange of the LPC assembly.

    6. Lift the sling assembly until it is clear of the LPC assembly.

    10. SUBTASK 72-32-00-030-271 Install the Retaining Protector to the Engine

    1. Refer to Figure and Figure.

      2. Remove the aligning pins and install the retaining protector.

      1. Remove the three aligning pins from the nuts of the rotor center shaft.

      2. Install IAE 1J12182 Retaining protector 1 off to the curvic teeth of the stub shaft with the three bolts and plain washers (parts of the retaining protector). Tighten the bolts.

    3. Remove the workmat from the fan case.

    11. Figure: Sectional view of the LP compressor/intermediate case module

    Sectional view of the LP compressor/intermediate case module

    Figure: Assemble the cantilever sling and the sling adapter

    Assemble the cantilever sling and the sling adapter

    Figure: Turn the cantilever sling and the sling adapter to the horizontal position

    Turn the cantilever sling and the sling adapter to the horizontal position

    Figure: Retaining protector

    Retaining protector

    Figure: Install the holding support to the LPC assembly and the LPC front case

    Install the holding support to the LPC assembly and the LPC front case

    Figure: Install the turning handle to the stub shaft

    Install the turning handle to the stub shaft

    Figure: Install the aligning pins to the stub shaft

    Sheet 1

    Legend
    Install the aligning pins to the stub shaft

    Sheet 1

    Close

    Figure: Install the aligning pins to the stub shaft

    Sheet 2

    Legend
    Install the aligning pins to the stub shaft

    Sheet 2

    Close

    Figure: Install the sling adapter to the LP compressor booster stage

    Sheet 1

    Legend
    Install the sling adapter to the LP compressor booster stage

    Sheet 1

    Close

    Figure: Install the sling adapter to the LP compressor booster stage

    Sheet 2

    Legend
    Install the sling adapter to the LP compressor booster stage

    Sheet 2

    Close

    Figure: Remove the LP stage 2.5 stator assembly from the LP compressor booster stage assembly

    Remove the LP stage 2.5 stator assembly from the LP compressor booster stage assembly

    Figure: Turn the LP compressor booster stage assembly to the vertical position

    Turn the LP compressor booster stage assembly to the vertical position

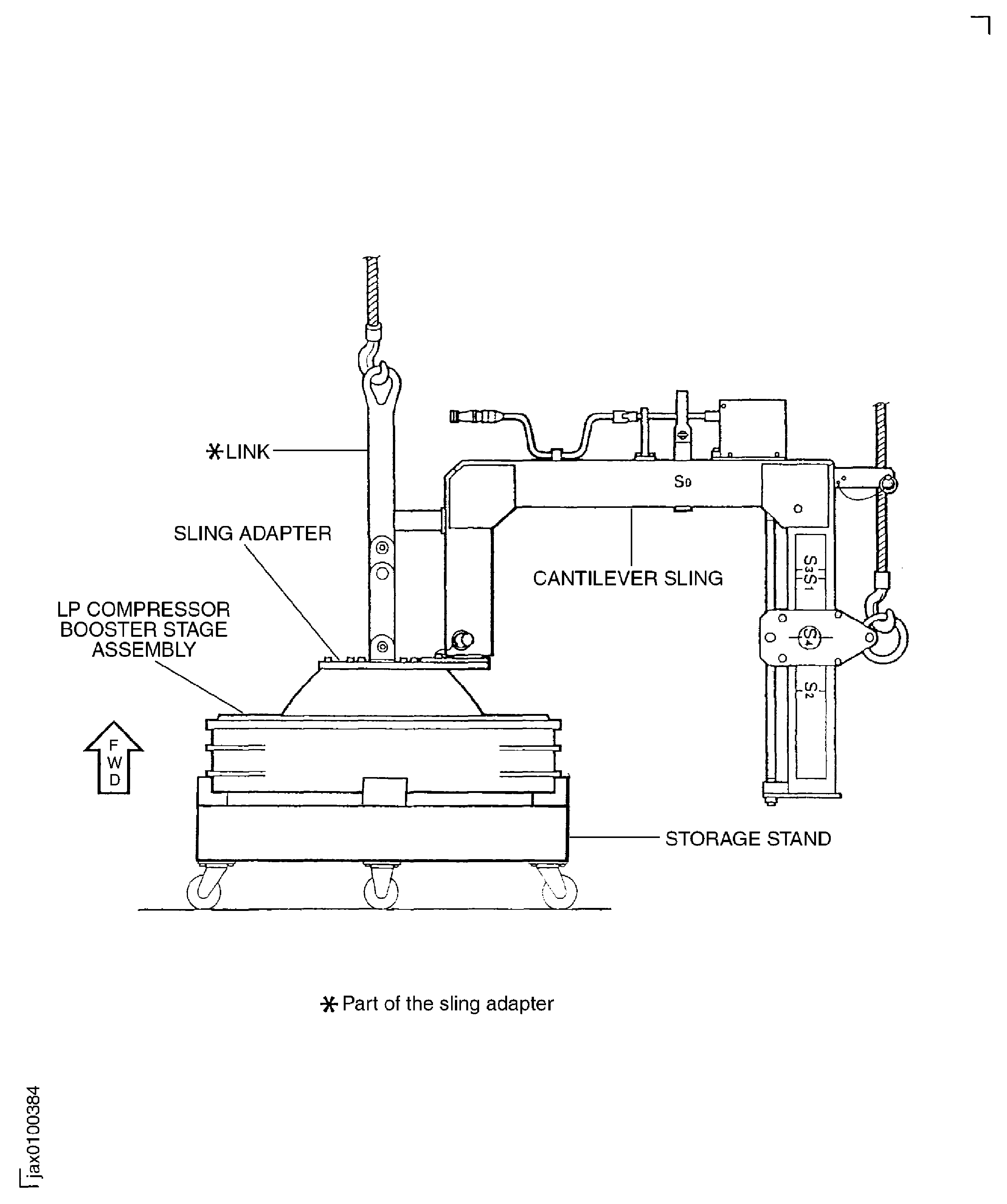

    Figure: Install the LP compressor booster stage assembly on to the storage stand

    Install the LP compressor booster stage assembly on to the storage stand

Requirements After Job Completion

Follow-On Conditions

NONE
