TASK 72-32-23-200-001-A00 Rotor Center Ring Seal Carrier Assembly - Examine, Inspection-001

DMC:V2500-A0-72-32-2301-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-23-200-001-A00 Rotor Center Ring Seal Carrier Assembly - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-720

6A3902

01-720

6A3916

01-720

6A2237

01-720

6A3890

General

This TASK gives the procedure to examine the No. 3 bearing rotor center ring seal carrier. You must make sure that this TASK is applicable to the part that is to be examined. Refer to TASK 72-32-23-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the Service Bulletin alpha variants refer to the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-11-03-300-503.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications.

Chemical Processes.

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-23-220-051 Examine the No. 3 Bearing Rotor Center Ring Seal Carrier for Damage

      1. Nicks, dents and high metal.

        1. General nicks, dents and high metal

        1. Repair, VRS6112 TASK 72-32-23-300-008 (REPAIR-008)

    2. SUBTASK 72-32-23-230-051 Examine the No. 3 Bearing Rotor Center Seal Ring Carrier for Cracks

    1. Clean the parts. Refer to TASK 72-32-23-100-000.

      2. Do the test for cracks on the parts given below.

        PART IDENT

        TASK/SUBTASK

        No. 3 bearing rotor center, seal ring carrier

        1. Cracked

        1. Reject

    3. SUBTASK 72-32-23-220-052 Examine Ring Seal Carrier Layer at Location 1

    1. Refer to Figure.

      2. Worn or grooved.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Repair, VRS6111 TASK 72-32-23-300-007 (REPAIR-007)

    4. SUBTASK 72-32-23-220-053 Examine the Ring Seal Carrier Bolt Holes at Location 2

    1. Refer to Figure.

      2. Burred or scored

      1. Repair, VRS6112 TASK 72-32-23-300-008 (REPAIR-008)

    5. SUBTASK 72-32-23-220-054 Examine the Ring Seal Carrier Ring Seal at Location 3

    1. Refer to Figure.

      2. Galled, scored or scratched

      1. Repair, VRS6113 TASK 72-32-23-300-009 (REPAIR-009)

      3. Worn

      1. Repair, VRS6113 TASK 72-32-23-300-009 (REPAIR-009)

    6. SUBTASK 72-32-23-220-055 Examine the Ring Seal Carrier Front Location Face at Location 4

    1. Refer to Figure.

      2. Galled, scored or scratched

      1. Repair, VRS6112 TASK 72-32-23-300-008 (REPAIR-008)

    7. SUBTASK 72-32-23-220-106 Examine the Ring Seal Carrier Front Location Bore at Location 5

    1. Refer to Figure.

      2. Galled or scored

      1. Repair, VRS6114 TASK 72-32-23-300-010 (REPAIR-010)

        2. Examine the front location bore.

          1. If the bore is between 7.519 and 7.522 in. (191.00 and 191.046 mm)

          1. Accept

          2. If the bore is more than 7.522 in. (191.046 mm)

          1. Repair, VRS6114 TASK 72-32-23-300-010 (REPAIR-010)

    8. SUBTASK 72-32-23-220-071 Examine the Ring Seal Carrier Surface Protection

      1. Damaged

      1. Repair, VRS6119 TASK 72-32-23-300-012 (REPAIR-012)

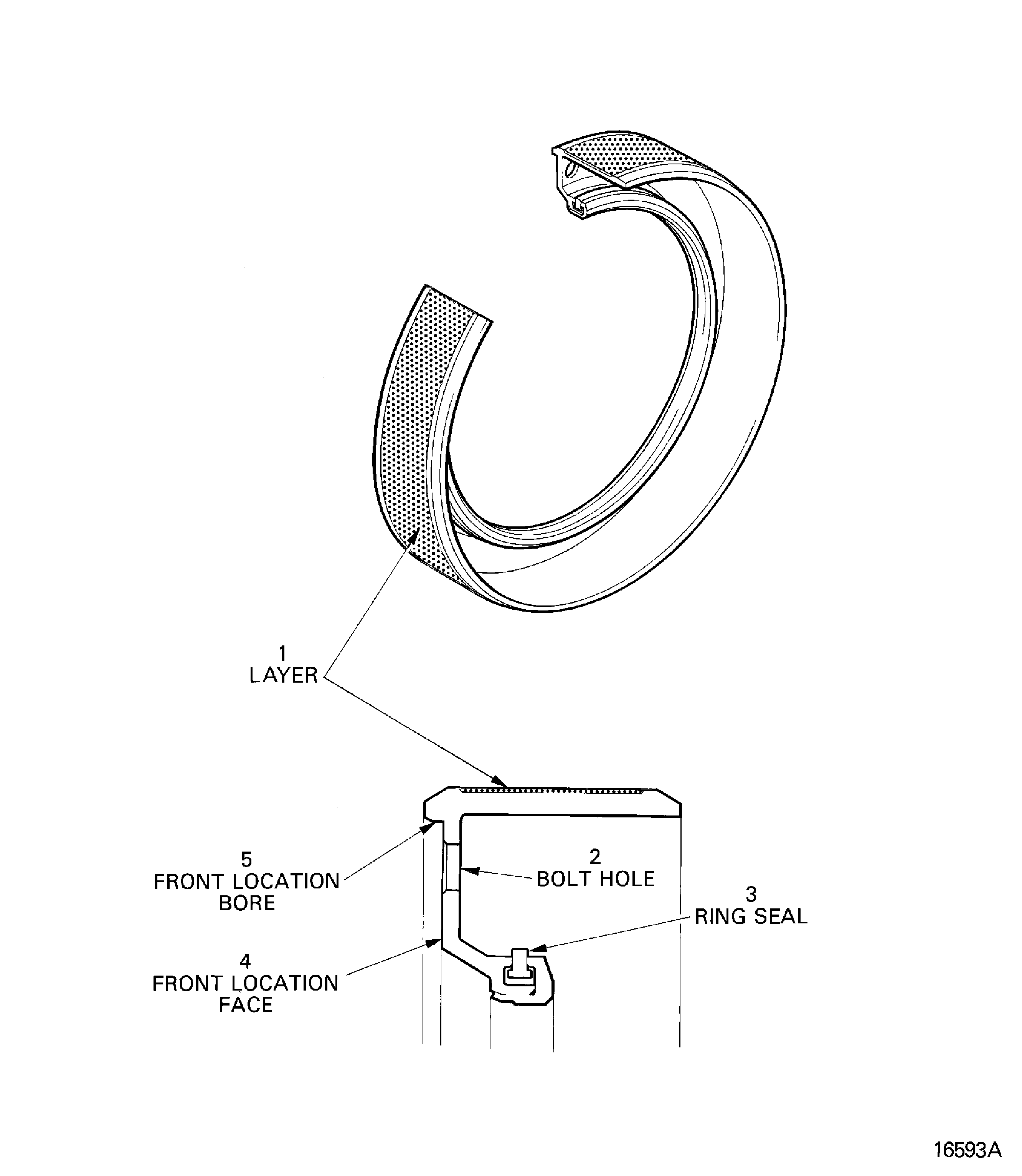

    9. Figure: No. 3 bearing rotor center ring seal carrier - inspection locations

    No. 3 bearing rotor center ring seal carrier - inspection locations

Requirements After Job Completion

Follow-On Conditions

NONE
