TASK 72-32-24-200-001-A00 No. 3 Bearing - Examine, Inspection-001

DMC:V2500-A0-72-32-2400-00A-300A-C|Issue No:003.00|Issue Date:2019-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-24-200-001-A00 No. 3 Bearing - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-100

2A1026

01-100

2A1028

General

This TASK gives the procedure for the inspection of the No. 3 bearing.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in SPM.

References

Refer to SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501.

Marking of Parts, SPM TASK 70-09-00-400-501

Procedure to Moderately Clean, SPM TASK 70-11-03-300-503.

Procedure to Vapor Degrease, SPM TASK 70-11-01-300-503.

Inspection of Parts, SPM TASK 70-20-01-200-501 and SPM TASK 70-24-00-240-501.

Inspection of Ball and Roller Bearing, SPM TASK 70-29-01-290-501.

Some data on these items is contained in this TASK. For more data on these items refer to SPM.

Method of Testing for Crack Indications.

Chemical Processes.

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 2P16259 Inspection weight0AM53IAE 2P162591
IAE 2P16260 Inspection gage0AM53IAE 2P162601
IAE 2P16261 Graduated ring0AM53IAE 2P162611

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-177 PETROLEUM (SOLVENT)23373CoMat 01-177
CoMat 10-061 STODDARD SOLVENTLOCALCoMat 10-061
DELETEDLOCALDELETED
CoMat 12-016 CORROSION PREVENTIVE THIN FILM2H517CoMat 12-016

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-24-220-051 Examine the No. 3 Bearing (01-100) for the Visual Defects

      1. Examine the bearing for the visual defects by the procedure given in SPM TASK 70-29-01-290-501.

        1. Visual defects.

          1. Limits given in SPM TASK 70-29-01-290-501.

          1. Accept.

          2. Other than Step.

          1. Reject.

    2. SUBTASK 72-32-24-220-052 Examine the No. 3 Bearing (01-100) for the Average Inner Diameter

    1. Refer to Figure.

      2. Examine the bearing for the average inner diameter at Location 3 on each of the land surfaces.

        1. If the average dimension at Locations 4 and 7 is between 5.9052 in. and 5.9060 in. (149.9921 mm and 150.0124 mm).

        1. Accept.

        2. Other than Step.

        1. Reject.

    3. SUBTASK 72-32-24-220-053 Examine the No. 3 Bearing (01-100) for the Average Outer Diameter

    1. Refer to Figure.

      2. Examine the bearing average outer diameter at Location 1.

        1. If the average dimension is between 8.3869 in. and 8.3873 in. (213.0273 mm and 213.0374 mm).

        1. Accept.

        2. Other than Step.

        1. Reject.

    4. SUBTASK 72-32-24-220-054 Examine the No. 3 Bearing (01-100) for the Internal Radial Clearance

      1. Examine the bearing for the internal radial clearance by the procedure given in SPM TASK 70-29-01-290-501. Use a 60 lb (27.24 kg) radial load.

        1. If the clearance is between 0.0066 in. and 0.0082 in. (0.168 mm and 0.208 mm).

        1. Accept.

        2. other than Step.

        1. Reject.

    5. SUBTASK 72-32-24-220-057 Examine the No. 3 Bearing (01-100) for the Hardness of the Inner and Outer Races

      NOTE

      Only do the hardness check if the bearing shows signs of high temperature discoloration.

    1. Refer to Figure.

      2. Examine the bearing for hardness at Locations 2, 8 and 10. Use a Rockwell A tester, or equivalent. Do the test on a non-functional surface.

        1. If the hardness is between 60 HRC and 62 HRC average, or equivalent or 59 HRC and 63 HRC absolute, or equivalent.

        1. Accept.

        2. Other than Step.

        1. Reject.

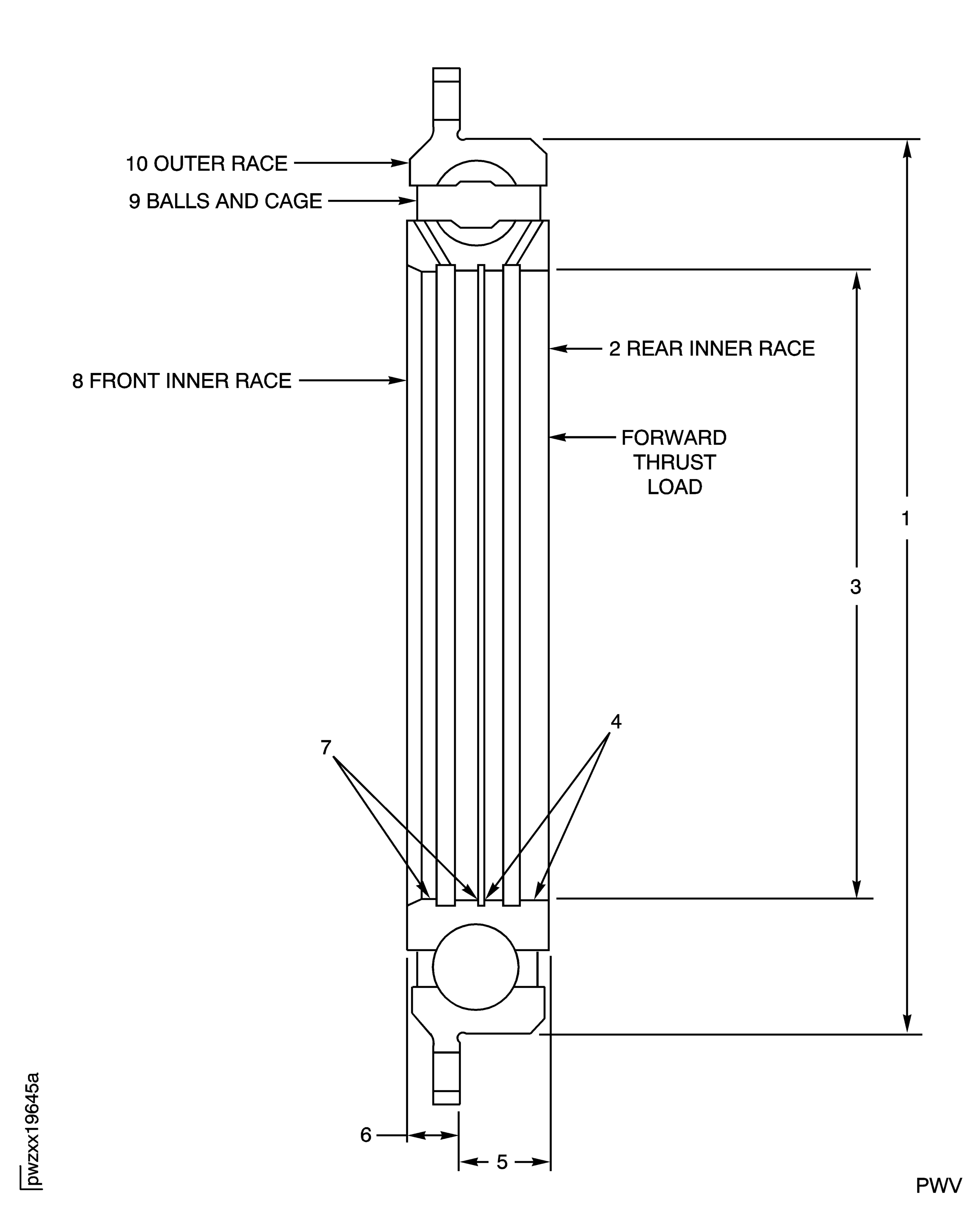

    6. Figure: No. 3 Bearing Inspection Locations

    No. 3 Bearing Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised effectivity table. (18VC555)
