TASK 72-41-31-300-008 HPC Stage 5 Rotor Path Segment - Replace The Lining, Repair-008 (VRS6244)

DMC:V2500-A0-72-41-3115-00A-920A-C|Issue No:002.00|Issue Date:2018-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-31-300-008 HPC Stage 5 Rotor Path Segment - Replace The Lining, Repair-008 (VRS6244)

Effectivity

FIG/ITEM

PART NO.

Assembly

01-695

6A3025

A

01-695

6A3976

A

01-695

6A4349

B

01-695

6A7471

B

01-695

6A7573

B

Material of component

PART IDENT

SYMBOL

MATERIAL

HP compressor stage 5 rotor path ring

EAK

Jethete

General

Make sure that all the cleaning and inspection procedures are done before this repair.

After this repair the rotor path will be completed during assembly.

Price and availability.

Refer to International Aero Engines.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-041 ALKALINE RUST REMOVERLOCALCoMat 01-041
CoMat 03-036 METAL SPRAYING WIRE, Ni,AlLOCALCoMat 03-036
CoMat 03-057 ALUMINIUM ALLOY/POLYESTERCOMPOSITELOCALCoMat 03-057
CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)00741CoMat 03-089
CoMat 03-090 METAL SPRAYING POWDER Ni/Al (95/5)0AM53CoMat 03-090
DELETEDLOCALDELETED

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-31-110-080 Chemically Clean

      1. Chemically clean.

      1. Refer to TASK 72-41-31-100-000, (CLEANING-000).

      2. Use chemical cleaning equipment.

    2. SUBTASK 72-41-31-230-080 Do a Crack Test

      1. Do a crack test.

      1. Refer to TASK 72-41-31-200-000 (INSPECTION-000).

      2. Use penetrant crack test equipment.

    3. SUBTASK 72-41-31-330-051-A00 Remove the Abradable Lining and Bond Coat, Assembly A

    1. Refer to Figure and Figure. Remove the abradable lining and bond coat by either Step, Step or Step.

      2. Chemically remove the abradable lining and bond coat.

      1. Remove the abradable lining. Refer to the SPM TASK 70-33-59-300-503, SUBTASK 70-33-59-300-003.

      3. Remove the bond coat. Refer to the SPM TASK 70-33-89-300-503.

    3. Machine to remove the abradable lining and bond coat. Use a locally manufactured fixture. Refer to Section 70-34-00, TASK 70-34-01-340-501 in the V2500 Standard Practices Manual, 2A4414.

    4. Remove the abradable lining and bond coat using high pressure water blasting. Use a locally manufactured fixture. Refer to Section 70-15-00, TASK 70-15-01-160-501 in the V2500 Standard Practices Manual, 2A4414.

    4. SUBTASK 72-41-31-330-051-B00 Remove the Abradable Lining and Bond Coat, Assembly B

    1. Refer to Figure and Figure. Remove the abradable lining and bond coat by either Step, Step or Step.

      2. Chemically remove the abradable lining and bond coat.

      1. Remove the abradable lining. Refer to the SPM TASK 70-33-59-300-503 , SUBTASK 70-33-59-300-003.

      3. Remove the bond coat. Refer to the SPM TASK 70-33-89-300-503.

    3. Machine to remove the abradable lining and bond coat. Use a locally manufactured fixture. Refer to Section 70-34-00, TASK 70-34-01-340-501 in the V2500 Standard Practices Manual, 2A4414.

    4. Remove the abradable lining and bond coat using high pressure water blasting. Use a locally manufactured fixture. Refer to Section 70-15-00, TASK 70-15-01-160-501 in the V2500 Standard Practices Manual, 2A4414.

    5. SUBTASK 72-41-31-220-129-A00 Examine the Stage 5 Rotor Path Ring, Assembly A

    1. Refer to Figure and Figure.

    2. Visually examine and measure the dimensions of the repaired area.

    6. SUBTASK 72-41-31-220-129-B00 Examine the Stage 5 Rotor Path Ring, Assembly B

    1. Refer to Figure and Figure.

    2. Visually examine and measure the dimensions of the repaired area.

    7. SUBTASK 72-41-31-110-063 Clean the Stage 5 Rotor Path Ring

      1. Chemically clean.

      1. Refer to the SPM TASK 70-11-03-300-503.

    8. SUBTASK 72-41-31-350-057-A00 Mask the Areas not to be Sprayed, Assembly A

    1. Refer to Figure, Figure and Figure.

      2. Mask the areas not to be sprayed.

      1. Refer to the SPM TASK 70-34-18-380-501.

    9. SUBTASK 72-41-31-350-057-B00 Mask the Areas not to be Sprayed, Assembly B

    1. Refer to Figure, Figure and Figure.

      2. Mask the areas not to be sprayed.

      1. Refer to the SPM TASK 70-34-18-380-501.

    10. SUBTASK 72-41-31-120-052 Prepare the Areas to be Sprayed

      1. Prepare the Areas to be Sprayed.

      1. Refer to the SPM TASK 70-34-18-380-501.

    11. SUBTASK 72-41-31-340-051-A00 Apply the Abradable Lining, Assembly A

    1. Refer to Figure and Figure.

      2. Apply the bond coat.

      1. Refer to the SPM TASK 70-34-01-340-501, SUBTASK 70-34-01-340-025 or SUBTASK 70-34-01-340-010.

      2. For powder feed plasma spray gun, use CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5).

      3. Alternatively for the wire feed combustion spraying, use CoMat 03-036 METAL SPRAYING WIRE, Ni,Al.

      4. Pre heat the seal ring to 221 deg F to 257 deg F (105 deg C to 125 deg C).

      3. Apply the abradable lining.

      1. Refer to the SPM TASK 70-34-01-340-501, SUBTASK 70-34-01-340-020-001.

      3. Spray a sufficient thickness to allow for machining.

      4. Also spray a test piece to check the spray hardness.

      4. After the coat is applied and the part is cool, remove the mask. Remove the tape residue.

      1. Refer to the SPM TASK 70-11-26-300-503.

    12. SUBTASK 72-41-31-340-051-B00 Apply the Abradable Lining, Assembly B

    1. Refer to Figure and Figure.

      2. Apply the bond coat.

      1. Refer to the SPM TASK 70-34-01-340-501 , SUBTASK 70-34-01-340-025 or SUBTASK 70-34-01-340-010.

      2. For powder feed plasma spray gun, use CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5).

      3. Alternatively for the wire feed combustion spraying, use CoMat 03-036 METAL SPRAYING WIRE, Ni,Al.

      4. Pre heat the seal ring to 221 deg F to 257 deg F (105 deg C to 125 deg C).

      3. Apply the abradable lining.

      1. Refer to the SPM TASK 70-34-01-340-501, SUBTASK 70-34-01-340-020-002.

      3. Spray a sufficient thickness to allow for machining.

      4. Also spray a test piece to check the spray hardness.

      4. After the coat is applied and the part is cool, remove the mask. Remove the tape residue.

      1. Refer to the SPM TASK 70-11-26-300-503.

    13. SUBTASK 72-41-31-220-130-A00 Examine the Stage 5 Rotor Path Lining, Assembly A

    1. Refer to Figure and Figure.

      2. Visually examine the sprayed coating on the ring.

      1. Refer to the SPM TASK 70-34-01-340-501.

    3. Measure the dimensions of the repaired area.

      4. Hardness test the sprayed coating on the test piece.

      1. Refer to the SPM TASK 70-34-01-340-501, SUBTASK 70-34-01-340-004.

      2. Average hardness must be 55 to 85 R15Y, outer limits 50 min, 90 max.

    14. SUBTASK 72-41-31-220-130-B00 Examine the Stage 5 Rotor Path Lining, Assembly B

    1. Refer to Figure and Figure.

      2. Visually examine the sprayed coating on the ring.

      1. Refer to the SPM TASK 70-34-01-340-501.

    3. Measure the dimensions of the repaired area.

      4. Hardness test the sprayed coating on the test piece.

      1. Refer to the SPM TASK 70-34-01-340-501, SUBTASK 70-34-01-340-004.

      2. Average hardness must be 55 to 85 R15Y, outer limits 50 min, 90 max.

    15. SUBTASK 72-41-31-350-059-A00 Remove the Excess Coating, Assembly A

    1. Refer to Figure and Figure.

    2. Remove the excess coating.

    3. Restore the chamfers.

    16. SUBTASK 72-41-31-350-059-B00 Remove the Excess Coating, Assembly B

    1. Refer to Figure and Figure.

    2. Remove the excess coating.

    3. Restore the chamfers.

    17. SUBTASK 72-41-31-220-131-A00 Examine the Stage 5 Rotor Path Ring, Assembly A

    1. Refer to Figure and Figure.

    2. Visually examine and measure the dimensions of the repaired area.

    18. SUBTASK 72-41-31-220-131-B00 Examine the Stage 5 Rotor Path Ring, Assembly B

    1. Refer to Figure and Figure.

    2. Visually examine and measure the dimensions of the repaired area.

    19. SUBTASK 72-41-31-350-060 Identify the Repair

    1. Refer to Figure.

      2. Make a mark VRS6244 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

      2. Use Vibration peen.

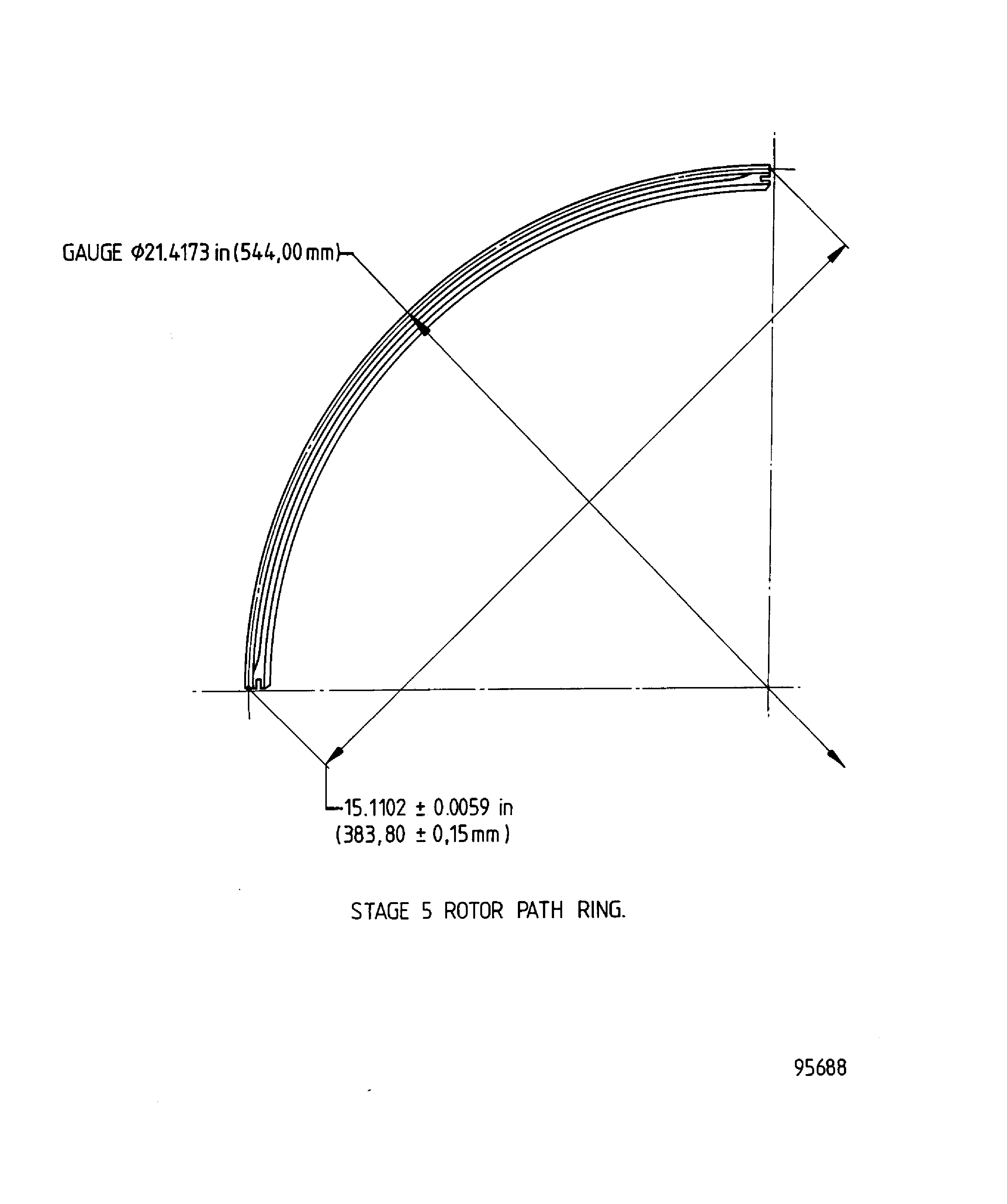

    20. Figure: Repair details and dimensions - Assy A and Assy B

    Repair details and dimensions - Assy A and Assy B

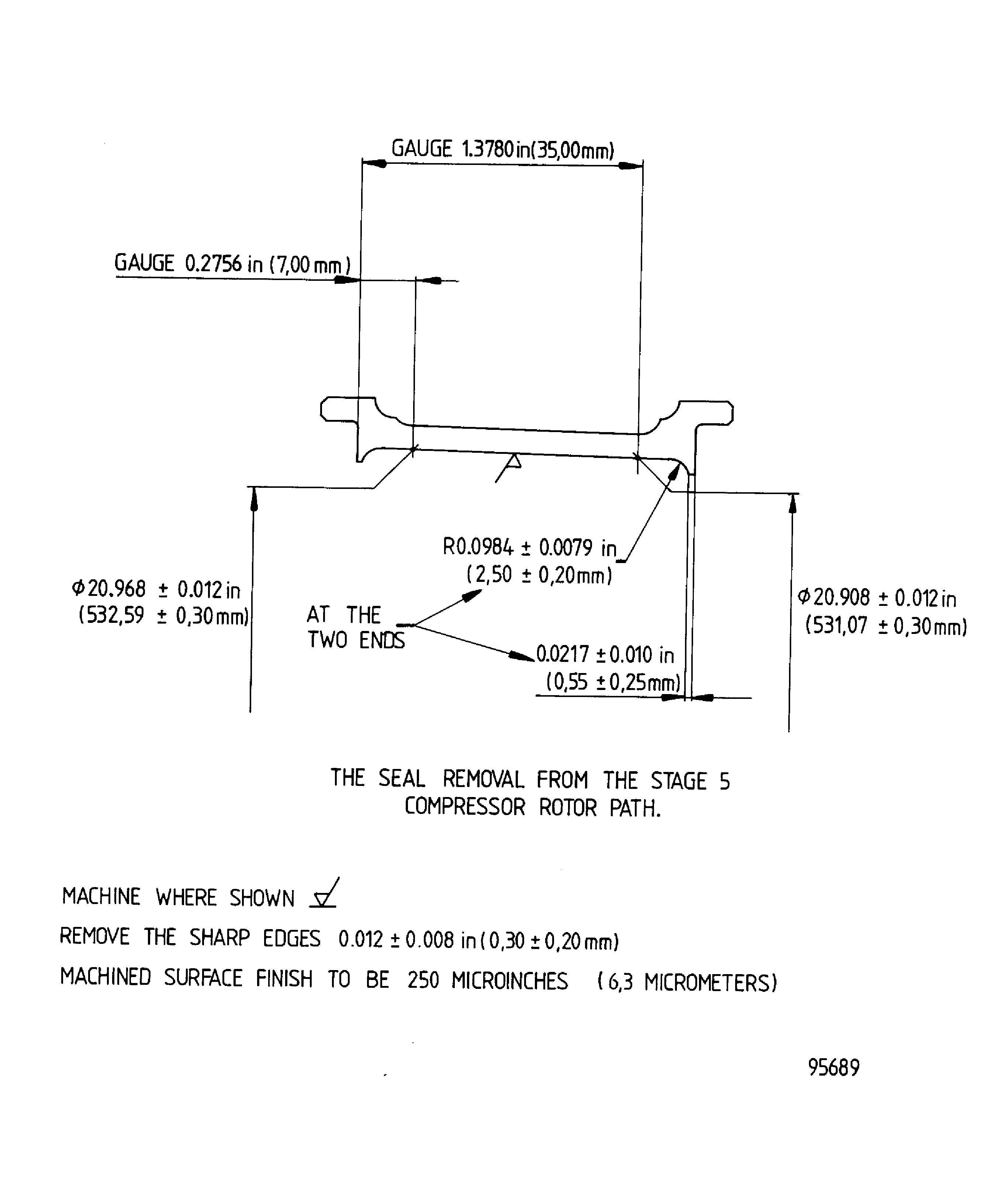

    Figure: Repair details and dimensions - Assy A

    Repair details and dimensions - Assy A

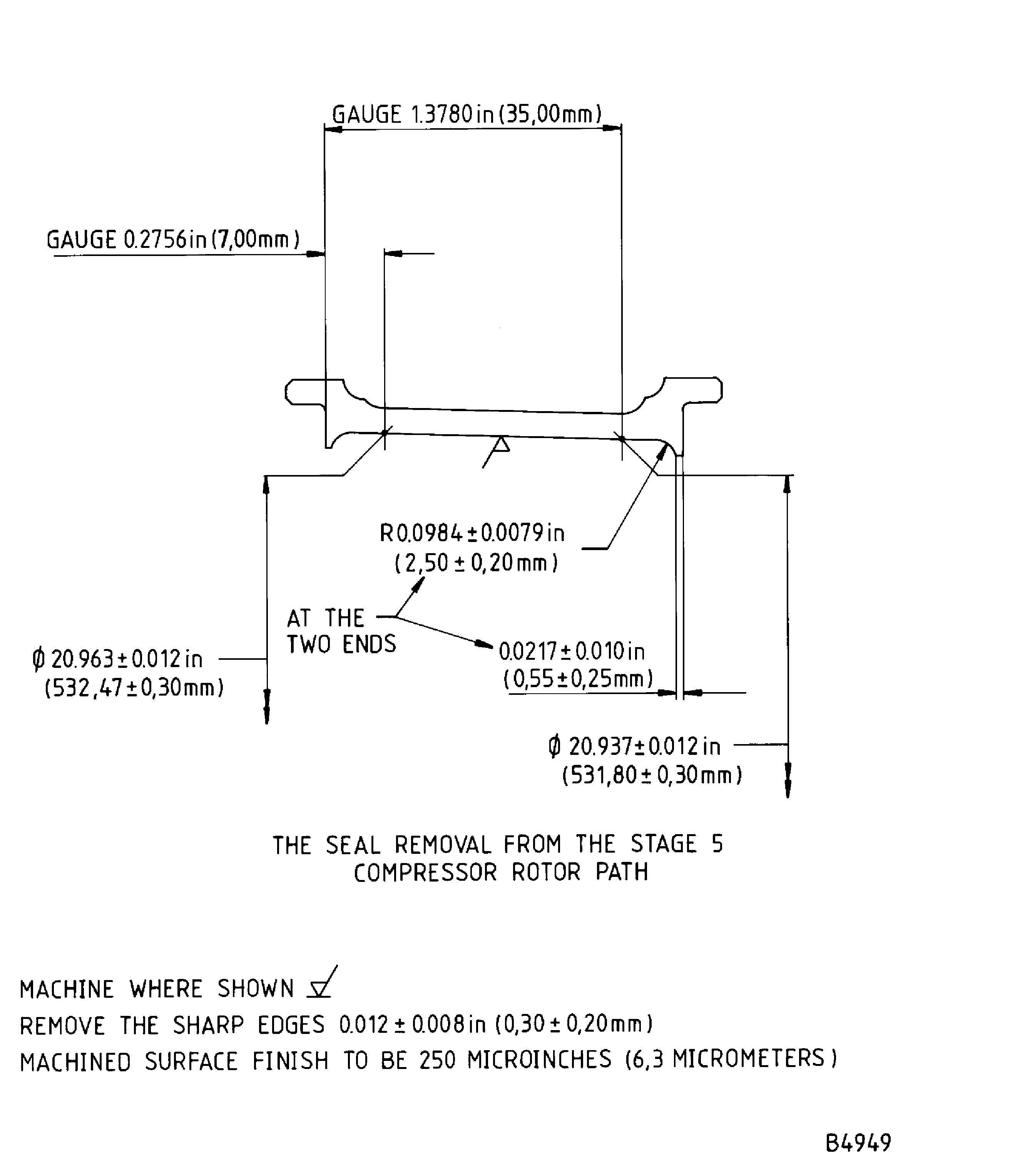

    Figure: Repair details and dimensions - Assy B

    Repair details and dimensions - Assy B

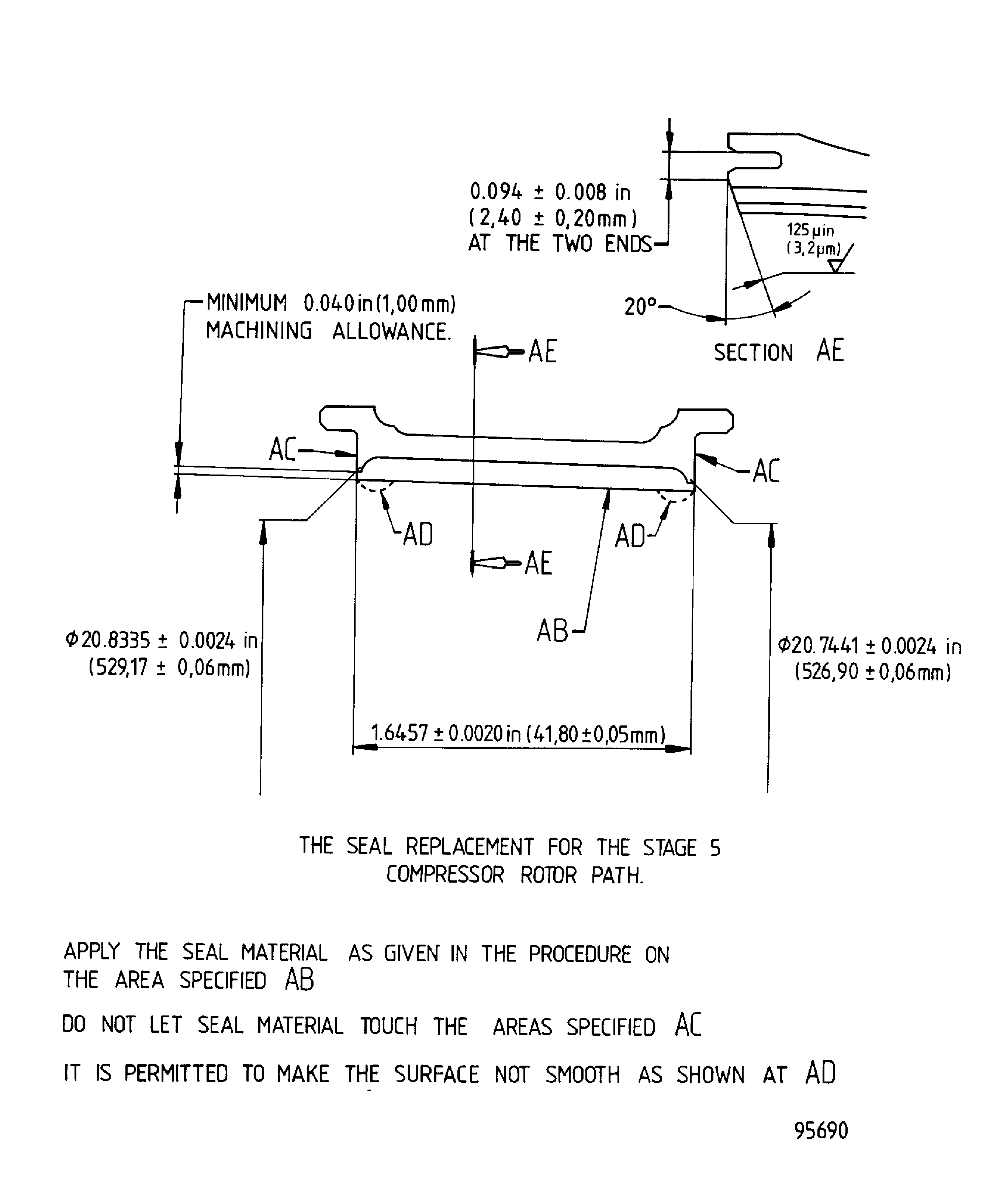

    Figure: Repair details and dimensions - Assy A

    Repair details and dimensions - Assy A

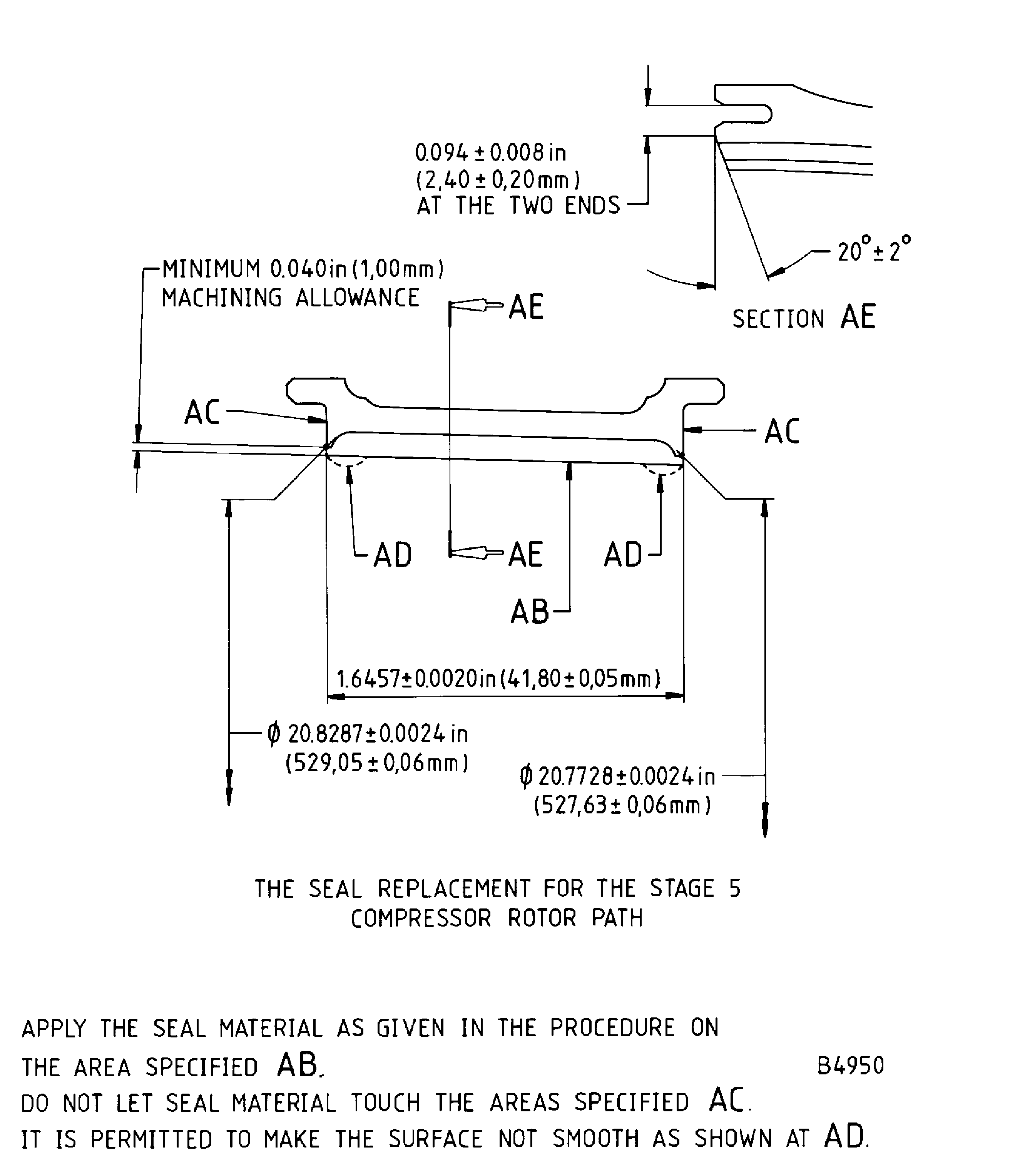

    Figure: Repair details and dimensions - Assy B

    Repair details and dimensions - Assy B

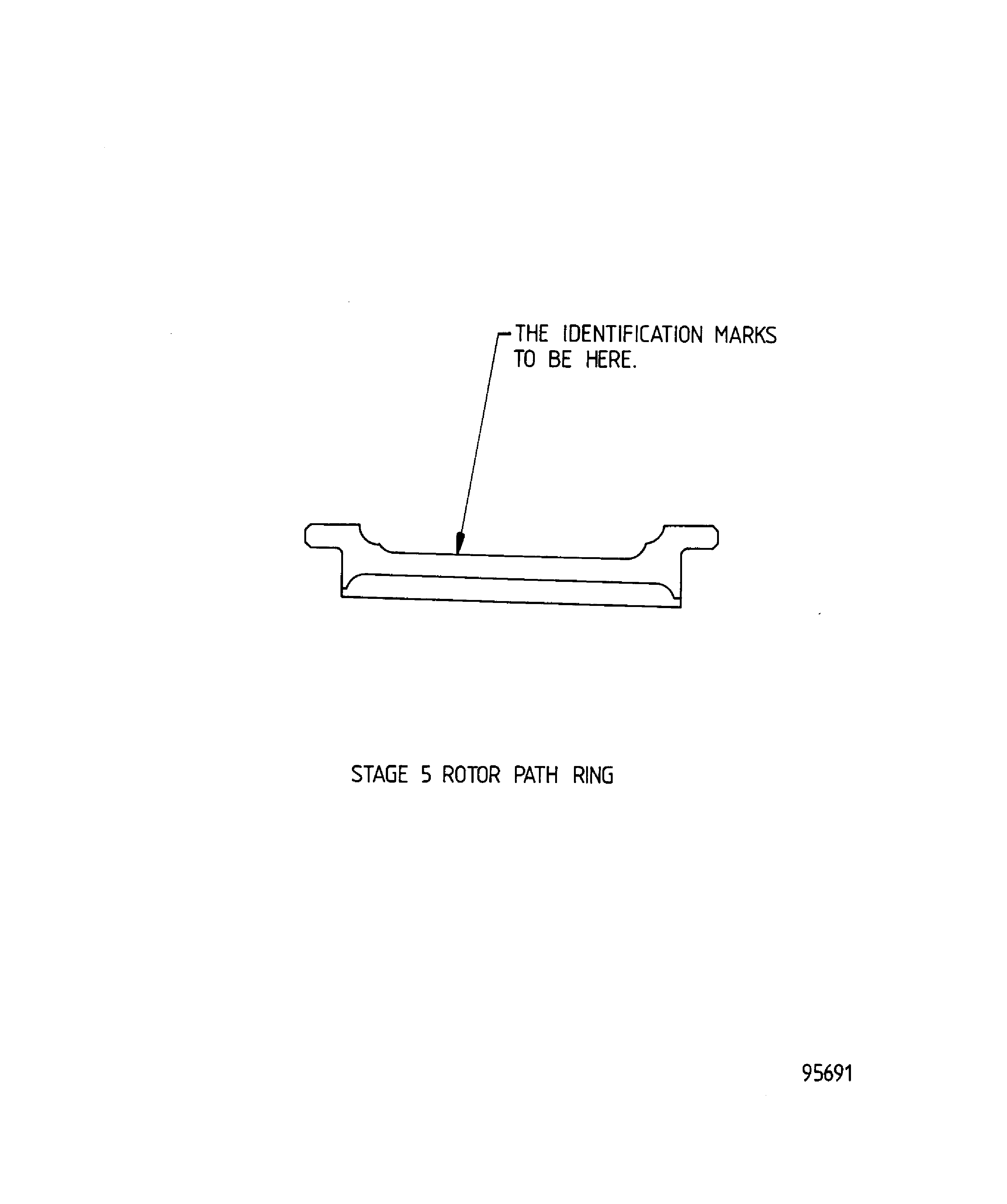

    Figure: Repair details and dimensions - Assy A and Assy B

    Repair details and dimensions - Assy A and Assy B

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure in its entirety. (16VG002)
