TASK 72-43-30-200-001 No. 4 Bearing Rear Cooling Duct - Examine, Inspection-001

DMC:V2500-A0-72-43-3001-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-43-30-200-001 No. 4 Bearing Rear Cooling Duct - Examine, Inspection-001

Effectivity

FIG/ITEM PART NO.

01-010

2A0891-01

01-010

2A0891-001

01-010

2A1205-01

01-010

2A1205-001

01-010

2A3078-01

01-010

2A3808-01

General

This TASK gives the procedure for the inspection of the No. 4 bearing rear cooling duct. For the other parts of the No. 4 bearing rear cooling duct and heatshield, refer to TASK 72-43-30-200-000 (INSPECTION-000).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-43-30-100-000 (CLEANING-000).

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in SUBTASK 72-43-30-230-051. Do the test before the part is visually examined.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-00-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-130 ANTIGALLING COMPOUND8F024CoMat 10-130

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-43-30-230-051-001 Examine the No. 4 Bearing Rear Cooling Duct (01-010) for Cracks

      NOTE

      Make sure that the antigalling compound is fully removed from the spacer threads.

    1. Clean the Part. Refer to the TASK 72-43-30-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below. Use the applicable penetrant procedure.

        PART IDENT

        TASK/SUBTASK

        No. 4 bearing rear cooling duct

        SPM TASK 70-23-01-230-501 (Dip or Spray)

        1. Cracked

        1. Repair, VRS3305 TASK 72-43-30-300-001 (REPAIR-001)

        2. Cracks in the spacer

        1. Repair, VRS3561 TASK 72-43-30-300-010 (REPAIR-010)

    2. SUBTASK 72-43-30-220-051 Examine the No. 4 Bearing Rear Cooling Duct (01-010) for Nicks and Dents

      1. Examine the duct for nicks and dents.

        1. Nicked or dented.

          1. Up to 10 percent of the material thickness, 1.0 sqin (645.16 sqmm) areas that are not continuous. There must be no high metal.

          1. Accept

          2. Other than (a)

          1. Reject

    3. SUBTASK 72-43-30-220-052 Examine the No. 4 Bearing Cooling Duct (01-010) for Damage on the Spacer Threads

    1. Refer to Figure.

      2. Examine the duct at location 1, for damage on the spacer threads.

        1. Damage, minor material pick-up

        1. Repair, VRS3429 TASK 72-43-30-300-003 (REPAIR-003)

        2. Damage more than one or severe thread wear

        1. Repair, VRS3561 TASK 72-43-30-300-010 (REPAIR-010)

    4. SUBTASK 72-43-30-220-053 Examine the No. 4 Bearing Rear Cooling Duct (01-010) for the Inside Diameter

    1. Refer to: Figure

      2. Examine the duct for the inside diameter at location 2236.

        1. If the diameter is between 6.205 and 6.215 in. (157.607 and 157.861 mm)

        1. Accept

        2. Write down the dimension of the diameter.

        2. Other than (1)

        1. Repair, VRS3431 TASK 72-43-30-300-004 (REPAIR-004)**

    5. SUBTASK 72-43-30-220-054 Examine the No. 4 Bearing Rear Cooling Duct (01-010) for the Rear and Front Flange Outside Diameters

      NOTE

      The diameters can be measured in a free or held condition. All dimensions apply when Surface D is flat by 0.002in. (0.051 mm), Diameter G maintains a clearance envelope of 12.759in. (324.079 mm) diameter, and Diameter L maintains a clearance envelope of 6.058in. (153.873 mm) diameter in a free or held condition. Hold the duct only on Surfaces D and R, and Diameters G and L.

    1. Refer to: Figure

      2. Examine the duct for the rear flange outside diameter at location 2240.

        1. If the diameter in a free condition is between 6.038 and 6.072in. (153.365 and 154.229 mm)

        1. Accept

        2. Write down the dimension of the diameter.

        2. If the diameter in a held condition is between 6.053 and 6.057in. (153.746 and 153.848 mm)

        1. Accept

        2. Write down the dimension of the diameter.

        3. Other than (1) or (2)

        1. Reject

      3. Examine the duct for the front flange outside diameter at location 2233.

        1. If the diameter in a free condition is between 12.739 and 12.773in. (323.571 and 324.434 mm)

        1. Accept

        2. Write down the dimension of the diameter.

        2. If the diameter in a held condition is between 12.754 and 12.758in. (323.952 and 324.053 mm)

        1. Accept

        2. Write down the dimension of the diameter.

        3. Other than (1) or (2)

        1. Reject

    6. SUBTASK 72-43-30-220-067 Examine the No. 4 Bearing Rear Cooling Duct (01-010) Oil Drain Hole

    1. Refer to Figure.

      2. Examine the oil drain hole, diameter C.

        1. If diameter C is between 0.115 and 0.135 in. (2.92 to 3.43 mm)

        1. Accept

        2. Other than (1)

        1. Reject

    7. SUBTASK 72-43-30-380-055 Apply Antigalling Compound on the Spacer Threads

      CAUTION

      YOU MUST DO THIS SUBTASK AFTER YOU COMPLETE ALL THE INSPECTIONS AND APPLICABLE REPAIRS AND BEFORE YOU INSTALL THE PART INTO THE ENGINE.

    1. Refer to Figure.

      2. Apply antigalling compound on the spacer threads

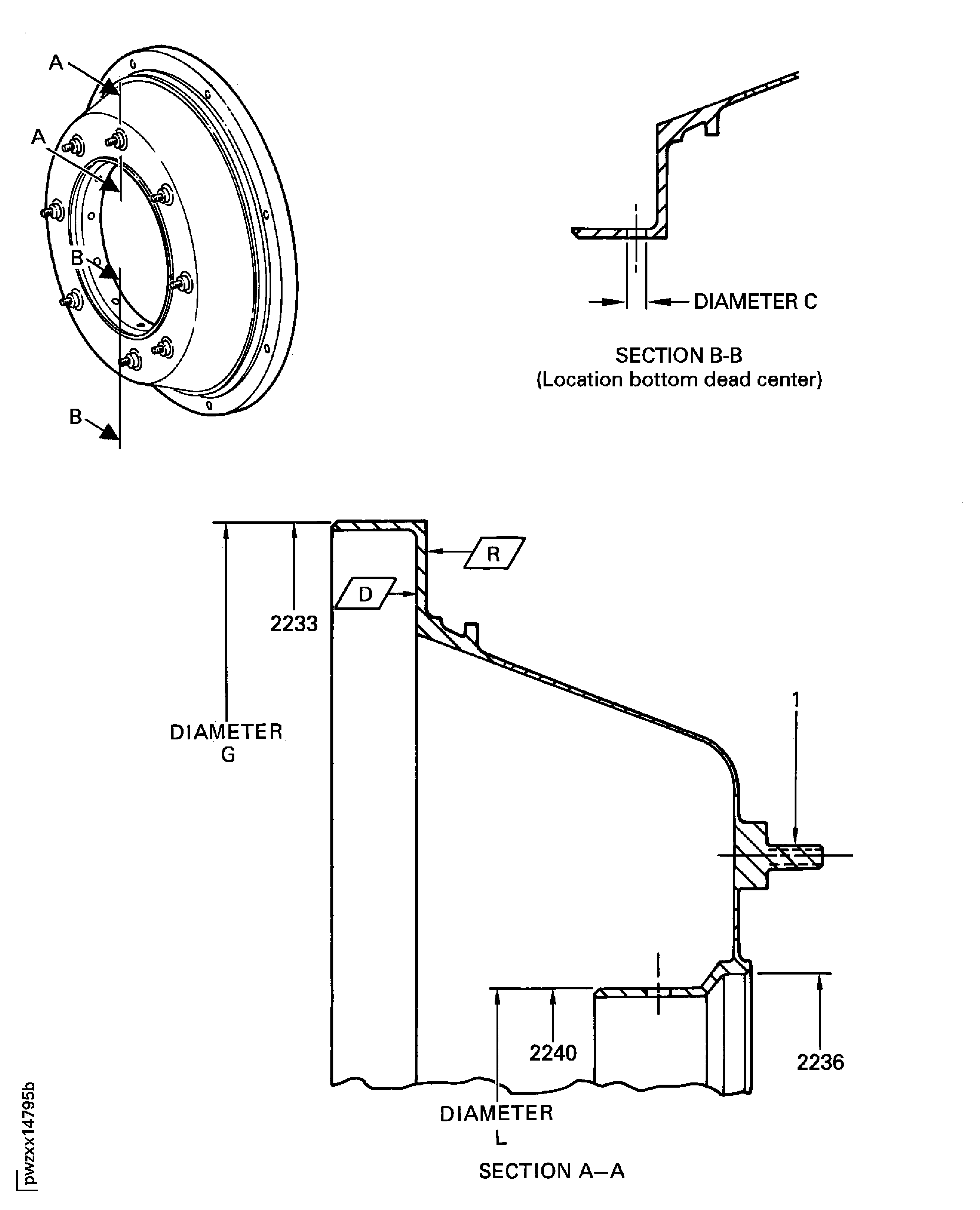

    8. Figure: No. 4 Bearing Rear Cooling Duct Inspection Locations

    No. 4 Bearing Rear Cooling Duct Inspection Locations

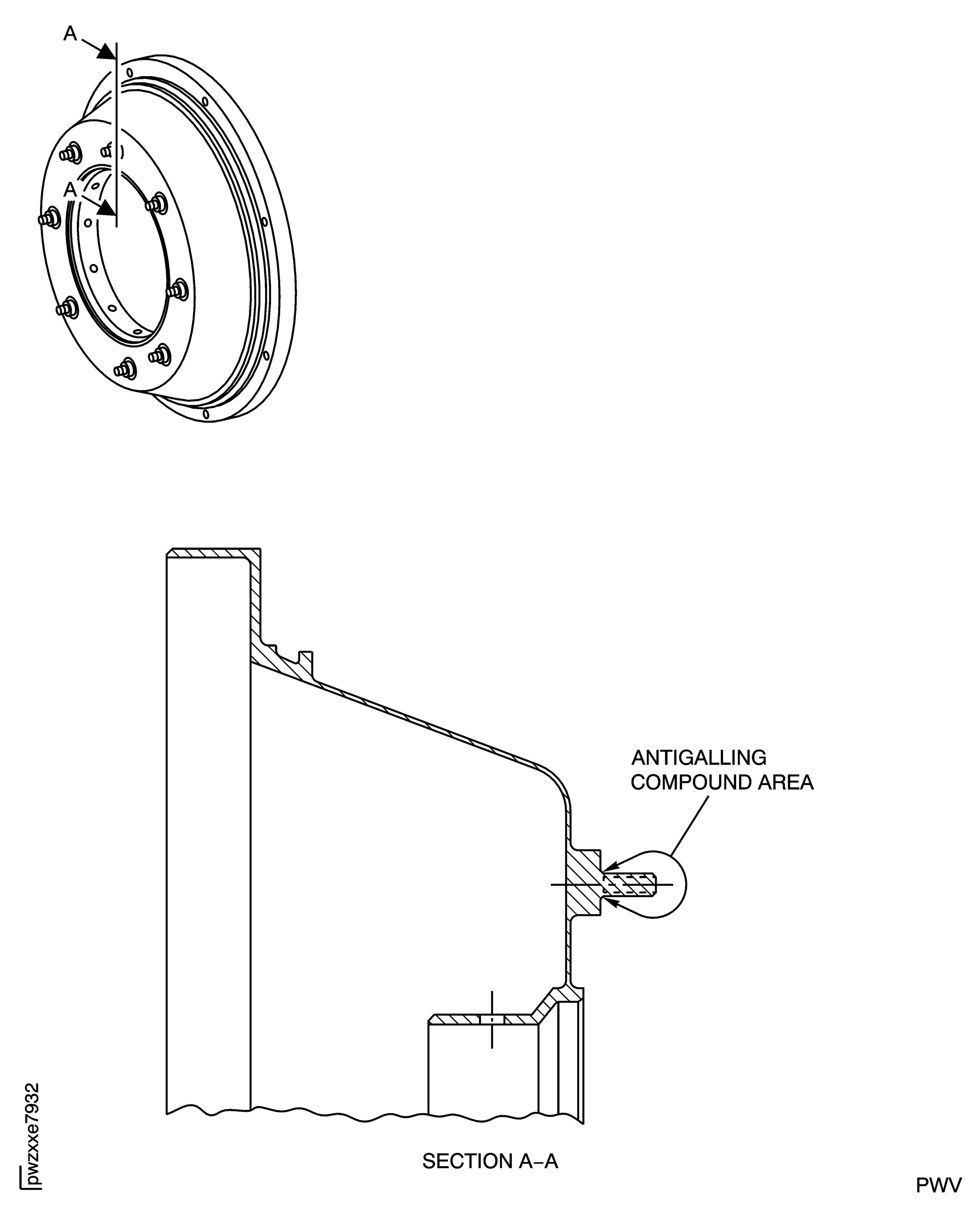

    Figure: No. 4 Bearing Rear Cooling Duct - Antigalling Compound Area

    No. 4 Bearing Rear Cooling Duct - Antigalling Compound Area

Requirements After Job Completion

Follow-On Conditions

NONE
