TASK 75-32-54-300-001 HPC Stage 10 Bleed Seal Assembly - Replace Loose and/or Damaged Rivet(s), Retaining Ring(s) And/Or A Damaged Seal Assembly, Repair-001 (VRS6045)

DMC:V2500-A0-75-32-5411-00A-920A-C|Issue No:006.00|Issue Date:2019-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 75-32-54-300-001 HPC Stage 10 Bleed Seal Assembly - Replace Loose and/or Damaged Rivet(s), Retaining Ring(s) And/Or A Damaged Seal Assembly, Repair-001 (VRS6045)

Effectivity

FIG/ITEM

PART NO.

01-350

6A8338

Material of component

PART IDENT

MATERIAL

Seal retaining ring

Nickel alloy

Seal carrier

Titanium alloy or nickel alloy

Flexible seal duct

Dunlop rubber

Rivet

Corrosion resisting steel

General

This Repair must only be done when the instruction to do so is given in 75-32-54 Inspection/Check.

This Repair replaces loose and/or damaged rivet(s), damaged retaining ring(s) and/or a damaged seal duct, in the HP compressor stage 10 RH upper air seal assembly.

When loose and/or damaged rivet(s) are to be replaced, go to Step.

When a damaged seal duct or retaining ring(s) is to be replaced, go to Step.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

Price and availability - Refer to International Aero Engines (IAE)

Related repairs - none

NOTE

Equipment and materials necessary to do this repair are in the SPM TASKS given below:
Refer to SPM TASK 70-09-00-400-501.
Refer to SPM TASK 70-09-01-400-501.
Refer to SPM TASK 70-11-26-300-503.
Refer to SPM TASK 70-23-02-230-501.
Refer to SPM TASK 70-23-05-230-501.
Refer to SPM TASK 70-39-03-390-501.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Chemical Cleaning EquipmentLOCALChemical Cleaning Equipment
Penetrant Crack Test EquipmentLOCALPenetrant Crack Test Equipment
Vertical Drilling MachineLOCALVertical Drilling Machine
Standard Workshop EquipmentLOCALStandard Workshop Equipment
Vibro-Engraving EquipmentLOCALVibro-Engraving Equipment
Workshop Inspection EquipmentLOCALWorkshop Inspection Equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
1012489 OR ARM944 DUCT - SEAL, (VRS6360)K14061012489 or (Supplier PN: ARM944)1

01-386

RIVET - SOLID UNIVERSAL HEADU1653AS1609012AR

01-380

RIVET - SOLID UNIVERSAL HDU1653AS1613212AR

01-382

RIVET - BLIND, UNIVERSAL HEADU1653AS46789-41112AR

01-380

RIVET - BLIND, UNIVERSAL HEADU1653AS46789-51212AR

01-382

RING, RETAINING - SEALD33096M11902

01-385

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-32-54-110-054 Clean the Assembly

      1. Chemically clean

      1. Refer to Cleaning-000 TASK 75-32-54-100-100.

    2. SUBTASK 75-32-54-230-056 Do a Crack Test

    3. SUBTASK 75-32-54-323-051 Remove Loose and/or Damaged Rivet(s)

      NOTE

      The SUBTASKS which follow must only be used to replace loose and/or damaged rivet(s).

    1. Refer to Figure and Figure.

      2. Remove loose and/or damaged rivet(s).

      2. Use drill diameter that is smaller than the rivet hole diameter.

    4. SUBTASK 75-32-54-220-058 Examine the Rivet Hole(s)

    1. Refer to Figure and Figure.

      2. Visually examine and measure the diameter of the exposed rivet hole(s).

      1. If diameter of the rivet hole(s) is larger than 0.164 in. (4.175 mm) discard whole silencer assembly.

      2. Mark damaged and oversized rivet holes.

    5. SUBTASK 75-32-54-323-051 Drill the Rivet Hole(s)

    1. Refer to Figure and Figure.

      2. Drill damaged rivet hole(s) to suit the larger rivet(s) as necessary.

      3. Remove the sharp edges around the rivet hole(s).

    6. SUBTASK 75-32-54-110-055 Chemically Clean

      1. Chemically clean around the rivet hole(s).

      1. Refer to SPM TASK 70-11-26-300-503.

    7. SUBTASK 75-32-54-230-057 Do a Crack Test

      1. Do a local penetrant crack test around the rivet hole(s).

      1. Refer to SPM TASK 70-23-05-230-501.

      4. Cracks are not permitted.

    8. SUBTASK 75-32-54-350-052-B00 Install the Rivet(s)

    1. Refer to Figure and Figure.

      2. Put the rivet(s) in the rivet hole(s) as necessary.

      1. Use AS16090 RIVET - SOLID UNIVERSAL HEAD, 12 max. (75-32-54, 01-380) and/or large AS16132 RIVET - SOLID UNIVERSAL HD, 12 max. (75-32-54, 01-382) for large holes.

      2. Alternatively, AS46789-411 RIVET - BLIND, UNIVERSAL HEAD, 12 max. (75-32-54, 01-380) and/or large AS46789-512 RIVET - BLIND, UNIVERSAL HEAD, 12 max. (75-32-54, 01-382) for large holes.

    9. SUBTASK 75-32-54-390-051 Safety the Rivet(s) in Place

    1. Refer to Figure and Figure.

      2. Cold squeeze the rivet(s) in place.

      1. Refer to SPM TASK 70-39-03-390-501.

    10. SUBTASK 75-32-54-110-056 Chemically Clean

      1. Chemically clean around the rivet head(s).

      1. Refer to SPM TASK 70-11-26-300-503.

    11. SUBTASK 75-32-54-230-058 Do a Crack Test

      1. Do a local penetrant crack test on the new rivet(s).

      1. Refer to SPM TASK 70-23-05-230-501.

        4. Discard cracked rivet(s).

        1. Do Step to Step if necessary.

    12. SUBTASK 75-32-54-350-051 Remove a Damaged Seal Duct and/or Retaining Ring(s)

      NOTE

      The SUBTASKS which follow must only be used to replace a damaged seal duct and/or retaining ring(s).

    1. Refer to Figure and Figure.

      2. Put a mark on each part, to make sure that they agree at assembly.

      1. Refer to SPM TASK 70-09-01-400-501.

      3. Remove the rivets to release the seal duct and/or retaining ring(s).

    4. Discard the damaged seal duct.

    5. Discard the damaged retaining ring(s).

    13. SUBTASK 75-32-54-220-065 Examine the Rivet Holes

    1. Refer to Figure and Figure.

      2. Visually examine and measure the diameter of the rivet holes.

      1. If diameter of the rivet hole(s) is larger than 0.164 in. (4.175 mm) discard whole silencer assembly.

      2. Mark damaged and oversized rivet holes.

      3. Damaged rivet holes

      1. Deleted

      2. Do Step, Step, and Step as necessary.

    14. SUBTASK 75-32-54-350-055-B00 Install a New or Serviceable Seal Duct or Retaining Ring(s)

    1. Refer to Figure and Figure.

    2. Align the marks made in Step.

      3. Install a new or serviceable seal duct.

      1. Use 1012489 or (Supplier PN: ARM944) , 1 off, (75-32-54, 01-386).

      4. Install a new or serviceable retaining ring(s).

      1. Use 6M1190 RING, RETAINING - SEAL, 2 max. (75-32-54, 01-385).

      5. Install the rivets to safety all sub parts in position.

      1. Use AS16090 RIVET - SOLID UNIVERSAL HEAD, 12 max. (75-32-54, 01-380) and/or large AS16132 RIVET - SOLID UNIVERSAL HD, 12 max. (75-32-54, 01-382) for large holes.

      2. Alternatively AS46789-411 RIVET - BLIND, UNIVERSAL HEAD, 12 max. (75-32-54, 01-380) and/or large AS46789-512 RIVET - BLIND, UNIVERSAL HEAD, 12 max. (75-32-54, 01-382) for large holes.

    15. SUBTASK 75-32-54-390-052 Safety the New or Serviceable Seal Duct and Retaining Ring(s) in Place

    1. Refer to Figure and Figure.

      2. Cold squeeze the rivets in place.

      1. Refer to SPM TASK 70-39-03-390-501.

    16. SUBTASK 75-32-54-110-057 Chemically Clean

      1. Chemically clean the rivet head(s).

      1. Refer to SPM TASK 70-11-26-300-503.

    17. SUBTASK 75-32-54-230-059 Do a Crack Test

      1. Do a local penetrant crack test on the new rivets.

      1. Refer to SPM TASK 70-23-05-230-501.

        4. Discard cracked rivet(s).

        1. Do Step to Step if necessary.

    18. SUBTASK 75-32-54-220-059 Examine the Assembled Air Seal Assembly

    1. Refer to Figure and Figure.

      2. Visually examine and measure the dimensions of the air seal assembly.

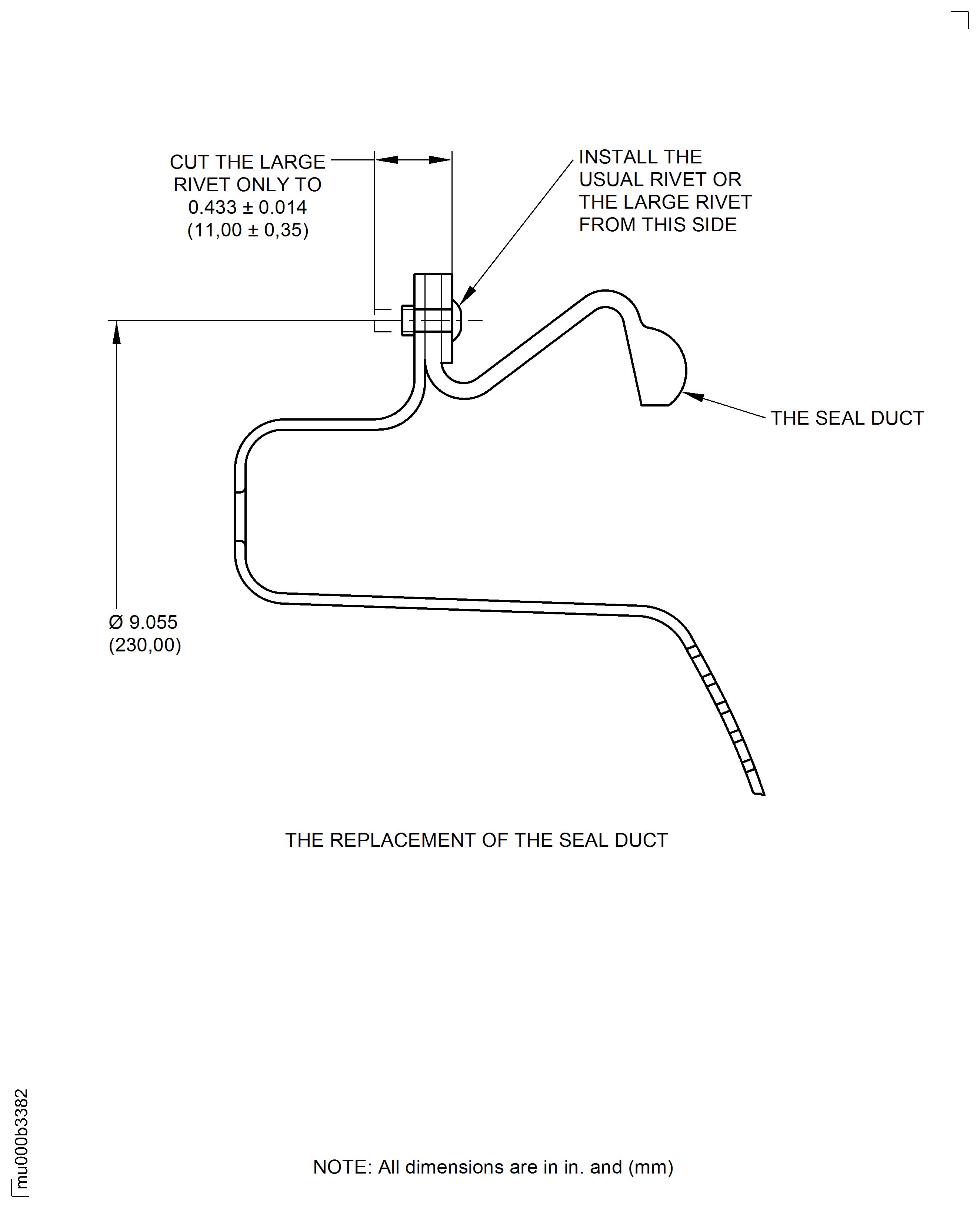

    19. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

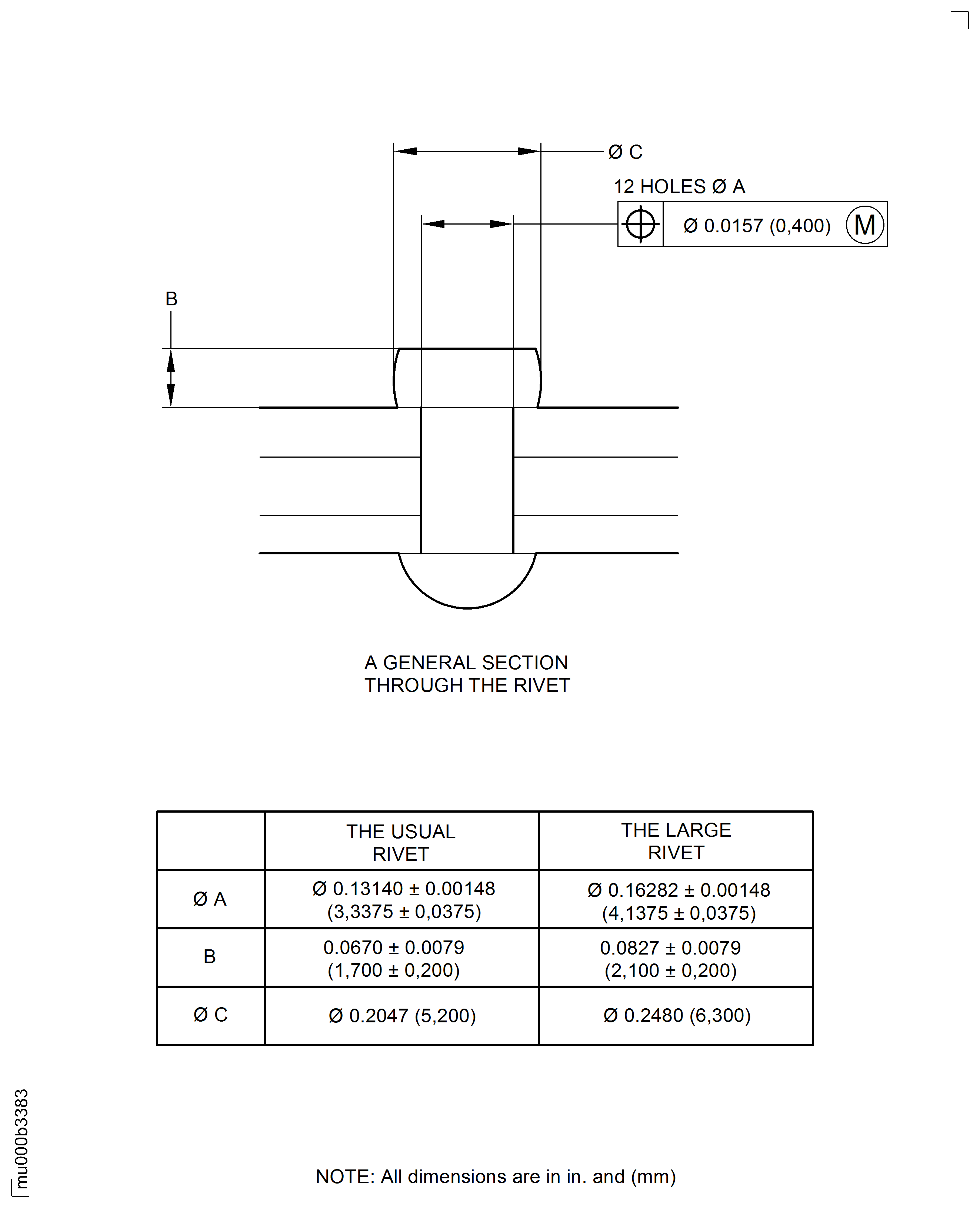

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised consumable. Revised spare. Revised procedural step. Deleted step. Added procedural step. Revised graphic. (16VU504-A)
