TASK 72-00-40-700-001-A00 HP System Module - Check The Variable Inlet Guide Vane (VIGV) And Variable Stator Vane (VSV) Actuating Mechanism, Testing-001

DMC:V2500-A1-72-00-4000-01B-320A-B|Issue No:003.00|Issue Date:2016-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-00-40-700-001-A00 HP System Module - Check The Variable Inlet Guide Vane (VIGV) And Variable Stator Vane (VSV) Actuating Mechanism, Testing-001

General

This TASK gives the procedure to check the VIGV and VSV actuating mechanism. It includes the procedure to examine the system and also check the high speed rigging position.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject the applicable Chapter/Section/Subject comes before the Fig/item number.

Apply the approved penetrating oil before the removal of the threaded parts and parts with an interference fit. Let the parts soak before removal. For the approved oils and procedures, refer to the SPM TASK 70-64-00-640-501.

Lubricate all threads and mating faces of the nuts and the bolts with CoMat 10-077 APPROVED ENGINE OILS unless other lubricants are referred to in the procedure.

For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501, SPM TASK 70-41-01-400-501 and SPM TASK 70-41-02-410-501.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Spring balance, 0 to 150 lbf (0 to 203.37 N) rangeLOCALSpring balance, 0 to 150 lbf (0 to 203.37 N) range
Vernier caliperLOCALVernier caliper
Dial gaugeLOCALDial gauge
IAE 1R18254 Rigging pin0AM53IAE 1R182541
IAE 1R18423 Rigging pin0AM53IAE 1R184231
IAE 1R18892 Rigging pin0AM53IAE 1R188921

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-40-220-146 Measure The Crankshaft Movement

    1. Refer to Figure.

      2. Axial movement.

        1. Up to 0.020 in. (0.51 mm).

        1. Accept.

        2. More than Step.

        1. Reject the crankshaft bearings.

      3. Radial movement at rear housing.

        1. Up to 0.008 in. (0.20 mm).

        1. Accept.

        2. More than Step.

        1. Reject the crankshaft bearings.

    2. SUBTASK 72-00-40-040-051 Disconnect the VSV Control Rod

    1. Refer to Figure and Figure.

    2. Remove the nut, washer and the bolt that attach the VSV actuator control rod to the VSV and VIGV crankshaft.

    3. SUBTASK 72-00-40-220-089 Check the VIGV and VSV Actuating Mechanism

    1. Refer to Figure.

    2. Use an applicable wrench on the wrench flats of the crankshaft, turn the crankshaft to the high speed position and align the rig pins holes.

    3. Install the IAE 1R18254 Rigging pin 1 off, through the rig pin holes in the crankshaft front bearing housing and the crankshaft.

    4. Install the IAE 1R18423 Rigging pin 1 off or IAE 1R18892 Rigging pin 1 off in to the rig pin bracket on the VIGV unison ring and the VSV unison ring positions.

    5. Make sure that the rig pin engages with the hole in the compressor case.

      6. If the rig pin can not be easily installed at one or more of the positions, examine the VIGV and VSV system levers and control rods for damage.

      1. If one or more of the levers are damaged, reject the module.

      2. If one or more of the control rods are damaged, reject the module.

      3. If the rig pin can not be easily installed, reject the module.

    7. Remove the rig pin from the crankshaft.

    4. SUBTASK 72-00-40-220-138 Check the Force Necessary to move the VIGV/VSV Actuating Mechanism

    1. Refer to Figure and Figure.

    2. Put a torque wrench with an applicable wrench adapter on to the wrench flats of the crankshaft. Measure the torque necessary to turn the crankshaft from the low speed position to the high speed position. If the torque necessary is more than 350 lbf.in (39.5 Nm) then lubricate the VSV system, refer to TASK 72-41-00-440-002-A00 (ASSEMBLY-002, CONFIG-001). Measure the torque after lubrication, if it is still in excess of 350 lbfin. (39.5 Nm) do steps Step through Step.

    3. Do the following procedure to determine which unison ring stage(s) is the cause of the high torque figure of 350 lbfin. (39.5 Nm).

      4. Disconnect the control rod from the VIGV unison ring. Refer to Figure and Figure, detail C.

      1. Remove and discard the cotter pin.

      2. Remove the nut and bolt then disconnect the control rod.

      5. Disconnect the control rods from stages 3, 4 and 5 VSV unison rings, Figure and Figure, detail B.

      1. Remove the nut and bolt then disconnect the control rod.

      6. Measure the force necessary to move each unison ring from the low speed to the high speed position.

      1. Attach the spring balance to the control attachment point on each stage unison ring in turn (VIGV, STG 3, 4, 5 and 6).

      2. Pull the spring balance at a tangent to the unison ring. Make a note of the force necessary to move the unison ring.

    7. If the force necessary to move the unison ring is more than 100 lbf (444.82 N), reject the module.

    5. SUBTASK 72-00-40-210-051 Examine the Levers and Control Rods

      1. Examine the levers for damage.

      1. If one or more of the levers are damaged, reject the module.

      2. Examine the control rods for damage.

      1. If one or more of the control rods are damaged, reject the module.

    6. SUBTASK 72-00-40-440-051 Connect the Control Rods

    1. Refer to Figure and Figure.

      2. Connect stage 3 unison ring control rod.

      1. Align the control rod V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-250) to the stage 3 unison ring - Refer to detail B.

      2. Install the bolt V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-236) and the nut V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-232).

      3. Torque the nut between 180 lbfin. and 220 lbfin. (20 Nm and 25 Nm).

      3. Connect stage 4 unison ring control rod.

      1. Align the control rod V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-300) to the stage 4 unison ring - Refer to detail B.

      2. Install the bolt V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-286) and the nut V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-282).

      3. Torque the nut between 180 lbfin. and 220 lbfin. (20 Nm and 25 Nm).

      4. Connect stage 5 unison ring control rod.

      1. Align the control rod V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-350) to the stage 5 unison ring - Refer to detail B.

      2. Install the bolt V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-334) and the nut V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-332).

      3. Torque the nut between 180 lbfin. and 220 lbfin. (20 Nm and 25 Nm).

      5. Connect stage 6 unison ring control rod.

      1. Align the control rod V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-450) to the stage 6 unison ring - Refer to detail B.

      2. Install the bolt V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-436) and the nut V2500-A5-72-41-34-01A-941A-D (72-41-34 ,01-432).

      3. Torque the nut between 180 lbfin. and 220 lbfin. (20 Nm and 25 Nm).

      6. Connect the control rod to the VIGV unison ring.

      1. Align the control rod V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-200) to the VIGV unison ring - Refer to detail C.

      2. Install the bolt V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-184) and the nut V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-182).

      3. Torque the nut to between 180 lbfin. and 220 lbfin. (20 Nm and 250 Nm).

      4. Safety the nut with a new cotter pin V2500-A5-72-41-34-01A-941A-D (72-41-34, 01-181).

    7. SUBTASK 72-00-40-440-052 Connect the Control Rod to the VSV Actuator

    1. Refer to Figure and Figure.

    2. Align the control rod ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES (72-41-34, 07-090) to the Actuator.

    3. Install the bolt HP COMP VARIABLE STATOR VANE ACTUATOR LINKAGE (75-32-42, 01-084), the washer HP COMP VARIABLE STATOR VANE ACTUATOR LINKAGE (75-32-42, 01-083) and the nut HP COMP VARIABLE STATOR VANE ACTUATOR LINKAGE (75-32-42, 01-082).

    4. Torque the nut to between 290 lbfin. and 370 lbfin. (33 Nm and 42 Nm).

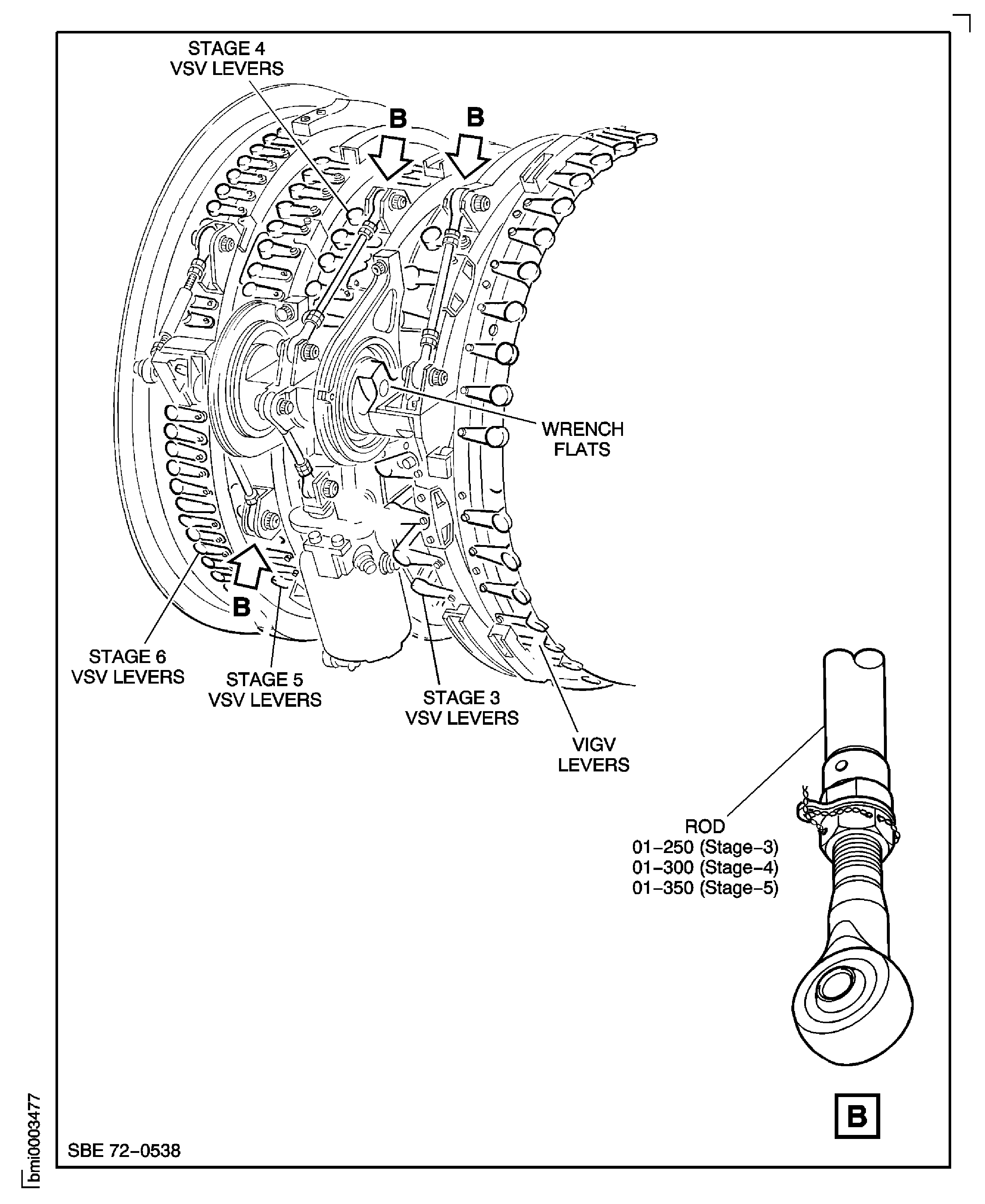

    8. Figure: Pre SBE 72-0538: VSV Crankshaft and Unison Rings

    Pre SBE 72-0538: VSV Crankshaft and Unison Rings

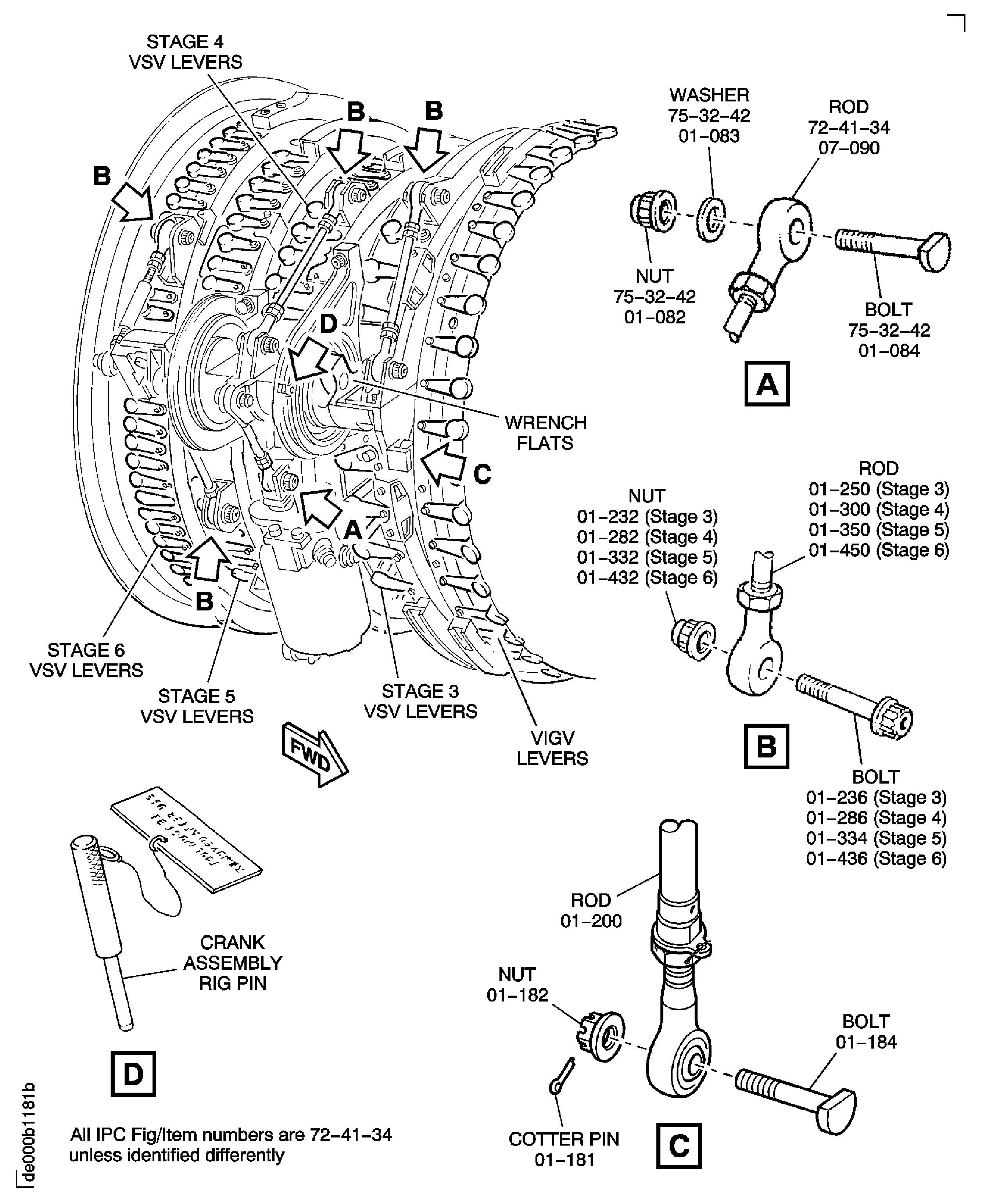

    Figure: SBE 72-0538: VSV Crankshaft and Unison Rings

    SBE 72-0538: VSV Crankshaft and Unison Rings

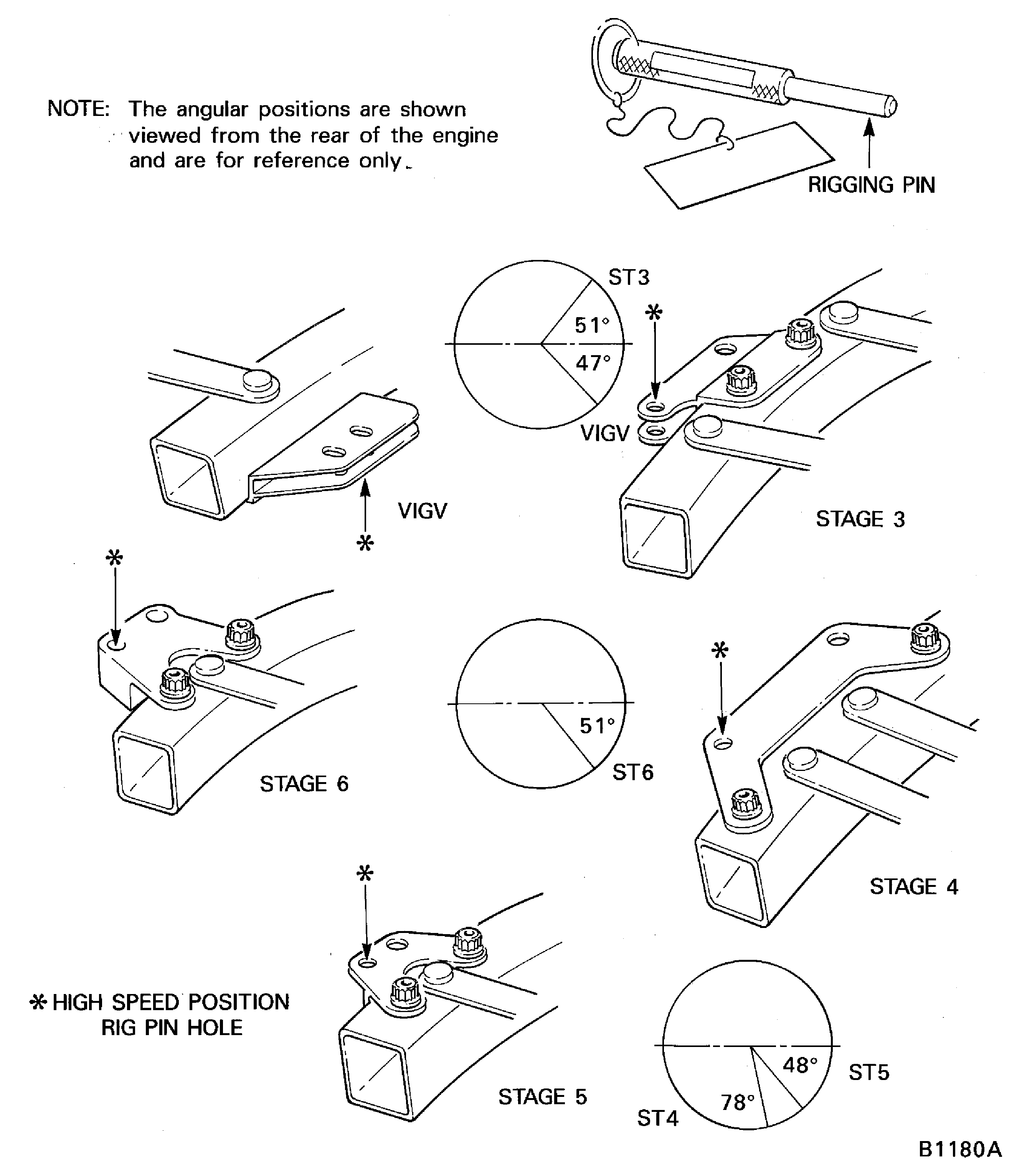

    Figure: Unison ring rig pin brackets

    Unison ring rig pin brackets

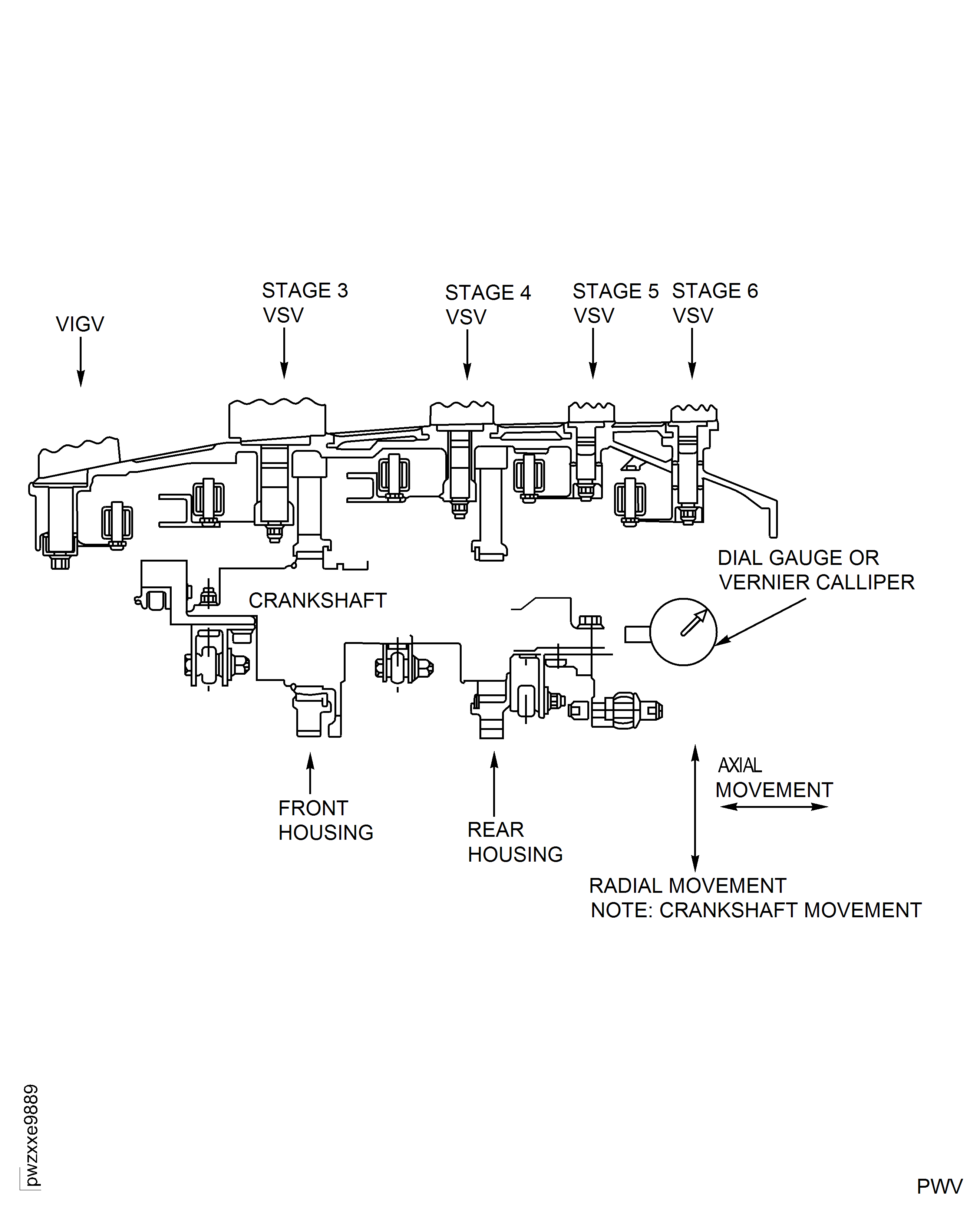

    Figure: Crankshaft Movement Check

    Crankshaft Movement Check

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised procedure to measure the crankshaft movement. (12VR713)
