V2500-A1
Common Information
TASK 72-32-89-200-001 Fan Case Outer Acoustic Transition Liner Panel - Examine, Inspection-001
General
This TASK gives the procedure for the inspection of the acoustic linings.
Fig/item numbers in parentheses in the procedure agree with those used in the IPC.
The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.
All the parts must be cleaned before any part is examined. Refer to TASK 72-32-89-100-000.
All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.
The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.
Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.
Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.
All parts must be examined to make sure that all the repairs have been completed satisfactorily.
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
References
Refer to the SPM for data on these items.
Definitions of Damage, SPM TASK 70-02-02-350-501
Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501
Inspection of Parts, SPM TASK 70-20-01-200-501
Some data on these items is contained in this TASK. For more data on these items refer to the SPM.
Method of Testing for Crack Indications
Chemical Processes
Surface Protection
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Clean the part. Refer to TASK 72-32-89-100-000.
SUBTASK 72-32-89-230-051 Examine the Acoustic Linings for Cracks
Refer to Figure.
Repair, VRS1426 TASK 72-32-89-300-002
Any nicks
Repair, VRS1426 TASK 72-32-89-300-002
Any scores
SUBTASK 72-32-89-220-053 Examine the Doubler Surfaces at Location 1
Refer to Figure.
Repair, VRS1426 TASK 72-32-89-300-002
Any scores
SUBTASK 72-32-89-220-054 Examine the Bolt Holes at Location 2
Refer to Figure.
Repair, VRS1428 TASK 72-32-89-300-001
Any damages
SUBTASK 72-32-89-220-055 Examine the Lining Surfaces at Location 3
Refer to Figure.
Repair, VRS1429 TASK 72-32-89-300-004
Any damages
SUBTASK 72-32-89-220-056 Examine the Vibration Insulation at Location 4
Refer to Figure.
Repair, VRS1430 TASK 72-32-89-300-005
Any damages
SUBTASK 72-32-89-220-057 Examine the Captive Nuts at Location 5

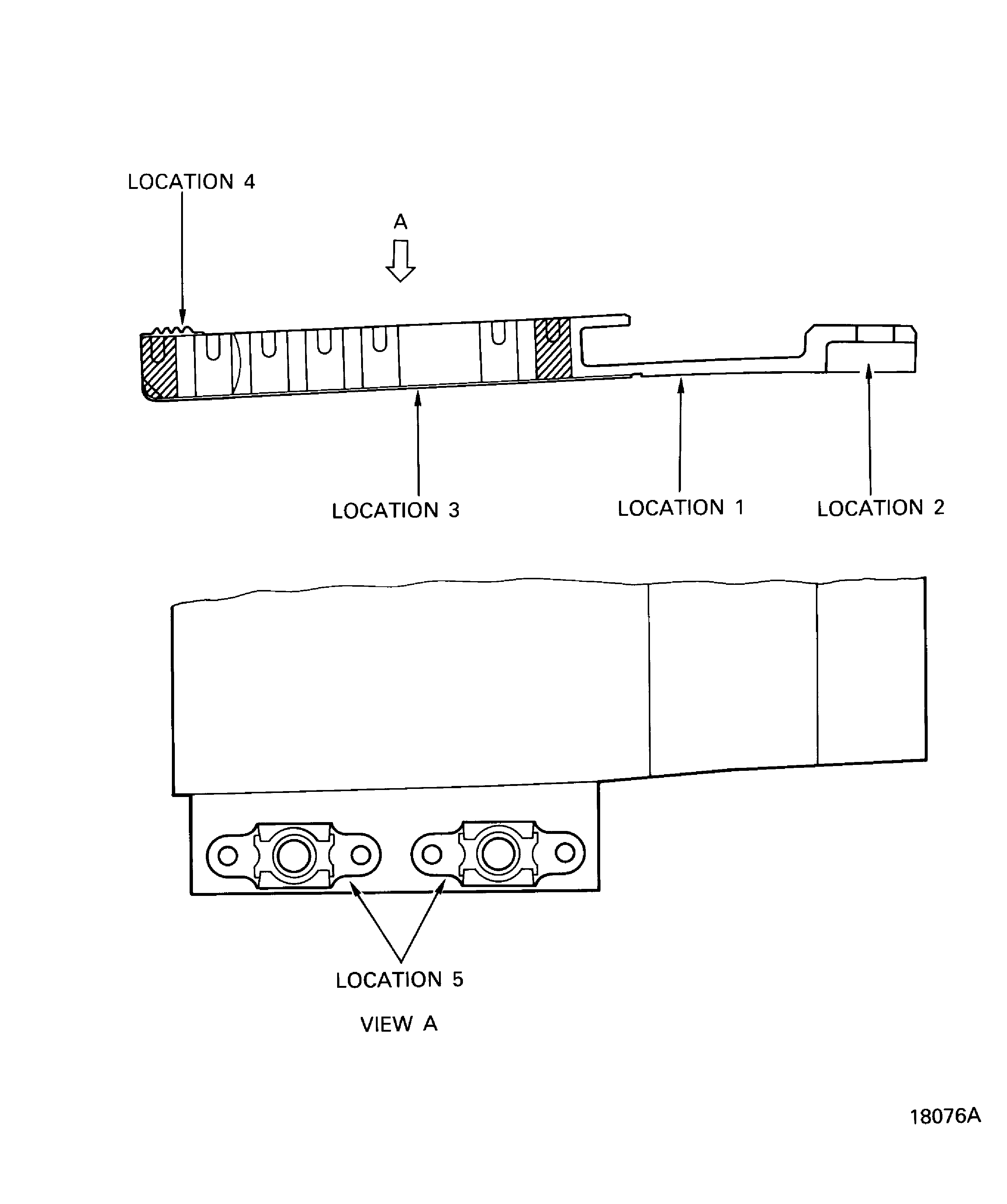

Figure: Locations, acoustic lining
Locations, acoustic lining
