DMC:V2500-A1-72-50-22-01A-941A-DIssue No:002.00Issue Date:2018-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72502201 | ENGINE - LP NOZZLE VANES, PRE SBE70-0007 | aa | ||
| SBE0007-01 | ENGINE - LP NOZZLE VANES, PRE SBE70-0043 | ab | ||
| SBE0043-01 | ENGINE - LP NOZZLE VANES, PRE SBE70-0107 | ac | ||
| SBE0107-01 | ENGINE - LP NOZZLE VANES, PRE SBE72-0138 | ad | ||
| SBE0138-01 | ENGINE - LP NOZZLE VANES, PRE SBE70-0219 | ae | ||
| SBE0219-01 | ENGINE - LP NOZZLE VANES, PRE SBE70-0218 | af | ||
| SBE0218-01 | ENGINE - LP NOZZLE VANES, PRE SBE70-0230 | ag | ||
| SBE0230-01 | ENGINE - LP NOZZLE VANES, PRE SBE70-0512 | ah | ||
| SBE0512-01 | ENGINE - LP NOZZLE VANES, PRE SBE70-0514 | ai | ||
| SBE0514-01 | ENGINE - LP NOZZLE VANES, PRE SBE70-0513 | aj | ||
| SBE0513-01 | ENGINE - LP NOZZLE VANES, PRE SBE70-0640 | ak | ||
| SBE0640-01 | ENGINE - LP NOZZLE VANES, PRE SBE70-0810 | al | ||
| SBE0810-01 | ENGINE - LP NOZZLE VANES, PRE SBE70-0833 | am | ||
| SBE0833-01 | ENGINE - LP NOZZLE VANES, PRE SBE72-0588 | an | ||
| SBE0588-01 | ENGINE - LP NOZZLE VANES | ao | ||
| 010 | 3A0487CL50 | • VANE - TURBINE, 7TH STAGE, ASSEMBLY OF PRE SBE70-0107 | aa-ad | 32 |
| 010A | 3A1783CL50 | • VANE - TURBINE, 7TH STAGE, ASSEMBLY OF POST SBE70-0107 PRE SBE72-0138 | aa-ad | 32 |
| 010B | 3A1827 | • VANE - TURBINE, 7TH STAGE, ASSEMBLY OF POST SBE72-0138 PRE SBE70-0230 | ae-ao | 32 |
| 010C | 3A2307 | • VANE - TURBINE, 7TH STAGE, ASSEMBLY OF POST SBE70-0230 PRE SBE70-0640 | ae-ao | 32 |
| 010D | 3A2497 | • VANE - TURBINE, 7TH STAGE, ASSEMBLY OF POST SBE70-0640 PRE SBE72-0588 | ae-an | 32 |
| 010E | 3A3130 | • VANE - TURBINE, 7TH STAGE, ASSEMBLY OF POST SBE72-0588 | ao | 32 |
| 031 | 3A1571 | • • SEAL SEGMENT - HONEYCOMB | ***** | 1 |
| 031A | 3A1571 | • • SEAL SEGMENT - HONEYCOMB POST SBE70-0810 | am-ao | 1 |
| 033 | 3A1572 | • • SEAL SEGMENT - HONEYCOMB | ***** | 1 |
| 033A | 3A1572 | • • SEAL SEGMENT - HONEYCOMB POST SBE70-0810 PRE SBE72-0588 | am-ao | 1 |
| 033B | 3A3133 | • • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | ao | 1 |
| 033C | 3A3141 | • • SEAL,SEGMENT HONEYCOMB POST SBE72-0588 | ao | 1 |
| 035 | 3A1570 | • • SEAL SEGMENT - HONEYCOMB | ***** | 1 |
| 035A | 3A2542 | • • SEAL - SEGMENT, HONEYCOMB POST SBE70-0810 | am-ao | 1 |
| 035B | 3A1570 | • • SEAL SEGMENT - HONEYCOMB POST SBE70-0810 | am-ao | 1 |
| 035C | 3A3049 | • • SEAL SEGMENT - HONEYCOMB POST SBE70-0810 PRE SBE72-0588 | am-ao | 1 |
| 035D | 3A3134 | • • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | ao | 1 |
| 036 | 3A0002 | • • KEY - LOCATING | aa-ao | 32 |
| 175 | 3A0026CL50 | • VANE - TURBINE, 6TH STAGE, ASSEMBLY OF PRE SBE70-0107 | aa-ad | 33 |
| 175A | 3A2057CL50 | • VANE - TURBINE, 6TH STAGE, ASSEMBLY OF POST SBE70-0107 PRE SBE72-0138 | aa-ad | 33 |
| 175B | 3A1826 | • VANE - TURBINE, 6TH STAGE, ASSEMBLY OF POST SBE72-0138 PRE SBE70-0230 | ae-ao | 33 |
| 175C | 3A2306 | • VANE - TURBINE, 6TH STAGE, ASSEMBLY OF POST SBE70-0230 PRE SBE70-0640 | ae-ao | 33 |
| 175D | 3A2486 | • VANE - TURBINE, 6TH STAGE, ASSEMBLY OF POST SBE70-0640 PRE SBE72-0588 | al-an | 33 |
| 175E | 3A3127 | • VANE - TURBINE, 6TH STAGE, ASSEMBLY OF POST SBE72-0588 | ao | 33 |
| 196 | 3A1573 | • • SEAL SEGMENT - HONEYCOMB | ***** | 1 |
| 196A | 3A2541 | • • SEAL - SEGMENT, HONEYCOMB POST SBE70-0810 PRE SBE72-0588 | am-ao | 1 |
| 196B | 3A1573 | • • SEAL SEGMENT - HONEYCOMB POST SBE70-0810 PRE SBE70-0810 | ***** | 1 |
| 196C | 3A3129 | • • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | ao | 1 |
| 198 | 3A1575 | • • SEAL SEGMENT - HONEYCOMB | ***** | 1 |
| 198A | 3A1575 | • • SEAL SEGMENT - HONEYCOMB POST SBE70-0810 PRE SBE72-0588 | am-ao | 1 |
| 198B | 3A3132 | • • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | ao | 1 |
| 198C | 3A3140 | • • SEAL,SEGMENT HONEYCOMB POST SBE72-0588 | ao | 1 |
| 200 | 3A1574 | • • SEAL SEGMENT - HONEYCOMB | ***** | 1 |
| 200A | 3A1574 | • • SEAL SEGMENT - HONEYCOMB POST SBE70-0810 | am-ao | 1 |
| 205 | 3A0002 | • • KEY - LOCATING | aa-ao | 1 |
| 350 | 3A0025CL45 | • VANE - TURBINE, 5TH STAGE, ASSEMBLY OF PRE SBE72-0138 PRE SBE72-0588 | aa-ad | 31 |
| 350A | 3A1825 | • VANE - TURBINE, 5TH STAGE, ASSEMBLY OF POST SBE72-0138 PRE SBE70-0230 PRE SBE72-0588 | ae-ag | 31 |
| 350B | 3A2305 | • VANE - TURBINE, 5TH STAGE, ASSEMBLY OF POST SBE70-0230 PRE SBE72-0588 | ae-ao | 31 |
| 350C | 3A3120 | • VANE - TURBINE, 5TH STAGE, ASSEMBLY OF ALT 3A3123 POST SBE72-0588 | ao | 31 |
| 350D | 3A3122 | • VANE - TURBINE, 5TH STAGE, ASSEMBLY OF POST SBE72-0588 | ao | 31 |
| 350E | 3A3123 | • VANE - TURBINE, 5TH STAGE, ASSEMBLY OF ALT 3A3120 POST SBE72-0588 | ao | 31 |
| 371 | 3A1576 | • • SEAL SEGMENT - HONEYCOMB | ***** | 1 |
| 371A | 3A2540 | • • SEAL - SEGMENT, HONEYCOMB POST SBE70-0810 PRE SBE72-0588 | am-ao | 1 |
| 371B | 3A3125 | • • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | ao | 1 |
| 371C | 3A3124 | • • SEAL SEGMENT - HONEYCOMB ALT 3A3125 POST SBE72-0588 | ao | 1 |
| 375 | 3A0002 | • • KEY - LOCATING | aa-ao | 31 |
| 500 | 3A0022 | • SEAL - STRIP PRE SBE72-0138 | aa-ad | 31 |
| 500A | 3A1801 | • SEAL - STRIP POST SBE72-0138 | ae-ao | 31 |
| 510 | 3A0032 | • SEAL - STRIP PRE SBE72-0138 | aa-ad | 31 |
| 510A | 3A1799 | • SEAL - STRIP POST SBE72-0138 | ae-ao | 31 |
| 520 | 3A0031 | • SEAL - STRIP PRE SBE72-0138 | aa-ad | 31 |
| 520A | 3A1800 | • SEAL - STRIP POST SBE72-0138 | ae-ao | 31 |
| 530 | 3A0038 | • SEAL - STRIP PRE SBE72-0138 | aa-ad | 31 |
| 530A | 3A1802 | • SEAL - STRIP POST SBE72-0138 | ae-ao | 31 |
| 550 | 3A0637CL45 | • VANE - TURBINE, 4TH STAGE, ASSEMBLY OF PRE SBE72-0138 PRE SBE72-0588 | aa-ad | 30 |
| 550B | 3A2274 | • VANE - TURBINE, 4TH STAGE, ASSEMBLY OF POST SBE72-0138 PRE SBE72-0588 | ae-an | 30 |
| 550C | 3A2284 | • VANE,A/O TURBINE STG4 PRE SBE72-0588 | aa-an | 30 |
| 550D | 3A2244 | • VANE - TURBINE, 4TH STAGE, ASSEMBLY OF POST SBE70-0219 PRE SBE70-0512 | af-ao | 30 |
| 550E | 3A2417 | • VANE - TURBINE, 4TH STAGE, ASSEMBLY OF POST SBE70-0512 PRE SBE72-0588 | af-ao | 30 |
| 550F | 3A2244 | • VANE - TURBINE, 4TH STAGE, ASSEMBLY OF POST SBE70-0514 PRE SBE72-0588 | aj-ao | 30 |
| 550G | 3A2898 | • VANE - TURBINE, 4TH STAGE, ASSEMBLY OF POST SBE70-0833 PRE SBE72-0588 | an-ao | 30 |
| 550H | 3A3105 | • VANE - TURBINE, 4TH STAGE, ASSEMBLY OF POST SBE72-0588 | ao | 30 |
| 550I | 3A3097 | • VANE - TURBINE, 4TH STAGE, ASSEMBLY OF POST SBE72-0588 | ao | 30 |
| 550J | 3A3101 | • VANE - TURBINE, 4TH STAGE, ASSEMBLY OF POST SBE72-0588 | ao | 30 |
| 550K | 3A3112 | • VANE - TURBINE, 4TH STAGE, ASSEMBLY OF POST SBE72-0588 | ao | 30 |
| 550L | 3A3119 | • VANE - TURBINE, 4TH STAGE, ASSEMBLY OF ALT 3A3113 POST SBE72-0588 | ao | 30 |
| 550M | 3A3113 | • VANE - TURBINE, 4TH STAGE, ASSEMBLY OF POST SBE72-0588 | ao | 30 |
| 550N | 3A3114 | • VANE - TURBINE, 4TH STAGE, ASSEMBLY OF POST SBE72-0588 | ao | 30 |
| 571 | 3A1577 | • • SEAL SEGMENT - HONEYCOMB PRE SBE72-0588 | aa-an | 1 |
| 571A | 3A2538 | • • SEAL - SEGMENT, HONEYCOMB POST SBE70-0810 PRE SBE72-0588 | am-ao | 1 |
| 571B | 3A3115 | • • SEAL SEGMENT - HONEYCOMB ALT 3A3116 POST SBE72-0588 | ao | 1 |
| 571C | 3A3116 | • • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | ao | 1 |
| 575 | 3A0002 | • • KEY - LOCATING | aa-ao | 1 |
| 700 | 3A0009 | • SEAL - STRIP PRE SBE72-0138 | aa-ad | 30 |
| 700A | 3A1795 | • SEAL - STRIP POST SBE72-0138 | ae-ao | 30 |
| 710 | 3A0010 | • SEAL - STRIP | aa-ao | 30 |
| 720 | 3A0011 | • SEAL - STRIP PRE SBE72-0138 | aa-ad | 30 |
| 720A | 3A1796 | • SEAL - STRIP POST SBE72-0138 | ae-ao | 30 |
| 750 | 3A0645CL45 | • VANE - TURBINE, 3RD STAGE, ASSEMBLY OF PRE SBE70-0043 | aa-ad | 27 |
| 750A | 3A1729CL45 | • VANE - TURBINE, 3RD STAGE, ASSEMBLY OF POST SBE70-0043 PRE SBE72-0138 | aa-ad | 27 |
| 750B | 3A2073CL33 | • VANE - TURBINE, 3RD STAGE, ASSEMBLY OF POST SBE72-0138 PRE SBE70-0218 | ae-af | 27 |
| 750C | 3A2243CL33 | • VANE - TURBINE, 3RD STAGE, ASSEMBLY OF POST SBE70-0218 PRE SBE70-0513 | ag-aj | 27 |
| 750D | 3A2412 | • VANE - TURBINE, 3RD STAGE, ASSEMBLY OF POST SBE70-0513 | ak-ao | 27 |
| 770 | 3A0002 | • • KEY - LOCATING | aa-ao | 1 |
| 780 | 3A0641CL45 | • VANE - TURBINE, 3RD STAGE, ASSEMBLY OF PRE SBE70-0043 | aa-ad | 2 |
| 780A | 3A1733CL45 | • VANE - TURBINE, 3RD STAGE, ASSEMBLY OF POST SBE70-0043 PRE SBE72-0138 | aa-ad | 2 |
| 780B | 3A2077CL33 | • VANE - TURBINE, 3RD STAGE, ASSEMBLY OF POST SBE72-0138 PRE SBE70-0218 | ae-aj | 2 |
| 780C | 3A2245CL33 | • VANE - TURBINE, 3RD STAGE, ASSEMBLY OF POST SBE70-0218 PRE SBE70-0513 | ae-aj | 2 |
| 780D | 3A2415 | • VANE - TURBINE, 3RD STAGE, ASSEMBLY OF POST SBE70-0513 | ak-ao | 2 |
| 800 | 3A0002 | • • KEY - LOCATING | aa-ao | 1 |
| 900 | 3A0058 | • SEAL - STRIP PRE SBE72-0138 | aa-ad | 29 |
| 900A | 3A1819 | • SEAL - STRIP POST SBE72-0138 | ae-ao | 29 |
| 910 | 3A0056 | • SEAL - STRIP PRE SBE72-0138 | aa-ad | 29 |
| 910A | 3A1818 | • SEAL - STRIP POST SBE72-0138 | ae-ao | 29 |
| 920 | 3A0055 | • SEAL - STRIP PRE SBE70-0007 | aa-ad | 29 |
| 920A | 3A0056 | • SEAL - STRIP POST SBE70-0007 PRE SBE72-0138 | aa-ad | 29 |
| 920B | 3A1818 | • SEAL - STRIP POST SBE72-0138 | ae-ao | 29 |
| 930 | 3A0060 | • SEAL - STRIP PRE SBE72-0138 | aa-ad | 29 |
| 930A | 3A1822 | • SEAL - STRIP POST SBE72-0138 | ae-ao | 29 |
| 940 | 3A0059 | • SEAL - STRIP PRE SBE72-0138 | aa-ad | 29 |
| 940A | 3A1821 | • SEAL - STRIP POST SBE72-0138 | ae-ao | 29 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

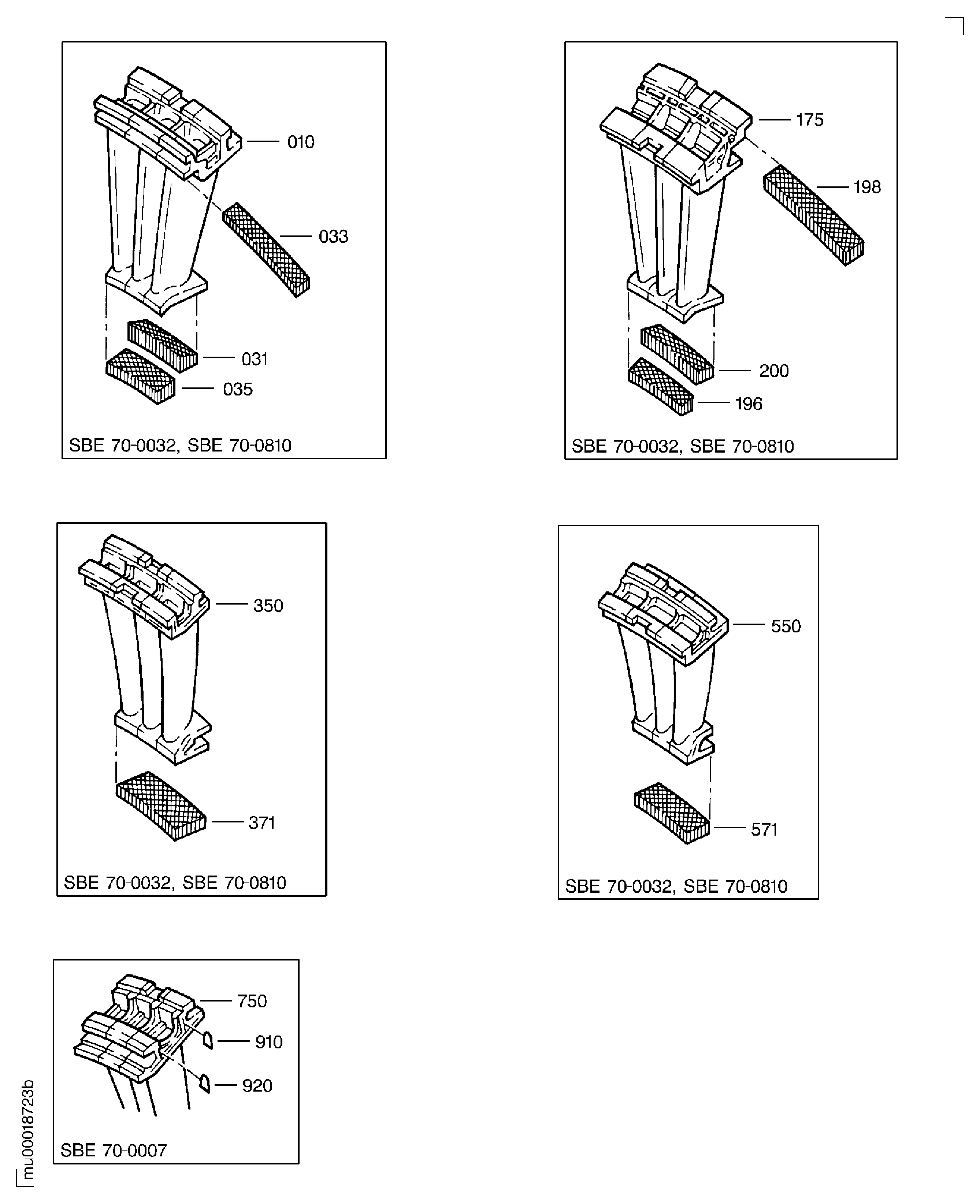

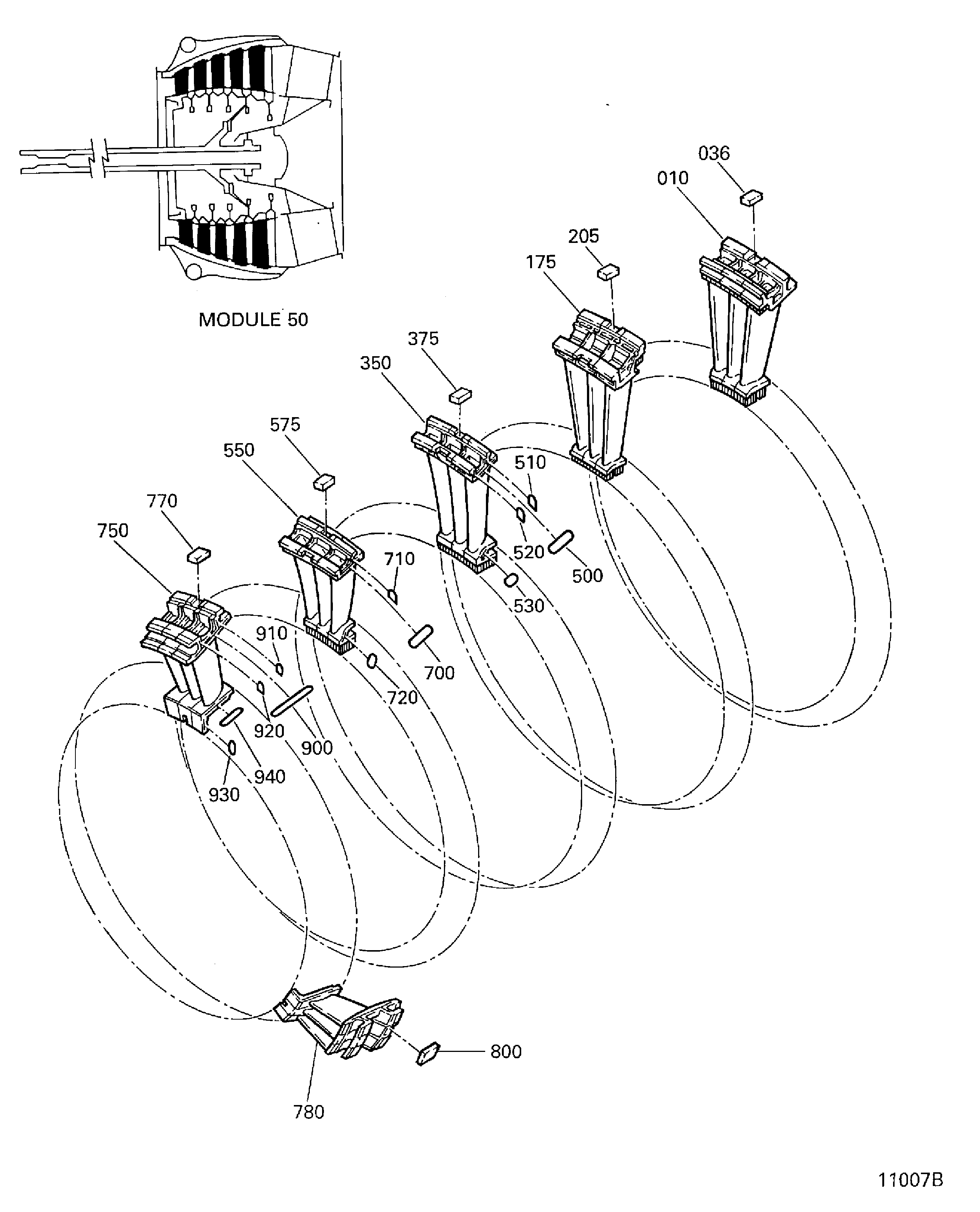

Figure: ENGINE-LP NOZZLE VANES
LPT VANE
LPT VANE
