TASK 72-41-21-200-007-D00 HPC Stage 9 Rotor Path Case Assembly - Examine, lnspection-007

DMC:V2500-A5-72-41-2109-00D-300A-C|Issue No:002.00|Issue Date:2016-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-21-200-007-D00 HPC Stage 9 Rotor Path Case Assembly - Examine, lnspection-007

Effectivity

FIG/ITEM

PART NO.

03-650

6B1433

General

This TASK gives the procedure for the inspection of the Stage 9 Rotor Path Case Assembly.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variant refer to the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for the parts which must have a crack test is given in Step. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a subsequent date.

All parts must be examined to make sure that all the repairs are completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

References

Refer to SPM for data on these items:

Definitions of damage, SPM TASK 70-02-02-350-501.

Inspection of parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM:

Method of testing for crack indications

Chemical processes

Surface protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-21-230-246 Examine the Stage 9 Rotor Path Case Assembly for Cracks

    1. Refer to Figure.

    2. Clean the parts. Refer to CLEANING-000 TASK 72-41-21-100-000.

      3. Do the test for cracks on the part that are given below.

        PART IDENT

        TASK/SUBTASK

        Stage 9 Rotor Path Case Assembly

        1. Cracked at location 7.

        1. Accept only one crack if the crack is stopped at one end by rivet hole and the other end by borescope access hole.

        2. Cracked, other than Step.

        1. Reject

    2. SUBTASK 72-41-21-220-707 Examine the Stage 9 Rotor Path Case Assembly Lining at Location 1052

    1. Refer to Figure.

      2. Scored

        1. Not more than 0.005 in. (0.130 mm) in depth.

        1. Accept

        2. More than in Step.

        1. Refer to repair, VRS6021 TASK 72-41-21-300-012 (REPAIR-012).

        3. Chipped

        1. Refer to REPAIR-012 (VRS6021) TASK 72-41-21-300-012.

      3. Worn

        1. If the lining radius is between 10.327 in. and 10.331 in. (262.306 mm and 262.407 mm)

        1. Accept

        2. More than in Step.

        1. Refer to repair, VRS6021 TASK 72-41-21-300-012 (REPAIR-012).

    3. SUBTASK 72-41-21-220-708 Examine the Stage 9 Rotor Path Case Assembly Front and Rear Flanges at Face Locations 1, 2 and 1103

    1. Refer to Figure.

      2. Galled

        1. Not more than 0.002 in. (0.051 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Refer to repair, VRS6095 TASK 72-41-21-300-009 (REPAIR-009).

      3. Scored.

        1. Not more than 0.002 inch (0.051 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Refer to repair, VRS6095 TASK 72-41-21-300-009 (REPAIR-009).

      4. Bore at location 1103.

        1. If the diameter is between 21.3437 in. and 21.3484 in. (542.130 mm and 542.250 mm).

        1. Accept.

        2. More than in Step.

        1. Reject.

    4. SUBTASK 72-41-21-220-709 Examine the Stage 9 Rotor Path Case Assembly Boltholes at Locations 4 and 5

    1. Refer to Figure.

      2. Burred edges.

      1. Refer to repair, VRS6095 TASK 72-41-21-300-009 (REPAIR-009).

      3. Scored.

      1. Refer to repair, VRS6095 TASK 72-41-21-300-009 (REPAIR-009).

    5. SUBTASK 72-41-21-220-710 Examine the Stage 9 Rotor Path Case Assembly Holes at Locations 6, 1190 and 1151

    1. Refer to Figure.

      2. Location pin hole at location 1190.

        1. Burred edges.

        1. Refer to repair, VRS6095 TASK 72-41-21-300-009 (REPAIR-009).

        2. If the diameter is between 0.1638 in. and 0.1709 in. (4.160 mm and 4.340 mm).

        1. Accept.

        3. If the diameter is more than in Step.

        1. Reject.

      3. Stop location hole at location 1151.

        1. Burred edges.

        1. Refer to repair, VRS6095 TASK 72-41-21-300-009 (REPAIR-009).

        2. If the diameter is between 0.2504 in. and 0.2535 in. (6.360 mm and 6.440 mm).

        1. Accept.

        3. If the diameter is more than in Step.

        1. Reject.

      4. Dowel hole at location 6.

        1. Burred edges.

        1. Refer to repair, VRS6095 TASK 72-41-21-300-009 (REPAIR-009).

        2. If the diameter is between 0.2205 in. and 0.2323 in. (5.600 mm and 5.900 mm)

        1. Accept.

        3. If the diameter is more than in Step.

        1. Reject.

    6. SUBTASK 72-41-21-220-711 Examine the Stage 9 Rotor Path Case Assembly Location Pin at Location 1192

    1. Refer to Figure.

      2. Loose.

      1. Reject.

      3. Outer diameter.

        1. If the outer diameter is between 0.1580 in. and 0.1584 in. (4.012 mm and 4.024 mm).

        1. Accept.

        2. If the outer diameter is less than in Step.

        1. Reject.

    7. SUBTASK 72-41-21-220-712 Examine the Stage 9 Rotor Path Case Assembly Borescope Access Hole 7 for Damage

    1. Refer to Figure.

      2. Scored.

      1. Refer to repair, VRS6095 TASK 72-41-21-300-009 (REPAIR-009).

      3. Loose rivets.

      1. Refer to repair, VRS6249 TASK 72-41-21-300-038 (REPAIR-038).

      4. Burred edges.

      1. Refer to repair, VRS6095 TASK 72-41-21-300-009 (REPAIR-009).

    8. SUBTASK 72-41-21-220-713 Examine the Stage 9 Rotor Path Case Assembly Surface Protection

      1. Damaged.

      1. Accept.

    9. SUBTASK 72-41-21-220-714 Examine all the Remaining Stage 9 Rotor Path Case Assembly Surfaces

      1. Nicked, galled or scored.

        1. Not more than 0.002 in. (0.051 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Refer to repair, VRS6095 TASK 72-41-21-300-009 (REPAIR-009).

    10. SUBTASK 72-41-21-220-715 Examine the Stage 9 Rotor Path Case Assembly Face at Location 1177

    1. Refer to Figure.

      2. Location 1177.

        1. If the diameter is between 21.3504 in. and 21.3551 in. (542.300 mm and 542.420 mm).

        1. Accept.

        2. Less than in Step.

        1. Reject.

    11. SUBTASK 72-41-21-220-716 Examine the Stage 9 Rotor Path Case assembly Grooves at Locations 1126 and 1129

    1. Refer to Figure.

      2. Scored or galled.

        1. Not more than to 0.002 in. (0.051 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Reject.

      3. Location 1126.

        1. If the width of the groove is between 0.1350 in. and 0.1382 in. (3.430 mm and 3.510 mm)

        1. Accept.

        2. More than in Step.

        1. Reject.

      4. Location 1129.

        1. If the width of the groove is between 0.1153 in. and 0.1185 in. (2.930 mm and 3.010 mm)

        1. Accept.

        2. More than in Step.

        1. Reject.

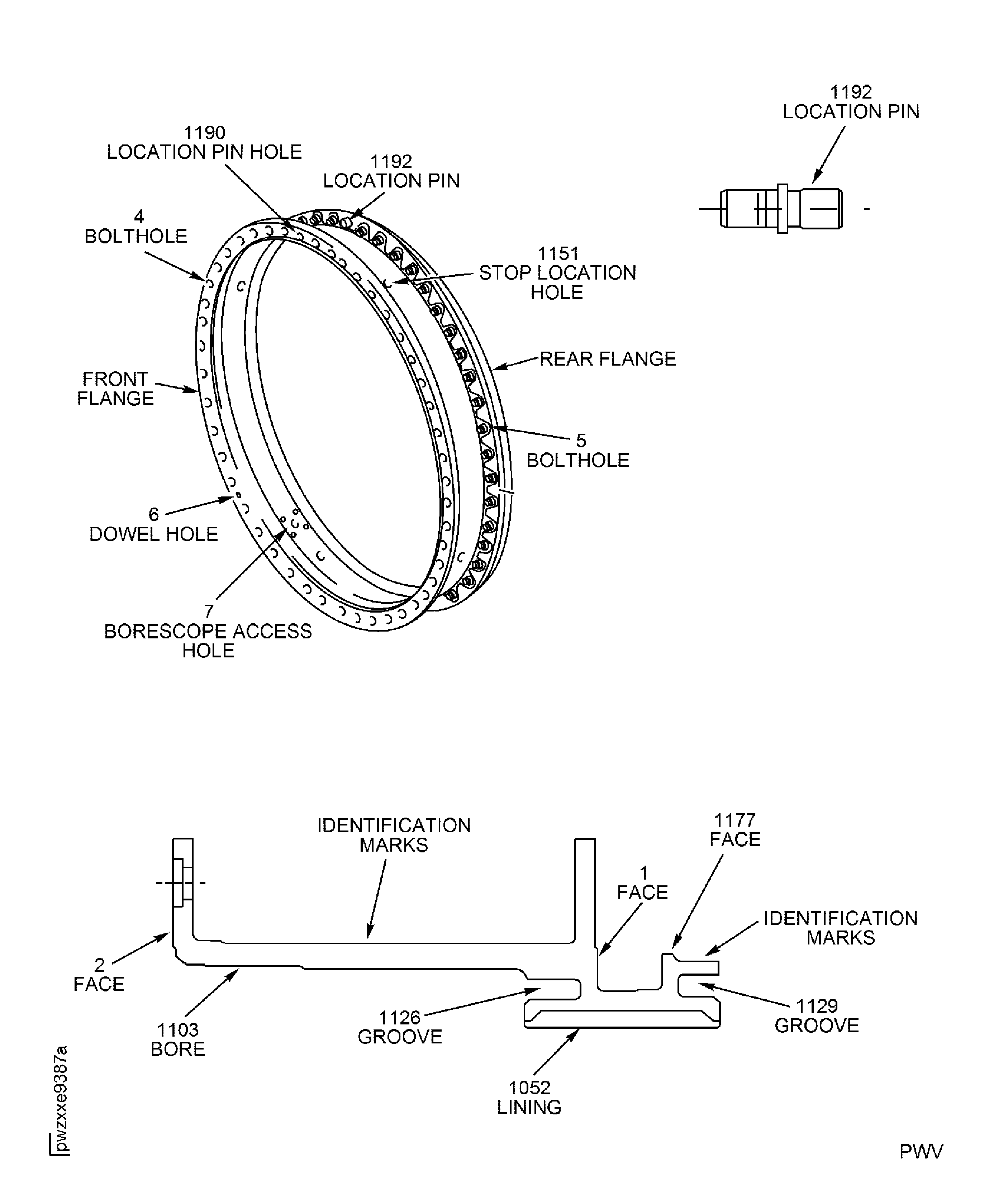

    12. Figure: Stage 9 Rotor Path Case Assembly - Inspection Locations

    Stage 9 Rotor Path Case Assembly - Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure to update the repair reference. (16VC230)
