TASK 72-00-32-450-007 LPC/Intermediate Case Module Components - Install The Air Modulating Valve, Installation-014

DMC:V2500-A0-72-00-3250-06A-720A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-00-32-450-007 LPC/Intermediate Case Module Components - Install The Air Modulating Valve, Installation-014

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-039 ENGINE OIL, unless other lubricants are referred to in the procedure.

Do not remove the special plastic caps from the electrical connectors and receptacles until immediately before they are connected. This will give protection from unwanted fluids or materials.

During the installation procedure make sure that the harnesses are held temporarily along their different lengths. This is to prevent too much strain on the harnesses, cables and electrical connectors.

For the data on the electrical connectors refer to the SPM TASK 70-43-00-400-501 and TASK 70-43-01-400-501.

For the torque tightening procedures, refer to the SPM TASK 70-41-00-400-501 and TASK 70-41-01-400-501.

Special torque data and assembly tolerances are included in this procedure.

Special torque data is identified with the symbol * after the torque value.

For lockwire data and procedures refer to the SPM TASK 70-42-05-400-501.

For safety cable data and procedures refer to the SPM TASK 70-42-08-400-501.

Safety the threaded fasteners in the ATA Chapter/Section/Subject 71-51-41 as applicable with CoMat 02-274 SAFETY CABLE KIT or CoMat 02-275 SAFETY CABLE KIT.

NOTE

To identify the consumable materials refer to the PCI.
SBE 70-0813 : Announcement of introduction of safety cable as a preferred method to lockwire.
Safety the threaded fasteners in this TASK with safety cable for the ATA Chapter/Section/Subject detailed in General.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-002 SOLVENT, DELETED.0AM53CoMat 01-002
CoMat 02-126 LOCKWIRELOCALCoMat 02-126
CoMat 02-274 SAFETY CABLE KITLOCALCoMat 02-274
CoMat 02-275 SAFETY CABLE KITLOCALCoMat 02-275
CoMat 10-039 ENGINE OILLOCALCoMat 10-039
CoMat 06-086 TIES18992CoMat 06-086

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-32-450-057 Install the Air Modulating Valve (79-21-51,01-100) (Pre SBE 79-0088 and SBE 79-0088)

    1. Refer to Figure, Figure, Figure and Figure.

      2. Install the modulating valve.

      1. WARNING

        WHEN YOU USE COMAT 01-002 INHIBITED AND STABILIZED TRICHLORETHANE YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

        Clean the mating face of the modulating valve and the air cooled oil cooler (ACOC) with CoMat 01-002 SOLVENT, DELETED.. Use a clean lint free cloth made moist with the solvent.

        2. Pre SBE 79-0088 : Install the modulating valve to the ACOC flange and bracket, tighten the bolts but do not torque them at this time:

        1. Install the two bolts, the four washers and the two nuts Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-118 , Air Cooled Oil Cooler (ACOC) Modulating Valve 01-110 and Air Cooled Oil Cooler (ACOC) Modulating Valve 01-105) at the lower link bracket.

        2. Attach the bracket Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-070) to the modulating valve/ACOC flange with the bolt, the washer and the nut Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-115 , Air Cooled Oil Cooler (ACOC) Modulating Valve 01-115 and Air Cooled Oil Cooler (ACOC) Modulating Valve 01-105).

        3. Install the four bolts and the four washers Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-120 , Air Cooled Oil Cooler (ACOC) Modulating Valve 01-115 and Air Cooled Oil Cooler (ACOC) Modulating Valve 01-110) at the blind hole positions.

        4. Install the two bolts, the four washers and the two nuts (79-21-51, 115, 01-110 and 01-105), (install the bolts from the underside of the ACOC flange).

        5. Install the 15 bolts, the 30 washers and the 15 nuts Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-115 , Air Cooled Oil Cooler (ACOC) Modulating Valve 01-110 and Air Cooled Oil Cooler (ACOC) Modulating Valve 01-105).

        3. SBE 79-0088 : Install the modulating valve to the ACOC flange and brackets, tighten the bolts but do not torque them at this time:

        1. Install the two bolts, the four washers and the two nuts Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-118 , Air Cooled Oil Cooler (ACOC) Modulating Valve 01-110 and Air Cooled Oil Cooler (ACOC) Modulating Valve 01-105) at the lower link bracket.

        2. Attach the bracket Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-070) to the modulating valve/ACOC flange with the bolt, the washer and the nut Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-115 , Air Cooled Oil Cooler (ACOC) Modulating Valve 01-115 and Air Cooled Oil Cooler (ACOC) Modulating Valve 01-105).

        3. Attach the bracket V2500-A5-79-21-51-00A-941A-D (79-21-51, 00-090) to the modulating valve/ACOC flange with the bolt Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-120) (at the bling hole) and the bolt, the washer and the nut Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-115), 01-110 and 01-105).

        4. Install the bolt and the washer Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-120 and Air Cooled Oil Cooler (ACOC) Modulating Valve 01-110) at the blind hole position.

        5. Install the two bolts and the two washers Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-115 and Air Cooled Oil Cooler (ACOC) Modulating Valve 01-110) at the blind hole positions.

        6. Install the two bolts, the four washers and the two nuts (79-21-51, 115, 01-110 and 01-105), (install the bolts from the underside of the ACOC flange).

        7. Install the 14 bolts, the 28 washers and the 14 nuts Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-115 , Air Cooled Oil Cooler (ACOC) Modulating Valve 01-110 and Air Cooled Oil Cooler (ACOC) Modulating Valve 01-105).

      4. Torque the nut Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-071) which attaches the bracket (79-2151, 01-070) to the bracket Air Cooled Oil Cooler (ACOC) And Inlet Duct (79-21-42,01-230) to 36 to 45 lbf.in (4 to 5 Nm).

      5. Measure the electrical resistance between the modulating valve/ACOC flanges. Put an electrical current of 950 to 1050 milliamperes through the joint and measure the decrease in milli-volts across the joint. The electrical resistance must not be more than 0.0025 ohms. Clean the joint again, if necessary, to get the correct electrical resistance.

      6. Torque the four bolts (01-115 and 01-120) to 85 to 105 lbf.in (10 to 12 Nm) refer to Step.

      7. Torque the 20 nuts Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-105) to 85 to 105 lbf.in (10 to 12 Nm) refer to Step to Step.

      3. Install the support links.

      1. Attach the top link to the modulating valve with the bolt, the two washers and the nut Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-138 , Air Cooled Oil Cooler (ACOC) Modulating Valve 01-135 and Air Cooled Oil Cooler (ACOC) Modulating Valve 01-130).

      2. Attach the center and lower link to the modulating valve bracket with the two bolts, the four washers and the two nuts Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-140 , Air Cooled Oil Cooler (ACOC) Modulating Valve 01-135 and Air Cooled Oil Cooler (ACOC) Modulating Valve 01-130).

      3. Torque the three nuts Air Cooled Oil Cooler (ACOC) Modulating Valve (79-21-51, 01-130) to 180 to 220 lbf.in (20 to 25 Nm).

      4. Connect the fuel tubes and the electrical connectors.

      1. Connect the tubes 190 and 189 to the modulating valve.

      2. Install the bolt, the nut and the washer at the clip position 0220.

      3. Torque the tube 190 nut to 159 to 177 lbf.in (18 to 20 Nm).

      4. Torque the tube 189 nut to 142 to 150 lbf.in (16 to 17 Nm).

      5. Connect the tube 218 to the drain union. Torque the tube nut to 142 to 150 lbf.in (16 to 17 Nm).

      6. Safety the tube 190, 189 and 218 tube nuts with CoMat 02-126 LOCKWIRE.

      7. Torque the nuts at the clip positions 0220, 0580 and the bolt at the clip position 0579 to 36 to 45 lbf.in (4 to 5 Nm).

      8. Remove the CoMat 06-086 TIES which attach the electrical harness/connector 4019KS-A to the primary harness bundle. Connect the electrical connector to the modulating valve receptacle. Torque the connector to 18* lbf.in (2.0 Nm).

      9. Connect and torque the electrical connector 4019KS-B to the modulating valve as given in Step

    2. SUBTASK 72-00-32-210-060 Visually Inspect the Electrical Backshells and Cable Clamps

    1. Refer to Figure.

    2. Make sure that all the applicable connectors, backshells and cable clamps are secure.

    3. Make sure that all the applicable backshells and cable clamps are safetied with CoMat 02-126 LOCKWIRE. Refer to the SPM TASK 70-42-05-400-501.

    3. SUBTASK 72-00-32-210-061 Visually Inspect the EEC Harness (01-005) Electrical Backshells and Cable Clamps (SBE 70-0813)

    1. NOTE

      Use this procedure to safety the EEC harness backshells and cable clamps with safety cable.

      Refer to Figure.

    2. Make sure that all the EEC harness connectors, backshells and cable clamps are secure.

    3. Make sure that all the EEC harness backshells and cable clamps are safetied. Safety with CoMat 02-274 SAFETY CABLE KIT or with CoMat 02-275 SAFETY CABLE KIT. Refer to the SPM TASK 70-42-08-400-501.

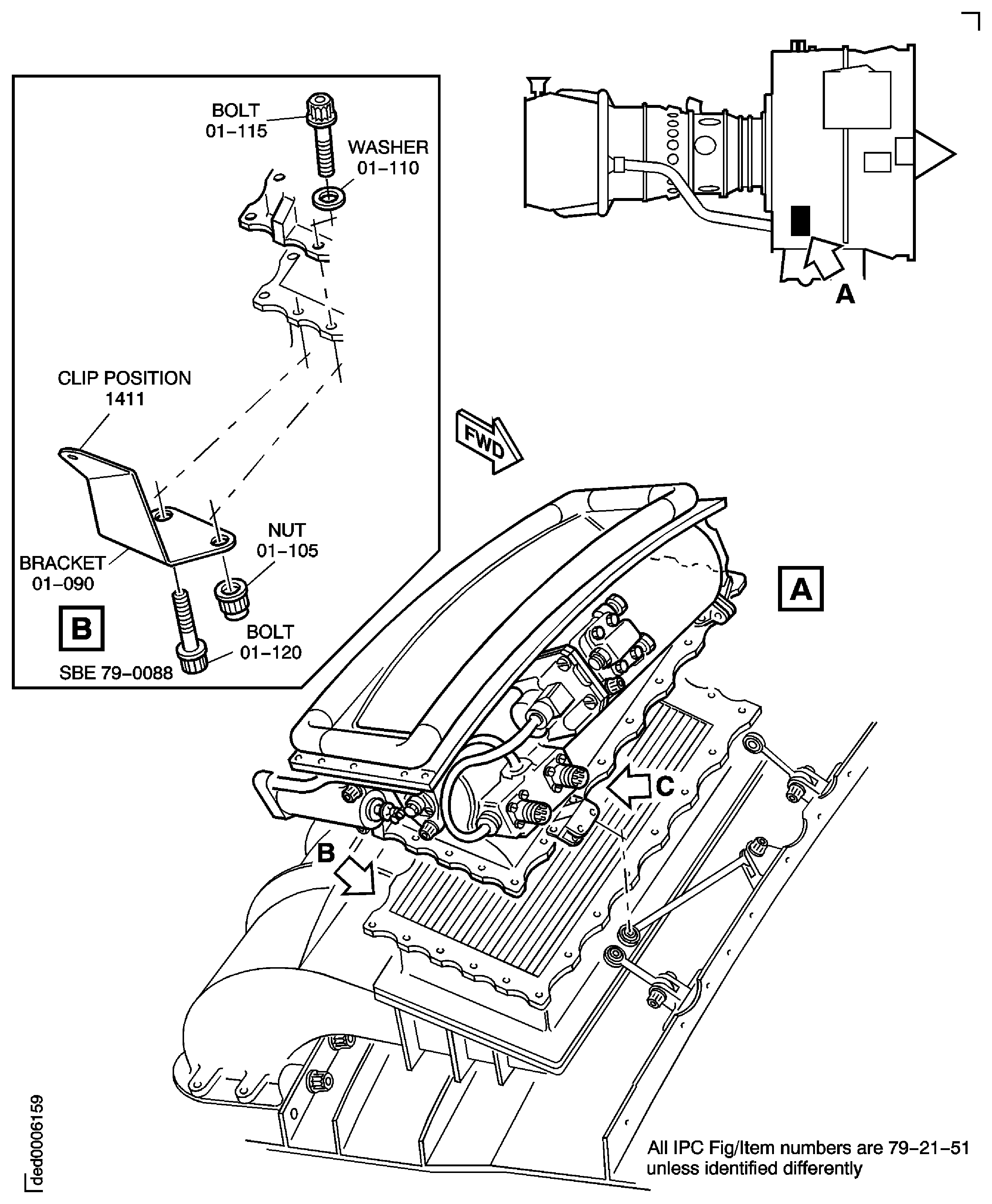

    4. Figure: Install the air modulating valve

    Install the air modulating valve

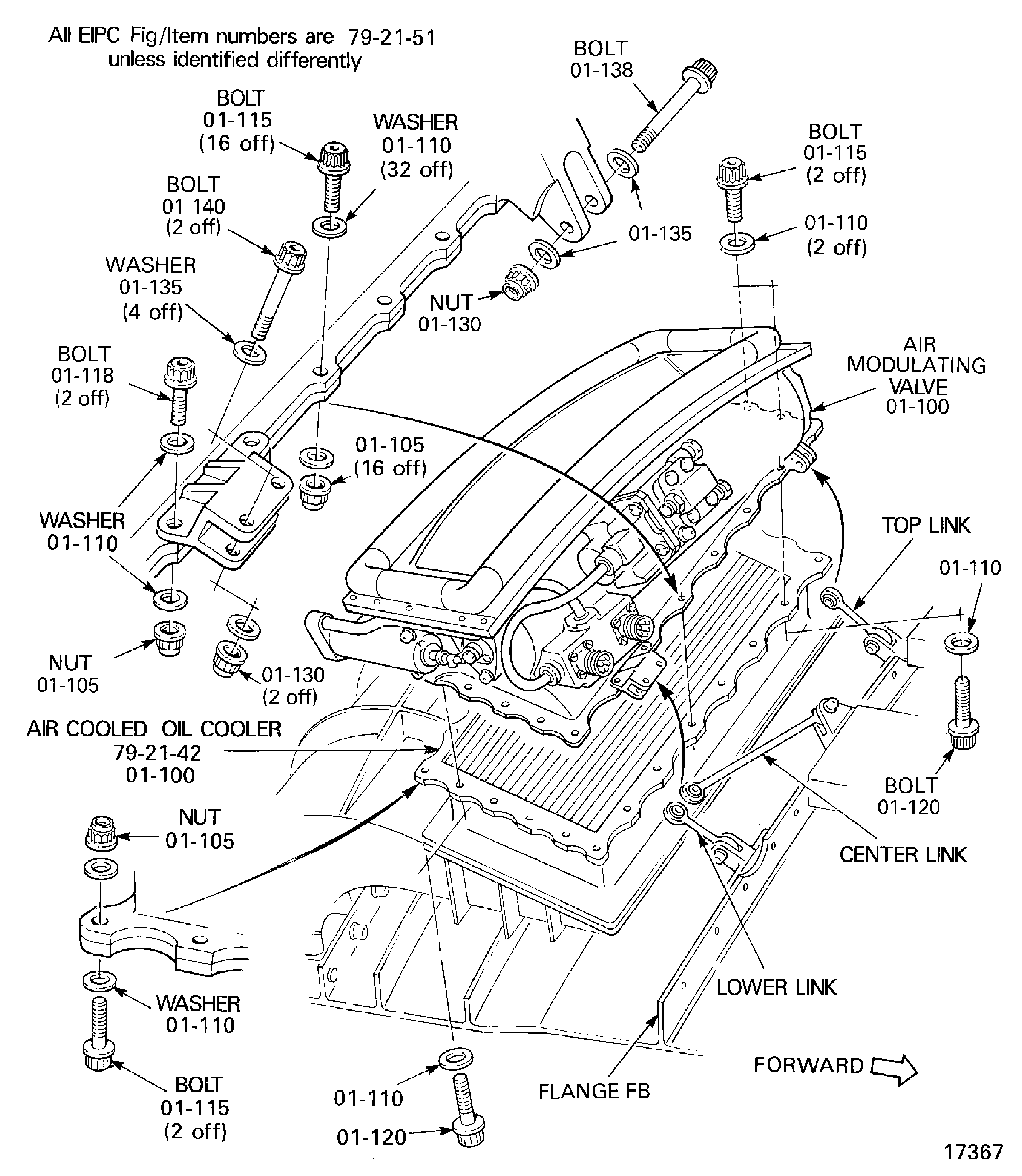

    Figure: Install the air modulating valve

    Install the air modulating valve

    Figure: Install the air modulating valve

    Install the air modulating valve

    Figure: Install the air modulating valve

    Install the air modulating valve

    Figure: Visually inspect the backshells and cable clamps

    Visually inspect the backshells and cable clamps

Requirements After Job Completion

Follow-On Conditions

NONE
