TASK 72-32-17-200-007-B00 No. 2 Bearing Support - Examine, Inspection-007

DMC:V2500-A0-72-32-1701-01B-300A-C|Issue No:002.00|Issue Date:2016-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-17-200-007-B00 No. 2 Bearing Support - Examine, Inspection-007

Effectivity

FIG/ITEM

PART NO.

01-850

5W2253

General

This TASK gives the procedure for the inspection of the No.2 bearing support assembly. For the other parts of the No.2 bearing support and probe bracket, refer to TASK 72-32-17-200-000 (INSPECTION-000).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-17-100-000 (CLEANING-000).

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501

Inspection of Parts, SPM TASK 70-20-01-200-501

NOTE

Consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-17-230-056 Examine the No. 2 Bearing Support (01-850) for Cracks

    1. NOTE

      For the method to clean the part, refer to the SPM TASK 70-11-26-300-503.

      Clean the part. Refer to TASK 72-32-17-100-000 (CLEANING-000).

      2. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        No. 2 bearing support assembly

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-17-220-082 Examine the No. 2 Bearing Support Assembly (01-850) Casting Surface

    1. Refer to Figure.

      2. Examine the casting surface.

        1. Any nicks

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        2. Any dents

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        3. Any scratches

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

    3. SUBTASK 72-32-17-220-083 Examine the No. 2 Bearing Support Assembly (01-850) Machined Surface (Except the Tower Shaft Upper Bearing Bore Surface, the Bearing Bore and Shoulder Surface and the Oil Jet Bores)

    1. Refer to Figure.

      2. Examine the machined surface.

        1. Nick.

          1. Up to 0.005 in. (0.127 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        2. Dent.

          1. Up to 0.005 in. (0.127 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        3. Scratch.

          1. Up to 0.005 in. (0.127 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        4. Galling.

          1. Up to 0.005 in. (0.127 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

    4. SUBTASK 72-32-17-220-084 Examine the No. 2 Bearing Support Assembly (01-850) Bearing Bore and Shoulder Surface

    1. Refer to Figure.

      2. Examine the bearing bore and shoulder surface at location 1.

        1. Any nicks

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        2. Any dents

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        3. Any scratches

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        4. Any galling

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        5. Any raised metal

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

    5. SUBTASK 72-32-17-220-085 Examine the No. 2 Bearing Support Assembly (01-850) Oil Jet Bores

    1. Refer to Figure.

      2. Examine the oil jet bore surface at location 2.

        1. Any nicks

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        2. Any dents

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        3. Any scratches

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        4. Any raised metal

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

    6. SUBTASK 72-32-17-220-086 Examine the No. 2 Bearing Support Assembly (01-850) Insert

    1. Refer to Figure.

      2. Examine the insert at location 3.

        1. Any damage

        1. Repair, VRS1906 TASK 72-32-17-300-013 (REPAIR-013)

        2. Loose

        1. Repair, VRS1906 TASK 72-32-17-300-013 (REPAIR-013)

    7. SUBTASK 72-32-17-220-087 Examine the No. 2 Bearing Support Assembly (01-850) Locating Pin

    1. Refer to Figure.

      2. Examine the locating pin at location 4.

        1. Any damage

        1. Repair, VRS1907 TASK 72-32-17-300-014 (REPAIR-014)

    8. SUBTASK 72-32-17-220-088 Examine the No. 2 Bearing Support Assembly (01-850) Bore Diameters and Dimensions

    1. Refer to Figure.

      2. Examine the diameter at location 5.

        1. If there is any damage on the parent material

        1. Reject

        2. Greater than or equal to 3.14902 in. (79.985 mm) and less than 3.14976 in. (80.004 mm) in maximum diameter

        1. Accept

        3. Greater than or equal to 3.14976 in. (80.004 mm) and less than or equal to 3.16000 in. (80.264 mm) in maximum diameter

        1. Repair, VRS1212 TASK 72-32-17-300-006 (REPAIR-006)

        4. Greater than 3.16000 in. (80.264 mm)

        1. Reject

      3. Examine the diameter at location 6.

        1. Greater than or equal to 6.06300 in. (154.000 mm) and less than 6.06456 in. (154.040 mm) in maximum diameter

        1. Accept

        2. Greater than or equal to 6.06456 in. (154.040 mm) and less than or equal to 6.08456 in. (154.548 mm) in maximum diameter

        1. Repair, VRS1213 TASK 72-32-17-300-007 (REPAIR-007)

        3. Greater than 6.08456 in. (154.548 mm)

        1. Reject

      4. Examine the diameter at location 7 (fit of reference No. 0307).

        1. Greater than or equal to 10.9798 in. (278.887 mm) and less than 10.9807 in. (278.910 mm) in average diameter

        1. Accept

        2. Greater than or equal to 10.9789 in. (278.864 mm) and less than 10.9798 in. (278.887 mm) in average diameter

        1. Accept the part for select fit only

          NOTE

          This part can be used only if the mating part has a diameter that will result in a fit of reference No. 0307. Refer to TASK 72-32-10-440-001-B00.

        3. Greater than or equal to 10.9807 in. (278.910 mm) and less than or equal to 11.0007 in. (279.418 mm) in average diameter

        1. Repair, VRS1215 TASK 72-32-17-300-008 (REPAIR-008)

        4. Greater than 11.0007 in. (279.418 mm)

        1. Reject

      5. Examine the diameter at location 8.

        1. Greater than or equal to 6.62831 in. (168.359 mm) and less than 6.63027 in. (168.409 mm) in maximum diameter

        1. Accept

        2. Greater than or equal to 6.63027 in. (168.409 mm) and less than or equal 6.64827 in. (168.866 mm) in maximum diameter

        1. Repair, VRS1218 TASK 72-32-17-300-011 (REPAIR-011)

        3. Greater than 6.64827 in. (168.866 mm)

        1. Reject

      6. Examine the dimension at location 9.

        1. Greater than or equal to 1.2004 in. (30.490 mm) and less than 1.2023 in. (30.538 mm) in dimension

        1. Accept

        2. Greater than or equal to 1.2023 in (30.538 mm) and less than or equal to 1.2053 in. (30.615 mm) in dimension

        1. Repair, VRS1219 TASK 72-32-17-300-012 (REPAIR-012)

        3. Greater than 1.2053 in. (30.615 mm)

        1. Reject

    9. SUBTASK 72-32-17-220-089 Examine the No. 2 Bearing Support Assembly (01-850) Tower Shaft Upper Bearing Bore Surface

    1. Refer to Figure.

      2. Examine the tower shaft upper bearing bore surface at location 10.

        1. If there is any damage on the parent material

        1. Reject

        2. Any nicks

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        3. Any dents

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        4. Any scratches

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        5. Any galling

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

        6. Any raised metals

        1. Repair, VRS1210 TASK 72-32-17-300-004 (REPAIR-004)

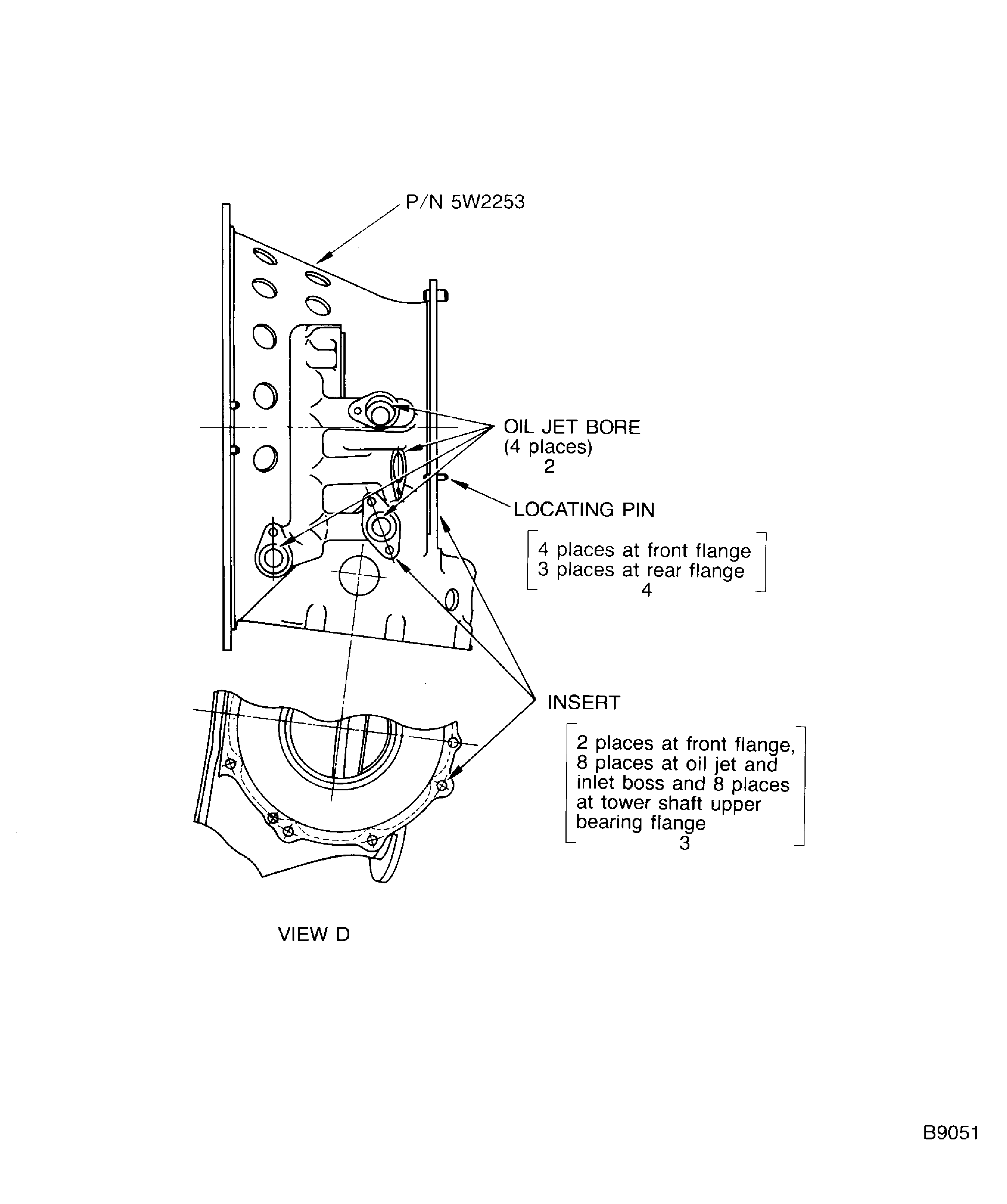

    10. Figure: Inspection of the No. 2 bearing support assembly

    Sheet 1

    Legend
    Inspection of the No. 2 bearing support assembly

    Sheet 1

    Close

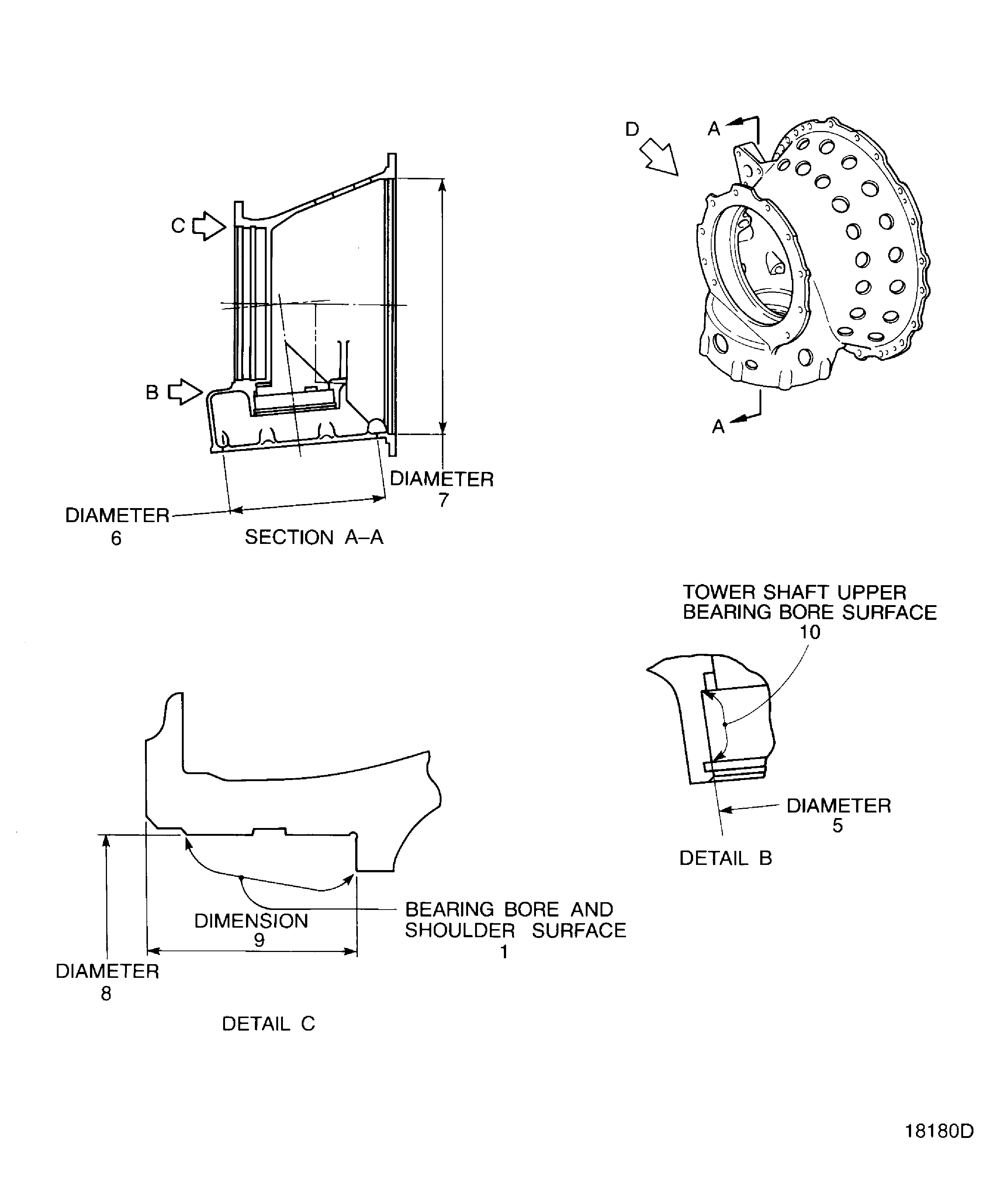

    Figure: Inspection of the No. 2 bearing support assembly

    Sheet 2

    Legend
    Inspection of the No. 2 bearing support assembly

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added fit details for reference No. 0307. (87VJ804G)
