TASK 72-32-53-200-003-A00 No. 1 Bearing Seal Ring Holder - Examine, Inspection-003

DMC:V2500-A0-72-32-5301-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-53-200-003-A00 No. 1 Bearing Seal Ring Holder - Examine, Inspection-003

Effectivity

FIG/ITEM

PART NO.

01-200

2A1779

General

This TASK gives the procedure for the inspection of the No. 1 bearing seal ring holder assembly.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in SUBTASK 72-32-53-230-051. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Surface Texture, SPM TASK 70-35-09-350-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-53-230-051-001 Examine the No. 1 Bearing Seal Ring Holder Assembly (01-200) for Cracks

    1. Clean the part. Refer to TASK 72-32-53-100-000 (CLEANING-000).

      2. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        No. 1 bearing seal ring holder assembly

        (Dip or Spray)

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-53-230-051-002 Examine the No. 1 Bearing Seal Ring Holder Assembly (01-200) for Cracks

    1. Clean the part. Refer to TASK 72-32-53-100-000 (CLEANING-000).

      2. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        No. 1 bearing seal ring holder assembly

        (Dip or Spray)

        1. Cracked

        1. Reject

    3. SUBTASK 72-32-53-220-056 Examine the No. 1 Bearing Seal Ring Holder Assembly (01-200) for Nicks, Dents and Damage

    1. Refer to Figure.

      2. Examine the seal ring holder assembly for nicks, dents and damage.

        1. Nicks, dents and damage.

          1. Up to 5 percent of the material thickness

          1. Accept

          2. Other than Step

          1. Repair, VRS3400 TASK 72-32-53-300-004 (REPAIR-004)

    4. SUBTASK 72-32-53-220-057 Examine the No. 1 Bearing Seal Ring Holder Assembly (01-200) for Worn, Bent or Loose Pins

    1. Refer to Figure.

      2. Examine the seal ring holder assembly at location 2, for worn, bent or loose pins (four locations).

        1. Worn, bent or loose pins

        1. Repair, VRS3382 TASK 72-32-53-300-001 (REPAIR-001)

    5. SUBTASK 72-32-53-220-058 Examine the No. 1 Bearing Seal Ring Holder Assembly (01-200) for Wear on Each Side of the Groove

    1. Refer to Figure.

      2. Examine the seal ring holder assembly at locations 3 and 4, for wear on each side of the groove.

        1. Wear.

          1. Equal wear on the sides of the groove

          1. Accept

          2. Other than Step

          1. Repair, VRS3405 TASK 72-32-53-300-006 (REPAIR-006)

    6. SUBTASK 72-32-53-220-059 Examine the No. 1 Bearing Seal Ring Holder Assembly (01-200) for Damage and the Installation Depth of the Helicoil Inserts

    1. Refer to Figure.

      2. Examine the seal ring holder assembly at location 6, for damage and the installation depth of the helicoil inserts (18 locations).

        1. Damage

        1. Repair, VRS3383 TASK 72-32-53-300-002 (REPAIR-002)

        2. Installation depth

          1. Up to 1 to 1.5 pitch below Surface A

          1. Accept

          2. Other than Step

          1. Repair, VRS3383 TASK 72-32-53-300-002 (REPAIR-002)

    7. SUBTASK 72-32-53-220-060 Examine the No. 1 Bearing Seal Ring Holder Assembly (01-200) for Loose or Cracked Rivets

    1. Refer to Figure.

      2. Examine the seal ring holder assembly at location 1, for loose or cracked rivets (20 locations).

        1. Loose or cracked rivets

        1. Repair, VRS3402 TASK 72-32-53-300-005 (REPAIR-005)

    8. SUBTASK 72-32-53-220-061 Examine the No. 1 Bearing Seal Ring Holder Assembly (01-200) for the Front Outer Diameter

    1. Refer to Figure.

      2. Examine the seal ring holder assembly at location 7, for the front outer diameter.

        1. Front outer diameter.

          1. If the dimension is between 14.667 and 14.671 in. (372.542 and 372.643 mm)

          1. Accept

          2. Other than Step

          1. Reject

    9. SUBTASK 72-32-53-220-062 Examine the No. 1 Bearing Seal Ring Holder Assembly (01-200) for the Width of the Seal Ring Groove

    1. Refer to Figure.

      2. Examine the seal ring holder assembly at location 5, for the width of the groove.

        1. Width.

          1. If the width is between 0.124 and 0.127 in. (3.150 and 3.225 mm)

          1. Accept

          2. Other than Step

          1. Repair, VRS3405 TASK 72-32-53-300-006 (REPAIR-006)

    10. SUBTASK 72-32-53-220-063 Examine the No. 1 Bearing Seal Ring Holder Assembly (01-200) for the Surface Finish and the Parallelism of the Seal Ring Groove Front Face

    1. Refer to Figure.

      2. Examine the seal ring holder assembly at locations 4, for the surface finish of the seal ring groove front face. Refer to the SPM TASK 70-35-09-350-501.

        1. Surface finish of the groove at the 0.080 in. (2.032 mm) dimension.

          1. The surface finish limit must be as given in the figure

          1. Accept

          2. Other than Step

          1. Repair, VRS3405 TASK 72-32-53-300-006 (REPAIR-006)

      3. Examine the seal ring holder assembly for the parallelism of the seal ring groove front face at location 4, to be parallel with the face at location 3.

        1. Parallelism of the groove at the 0.080 in. (2.032 mm) dimension.

          1. If the parallelism is 0.002 in. (0.51 mm) or less

          1. Accept

          2. Other than Step

          1. Repair, VRS3405 TASK 72-32-53-300-006 (REPAIR-006)

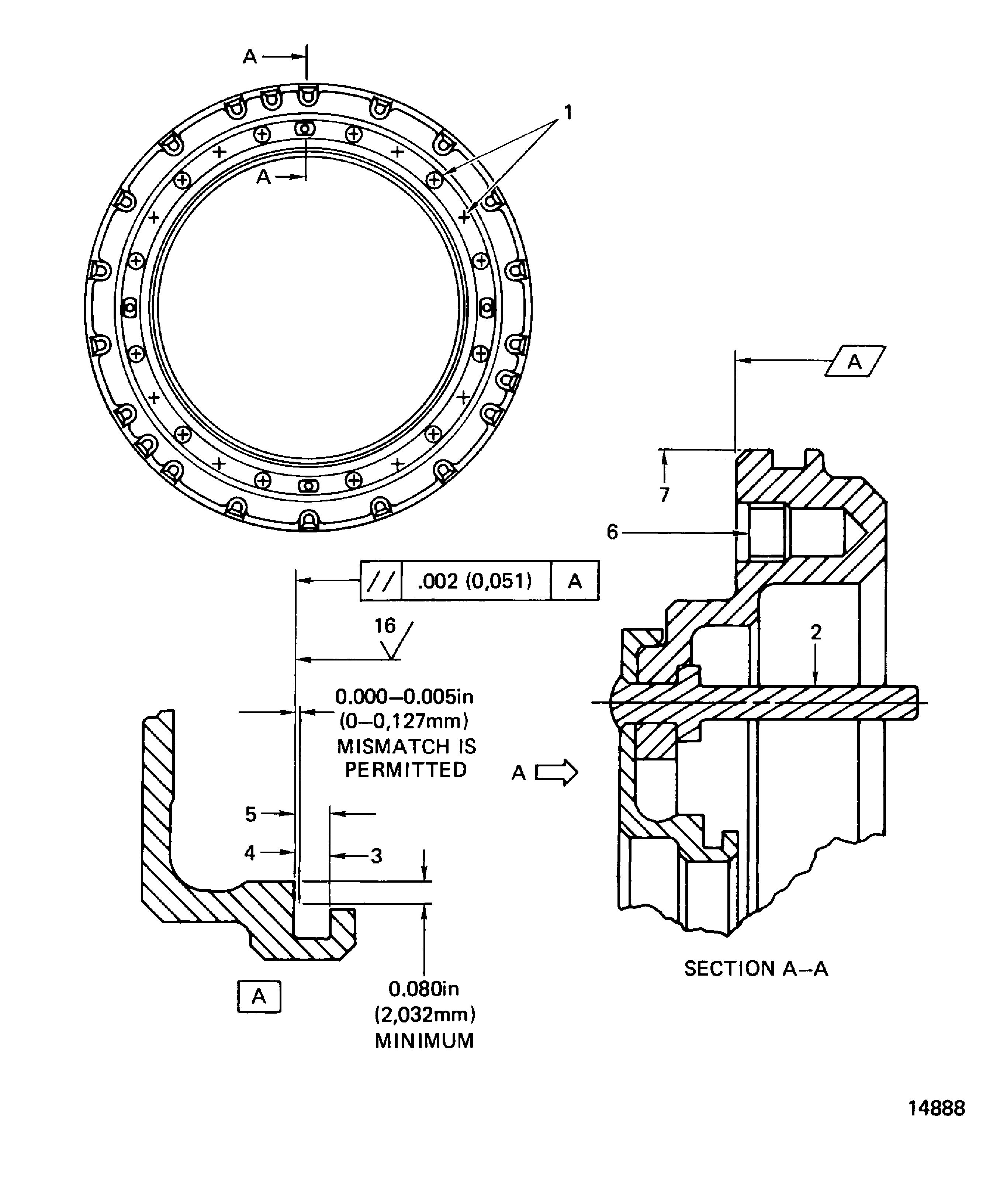

    11. Figure: No. 1 bearing seal ring holder assembly inspection locations

    No. 1 bearing seal ring holder assembly inspection locations

Requirements After Job Completion

Follow-On Conditions

NONE
