TASK 72-32-71-200-006-A00 LPC Bleed Valve Support Ring - Examine, Inspection-006

DMC:V2500-A0-72-32-7121-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-71-200-006-A00 LPC Bleed Valve Support Ring - Examine, Inspection-006

Effectivity

FIG/ITEM

PART NO.

01-600

5A3703

01-600

5A0950

General

This TASK gives the procedure for the inspection of the support ring assembly. For the other bleed valve support and arm parts, refer to TASK 72-32-71-200-000 (INSPECTION-000).

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-71-100-000 (CLEANING-000).

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-71-230-054 Examine the Support Ring Assembly (01-600) for Cracks

    1. Clean the part. Refer to TASK 72-32-71-100-000 (CLEANING-000).

      2. Do the crack test on the part that is given below.

        PART IDENT

        TASK/SUBTASK

        Support ring assembly

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-71-220-064 Examine the Support Ring Assembly (01-600) Support Ring

    1. Refer to Figure.

      2. Examine the flange face at location 1.

        1. Nicked or scratched

        1. Repair, VRS1330 TASK 72-32-71-300-006 (REPAIR-006)

      3. Examine the holes at location 2.

        1. Scratched.

          1. Up to 0.004 in. (0.10 mm) in depth

          1. Accept

          2. More than in Step

          1. Reject

        2. Edges burred

        1. Repair, VRS1330 TASK 72-32-71-300-006 (REPAIR-006)

      4. Examine the slots at location 3.

        1. Galled.

          1. Up to 0.02 in. (0.50 mm) in depth

          1. Accept

          2. More than in Step

          1. Reject

    3. SUBTASK 72-32-71-220-065 Examine the Support Ring Assembly (01-600) Support Pin Holes at Location 0446

    1. Refer to Figure.

      2. Worn at location 0446.

        1. If the hole diameter is between 0.1884 and 0.1898 in. (4.785 and 4.821 mm)

        1. Accept

      2. Write down the dimension of the diameter

        3. More than 0.1898 in. (4.821 mm)

        1. Repair, VRS1331 TASK 72-32-71-300-007 (REPAIR-007) or Repair, VRS1359 TASK 72-32-71-300-023 (REPAIR-023)

    4. SUBTASK 72-32-71-220-066 Examine the Support Ring Assembly (01-600) Rivets

    1. Refer to Figure.

      2. Examine the rivets at location 5.

        1. Loose or missing

        1. Repair, VRS1331 TASK 72-32-71-300-007 (REPAIR-007)

    5. SUBTASK 72-32-71-220-091 Examine the Support Ring Assembly (01-600) Stud Pin Hole(s)

    1. Refer to Figure.

      2. Stud pin hole at location 6 (2 positions).

        1. Worn.

          1. If hole diaameter is between 0.5000 and 0.5007 in. (12.700 and 12.718 mm)

          1. Accept

          2. More than 0.5007 in (12.718 mm)

          1. Repair, VRS1358 TASK 72-32-71-300-022 (REPAIR-022)

      3. Stud pin hole at location 7 (25 positions).

        1. Worn.

          1. If hole diameter is between 0.3750 and 0.3757 in. (9.525 and 9.543 mm)

          1. Accept

          2. More than 0.3757 in (9.543 mm)

          1. Repair, VRS1358 TASK 72-32-71-300-022 (REPAIR-022)

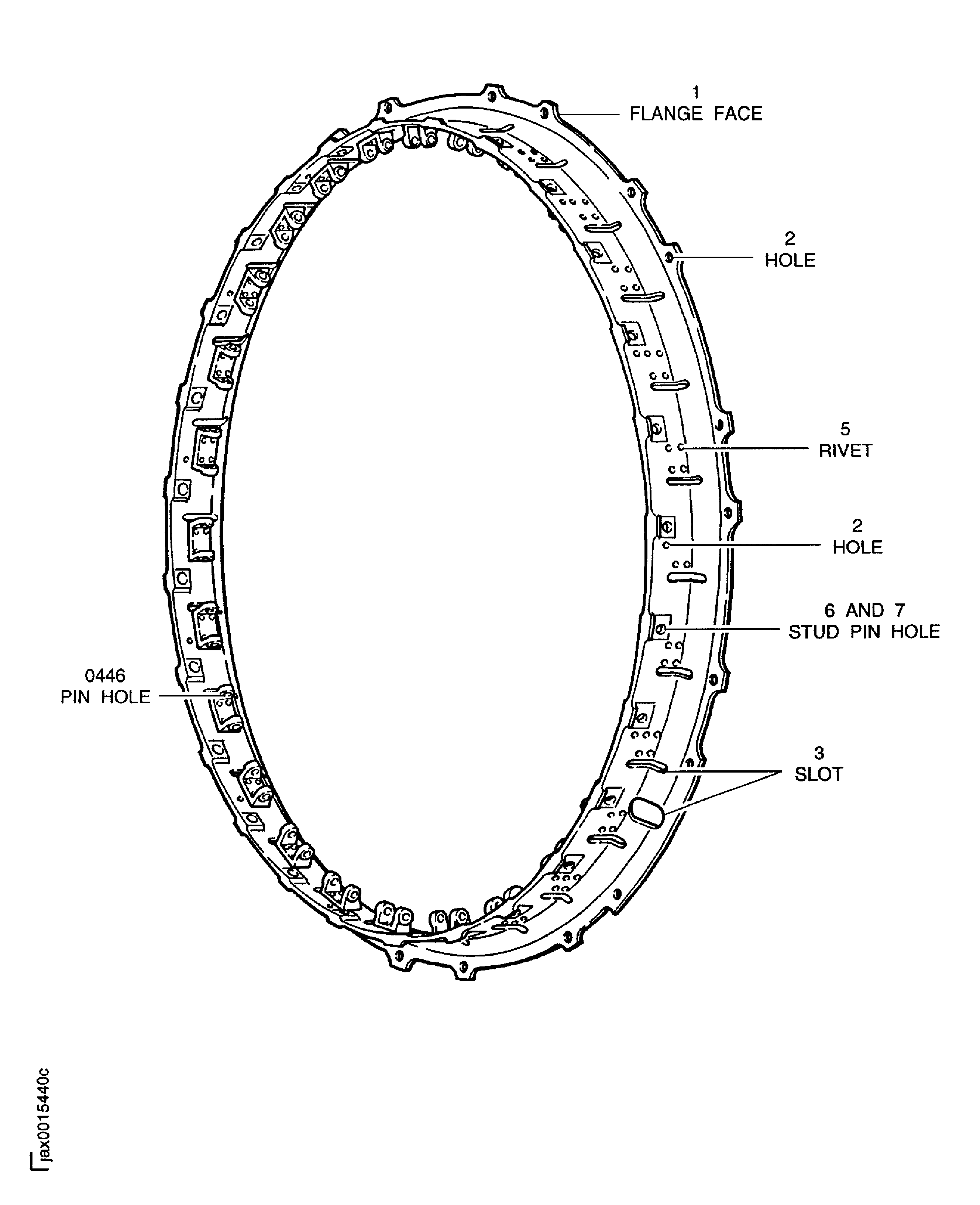

    6. Figure: Locations on the support ring assembly

    Locations on the support ring assembly

Requirements After Job Completion

Follow-On Conditions

NONE
