TASK 72-32-88-200-001-C00 Fan Exit Guide Vane - Examine, Inspection-001

DMC:V2500-A0-72-32-8800-00C-300A-C|Issue No:002.00|Issue Date:2019-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-88-200-001-C00 Fan Exit Guide Vane - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

06-100

5A1513

06-300

5A1513

06-500

5A1513

06-700

5A1513

07-100

5A1513

07-300

5A1513

07-500

5A1513

07-700

5A1513

08-100

5A1513

08-300

5A1513

08-500

5A1513

08-700

5A1513

09-100

5A1513

09-300

5A1513

09-500

5A1513

09-700

5A1513

10-100

5A1513

10-300

5A1513

10-500

5A1513

10-700

5A1513

General

This TASK gives the procedure for the inspection of the fan exit guide vanes.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-88-100-000 (CLEANING-000).

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in the repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs hae been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

Reference

Refer to the SPM for data on these items

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK, For more data on these items refer to the SPM

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-88-230-058 Examine the Fan Exit Guide Vanes for Cracks

    1. Clean the parts. Refer to TASK 72-32-88-100-000 (CLEANING-000).

      2. Do the crack test on the parts that are given below. Use the applicable fluorescent penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        Fan exit guide vanes

        1. Cracked

        1. Reject - unless referred differently in the procedure

    2. SUBTASK 72-32-88-220-087 Examine the Fan Exit Guide Vanes Outer Platform

    1. Refer to Figure.

      2. Examine the outer platform at location 1.

        1. Cracked or unbonded at joint between vane and resin.

          1. Up to 0.12 in (3.04 mm) in depth

          1. Accept

          2. Up to 0.600 in (15.24 mm) in depth and 1.400 in (35.56 mm) in length for each vane

          1. Accept

          3. Unbond greater then Step is allowed on the (1) vane for each vane assembly

          1. Accept

          4. More than in Step, Step and Step

          1. NOTE

            Use VRS1771 if the damage can not be removed by VRS1770.

            Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

      3. Bolt holes.

        1. Cracked

        1. Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

        2. Scored

        1. NOTE

          Use VRS1771 if the damage can not be removed by VRS1770.

          Repair, VRS1770 TASK 72-32-88-300-005 (REPAIR-005), or Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

      4. Air passage.

        1. Cracked

        1. Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

        2. Nicked, dented or pitted

        1. NOTE

          Use VRS1771 if the damage can not be removed by VRS1770.

          Repair, VRS1770 TASK 72-32-88-300-005 (REPAIR-005) or Repair, VRS1771 TASK 72-32-8-300-006 (REPAIR-006)

      5. Outer surface.

        1. Cracked

        1. Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

        2. Nicked, dented, worn or pitted on outer surface

        1. NOTE

          Use VRS1771 if the damage can not be removed by VRS1770.

          Repair, VRS1770 TASK 72-32-88-300-005, (REPAIR-005), or Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

      6. All other surface.

        1. Cracked

        1. Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

        2. Nicked, dented, worn or pitted

        1. Repair, VRS1770 TASK 72-32-88-300-005 (REPAIR-005), or Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

      7. Bush.

        1. Loose or missing

        1. Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

    3. SUBTASK 72-32-88-220-088 Examine the Fan Exit Guide Vanes Leading Edges

    1. Refer to Figure.

      2. Examine the leading edges at location 2.

        1. Nicked or dented.

          1. Up to 0.140 in (3.55 mm) in depth

          1. Repair, VRS1770 TASK 72-32-88-300-005 (REPAIR-005)

          2. More than in Step

          1. Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

        2. Eroded

        1. Repair, VRS1770 TASK 72-32-88-300-005 (REPAIR-005)

    4. SUBTASK 72-32-88-220-089 Examine the Fan Exit Guide Vanes Inner Platform

    1. Refer to Figure.

      2. Examine the inner platform at location 3.

        1. Cracked or unbonded at the joint between the vane and the resin.

          1. Up to 0.12 in (3.04 mm) in depth

          1. Accept

          2. Up to 0.600 in (15.24 mm) in depth and 1.400 in (35.56 mm) in length for each vane

          1. Accept

          3. Unbonded greater than Step is allowed on one (1) vane for each vane assembly

          1. Accept

          4. More than in Step, Step and Step

          1. Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

      3. Bolt holes.

        1. Scored

        1. Repair, VRS1770 TASK 72-32-88-300-005 (REPAIR-005)

      4. Air passage.

        1. Nicked, dented or corrosion pitted

        1. Repair, VRS1770 TASK 72-32-88-300-005 (REPAIR-005)

      5. Outer surface.

        1. Nicked, dented or corrosion pitted

        1. Repair, VRS1770 TASK 72-32-88-300-005 (REPAIR-005)

      6. All other surface.

        1. Nicked, dented or corrosion pitted

        1. Repair, VRS1770 TASK 72-32-88-300-005 (REPAIR-005)

    5. SUBTASK 72-32-88-220-090 Examine the Fan Exit Guide Vanes Trailing Edges

    1. Refer to Figure.

      2. Examine the trailing edges at location 4.

        1. Nicked or dented.

          1. Up to 0.140 in (3.55 mm) in depth

          1. Repair VRS1770 TASK 72-32-88-300-005 (REPAIR-005)

          2. More than in Step

          1. Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

    6. SUBTASK 72-32-88-220-091 Examine the Fan Exit Guide Vanes Convex Airfoil Surface

    1. Refer to: Figure

      2. Examine the convex airfoil surface at location 5.

        1. Nicked, dented or corrosion pitted.

          1. Up to 0.017 in (0.43 mm) in depth

          1. Repair VRS1770 TASK 72-32-88-300-005 (REPAIR-005)

          2. More than in Step

          1. Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

    7. SUBTASK 72-32-88-220-092 Examine the Fan Exit Guide Vanes Concave Airfoil Surface

    1. Refer to Figure.

      2. Examine the concave airfoil surface at location 6.

        1. Nicked, dented or corrosion pitted.

          1. Up to 0.017 in (0.43 mm) in depth

          1. Repair, VRS1770 TASK 72-32-88-300-005 (REPAIR-005)

          2. More than in Step

          1. Repair, VRS1771 TASK 72-32-88-300-006 (REPAIR-006)

    8. SUBTASK 72-32-88-220-093 Examine the Fan Exit Guide Vanes Sealing Strip

    1. Refer to Figure.

      2. Examine the sealing strip at location 7.

        1. Cracked or peeled

        1. Repair, VRS1772 TASK 72-32-88-300-007 (REPAIR-007)

    9. SUBTASK 72-32-88-220-094 Examine the Fan Exit Guide Vanes Plate Nuts

    1. Refer to Figure.

      2. Examine the plate nuts at location 8.

        1. Thread crossed, stripped or loose

        1. Repair, VRS1782 TASK 72-32-88-300-008 (REPAIR-008)

    10. SUBTASK 72-32-88-220-095 Examine the Fan Exit Guide Vanes Rivets

    1. Refer to Figure.

      2. Examine the rivets at location 9.

        1. Loose

        1. Repair, VRS1782 TASK 72-32-88-300-008 (REPAIR-008)

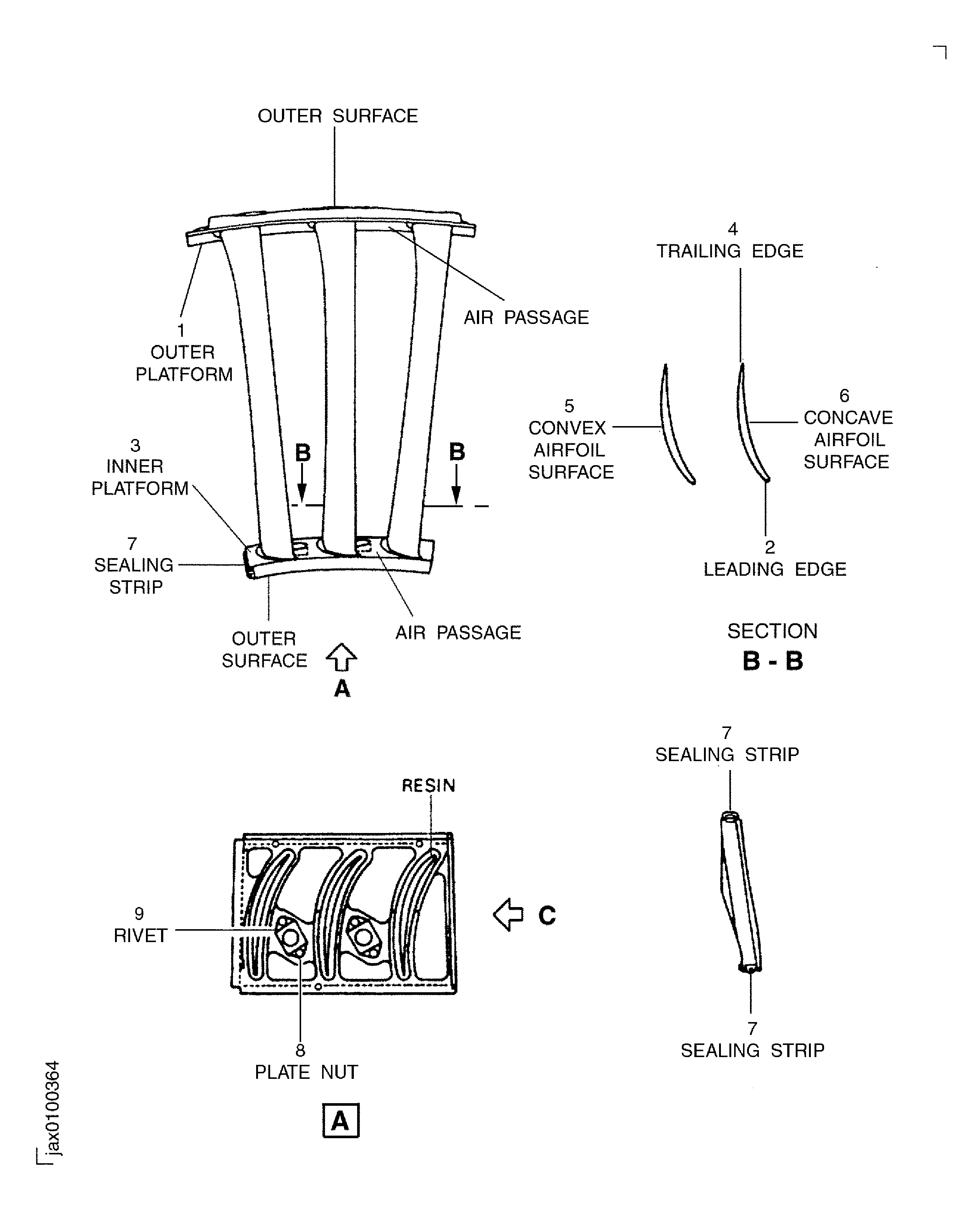

    11. Figure: Locations on the outlet guide vane

    Locations on the outlet guide vane

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Editorial change "in length" for dimension (CAS-48533-Q6T2M9)
