V2500-A5
Common Information
TASK 72-42-40-200-001-B00 HPC Exit Guide Vane Stator - Examine, Inspection-001
General
Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.
The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.
All the parts must be cleaned before any part is examined. Refer to TASK 72-42-40-100-000 (CLEANING-000).
All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.
The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.
Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.
Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.
All the parts must be examined to make sure that all the repairs have been completed satisfactorily.
The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in SPM.
References
Refer to SPM for data on these items:
Definition of Damage, SPM TASK 70-02-02-350-501.
Inspection of Parts, SPM TASK 70-20-01-200-501.
Some data on these items is contained in this TASK. For more data on these items refer to SPM:
Method of testing for crack indications.
Chemical processes.
Surface protection.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Clean the parts. Refer to TASK 72-42-40-100-000 (CLEANING-000).
Bolt holes at location 8, Figure.
Repair, VRS6640 TASK 72-42-40-300-006 (REPAIR-006).
OGV Vane Locations 1, 2, 3 and 4.
Do the test for cracks on the parts that follow.
PART IDENT
TASK/SUBTASK
Stage 12/OGV Casing
SUBTASK 72-42-40-230-058 Examine the OGV Case
Refer to Figure
Repair, VRS6041 TASK 72-42-40-300-002 (REPAIR-002)
Cracked or Nicked.
Repair, VRS6640 TASK 72-42-40-300-006 (REPAIR-006)
More than repairable limits in VRS6041
Repair, VRS6640 TASK 72-42-40-300-006 (REPAIR-006).
Limits more than Step.
Pitted.
SUBTASK 72-42-40-220-068 Examine the OGV Case Concave and Convex Surfaces at Locations 1 and 2
Refer to Figure
Repair, VRS6041 TASK 72-42-40-300-002 (REPAIR-002).
Cracked or Nicked.
Repair, VRS6640 TASK 72-42-40-300-006 (REPAIR-006)
More than repairable limits in VRS6041
SUBTASK 72-42-40-220-069 Examine the OGV Case Leading and Trailing Edges at Locations 3 and 4
Refer to Figure.
Repair, VRS6115 TASK 72-42-40-300-001 (REPAIR-001)
Limits more than in Step
Nicked.
Repair, VRS6115 TASK 72-42-40-300-001 (REPAIR-001)
Limits more than in Step.
Pitted.
SUBTASK 72-42-40-220-070 Examine the OGV Case Inner and Outer Platform Surfaces at Locations 5 and 6
Refer to Figure.
Repair, VRS6115 TASK 72-42-40-300-001 (REPAIR-001).
Limits more than in Step
Galled.
SUBTASK 72-42-40-220-071 Examine the OGV Case Location Faces at Locations 7A, 7B and 7C
Refer to Figure
Repair, VRS6233 TASK 72-42-40-300-004 (REPAIR-004)
Other than Step.
SUBTASK 72-42-40-220-072 Measure the OGV Case Diameter D at Location 7C
Refer to Figure
Repair, VRS6115 TASK 72-42-40-300-001 (REPAIR-001)
Burred edges
SUBTASK 72-42-40-220-073 Examine the OGV Case Bolt Holes at Location 8

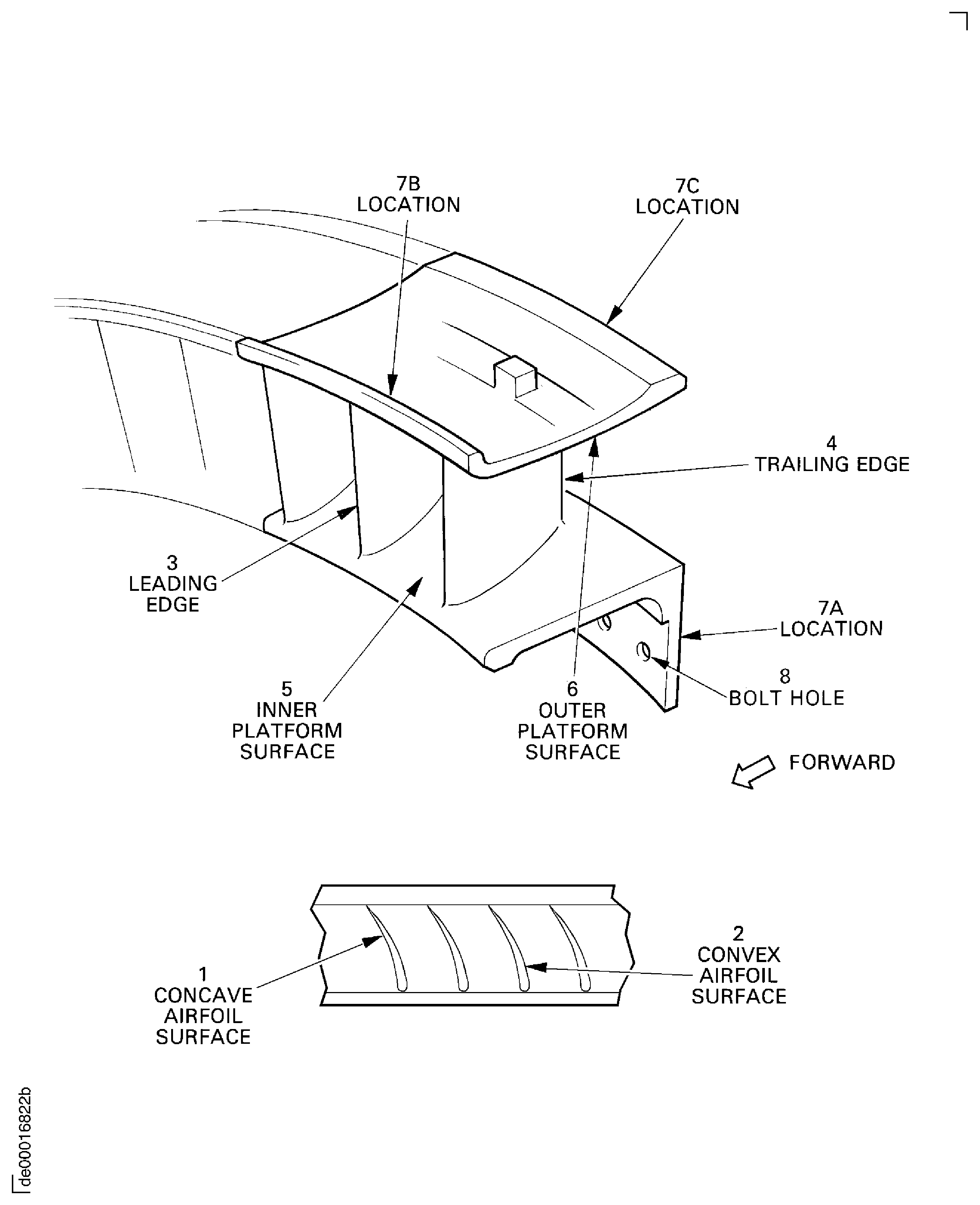

Figure: Examine the Stage 12/OGV Casing
Sheet 1

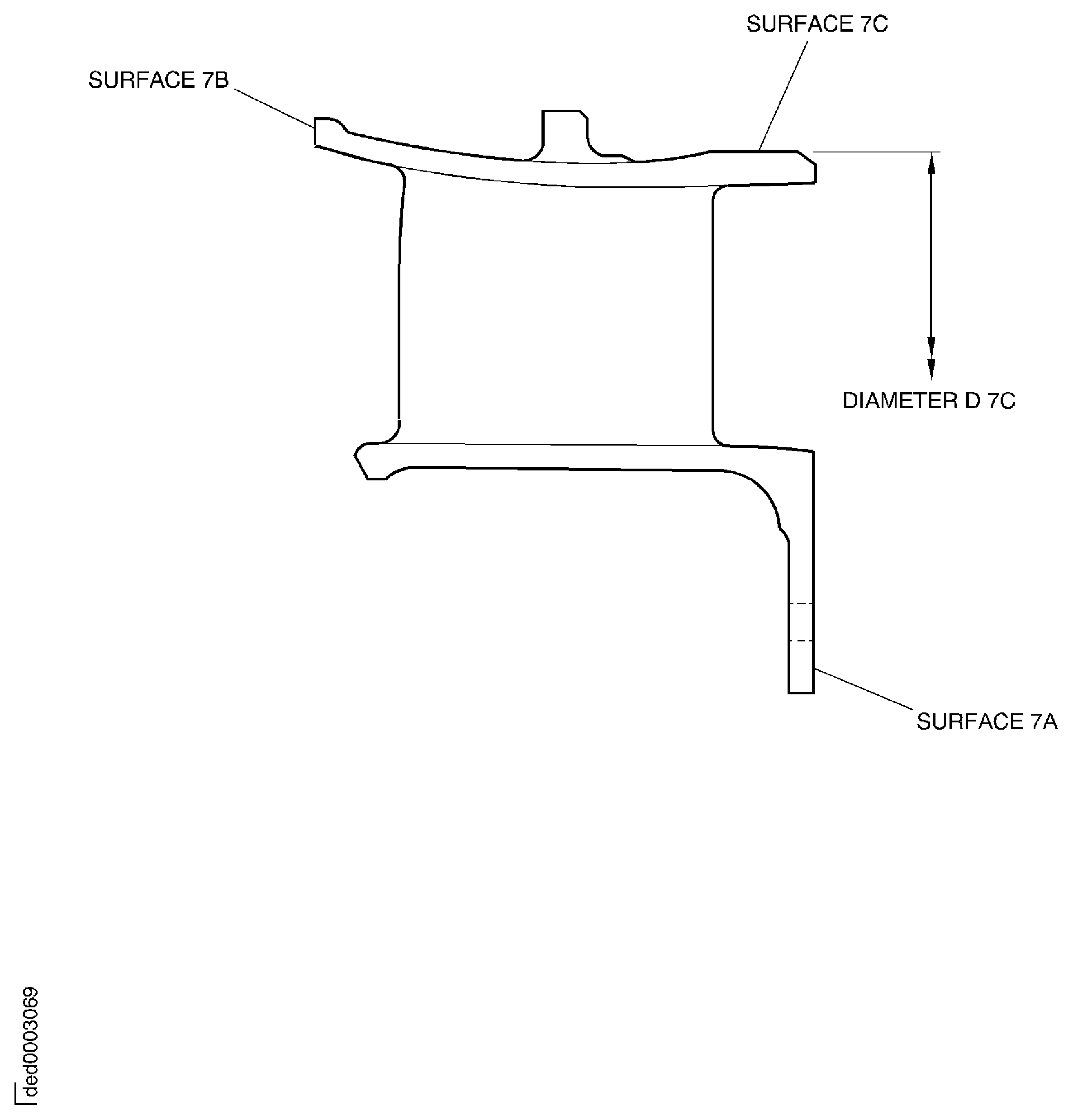

Figure: Examine the Stage 12/OGV Casing
Sheet 2
