TASK 73-22-35-200-401 EEC Data Entry Plug - Related Parts - Examine The Data Entry Plug Assembly (Without The Backshell Installed), Inspection-001

DMC:V2500-A0-73-22-3500-04A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 73-22-35-200-401 EEC Data Entry Plug - Related Parts - Examine The Data Entry Plug Assembly (Without The Backshell Installed), Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-100

2A2309

01-100

2A3106

01-100

5A0431

01-100

5A0432

General

This TASK gives the procedure for the inspection of the data entry plug assembly (without the backshell installed).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Reference

Reference

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-22-35-220-051 Examine the Data Entry Plug (01-100) for Damage on the Connector Main Key

    1. Refer to Figure.

      2. Examine the connector main key at location 5 for damage.

        1. Damage

        1. Repair, VRS3500 (Repair-001) TASK 73-22-35-300-001.

    2. SUBTASK 73-22-35-220-052 Examine the Data Entry Plug (01-100) for Damage on the Connector Rubber Grommet

    1. Refer to Figure.

      2. Examine the connector rubber grommet at locations 6 and 8 for damage.

        1. Damage

        1. Repair, VRS3500 (Repair-001) TASK 73-22-35-300-001.

    3. SUBTASK 73-22-35-220-053 Examine the Data Entry Plug (01-100) for Corrosion on the Connector Contacts

    1. Refer to Figure.

      2. Examine the connector contacts at location 7 for corrosion.

        1. Corrosion

        1. Repair, VRS3500 (Repair-001) TASK 73-22-35-300-001.

    4. SUBTASK 73-22-35-220-054 Examine the Data Entry Plug (01-100) for Bent Contacts on the Connector

    1. Refer to Figure.

      2. Examine the connector for contacts that are bent at location 7.

        1. Contacts that are bent 15 degrees or less

        1. Repair, VRS3501 (Repair-002) TASK 73-22-35-300-002.

        2. Contacts that are bent more than 15 degrees

        1. Repair, VRS3500 (Repair-001) TASK 73-22-35-300-001.

    5. SUBTASK 73-22-35-220-055 Examine the Data Entry Plug (01-100) for Damage to the Connector Threads

    1. Refer to Figure.

      2. Examine the connector threads at location 4 for damage.

        1. Damage

        1. Repair, VRS3500 (Repair-001) TASK 73-22-35-300-001.

    6. SUBTASK 73-22-35-220-056 Examine the Data Entry Plug (01-100) for Damage on the Backshell Nut Threads

    1. Refer to Figure.

      2. Examine the backshell nut threads at location 1 for damage.

        1. Damage

        1. Repair, VRS3503 (Repair-004)TASK 73-22-35-300-004.

    7. SUBTASK 73-22-35-220-057 Examine the Data Entry Plug (01-100) for Damage on the Connector Nut Ratchet

    1. Refer to Figure.

      2. Examine the connector nut ratchet at location 5 for damage.

        NOTE

        This inspection is easier if the backshell nut is threaded onto the connector. Use your hand to turn the nut.

        1. If the ratchet makes a click sound when you turn it with your hand in the clockwise and counterclockwise directions

        1. Accept

        2. Other than Step.

        1. Repair, VRS3500 (Repair-001) TASK 73-22-35-300-001.

    8. SUBTASK 73-22-35-220-058 Examine the Data Entry Plug (01-100) for Damage to the Connecting Chain/Cable and that the Chain/Cable is Attached Correctly to the Backshell

    1. Refer to Figure.

      2. Examine the connecting chain/cable for damage and that the chain/cable is correctly attached to the backshell at location 9.

        1. Damage or not attached correctly

        1. Repair, VRS3503 (Repair-004)TASK 73-22-35-300-004.

    9. SUBTASK 73-22-35-220-059 Examine the Data Entry Plug (01-100) for Moisture in the Connector

    1. Refer to Figure.

      2. Examine the connector for moisture.

        1. Moisture

        1. Repair, VRS3502 (Repair-003)TASK 73-22-35-300-003.

    10. SUBTASK 73-22-35-220-060 Examine the Data Entry Plug (01-100) for Damage on the Anti-Vibration Rubber

    1. Refer to Figure.

      2. Examine the anti-vibration rubber at location 2 for damage.

        1. Damage

        1. Reject

    11. SUBTASK 73-22-35-220-061 Examine the Data Entry Plug (01-100) for Damage on the Backshell Assembly

    1. Refer to Figure.

      2. Examine the backshell assembly for damage

        1. Damage

        1. Repair, VRS3503 (Repair-004)TASK 73-22-35-300-004.

    12. SUBTASK 73-22-35-220-062 Examine the Data Entry Plug (01-100) for Damage on the Jumper Wires

    1. Refer to Figure.

      2. Examine the jumper wires at location 3 for damage.

        1. Damage

        1. Repair, VRS3500 (Repair-001) TASK 73-22-35-300-001.

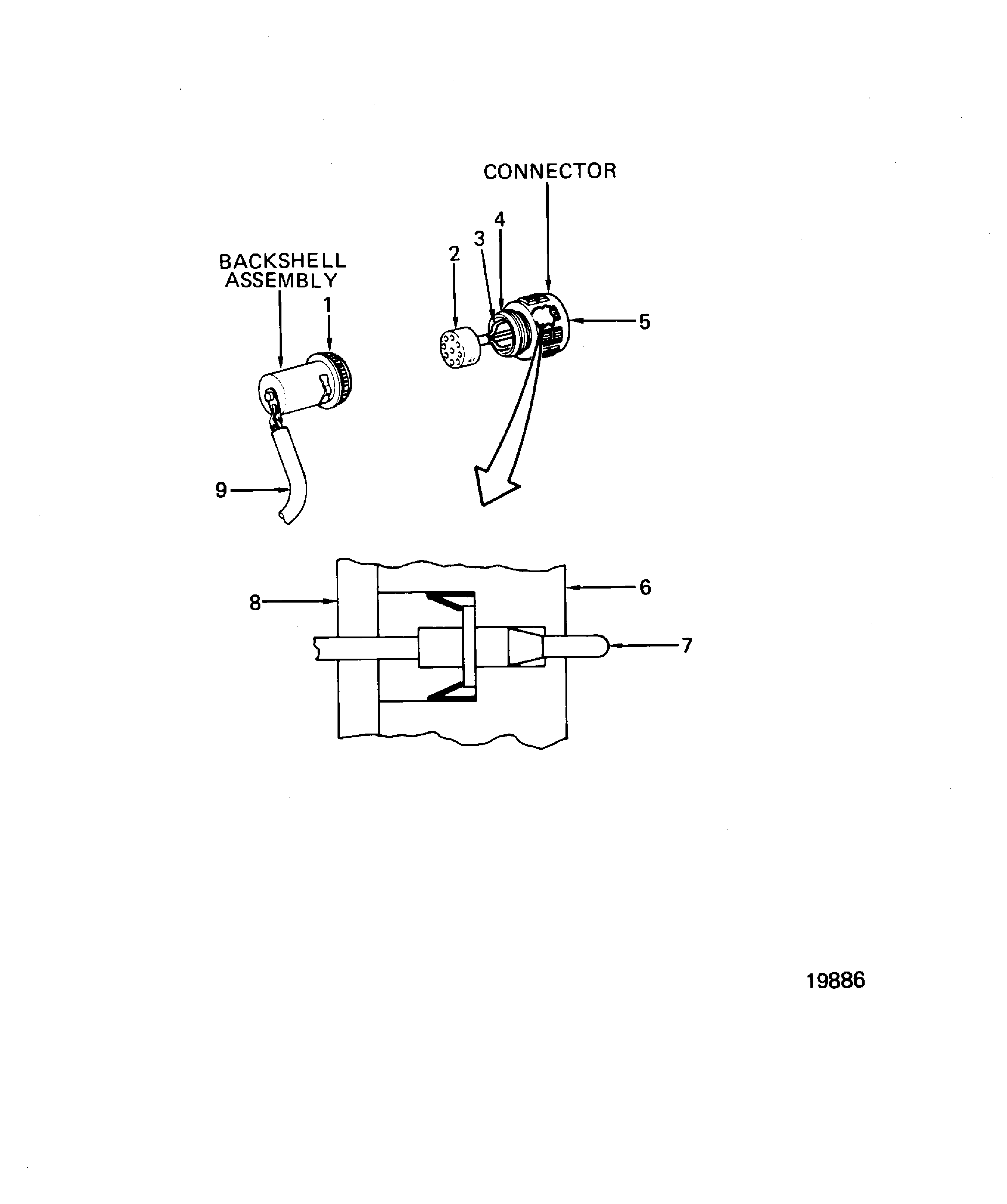

    13. Figure: Data Entry Plug Assembly Inspection Locations

    Data Entry Plug Assembly Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
