TASK 72-00-40-220-002-A00 HP System Module - Examine The HP Compressor Rotor Assembly At Interface H-41, Inspection-002

DMC:V2500-A1-72-00-4000-00A-300A-B|Issue No:003.00|Issue Date:2015-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-00-40-220-002-A00 HP System Module - Examine The HP Compressor Rotor Assembly At Interface H-41, Inspection-002

General

Refer to TASK 72-00-00-200-000, (Examine the modular/non-modular interfaces), before you do this TASK.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

The word 'reject' after an interface inspection statement requires that further detailed inspection or repair, as applicable, of the affected area be accomplished using data in the applicable ATA section of the part in question. Contact IAE for FAA approved data if the referenced TASK is not in the manual.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-40-220-058 Examine the Rear Flange of the HP Compressor Rear Outer Case at Location

    1. Refer to Figure.

      2. Galled

      1. Reject

    2. SUBTASK 72-00-40-220-059 Examine the Stage 12 HP Compressor Blades at Location 2

    1. Refer to Figure.

      2. Cracked or torn.

      1. Reject

      3. Nicked

        1. Nicked up to 0.030 in. (0.76 mm) in depth in the first 0.250 in. (6.35 mm) along the blade length (when measured from the blade tip).

        1. Accept

        2. More than in Step.

        1. Reject

        3. Nicked in the first 0.250 in. (6.35 mm) along the blade length (when measured from the root).

        1. Reject

        4. Nicked up to 0.015 in. (0.38 mm) in depth in the area remaining.

        1. Accept

        5. More than in Step.

        1. Reject

      4. Dented.

        1. Dents that are not related to nicks.

        1. Accept

        2. Dents that are related to nicks.

        1. Reject

      5. Blade tips.

        1. Missing piece (not related to tip rub).

        1. Reject

        2. Discoloration (related to tip rub).

        1. Accept

        3. Bent or curled (not related to cracks or tears) not more than 5 percent of the blade length or width.

        1. Accept

        4. Tip rub (not related to cracks or tears).

        1. Accept

      6. Deposits (all areas).

        1. Light deposits of abradable/atmospheric contamination.

        1. Accept

    3. SUBTASK 72-00-40-220-060 Examine the Stage 12 HP Compressor Disk at Location 3

    1. Refer to Figure.

      2. Nicked

        1. Up to 0.003 in. (0.076 mm) in depth.

        1. Accept

        2. More than in Step.

        1. Repair VRS3436, TASK 72-41-12-300-004.

      3. Dented

        1. Not more than 0.003 in. (0.076 mm) in depth.

        1. Accept

        2. More than in Step.

        1. Repair VRS3436, TASK 72-41-12-300-004.

    4. SUBTASK 72-00-40-220-061-A00 Examine the HP Compressor Shaft Rotating Seal Diameter at Location 4 (Pre SBE 72-0041)

    1. Refer to Figure.

      2. Chipped

        1. Chipped not more than 10 percent of total width, 25 percent of the circumference and 0.004 in. (0.10 mm) in depth along the edges.

        1. Accept

        2. More than in Step.

        1. Reject

      3. Pitted.

        1. Pitted in brush seal rub track.

        1. Reject

        2. Scattered pits in other areas not more than 0.025 in. (0.64 mm) in diameter and 0.004 in. (0.10 mm) in depth.

        1. Accept

        3. More than in Step.

        1. Reject

      4. Scratched.

        1. Scratched in brush seal rub track.

        1. Reject

        2. Scratched in other areas not more than 0.002 in. (0.05 mm) in depth and 0.250 in. (6.35 mm) in length.

        1. Accept

        3. More than in Step.

        1. Reject

      5. Ceramic layer.

        1. Loose

        1. Reject

        2. Peeled

        1. Reject

      6. Worn

        1. Not more than 0.002 in. (0.05 mm) smooth constant wear in brush rub track.

        1. Accept

        2. More than in Step.

        1. Reject

    5. SUBTASK 72-00-40-220-061-B00 Examine the HP Compressor Rotating Seal at Location 4 (SBE 72-0041)

    1. Refer to Figure.

      2. Chipped.

        1. Chipped not more than 10 percent of total width, 25 percent of the circumference and 0.004 in. (0.10 mm) in depth along the edges.

        1. Accept

        2. More than in Step.

        1. Reject

      3. Pitted

        1. Pitted in brush seal rub track.

        1. Reject

        2. Scattered pits in other areas Not more than 0.025 in. (0.64 mm) in diameter and 0.004 in. (0.10 mm) in depth.

        1. Accept

        3. More than in Step.

        1. Reject

      4. Scratched

        1. Scratched in brush seal rub track.

        1. Reject

        2. Scratched in other areas not more than 0.002 in. (0.05 mm) in depth and 0.250 in. (6.35 mm) in length.

        1. Accept

        3. More than in Step.

        1. Reject

      5. Ceramic layer

        1. Loose

        1. Reject

        2. Peeled

        1. Reject

      6. Worn

        1. Not more than 0.002 in. (0.05 mm) smooth constant wear in brush rub track.

        1. Accept

        2. More than in Step.

        1. Reject

    6. SUBTASK 72-00-40-220-062 Examine the HP Compressor Rotating Air Seals at Locations 1401A, 1401B and 1401C

    1. Refer to Figure.

      2. Worn

        Do an 8 point check at locations 1401A, 1401B and 1401C. Calculate the average diameters and make sure they are in the limits that follow.

        1. Location 1401A.

          1. If the diameter is between 9.204 and 9.219 in. (233.776 and 234.170 mm).

          1. Accept

          2. Less than 9.204 in. (233.776 mm).

          1. Reject

        2. Location 1401B.

          1. If the diameter is between 8.991 and 9.007 in. (228.376 and 228.770 mm).

          1. Accept

          2. Less than 8.991 in. (228.376 mm).

          1. Reject

        3. Location 1401C.

          1. If the diameter is between 8.779 and 8.794 in. (222.976 and 223.370 mm).

          1. Accept

          2. Less than 8.779 in. (222.976 mm).

          1. Reject

            NOTE

            One of the seal fin diameters can be less than the limit given in Step, Stepor Step, if the other seal fins are within the limits.

    7. SUBTASK 72-00-40-220-063 Examine the HP Compressor Shaft Location Diameter at Location 5

    1. Refer to Figure.

      2. Burrs

      1. Repair VRS3445, TASK 72-41-13-300-001.

      3. Galled

      1. Repair VRS3445, TASK 72-41-13-300-001.

        2. Scored/scratched.

          1. Not more than 0.003 in. (0.076 mm) in depth.

          1. Accept

          2. More than in Step.

          1. Repair VRS3445, TASK 72-41-13-300-001.

        3. Worn

          Do an 8 point check and calculate the average diameter.

          1. If the diameter is between 5.127 and 5.129 in. (130.23 and 130.28 mm).

          1. Accept

          2. Less than 5.127 in. (130.23 mm).

          1. Reject

    8. SUBTASK 72-00-40-220-064 Examine the HP Compressor Shaft Bearing Location Diameter at Location 6

    1. Refer to Figure.

      2. Burrs

      1. Repair VRS3445, TASK 72-41-13-300-001.

      3. Galled

      1. Repair VRS3445, TASK 72-41-13-300-001.

      4. Scored/scratched.

        1. Not more than 0.003 in. (0.076 mm) in depth.

        1. Accept

        2. More than in Step

        1. Repair VRS3445, TASK 72-41-13-300-001.

      5. Worn.

        Do an 8 point check and calculate the average diameter.

        1. If the diameter is between 5.1184 and 5.1191 in. (130.007 and 130.025 mm).

        1. Accept

        2. Less than 5.1184 in. (130.007 mm).

        1. Reject

    9. SUBTASK 72-00-40-220-065 Examine the HP Compressor Shaft Snap Diameter at Location 7

    1. Refer to Figure.

      2. Burrs

      1. Repair VRS3461, TASK 72-41-13-300-002

      3. Galled

      1. Repair VRS3461, TASK 72-41-13-300-002

        2. Scored/scratched.

          1. Not more than 0.003 in. (0.076 mm) in depth.

          1. Accept

          2. More than in Step.

          1. Repair VRS3461, TASK 72-41-13-300-002.

        3. Worn

          Do an 8 point check and calculate the average diameter.

          1. If the diameter is between 5.107 and 5.108 in. (129.72 and 129.74 mm).

          1. Accept

          2. Less than 5.107 in. (129.72 mm).

          1. Reject

    10. SUBTASK 72-00-40-220-066 Examine the HP Compressor Shaft Splines at Location 8

    1. Refer to Figure.

      2. Burrs

      1. Repair VRS3445, TASK 72-41-13-300-001.

      3. Galled

      1. Repair VRS3445, TASK 72-41-13-300-002.

      4. Chipped

      1. Reject

    11. SUBTASK 72-00-40-220-079 Examine the HP Compressor Shaft Snap Diameter at Location 9

    1. Refer to Figure.

      2. Burrs

      1. Repair VRS3461, TASK 72-41-13-300-002.

      3. Galled

      1. Repair VRS3461, TASK 72-41-13-300-002.

      4. Scored/scratched.

        1. Not more than 0.003 in. (0.076 mm) in depth.

        1. Accept

        2. More than in Step.

        1. Repair VRS3461, TASK 72-41-13-300-002.

      5. Worn

        Do an 8 point check and calculate the average diameter.

        1. If the diameter is between 4.841 and 4.842 in. (122.96 and 122.99 mm).

        1. Accept

        2. Less than 4.841 in. (122.96 mm).

        1. Reject

    12. SUBTASK 72-00-40-220-080 Examine the HP Compressor Shaft Diameter at Location 10

    1. Refer to Figure.

      2. Burrs

      1. Repair VRS3461, TASK 72-41-13-300-002.

      3. Galled

      1. Repair VRS3461,TASK 72-41-13-300-002.

      4. Scored/scratched.

        1. Not more than 0.003 in. (0.076 mm) in depth.

        1. Accept

        2. More than in Step.

        1. Repair VRS3461, TASK 72-41-13-300-002.

    13. SUBTASK 72-00-40-220-081 Examine the HP Compressor Shaft Threads at Location 11

    1. Refer to Figure.

      2. Stripped

      1. Reject

      3. Crossed

      1. Reject

    14. SUBTASK 72-00-40-220-082 Examine the HP Compressor Shaft Slots at Location 12

    1. Refer to Figure.

      2. Burrs

      1. Repair VRS3445, TASK 72-41-13-300-001.

    15. SUBTASK 72-00-40-220-083 Examine the HP Compressor Shaft Heatsheild at Location 13

    1. Refer to Figure.

      2. Dented

      1. Reject

      3. Distorted

      1. Reject

      4. Cracked

      1. Reject

      5. Loose

      1. Reject

    16. SUBTASK 72-00-40-220-084 Examine the HPT Bearing Retaining Nut (ATA 72-40-00, 04-020) at Location 14

    1. Refer to Figure.

    2. If the HPT Bearing Retaining Nut is to be reinstalled, silver plate must be replaced before installing. Refer to Repair VRS3011,TASK 72-40-00-300-010 (REPAIR-006).

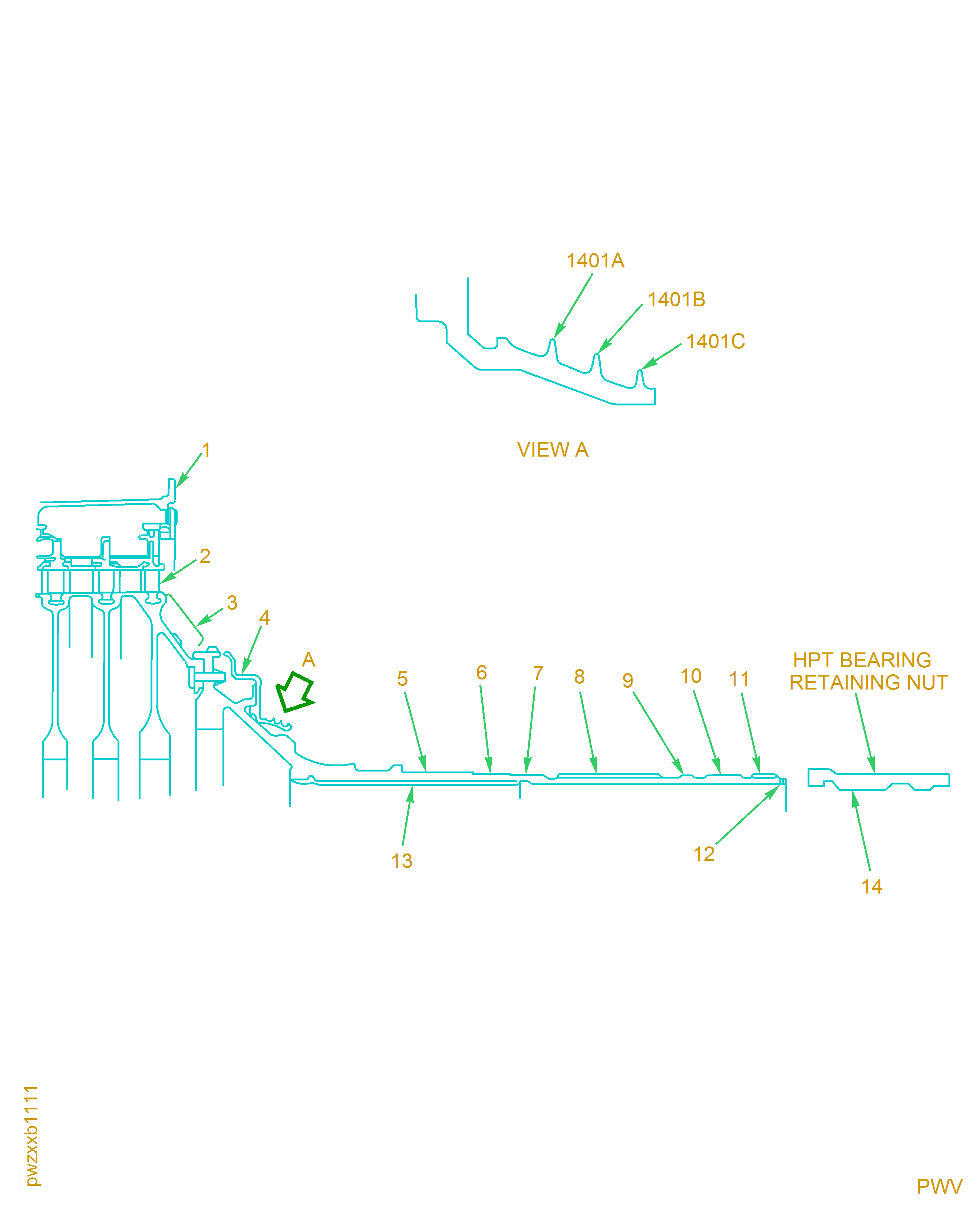

    17. Figure: Pre SBE 72-0041: Locations at interface H-41

    Sheet 1

    Legend
    Pre SBE 72-0041: Locations at interface H-41

    Sheet 1

    Close

    Figure: SBE 72-0041: Locations at interface H-41

    Sheet 2

    Legend
    SBE 72-0041: Locations at interface H-41

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised format. (editorial change)
