TASK 72-32-00-430-012-B00 LPC/Intermediate Case Module - Install The Panel Rubber Seals, Rear Liner Panels, Middle Liner Panel, Front Liner Panels, Fan Exit Guide Vanes, Transition Panels, And Rear Fairings, Assembly-012 - SBE 72-0103, SBE 72-0105

DMC:V2500-A1-72-32-0000-12B-710A-B|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1 AND Post SBE 72-0103 AND Post SBE 72-0105

Common Information

TASK 72-32-00-430-012-B00 LPC/Intermediate Case Module - Install The Panel Rubber Seals, Rear Liner Panels, Middle Liner Panel, Front Liner Panels, Fan Exit Guide Vanes, Transition Panels, And Rear Fairings, Assembly-012 - SBE 72-0103, SBE 72-0105

General

This TASK gives the procedure to install the panel rubber seals, the rear liner panels, the middle liner panel, the front liner panels, the fan exit guide vanes, the transition panels and the rear fairings. For the other parts of the LP compressor/intermediate case module, refer to TASK 72-32-00-430-000 (ASSEMBLY-000).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501 and SPM TASK 70-41-02-400-501.

Special torque data is identified with the symbol * after the torque valve.

Lubricate all threads and abutment faces of nuts and bolts with approved engine oil, unless other lubricants are referred to in the procedure. For the approved engine oils and procedures, refer to the SPM TASK 70-64-00-640-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

The No. 1 strut, which is the top position strut of the fan frame assembly, is identified by the five pressure tubes on the No. 1 strut leading edge.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Sealant dispenserLOCALSealant dispenser

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-031 ACETONE (CH3)2COLOCALCoMat 01-031
CoMat 01-124 ISOPROPYL ALCOHOLLOCALCoMat 01-124
CoMat 08-013 COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT0AM53CoMat 08-014
CoMat 08-045 SILICONE RUBBER COMPOUNDLOCALCoMat 08-045
CoMat 08-074 SEALANT, RTV SILICONE01139CoMat 08-074

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-430-311 Install the Panel Rubber Seals onto the Fan Case

    1. Refer to Figure and Figure.

    2. Turn the fan frame and fan case assembly to horizontal position. Refer to TASK 72-32-00-430-011-A00 (ASSEMBLY-011, CONFIG-001).

      1. Attach the panel rubber seals to the fan case with the 36 screws (01-808), 20 screws (02-810), four screws (02-830) and the four nuts (02-828). Tighten the screws lightly.

        2. Adjust the positions of the panel rubber seals so that:

        1. The rear end of the panel rubber seals are not rearward of the rear end of the fan case.

      3. Torque the screws to 75 to 85* lbfin (8.48 to 9.61 Nm).

    2. SUBTASK 72-32-00-430-312 Apply Silicone Compound to the Corner between the No.1 Panel Rubber Seal and the Fan Frame No.1 Strut (SBE 72-0156)

      SBE 72-0156: Replace the fan case No. 1 rubber seal

    1. Refer to Figure.

    2. Clean the faces of the corner with a clean cloth or a soft brush moist with CoMat 01-031 ACETONE (CH3)2CO or CoMat 01-124 ISOPROPYL ALCOHOL.

    3. NOTE

      Apply the primer in less than eight hours after the faces are cleaned.

      Apply a thin layer of CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT with a soft brush to the faces. Air dry for 30 minutes minimum.

    5. Press the silicone compound with a spatula and make smooth surface.

    6. Cure the silicone compound at room temperature for 48 hours. Do not push the silicone compound during this time.

    3. SUBTASK 72-32-00-430-313 Fill Silicone Compound into Clearance between the Panel Rubber Seals and the Fan Case

    1. Refer to Figure, Figure and Figure.

      2. Find the clearances which are to be filled with silicone compound.

      1. Make sure that there is no clearance between the panel rubber seals and the fan case at the rear end.

      2. If you find clearances, measure the dimensions HA, HB, HC and/or HD.

      3. You must fill silicone compound into the clearances of which dimensions are more than 0.079 in. (2.0 mm).

      3. Fill silicone compound into the clearances identified by Step.

      1. Clean the faces of the clearances with a clean cloth or a soft brush moist with CoMat 01-031 ACETONE (CH3)2CO or CoMat 01-124 ISOPROPYL ALCOHOL.

      2. NOTE

        Apply the primer in less than eight hours after the faces are cleaned.

        Apply a thin layer of CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT with a soft brush to the faces. Air dry for 30 minutes minimum.

      3. Put CoMat 08-045 SILICONE RUBBER COMPOUND into the clearances with the sealant dispenser.

      4. Press the silicone compound with a spatula and move the spatula along the fan case rear end face.

      5. Cure the silicone compound at room temperature for 48 hours. Do not push the silicone compound during this time.

    4. SUBTASK 72-32-00-430-207 Install the Rear Liner Panels and the Middle Liner Panel onto the Fan Case

    1. Refer to Figure and Figure.

      1. Attach the rear liner panels to the inner faces on the fan case. Safety the panels with the 36 screws (02-820), four screws (02-825), and four nuts (02-823).

      2. Tighten the screws lightly.

      3. Install the middle liner panel ENGINE-FAN CASE REAR PANELS (72-32-87, 02-290) onto the fan case, Figure and Figure.

      1. Attach the middle liner panel to the fan case. Safety the panel with the two screws (02-820).

      2. Tighten the screws lightly.

      4. Adjust the locations of the rear liner panels so that:

      1. The rear ends of the rear liner panels are not rearward of the rear end of the fan case.

    5. Torque the screws to 75 and 85 * lbfin (8.48 to 9.61 Nm).

    5. SUBTASK 72-32-00-430-209 Install the Front Liner Panels and the 20 FEGVs to the Fan Case

    1. Refer to Figure, Figure and Figure.

    2. NOTE

      Make sure that the workmat has sufficient dimensions to give full protection to the lower half of the fan case.

      Put a workmat in position in the fan case.

      3. Attach the 10 front liner panels ENGINE-FAN CASE REAR PANELS (72-32-87, 03-100 , ENGINE-FAN CASE REAR PANELS 03-150, ENGINE-FAN CASE REAR PANELS 03-200, ENGINE-FAN CASE REAR PANELS 03-250, ENGINE-FAN CASE REAR PANELS 03-300, ENGINE-FAN CASE REAR PANELS 03-350, ENGINE-FAN CASE REAR PANELS 03-400, ENGINE-FAN CASE REAR PANELS 03-450, ENGINE-FAN CASE REAR PANELS 03-500 and ENGINE-FAN CASE REAR PANELS 03-550) onto the rear liner panels and the middle liner panel, Figure and Figure.

      1. Put the front liner panels onto the inner face of the fan case, the rear liner panels and the middle liner panel.

      2. Install the 30 screws (02-805) which attach the front liner panels, the rear liner panels and the middle liner panel to the fan case.

      3. Tighten the screws lightly.

    4. Attach the 20 FEGV's to the inner faces of the fan case with the 40 washers (01-372) and bolts (01-370). Tighten the bolts lightly, Figure.

      5. Install the 40 bolts (01-377) into the bushes of the LP compressor stage 2.5 vanes through the plate nuts of the FEGV's.

      1. Adjust the positions of the plate nuts and the FEGV's to align the plate nuts with the bush holes.

      2. Put the 40 washers (01-375) and the bolts into positions and tighten the bolts lightly.

    6. SUBTASK 72-32-00-430-210 Install the Brackets to the LP Compressor Rear Case

    1. Refer to Figure.

      2. Install the eight brackets A V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-600), B V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-675), C V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-645), D V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-630), E V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-705), F V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-615), G V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-690) and H V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-660) to the LP compressor rear case, Figure.

      1. NOTE

        The brackets E, F, G and H are almost the same in their shapes. The distance between the two locating pins on each bracket is slightly different. Make sure of the Fig/Item numbers and part numbers to install them correctly.

        Attach the brackets to the rear flange of the LP compressor rear case with the 23 bolts V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-720).

      2. Torque the bolts to 36 to 45 lbfin (4.00 to 5.00 Nm).

    7. SUBTASK 72-32-00-430-211 Install the Transition Panels to the FEGVs

    1. Refer to Figure, Figure, Figure and Figure.

      2. Attach the five transition panels ENGINE-FAN CASE FRONT PANEL FAIRINGS (72-32-89, 01-100) to the FEGV's.

      1. Put the transition panels onto the inner face of the fan case and the FEGV's.

      2. Install the 20 washers (01-337) and bolts (01-335) which attach the transition panels and the FEGV's to the fan case. Tighten the bolts lightly.

      3. Adjust the positions of the transition panels.

      1. Adjust the axial clearance between each transition panels and the fan case acoustic honeycomb. The clearance must be 0.016in. (0.4 mm) or more.

      2. Adjust the circumferential clearance at five positions between the transition panels so that they are as equal as possible.

    4. Torque the 30 screw (02-805) to 75 to 85 lbfin (8.48 to 9.61 Nm).

    5. Torque the 40 bolts (01-370) to 85 to 105 lbfin (10.00 to 12.00 Nm).

    6. Torque the bolts (01-335) to 85 to 105 lbfin (10.00 to 12.00 Nm). Refer to Figure.or torque sequence.

    7. Torque the 40 bolts (01-377) to 160 to 200* lbfin (17.50 to 22.50 Nm).

    8. SUBTASK 72-32-00-430-212 Install the Rear Fairings onto the LP Compressor Bleed Duct

    1. Refer to Figure.

    2. CAUTION

      CAREFULLY INSTALL THE REAR FAIRING ASSEMBLY TO PREVENT DAMAGING THE SCREEN.

      Attach the one rear fairing ENGINE-INTERMEDIATE STRUCTURE REAR FAIRING (72-32-86, 01-100) to the LP compressor bleed duct with the two bolts (02-852) and washers (02-855). Tighten the bolts lightly.

    3. Attach the remaining four rear fairings to the LP compressor bleed duct with the socket head bolts (02-852) and the washers (02-855). Tighten the bolts lightly.

    4. Align the bolt holes on the connect positions of the rear fairings and install the 10 screws (02-857) and 10 sleeves (02-860). Tighten the screws lightly.

    5. Torque the screws to 36 to 45 lbfin (4.00 to 5.00 Nm).

    6. Torque the socket head bolts to 85 to 105 lbfin (10.00 to 12.00 Nm).

    9. SUBTASK 72-32-00-430-213 Fill the Recesses in the FEGVs and the Transition Panels with Cold Curing Silicone Compound

    1. Refer to Figure , Figure and Figure

    2. Make a clean cloth or a soft brush moist with CoMat 01-031 ACETONE (CH3)2CO or CoMat 01-124 ISOPROPYL ALCOHOL.

      3. Clean the surfaces in these areas:

      1. The 40 recesses B in the FEGV outer platforms, Figure.

      2. The 20 recesses C in the transition panels, Figure.

      3. The 40 recesses D in the FEGV inner platforms, Figure.

    4. NOTE

      Apply the primer in less than eight hours after the surfaces are cleaned.

      Apply thin layer of CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT to the faces of the recesses B, C and D with a soft brush. Air dry for 30 minutes minimum.

      1. Fill the silicone compound into the recesses B, C and D from the nozzle of the compound tube.

      2. NOTE

        Press the silicone compound into position immediately after it is applied to each of the recesses and clearances.

        Press the silicone compound into position with a spatula.

    6. Cure the silicone compound at the room temperature for 48 hours. Do not push the silicone compound during this time.

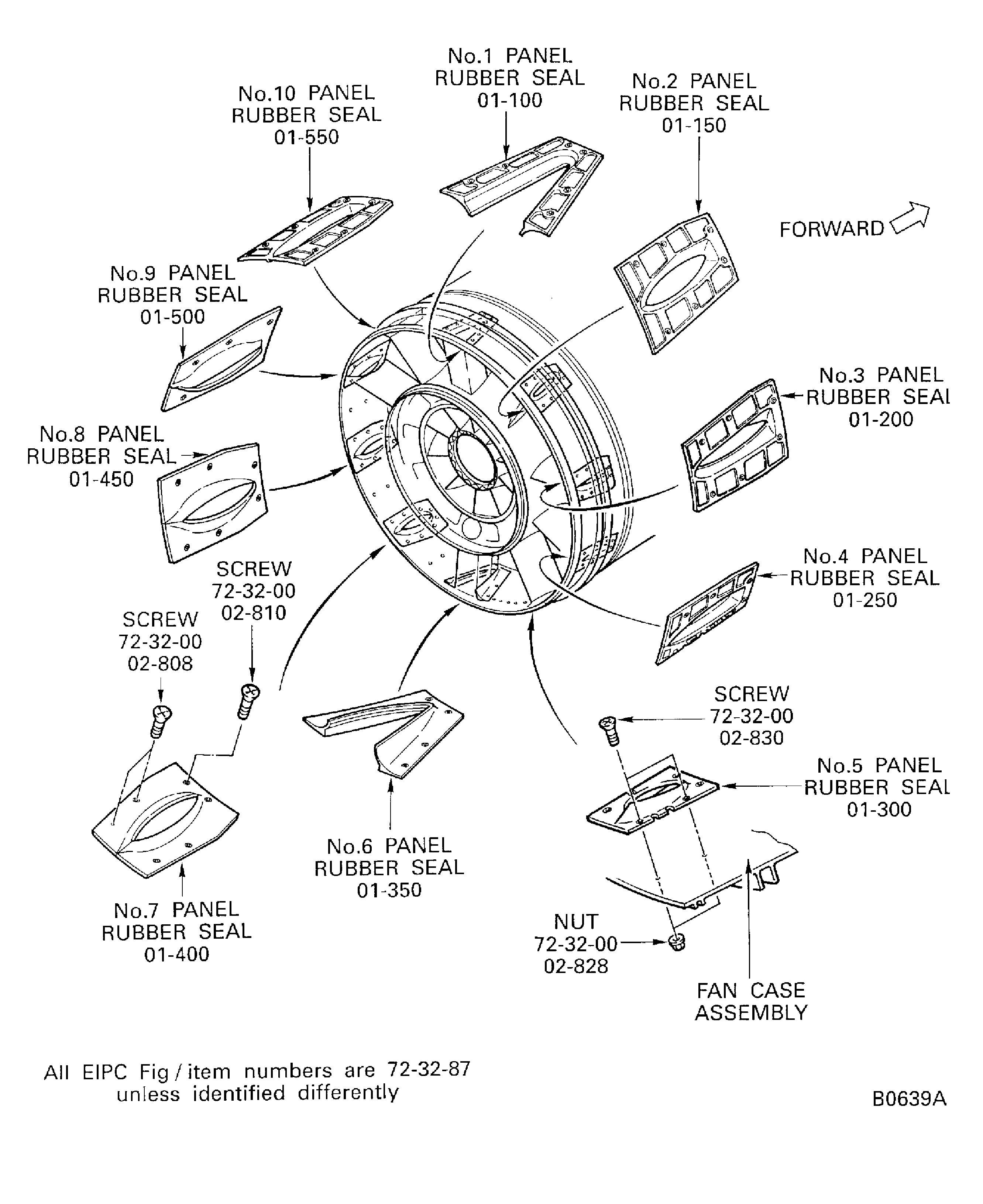

    10. Figure: Install the panel rubber seals onto the fan case

    Install the panel rubber seals onto the fan case

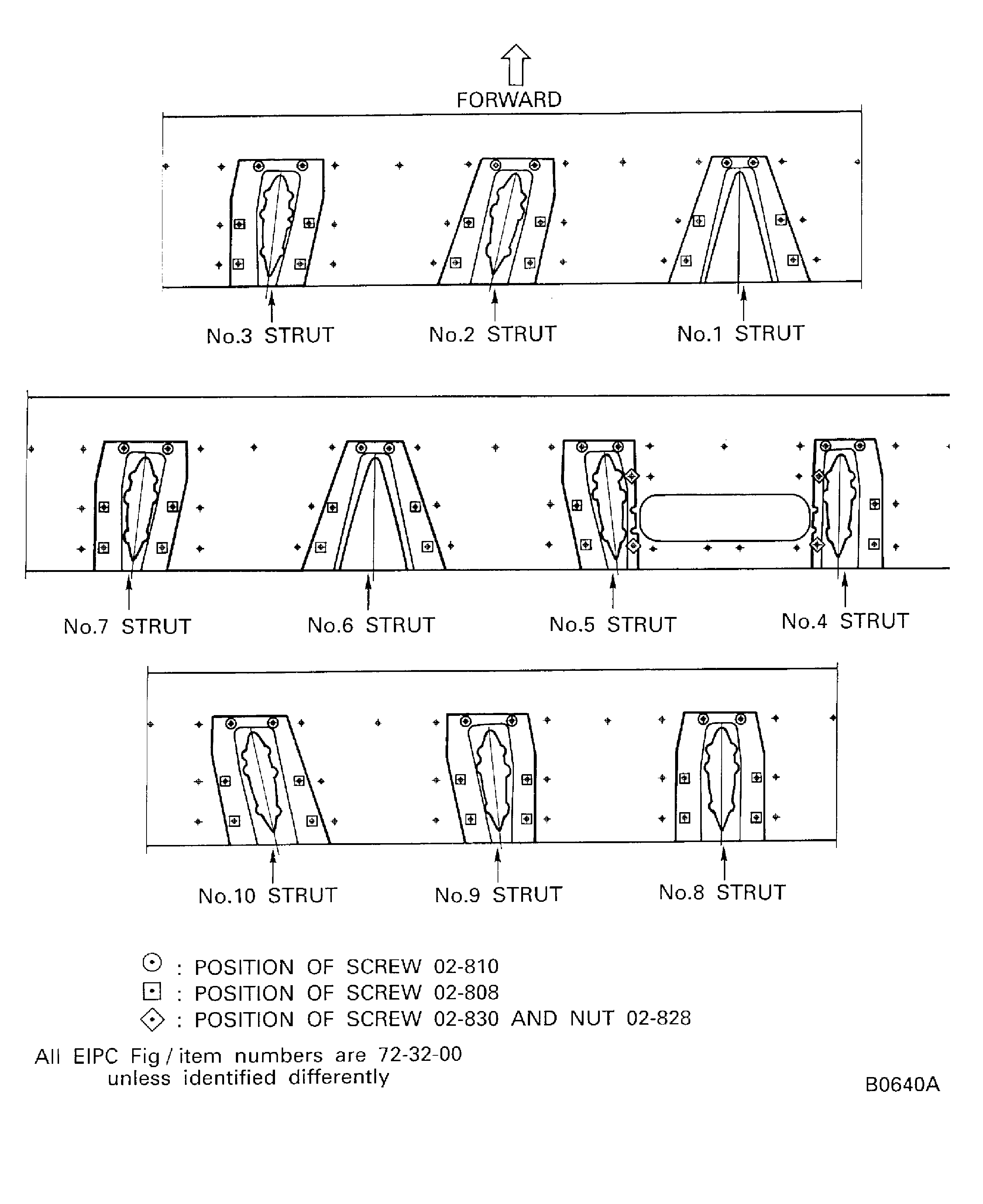

    Figure: Position of the screws and the nuts which attach the panel rubber seals to the fan case

    Position of the screws and the nuts which attach the panel rubber seals to the fan case

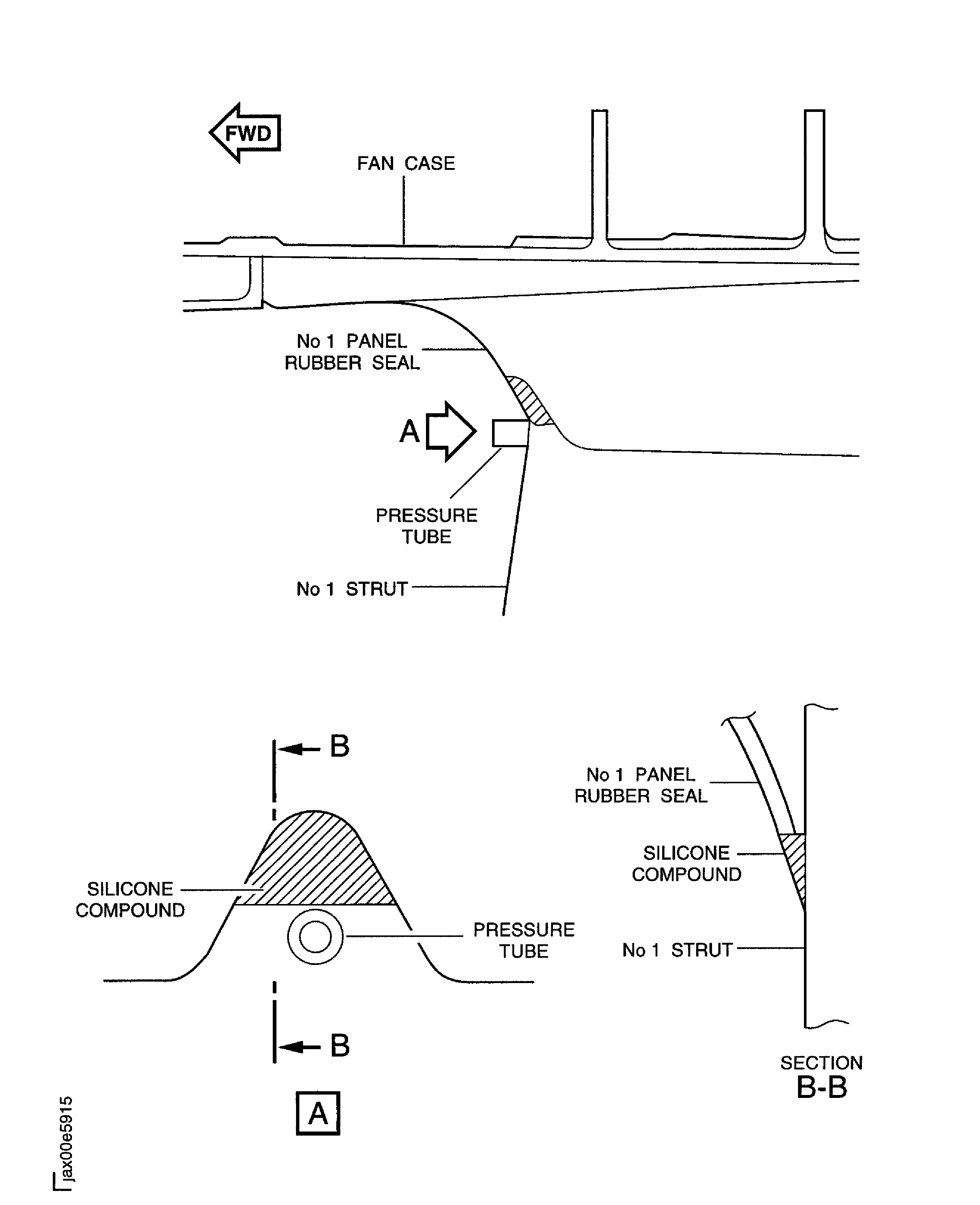

    Figure: SBE 72-1056: Fill silicone compound into the corner between the No.1 panel rubber seal and the fan frame No.1 strut

    SBE 72-1056: Fill silicone compound into the corner between the No.1 panel rubber seal and the fan frame No.1 strut

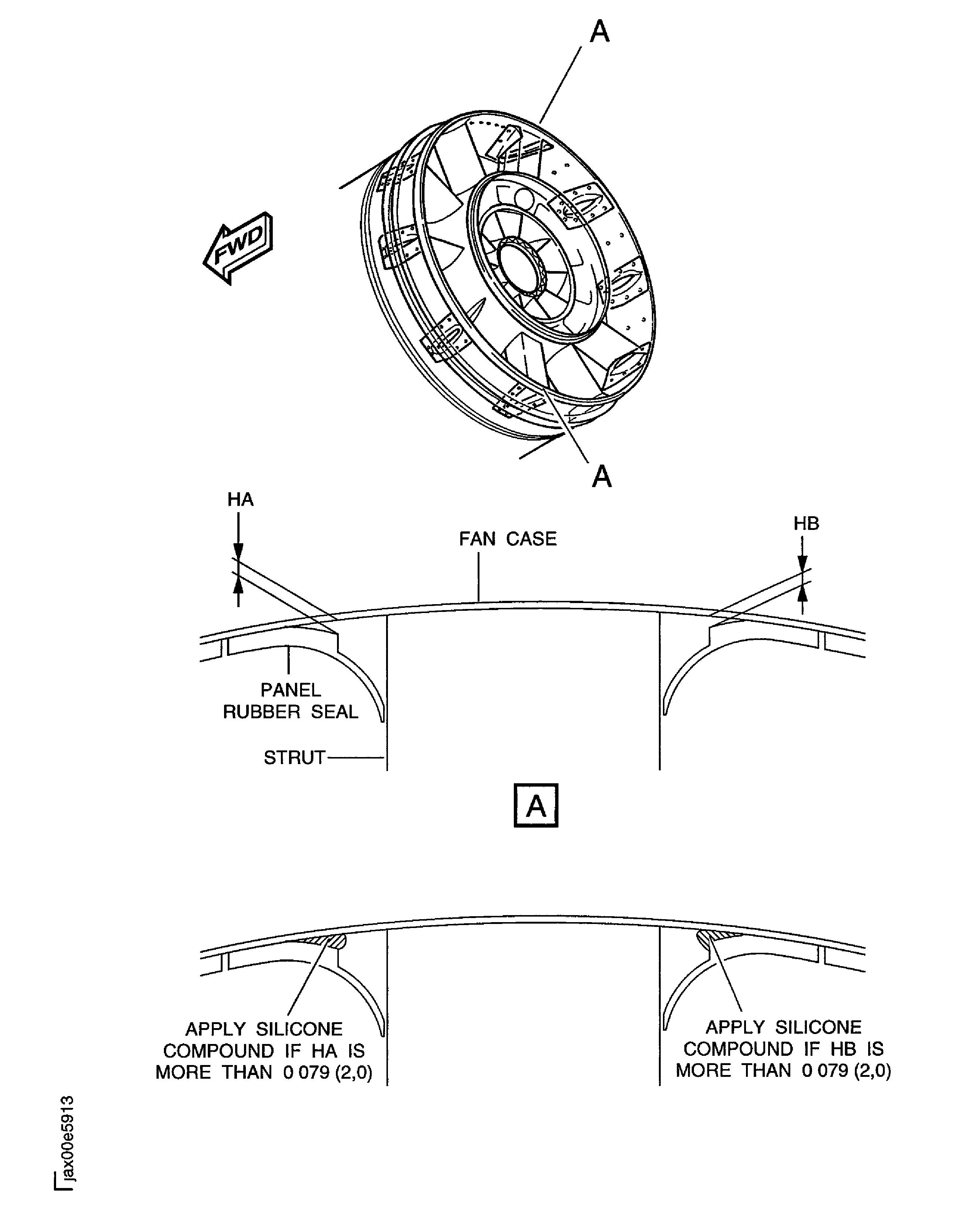

    Figure: Fill silicone compound into the clearances between the panel rubber seals and the fan case

    Sheet 1

    Legend
    Fill silicone compound into the clearances between the panel rubber seals and the fan case

    Sheet 1

    Close

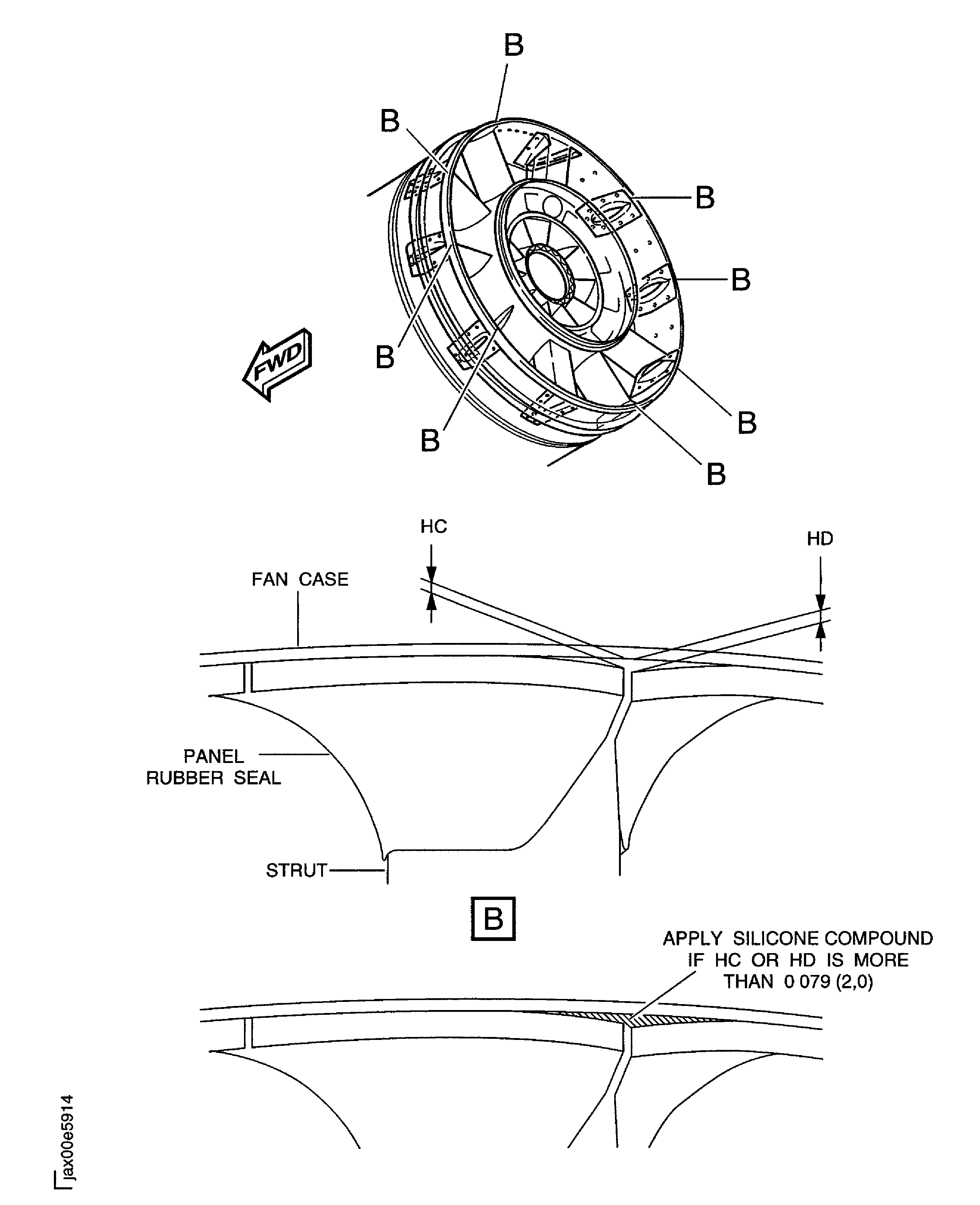

    Figure: Fill silicone compound into the clearances between the panel rubber seals and the fan case

    Sheet 2

    Legend
    Fill silicone compound into the clearances between the panel rubber seals and the fan case

    Sheet 2

    Close

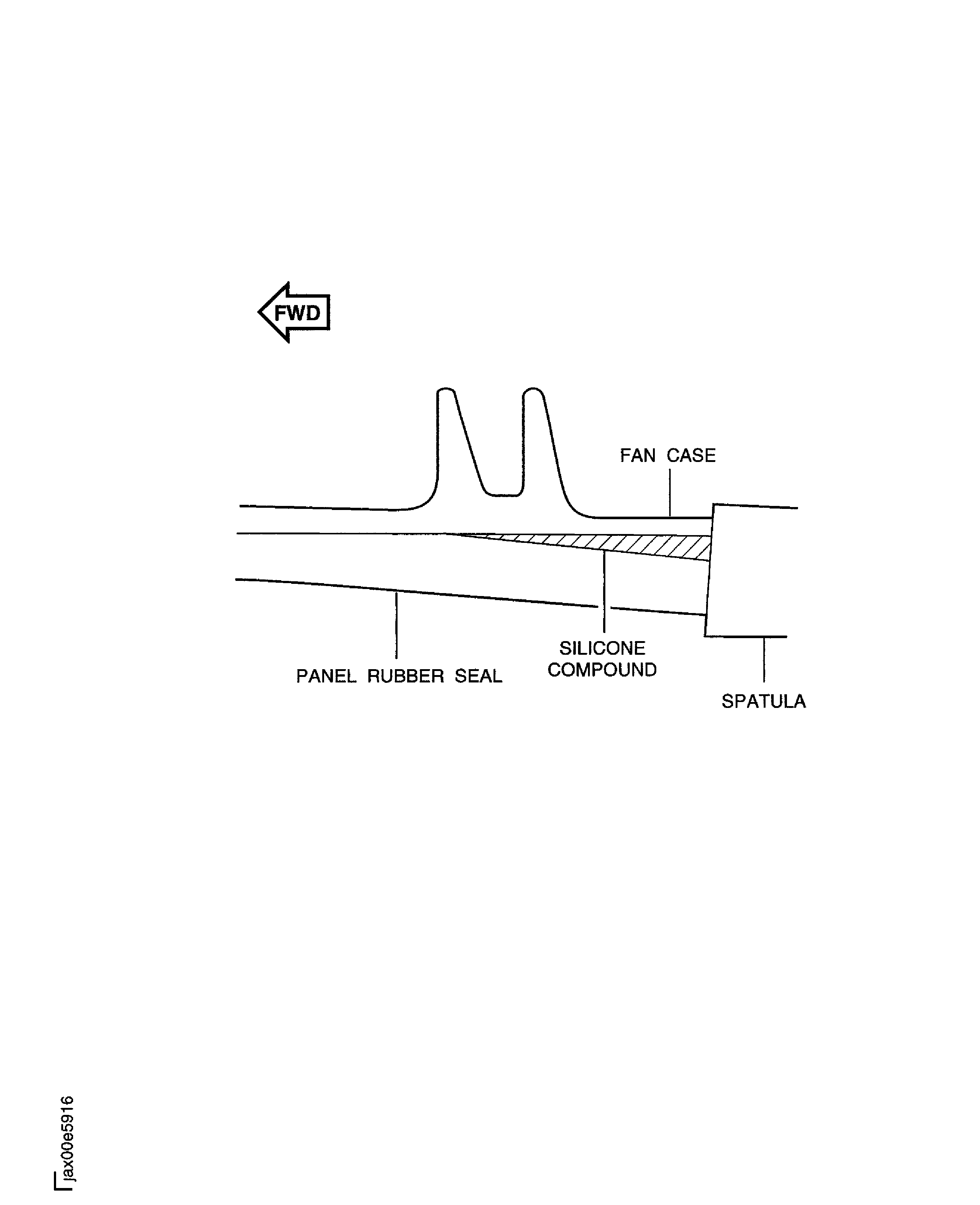

    Figure: Fill silicone compound into the clearances between the panel rubber seals and the fan case

    Sheet 3

    Legend
    Fill silicone compound into the clearances between the panel rubber seals and the fan case

    Sheet 3

    Close

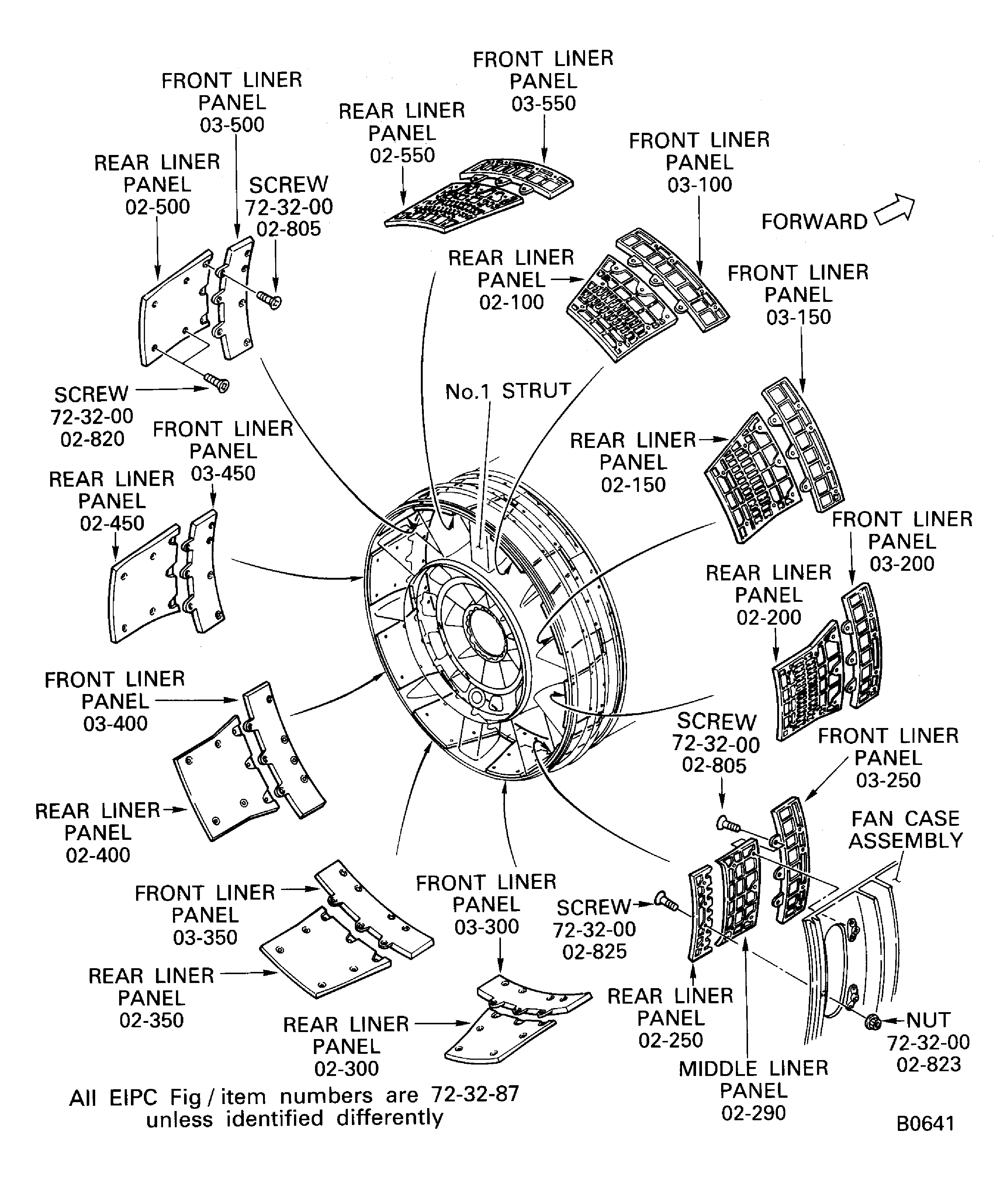

    Figure: Install the rear liner panels, the middle liner panel and the front liner panels to the fan case

    Install the rear liner panels, the middle liner panel and the front liner panels to the fan case

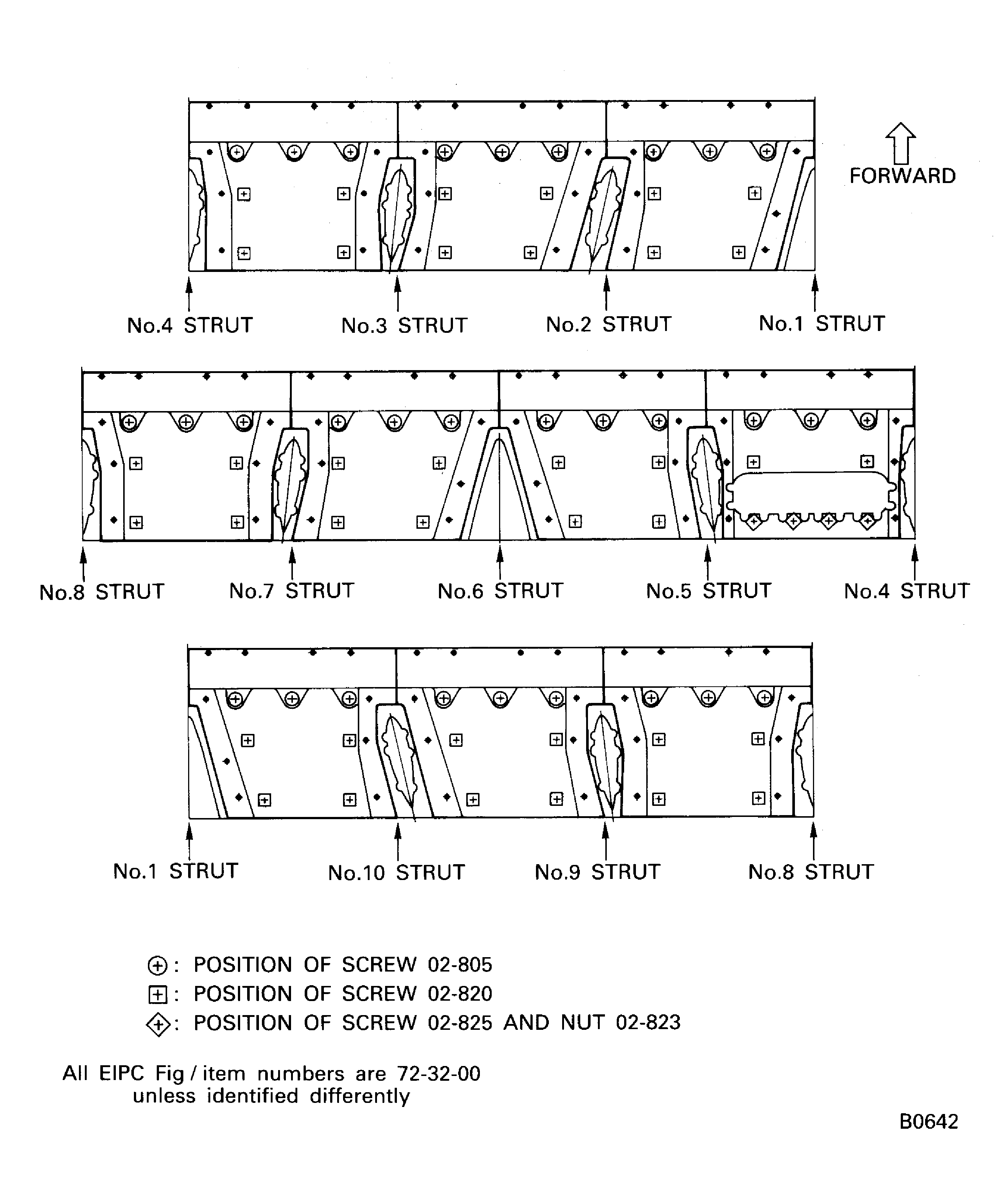

    Figure: Positions of the screws and the nuts to attach the rear liner panels, the middle liner panel and the frnt liner panels to the fan case

    Positions of the screws and the nuts to attach the rear liner panels, the middle liner panel and the frnt liner panels to the fan case

    Figure: Positions of the screws and the nuts to attach the rear liner panels, the middle liner panel and front liner panels to the fan case

    Positions of the screws and the nuts to attach the rear liner panels, the middle liner panel and front liner panels to the fan case

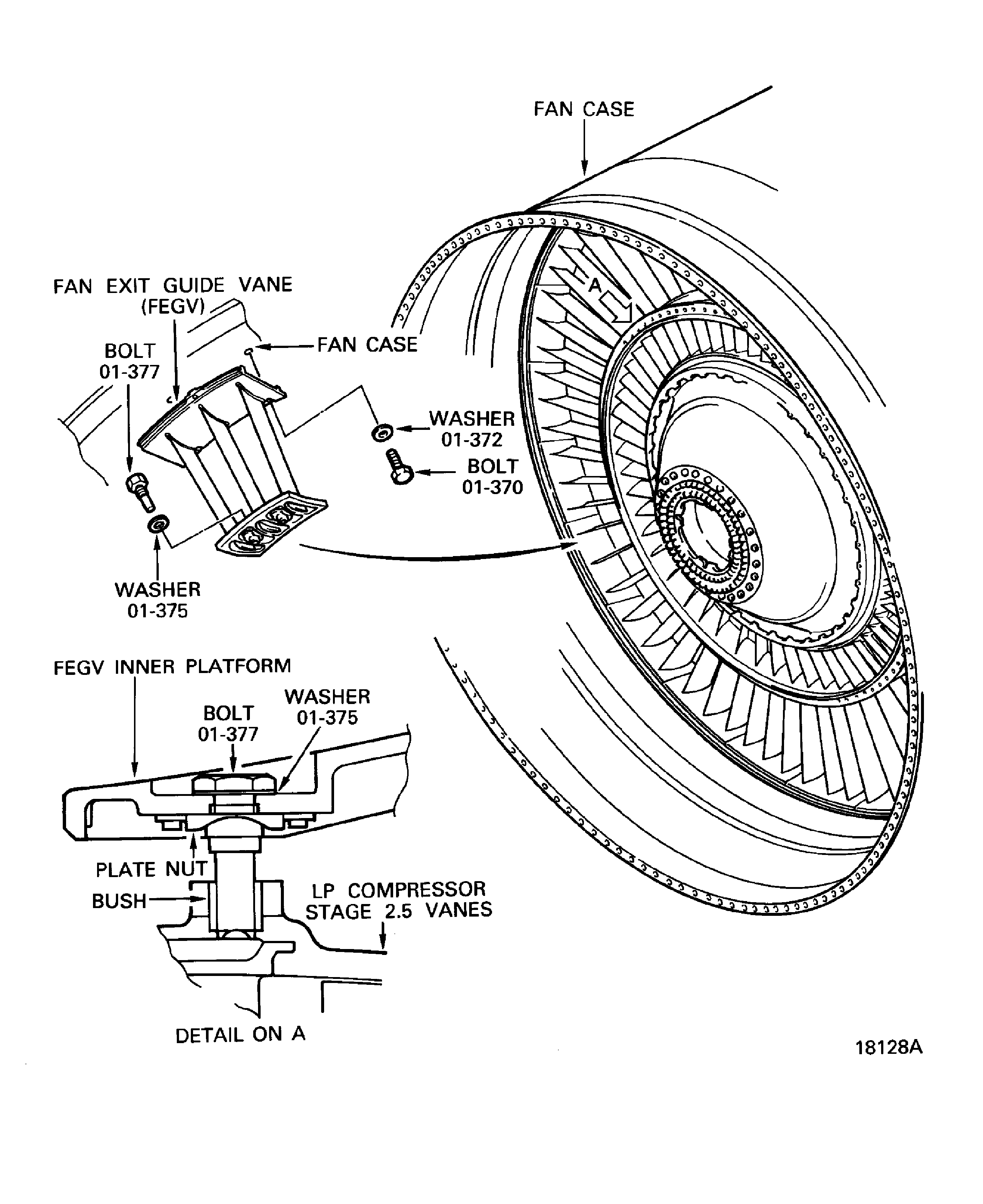

    Figure: Install the FEGVs to the fan case

    Install the FEGVs to the fan case

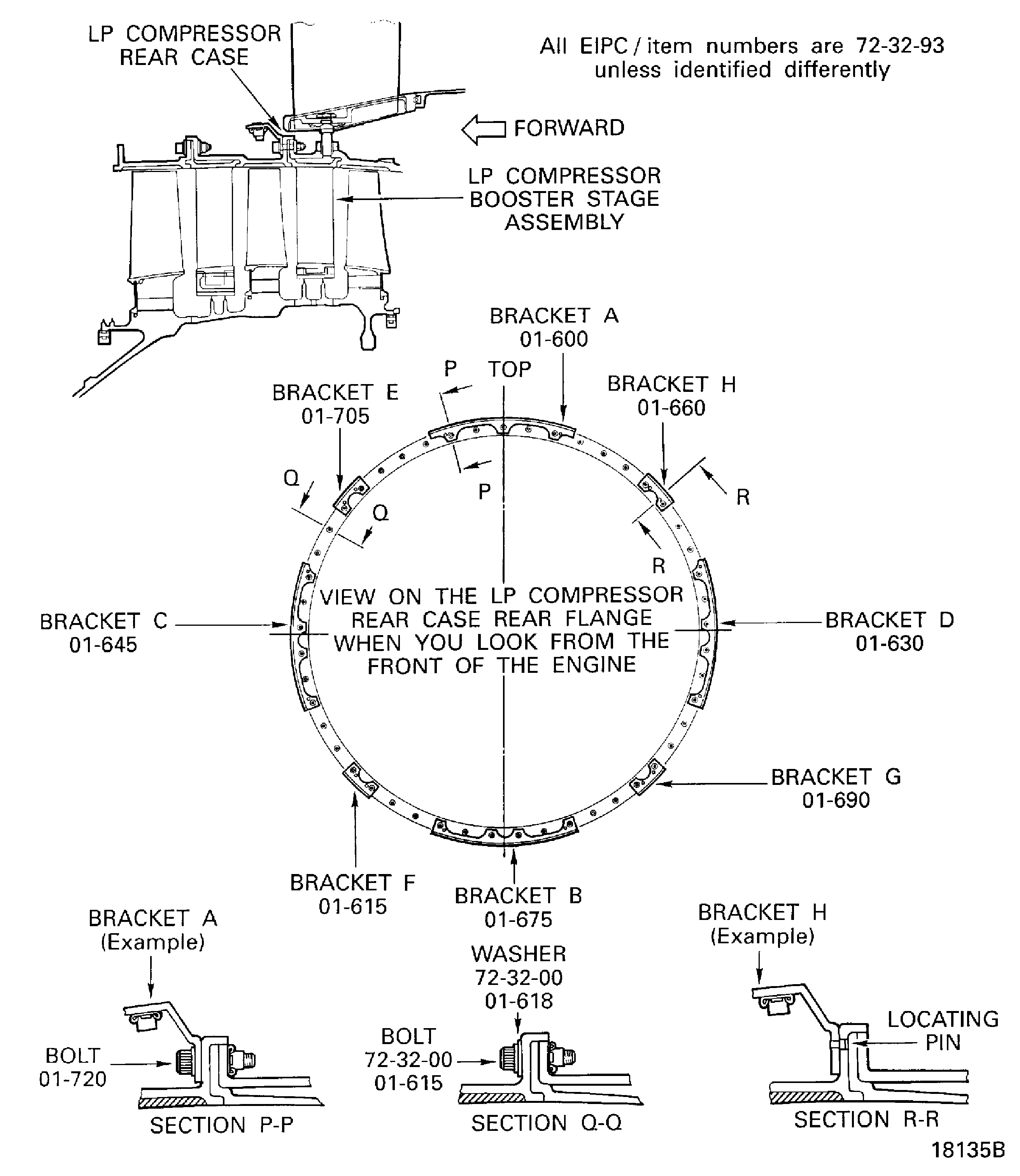

    Figure: Install the brackets onto the LP compressor rear case

    Install the brackets onto the LP compressor rear case

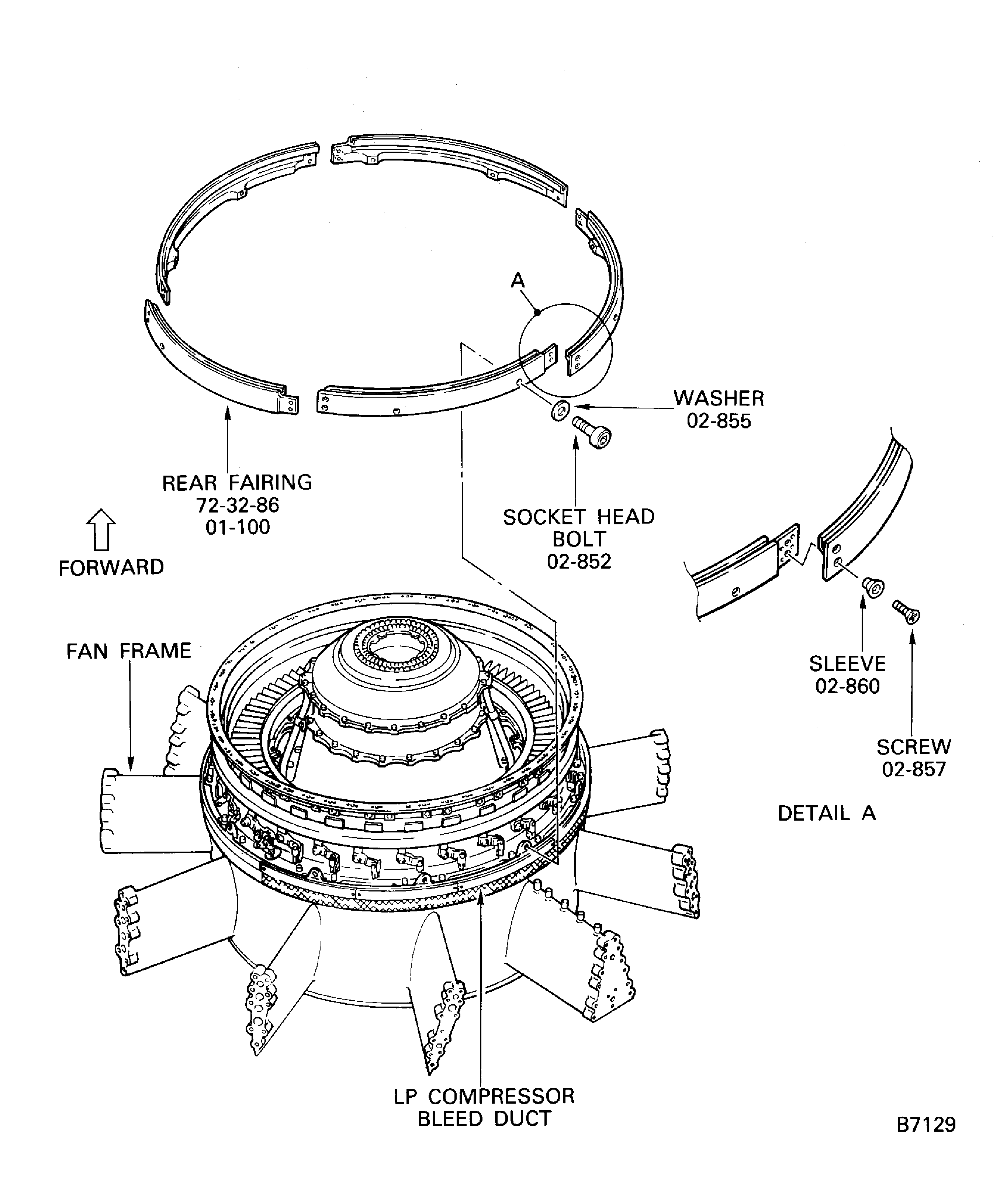

    Figure: Install the rear fairings onto the LP compressor bleed duct

    Install the rear fairings onto the LP compressor bleed duct

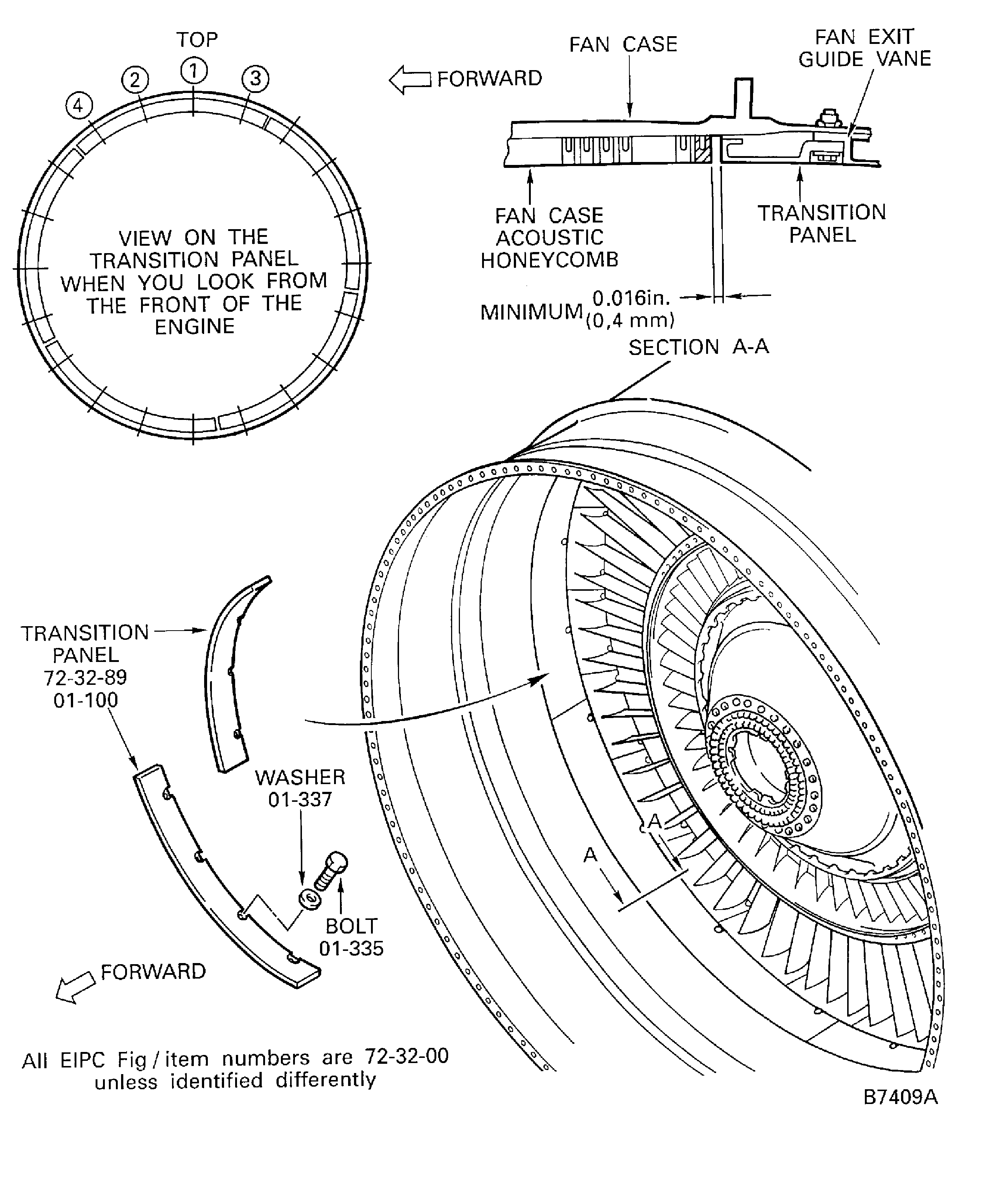

    Figure: Installation of the transition panels and otrque sequence of the bolts (01-335)

    Installation of the transition panels and otrque sequence of the bolts (01-335)

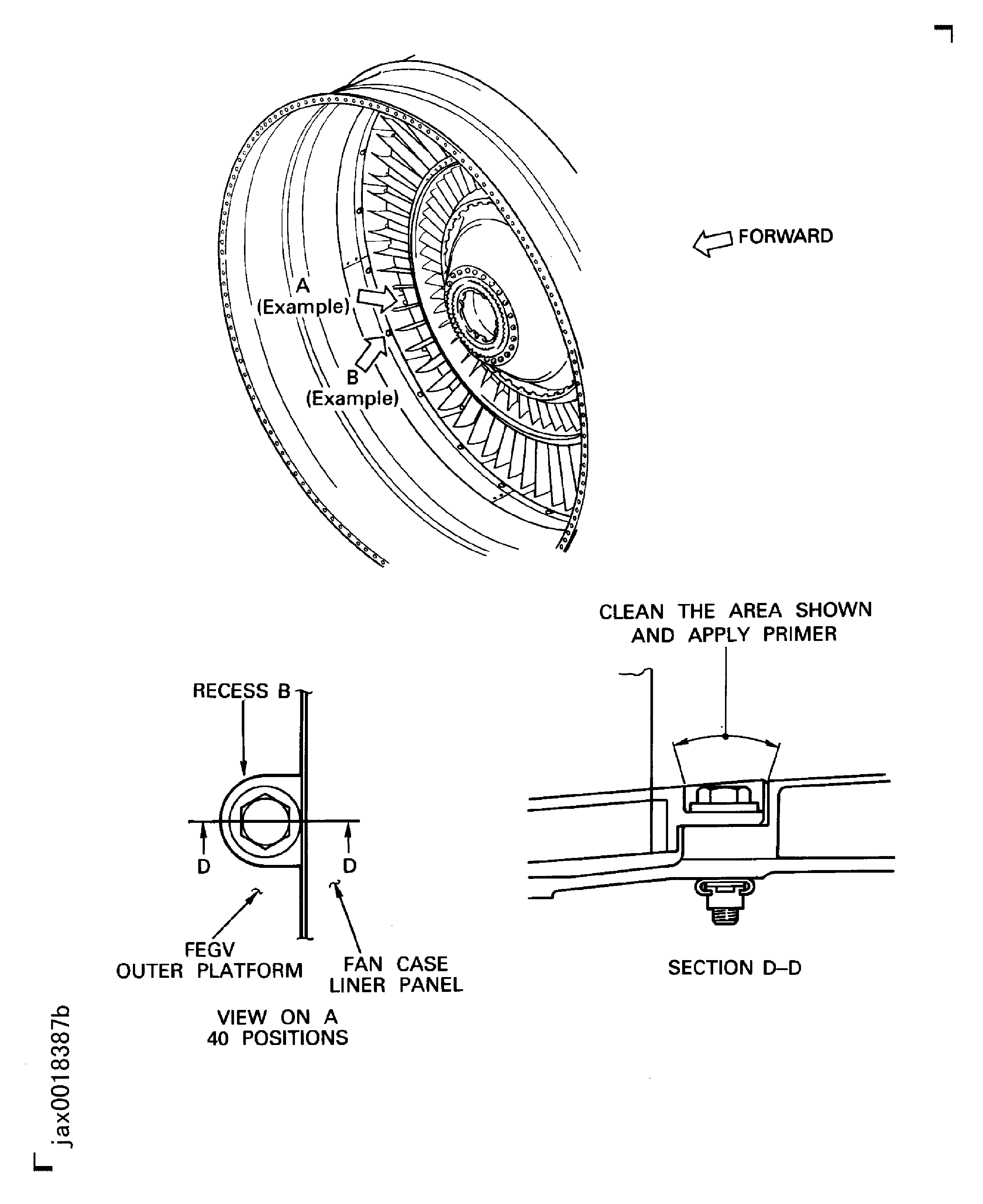

    Figure: Clean and apply primer to the surfaces of the recesses in the FEGV outer platform and the transition panels

    Sheet 1

    Legend
    Clean and apply primer to the surfaces of the recesses in the FEGV outer platform and the transition panels

    Sheet 1

    Close

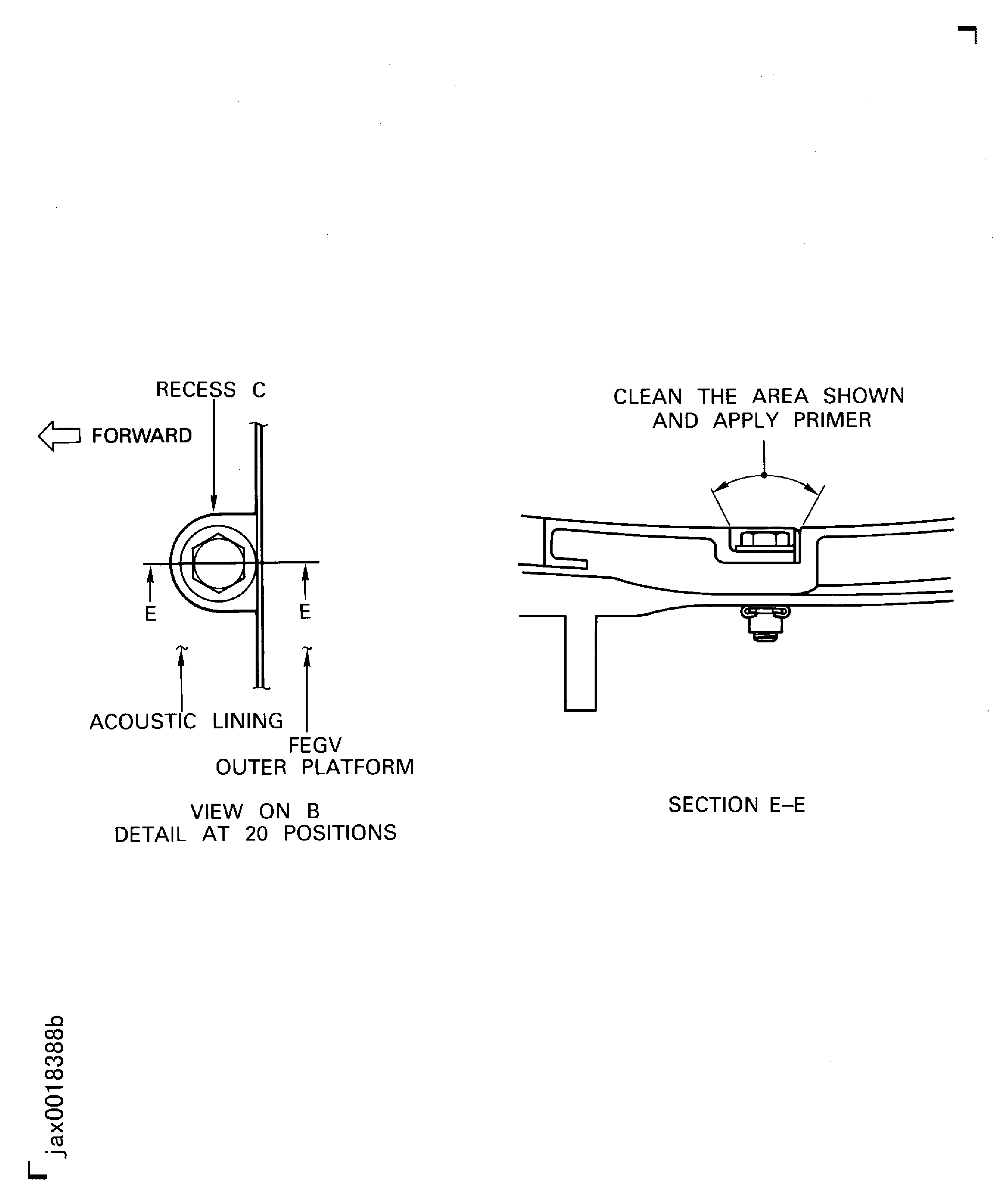

    Figure: Clean and apply primer to the surfaces of the recesses in the FEGV outer platform and the transition panels

    Sheet 2

    Legend
    Clean and apply primer to the surfaces of the recesses in the FEGV outer platform and the transition panels

    Sheet 2

    Close

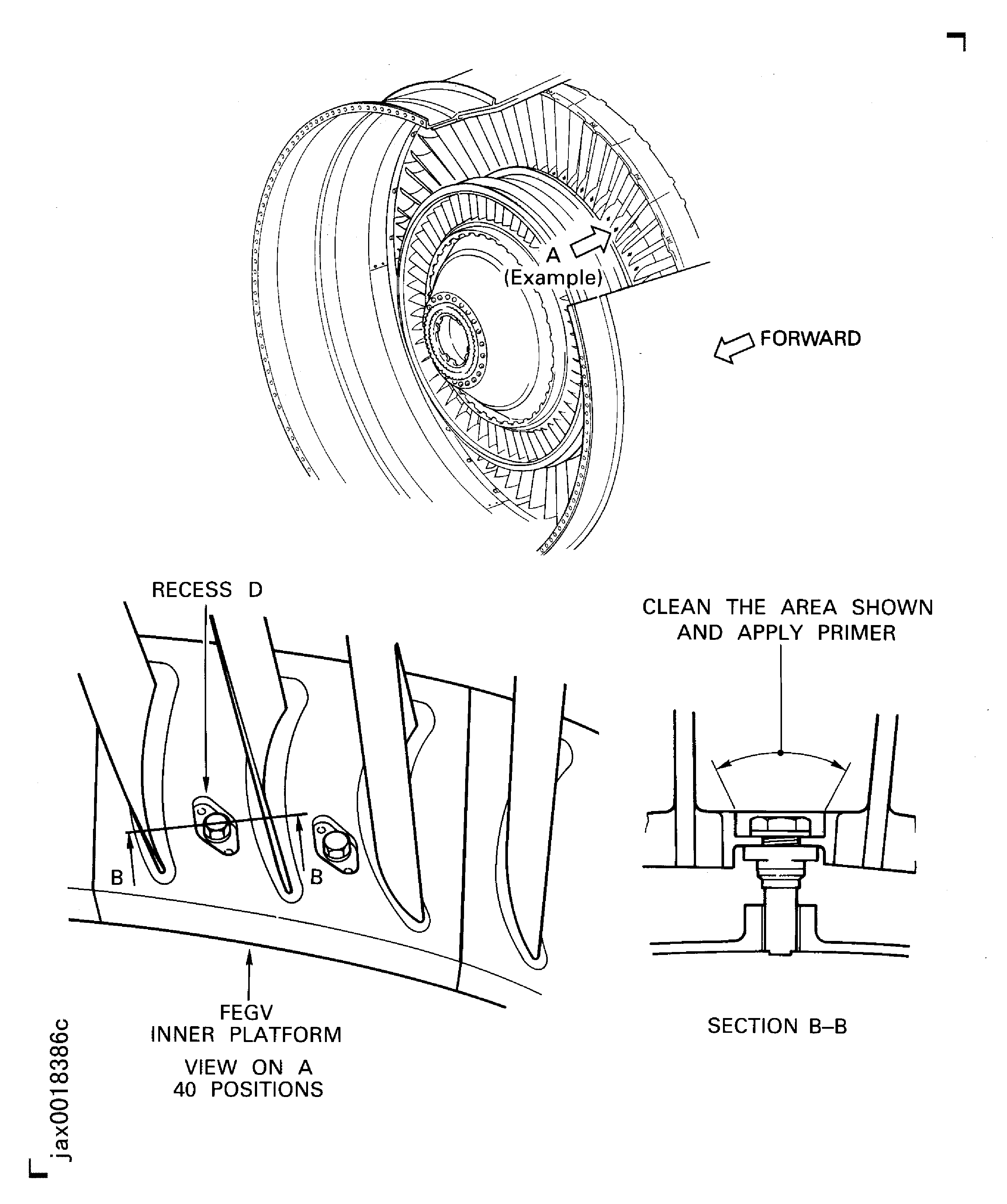

    Figure: Clean and apply primer to the surfaces of the recesses in the FEGV inner platforms

    Clean and apply primer to the surfaces of the recesses in the FEGV inner platforms

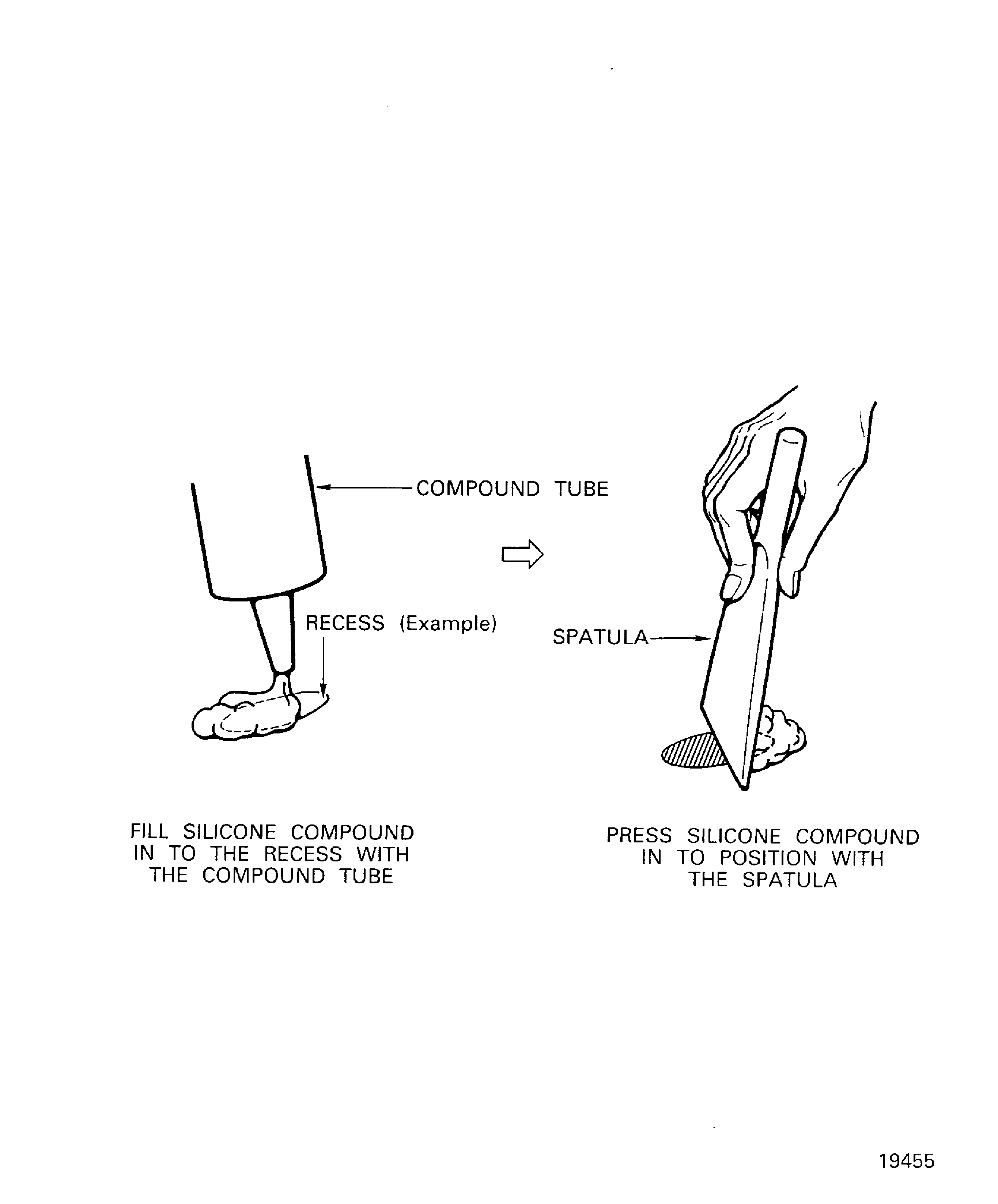

    Figure: Fill and press silicone compound into the recesses

    Fill and press silicone compound into the recesses

Requirements After Job Completion

Follow-On Conditions

NONE
