TASK 73-22-48-200-101 P2/T2 Sensor Air Tube - Examine, Inspection-001

DMC:V2500-A1-73-22-4800-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 73-22-48-200-101 P2/T2 Sensor Air Tube - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-020

740-3124-501

01-020

740-3120-501

General

This TASK gives the procedure for the inspection of the P2/T2 tube (01- 020).

Fig/item numbers in parentheses in the procedure agree with those used in the Engine Illustrated Parts Catalog (EIPC). The TASK numbers of the practices and processes referred to in the procedure are in the Standard Practices and Processes Manual (SPM).

All parts must be cleaned before they are examined, refer to Cleaning-000 TASK 73-22-48-100-100. All parts must be visually examined for damage, corrosion and wear. Defects which are not identified in the procedure must be referred to IAE. The policy which is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined. The limits for cracks are given in the SUBTASK for each part.

Before the part is discarded make sure there are no repairs available. Refer to the instructions in the repair before a discarded part is used again or oversize parts are installed. Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

Reference

Refer to the SPM for data on these items:

Definitions of damage, SPM TASK 70-02-02-350-501.

Record and control of the lives of parts, SPM TASK 70-05-00-220-501.

Chemical processes, SPM TASK 70-11-00-110-501.

Inspection of parts, SPM TASK 70-22-00-220-501.

Methods of testing for crack indications, SPM TASK 70-23-00-230-501.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-22-48-230-051 Examine the P2/T2 Tube for Cracks

    1. Clean the tube. Refer to Cleaning-000 TASK 73-22-48-100-100.

      2. Fluorescent penetrant examine the tube and all welds for cracks. Use the applicable penetrant procedure, refer to the SPM TASK 70-23-01-200-501.

        1. Cracked

        1. SPM , VRS7001 (Repair-001) TASK 70-35-24-300-501.

        2. Defective weld

        1. SPM, VRS7001 (Repair-001) TASK 70-35-24-300-501.

    2. SUBTASK 73-22-48-220-051 Examine the P2/T2 Tube at Location R

    1. Refer to Figure.

      2. Pitted

        1. Unlimited number of pits not more than 0.001 in. (0.025 mm) in depth, 0.062 in. (1.57 mm) in length and 0.010 in (0.25 mm) in width.

        1. Accept

        2. Maximum of three pits for each 2.00 in (50.8 mm) length of tubing; not more than 0.003in (0.075mm) in depth, 0.062 in (1.57 mm) in length, 0.010 in. (0.25 mm) in width and no other dents within 0.125 in (3.175 mm).

        1. Accept

        3. Other than in Step or Step

        1. SPM Repair, VRS7001(Repair-001) TASK 70-35-24-300-501.

      3. Nicked

        1. Up to 0.003 in. (0.07 mm) deep.

        1. Repair, VRS2902 (Repair-004) TASK 73-22-48-300-004.

        2. More than in Step

        1. SPM Repair, VRS7001 (Repair-001) TASK 70-35-24-300-501.

      4. Scratched

        1. Up to 0.003 in. (0.07 mm) deep.

        1. Repair, VRS2902 (Repair-004) TASK 73-22-48-300-004.

        2. More than in Step

        1. SPM, VRS7001 (Repair-001) TASK 70-35-24-300-501.

      5. Dented

        1. One or more dents, with more than 1.00 in. (25.4 mm) between the edges of each of the dents.

          1. Up to 0.050 in. (1.27 mm) deep with the radius of the dent not less than 0.056 in. (1.42 mm).

          1. Accept

          2. Other than in Step

          1. Repair, VRS2900 (Repair-002) TASK 73-22-48-300-002.

        2. More than one dent, with less than 1.00 in. (25.4 mm) between the edges of each of the dents.

        1. SPM, VRS7001 (Repair-001) TASK 70-35-24-300-501.

      6. Rubbed

        1. Up to 0.003 in. (0.07 mm) deep.

        1. Repair, VRS2902 (Repair-004) TASK 73-22-48-300-004.

        2. More than in Step

        1. SPM, VRS7001 (Repair-001) TASK 70-35-24-300-501.

    3. SUBTASK 73-22-48-220-052 Examine the P2/T2 Tube at Location S

    1. Refer to Figure.

      2. Pitted

        1. Unlimited number of pits not more than 0.001 in. (0.025 mm) in depth, 0.062 in. (1.57 mm) in length and 0.010 in (0.25 mm) in width.

        1. Accept

        2. Maximum of three pits for each 2.00 in (50.8 mm) length of tubing; not more than 0.003 in (0.075 mm) in depth, 0.062in (1.57 mm) in length, 0.010 in. (0.25 mm) in width and no other dents within 0.125 in (3.175mm).

        1. Accept

        3. Other than in Step or Step

        1. SPM Repair, VRS7001(Repair-001) TASK 70-35-24-300-501.

      3. Nicked

        1. Up to 0.003 in. (0.07 mm) deep.

        1. Repair, VRS2902 (Repair-004) TASK 73-22-48-300-004.

        2. More than in Step.

        1. SPM, VRS7001 (Repair-001) TASK 70-35-24-300-501.

      4. Scratched

        1. Up to 0.003 in. (0.07 mm) deep.

        1. Repair, VRS2902(Repair-004) TASK 73-22-48-300-004.

        2. More than in Step.

        1. SPM, VRS7001 (Repair-001) TASK 70-35-24-300-501.

      5. Distorted

      1. SPM, VRS7001 (Repair-001) TASK 70-35-24-300-501.

      6. Dented

        1. One or more dents, with more than 1.00 in. (25.4 mm) between the edges of each of the dents.

          1. Up to 0.050 in. (1.27 mm) deep with the radius of the dent not less than 0.056 in. (1.42 mm).

          1. Accept

          2. Other than in Step

          1. Repair, VRS2900 (Repair-002) TASK 73-22-48-300-002.

        2. More than one dent, with less than 1.00in. (25.4 mm) between the edges of each of the dents.

        1. SPM Repair, VRS7001(Repair-001) TASK 70-35-24-300-501.

      7. Rubbed

        1. Up to 0.003 in. (0.07 mm) deep.

        1. Repair, VRS2902 (Repair-004) TASK 73-22-48-300-004.

        2. More than in Step

        1. SPM, VRS7001 (Repair-001) TASK 70-35-24-300-501.

    4. SUBTASK 73-22-48-220-053 Examine the P2/T2 Tube End Connectors Locations N

    1. Refer to Figure.

      2. Nicked

        1. Up to 0.010 in. (0.25 mm) deep.

        1. Accept

        2. More than in Step

        1. Repair, VRS2902 (Repair-004) TASK 73-22-48-300-004 or Repair, VRS7001 (Repair-001) TASK 70-35-24-300-501.

      3. Burred

      1. Repair, VRS2902 (Repair-004) TASK 73-22-48-300-004.

      4. Damaged

        1. Damage to lock-wire holes

        1. SPM, VRS7001 (Repair-001) TASK 70-35-24-300-501.

        2. Damage to threads

        1. Repair, VRS2942 (Repair-007) TASK 73-22-48-300-007or Repair, VRS7001 (Repair-001) TASK 70-35-24-300-501.

    5. SUBTASK 73-22-48-220-054 Examine the P2/T2 Tube Sealing Face, Location V

    1. Refer to Figure.

      2. Scratched

        1. Circumferential scratches up to 0.010 in. (0.25 mm) deep.

        1. Repair, VRS2902 (Repair-004) TASK 73-22-48-300-004.

        2. More than in Step

        1. SPM Repair, VRS7001(Repair-001) TASK 70-35-24-300-501.

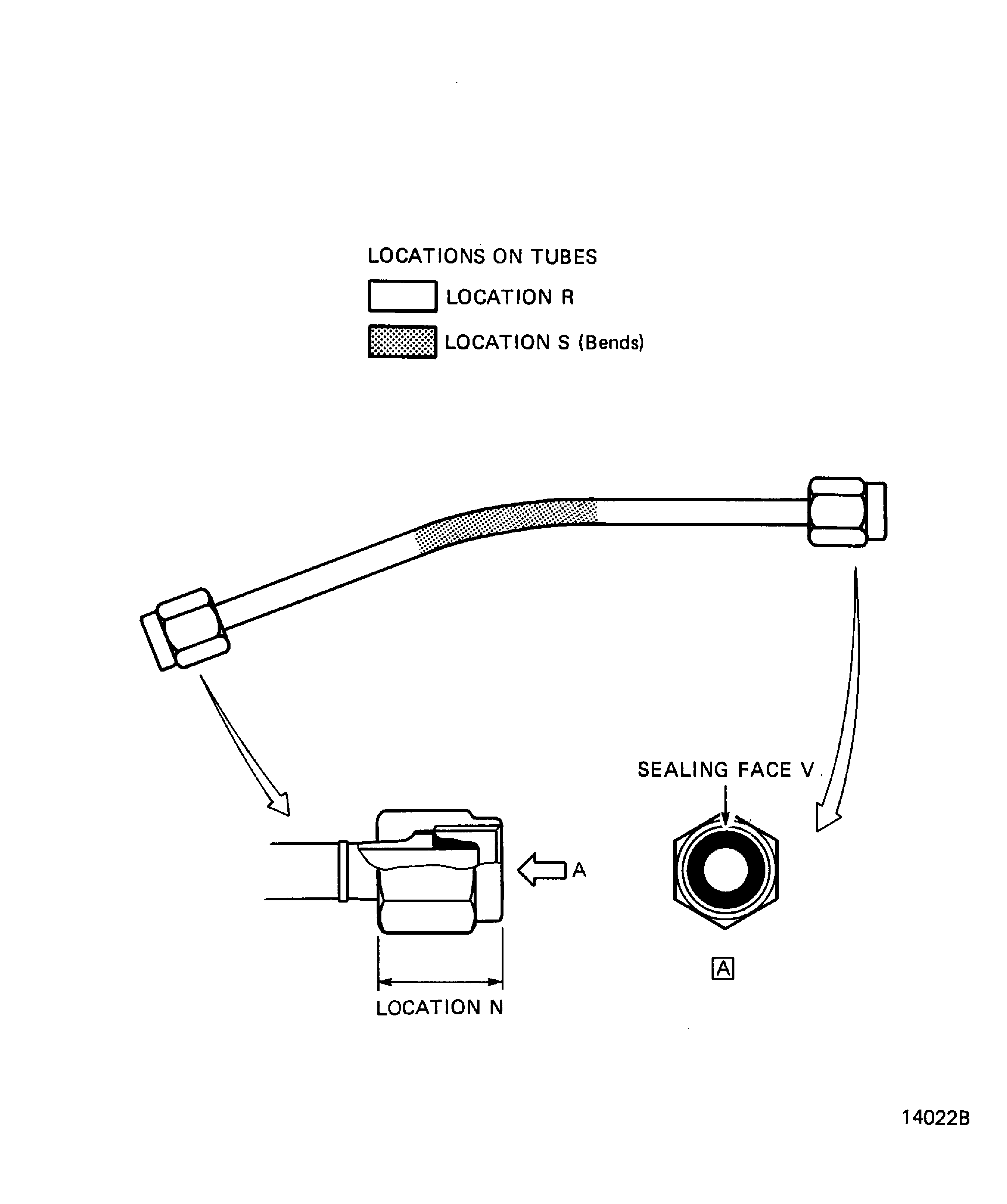

    6. Figure: Locations On The P2/T2 Tube

    Locations On The P2/T2 Tube

Requirements After Job Completion

Follow-On Conditions

NONE
