TASK 72-41-21-200-010-D00 HPC Stage 10 Rotor Path Case Assembly - Examine, lnspection-010

DMC:V2500-A5-72-41-2110-00D-300A-C|Issue No:002.00|Issue Date:2018-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-21-200-010-D00 HPC Stage 10 Rotor Path Case Assembly - Examine, lnspection-010

Effectivity

FIG/ITEM

PART NO.

03-800

6B1434

General

This TASK gives the procedure for the inspection of the Stage 10 Rotor Path Case Assembly.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variant refer to the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for the parts which must have a crack test is given in Step. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a subsequent date.

All parts must be examined to make sure that all the repairs are completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

References

Refer to the SPM for data on these items:

Definitions of damage, SPM TASK 70-02-02-350-501.

Inspection of parts, SPM TASK 70-20-01-200-501.

Some data on these items are contained in this TASK. For more data on these items refer to the SPM:

Method of Testing for Crack Indications

Chemical processes

Surface protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-21-230-247 Examine the Stage 10 Rotor Path Case Assembly for Cracks

    1. Refer to Figure.

      2. Clean the parts.

      1. Refer to TASK 72-41-21-100-000 (CLEANING-000).

      3. Do the test for cracks on the part that are given below.

        PART IDENT

        TASK/SUBTASK

        Stage 10 Rotor Path Case Assembly

        1. Cracked at Location 8.

          1. Not more than two cracks between the borescope access hole and any two rivet holes. If there are two cracks, the cracks must not be on the same hole or on any adjacent holes.

          1. Accept

          2. More than in Step.

          1. Reject

        2. Cracked at any location other than Step.

        1. Reject

    2. SUBTASK 72-41-21-220-717 Examine the Stage 10 Rotor Path Case Assembly Front and Rear Flanges at Locations 1, 2 and 1177

    1. Refer to Figure.

      2. Galled

        1. Not more than 0.002 in. (0.051 mm) in depth.

        1. Accept

        2. More than in Step.

        1. Refer to Repair, VRS6097 TASK 72-41-21-300-013 (REPAIR-013).

      3. Scored

        1. Not more than 0.002 in. (0.051 mm) in depth.

        1. Accept

        2. More than in Step.

        1. Refer to Repair, VRS6097 TASK 72-41-21-300-013 (REPAIR-013).

      4. Location 1177

        1. If the diameter is between 21.344 in. and 21.348 in. (542.13 mm and 542.25 mm)

        1. Accept

        2. More than in Step.

        1. Reject

    3. SUBTASK 72-41-21-220-718 Examine the Stage 10 Rotor Path Case Assembly Boltholes at Locations 3 and 4

    1. Refer to Figure.

      2. Burred edges

      1. Refer to Repair, VRS6097 TASK 72-41-21-300-013 (REPAIR-013).

      3. Scored

      1. Refer to Repair, VRS6097 TASK 72-41-21-300-013 (REPAIR-013).

    4. SUBTASK 72-41-21-220-719 Examine the Stage 10 Rotor Path Case Assembly Holes at Locations 5, 1193 and 1155

    1. Refer to Figure.

      2. Dowel holes at Location 5.

        1. Burred edges

        1. Refer to Repair, VRS6097 TASK 72-41-21-300-013 (REPAIR-013).

        2. If the diameter is between 0.220 in. and 0.232 in. (5.60 mm and 5.90 mm)

        1. Accept

        3. If the diameter is more than in Step

        1. Reject

      3. Location Pin hole at Location 1193.

        1. Burred edges

        1. Refer to Repair, VRS6097 TASK 72-41-21-300-013 (REPAIR-013).

        2. If the diameter is between 0.1638 in. and 0.1709 in. (4.16 mm and 4.34 mm)

        1. Accept

        3. If the diameter is more than in Step

        1. Reject

      4. Stop location hole at Location 1155.

        1. Burred edges

        1. Refer to Repair, VRS6097 TASK 72-41-21-300-013 (REPAIR-013).

        2. If the diameter is between 0.2504 in. and 0.2535 in. (6.360 mm and 6.440 mm)

        1. Accept

        3. If the diameter is more than in Step

        1. Reject

    5. SUBTASK 72-41-21-220-720 Examine the Stage 10 Rotor Path Case Assembly Location Pin at Location 1196

    1. Refer to Figure.

      2. Loose

      1. Refer to Repair, VRS6251 TASK 72-41-21-300-014 (REPAIR-014).

      3. Location pin outer diameter

        1. If the outer diameter is between 0.1638 in. and 0.1709 in. (4.16 mm and 4.34 mm)

        1. Accept

        2. If the outer diameter is less than in Step

        1. Refer to Repair, VRS6251 TASK 72-41-21-300-014 (REPAIR-014).

    6. SUBTASK 72-41-21-220-721 Examine the Stage 10 Rotor Path Case Assembly Borescope Access Hole at Location 8

    1. Refer to Figure.

      2. Burred edges

      1. Refer to Repair, VRS6097 TASK 72-41-21-300-013 (REPAIR-013).

      3. Scored

      1. Refer to Repair, VRS6097 TASK 72-41-21-300-013 (REPAIR-013).

      4. Loose rivets

      1. Refer to Repair, VRS6162 TASK 72-41-21-300-028 (REPAIR-028).

    7. SUBTASK 72-41-21-220-722 Examine the Stage 10 Rotor Path Case Assembly Lining at Location 1053

    1. Refer to Figure.

      2. Scored

        1. Not more than 0.005 in. (0.13 mm) in depth.

        1. Accept

        2. More than in Step.

        1. Refer to Repair, VRS6022 TASK 72-41-21-300-016 (REPAIR-016).

      3. Chipped

      1. Refer to Repair, VRS6022 TASK 72-41-21-300-016 (REPAIR-016).

      4. Worn

        1. If the radius is between 10.323 in. and 10.327 in. (262.204 mm and 262.306 mm)

        1. Accept

        2. More than in Step.

        1. Refer to Repair, VRS6022 TASK 72-41-21-300-016 (REPAIR-016).

    8. SUBTASK 72-41-21-220-723 Examine the Stage 10 Rotor Path Case Assembly Face at Location 1110

    1. Refer to Figure.

      2. Galled/Scored

        1. Not more than 0.002 in. (0.051 mm) in depth.

        1. Accept

        2. More than in Step.

        1. Refer to Repair, VRS6097 TASK 72-41-21-300-013 (REPAIR-013).

      3. Location 1110

        1. If the diameter is between 21.3500 in. and 21.3551 in. (542.300 mm and 542.420 mm)

        1. Accept

        2. Less than in Step.

        1. Reject

    9. SUBTASK 72-41-21-220-724 Examine the Stage 10 Rotor Path Case assembly Grooves at Locations 1131 and 1134

    1. Refer to Figure.

      2. Scored/Galled

        1. Not more than 0.002 in. (0.051 mm) in depth

        1. Accept

        2. More than in Step.

        1. Reject

      3. Location 1131

        1. If the width of the groove is between 0.1350 in. and 0.1382 in. (3.43 mm and 3.51 mm)

        1. Accept

        2. More than in Step.

        1. Reject

      4. Location 1134.

        1. If the width of the groove is between 0.115 in. and 0.1185 in. (2.92 mm and 3.01 mm)

        1. Accept.

        2. More than in Step.

        1. Reject.

    10. SUBTASK 72-41-21-220-725 Examine the Stage 10 Rotor Path Case Assembly Surface Protection

    1. Refer to Figure.

      2. Damaged.

      1. Accept.

    11. SUBTASK 72-41-21-220-761 Examine the Dimension A

    1. Refer to Figure.

      2. If the dimension is between 0.158 in. and 0.163 in. (4.02 mm and 4.14 mm).

      1. Accept.

      3. More than Step.

      1. Repair, VRS9042 TASK 72-41-21-300-043 (REPAIR-043).

    12. SUBTASK 72-41-21-220-762 Examine the Stage 10 Rotor Path Ring Face at Location 6

    1. Refer to Figure.

      2. If there is chipped/worn/missing coating.

      1. Repair, VRS9042 TASK 72-41-21-300-043 (REPAIR-043).

      3. Galled.

      1. Repair, VRS9042 TASK 72-41-21-300-043 (REPAIR-043).

      4. Scored.

        1. Not more than 0.002 in. (0.05 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Repair, VRS9042 TASK 72-41-21-300-043 (REPAIR-043).

    13. SUBTASK 72-41-21-220-726 Examine the Stage 10 Rotor Path Case Assembly Remaining Surfaces

    1. Refer to Figure.

      2. Nicked/Galled/Scored

        1. Not more than 0.002 in. (0.051 mm) in depth.

        1. Accept

        2. More than in Step.

        1. Refer to Repair, VRS6097 TASK 72-41-21-300-013 (REPAIR-013).

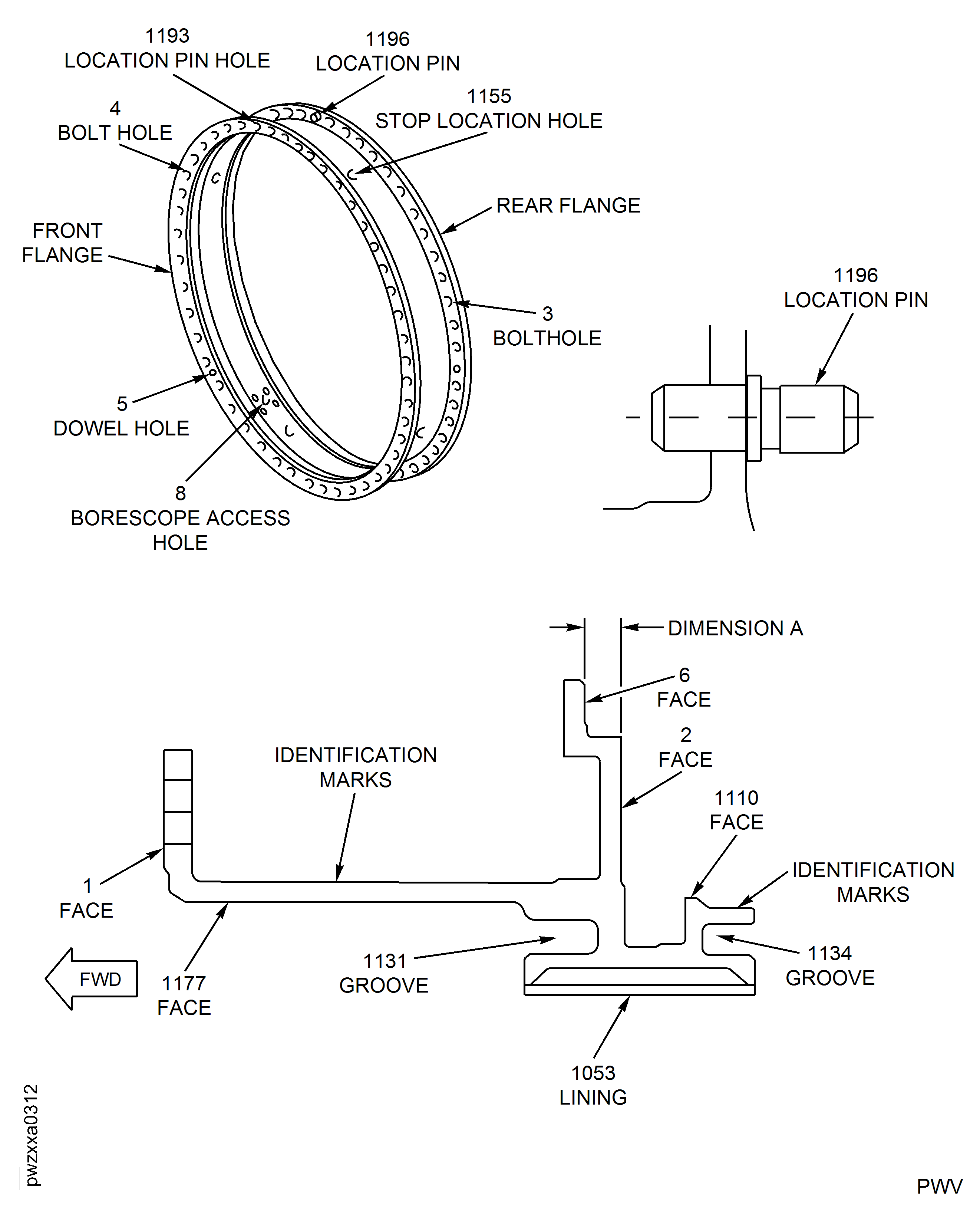

    14. Figure: Stage 10 Rotor Path Case Assembly - Inspection Locations

    Stage 10 Rotor Path Case Assembly - Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added inspection procedure for dimension A. (17VG011)
