TASK 72-00-32-450-006 LPC/Intermediate Case Module Components - Install The Fuel Flow Transmitter, Installation-013

DMC:V2500-A0-72-00-3250-05A-720A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-00-32-450-006 LPC/Intermediate Case Module Components - Install The Fuel Flow Transmitter, Installation-013

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS unless other lubricants are referred to in the procedure.

Do not remove the special plastic caps from the electrical connectors and receptacles until immediately before they are connected. This will give protection from unwanted fluids or materials.

During the installation procedure make sure that the harnesses are held temporarily along their different lengths. This is to prevent too much strain on the harnesses, cables and electrical connectors.

For the data on the electrical connectors refer to the SPM TASK 70-43-00-400-501 and SPM TASK 70-43-01-400-501.

For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501, SPM TASK 70-41-01-400-501 and SPM TASK 70-41-02-400-501.

For the torque tightening procedures, refer to the SPM TASK 70-41-00-400-501 and SPM TASK 70-41-01-400-501.

Special torque data and assembly tolerances are included in this procedure.

Special torque data is identified with the symbol * after the torque value.

For lockwire data and procedures refer to SPM TASK 70-42-05-400-501.

For safety cable data and procedures refer to SPM TASK 70-42-08-400-501.

Safety the threaded fasteners in the ATA Chapter/Section/Subject 71-51-41 as applicable with CoMat 02-274 SAFETY CABLE KIT or CoMat 02-275 SAFETY CABLE KIT.

NOTE

  1. To identify the consumable materials refer to the PCI.

  2. SBE 70-0813 : Announcement of introduction of safety cable as a preferred method to lockwire.

  3. Safety the threaded fasteners in this TASK with safety cable for the ATA Chapter/Section/Subject detailed in 2. General.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-002 SOLVENT, DELETED.0AM53CoMat 01-002
CoMat 02-126 LOCKWIRELOCALCoMat 02-126
CoMat 02-274 SAFETY CABLE KITLOCALCoMat 02-274
CoMat 02-275 SAFETY CABLE KITLOCALCoMat 02-275
CoMat 10-038 PETROLEUM JELLYLOCALCoMat 10-038
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077
CoMat 10-060 LIQUID PARAFFINLOCALCoMat 10-060

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Seal ring1
Seal ring1
Seal ring1

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-32-450-058-A00 V2500-A1: Install the Fuel Flow Transmitter (73-31-17,01-100)

    1. Refer to Figure, Figure, Figure, Figure and Figure.

      2. Install the transmitter.

      2. Install the packing on the tube 109. Attach the transmitter and the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 07-070) to the tube 109 with the three bolts ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 07-106).

      4. Install the packing on the tube 94. Attach the tube 94 and the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 07-470) to the transmitter with the three bolts ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 07-506).

      5. Torque the six bolts (ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 07-106) and ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 07-506)) to 85 to 105 lbf.in (10 to 12 Nm).

      6. WARNING

        WHEN YOU USE INHIBITED AND STABILIZED TRICHLORETHANE YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

        Remove the grease, the fingerprints and the unwanted material from the mating surfaces of the raceway Fan Harness Support Raceways (71-51-50, 01-100) bonding lug and the transmitter bonding lead with CoMat 01-002 SOLVENT, DELETED.. Use a clean lint free cloth moistened with the solvent.

      7. Clean the contact (washer) surfaces of the bolt, the nut and the two washers (ENGINE FUEL AND CONTROL-FUEL FLOWMETER (73-31-17, 01-125), ENGINE FUEL AND CONTROL-FUEL FLOWMETER(73-31-17,01-132) and ENGINE FUEL AND CONTROL-FUEL FLOWMETER (73-31-17, 01-126)) as given in step (5).

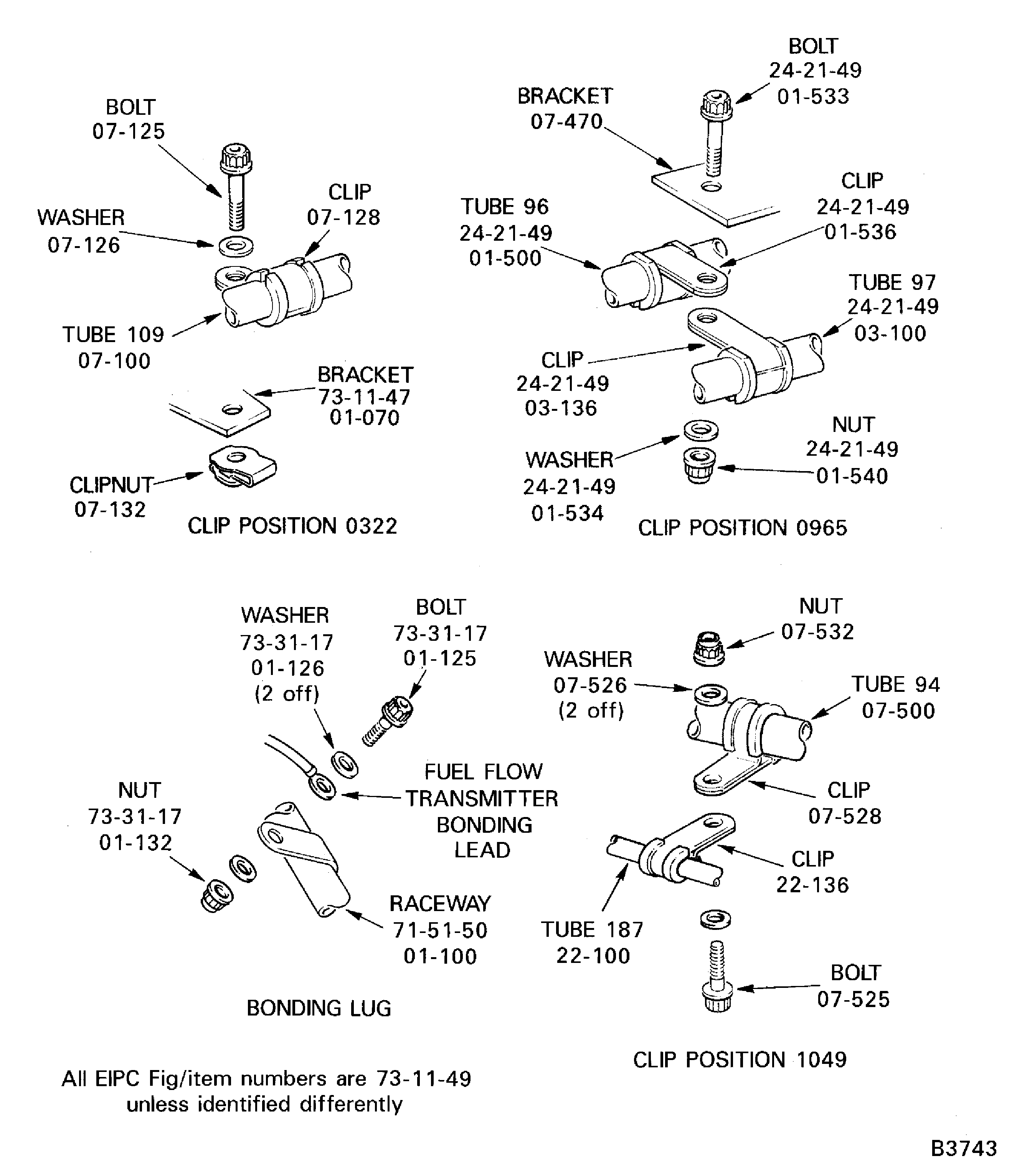

      8. Attach the transmitter bonding lead to the raceway bonding lug with the bolt, the two washers and the nut. Torque the nut to 36 to 45 lbf.in (4 to 5 Nm).

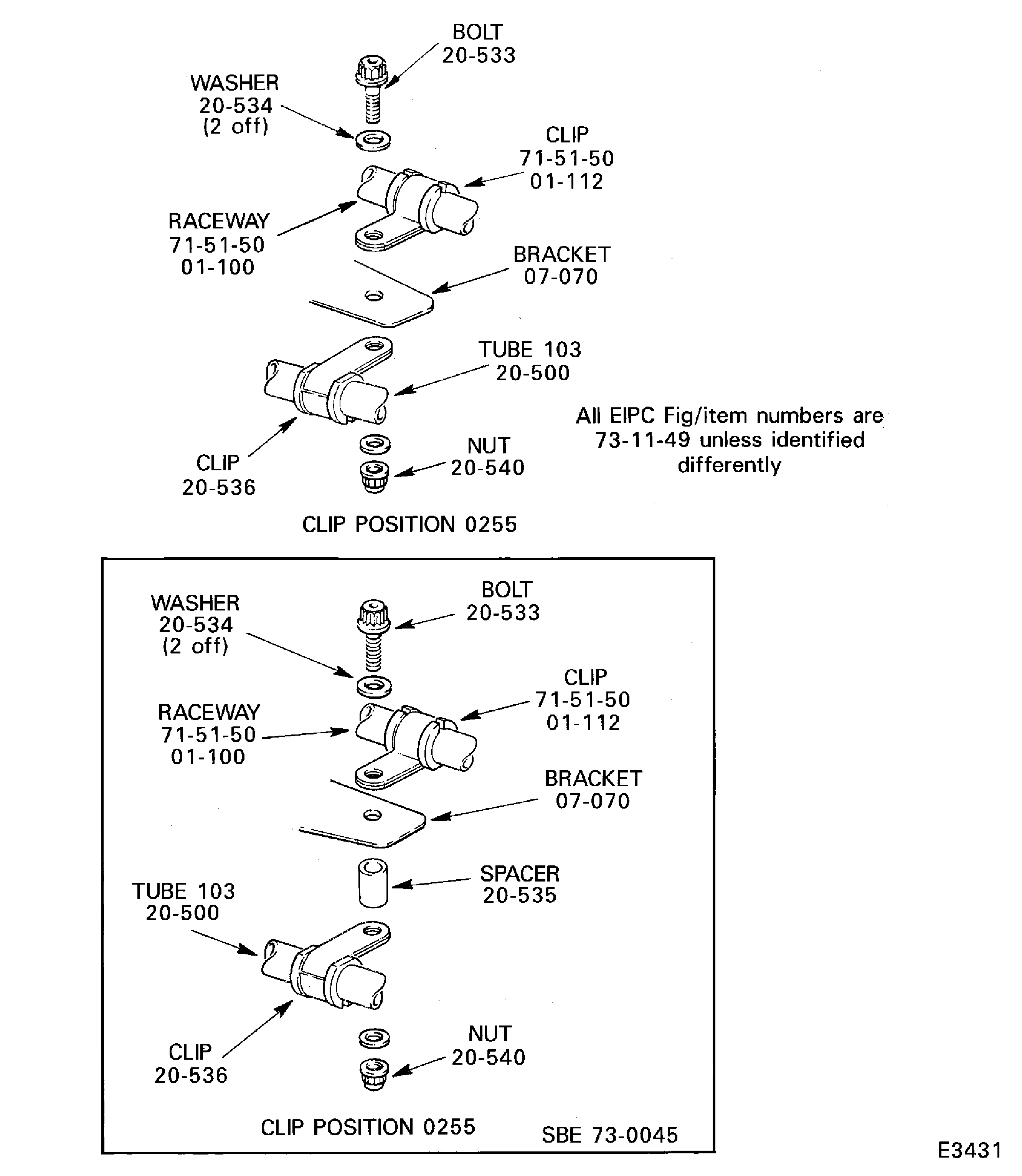

      9. Pre SBE 73-0045: Install the bolts, the washers, the nuts and the clipnuts at the clip positions 0255, 1038, 0253, 0965, 1049 and 0322. Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm).

      10. SBE 73-0045: Install the bolts, washers, the spacer, the nuts and the clipnuts at the clip positions 0255, 1038, 0253, 0965, 1049 and 0322. Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm).

      3. Connect the electrical connector and harness.

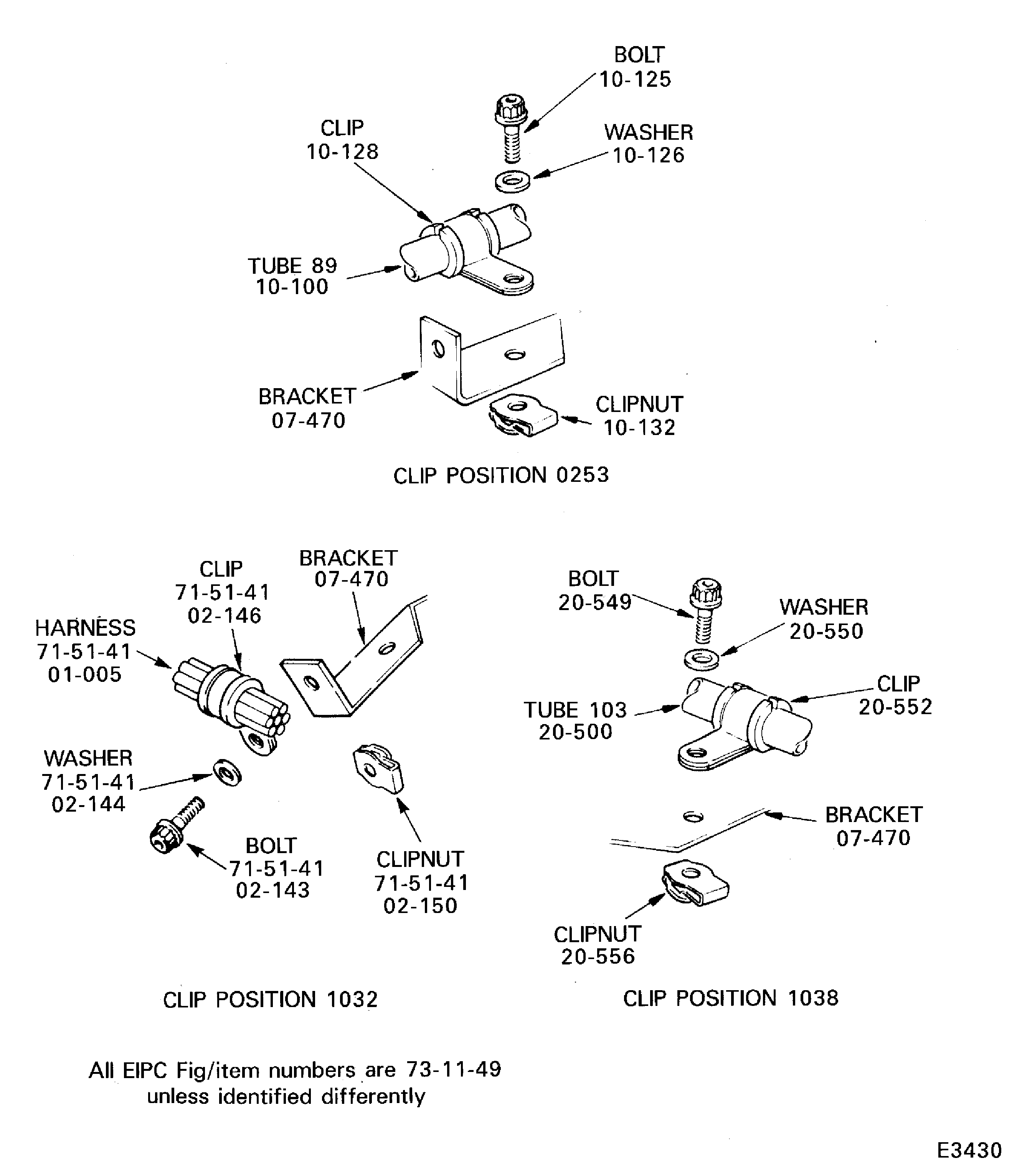

      1. Attach the harness to the bracket with the bolt, the washer and the clipnut at the clip position 1032. Torque the bolt to 36 to 45 lbf.in (4 to 5 Nm).

      2. Remove the ties which attach the electrical harness/connector 4010KS-A to the FMU harness at the electrical connector 4000KC-B.

      3. Connect the electrical connector 4010KS-A to the transmitter. Torque the connector to 14*lbf.in (1.6 Nm).

    2. SUBTASK 72-00-32-450-058-B00 V2500-A5: Install the Fuel Flow Transmitter (73-31-17,01-100) (Pre SBE 73-0049 and SBE 73-0049)

    1. Refer to Figure, Figure, Figure and Figure.

      2. Install the transmitter.

      2. Install the packing on the tube 109. Attach the transmitter and the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 07-070) to the tube with the three bolts ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 07-106).

      4. Install the packing on the tube 94. Attach the tube 94 and the bracket ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 07-470) to the transmitter with the three bolts ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 07-506).

      5. Torque the six bolts (ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 07-106) and ENGINE FUEL AND CONTROL-FUEL SYSTEM TUBES-ENGINE (73-11-49, 07-506)) to 85 to 105 lbf.in (10 to 12 Nm).

      6. WARNING

        WHEN YOU USE CoMat 01-002 SOLVENT, DELETED. INHIBITED AND STABILIZED TRICHLORETHANE YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

        Remove the grease, the fingerprints and the unwanted material from the mating surfaces of the raceway Fan Harness Support Raceways (71-51-50, 01-100) bonding lug and the transmitter bonding lead with CoMat 01-002 SOLVENT, DELETED.. Use a clean lint free cloth moistened with the solvent.

      7. Clean the contact (washer) surfaces of the bolt, the nut and the two washers (ENGINE FUEL AND CONTROL-FUEL FLOWMETER (73-31-17, 01-125), ENGINE FUEL AND CONTROL-FUEL FLOWMETER (73-31-17, 01-132) and ENGINE FUEL AND CONTROL-FUEL FLOWMETER (73-31-17, 01-126)) as given in step (5).

      8. Attach the transmitter bonding lead to the raceway bonding lug with the bolt, the two washers and the nut. Torque the nut to 36 to 45 lbf.in (4 to 5 Nm).

      9. Pre SBE 73-0049: Install the bolts, the washers, the nuts and the clipnuts at the clip positions 0322, 0255, 0965, 0253 and 1134. Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm).

      10. SBE 73-0049: Install the bolts, the washers, the spacers, the nuts and the clipnuts at the clip positions 0322, 0255, 0965, 0253 and 1134. Torque the bolts to 36 to 45 lbf.in (4 to 5 Nm).

      3. Connect the electrical connector.

      1. Remove the ties which attach the electrical harness/connector 4010KS-A to the FMU harness at the electrical connector 4000KC-B.

      2. Connect the electrical connector 4010KS-A to the transmitter. Torque the connector to 14*lbf.in (1.6 Nm).

    3. SUBTASK 72-00-32-210-058 Visually Inspect the Electrical Backshells and Cable Clamps

    1. Refer to Figure.

    2. Make sure that all the applicable connectors, backshells and cable clamps are secure.

    3. Make sure that all the applicable backshells and cable clamps are safetied with CoMat 02-126 LOCKWIRE. Refer to the SPM TASK 70-42-05-400-501.

    4. SUBTASK 72-00-32-210-059 Visually Inspect the EEC Harness (01-005) Electrical Backshells and Cable Clamps (SBE 70-0813)

    1. SBE 70-0813: Announcement of introduction of safety cable as a preferred method to lockwire.

    2. NOTE

      Use this procedure to safety the EEC harness backshells and cable clamps with safety cable.

      Refer to Figure.

    3. Make sure that all the EEC harness connectors, backshells and cable clamps are secure.

    4. Make sure that all the EEC harness backshells and cable clamps are safetied. Safety with CoMat 02-274 SAFETY CABLE KIT or with CoMat 02-275 SAFETY CABLE KIT. Refer to SPM TASK 70-42-08-400-501.

    5. Figure: V2500-A1: Install the fuel flow transmitter

    V2500-A1: Install the fuel flow transmitter

    Figure: V2500-A1: Install the fuel flow transmitter

    V2500-A1: Install the fuel flow transmitter

    Figure: V2500-A1: Install the fuel flow transmitter

    V2500-A1: Install the fuel flow transmitter

    Figure: V2500-A1: Install the fuel flow transmitter

    V2500-A1: Install the fuel flow transmitter

    Figure: V2500-A1: Install the fuel flow transmitter

    V2500-A1: Install the fuel flow transmitter

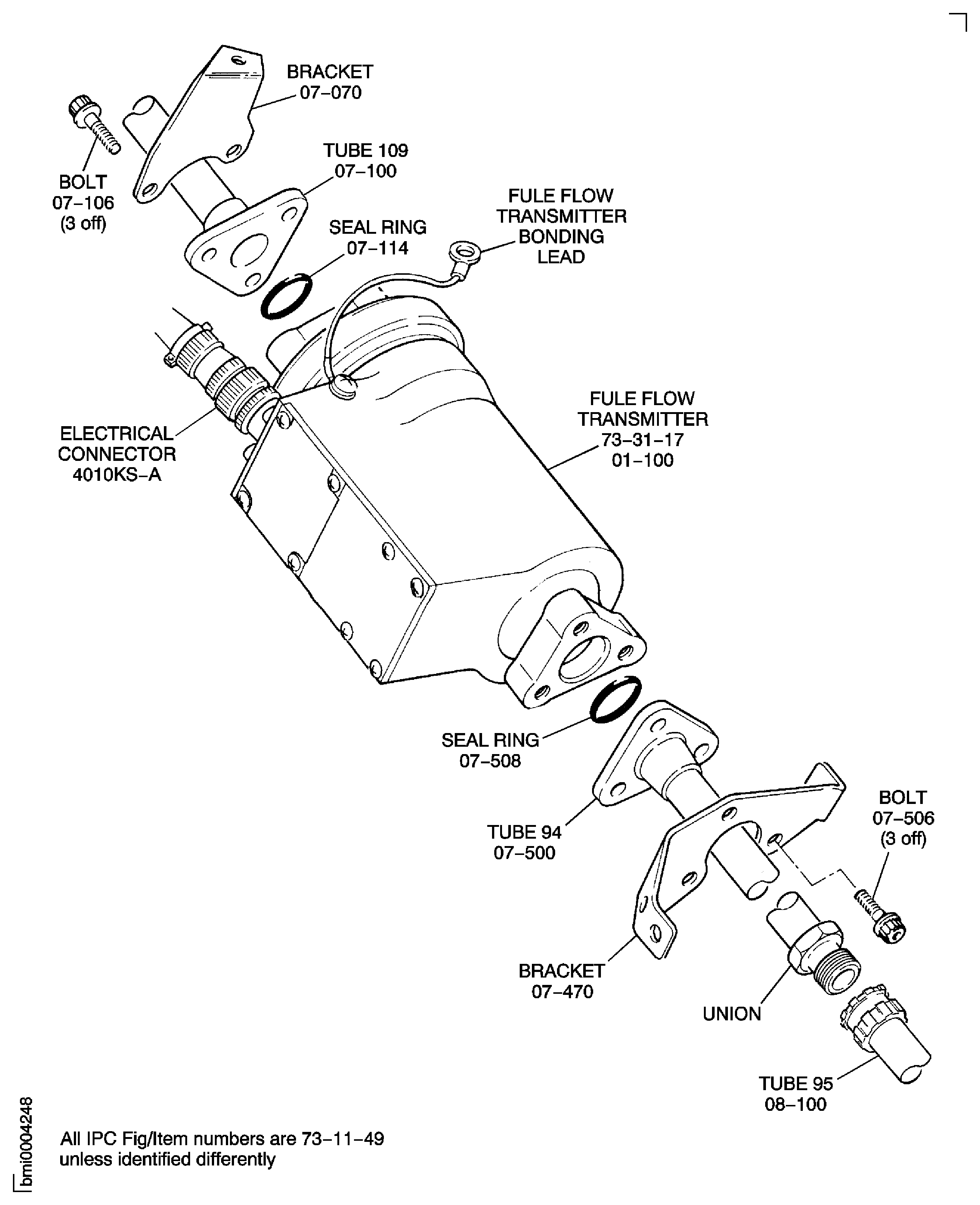

    Figure: V2500-A5: Install the Flow Transmitter

    V2500-A5: Install the Flow Transmitter

    Figure: V2500-A5: Install the fuel flow transmitter

    V2500-A5: Install the fuel flow transmitter

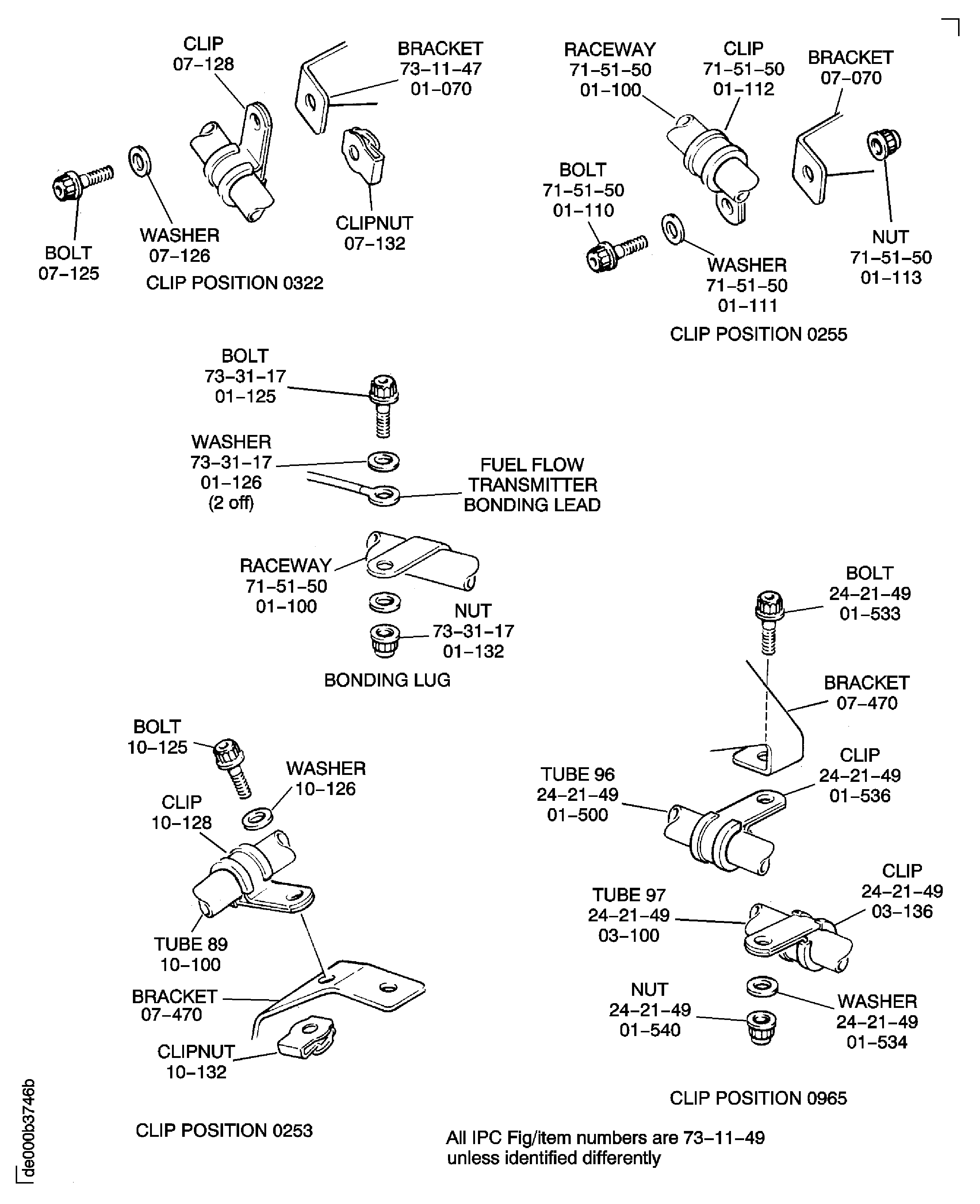

    Figure: V2500-A5, Pre SBE 73-0049: Install the fuel flow transmitter

    V2500-A5, Pre SBE 73-0049: Install the fuel flow transmitter

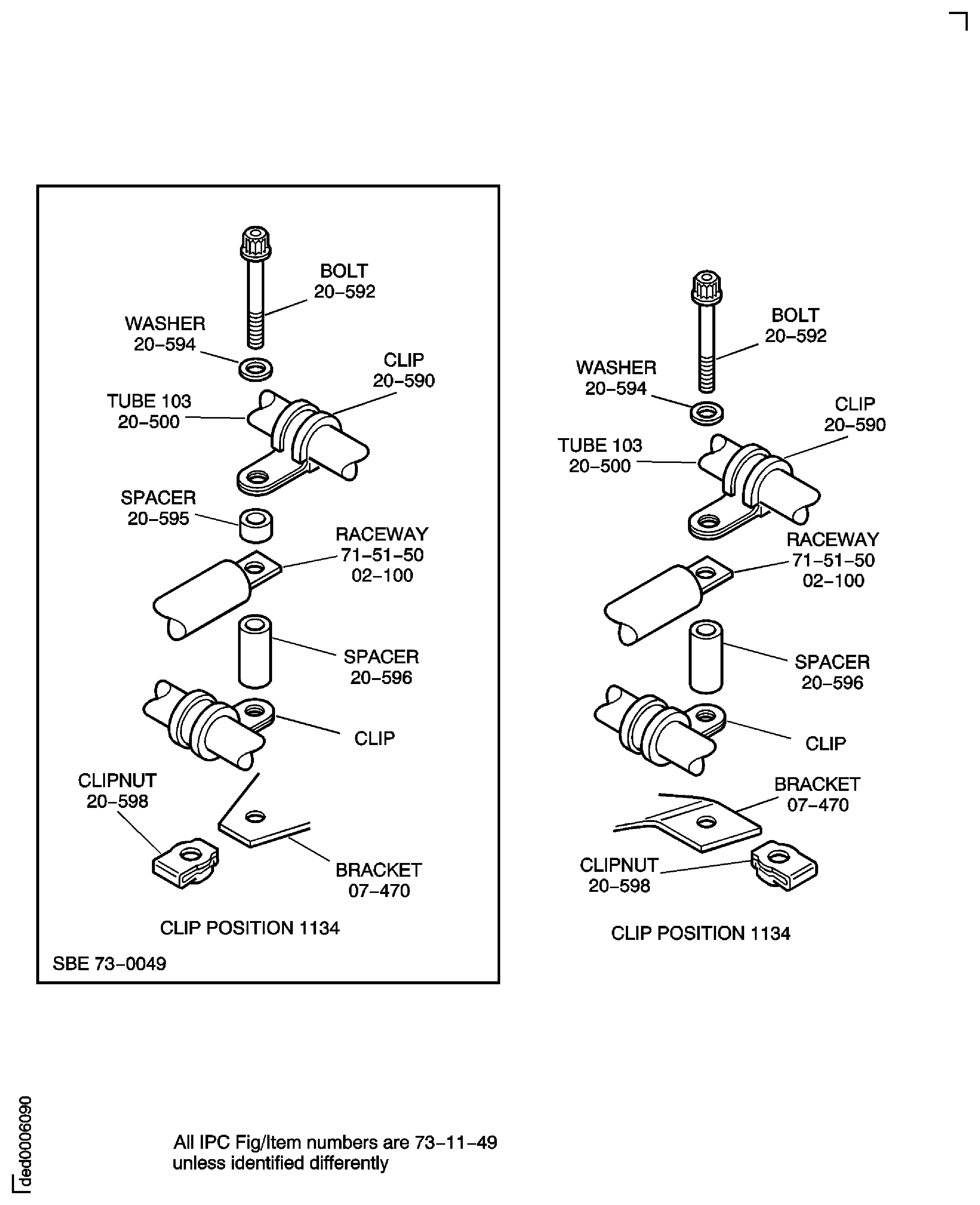

    Figure: Install the fuel flow transmitter

    Install the fuel flow transmitter

    Figure: Visually inspect the backshells and cable clamps

    Visually inspect the backshells and cable clamps

Requirements After Job Completion

Follow-On Conditions

NONE
