TASK 72-32-41-200-001-A00 No. 1 Bearing Support Assembly - Examine, Inspection-001

DMC:V2500-A0-72-32-4101-00A-300A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-41-200-001-A00 No. 1 Bearing Support Assembly - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-240

5W2048

General

This TASK gives the procedure for the inspection of the No. 1 bearing support assembly. For other No. 1 bearing support parts, refer to TASK 72-32-41-200-000 (INSPECTION/CHECK-000).

Fig/Item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for check is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-41-100-000 (CLEANING-000).

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The procedure for crack test is given in Step. Do the test before the part is visually examined.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

References

Refer to SPM for data on these items.

Definitions of damage, TASK 70-02-02-350-501

Inspection of parts, TASK 70-20-00-200-501

Some data on these items are contained in this TASK. For more data on these items refer to SPM.

Method of Testing for Crack Indications.

Chemical Processes

Surface Protection

NOTE

To identify consumable materials refer to PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Magnetic Particle Inspection equipmentLOCALMagnetic Particle Inspection equipment

(Refer to TASK 70-24-00-240-501)

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-011 MAGNETIC PARTICLES, FLUORESCENT, DRY POWDERLOCALCoMat 06-011

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-41-240-051 Examine the No. 1 Bearing Support Assembly (01-240) for Cracks

    1. Clean the parts. Refer to TASK 72-32-41-100-000 (CLEANING-000).

      NOTE

      During magnetic inspection, it is recommended to use CoMat 06-011 MAGNETIC PARTICLES, FLUORESCENT, DRY POWDER.

      2. Do the crack test on the parts that are given below. Use the applicable magnetic inspection procedure.

        PART IDENT

        PROCEDURE continuous or

        CURRENT/INSPECT

        TASK/OP

        No. 1 bearing support assembly

        TB using wet simultaneous inking with CoMat 06-011 MAGNETIC PARTICLES, FLUORESCENT, DRY POWDER

        1000 am. No. 1 Bearing support outside diameter visually inspect for longitudinal and radial defects. Check doubtful indication using low power magnification. If necessary, inspect under white light at X10 binocular.

        TASK 70-24-00-240-501

        Solenoid coil wet continuous or simultaneous inking.

        6000 A/T.

        Do again the magnetization and inspection along No. 1 Bearing support length visually inspect for circumferential defects. Check doubtful indications using low power magnification. If necessary, inspect under white light at X10 binocular.

        1. Cracked

        1. Reject unless referred to differently in the procedure

    2. SUBTASK 72-32-41-220-051 Examine the No. 1 Bearing Support Assembly (01-240) Surface

    1. Refer to Figure.

      2. Examine all the surface.

        1. Nicked.

          1. Up to 0.005 in. (0.127 mm) in depth

          1. Accept

          2. More than Step

          1. Repair, VRS1270 TASK 72-32-41-300-001 (REPAIR-001)

        2. Dented.

          1. Up to 0.010 in. (0.254 mm) in depth

          1. Accept

          2. More than Step

          1. Repair, VRS1270 TASK 72-32-41-300-001 (REPAIR-001)

        3. Scratched.

          1. Up to 0.005 in. (0.127 mm) in depth

          1. Accept

          2. More than Step

          1. Repair, VRS1270 TASK 72-32-41-300-001 (REPAIR-001)

        4. Galled.

          1. Up to 0.005 in. (0.127 mm) in depth

          1. Accept

          2. More than Step

          1. Repair, VRS1270 TASK 72-32-41-300-001 (REPAIR-001)

    3. SUBTASK 72-32-41-220-052 Examine the No. 1 Bearing Support Assembly (01-240) Clinch Nuts

    1. Refer to Figure.

      2. Examine the clinch nuts at locations 1 and 6.

        1. Thread damage

        1. Repair, VRS1271 TASK 72-32-41-300-002 (REPAIR-002)

        2. Loose

        1. Repair, VRS1271 TASK 72-32-41-300-002 (REPAIR-002)

        3. Missing

        1. Repair, VRS1271 TASK 72-32-41-300-002 (REPAIR-002)

    4. SUBTASK 72-32-41-220-053 Examine the No. 1 Bearing Support Assembly (01-240) Bracket

    1. Refer to Figure.

      2. Examine the bracket at locations 2 and 7.

        1. Broken

        1. Repair, VRS1272 TASK 72-32-41-300-003 (REPAIR-003)

        2. Distorted

        1. Repair, VRS1272 TASK 72-32-41-300-003 (REPAIR-003)

        3. Cracked

        1. Repair, VRS1272 TASK 72-32-41-300-003 (REPAIR-003)

        4. Loosened rivet

        1. Repair, VRS1272 TASK 72-32-41-300-003 (REPAIR-003)

    5. SUBTASK 72-32-41-220-054 Examine the No. 1 Bearing Support Assembly (01-240) Surface Paint

    1. Refer to Figure.

      2. Examine the surface paint at location 3.

        1. Peeled

        1. Repair, VRS1267 TASK 72-32-41-300-004 (REPAIR-004)

    6. SUBTASK 72-32-41-220-055 Examine the No. 1 Bearing Support Assembly (01-240) at Location 0301

    1. Refer to Figure.

      2. Dimensionally examine the average diameter.

        1. If the average diameter is between 12.7938 in. to 12.7946 in. (324.960 mm to 324.985 mm).

        1. Accept.

        2. If the average diameter is between 12.7946 in. to 12.8146 in. (324.985 mm to 325.493 mm).

        1. Repair, VRS1268 TASK 72-32-41-300-005 (REPAIR-005).

        3. More than 12.8146 in. (325.493 mm).

        1. Reject.

    7. SUBTASK 72-32-41-220-056 Examine the No. 1 Bearing Support Assembly (01-240) at Location 0304

    1. Refer to Figure.

      2. Dimensionally examine the average diameter.

        1. If the average diameter is between 21.5020 in. and 21.5047 in. (546.15 mm and 546.22 mm).

        1. Accept.

        2. If the average diameter is between 21.482 in. and 21.502 in. (545.64 mm and 546.15 mm).

        1. Repair, VRS1269 TASK 72-32-41-300-006 (REPAIR-006).

        3. Less than 21.482 in. (545.64 mm).

        1. Reject.

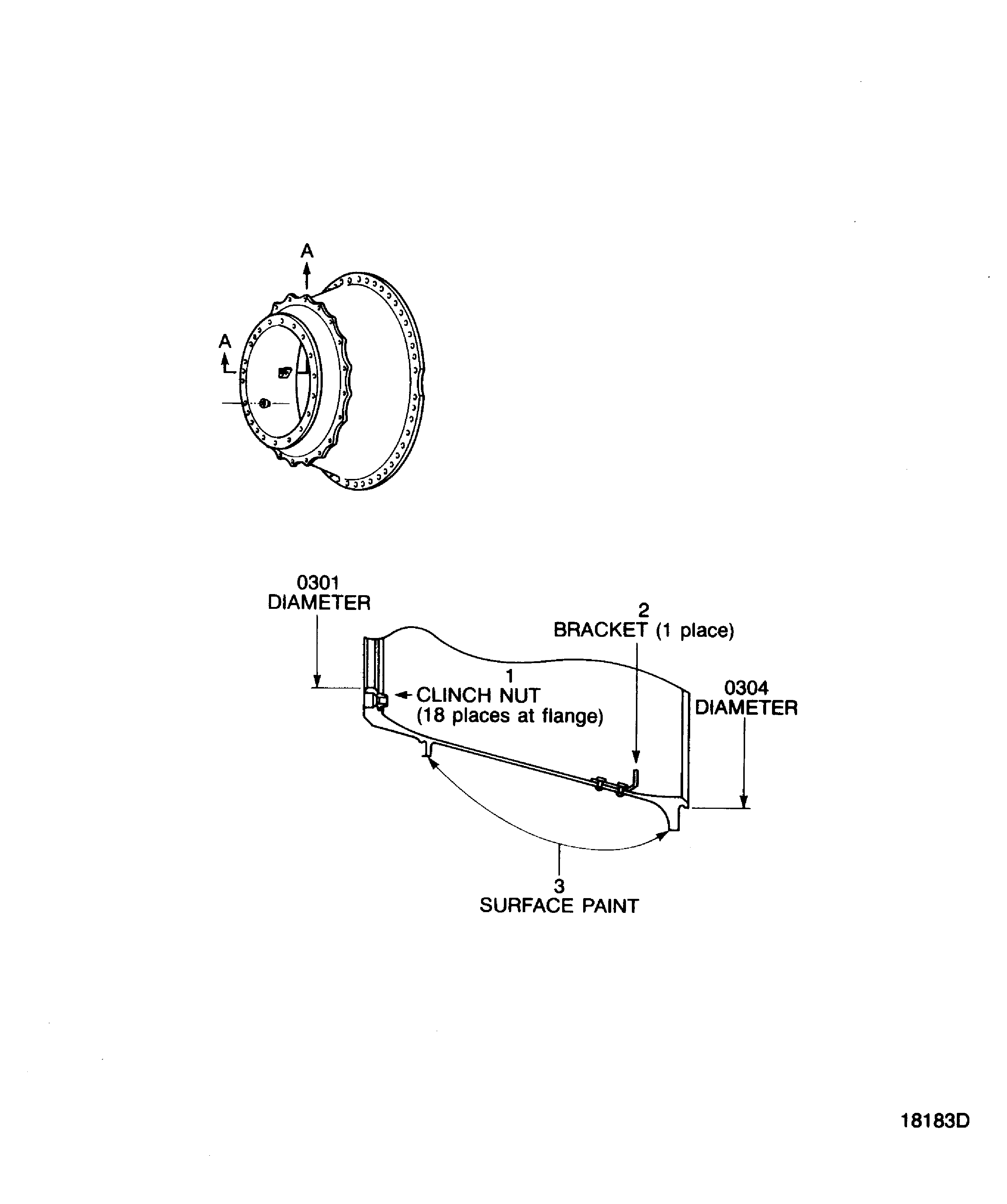

    8. Figure: Inspection of the No. 1 bearing support assembly

    Inspection of the No. 1 bearing support assembly
