TASK 72-32-60-200-001-D00 LPC Bleed Duct - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-250

5W2318

General

This TASK gives the procedure for the inspection of the LPC bleed duct assembly. For other bleed valve outlet case parts, refer to TASK 72-32-60-200-000 (INSPECTION-000).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for crack inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part can be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The procedure for crack test is given in Step. Do the test before the part is visually examined.

The practices and processes referred to in the procedure by the TASK/SUBTASK number are in SPM.

References

Refer to SPM for data on these items.

Definition of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-00-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to SPM.

Method of Testing for Crack Indications,

Chemical Processes,

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent penetrant inspection equipmentLOCALFluorescent Penetrant Inspection Equipment

Medium sensitivity water washable (Refer to SPM TASK V2500-00-70-23-02-00A-351A-D)

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-60-230-055 Examine the LPC Bleed Duct Assembly (01-250) for Cracks

    1. Clean the parts. Refer to TASK 72-32-60-100-000 (CLEANING-000).

      2. Do a crack test on the parts that are given below. Use applicable penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        LPC bleed duct assembly

        1. Cracked, except Area D, Locations 6, 7, 8 and 9.

        1. Reject.

        2. Cracked at Area D, Locations 7, 8 and 9.

        1. Repair, VRS1908 TASK 72-32-60-300-007 (REPAIR-007).

        3. Cracked at Location 6.

        1. Repair, VRS1514 TASK 72-32-60-300-016 (REPAIR-016).

    2. SUBTASK 72-32-60-220-096 Examine the LPC Bleed Duct Assembly (01-250) Surface

    1. Refer to Figure.

      2. Examine all the surfaces, except the identified locations.

        1. Nicked, dented or scratched.

          1. Not more than 0.005 in. (0.12 mm) in depth.

          1. Accept.

          2. More than in Step.

          1. Repair, VRS1908 TASK 72-32-60-300-007 (REPAIR-007).

        2. Pitted or corroded.

        1. Repair, VRS1908 TASK 72-32-60-300-007 (REPAIR-007).

      3. Examine the surface at Locations 7, 8 and 9.

        1. Nicked, dented or scratched.

          1. Not more than 0.005 in. (0.12 mm) in depth.

          1. Accept.

          2. More than in Step.

          1. Repair, VRS1908 TASK 72-32-60-300-007 (REPAIR-007).

        2. Cracked, missing, pitted, corroded or unspecified damage.

        1. Repair, VRS1908 TASK 72-32-60-300-007 (REPAIR-007).

    3. SUBTASK 72-32-60-220-097 Examine the LPC Bleed Duct Assembly (01-250) Locating Pins

    1. Refer to Figure.

      2. Examine the locating pins at Location 1.

        1. Damaged.

        1. Repair, VRS1909 TASK 72-32-60-300-008 (REPAIR-008).

    4. SUBTASK 72-32-60-220-098 Examine the LPC Bleed Duct Assembly (01-250) Inserts

    1. Refer to Figure.

      2. Examine the inserts at Location 2.

        1. Damaged.

        1. Repair, VRS1912 TASK 72-32-60-300-009 (REPAIR-009).

    5. SUBTASK 72-32-60-220-099 Examine the LPC Bleed Duct Assembly (01-250) Plate Nuts

    1. Refer to Figure.

      2. Examine the plate nuts at Location 3.

        1. Damaged.

        1. Repair, VRS1914 TASK 72-32-60-300-011 (REPAIR-011).

        2. Loosened rivet.

        1. Repair, VRS1914 TASK 72-32-60-300-011 (REPAIR-011).

    6. SUBTASK 72-32-60-220-100 Examine the LPC Bleed Duct Assembly (01-250) Rubber Seal

    1. Refer to Figure.

      2. Examine the rubber seal at Location 4.

        1. Deteriorated.

        1. Repair, VRS1916 TASK 72-32-60-300-013 (REPAIR-013).

        2. Damaged.

        1. Repair, VRS1916 TASK 72-32-60-300-013 (REPAIR-013).

        3. Un-bonded.

        1. Repair, VRS1916 TASK 72-32-60-300-013 (REPAIR-013).

    7. SUBTASK 72-32-60-220-101 Examine the LPC Bleed Duct Assembly (01-250) Teflon Coating

    1. Refer to Figure.

      2. Examine the teflon coating at Location 5.

        1. Worn off.

        1. Repair, VRS1339 TASK 72-32-60-300-015 (REPAIR-015).

        2. Corroded or pitted.

        1. Repair, VRS1339 TASK 72-32-60-300-015 (REPAIR-015).

    8. SUBTASK 72-32-60-220-125 Examine the LPC Bleed Duct Assembly (01-250) Lug

    1. Refer to Figure.

      2. Examine the lug at location 6.

        1. Nicked, dented or scratched.

          1. Not more than 0.005 in. (0.12 mm) in depth.

          1. Accept.

          2. More than in Step.

          1. Repair, VRS1908 TASK 72-32-60-300-007 (REPAIR-007).

        2. Cracked, missing or unspecified damage.

        1. Repair, VRS1514 TASK 72-32-60-300-016 (REPAIR-016).

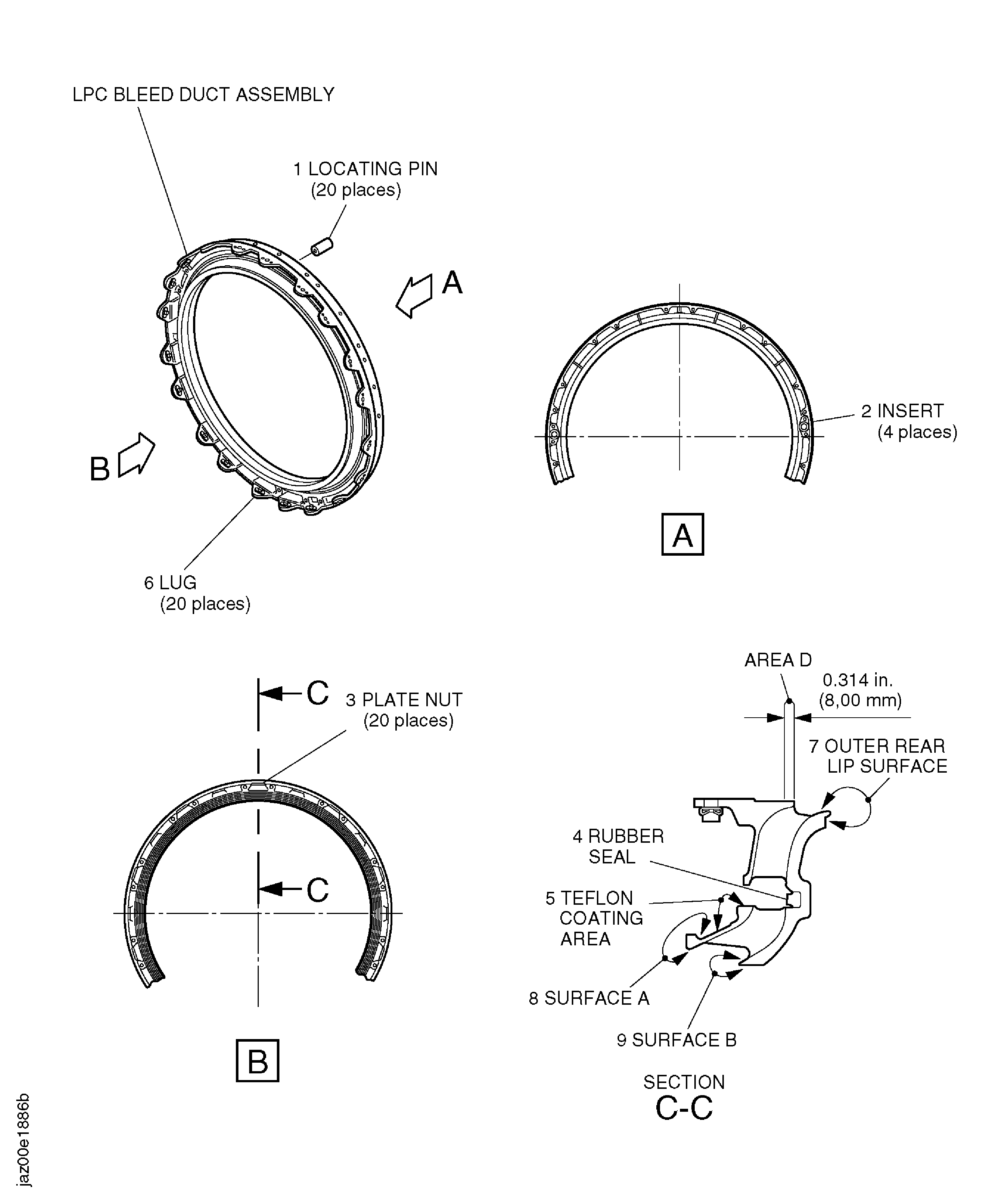

    9. Figure: Inspection of the LPC Bleed Duct Assembly

    Inspection of the LPC Bleed Duct Assembly

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure to update inspection requirements. (88VJ542N)
