TASK 72-41-21-300-092 HPC Stage 8 Rotor Path Ring - Replace The Lining, Repair-092 (VRS6663)

DMC:V2500-A0-72-41-2122-00A-920A-C|Issue No:005.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-21-300-092 HPC Stage 8 Rotor Path Ring - Replace The Lining, Repair-092 (VRS6663)

Effectivity

FIG/ITEM

PART NO

ASSEMBLY

03-500

6A7578

C

03-500

6A7624

C

03-500

6B1432

C

03-600

6A7625

B

03-600

6A7627

A

Material of component

PART IDENT

MATERIAL

HP compressor stage 8 rotor path ring

Corrosion resistant steel

General

This is a source demonstrated repair that can only be accomplished by IAE approved vendors.

The vendor is self-provisioning for the coating material.

Price and Availability

Refer to International Aero Engines

Related Repairs

Repair the HP Compressor Stage 8 Rotor Path Ring Surface Protection by Replacement, refer to VRS6146, TASK 72-41-21-300-059 (REPAIR-059)

Repair the HP Compressor Stage 7 Case Assembly Surface Protection by Replacement, refer to VRS6163, TASK 72-41-21-300-006 (REPAIR-006)

Repair the HP Compressor Stage 6 Rotor Path Ring - Replace the Lining, refer to VRS6670, TASK 72-41-31-300-031 (REPAIR-031)

Repair the HP Compressor Stage 7 Rotor Path Ring - Replace the Lining, refer to VRS6671, TASK 72-41-21-300-091 (REPAIR-091)

NOTE

Equipment and materials necessary to do this repair are in the SPM TASKS given below:
SPM TASK 70-09-00-400-501
SPM TASK 70-11-01-300-503
SPM TASK 70-11-39-300-503
SPM TASK 70-12-02-120-501
SPM TASK 70-15-01-160-501
SPM TASK 70-23-05-230-501
SPM TASK 70-33-59-300-503
SPM TASK 70-34-01-340-501

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Abrasive Blast EquipmentLOCALAbrasive Blast Equipment
Air grinderLOCALAir grinder
Chemical cleaning equipmentLOCALChemical cleaning equipment
Chemical cleaning equipmentLOCALChemical cleaning equipment
Hardness TesterLOCALHardness Tester
LatheLOCALLathe
Metal spray equipmentLOCALMetal spray equipment
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
BottleLOCALBottle

Polythene

Rotary burrLOCALRotary burr
Standard Workshop EquipmentLOCALStandard Workshop Equipment
Water-jet machineLOCALWater-jet machine

Ultra high pressure

Vibrating Marking PencilLOCALVibrating Marking Pencil
Workshop inspection equipmentLOCALWorkshop inspection equipment
IAE 3R18232 Lifting beam0AM53IAE 3R18232
IAE 3R18570 Turning fixture0AM53IAE 3R18570Assembly A
IAE 3R19081 Turning fixture0AM53IAE 3R19081Assembly B

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-025 NITRIC ACID HNO3, TECHNICAL GRADELOCALCoMat 01-025
CoMat 01-041 ALKALINE RUST REMOVERLOCALCoMat 01-041
CoMat 02-198 ADHESIVE TAPE (MASKING METAL SPRAY)07512CoMat 02-198
CoMat 03-036 METAL SPRAYING WIRE, Ni,AlLOCALCoMat 03-036
CoMat 03-038 METAL SPRAYING POWDER NICKEL ALUMINIUM (95/5)00BB6CoMat 03-038
CoMat 03-057 ALUMINIUM ALLOY/POLYESTERCOMPOSITELOCALCoMat 03-057
CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)33870CoMat 03-089
CoMat 03-090 METAL SPRAYING POWDER Ni/Al (95/5)X111XCoMat 03-090
CoMat 03-457 METAL SPRAY POWDER39918CoMat 03-457
CoMat 05-001 ABRASIVE MEDIUM, ALUMINIUM OXIDE, 20/30 GRADELOCALCoMat 05-001
CoMat 06-063 FLUORESCENT PENETRANT (POST-EMULSIFIED MEDIUM SENSITIVITY)X222XCoMat 06-063

Spares

NONE

Safety Requirements

NONE

Procedure

    1. Repair Facilities

    1. The source demonstration requirements of this repair means that the facility not authorised to accomplish this repair either utilise the Authorised Repair Vendors listed below, or contact the IAE Repair Services Group to determine if a qualification program can be initiated at their facility.

      IAE International Aero Engines AG

      400 Main Street

      M/S 121-10

      East Hartford CT 06118

      U.S.A.

      Attn: Manager Technical Services

    2. Authorised Repair Vendors for repair VRS6663 are listed below:

      ROLLS-ROYCE AERO REPAIR AND OVERHAUL

      East Kilbride

      Glasgow

      G74 4PY

      SCOTLAND

      MTU MAINTENANCE ZHUHAI

      1 Tianke Road

      Free Trade Zone

      Zhuhai, Guangdong

      519030

      P.R. CHINA

      MTU MAINTENANCE HANNOVER Gmbh

      Muenchner Str.31

      30855 Langenhagan

      GERMANY

      IHI CORPORATION

      229 Tonogaya Mizuho-Machi

      Nishitama-Gun

      Tokyo 190-12

      JAPAN

      LUFTHANSA TECHNIK AG

      HAM WR 420

      PO Box 63 03 00

      D-22313 Hamburg-Airport

      GERMANY

      PRATT AND WHITNEY COLUMBUS ENGINE CENTER

      8801 Macon Road

      M/S 906-05

      Columbus

      GA31908

      USA

      PRATT AND WHITNEY AIR NEW ZEALAND SERVICES

      PO Box 14005

      634 Memorial Avenue

      Christchurch International Airport

      Christchurch 8053

      NEW ZEALAND

      Rolls-Royce Inchinnan

      Inchinnan Drive

      Inchinnan Business Park

      Inchinnan, PA4 9AF

      Scotland

      Asian Compressor Technology Services Co., Ltd.

      1, Industrial 3rd Rd., Kuanyin Industrial Park, Kuanyin Dist.,

      Taoyuan City

      Taiwan 32853

      MTU Aero Engines AG

      Dachauer Strasse 665

      80995 Muenchen

      Germany

    3. The designation by IAE of an Authorised Repair Vendor indicates that the Repair Vendor has demonstrated the necessary capability to enable it to carry out the listed repair work. However, IAE makes no warranties or representations concerning the qualifications or quality standards of the Repair Vendors to carry out the repair work and accepts no responsibility whatsoever for the work that may be carried out by a Repair Vendor other than when IAE is listed as the Repair Vendor. Authorised Repair Vendors do not act as agents or representatives of IAE.

    2. SUBTASK 72-41-21-110-210 Chemically Clean

      1. Chemically clean.

      1. Refer to TASK 72-41-21-100-000 (CLEANING-000).

      2. Use chemical cleaning equipment.

    3. SUBTASK 72-41-21-330-060-A01 Chemically Remove the Abradable Lining, Assembly A

      NOTE

      Step and Step are alternatives to either:
      Step and Step, or.
      Step and Step.

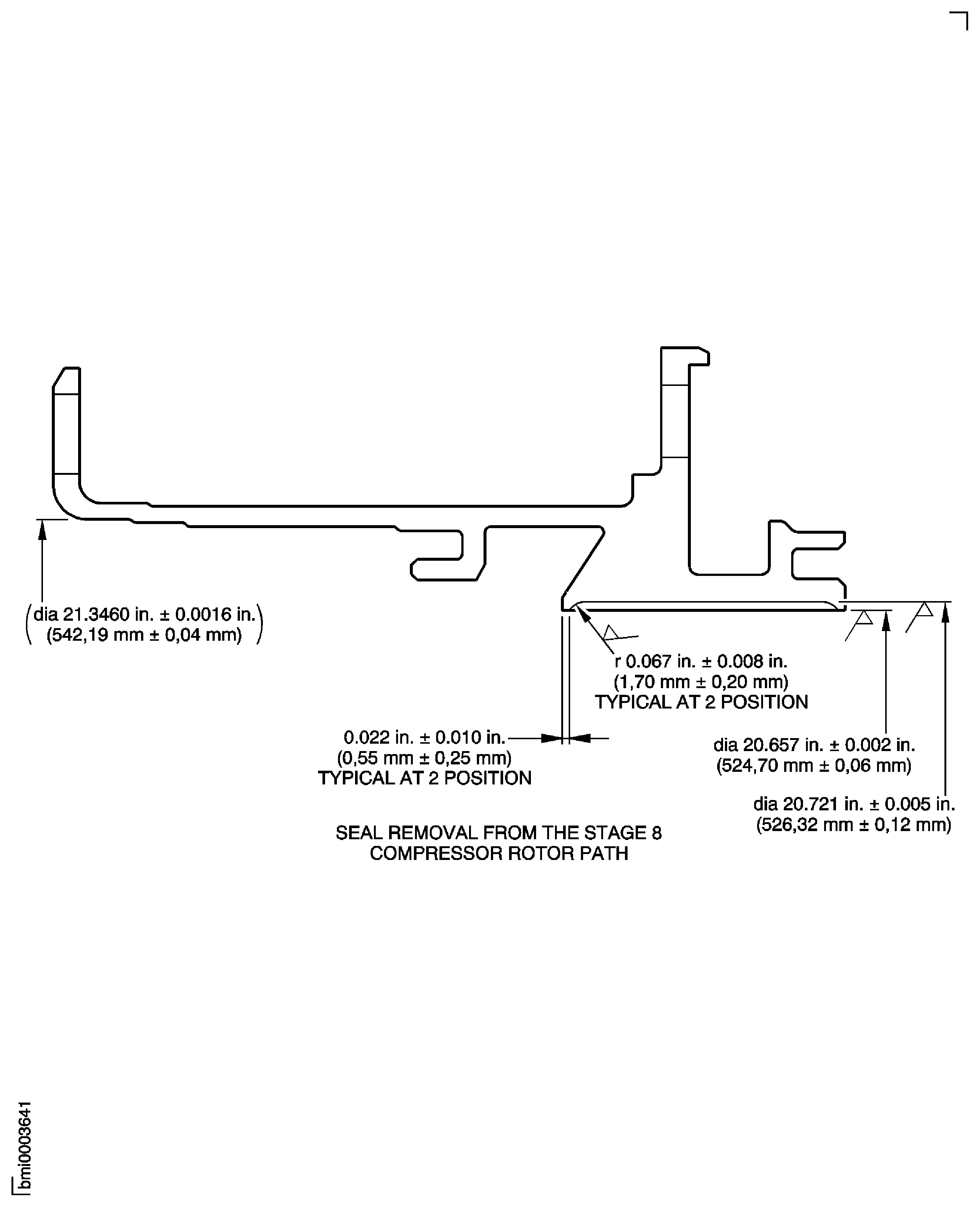

    1. Refer to Figure.

      2. Chemically remove the abradable lining.

      1. Refer to the SPM TASK 70-33-59-300-503, SUBTASK 70-33-59-300-003.

      2. Use CoMat 01-041 ALKALINE RUST REMOVER with chemical cleaning equipment.

    4. SUBTASK 72-41-21-330-061-A01 Chemically Remove the Bond Coat, Assembly A

    1. Refer to Figure.

      2. Chemically remove the bond coat.

      1. Refer to the SPM TASK 70-33-59-300-503, SUBTASK 70-33-59-300-002.

      2. Use CoMat 01-025 NITRIC ACID HNO3, TECHNICAL GRADE with chemical cleaning equipment.

      3. Put the assembly into the nitric acid and keep below the surface.

      4. Stripping is complete when gassing stops.

      5. Remove assembly from the acid immediately after gassing stops.

    5. SUBTASK 72-41-21-330-060-B01 Chemically Remove the Abradable Lining, Assembly B

      NOTE

      Step and Step are alternatives to either:
      Step and Step, or.
      Step and Step.

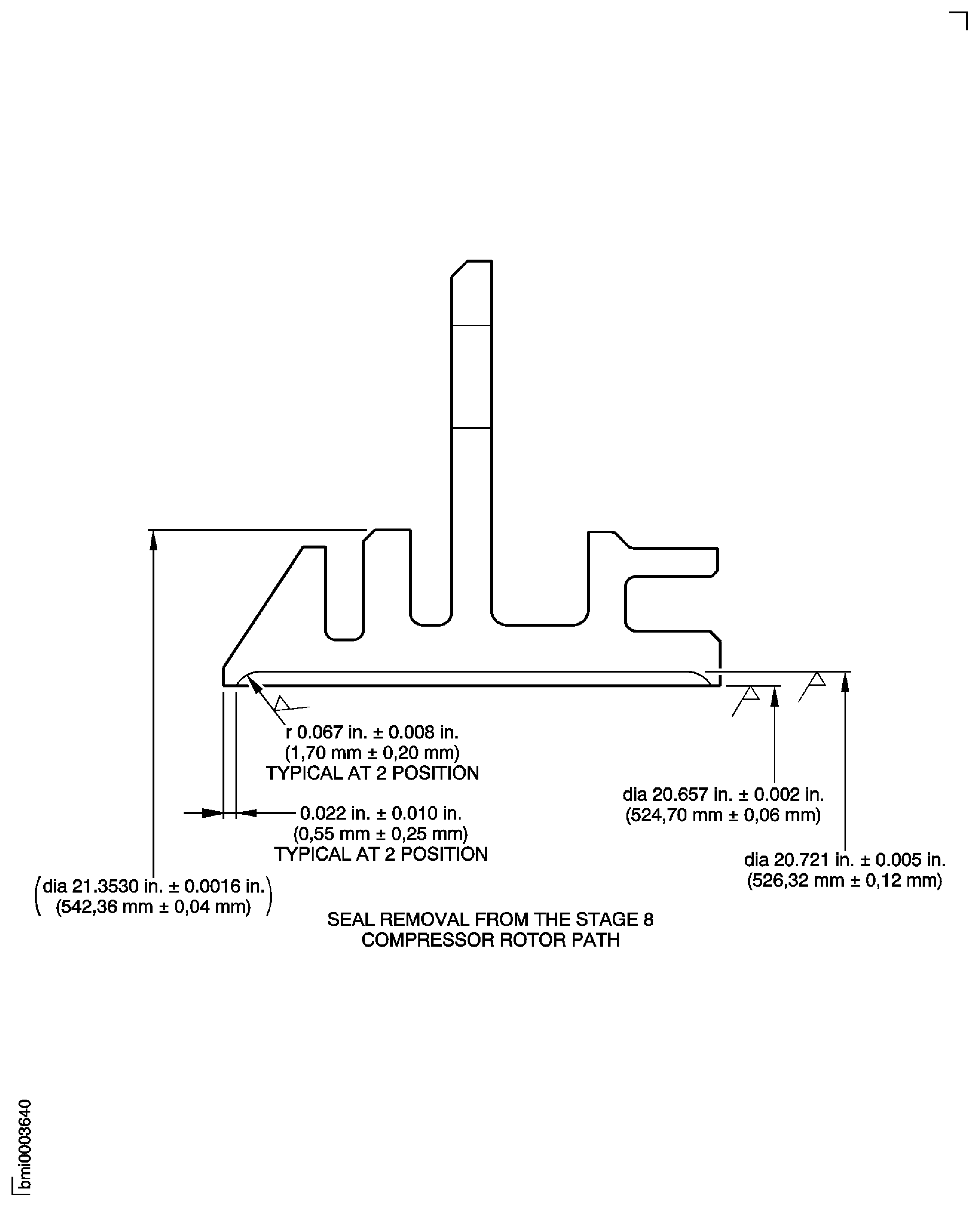

    1. Refer to Figure.

      2. Chemically remove the abradable lining.

      1. Refer to the SPM TASK 70-33-59-300-503, SUBTASK 70-33-59-300-003.

      2. Use CoMat 01-041 ALKALINE RUST REMOVER with chemical cleaning equipment.

    6. SUBTASK 72-41-21-330-061-B01 Chemically Remove the Bond Coat, Assembly B

    1. Refer to Figure.

      2. Chemically remove the bond coat.

      1. Refer to the SPM TASK 70-33-59-300-503, SUBTASK 70-33-59-300-002.

      2. Use CoMat 01-025 NITRIC ACID HNO3, TECHNICAL GRADE with chemical cleaning equipment.

      3. Put the assembly into the nitric acid and keep below the surface.

      4. Stripping is complete when gassing stops.

      5. Remove assembly from the acid immediately after gassing stops.

    7. SUBTASK 72-41-21-330-060-C01 Chemically Remove the Abradable Lining, Assembly C

      NOTE

      Step and Step are alternatives to either:
      Step and Step, or.
      Step and Step.

    1. Refer to Figure.

      2. Chemically remove the abradable lining.

      1. Refer to the SPM TASK 70-33-59-300-503, SUBTASK 70-33-59-300-003.

      2. Use CoMat 01-041 ALKALINE RUST REMOVER with chemical cleaning equipment.

    8. SUBTASK 72-41-21-330-061-C01 Chemically Remove the Bond Coat, Assembly C

    1. Refer to Figure.

      2. Chemically remove the bond coat.

      1. Refer to the SPM TASK 70-33-59-300-503, SUBTASK 70-33-59-300-002.

      2. Use CoMat 01-025 NITRIC ACID HNO3, TECHNICAL GRADE with chemical cleaning equipment.

      3. Put the assembly into the nitric acid and keep below the surface.

      4. Stripping is complete when gassing stops.

      5. Remove assembly from the acid immediately after gassing stops.

    9. SUBTASK 72-41-21-320-001-A02 Machine the Abradable Lining, Assembly A

      NOTE

      Step and Step are alternatives to either:
      Step and Step, or.
      Step and Step.

    1. Refer to Figure.

      2. Assemble the fixture on the machine.

      1. Use IAE 3R18232 Lifting beam 1 off and IAE 3R18570 Turning fixture 1 off with a lathe.

      2. Set to turn correctly.

      3. Use a dial test indicator.

      3. Assemble the rotor path ring on to the turning fixture and machine to remove the abradable lining.

      1. Turn to remove the abradable lining.

      2. You must not remove material from the ring.

    10. SUBTASK 72-41-21-320-002-A02 Grind the Remaining Lining Material, Assembly A

    1. Refer to Figure.

      2. Remove the remaining lining material.

      1. Use an air operated grinder with a rotary burr or applicable alternatives.

      2. You must not remove material from the ring.

    11. SUBTASK 72-41-21-320-001-B02 Machine the Abradable Lining, Assembly B

      NOTE

      Step and Step are alternatives to either:
      Step and Step, or.
      Step and Step.

    1. Refer to Figure.

      2. Assemble the fixture on the machine.

      1. Use IAE 3R18232 Lifting beam1 off and IAE 3R19081 Turning fixture 1 off with a lathe.

      2. Set to turn correctly.

      3. Use a dial test indicator.

      3. Assemble the rotor path ring on to the turning fixture and machine to remove the abradable lining.

      1. Turn to remove the abradable lining.

      2. You must not remove material from the ring.

    12. SUBTASK 72-41-21-320-002-B02 Grind the Remaining Lining Material, Assembly B

    1. Refer to Figure.

      2. Remove the remaining lining material.

      1. Use an air operated grinder with a rotary burr or applicable alternatives.

      2. You must not remove material from the ring.

    13. SUBTASK 72-41-21-320-001-C02 Machine the Abradable Lining, Assembly C

      NOTE

      Step and Step are alternatives to either:
      Step and Step, or.
      Step and Step.

    1. Refer to Figure.

      2. Assemble the fixture on the machine.

      1. Use locally manufactured tools with a lathe.

      2. Set to turn correctly.

      3. Use a dial test indicator.

      3. Assemble the rotor path ring on to the turning fixture and machine to remove the abradable lining.

      1. Turn to remove the abradable lining.

      2. You must not remove material from the ring.

    14. SUBTASK 72-41-21-320-002-C02 Grind the Remaining Lining Material, Assembly C

    1. Refer to Figure.

      2. Remove the remaining lining material.

      1. Use an air operated grinder with a rotary burr or applicable alternatives.

      2. You must not remove material from the ring.

    15. SUBTASK 72-41-21-330-064-A03 Remove the Abradable Lining by Ultra High Pressure Water-Jet, Assembly A

      NOTE

      Step and Step are alternatives to either:
      Step and Step, or.
      Step and Step.

    1. Refer to Figure.

      2. Install the part in an ultra high pressure water-jet machine fixture.

      1. Use locally manufactured tooling.

      3. Remove the abradable lining.

      1. Refer to the SPM TASK 70-15-01-160-501.

      2. Use an ultra high pressure water-jet machine.

      3. Make sure that the abradable lining and old bond coat are removed.

    16. SUBTASK 72-41-21-120-089-A03 Abrasive Blast to Remove the Remaining Bond Coat, Assembly A

    1. Refer to Figure.

      2. Abrasive blast to remove the bond coat that remains.

      1. Refer to the SPM TASK 70-12-02-120-501.

      3. Make sure the old bond coat and abradable lining have been removed.

    17. SUBTASK 72-41-21-330-064-B03 Remove the Abradable Lining by Ultra High Pressure Water-Jet, Assembly B

      NOTE

      Step and Step are alternatives to either:
      Step and Step, or.
      Step and Step.

    1. Refer to Figure.

      2. Install the part in an ultra high pressure water-jet machine fixture.

      1. Use locally manufactured tooling.

      3. Remove the abradable lining.

      1. Refer to the SPM TASK 70-15-01-160-501.

      2. Use an ultra high pressure water-jet machine.

      3. Make sure that the abradable lining and old bond coat are removed.

    18. SUBTASK 72-41-21-120-089-B03 Abrasive Blast to Remove the Remaining Bond Coat, Assembly B

    1. Refer to Figure.

      2. Abrasive blast to remove the bond coat that remains.

      1. Refer to the SPM TASK 70-12-02-120-501.

      3. Make sure the old bond coat and abradable lining have been removed.

    19. SUBTASK 72-41-21-330-064-C03 Remove the Abradable Lining by Ultra High Pressure Water-Jet, Assembly C

      NOTE

      Step and Step are alternatives to either:
      Step and Step, or.
      Step and Step.

    1. Refer to Figure.

      2. Install the part in an ultra high pressure water-jet machine fixture.

      1. Use locally manufactured tooling.

      3. Remove the abradable lining.

      1. Refer to the SPM TASK 70-15-01-160-501.

      2. Use an ultra high pressure water-jet machine.

      3. Make sure that the abradable lining and old bond coat are removed.

    20. SUBTASK 72-41-21-120-089-C03 Abrasive Blast to Remove the Remaining Bond Coat, Assembly C

    1. Refer to Figure.

      2. Abrasive blast to remove the bond coat that remains.

      1. Refer to the SPM TASK 70-12-02-120-501.

      3. Make sure the old bond coat and abradable lining have been removed.

    21. SUBTASK 72-41-21-110-211 Cold Ferric Chloride Etch

      1. Swab etch the repair area(s).

      1. Refer to the SPM TASK 70-11-39-300-503, SUBTASK 70-11-39-300-001.

      2. Use a polythene bottle.

    22. SUBTASK 72-41-21-220-644 Examine the Stage 8 Rotor Path Ring Assembly, Assembly A, Assembly B and Assembly C

    1. Refer to Figure, Figure and Figure.

      2. Do a visual and dimensional inspection of the repair area(s).

      1. Use workshop inspection equipment.

    23. SUBTASK 72-41-21-230-237 Do a Local Crack Test

      1. Do a local penetrant crack test on the repair area(s).

      1. Refer to the SPM TASK 70-23-05-230-501.

      3. Cracks are not allowed.

    24. SUBTASK 72-41-21-110-212 Clean the Stage 8 Rotor Path Ring

      1. Chemically Clean.

      1. Refer to the SPM TASK 70-11-01-300-503.

      2. Use chemical cleaning equipment.

    25. SUBTASK 72-41-21-380-135 Apply the Surface Protection

      1. Apply the surface protection as necessary.

      1. For Assembly A and Assembly B refer to VRS6146, TASK 72-41-21-300-059 (REPAIR-059).

      2. For Assembly C refer to VRS6163, TASK 72-41-21-300-006 (REPAIR-006).

    26. SUBTASK 72-41-21-350-221 Seal the Areas Not to be Sprayed, Assembly A, Assembly B and Assembly C

    1. Refer to Figure, Figure and Figure.

      2. Seal the areas not to be sprayed.

      1. NOTE

        The adhesive tape permits the blasting and the sprayed coating to be done in one operation.

    27. SUBTASK 72-41-21-120-090 Abrasive Blast the Areas to be Sprayed, Assembly A, Assembly B and Assembly C

      CAUTION

      TO PREVENT CONTAMINATION, DO NOT TOUCH THE SURFACE, WHICH IS CLEANED FOR REPAIR.

      CAUTION

      DO NOT DWELL IN ANY ONE AREA, USE CONTINUOUS MOTION. EXTENDED DURATION OF ABRASIVE BLASTING CAN CAUSE DETERIORATION OF THE PREPARED SURFACE CONDITION AND MUST BE PREVENTED.

    1. Refer to Figure, Figure and Figure.

      2. Abrasive blast.

      1. Refer to the SPM TASK 70-12-02-120-501.

    28. SUBTASK 72-41-21-110-213 Clean the Stage 8 Rotor Path Ring

      1. Chemically clean.

      1. Refer to the SPM TASK 70-11-01-300-503.

      2. Use chemical cleaning equipment.

    29. SUBTASK 72-41-21-340-063 Apply the Abradable Lining to the Repaired Part and Test Piece, Assembly A, Assembly B and Assembly C

    1. Refer to Figure, Figure and Figure.

      2. Apply the bond coat.

      1. Refer to the SPM TASK 70-34-01-340-501, SUBTASK 70-34-01-340-025 or SUBTASK 70-34-01-340-010.

      3. Alternatively for the wire feed combustion spraying, use CoMat 03-036 METAL SPRAYING WIRE, Ni,Al.

      4. Pre heat the seal ring to 221 deg F to 257 deg F (105 deg C to 125 deg C).

      5. Apply a thickness of 0.003 in. to 0.005 in. (0.08 mm to 0.13 mm).

      6. Use metal spray equipment.

      7. Apply bond coat to a test piece.

      3. Apply the abradable lining.

      1. Refer to the SPM TASK 70-34-01-340-501.

      2. Use CoMat 03-457 METAL SPRAY POWDER with metal spray equipment.

      3. Spray sufficient thickness to allow for machining.

      4. Apply abradable lining to a test piece to check the spray hardness.

    4. Remove the masking tape.

    30. SUBTASK 72-41-21-220-645 Examine the Stage 8 Rotor Path Lining, Assembly A, Assembly B and Assembly C

      2. Visually examine the sprayed coating on the ring.

      1. Refer to the SPM TASK 70-34-01-340-501.

      3. Measure the dimensions of the repaired area.

      1. Use workshop inspection equipment.

      4. Hardness test the sprayed coating on the test piece.

      1. Refer to the SPM TASK 70-34-01-340-501, SUBTASK 70-34-01-340-004.

      2. Use hardness testing equipment.

      3. Average hardness must be 45 to 70 R15Y, outer limits 35 minimum, 80 maximum.

      4. If the hardness value is outside these limits, reject the assembly and do the repair again.

    31. SUBTASK 72-41-21-350-222 Remove the Overspray, Assembly A, Assembly B and Assembly C

    1. Refer to Figure, Figure and Figure.

      2. Remove the overspray.

      1. Use standard workshop equipment.

      3. Reform the chamfers.

      1. Use standard workshop equipment.

    32. SUBTASK 72-41-21-220-646 Examine the Stage 8 Rotor Path Lining, Assembly A, Assembly B and Assembly C

      2. Visually examine and measure the dimensions of the sprayed area.

      1. Use workshop inspection equipment.

    33. SUBTASK 72-41-21-350-223 Identify the Repair

      1. Make a mark VRS6663 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

      2. Use vibro engraving equipment.

    34. Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

    Figure: Repair Details and Dimensions - Assembly B

    Repair Details and Dimensions - Assembly B

    Figure: Repair Details and Dimensions - Assembly C

    Repair Details and Dimensions - Assembly C

    Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

    Figure: Repair Details and Dimensions - Assembly B

    Repair Details and Dimensions - Assembly B

    Figure: Repair Details and Dimensions - Assembly C

    Repair Details and Dimensions - Assembly C

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added repair vendor address. (20VG195)

Manufacturer Code:00BB6
Enterprise Name:INDESTRUCTIBLE PAINT INC
BU Name:INDESTRUCTIBLE PAINT INC
Street:1 INDEPENDENCE DRIVE
City:MONROE
State:CT
Zip Code:06468
Country:USA
Phone Number:1-203-880-9130
Fax Number:1-203-880-9133
Email:dave@indestructiblepaint.com
Internet:www.indestructiblepaint.com
Manufacturer Code:07512
Enterprise Name:SAINT-GOBAIN PERFORMANCE PLASTICS
BU Name:SAINT-GOBAIN PERFORMANCE PLASTICS
Street:150 DEY ROAD
City:WAYNE
State:NJ
Zip Code:07470
Country:USA
Phone Number:1-973-696-4700
Fax Number:1-973-696-4056
Internet:www.plastics.saint-gobain.com, www.saint-gobain.com
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:33870
Enterprise Name:PRAXAIR SURFACE TECHNOLOGIES INC.
BU Name:PRAXAIR SURFACE TECHNOLOGIES INC.
Street:1500 POLCO STREET
City:INDIANAPOLIS
State:IN
Zip Code:46222
Country:USA
Manufacturer Code:39918
Enterprise Name:SULZER METCO (US) INC, SEE SUPPLIER CODE 01FK3
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:X111X
Enterprise Name:N/A – DELETED CONSUMABLE MATERIAL
Manufacturer Code:X222X
Enterprise Name:N/A – REFER TO APPLICABLE COMAT SUFFIX
Manufacturer Code:5FCA4
Supply Number:CoMat 01-025
Type:sp01
Supply Short Name:CoMat 01-025 NITRIC ACID HNO3, TECHNICAL GRADE
Supply Name:CoMat 01-025 NITRIC ACID HNO3, TECHNICAL GRADE
Specification Groups:
Doc NumberType
orTECHNICAL GRADE SP.GR. 1.42 NITRIC ACID
orTECHNICAL GRADE 42 BAUME NITRIC ACID
TECHNICAL GRADE 67.5 WT% NITRIC ACID
Suppliers:
ManufacturerRemarks
5FCA4
K6835
LOCAL
U0PR4
U0SV8
U6726
V272V
Manufacturer Code:LOCAL
Supply Number:CoMat 01-041
Type:sp01
Supply Short Name:CoMat 01-041 ALKALINE RUST REMOVER
Supply Name:CoMat 01-041 ALKALINE RUST REMOVER
Specification Groups:
Doc NumberType
OMAT: 173 (RR REF)ARDROX 185 DEF STAN 03-2
SPMC 52 (PW REF)ARDROX 185 DEF STAN 03-2
JCR-045 (JAEC REF)ARDROX 185 DEF STAN 03-2
381-160024 (FIAT REF)ARDROX 185 DEF STAN 03-2
Suppliers:
ManufacturerRemarks
LOCAL
23373
37127
B1082
D1940
IE108
IE206
K6835
K6858
C1308
0L040
Manufacturer Code:07512
Supply Number:CoMat 02-198
Type:sp01
Supply Short Name:CoMat 02-198 ADHESIVE TAPE (MASKING METAL SPRAY)
Supply Name:CoMat 02-198 ADHESIVE TAPE (MASKING METAL SPRAY)
Specification Groups:
Doc NumberType
OMAT: 2/96 (RR REF)CHR 23816 TAPE
Suppliers:
ManufacturerRemarks
07512
K6835
K1369
KC622
Manufacturer Code:LOCAL
Supply Number:CoMat 03-036
Type:sp01
Supply Short Name:CoMat 03-036 METAL SPRAYING WIRE, Ni, Al
Supply Name:CoMat 03-036 METAL SPRAYING WIRE, Ni,Al
Specification Groups:
Doc NumberType
MSRR 9507/101METCO 405 NS
OMAT:3/90MIL-W-6712 NI80
JCR-019
Suppliers:
ManufacturerRemarks
LOCAL
IE103
IE195
IE200
K1030
K6835
39918
Manufacturer Code:00BB6
Supply Number:CoMat 03-038
Type:sp01
Supply Short Name:CoMat 03-038 METAL SPRAYING POWDER NICKEL ALUMINIUM (95/5)
Supply Name:CoMat 03-038 METAL SPRAYING POWDER NICKEL ALUMINIUM (95/5)
Specification Groups:
Doc NumberType
OMAT: 3/188 (RR REF)METCO 450NS
JCR-020 (JAEC REF)
Suppliers:
ManufacturerRemarks
00BB6
01FK3
0Y7E4
C1840
IE103
K0455
K6835
Manufacturer Code:LOCAL
Supply Number:CoMat 03-057
Type:sp01
Supply Short Name:CoMat 03-057 ALUMINIUM ALLOY/POLYESTERCOMPOSITE
Supply Name:CoMat 03-057 ALUMINIUM ALLOY/POLYESTERCOMPOSITE
Specification Groups:
Doc NumberType
MSRR9507/15METCO 601NS
OMAT:3/143MIL-P-85856/22
JCR-022MIL-P-85856/22
Suppliers:
ManufacturerRemarks
LOCAL
39918
IE103
IE195
IE200
K1030
K6835
Manufacturer Code:33870
Supply Number:CoMat 03-089
Type:sp01
Supply Short Name:CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)
Supply Name:CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)
Specification Groups:
Doc NumberType
PWA 1337 (PW REF)NI-109 or NI-970 or AI 1037
Suppliers:
ManufacturerRemarks
33870
Manufacturer Code:X111X
Supply Number:CoMat 03-090
Type:sp01
Supply Short Name:CoMat 03-090 METAL SPRAYING POWDER Ni/Al(95/5)
Supply Name:CoMat 03-090 METAL SPRAYING POWDER Ni/Al (95/5)
Specification Groups:
Doc NumberType
DELETED Use CoMat 03-089
Suppliers:
ManufacturerRemarks
X111X
Manufacturer Code:39918
Supply Number:CoMat 03-457
Type:sp01
Supply Short Name:CoMat 03-457 METAL SPRAY POWDER
Supply Name:CoMat 03-457 METAL SPRAY POWDER
Specification Groups:
Doc NumberType
OMAT:3/252METCO 320
Suppliers:
ManufacturerRemarks
39918
Manufacturer Code:LOCAL
Supply Number:CoMat 05-001
Type:sp01
Supply Short Name:CoMat 05-001 ABRASIVE MEDIUM, ALUMINIUM OXIDE, 20/30 GRADE
Supply Name:CoMat 05-001 ABRASIVE MEDIUM, ALUMINIUM OXIDE, 20/30 GRADE
Specification Groups:
Doc NumberType
Use one of the CoMat 05-001 letter suffix alternatives.
Suppliers:
ManufacturerRemarks
LOCAL
Manufacturer Code:X222X
Supply Number:CoMat 06-063
Type:sp01
Supply Short Name:CoMat 06-063 FLUORESCENT PENETRANT (POST-EMULSIFIED MEDIUM SENSITIVITY)
Supply Name:CoMat 06-063 FLUORESCENT PENETRANT (POST-EMULSIFIED MEDIUM SENSITIVITY)
Specification Groups:
Doc NumberType
It is not permitted to mix the selected CoMat 06‐063 letter suffix material with other CoMat 06‐063 letter suffix materials. Where CoMat 06‐063 is specified with no suffix, use one of the CoMat 06‐063 letter suffix materials.
Suppliers:
ManufacturerRemarks
X222X
Manufacturer Code:LOCAL
Tool Number:Abrasive Blast Equipment
Tool Name:Abrasive Blast Equipment
Manufacturer Code:LOCAL
Tool Number:Air grinder
Tool Name:Air grinder
Manufacturer Code:LOCAL
Tool Number:Bottle
Tool Name:Bottle
Manufacturer Code:LOCAL
Tool Number:Chemical cleaning equipment
Tool Name:Chemical cleaning equipment
Manufacturer Code:LOCAL
Tool Number:Hardness Tester
Tool Name:Hardness Tester
Manufacturer Code:0AM53
Tool Number:IAE 3R18232
Tool Name:IAE 3R18232 Lifting beam
Manufacturer Code:0AM53
Tool Number:IAE 3R18570
Tool Name:IAE 3R18570 Turning fixture
Manufacturer Code:0AM53
Tool Number:IAE 3R19081
Tool Name:IAE 3R19081 Turning fixture
Manufacturer Code:LOCAL
Tool Number:Lathe
Tool Name:Lathe
Manufacturer Code:LOCAL
Tool Number:Metal spray equipment
Tool Name:Metal spray equipment
Manufacturer Code:LOCAL
Tool Number:Penetrant crack test equipment
Tool Name:Penetrant Crack Test Equipment
Manufacturer Code:LOCAL
Tool Number:Rotary burr
Tool Name:Rotary burr
Manufacturer Code:LOCAL
Tool Number:Standard Workshop Equipment
Tool Name:Standard Workshop Equipment
Manufacturer Code:LOCAL
Tool Number:Vibrating Marking Pencil
Tool Name:Vibrating Marking Pencil
Manufacturer Code:LOCAL
Tool Number:Water-jet machine
Tool Name:Water-jet machine
Manufacturer Code:LOCAL
Tool Number:Workshop inspection equipment
Tool Name:Workshop inspection equipment
