TASK 72-41-32-200-001 HPC Inlet Variable Stator Vane - Examine, Inspection-001
Effectivity
FIG/ITEM | PART NO. |
|---|---|
01-500 | 6A3690 |
01-500 | 6A4201 |
01-500 | 6A5653 |
01-500 | 6A7472 |
01-500 | 6A7723 |
01-500 | 6A8058 |
01-500 | 6A8405 |
01-600 | 6A3692 |
01-600 | 6A4203 |
01-600 | 6A5655 |
01-600 | 6A7474 |
01-600 | 6A7725 |
01-600 | 6A8060 |
01-600 | 6A8407 |
General
This TASK gives the procedure for the inspection of the variable inlet guide vanes.
Nicks and dents 0.005 in. (0.13 mm) or less are acceptable without limit to the airfoil and gas washed surfaces of the platforms.
Fig/item numbers in parentheses in the procedure agree with those used in the EIPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variant refer to the EIPC.
The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.
All the parts must be cleaned before any part is examined.
All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.
The procedure for the parts which must have a crack test is given in Step. Do the crack test before a part is visually examined.
Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.
Parts which should be discarded can be held although no repair is available. The repair of a discarded part can be shown to be necessary at a subsequent date.
All the parts must be examined to make sure that all the repairs have been completed satisfactorily.
The practices and processes referred to in the procedure by the TASK/SUBTASK number are in SPM.
References
Refer to SPM for data on these items:
Cleaning Policy and Methods, SPM TASK 70-10-00-100-501.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| IAE 2R19198 Graticule - 50 times magnification | 0AM53 | IAE 2R19198 | 1 |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Clean the parts. Refer to TASK 72-41-32-100-000 (CLEANING-000).
SUBTASK 72-41-32-230-051 Examine the Variable Inlet Guide Vanes for Cracks, (01-500 and 01-600)
Refer to Figure.
Reject.
More than Step.
Nicked.
Reject.
More than Step.
Dents.
Repair, VRS6033 TASK 72-41-32-300-001 (REPAIR-001).
Up to 0.005 in. (0.13 mm) in depth.
Scratched.
SUBTASK 72-41-32-220-052 Examine the Variable Inlet Guide Vanes Airfoils at Location 1, (01-500 and 01-600)
Refer to Figure.
More than in Step.
Scored/Scratched.
SUBTASK 72-41-32-220-053-A00 Examine the Variable Inlet Guide Vanes Surfaces at Locations 2, 3, and 4, (01-500 and 01-600) (Pre SBE 72-0410)
Refer to Figure.
More than in Step.
Scored/Scratched.
SUBTASK 72-41-32-220-053-B00 Examine the Variable Inlet Guide Vanes Surfaces at Locations 2 and 4, (01-500 and 01-600) (SBE 72-0410 and SBE 72-0422)
Refer to Figure.
Reject.
More than in Step.
Nicked.
Reject.
More than in Step.
Dents.
Repair, VRS6033 TASK 72-41-32-300-001 (REPAIR-001).
Up to 0.005 in. (0.13 mm) in depth.
Scored/Scratched.
SUBTASK 72-41-32-220-054 Examine the Variable Inlet Guide Vanes Leading and Trailing Edges at Locations 5 and 6, (01-500 and 01-600)
Repair, VRS6075 TASK 72-41-32-300-002 (REPAIR-002).
More than in Step.
Measure the surface finish of the vanes. Use 10 percent of the vanes that have been removed.
SUBTASK 72-41-32-220-055-A00 Examine the Variable Inlet Guide Vanes Airfoil Surface Finish at Location 1, (01-500 and 01-600) (Pre SBE 70-0714, SBE 70-0726, SBE 72-0410 and SBE 72-0422)
Refer to Figure.
Roughness more than in Step.
Surface finish.
SUBTASK 72-41-32-220-055-B00 Examine the Variable Inlet Guide Vanes Airfoil Surface Finish at Location 1, (01-500 and 01-600) (SBE 70-0714)
Refer to Figure.
Repair, VRS6181 TASK 72-41-32-300-012 (REPAIR-012) or Repair, VRS9128 TASK 72-41-32-300-021 (REPAIR-021).
More than in Step.
Scored/Scratched.
Repair, VRS6181 TASK 72-41-32-300-012 (REPAIR-012).
If the diameter of the spindle is between 0.5373 in. to 0.5470 in. (13.647 mm to 13.894 mm).
Repair, VRS9128 TASK 72-41-32-300-021 (REPAIR-021).
If the diameter of the spindle is less than 0.5373 in. (13.647 mm).
Wear.
SUBTASK 72-41-32-220-056 Examine the Variable Inlet Guide Vanes Spindle at Location 7, (01-500 and 01-600)
Refer to Figure.
SUBTASK 72-41-32-220-057 Examine the Variable Inlet Guide Vanes Spindle Flat at Location 8, (01-500 and 01-600)
Refer to Figure.
Repair, VRS6259 TASK 72-41-32-300-017 (REPAIR-017).
Loose.
Crossed.
Repair, VRS6259 TASK 72-41-32-300-017 (REPAIR-017).
Stripped.
Repair, VRS6259 TASK 72-41-32-300-017 (REPAIR-017).
Pick-up.
Thread.
SUBTASK 72-41-32-220-058 Examine the Variable Inlet Guide Vanes Stud at Location 9, (01-500 and 01-600) (Pre SBE 72-0486)
Refer to Figure.
Repair, VRS6181 TASK 72-41-32-300-012 (REPAIR-012) or Repair, VRS9128 TASK 72-41-32-300-021 (REPAIR-021).
More than in Step.
Scored/Scratched.
Repair, VRS6181 TASK 72-41-32-300-012 (REPAIR-012).
If the diameter of the spindle is between 0.2609 in. to 0.2710 in. (6.627 mm to 6.883 mm).
Repair, VRS9128 TASK 72-41-32-300-021 (REPAIR-021).
If the diameter of the spindle is less than 0.2609 in. (6.627 mm).
Wear.
SUBTASK 72-41-32-220-059 Examine the Variable Inlet Guide Vanes Inner Pivot Spindle at Location 1205, (01-500 and 01-600)
Refer to Figure.
Roughness more than in Step.
Surface finish.
SUBTASK 72-41-32-220-169 Examine the Variable Inlet Guide Vanes Annulus Surfaces at Locations 10 and 11, (01-500 and 01-600) (SBE 70-0714)
SBE 72-0486: HP Compressor variable vanes - Introduction of a revised VIGV with an optimised spindle.
Refer to Figure.
Refer to SPM TASK 70-35-08-300-501.
Helicoil insert.
Refer to SPM TASK 70-21-03-100-501.
Bolt.
SUBTASK 72-41-32-220-186 Examine the Variable Inlet Guide Vanes Remaining Parts (SBE 72-0486)

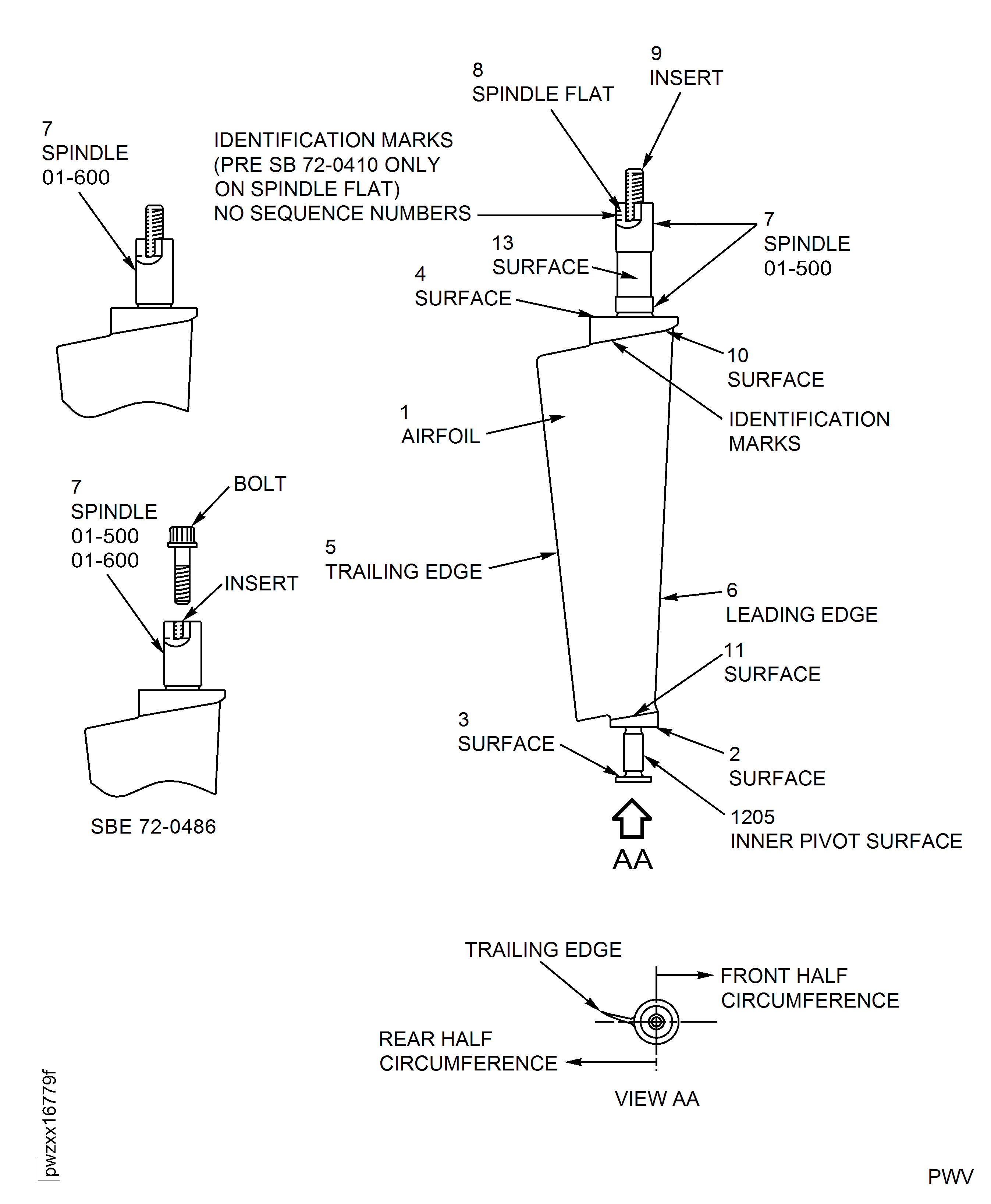

Figure: Variable Inlet Guide Vane - Inspection Locations
Variable Inlet Guide Vane - Inspection Locations
