TASK 72-60-42-200-002 Angle Gearbox Radial Gearshaft Support - Examine, Inspection-002

DMC:V2500-A0-72-60-4204-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-42-200-002 Angle Gearbox Radial Gearshaft Support - Examine, Inspection-002

Effectivity

FIG/ITEM PART NO.

01-230

4B0211

01-230

4B0272

01-230

4B0355

01-230

4B0375

General

This TASK gives the procedure for the inspection of the radial gear support. For the other parts of the angle gearbox driving gear assembly refer to TASK 72-60-42-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-11-03-300-503.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in the SPM TASK 70-23-00-230-501. Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items:

Definitions of Damage, SPM TASK 70-02-02-350-501,

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501,

Inspection of Parts, SPM TASK 70-20-00-200-501.

Some data on these items are contained in this TASK. For more data on these items refer to the SPM:

Method of Testing for Cracks Indications,

Chemical Processes,

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
FPI inspection stationLOCALFPI inspection station

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-42-230-052 Do a Crack Test on the Radial Gear Support (01-230) Fluorescent Penetrant

    1. Clean the parts. Refer to the TASK 72-60-42-100-000.

      2. Do the test for cracks on the parts that are given below. Use the applicable penetrant procedure.

        PART IDENT TASK/OP

        Radial gear support

        1. Cracks

        1. Reject

        2. Through porosity

        1. Reject

    2. SUBTASK 72-60-42-220-056 Examine the Radial Gear Support (01-230) All Areas

      1. Evident cracks

      1. Reject

    3. SUBTASK 72-60-42-220-057 Examine the Radial Gear Support (72-60-42,01-230) Rough Surfaces at Location 1

    1. Refer to Figure.

      2. Nicks, scores, dents or scratches.

        1. All quantity, all length not more than 0.0138 in. (0.35 mm) in depth

        1. Accept

        2. More than (1)

        1. Repair VRS5088, TASK 72-60-42-300-001 (REPAIR-001)

    4. SUBTASK 72-60-42-220-058 Examine the Radial Gear Support (72-60-42,01-230) Machined not Seal Surfaces at Location 2

    1. Refer to Figure.

      2. Nicks, scores, dents or scratches.

        1. All quantity, all length not more than 0.008 in. (0.20 mm) in depth

        1. Accept

        2. More than (1)

        1. Repair VRS5088, TASK 72-60-42-300-001 (REPAIR-001)

    5. SUBTASK 72-60-42-220-080 Examine the Radial Gear Support (72-60-42,01-230) Machined Seal Surfaces at Location 3

    1. Refer to Figure.

      2. Nicks, scores, dents or scratches.

        1. All quantity, all length not more than 0.0039 in. (0.10 mm) in depth, not extended across the seal surface

        1. Accept

        2. More than (1)

        1. Repair VRS5088, TASK 72-60-42-300-001 (REPAIR-001)

    6. SUBTASK 72-60-42-220-081 Examine the Radial Gear Support (72-60-42,01-230) Studs/Lockings

    1. Refer to Figure and Figure.

      2. Perpendicularity.

        1. More than 0.0138in. (0.35 mm) each 3.937in. (100.00 mm). No axial movement is permitted (move by hand)

        1. Repair VRS5089, TASK 72-60-42-300-005 (REPAIR-005)

      3. Thread damage or not there

      1. Repair VRS5089, TASK 72-60-42-300-005 (REPAIR-005)

    7. SUBTASK 72-60-42-220-061 Examine the Radial Gear Support (72-60-42,01-230) Threaded Inserts (Pre SBE 72-0492)

    1. Refer to Figure and Figure.

      2. Loose, missing or with the internal thread damaged

      1. Repair VRS5090, TASK 72-60-42-300-006 (REPAIR-006)

    8. SUBTASK 72-60-42-220-062 Examine the Radial Gear Support (72-60-42,01-230) Bearing Mating Surface at Location 4

    1. Refer to Figure.

      2. Parallelism.

        1. In 0.001 in. (0.025 mm) in relation to surface C

        1. Accept

        2. More than (1)

        1. Repair VRS5091, TASK 72-60-42-300-007 (REPAIR-007)

    9. SUBTASK 72-60-42-220-063 Examine the Radial Gear Support (72-60-42,01-230) Support Piloting Diameter at Location 4080

    1. Refer to Figure.

      2. Diameter.

        1. Between 5.1181 and 5.1165in. (130.00 and 129.96 mm)

        1. Accept

        2. Less than 5.1165in. (129.96 mm)

        1. Repair VRS5092, TASK 72-60-42-300-008 (REPAIR-008)

      3. Perpendicularity.

        1. In 0.001in. (0.025 mm) in relation to surface C

        1. Accept

        2. More than (1)

        1. Repair VRS5092, TASK 72-60-42-300-008 (REPAIR-008)

    10. SUBTASK 72-60-42-220-064 Examine the Radial Gear Support (72-60-42,01-230) Plug Seat at Location 5

    1. Refer to Figure.

      2. Diameter.

        1. Between 2.3642 and 2.3681in. (60.05 and 60.15 mm)

        1. Accept

        2. More than 2.3681in. (60.15 mm)

        1. Repair VRS5093, TASK 72-60-42-200-009 (REPAIR-009)

    11. SUBTASK 72-60-42-220-065 Examine the Radial Rear Support (72-60-42,01-230) Plug Mating Surface at Location 6

    1. Refer to Figure.

      2. Perpendicularity.

        1. In 0.002 in. (0.05 mm) in relation to surface B

        1. Accept

        2. More than (1)

        1. Repair VRS5094, TASK 72-60-42-300-010 (REPAIR-010)

    12. SUBTASK 72-60-42-220-066 Examine the Radial Gear Support (72-60-42,01-230) Support Mounting Face at Location 7

    1. Refer to Figure.

      2. Planarity.

        1. In 0.001 in. (0.03 mm)

        1. Accept

        2. More than (1)

        1. Repair VRS5095, TASK 72-60-42-300-011 (REPAIR-011)

    13. SUBTASK 72-60-42-220-067 Examine the Radial Gear Support (72-60-42,01-230) Bearing Seat at Location 4075

    1. Refer to Figure.

      2. Diameter.

        1. Between 3.5426 and 3.5435in. (89.98 and 90.00 mm)

        1. Accept

        2. More than 3.5435in. (90.00 mm)

        1. Repair VRS5096, TASK 72-60-42-300-012 (REPAIR-012)

      3. Runout.

        1. In 0.001in. (0.025 mm) in relation to surface C and A

        1. Accept

        2. More than (1)

        1. Repair VRS5096, TASK 72-60-42-300-012 (REPAIR-012)

    14. SUBTASK 72-60-42-220-094 Examine the Radial Gear Support (72-60-42,01-230) Helicoil Inserts (SBE 72-0492)

      1. Loose, missing or with internal thread damaged

      1. Repair VRS5677, TASK 72-60-42-300-XXX (REPAIR XXX)**

    15. SUBTASK 72-60-42-220-095 Examine the Radial Gear Support (72-60-42,01-230) Screw Head Inserts (SBE 72-0492 and SBE 70-0950)

      1. Loose, missing or with internal thread damaged

      1. Repair VRS5678, TASK 72-60-42-300-038 (REPAIR-038)

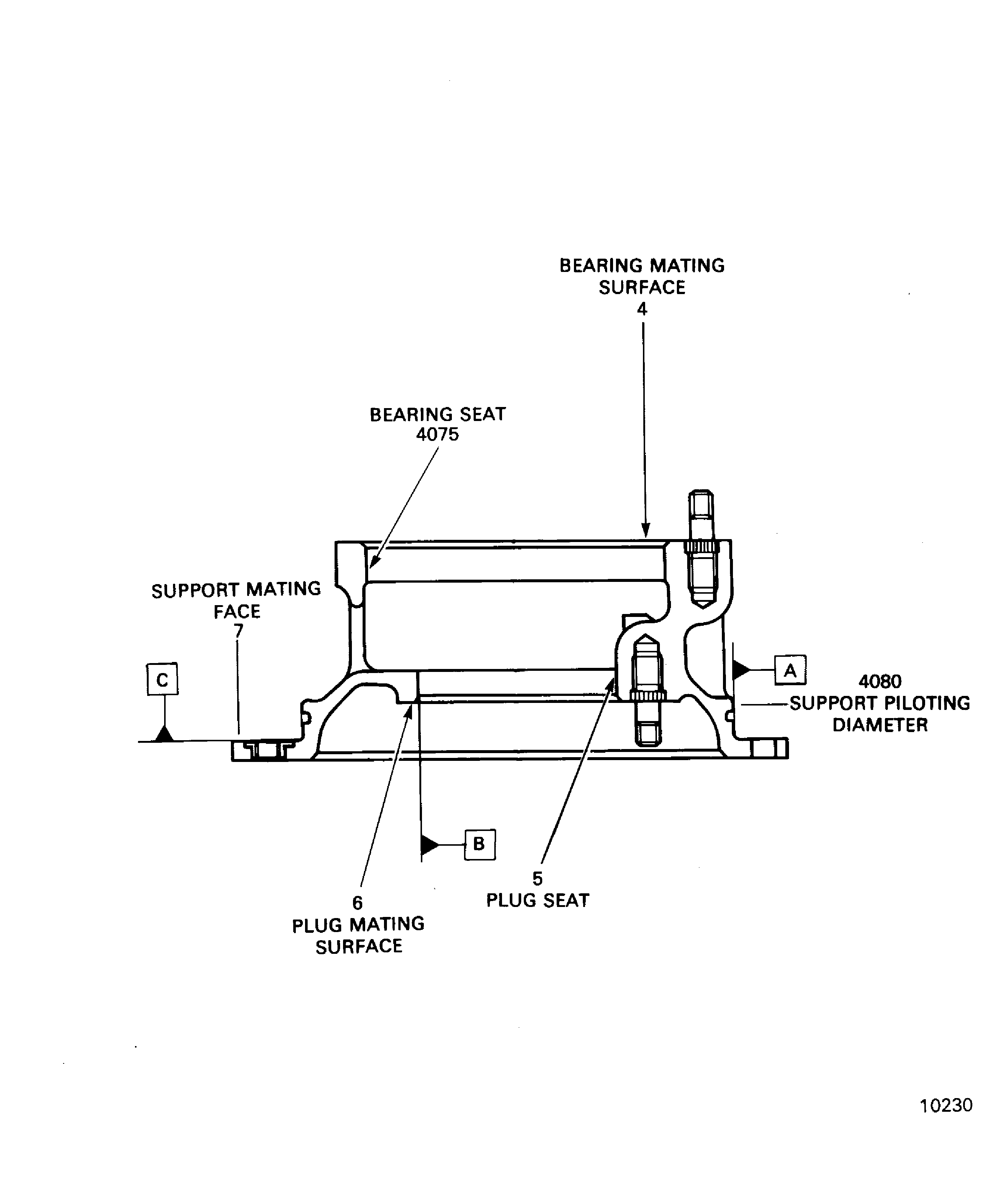

    16. Figure: Locations - Radial Gear Support

    Locations - Radial Gear Support

    Figure: Locations - Radial Gear Support

    Locations - Radial Gear Support

Requirements After Job Completion

Follow-On Conditions

NONE
