TASK 72-41-20-440-003-B00 HPC Rear Cases And Vanes Assembly - Assemble The HPC Stage 9 Stator Vanes To The Cases, Assembly-003

DMC:V2500-A5-72-41-2000-01A-710A-B|Issue No:004.00|Issue Date:2020-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-41-20-440-003-B00 HPC Rear Cases And Vanes Assembly - Assemble The HPC Stage 9 Stator Vanes To The Cases, Assembly-003

General

Fig./item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig./item numbers are used. For the Service Bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig./item number.

For standard torque data and procedures refer to the SPM TASK 70-41-00-400-501, SPM TASK 70-41-01-400-501 and SPM TASK 70-41-02-400-501.

Special torque data and assembly tolerances are included in the procedure.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077A APPROVED ENGINE OILs, unless other lubricants are referred to in the procedure.

After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and parts used to attach. Use the correct color of the air drying enamel. Refer to the SPM TASK 70-63-02-380-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

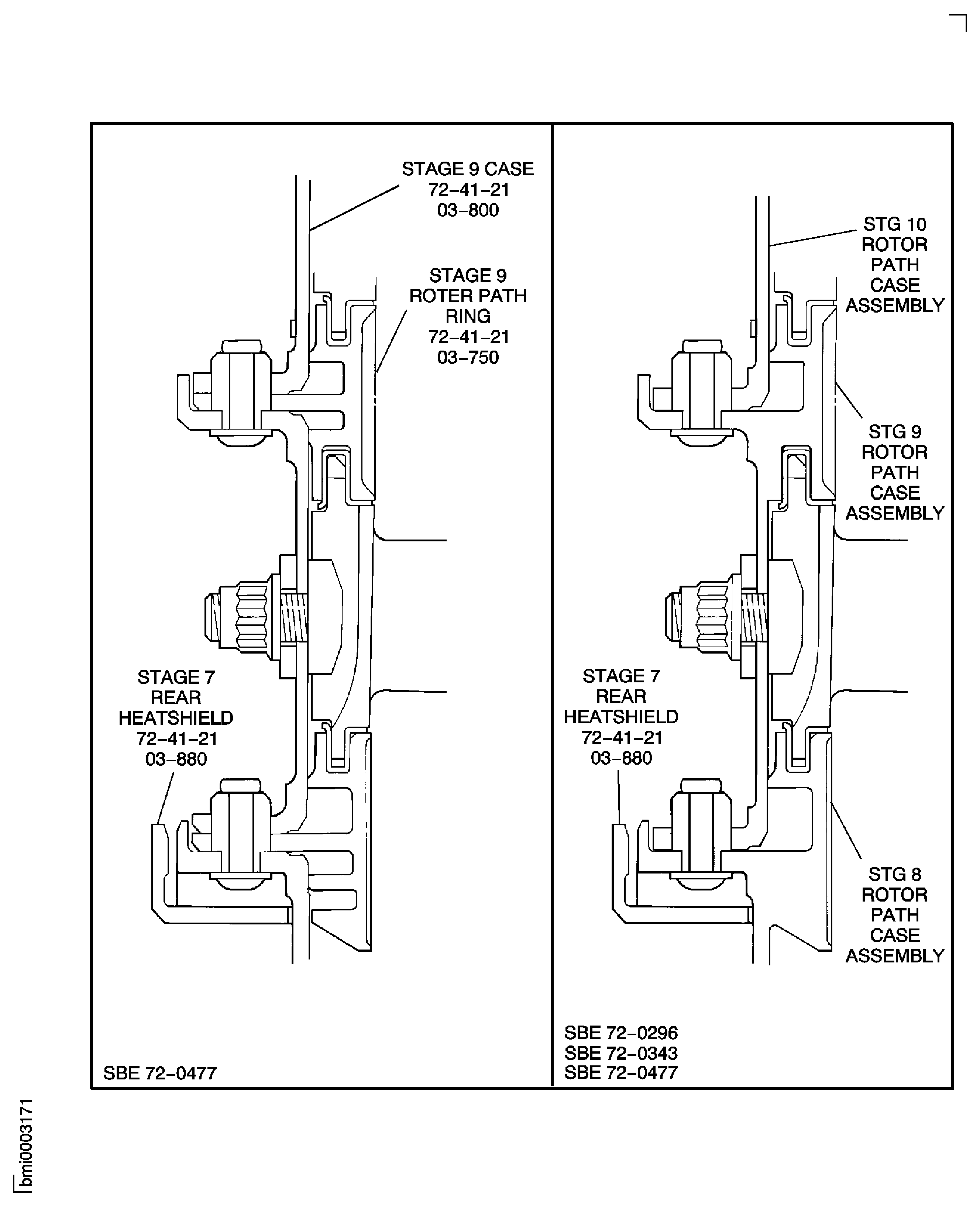

Refer to Figure for a sectional view of the HP compressor rear cases and vanes.

Make sure all the flange faces and tool faces that touch are very clean.

The Fits and Clearances, NEW PART DIMENSIONS and REJECT IF MORE THAN columns will be used by most operators. This permits the full use of the maximum wear allowance and a reduction in the number of parts which are rejected, is possible.

The column WORN PART DIMENSIONS (Non-select) is included for operators who want to have full interchangeability. If this column is used an increase in the number of parts which are rejected is possible.

After the part has been in service for some time the REJECT IF MORE THAN and WORN PART DIMENSIONS could be changed. The operator must tell IAE and if agreed the manual will be changed.

The abbreviation Intf shows an interference or tight fit. This causes REJECT IF MORE THAN to become REJECT IF LESS THAN.

The abbreviation clear shows a clearance fit.

This TASK gives the procedures to assemble the HP compressor stage 9 cases, vanes, liners and stator vane stops. The subsequent TASKS give the procedures to assemble the remaining HP compressor rear cases and vanes.

Assemble the HP Compressor Stage 7 Cases and Stator Vanes by TASK 72-41-20-440-001-B00 (ASSEMBLY-001).

Assemble the HP Compressor Stage 8 Stator Vanes by TASK 72-41-20-440-002-B00 (ASSEMBLY-002).

Assemble the HP Compressor Stage 10 Stator Vanes by TASK 72-41-20-440-004-B00 (ASSEMBLY-004).

Assemble the HP Compressor Stage 11 Stator Vanes by TASK 72-41-20-440-005-B00 (ASSEMBLY-005).

Machine the Stator Vane Tips and the Rotor Path Ring Liners by TASK 72-41-20-440-006-B00 (ASSEMBLY-006).

Disassemble the HP Compressor Rear Cases and Vanes by TASK 72-41-20-440-007-B00 (ASSEMBLY-007).

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Heating blanketLOCALHeating blanket
IAE 1R18213 Alignment checking pin0AM53IAE 1R18213
IAE 1R18501 Stop alignment tool0AM53IAE 1R185011
IAE 1R18827 Extractor0AM53IAE 1R188271
IAE 1R19690 Assembly tool0AM53IAE 1R196901
IAE 1R19691 Assembly tool0AM53IAE 1R196911

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 07-038 AIR DRYING ENAMELk3504CoMat 07-038
CoMat 10-077A APPROVED ENGINE OILLOCALCoMat 10-077A

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Stage 9 rear liner1
Stage 10 front liner1

Safety Requirements

NONE

Procedure

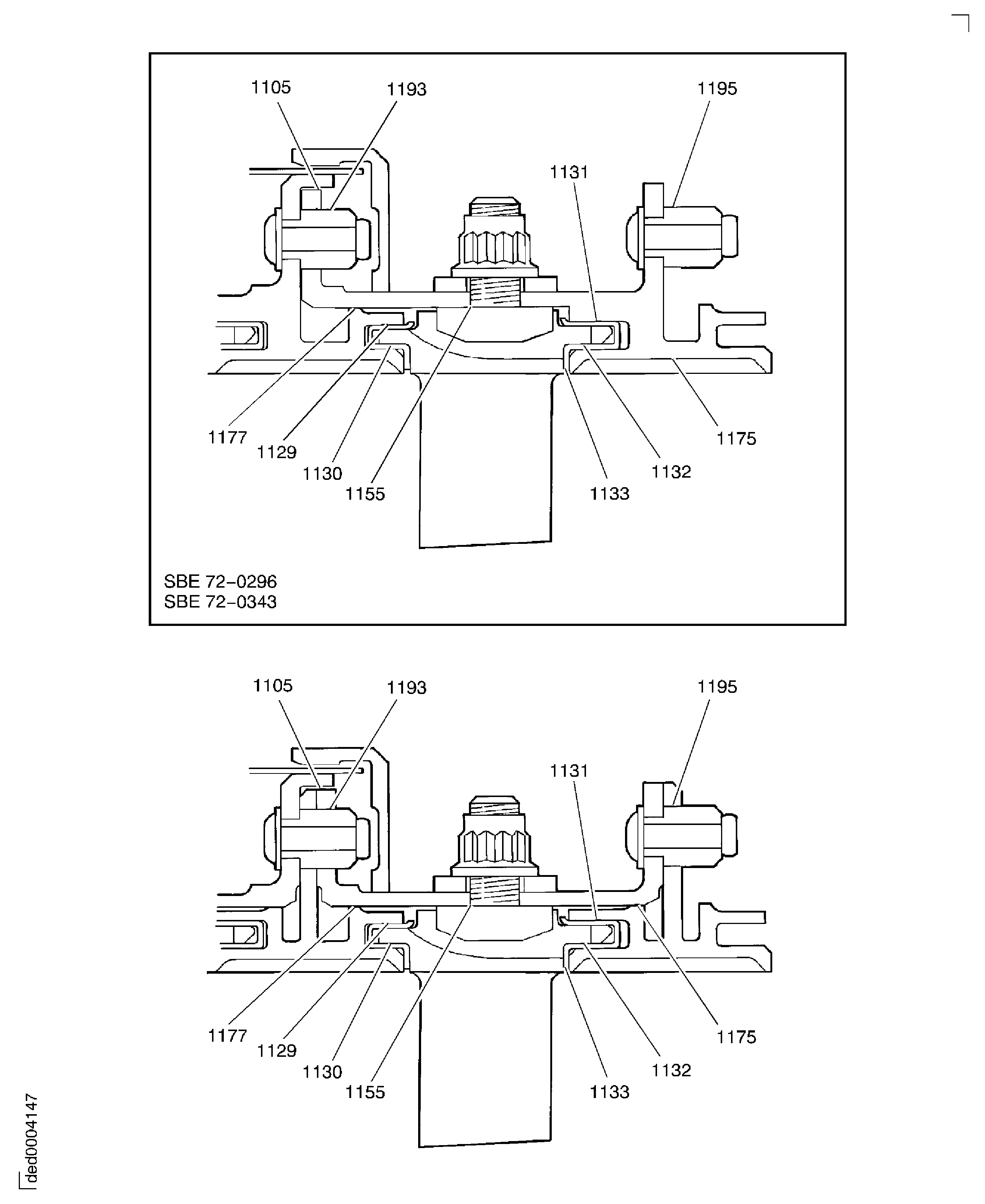

    1. SUBTASK 72-41-20-220-155-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1177. (Pre SBE 72-0343 and Pre SBE 72-0296)

    1. Refer to Figure.

    2. Reference dimensions at location 1177. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 1. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1177

      Stage 9 case HPC Ring Cases And Related Parts (72-41-21,03-800)

      Location with the stage 9 rotor path ring (72-41-21, 03-750)

      Stage 9 case front inner bore

      21.344

      Intf

      21.348

      0.002

      Stage 9 rotor path ring rear flange outer dia

      21.350

      0.011

      21.355

      Table 2. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1177

      Stage 9 case HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Location with the stage 9 rotor path ring (72-41-21, 03-750)

      Stage 9 case front inner bore

      542.13

      Intf

      542.25

      0.05

      Stage 9 rotor path ring rear flange outer dia

      542.30

      0.29

      542.42

    2. SUBTASK 72-41-20-220-155-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1177 (SBE 72-0343 and SBE 72-0296)

    1. Refer to Figure

    2. SBE 72-0343: Engine - HP Compressor ring cases - Introduction of integral HP Compressor cases and rotor paths.

      SBE 72-0296: Engine - HP Compressor - Introduction of integral front support-cone/stage 7 rotor path and revised heatshield and fastener configuration

    3. Reference dimensions at location 1177. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 3. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1177

      Stage 10 rotor path case

      assembly HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Location with the stage 9 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-650)

      Stage 10 rotor path case assembly front inner bore

      21.344

      Intf

      21.348

      0.002

      Stage 9 rotor path case assembly rear flange outer dia

      21.350

      0.011

      21.355

      Table 4. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1177

      Stage 10 rotor path case

      assembly HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Location with the stage 9 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-650)

      Stage 10 rotor path case assembly front inner bore

      542.13

      Intf

      542.25

      0.05

      Stage 9 rotor path case assembly rear flange outer dia

      542.30

      0.29

      542.42

    3. SUBTASK 72-41-20-220-156-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1105. (Pre SBE 72-0343 and Pre SBE 72-0296)

    1. Refer to Figure.

    2. Reference dimensions at location 1105. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 5. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1105

      Stage 8 case HPC Ring Cases And Related Parts (72-41-21, 03-650)

      Location with the stage 9 case HPC Ring Cases And Related Parts (72-41-21,03-800)

      Stage 8 case rear flange inner bore

      22.5592

      22.5689

      0.0159

      Stage 9 case front flange

      22.5354

      0.0335

      22.5433

      Table 6. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1105

      Stage 8 case HPC Ring Cases And Related Parts (72-41-21, 03-650)

      Location with the stage 9 case HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Stage 8 case rear flange inner bore

      573.005

      573.250

      0.405

      Stage 9 case front flange

      572.400

      0.850

      572.600

    4. SUBTASK 72-41-20-220-156-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1105 (SBE 72-0343 and SBE 72-0296)

    1. Refer to Figure

    2. SBE 72-0343: Engine - HP Compressor ring cases - Introduction of integral HP Compressor cases and rotor paths.

      SBE 72-0296: Engine - HP Compressor - Introduction of integral front support-cone/stage 7 rotor path and revised heatshield and fasener configuration

    3. Reference dimensions at location 1105. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 7. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1105

      Stage 9 rotor path case

      assembly HPC Ring Cases And Related Parts (72-41-21, 03-650)

      Location with the stage 10 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Stage 9 rotor path case assembly rear flange inner bore

      22.5592

      22.5689

      0.0159

      Stage 10 rotor path case assembly front flange

      22.5354

      0.0335

      22.5433

      Table 8. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1105

      Stage 9 rotor path case

      assembly HPC Ring Cases And Related Parts (72-41-21, 03-650)

      Location with the stage 10 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21,03-800)

      Stage 9 rotor path case assembly rear flange

      573.005

      inner bore

      573.250

      0.405

      Stage 10 rotor path case assembly front flange

      572.400

      0.850

      572.600

    5. SUBTASK 72-41-20-220-157-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1193. (Pre SBE 72-0343)

    1. Refer to Figure.

    2. Reference dimensions at location 1193. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 9. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1193

      Stage 9 case HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Location with the stage 8 case location dowel (72-41-21, 03-675)

      Stage 9 case location hole bore

      0.315

      0.316

      0.010

      Stage 8 case location dowel outer dia

      0.303

      0.013

      0.305

      Table 10. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1193

      Stage 9 case HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Location with the stage 8 case location dowel (72-41-21, 03-675)

      Stage 9 case location hole bore

      8.000

      8.022

      0.250

      Stage 8 case location dowel outer dia

      7.770

      0.322

      7.750

    6. SUBTASK 72-41-20-220-157-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1193 (SBE 72-0343 and SBE 72-0296)

    1. Refer to Figure

    2. SBE 72-0343: Engine - HP Compressor ring cases - Introduction of integral HP Compressor cases and rotor paths.

      SBE 72-0296: Engine - HP Compressor - Introduction of integral front support-cone/stage 7 rotor path and revised heatshield and fasener configuration

    3. Reference dimensions at location 1193. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 11. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1193

      Stage 10 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Location with the stage 9 rotor path case assembly location dowel HPC Ring Cases And Related Parts (72-41-21, 03-675)

      Stage 10 rotor path case assembly location hole bore

      0.315

      0.316

      0.010

      Stage 9 rotor path case assembly location dowel outer dia

      0.303

      0.013

      0.305

      Table 12. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1193

      Stage 10 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Location with the stage 9 rotor path case assembly location dowel HPC Ring Cases And Related Parts (72-41-21, 03-675)

      Stage 10 rotor path case assembly location hole bore

      8.000

      8.022

      0.250

      Stage 9 rotor path case assembly location dowel outer dia

      7.770

      0.322

      7.750

    7. SUBTASK 72-41-20-220-158 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1175 (Pre SBE 72-0343 and Pre SBE 72-0296)

    1. Refer to Figure

    2. Reference dimensions at location 1175. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 13. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1175

      Stage 9 case HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Location with the stage 10 rotor path ring (72-41-21, 04-300)

      Stage 9 case rear inner bore

      21.344

      Intf

      21.348

      0.002

      Stage 10 rotor path ring front flange outer dia

      21.350

      0.011

      21.355

      Table 14. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1175

      Stage 9 case HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Location with the stage 10 rotor path ring (72-41-21, 04-300)

      Stage 9 case rear inner bore

      542.13

      Intf

      542.25

      0.05

      Stage 10 rotor path ring front flange outer dia

      542.30

      0.29

      542.42

    8. SUBTASK 72-41-20-220-159-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1195, Fig (Pre SBE 72-0343 and Pre SBE 72-0296)

    1. Refer to Figure.

    2. Reference dimensions at location 1195. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 15. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1195

      Stage 10 rotor path ring HPC Ring Cases And Related Parts (72-41-21, 04-300)

      Location with the stage 9 case location dowel (72-41-21, 03-825)

      Stage 10 rotor path ring location hole bore

      0.315

      0.329

      0.010

      Stage 9 case location dowel outer dia

      0.303

      0.026

      0.305

      Table 16. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1195

      Stage 10 rotor path ring HPC Ring Cases And Related Parts (72-41-21, 04-300)

      Location with the stage 9 case location dowel (72-41-21, 03-825)

      Stage 10 rotor path ring location hole bore

      8.00

      8.36

      0.25

      Stage 9 case location dowel outer dia

      7.70

      0.66

      7.75

    9. SUBTASK 72-41-20-220-159-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1195 (SBE 72-0343 and SBE 72-0296)

    1. Refer to Figure

    2. SBE 72-0343: Engine - HP Compressor ring cases - Introduction of integral HP Compressor cases and rotor paths.

      SBE 72-0296: Engine - HP Compressor - Introduction of integral front support-cone/stage 7 rotor path and revised heatshield and fasener configuration

    3. Reference dimensions at location 1195. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 17. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1195

      Stage 11 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 04-350)

      Location with the stage 10 rotor path case assembly location dowel (72-41-21, 03-825)

      Stage 11 rotor path case assembly location hole bore

      0.315

      0.329

      0.010

      Stage 10 rotor path case assembly location dowel outer dia

      0.303

      0.026

      0.305

      Table 18. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1195

      Stage 11 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 04-350)

      Location with the stage 10 rotor path case assembly location dowel HPC Ring Cases And Related Parts (72-41-21,03-825)

      Stage 11 rotor path case assembly location hole bore

      8.00

      8.36

      0.25

      Stage 10 rotor path case assembly location dowel outer dia

      7.70

      0.66

      7.75

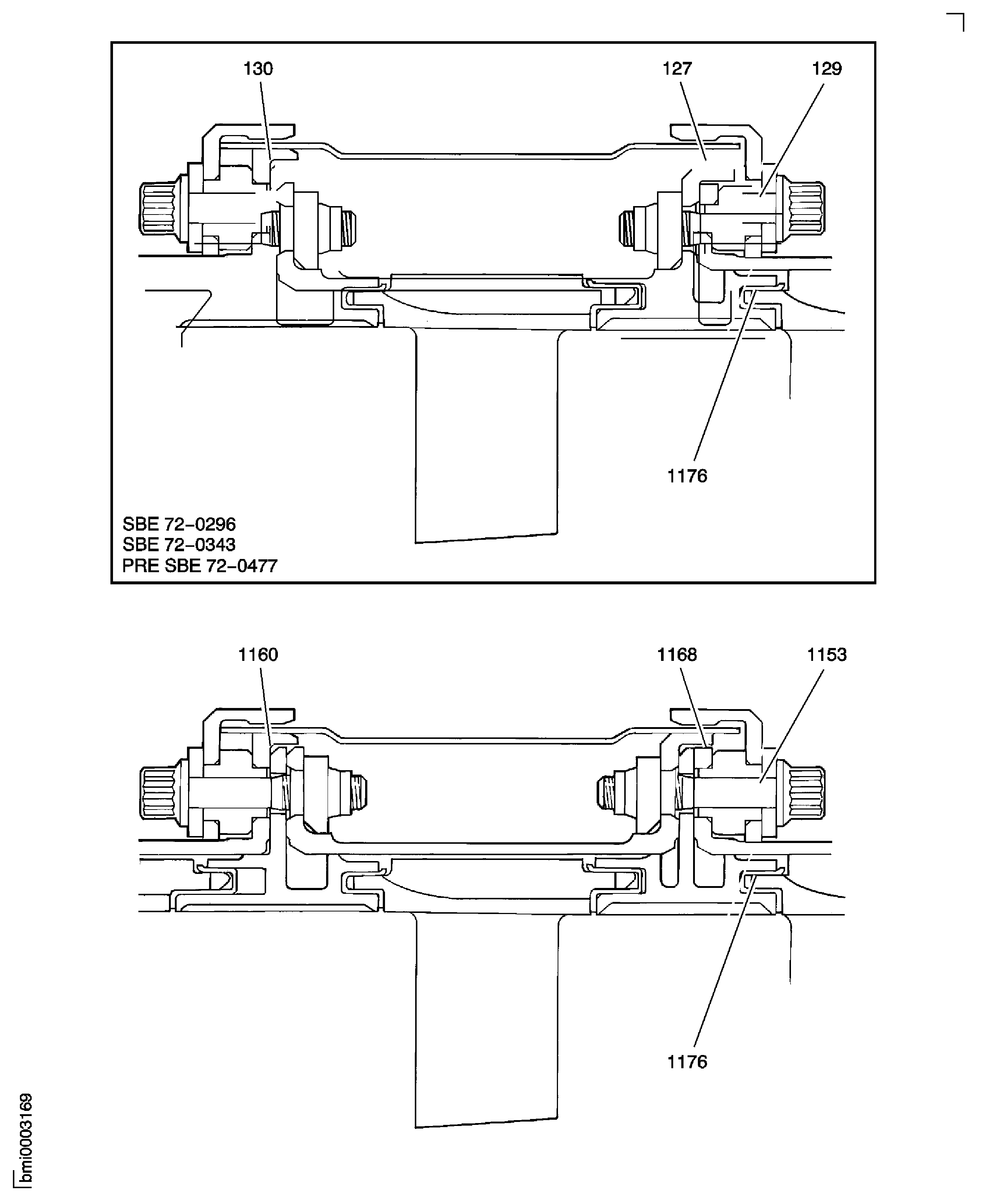

    10. SUBTASK 72-41-20-220-126-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1176 (Pre SBE 72-0343 and Pre SBE 72-0477)

    1. Refer to Figure.

    2. Reference dimensions at location 1176. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION/CHECK-000).

      Table 19. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1176

      Stage 9 front heatshield HPC Ring Cases And Related Parts (72-41-21, 03-920)

      Location with the stage 9 case HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Stage 9 front heatshield inner bore

      21.476

      21.488

      0.027

      Stage 9 case outer dia

      21.461

      0.004

      21.472

      Table 20. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1176

      Stage 9 front heatshield HPC Ring Cases And Related Parts (72-41-21, 03-920)

      Location with the stage 9 case HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Stage 9 front heatshield inner bore

      545.50

      545.80

      0.7

      Stage 9 case outer dia

      545.10

      0.10

      545.40

    11. SUBTASK 72-41-20-220-126-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1176 (SBE 72-0343 and Pre SBE 72-0477)

    1. SBE 72-0343: Engine - HP Compressor ring cases - Introduction of integral HP Compressor cases and rotor paths.

    2. Refer to Figure.

    3. Reference dimensions at location 1176. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION/CHECK-000).

      Table 21. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1176

      Stage 9 front heatshield HPC Ring Cases And Related Parts (72-41-21, 03-920)

      Location with the stage 10 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Stage 9 front heatshield inner bore

      21.476

      21.488

      0.033

      Stage 10 rotor path case assembly outer dia

      21.455

      0.002

      21.478

      Table 22. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1176

      Stage 9 front heatshield HPC Ring Cases And Related Parts (72-41-21, 03-920)

      Location with the stage 10 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-800)

      Stage 9 front heatshield inner bore

      545.50

      545.80

      0.85

      Stage 10 rotor path case assembly outer dia

      544.95

      0.05

      545.55

    12. SUBTASK 72-41-20-220-127 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1168 (Pre SBE 72-0477)

    1. Refer to Figure.

    2. Reference dimensions at location 1168. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION/CHECK-000).

      Table 23. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1168

      Stage 8 heatshield HPC Ring Cases And Related Parts (72-41-21, 03-900)

      Location with the stage 9 front heatshield HPC Ring Cases And Related Parts (72-41-21, 03-920)

      Stage 8 heatshield rear outer dia

      22.540

      22.554

      0.047

      Stage 9 front heatshield front flange bore

      22.601

      0.084

      22.624

      Table 24. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1168

      Stage 8 heatshield HPC Ring Cases And Related Parts (72-41-21, 03-900)

      Location with the stage 9 front heatshield HPC Ring Cases And Related Parts (72-41-21, 03-920)

      Stage 8 heatshield rear outer dia

      572.52

      572.88

      1.18

      Stage 9 front heatshield front flange bore

      574.06

      2.14

      574.66

    13. SUBTASK 72-41-20-220-129 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1153 (Pre SBE 72-0477)

    1. Refer to Figure.

    2. Reference dimensions at location 1153. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION/CHECK-000).

      Table 25. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1153

      Stage 9 case spacers HPC Ring Cases And Related Parts (72-41-21, 03-514)

      Location with the stage 9 front heatshield HPC Ring Cases And Related Parts (72-41-21, 03-920)

      Spacers rear outer dia

      0.3161

      0.3164

      0.00051

      Stage 9 front heatshield location hole bore

      0.3169

      0.00200

      0.3181

      Table 26. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1153

      Stage 9 case spacers HPC Ring Cases And Related Parts (72-41-21, 03-514)

      Location with the stage 9 front heatshield HPC Ring Cases And Related Parts (72-41-21,03-920)

      Spacers rear outer dia

      8.028

      8.037

      0.013

      Stage 9 front heatshield location hole bore

      8.050

      0.052

      8.080

    14. SUBTASK 72-41-20-220-130 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1160 (Pre SBE 72-0477)

    1. Refer to Figure.

    2. Reference dimensions at location 1160. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION/CHECK-000).

      Table 27. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1160

      Stage 8 heatshield HPC Ring Cases And Related Parts (72-41-21, 03-900)

      Location with the stage 7 rear heatshield HPC Ring Cases And Related Parts (72-41-21,03-880)

      Stage 8 heatshield front outer dia

      22.540

      22.554

      0.047

      Stage 7 rear heatshield bore

      22.601

      0.084

      22.624

      Table 28. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1160

      Stage 8 heatshield HPC Ring Cases And Related Parts (72-41-21, 03-900)

      Location with the stage 7 rear heatshield HPC Ring Cases And Related Parts (72-41-21,03-880)

      Stage 8 heatshield front outer dia

      572.52

      572.88

      1.18

      Stage 7 rear heatshield bore

      574.06

      2.14

      574.66

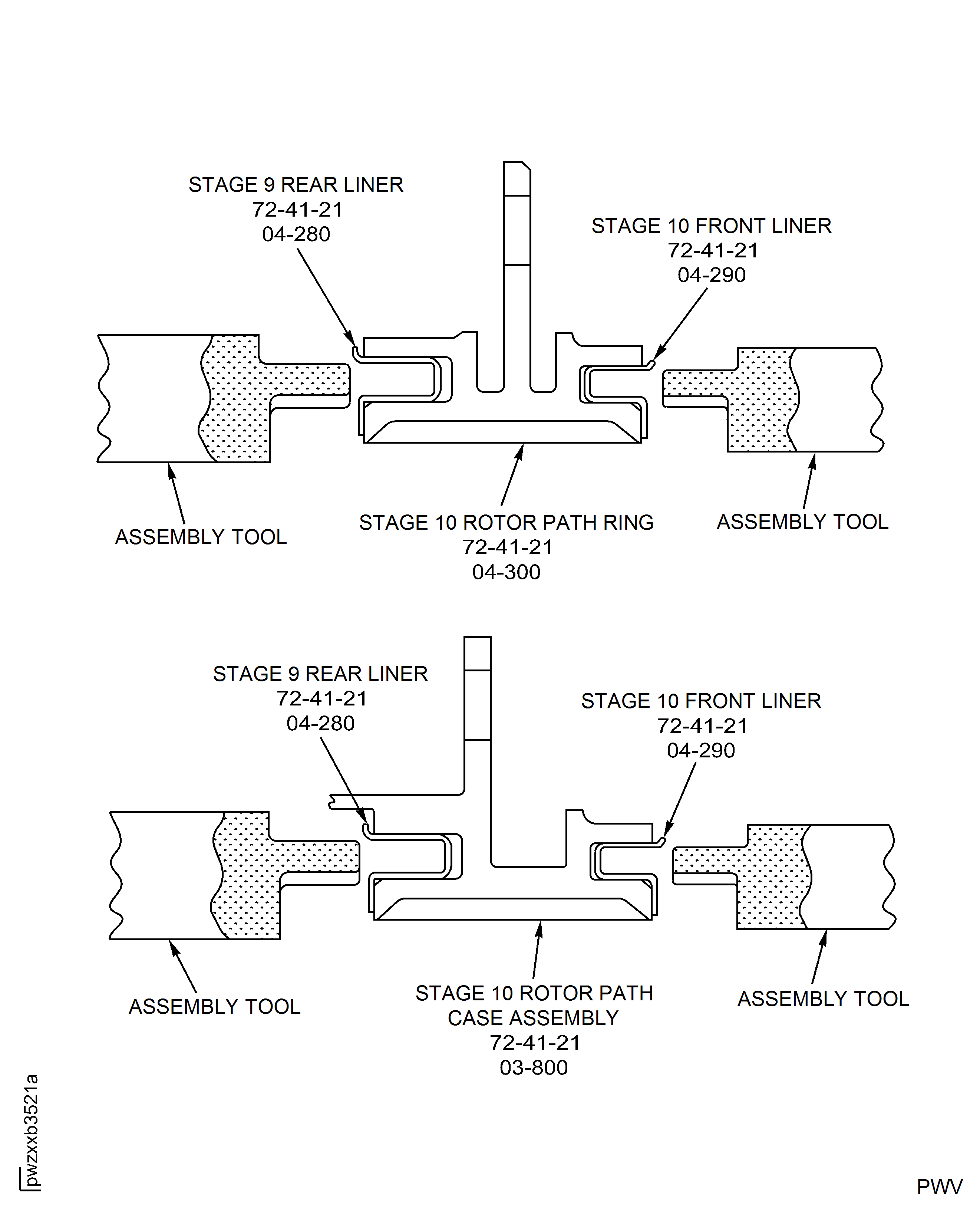

    15. SUBTASK 72-41-20-440-122 Install the Stage 9 Stator Vane Rear Liner and the Stage 10 Stator Vane Front Liner (Pre SBE 72-0343 and SBE 72-0343)

    1. Refer to Figure

      2. Install the new HPC Ring Cases And Related Parts (72-41-21, 04-280) stage 9 rear liner 1 off, in to the slot in the front flange of the stage 10 rotor path ring HPC Ring Cases And Related Parts (72-41-21, 04-300).

      1. Put the stage 10 rotor path ring rear flange down on a clean work surface.

      2. Use IAE 1R19690 Assembly tool 1 off to install the stage 9 rear liner. Make sure the liner touches the stage 10 rotor path ring front flange.

      3. Measure and write down a record of the stage 9 rear liner split line clearance. The split line clearance must be 0.169 in. to 0.201 in. (4.30 mm to 5.10 mm).

      3. Install the new HPC Ring Cases And Related Parts (72-41-21, 04-290) stage 10 front liner1 off, in to the slot in the rear of the stage 10 rotor path ring.

      1. Put the stage 10 rotor path ring front flange down on a clean work surface.

      2. Use IAE 1R19691 Assembly tool 1 off to install the stage 10 front liner. Make sure the liner touches the stage 10 rotor path ring rear flange.

      3. Measure and write down a record of the stage 10 front liner split line clearance. The split line clearance must be 0.169 in. to 0.201 in. (4.30 mm to 5.10 mm).

    16. SUBTASK 72-41-20-440-123-A00 Install the Stator Vane Stops in the Stage 9 Case (Pre SBE 72-0343)

    1. Refer to Figure

      2. Install the stage 9 stator vane stops HPC Ring Cases And Related Parts (72-41-21, 03-790) in the stage 9 case HPC Ring Cases And Related Parts (72-41-21, 03-800).

      1. Put one of the stage 9 stator vane stops in to position in the stage 9 case.

      2. Use the IAE 1R18501 Stop alignment tool 1 off and align the stage 9 stator vane stop in the stage 9 case.

      3. Install a washer HPC Ring Cases And Related Parts (72-41-21, 03-789) and a nut HPC Ring Cases And Related Parts (72-41-21, 03-788) on to the stage 9 stator vane stop.

      4. Torque the nut to 85 lbfin to 105 lbfin (10.00 Nm to 12.00 Nm).

      5. Remove the stop alignment.

      6. Install the three remaining stage 9 stator vane stops as given in Step to Step.

    17. SUBTASK 72-41-20-440-123-B00 Install the Stator Vane Stops in the Stage 10 Rotor Path Case Assembly (SBE 72-0343)

    1. Refer to Figure

    2. SBE 72-0343: Engine - HP Compressor ring cases - Introduction of integral HP Compressor cases and rotor paths.

      3. Install the stage 9 stator vane stops HPC Ring Cases And Related Parts (72-41-21, 03-790) in the stage 10 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-800).

      1. Put one of the stage 9 stator vane stops in to position in the stage 10 rotor path case assembly.

      2. Use theIAE 1R18501 Stop alignment tool 1 off and align the stage 9 stator vane stop in the stage 10 rotor path case assembly.

      3. Install a washer HPC Ring Cases And Related Parts (72-41-21, 03-789) and a nut HPC Ring Cases And Related Parts (72-41-21, 03-788) on to the stage 9 stator vane stop.

      4. Torque the nut to 85 lbfin to 105 lbfin (10.00 Nm to 12.00 Nm).

      5. Remove the stop alignment.

      6. Install the three remaining stage 9 stator vane stops as given in Step to Step.

    18. SUBTASK 72-41-20-440-124-A00 Install the Stage 9 Case (Pre SBE 72-0343)

    1. Refer to Figure, Figure and Figure.

    2. Remove the eight slave nuts and bolts from the stage 9 rotor path ring HPC Ring Cases And Related Parts (72-41-21,03-750) to stage 8 case HPC Ring Cases And Related Parts (72-41-21, 03-650) flange.

    3. Put the stage 9 case HPC Ring Cases And Related Parts (72-41-21, 03-800) front flange down on to a clean work bench.

    4. Install the heating blanket on the stage 9 case.

    5. Heat the stage 9 case to 167 deg F to 212 deg F (75 deg C to 100 deg C).

    6. Remove the heating blanket.

    7. WARNING

      YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE STAGE 9 CASE.

      Install the stage 9 case on to the stage 8 case and stage 9 rotor path ring. Align the dowel hole in the stage 9 case front flange with the location dowel in the stage 9 rotor path ring.

    8. Install eight slave nuts and bolts through the assembly joint flange. Space then at equal distances around the flange. Install the bolts from the stage 9 case front flange.

    9. Tighten the nuts in the correct sequence to pull the stage 9 case on to the stage 8 rotor path ring.

    10. Let the assembly become cool then remove the eight slave nuts and bolts.

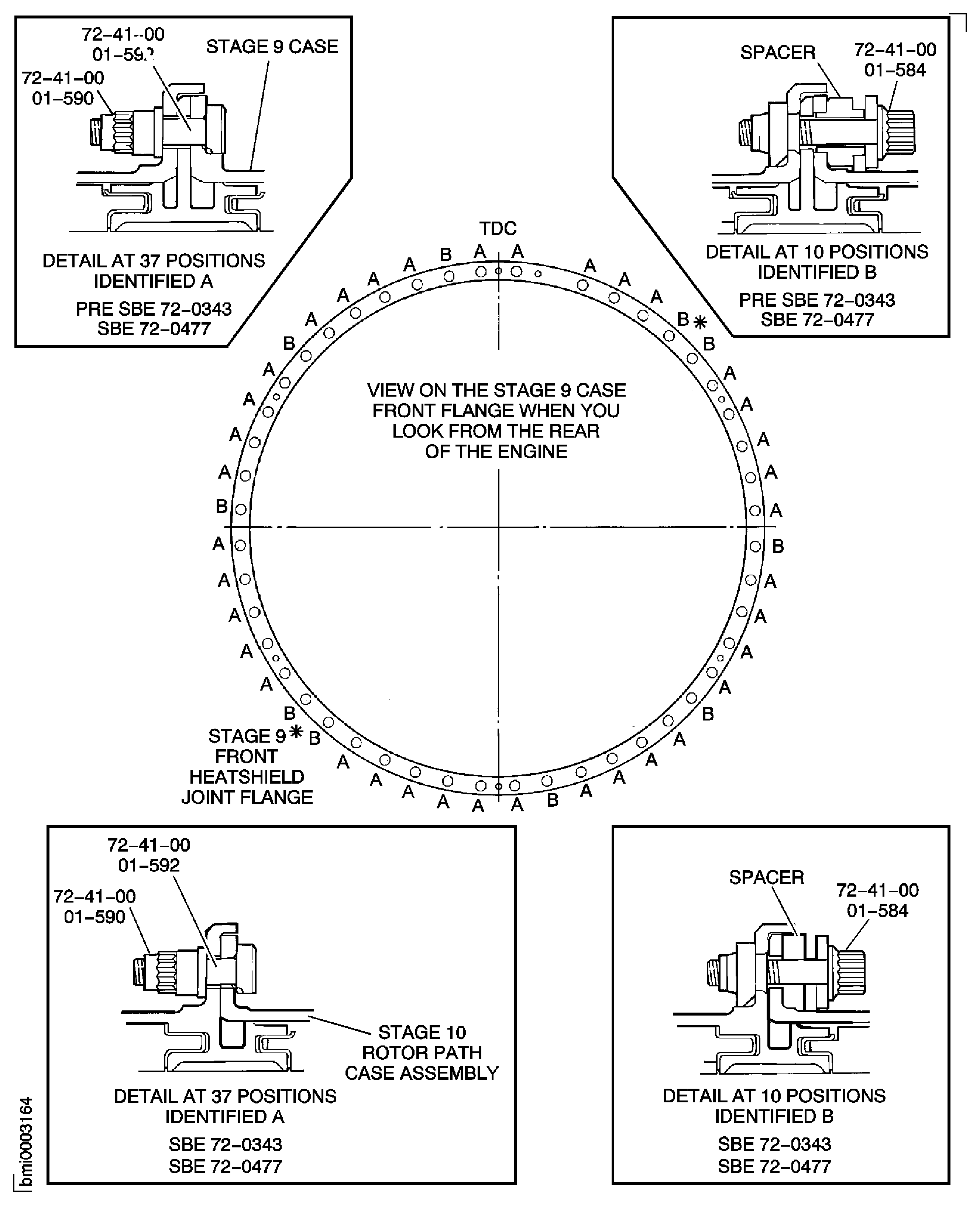

    11. Install the 37 dee headed bolts HPC Assembly (72-41-00,01-592) and nuts HPC Assembly (72-41-00,01-590) to attach the stage 9 case to the stage 9 rotor path ring and the stage 8 case. Install the bolts from the 9 case front flange. Torque the 37 nuts in the correct sequence to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm). Refer to detail at A on Figure.

    19. SUBTASK 72-41-20-440-124-B00 Install the Stage 9 Rotor Path Case Assembly (SBE 72-0343)

    1. SBE 72-0343: Engine - HP Compressor ring cases - Introduction of integral HP Compressor cases and rotor paths.

    2. Refer to Figure, Figure and Figure.

    3. Put the stage 9 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-650) front flange down on to a clean work bench.

    4. Install the heating blanket on the stage 9 rotor path case assembly.

    5. Heat the stage 9 rotor path case assembly to 167 deg F to 212 deg F (75 deg C to 100 deg C).

    6. Remove the heating blanket.

    7. WARNING

      YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE STAGE 9 ROTOR PATH CASE ASSEMBLY.

      Install the stage 10 rotor path case assembly to the stage 9 rotor path case assembly. Align the dowel hole in the stage 10 rotor path case assembly front flange with the location dowel in the stage 9 rotor path case assembly.

    8. Install eight slave nuts and bolts through the assembly joint flange. Space them at equal distances around the flange. Install the bolts from the stage 10 rotor path case assembly front flange.

    9. Tighten the nuts in the correct sequence to pull the stage 10 rotor path case assembly on to the stage 9 rotor path case assembly.

    10. Let the assembly become cool then remove the eight slave nuts and bolts.

    11. Install the 37 dee headed bolts HPC Assembly (72-41-00,01-592) and nuts HPC Assembly (72-41-00,01-590) to attach the stage 10 rotor path case assembly to the stage 9 rotor path case assembly. Install the bolts from the 10 rotor path case assembly front flange. Torque the 37 nuts in the correct sequence to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm). Refer to detail at A on Figure.

    20. SUBTASK 72-41-20-440-188 Install the Stage 9 Stator Vanes

    1. Refer to Figure, Figure and Figure.

      2. Install the stage 9 stop vanes HPC Stator Vanes (72-41-22, 04-350).

      1. Pre SBE 72-0343: Install the eight stage 9 stop vanes in to the stage 9 rotor path ring, at the stage 9 stator vane stops HPC Ring Cases And Related Parts (72-41-21, 03-790). Engage the vanes in the stage 9 rotor path ring. Install two stage 9 stop vanes at each of the stage stator vane stops.

      2. SBE 72-0343: Install the eight stage 9 stop vanes in to the stage 9 rotor path case assembly, at the stage 9 stator vane stops HPC Ring Cases And Related Parts (72-41-21, 03-790). Engage the vanes in the stage 9 rotor path case assembly. Install two stage 9 stop vanes at each of the stage stator vane stops.

      3. Push each of the stage 9 stop vanes forward until the vane platform touches the stage 9 front liner HPC Ring Cases And Related Parts (72-41-21, 03-740).

      3. Install the stage 9 stator vanes.

      1. Pre SBE 72-0343: Install the vanes in a clockwise direction. Engage each of the vanes in the stage 9 rotor path ring. Make sure the platform of the first vane that is installed touches the platform of the stage 9 stop vane. Push each subsequent vane clockwise as it is installed until the vane platforms touch.

      2. SBE 72-0343: Install the vanes in a clockwise direction. Engage each of the vanes in the stage 9 rotor path case assembly. Make sure the platform of the first vane that is installed touches the platform of the stage 9 stop vane. Push each subsequent vane clockwise as it is installed until the vane platforms touch.

      3. Push each vane forward until the vane platform touches the stage 9 front liner.

        4. Install the stage 9 stator vanes between the two stage 9 stop vanes adjacent to the 12 and 3 o'clock positions. Use the subsequent sequence.

        1. Install five stage 9 stator vanes HPC Stator Vanes (72-41-22, 04-400).

        2. Install one stage 9 undersize stator vane HPC Stator Vanes (72-41-22, 04-450).

        3. Install five stage 9 stator vanes HPC Stator Vanes (72-41-22, 04-400).

        4. Install one stage 9 stator vane HPC Stator Vanes (72-41-22, 04-448).

        5. Install one stage 9 undersize stator vane HPC Stator Vanes (72-41-22, 04-450).

        6. Install five stage 9 stator vanes HPC Stator Vanes (72-41-22, 04-400).

        7. Install one stage 9 stator vane HPC Stator Vanes (72-41-22, 04-448).

        8. Install one stage 9 undersize stator vane HPC Stator Vanes (72-41-22, 04-450).

        9. Install four stage 9 stator vanes HPC Stator Vanes (72-41-22, 04-400).

      5. Install the stage 9 stator vanes between the two stage 9 stop vanes adjacent to the 6 and 9 o'clock positions. Use the sequence given in steps (4) (a) to (i).

      6. Install the stage 9 stator vanes between the two stage 9 stop vanes adjacent to the 9 and 12 o'clock positions. Use the sequence given in steps (4) (a) to (i).

        7. Install the stage 9 stator vanes between the two stage 9 stop vanes adjacent to the 3 and 6 o'clock positions. Use the subsequent sequence.

        1. Install two stage 9 stator vanes HPC Stator Vanes (72-41-22, 04-400).

        2. Install the stage 9 LH intrascope vane HPC Stator Vanes (72-41-22, 04-200).

        3. NOTE

          Make sure the borescope access hole in the stage 9 case and intrascope vanes hole are aligned.

          Install the stage 9 RH intrascope vane HPC Stator Vanes (72-41-22, 04-250).

        4. Install four stage 9 stator vanes HPC Stator Vanes (72-41-22, 04-400).

        5. Install one stage 9 undersize stator vane HPC Stator Vanes (72-41-22, 04-450).

        6. Install four stage 9 stator vanes HPC Stator Vanes (72-41-22, 04-400).

        7. Install one stage 9 stator vane HPC Stator Vanes (72-41-22, 04-448).

        8. Install one stage 9 undersize stator vane HPC Stator Vanes (72-41-22, 04-450).

        9. Install four stage 9 stator vanes HPC Stator Vanes (72-41-22, 04-400).

        10. Install one stage 9 stator vanes HPC Stator Vanes (72-41-22, 04-448).

        11. Install one stage 9 undersize stator vane HPC Stator Vanes (72-41-22, 04-450).

        12. Install three stage 9 stator vanes HPC Stator Vanes (72-41-22, 04-400).

      8. Install IAE 1R18213 Alignment checking pin 1 off through the stage 9 case borescope access hole. Make sure the checking pin easily goes in to the intrascope vanes holes.

    21. SUBTASK 72-41-20-440-125 Install the Stage 10 Rotor Path Ring (Pre SBE 72-0343)

    1. Refer to Figure and Figure.

    2. Install the heating blanket on to the stage 9 case HPC Ring Cases And Related Parts (72-41-21,03-800).

    3. Heat the stage 9 case to 167 deg F to 212 deg F (75 deg C to 100 deg C).

    4. Remove the heating blanket.

    5. Align the location dowel in the stage 10 rotor path ring HPC Ring Cases And Related Parts (72-41-21, 04-300) with the location dowel in the stage 9 case.

    6. Install the stage 10 rotor path ring on to the stage 9 case and stator vanes. Engage the stage 9 stator vanes rear platform in the liner in the stage 10 rotor path ring.

    7. Install eight slave bolts and nuts to attach the stage 10 rotor path ring to the stage 9 case. Space them at equal distances around the flange.

    8. Tighten the nuts in the correct sequence to pull the stage 10 rotor path ring on to the stage 9 case.

    9. Let the assembly become cool.

    10. Do a check to make sure all the stage 9 stator vanes can be moved in their location. Any vanes which can not be moved must be replaced.

    11. Measure and write down a record of the clearance at location 1133. The clearance must be 0.0139 in. to 0.0297 in. (0.354 mm to 0.754 mm).

    22. SUBTASK 72-41-20-440-126 Measure the Interplatform Clearances

    1. Refer to Figure.

      2. Measure and write down a record of the interplatform clearances at the stage 9 stop vanes. Measure all four clearances at the same time.

      1. Push the stage 9 stator stop vane (which is installed adjacent to the stator vane stop) in a clockwise direction.

      2. NOTE

        1. If the interplatform clearances are correct continue with SUBTASK 72-41-20-440-128.

        2. If the interplatform clearances are not correct continue with SUBTASK 72-41-20-440-127.

        Measure and write down a record of the clearance between the stop vane and the stator vane platforms, Dimension B. The dimension must be 0.083 in. to 0.098 in. (2.10 mm to 2.50 mm). Measure all four clearances at the same time, use four feeler gauges.

    23. SUBTASK 72-41-20-440-127 Install the Stage 9 Undersize Stator Vanes

      NOTE

      1. To get the specified interplatform clearance at the four stage 9 stop vanes HPC Stator Vanes (72-41-22, 04-350) use stage 9 undersize stator vanes

        HPC Stator Vanes (72-41-22, 04-450) or stage 9 stator vanes

        HPC Stator Vanes (72-41-22, 04-448) as necessary.

      2. A maximum of eight undersize vanes can be used between the two adjacent stop vanes. These must be set at equal distances between the stop vanes.

    1. Refer to Figure, Figure, Figure and Figure.

    2. Pre SBE 72-0343: Remove the eight slave bolts which attach the stage 10 rotor path ring HPC Ring Cases And Related Parts (72-41-21,04-300) to the stage 9 case HPC Ring Cases And Related Parts (72-41-21, 03-800).

    3. SBE 72-0343: Remove the eight slave bolts which attach the stage 10 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-800) to the stage 9 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-650).

      4. Pre SBE 72-0343: Remove the stage 10 rotor path ring.

      1. Install the heating blanket around the stage 9 case.

      2. Heat the stage 9 case to 167 deg F to 212 deg F (75 deg C to 100 deg C).

      3. Remove the heating blanket.

      4. WARNING

        YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE STAGE 10 ROTOR PATH RING.

        Install the plates of IAE 1R18827 Extractor 3 off on the front flange of the stage 9 case. Refer to extractor detail C on Figure.

      5. Adjust the bolts of the extractors to engage the pins in the extraction holes in the rear flange of the stage 9 case.

      6. Continue to turn the bolts to remove the stage 10 rotor path ring. Equally turn the bolts by a small quantity.

      5. SBE 72-0343: Remove the stage 10 rotor path case assembly.

      1. Install the heating blanket around the stage 9 rotor path case assembly.

      2. Heat the stage 9 rotor path case assembly to 167 deg F to 212 deg F (75 deg C to 100 deg C).

      3. Remove the heating blanket.

      4. WARNING

        YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE STAGE 10 ROTOR PATH CASE ASSEMBLY.

        Install the plates of the IAE 1R18827 Extractor 3 off on the front flange of the stage 9 rotor path case assembly. Refer to extractor detail C on Figure.

      5. Adjust the bolts of the extractors to engage the pins in the extraction holes in the rear flange of the stage 9 rotor path case assembly.

      6. Continue to turn the bolts to remove the stage 10 rotor path case assembly. Equally turn the bolts by a small quantity.

    6. CAUTION

      UNDERSIZE VANES MUST NOT BE INSTALLED ADJACENT TO THE STOP VANES, INTRASCOPE VANES OR OTHER UNDERSIZE VANES.

      CAUTION

      UNDERSIZE VANES MUST NOT BE INSTALLED BETWEEN THE STAGE 9 INTRASCOPE VANES AND THE STAGE 9 STOP VANE ADJACENT TO THE 6 O'CLOCK POSITION.

      Remove the stage 9 stator vanes HPC Stator Vanes (72-41-22, 04-448) and install the stage 9 vanes as necessary. One stage 9 undersize vane will give an increase or decrease in the interplatform clearance of 0.016 in. (0.40 mm).

    7. Pre SBE 72-0343: Install the stage 10 rotor path ring as given in Step.

    8. SBE 72-0343: Install the stage 10 rotor path case assembly as given in Step.

    9. Measure and write down a record of the interplatform clearances at the stage 9 stop vanes as given in Step.

    24. SUBTASK 72-41-20-440-128 Install the Stage 8 Heatshield and the Stage 9 Front Heatshield (Pre SBE 72-0343, SBE 72-0343 and Pre SBE 72-0477)

    1. SBE 72-0343: Engine - HP compressor ring case - Introduction of integral HP compressor case and rotor paths.

    2. Refer to Figure, Figure and Figure.

    3. Pre SBE 72-0343: Engage the front of the stage 8 heatshield HPC Ring Cases And Related Parts (72-41-21,03-900) between the stage 7 case HPC Ring Cases And Related Parts (72-41-21,03-500) and the stage 7 rear heatshield HPC Ring Cases And Related Parts (72-41-21,03-880). Push the stage 8 heatshield forward until it touches the stage 7 rear heatshield inner flange.

    4. SBE 72-0343: Engage the front of the stage 8 heatshield HPC Ring Cases And Related Parts (72-41-21, 03-900) between the stage 8 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21,03-500) and the stage 7 rear heatshield HPC Ring Cases And Related Parts (72-41-21, 03-880). Push the stage 8 heatshield forward until it touches the stage 7 rear heatshield inner flange.

      5. Install the stage 9 front heatshield HPC Ring Cases And Related Parts (72-41-21, 03-920).

      1. Pre SBE 72-0343: Put the two halves of the stage 9 front heatshield in to position on the stage 9 case HPC Ring Cases And Related Parts (72-41-21, 03-800). Locate the heatshields on the spacers and make sure the end plates are correctly located.

      2. SBE 72-0343: Put the two halves of the stage 9 front heatshield in to position on the stage 10 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-800). Locate the heatshields on the spacers and make sure the end plates are correctly located.

      3. Install the 10 bolts HPC Assembly (72-41-00, 01-584) to attach the stage 9 front heatshield to the stage 9 case.

      4. Torque the bolts in the correct sequence to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).

      5. Measure and write down a record of the clearance at location 1176. The clearance must be 0.004 in. to 0.024 in. (0.10 mm to 0.60 mm).

    25. Figure: Pre SBE 72-0343 and 72-0296: View Through the HP Compressor Rear Cases and Vanes

    Sheet 1

    Legend
    Pre SBE 72-0343 and 72-0296: View Through the HP Compressor Rear Cases and Vanes

    Sheet 1

    Close

    Figure: SBE 72-0343 and 72-0296: View Through the HP Compressor Rear Cases and Vanes

    Sheet 2

    Legend
    SBE 72-0343 and 72-0296: View Through the HP Compressor Rear Cases and Vanes

    Sheet 2

    Close

    Figure: SBE 72-0296 and SBE 72-0343: The Locations for the Fits and Clearances

    Sheet 1

    Legend
    SBE 72-0296 and SBE 72-0343: The Locations for the Fits and Clearances

    Sheet 1

    Close

    Figure: SBE 72-0296, SBE 72-0343 and Pre SBE 72-0477: Locations for the Fits and Clearances

    Sheet 2

    Legend
    SBE 72-0296, SBE 72-0343 and Pre SBE 72-0477: Locations for the Fits and Clearances

    Sheet 2

    Close

    Figure: Install the Stage 9 Stator Vane Front and Rear Liners

    Install the Stage 9 Stator Vane Front and Rear Liners

    Figure: Install the Stage 9 Stator Vane Stops

    Install the Stage 9 Stator Vane Stops

    Figure: SBE 72-0296, SBE 72-0343 and Pre SBE 72-0477: Install the Stage 9 Case and the Stage 8 Heatshield

    Sheet 1

    Legend
    SBE 72-0296, SBE 72-0343 and Pre SBE 72-0477: Install the Stage 9 Case and the Stage 8 Heatshield

    Sheet 1

    Close

    Figure: SBE 72-0296, SBE 72-0343 and SBE 72-0477: Install the Stage 9 Case and the Stage 8 Heatshield

    Sheet 2

    Legend
    SBE 72-0296, SBE 72-0343 and SBE 72-0477: Install the Stage 9 Case and the Stage 8 Heatshield

    Sheet 2

    Close

    Figure: Pre SBE 72-0343, SBE 72-0343 and Pre SBE 72-0477: Install the Stage 9 Case and the Stage 8 Heatshield

    Sheet 3

    Legend
    Pre SBE 72-0343, SBE 72-0343 and Pre SBE 72-0477: Install the Stage 9 Case and the Stage 8 Heatshield

    Sheet 3

    Close

    Figure: Pre SBE 72-0343, SBE 72-0343 and SBE 72-0477: Install the Stage 9 Case and the Stage 8 Heatshield

    Sheet 4

    Legend
    Pre SBE 72-0343, SBE 72-0343 and SBE 72-0477: Install the Stage 9 Case and the Stage 8 Heatshield

    Sheet 4

    Close

    Figure: SBE 72-0296, SBE 72-0343 and Pre SBE 72-0477: Install the Stage 9 Stator Vanes

    Sheet 1

    Legend
    SBE 72-0296, SBE 72-0343 and Pre SBE 72-0477: Install the Stage 9 Stator Vanes

    Sheet 1

    Close

    Figure: SBE 72-0296, SBE 72-0343 and SBE 72-0477: Install the Stage 9 Stator Vanes

    Sheet 2

    Legend
    SBE 72-0296, SBE 72-0343 and SBE 72-0477: Install the Stage 9 Stator Vanes

    Sheet 2

    Close

    Figure: Install the Stage 9 Stator Vanes

    Sheet 3

    Legend
    Install the Stage 9 Stator Vanes

    Sheet 3

    Close

    Figure: Measure the Stator Vane Interplatform Clearance

    Measure the Stator Vane Interplatform Clearance

    Figure: Pre SBE 72-0343 and SBE 72-0343: Remove the Stage 10 Rotor Path Ring

    Pre SBE 72-0343 and SBE 72-0343: Remove the Stage 10 Rotor Path Ring

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure to update fits and clearances limits. (19VG205)

Link not Found
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Link not Found
Link not Found
Manufacturer Code:00BB6
Supply Number:CoMat 07-038
Type:sp01
Supply Short Name:CoMat 07-038 AIR DRYING ENAMEL
Supply Name:CoMat 07-038 AIR DRYING ENAMEL
Specification Groups:
Doc NumberType
OMAT:7/22B (RR REF)IP9138 R1
JCR-029 (JAEC REF)
Suppliers:
ManufacturerRemarks
00BB6
K3504
Manufacturer Code:X333X
Supply Number:CoMat 10-077A
Type:sp01
Supply Short Name:CoMat 10-077A APPROVED ENGINE OIL
Supply Name:CoMat 10-077A APPROVED ENGINE OIL
Specification Groups:
Doc NumberType
DELETED
Suppliers:
ManufacturerRemarks
X333X
Manufacturer Code:LOCAL
Tool Number:Heating blanket
Tool Name:Heating blanket
Manufacturer Code:0AM53
Tool Number:IAE 1R18213
Tool Name:IAE 1R18213 Alignment checking pin
Manufacturer Code:0AM53
Tool Number:IAE 1R18501
Tool Name:IAE 1R18501 Stop alignment tool
Manufacturer Code:0AM53
Tool Number:IAE 1R18827
Tool Name:IAE 1R18827 Extractor
Manufacturer Code:0AM53
Tool Number:IAE 1R19690
Tool Name:IAE 1R19690 Assembly tool
Manufacturer Code:0AM53
Tool Number:IAE 1R19691
Tool Name:IAE 1R19691 Assembly tool
