TASK 72-41-20-440-005-B00 HPC Rear Cases And Vanes Assembly - Assemble The HPC Stage 11 Stator Vanes To The Cases, Assembly-005

DMC:V2500-A5-72-41-2000-03A-710A-B|Issue No:004.00|Issue Date:2020-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-41-20-440-005-B00 HPC Rear Cases And Vanes Assembly - Assemble The HPC Stage 11 Stator Vanes To The Cases, Assembly-005

General

Fig./item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig./item numbers are used. For the Service Bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig./item number.

For standard torque data and procedures refer to the SPM TASK 70-41-00-400-501, SPM TASK 70-41-01-400-501 and SPM TASK 70-41-02-410-501.

Special torque data and assembly tolerances are included in the procedure.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077A APPROVED ENGINE OIL unless other lubricants are referred to in the procedure.

After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and parts used to attach. Use the correct color of the air drying enamel. Refer to the SPM TASK 70-63-02-380-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

Refer to Figure and Figure for a sectional view of the HP compressor rear cases and vanes.

Make sure all the flange faces and tool faces that touch are very clean.

The Fits and Clearances, NEW PART DIMENSIONS and REJECT IF MORE THAN columns will be used by most operators. This permits the full use of the maximum wear allowance and a reduction in the number of parts which are rejected, is possible.

The column WORN PART DIMENSIONS (Non-select) is included for operators who want to have full interchangeability. If this column is used an increase in the number of parts which are rejected is possible.

After the part has been in service for some time the REJECT IF MORE THAN and WORN PART DIMENSIONS could be changed. The operator must tell IAE and if agreed the manual will be changed.

The abbreviation Intf shows an interference or tight fit. This causes REJECT IF MORE THAN to become REJECT IF LESS THAN.

The abbreviation clear shows a clearance fit.

This TASK gives the procedures to assemble the HP compressor stage 11 case, the vanes, the liners and the stator vane stops. The subsequent TASKS give the procedures to assemble the remaining HP compressor rear cases and vanes.

TASK 72-41-20-440-001-B00 (ASSEMBLY-001, CONFIG-002) Assemble the HP Compressor Stage 7 Cases and Stator Vanes.

TASK 72-41-20-440-002-B00 (ASSEMBLY-002, CONFIG-002) Assemble the HP Compressor Stage 8 Stator Vanes.

TASK 72-41-20-440-003-B00 (ASSEMBLY-003, CONFIG-002) Assemble the HP Compressor Stage 9 Stator Vanes.

TASK 72-41-20-440-004-B00 (ASSEMBLY-004, CONFIG-002) Assemble the HP Compressor Stage 10 Stator Vanes.

TASK 72-41-20-440-006-B00 (ASSEMBLY-006, CONFIG-002) Machine the Stator Vane Tips and the Rotor Path Ring Liners.

TASK 72-41-20-440-007-B00 (ASSEMBLY-007, CONFIG-002) Disassemble the HP Compressor Rear Cases and Vanes.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Heating blanketLOCALHeating blanket
IAE 1R18213 Alignment checking pin0AM53IAE 1R182131
IAE 1R18501 Stop alignment tool0AM53IAE 1R185011
IAE 1R18827 Extractor0AM53IAE 1R188273
IAE 1R19693 Assembly tool0AM53IAE 1R196931
IAE 1R19694 Assembly tool0AM53IAE 1R196941

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 07-038 AIR DRYING ENAMELk3504CoMat 07-038
CoMat 10-077A APPROVED ENGINE OILLOCALCoMat 10-077A

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Stage 11 front liner1
Stage 11 rear liner1

Safety Requirements

NONE

Procedure

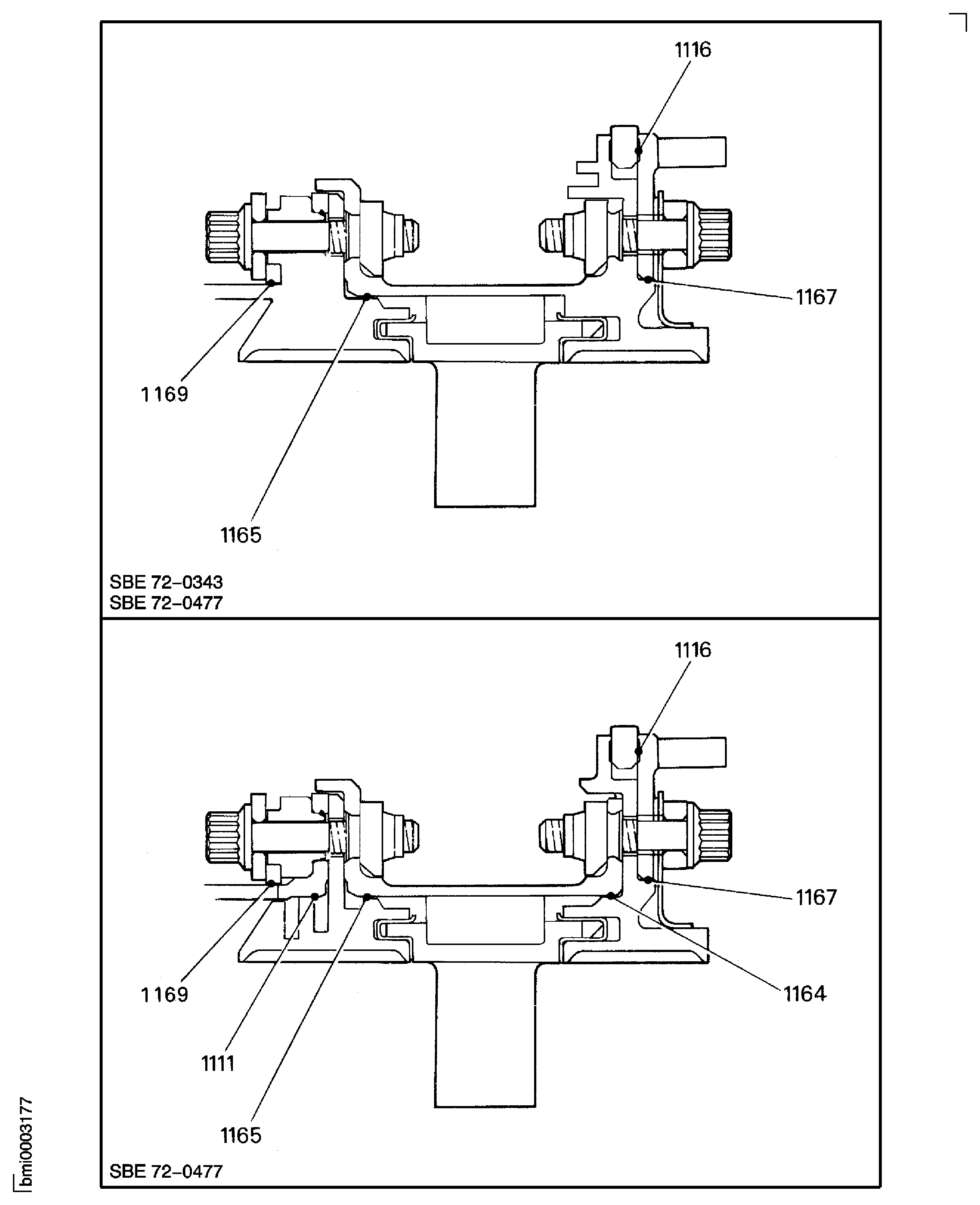

    1. SUBTASK 72-41-20-220-201 Reference Fits and Clearence of the HP Compressor Rear Cases and Vanes at Location 1198 (Pre SBE 72-0343)

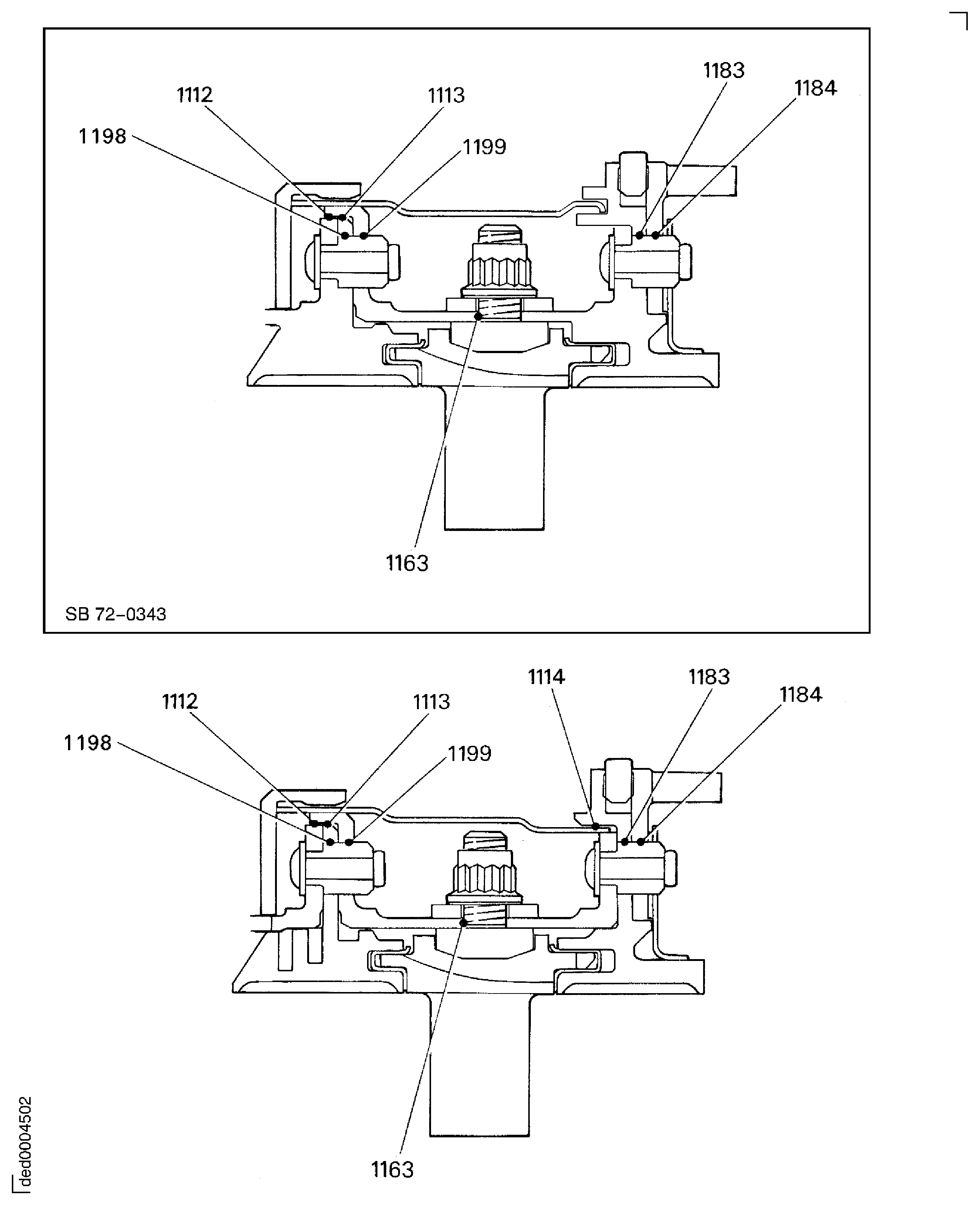

    1. Refer to Figure.

    2. Reference dimensions at Location 1198. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 1. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1198

      Stage 11 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-550)

      Location With The Stage 10 Case Location Dowel HPC Ring Cases And Related Parts (72-41-21, 04-375)

      Stage 11 Rotor Path Ring Location Hole Bore

      0.315

      0.329

      0.010

      Stage 10 Case Location Dowel Outer Diameter

      0.303

      0.026

      0.305

      Table 2. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1198

      Stage 11 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-550)

      Location With The Stage 10 Case Location Dowel HPC Ring Cases And Related Parts (72-41-21, 04-375)

      Stage 11 Rotor Path Ring Location Hole Bore

      8.00

      8.36

      0.25

      Stage 10 Case Location Dowel Outer Diameter

      7.70

      0.66

      7.75

    2. SUBTASK 72-41-20-220-202 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1111 (Pre SBE 72-0343)

    1. Refer to Figure.

    2. Reference dimensions at Location 1111. If required use the data written as a Note in TASKS 72-41-21-200-000.

      Table 3. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1111

      Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)

      Location With The Stage 11 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21,04-550)

      Stage 10 Case Bore

      21.3445

      Intf

      21.346

      0.004

      Stage 11 Rotor Path Ring Front Flange Diameter

      21.350

      0.0105

      21.355

      Table 4. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1111

      Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)

      Location With The Stage 11 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-550)

      Stage 10 Case Bore

      542.15

      Intf

      542.19

      0.11

      Stage 11 Path Ring Front Flange Diameter

      542.30

      0.27

      542.42

    3. SUBTASK 72-41-20-220-203-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1163 (Pre SBE 72-0343)

    1. Refer to Figure.

    2. Reference dimensions at Locations 1163. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 5. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1163

      Stage 11 Stator Vane Stop HPC Ring Cases And Related Parts (72-41-21, 04-590)

      Location In The Stage 11 Case HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Stage 11 Stator Vane Stop Shank Diameter

      0.2474

      0.2494

      0.0010

      Stage 11 Case Stop Location Hole Bore

      0.2504

      0.0061

      0.2535

      Table 6. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1163

      Stage 11 Stator Vane Stop HPC Ring Cases And Related Parts (72-41-21, 04-590)

      Location In The Stage 11 Case HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Stage 11 Stator Vane Stop Shank Diameter

      6.285

      6.335

      0.025

      Shank 11 Case Stop Location Hole Bore

      6.360

      0.155

      6.440

    4. SUBTASK 72-41-20-220-203-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1163 (SBE 72-0343)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

    2. Refer to Figure.

    3. Reference dimensions at Locations 1163. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 7. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1163

      Stage 11 Stator Vane Stop HPC Ring Cases And Related Parts (72-41-21, 04-590)

      Location In The Stage 12 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21,04-600)

      Stage 11 Stator Vane Stop Shank Diameter

      0.2474

      0.2494

      0.0010

      Stage 11 Case Stop Location Hole Bore

      0.2504

      0.0061

      0.2535

      Table 8. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1163

      Stage 11 Stator Vane Stop HPC Ring Cases And Related Parts (72-41-21, 04-590)

      Location In The Stage 12 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21,04-600)

      Stage 11 Stator Vane Stop Shank Diameter

      6.285

      6.335

      0.025

      Shank 11 Case Stop Location Hole Bore

      6.360

      0.155

      6.440

    5. SUBTASK 72-41-20-220-204-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1114 (Pre SBE 72-0343 and Pre SBE 72-0477)

    1. Refer to Figure.

    2. Reference dimensions at Location 1114. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 9. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1114

      Stage 11 Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-520)

      Location With The Stage 12 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-700)

      Stage 11 Heatshield Diameter

      22.4012

      22.4138

      0.0114

      Stage 12 Rotor Path Ring Location Bore

      22.4252

      0.0319

      22.4331

      Table 10. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1114

      Stage 11 Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-520)

      Location With The Stage 12 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-700)

      Stage 11 Heatshield Diameter

      568.99

      569.31

      0.290

      Stage 12 Rotor Path Ring Location Bore

      569.60

      0.810

      569.80

    6. SUBTASK 72-41-20-220-204-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1114 (SBE 72-0343 and Pre SBE 72-0477)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

    2. Refer to Figure.

    3. Reference dimensions at Location 1114. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 11. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1114

      Stage 11 Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-520)

      Location With The Stage 12 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Stage 11 Heatshield Diameter

      22.4012

      22.4138

      0.0114

      Stage 12 Rotor Path Case Assembly Location Bore

      22.4252

      0.0319

      22.4331

      Table 12. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1114

      Stage 11 Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-520)

      Location With The Stage 12 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Stage 11 Heatshield Diameter

      568.99

      569.31

      0.290

      Stage 12 Rotor Path Case Assembly Location Bore

      569.60

      0.810

      569.80

    7. SUBTASK 72-41-20-220-205 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1183 (Pre SBE 72-0343)

    1. Refer to Figure.

    2. Reference dimensions at Location 1183. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 13. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1183

      Stage 12 Rotor Path Ring

      HPC Ring Cases And Related Parts (72-41-21,04-700) Location

      With The Stage 11 Case Location

      Dowel HPC Ring Cases And Related Parts (72-41-21,04-625)

      Stage 12 Rotor Path Ring Location Hole Bore

      0.315

      0.329

      0.010

      Stage 11 Case Location Dowel Diameter

      0.303

      0.026

      0.305

      Table 14. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1183

      Stage 12 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-700)

      Location With The Stage 11 Case Location Dowel HPC Ring Cases And Related Parts (72-41-21, 04-625)

      Stage 12 Rotor Path Ring Location Hole Bore

      8.00

      8.36

      0.25

      Stage 11 Case Location Dowel Diameter

      7.70

      0.66

      7.75

    8. SUBTASK 72-41-20-220-206-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1184 (Pre SBE 72-0343)

    1. Refer to Figure.

    2. Reference dimensions at Location 1184. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 15. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1184

      Cross Key Location Ring HPC Ring Cases And Related Parts (72-41-21, 04-750)

      Location With The Stage 11 Case Location Dowel HPC Ring Cases And Related Parts (72-41-21, 04-625)

      Cross Key Location Ring Location Hole Bore

      0.315

      0.316

      0.010

      Stage 11 Case Location Dowel Diameter

      0.303

      0.013

      0.305

      Table 16. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1184

      Cross Key Location Ring HPC Ring Cases And Related Parts (72-41-21, 04-750)

      Location With The Stage 11 Case Location Dowel HPC Ring Cases And Related Parts (72-41-21, 04-625)

      Cross Key Location Ring Location Hole Bore

      8.000

      8.022

      0.250

      Stage 11 Case Location Dowel Diameter

      7.700

      0.322

      7.750

    9. SUBTASK 72-41-20-220-206-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1184 (SBE 72-0343)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

    2. Refer to Figure.

    3. Reference dimensions at Location 1184. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 17. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1184

      Cross Key Location Ring HPC Ring Cases And Related Parts (72-41-21, 04-750)

      Location With The Stage 12 Rotor Path Case Assembly Location Dowel HPC Ring Cases And Related Parts (72-41-21,04-625)

      Cross Key Location Ring Location Hole Bore

      0.315

      0.316

      0.010

      Stage 12 Rotor Path Case Assembly Location Dowel Diameter

      0.303

      0.013

      0.305

      Table 18. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1184

      Cross Key Location Ring HPC Ring Cases And Related Parts (72-41-21, 04-750)

      Location With The Stage 12 Rotor Path Case Assembly Location Dowel HPC Ring Cases And Related Parts (72-41-21, 04-625)

      Cross Key Location Ring Location Hole Bore

      8.000

      8.022

      0.250

      Stage 12 Rotor Path Case Assembly Location Dowel Diameter

      7.700

      0.322

      7.750

    10. SUBTASK 72-41-20-220-207 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1164 (Pre SBE 72-0343)

    1. Refer to Figure.

    2. Reference dimensions at Location 1164. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 19. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1164

      Stage 11 Case HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Location With The Stage 12 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-700)

      Stage 11 Case Bore

      21.2992

      Intf

      21.3024

      0.004

      Stage 12 Rotor Path Ring Diameter

      21.3063

      0.010

      21.3094

      Table 20. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1164

      Stage 11 Case HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Location With The Stage 12 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-700)

      Stage 11 Case Bore

      541.00

      Intf

      541.08

      0.10

      Stage 12 Rotor Path Ring Diameter

      541.18

      0.26

      541.26

    11. SUBTASK 72-41-20-220-208-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1167 (Pre SBE 72-0343)

    1. Refer to Figure.

    2. Reference dimensions at Location 1167. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 21. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1167

      Cross Key Location Ring HPC Ring Cases And Related Parts (72-41-21, 04-750)

      Location With The Stage 12 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-700)

      Cross Key Location Ring Bore

      21.414

      21.417

      0.0000

      Stage 12 Rotor Path Ring Diameter

      21.417

      Intf

      21.421

      0.007

      Table 22. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1167

      Cross Key Location Ring HPC Ring Cases And Related Parts (72-41-21, 04-750)

      Location With The Stage 12 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-700)

      Cross Key Location Ring Bore

      543.92

      543.99

      0.00

      Stage 12 Rotor Path Ring Diameter

      543.99

      Intf

      544.09

      0.17

    12. SUBTASK 72-41-20-220-208-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1167 (SBE 72-0343)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

    2. Refer to Figure.

    3. Reference dimensions at Location 1167. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 23. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1167

      Cross Key Location Ring HPC Ring Cases And Related Parts (72-41-21, 04-750)

      Location With The Stage 12 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Cross Key Location Ring Bore

      21.414

      21.417

      0.0000

      Stage 12 Rotor Path Case Assembly Diameter

      21.417

      Intf

      21.421

      0.007

      Table 24. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1167

      Cross Key Location Ring HPC Ring Cases And Related Parts (72-41-21, 04-750)

      Location With The Stage 12 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Cross Key Location Ring Bore

      543.99

      0.00

      543.99

      Intf

      Stage 12 Rotor Path Case Assembly Diameter

      544.09

      0.17

      543.99

      0.00

    13. SUBTASK 72-41-20-220-209-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1116 (Pre SBE 72-0343)

    1. Refer to Figure.

    2. Reference dimensions at Location 1116. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 25. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1116

      Sealing Ring HPC Ring Cases And Related Parts (72-41-21, 04-745)

      Location With The Stage 12 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-700)

      Sealing Ring Width

      0.1565

      0.1585

      0.0006

      Stage 12 Rotor Path Ring Dimension

      0.1591

      0.0035

      0.1601

      Table 26. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1116

      Sealing Ring HPC Ring Cases And Related Parts (72-41-21, 04-745)

      Location With The Stage 12 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-700)

      Sealing Ring Width

      3.975

      4.025

      0.015

      Stage 12 Rotor Path Ring Dimension

      4.040

      0.091

      4.066

    14. SUBTASK 72-41-20-220-209-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1116 (SBE 72-0343)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

    2. Refer to Figure.

    3. Reference dimesions at Location 1116. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 27. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1116

      Sealing Ring HPC Ring Cases And Related Parts (72-41-21, 04-745)

      Location With The Stage 12 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Sealing Ring Width

      0.1565

      0.1585

      0.0006

      Stage 12 Rotor Path Case Assembly Dimension

      0.1591

      0.0035

      0.1601

      Table 28. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1116

      Sealing Ring HPC Ring Cases And Related Parts (72-41-21, 04-745)

      Location With The Stage 12 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Sealing Ring Width

      3.975

      4.025

      0.015

      Stage 12 Rotor Path Case Assembly Dimension

      4.040

      0.091

      4.066

    15. SUBTASK 72-41-20-220-210-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1112 (Pre SBE 72-0343)

    1. Refer to Figure.

    2. Reference dimensions at Location 1112. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 29. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1112

      Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)

      Location With The Stage 11 Case HPC Ring Cases And Related Parts (72-41-21,04-600)

      Stage 10 Case Rear Outer Flange Diameter

      22.5354

      22.5433

      0.0177

      Stage 11 Case Front Flange Bore

      22.5610

      0.0295

      22.5650

      Table 30. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1112

      Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)

      Location With The Stage 11 Case HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Stage 10 Case Rear Outer Flange Diameter

      572.40

      572.60

      0.45

      Stage 11 Case Front Flange Bore

      573.05

      0.75

      573.15

    16. SUBTASK 72-41-20-220-210-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1112 (SBE 72-0343)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

    2. Refer to Figure.

    3. Reference dimensions at Location 1112. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 31. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1112

      Stage 11 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-350)

      Location With The Stage 12 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Stage 11 Rotor Path Case Assembly Rear Outer Flange Diameter

      22.5354

      22.5433

      0.0177

      Stage 12 Rotor Path Case Assembly Front Flange Bore

      22.5610

      0.0295

      22.5650

      Table 32. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1112

      Stage 11 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-350)

      Location With The Stage 12 Rotor Path Case Assembly

      Stage 11 Rotor Path Case Assembly Rear Outer Flange Diameter

      572.40

      572.60

      0.45

      Stage 12 Rotor Path Case Assembly Front Flange Bore

      573.05

      0.75

      573.15

    17. SUBTASK 72-41-20-220-211 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1113 (Pre SBE 72-0343)

    1. Refer to Figure.

    2. Reference dimensions at Location 1113. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 33. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1113

      Stage 11 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-700)

      Location With The Stage 11 Case HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Stage 11 Rotor Path Ring Diameter

      22.5354

      22.5433

      0.0177

      Stage 11 Case Front Flange Bore

      22.5610

      0.0295

      22.5650

      Table 34. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1113

      Stage 11 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-700)

      Location With The Stage 11 Case HPC Ring Cases And Related Parts (72-41-21,04-600)

      Stage 11 Rotor Path Ring Diameter

      572.40

      572.60

      0.45

      Stage 11 Case Front Flange Bore

      573.05

      0.75

      573.15

    18. SUBTASK 72-41-20-220-212-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1165 (Pre SBE 72-0343)

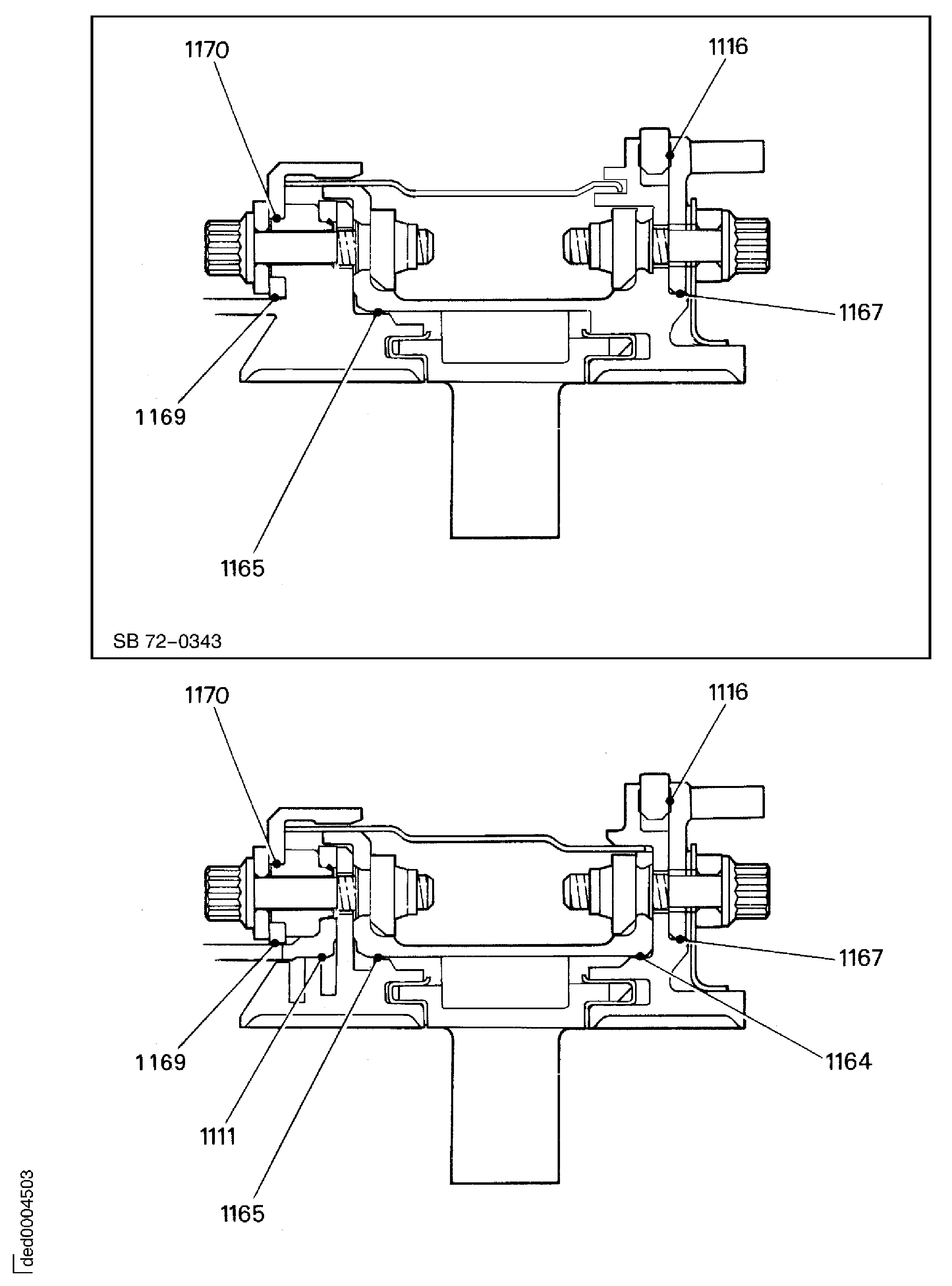

    1. Refer to Figure.

    2. Reference dimensions at Location 1165. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 35. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1165

      Stage 11 Case HPC Ring Cases And Related Parts (72-41-21,04-600)

      Location With The Stage 11 Rotor Path Ring (72-41-21, 04-550)

      Stage 11 Case Inner Bore

      21.3445

      Intf

      21.3476

      0.0036

      Stage 11 Rotor Path Ring Spiggot Diameter

      21.3512

      0.0098

      21.3543

      Table 36. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1165

      Stage 11 Case HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Location With The Stage 11 Rotor Path Ring (72-41-21, 04-550)

      Stage 11 Case Inner Bore

      542.15

      Intf

      542.23

      0.09

      Stage 11 Rotor Path Ring Spiggot Diameter

      542.32

      0.25

      542.40

    19. SUBTASK 72-41-20-220-212-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1165 (SBE 72-0343)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

    2. Refer to Figure.

    3. Reference dimensions at Location 1165. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 37. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1165

      Stage 12 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Location With The Stage 11 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-350)

      Stage 12 Rotor Path Case

      Assembly Inner Bore

      21.3445

      Intf

      21.3476

      0.0036

      Stage 11 Rotor Path Case Assembly Spiggot Diameter

      21.3512

      0.0098

      21.3543

      Table 38. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1165

      Stage 12 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Location With The Stage 11 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-350)

      Stage 12 Rotor Path Case Assembly Inner Bore

      542.15

      Intf

      542.23

      0.09

      Stage 11 Rotor Path Case Assembly Spiggot Diameter

      542.32

      0.25

      542.40

    20. SUBTASK 72-41-20-220-213-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1199 (Pre SBE 72-0343)

    1. Refer to Figure.

    2. Reference dimensions at Location 1199. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 39. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1199

      Stage 11 Case HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Location With The Stage 10 Case Location Dowel HPC Ring Cases And Related Parts (72-41-21, 04-375)

      Stage 11 Case Location Hole Bore

      0.315

      0.316

      0.010

      Stage 10 Case Location Dowel Diameter

      0.303

      0.013

      0.305

      Table 40. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1199

      Stage 11 Case HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Location With The Stage 10 Case Location Dowel HPC Ring Cases And Related Parts (72-41-21,04-375)

      Stage 11 Case Location Hole Bore

      8.000

      8.022

      0.250

      Stage 10 Case Location Dowel Diameter

      7.700

      0.322

      7.750

    21. SUBTASK 72-41-20-220-213-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1199 (SBE 72-0343)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

    2. Refer to Figure.

    3. Reference dimensions at Location 1199. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 41. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1199

      Stage 12 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Location With The Stage 11 Rotor Path Case Assembly Location Dowel HPC Ring Cases And Related Parts (72-41-21, 04-375)

      Stage 12 Rotor Path Case Assembly Location Hole Bore

      0.315

      0.316

      0.010

      Stage 11 Rotor Path Case Assembly Location Dowel Diameter

      0.303

      0.013

      0.305

      Table 42. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1199

      Stage 12 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-600)

      Location With The Stage 11 Rotor Path Case Assembly Location Dowel HPC Ring Cases And Related Parts (72-41-21, 04-375)

      Stage 12 Rotor Path Case Assembly Location Hole Bore

      8.000

      8.022

      0.250

      Stage 11 Rotor Path Case Assembly Location Dowel Diameter

      7.700

      0.322

      7.750

    22. SUBTASK 72-41-20-220-214-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1169 (Pre SBE 72-0343 and Pre SBE 72-0477)

    1. Refer to Figure.

    2. Reference dimensions at Location 1169. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 43. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1169

      Stage 10 Rear Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-450)

      Location With The Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)

      Stage 10 Rear Heatshield Bore

      21.4764

      21.4882

      0.0059

      Stage 10 Case Diameter

      21.4626

      0.0256

      21.4705

      Table 44. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1169

      Stage 10 Rear Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-450)

      Location With The Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)

      Stage 10 Rear Heatshield Bore

      545.50

      545.80

      0.15

      Stage 10 Case Diameter

      545.15

      0.65

      545.35

    23. SUBTASK 72-41-20-220-214-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1169 (SBE 72-0343 and Pre SBE 72-0477)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

    2. Refer to Figure.

    3. Reference dimensions at Location 1169. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 45. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1169

      Stage 10 Rear Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-450)

      Location With The Stage 11 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21, 04-350)

      Stage 10 Rear Heatshield Bore

      21.4764

      21.4882

      0.0059

      Stage 11 Rotor Path Case Assembly Diameter

      21.4626

      0.0256

      21.4705

      Table 46. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1169

      Stage 10 Rear Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-450)

      Location With The Stage 11 Rotor Path Case Assembly HPC Ring Cases And Related Parts (72-41-21,04-350)

      Stage 10 Rear Heatshield Bore

      545.50

      545.80

      0.15

      Stage 11 Rotor Path Case Assembly Diameter

      545.15

      0.65

      545.35

    24. SUBTASK 72-41-20-220-215-A00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1170 (Pre SBE 72-0343 and Pre SBE 72-0477)

    1. Refer to Figure.

    2. Reference dimensions at Location 1170. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 47. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1170

      Stage 10 Case Rear Spacer HPC Ring Cases And Related Parts (72-41-21, 03-514)

      Location With The Stage 10 Rear Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-450)

      Stage 10 Case Rear Spacer Diameter

      0.3161

      0.3164

      0.0005

      Stage 10 Rear Heatshield Spacer Hole Bore

      0.3169

      0.0031

      0.3192

      Table 48. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1170

      Stage 10 Case Rear Spacer HPC Ring Cases And Related Parts (72-41-21, 03-514)

      Location With The Stage 10 Rear Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-450)

      Stage 10 Case Rear Spacer Diameter

      8.028

      8.037

      0.013

      Stage 10 Rear Heatshield Spacer Hole Bore

      8.050

      0.080

      8.108

    25. SUBTASK 72-41-20-220-215-B00 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1170 (SBE 72-0343 and Pre SBE 72-0477)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

    2. Refer to Figure.

    3. Refrence dimensions at Location 1170. If required use the data written as a Note in TASK 72-41-21-200-000.

      Table 49. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1170

      Stage 11 Rotor Path Case Assembly Rear Spacer HPC Ring Cases And Related Parts (72-41-21, 03-514)

      Location With The Stage 10 Rear Heatshield HPC Ring Cases And Related Parts (72-41-21,04-450)

      Stage 11 Rotor Path Case Assembly Rear Spacer Diameter

      0.3161

      0.3164

      0.0005

      Stage 10 Rear Heatshield Spacer Hole Bore

      0.3169

      0.0031

      0.3192

      Table 50. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1170

      Stage 11 Rotor Path Case Assembly Rear Spacer HPC Ring Cases And Related Parts (72-41-21, 03-514)

      Location With The Stage 10 Rear Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-450)

      Stage 11 Rotor Path Case Assembly Rear Spacer Diameter

      8.028

      8.037

      0.013

      Stage 10 Rear Heatshield Spacer Hole Bore

      8.050

      0.080

      8.108

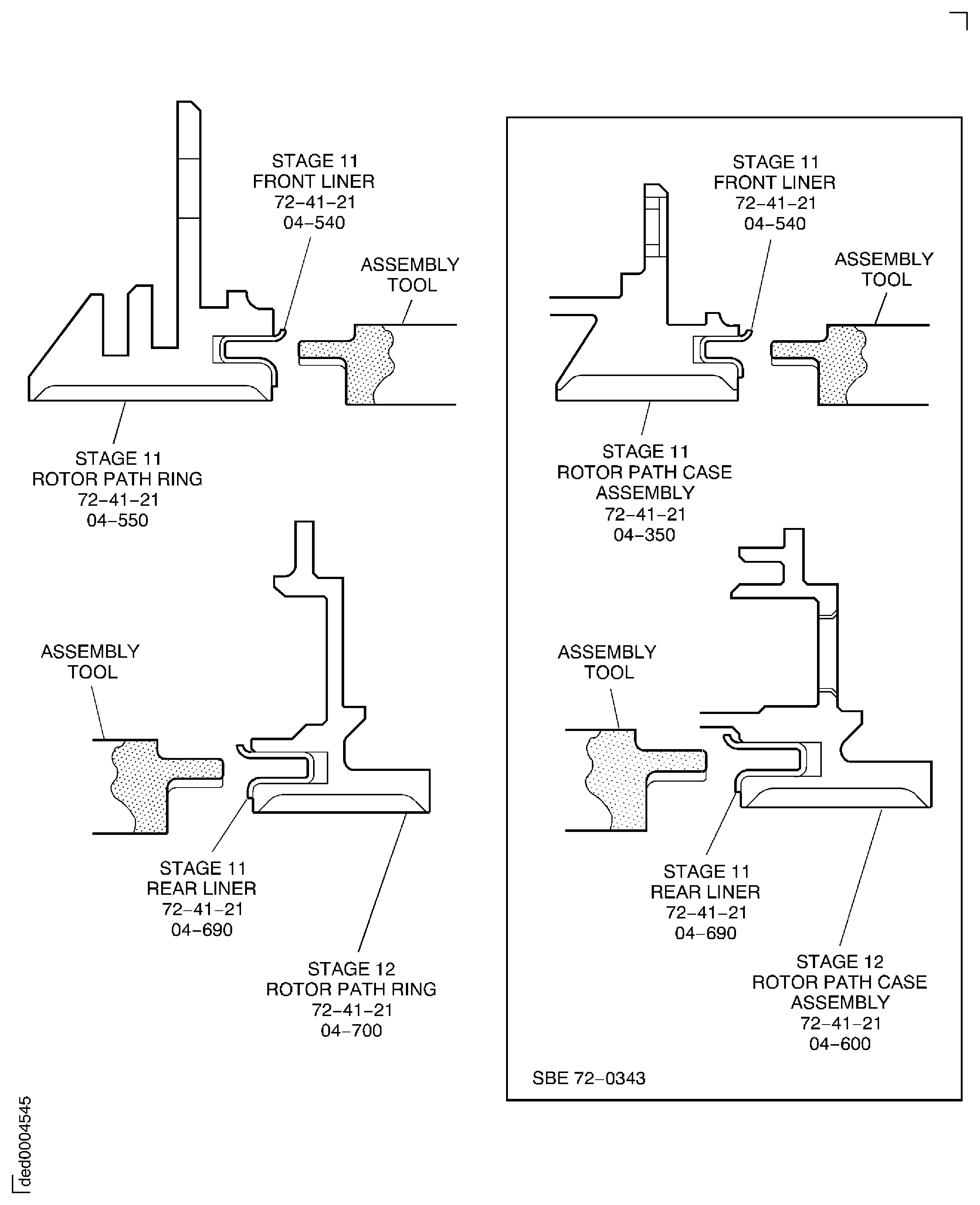

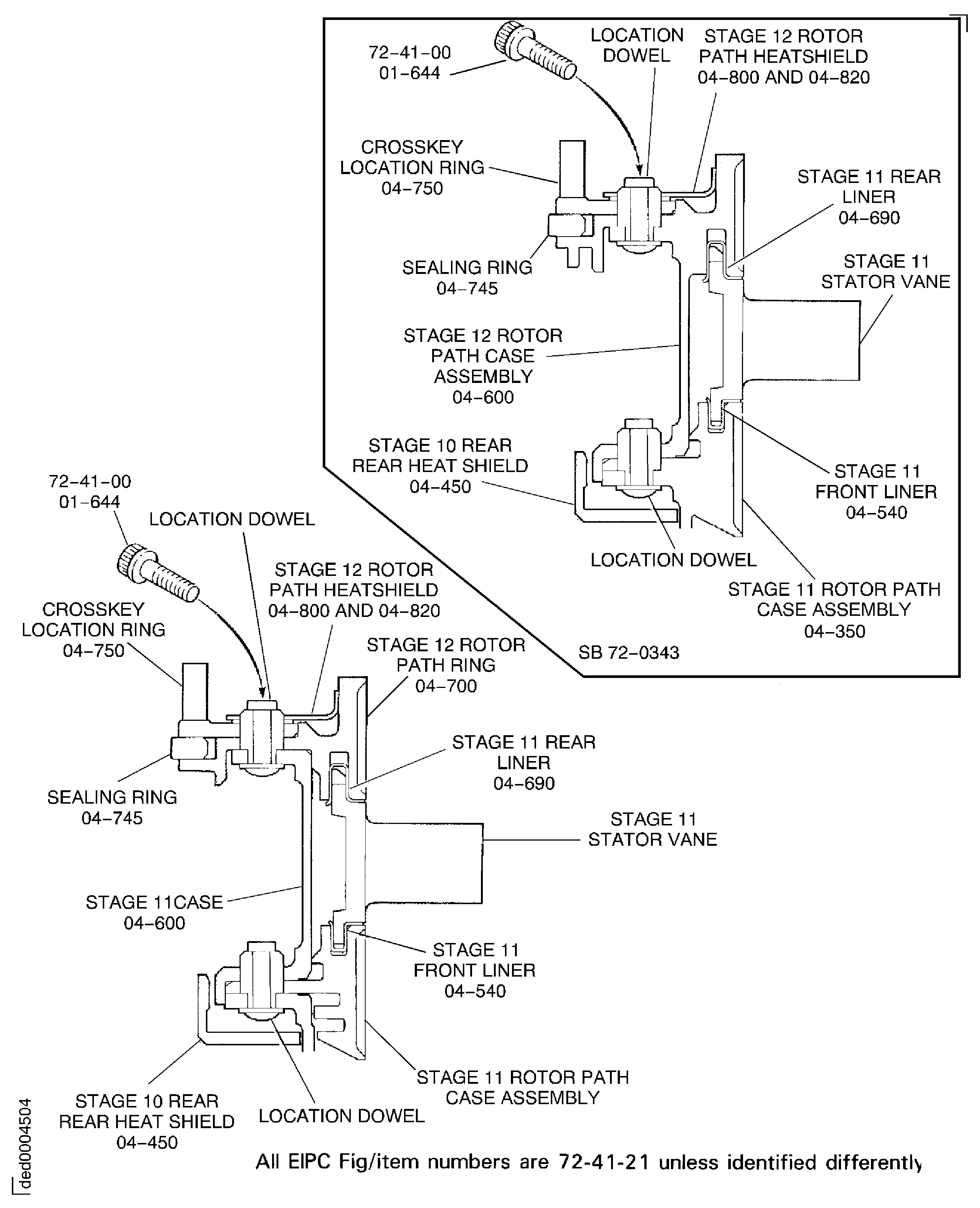

    26. SUBTASK 72-41-20-440-166 Install the Stage 11 Stator Vane Front and Rear Liners Pre SBE 72-0343 and SBE 72-0343

    1. Refer to Figure.

      2. Pre SBE 72-0343: Install the new HPC Ring Cases And Related Parts (72-41-21, 04-540) stage 11 front liner1 off, in to the slot in the rear flange of the stage 11 rotor path ring.

      1. Put the stage 11 rotor path ring front flange down on a clean work surface.

      2. Use IAE 1R19693 Assembly tool 1 off to install the stage 11 front liner. Make sure the liner touches the stage 11 rotor path ring rear flange.

      3. Measure and write down a record of the stage 11 front liner split line clearance. The split line clearance must be 0.185 in. to 0.217 in. (4.70 mm to 5.50 mm).

      3. SBE 72-0343: Install the new HPC Ring Cases And Related Parts (72-41-21, 04-540) stage 11 front liner1 off, in to the slot in the rear flange of the stage 11 rotor path case assembly.

      1. Put the stage 11 rotor path case assembly front flange down on a clean work surface.

      2. Use IAE 1R19693 Assembly tool 1 off to install the stage 11 front liner. Make sure the liner touches the stage 11 rotor path case assembly rear flange.

      3. Measure and write down a record of the stage 11 front liner split line clearance. The split line clearance must be 0.185 in. to 0.217 in. (4.70 mm to 5.50 mm).

      4. Pre SBE 72-0343: Install the new HPC Ring Cases And Related Parts (72-41-21, 04-690) stage 11 rear liner 1 off, in to the slot in the front flange of the stage 12 rotor path ring.

      1. Put the stage 12 rotor path ring HPC Ring Cases And Related Parts (72-41-21, 04-700) rear flange down on to a clean work surface.

      2. Use IAE 1R19694 Assembly tool 1 off to install the new HPC Ring Cases And Related Parts (72-41-21, 04-690) stage 11 rear liner. Make sure the liner touches the stage 12 rotor path ring front flange.

      3. Measure and write down a record of the liner split line clearance. This must be 0.185 in. to 0.217 in. (4.70 mm to 5.50 mm).

      5. SBE 72-0343: Install the new HPC Ring Cases And Related Parts (72-41-21, 04-690) stage 11 rear liner 1 off, in to the slot in the front flange of the stage 12 rotor path case assembly.

      1. Put the stage 12 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 04-600) rear flange down on to a clean work surface.

      2. Use IAE 1R19694 Assembly tool 1 off to install the new HPC Ring Cases And Related Parts (72-41-21, 04-690) stage 11 rear liner. Make sure the liner touches the stage 12 rotor path case assembly front flange.

      3. Measure and write down a record of the liner split line clearance. This must be 0.185 in. to 0.217 in. (4.70 mm to 5.50 mm).

    27. SUBTASK 72-41-20-440-167 Install the Stage 11 Rotor Path Ring (Pre SBE 72-0343)

    1. Refer to Figure.

      2. Install the stage 11 rotor path ring HPC Ring Cases And Related Parts (72-41-21, 04-550).

      1. Install the heating blanket on to the stage 10 case HPC Ring Cases And Related Parts (72-41-21, 04-350) rear flange.

      2. Heat the stage 10 case to 167 deg F to 212 deg F (75 deg.C to 100 deg.C).

      3. Remove the heating blanket.

      4. WARNING

        YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE STAGE 10 CASE.

        Align the location dowel hole in the stage 11 rotor path ring with location dowel in the stage 10 case.

      5. Install the stage 11 rotor path ring on to the stage 10 case and stator vanes. Engage the stage 10 stator vanes rear platforms in the liner in the front of the stage 11 rotor path ring.

      6. Install eight slave bolts and nuts to attach the stage 11 rotor path ring to the stage 10 case. Install the bolts from the stage 10 case rear flange. Space them at equal distances around the flange.

      7. Tighten the nuts in the correct sequence to pull the stage 11 rotor path ring to the stage 10 case.

      8. Let the assembly become cool.

    28. SUBTASK 72-41-20-440-192 Install the Stage 11 Rotor Path Case Assembly to the Stage 10 Rotor Path Case Assembly (SBE 72-0343)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

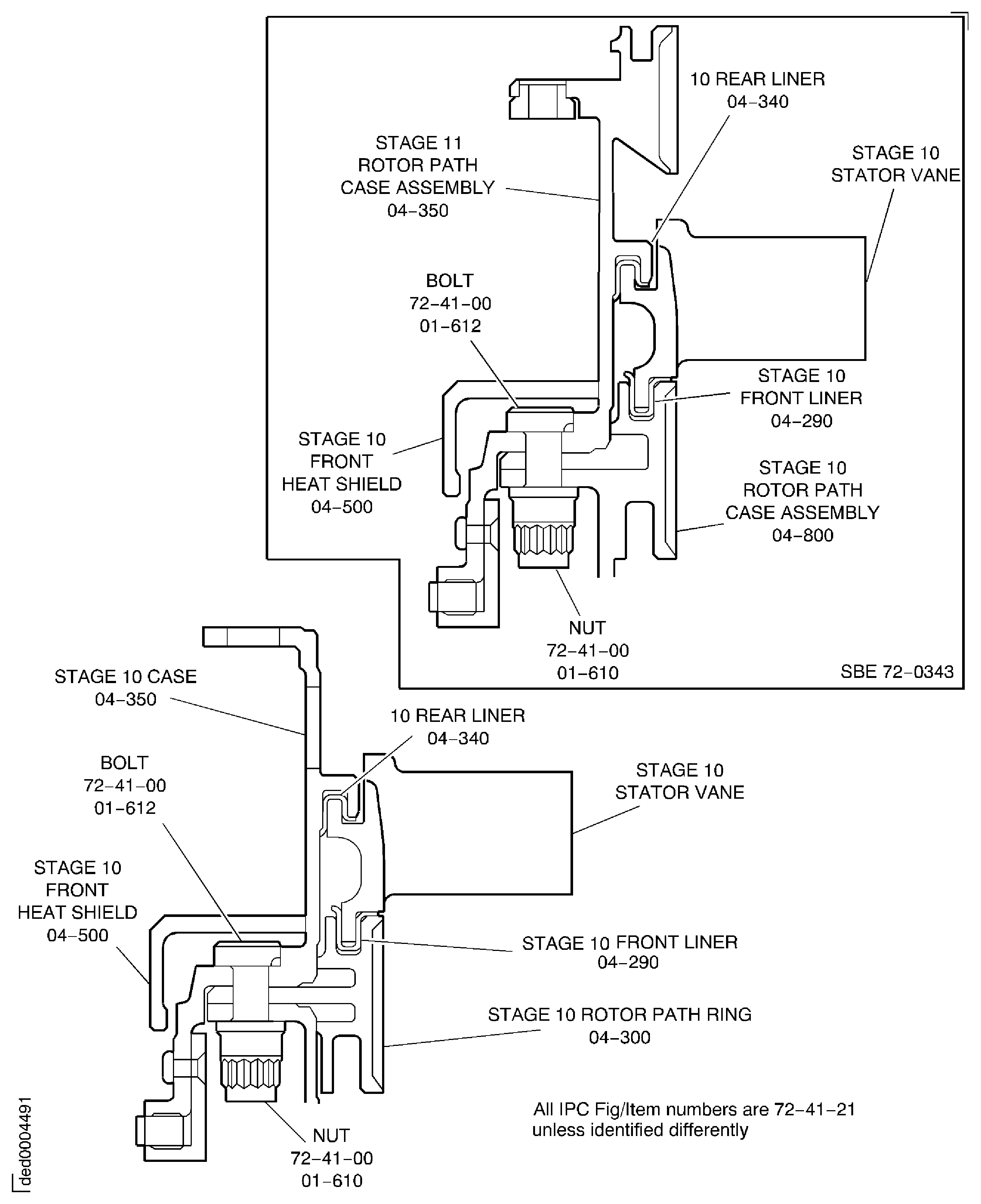

    2. Refer to Figure.

      3. Install the stage 11 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 4-350).

      1. Install the heating blanket on to the stage 11 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 4-350) rear flange.

      2. Heat the stage 11 rotor path case assembly to 167 deg F to 212 deg F (75 deg.C to 100 deg.C).

      3. Remove the heating blanket.

      4. WARNING

        YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE STAGE 11 ROTOR PATH CASE ASSEMBLY.

        Align the location dowel hole in the stage 10 rotor path case assembly with location dowel in the stage 11 rotor path case assembly.

      5. Install the stage 10 rotor path case assembly on to the stage 11 rotor path case assembly and stator vanes. Engage the stage 10 stator vanes rear platforms in the liner in the front of the stage 10 rotor path case assembly.

      6. Install eight slave bolts and nuts to attach the stage 10 rotor path case assembly to the stage 11 rotor path case assembly. Install the bolts from the stage 11 rotor path case assembly rear flange. Space them at equal distances around the flange.

      7. Tighten the nuts in the correct sequence to pull the stage 10 rotor path case assembly to the stage 11 rotor path case assembly.

      8. Let the assembly become cool.

    29. SUBTASK 72-41-20-440-168-A00 Install the Stator Vane Stops in the Stage 11 Case (Pre SBE 72-0343)

    1. Refer to Figure.

      2. Install the stage 11 stator vane stops HPC Ring Cases And Related Parts (72-41-21,04-590) in to the stage 11 case HPC Ring Cases And Related Parts (72-41-21, 4-600).

      1. Put one of the stage 11 stator vane stops in to the position in the stage 11 case.

      2. Use the IAE 1R18501 Stop alignment tool 1 off and align the stage 11 stator vane stop in the stage 11 case.

      3. Install a washer HPC Ring Cases And Related Parts (72-41-21,04-589) and a nut HPC Ring Cases And Related Parts (72-41-21, 4-588) on to the stage 11 stator vane stop.

      4. Torque the nut to 85 lbfin to 105 lbfin (10.00 Nm 12.00 Nm).

      5. Remove the stop aligning tool.

      6. Install the three remaining stage 11 stator vane stops as given in Step to Step.

    30. SUBTASK 72-41-20-440-168-B00 Install the Stator Vane Stops in the Stage 12 Rotor Path Case Assembly (SBE 72-0343)

    1. Refer to Figure.

    2. SBE 72-0343: Engine - HP Compressor ring cases - Introduction of integral HP Compressor cases and rotor paths.

      3. Install the stage 11 stator vane stops HPC Ring Cases And Related Parts (72-41-21, 04-590) in to the stage 12 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 04-600).

      1. Put one of the stage 11 stator vane stops in to the position in the stage 12 rotor path case assembly.

      2. Use theIAE 1R18501 Stop alignment tool 1 off and align the stage 11 stator vane stop in the stage 12 rotor path case assembly .

      3. Install a washer HPC Ring Cases And Related Parts (72-41-21, 04-589) and a nut HPC Ring Cases And Related Parts (72-41-21, 04-588) on to the stage 11 stator vane stop.

      4. Torque the nut to 85 lbfin to 105 lbfin (10.00 Nm to 12.00 Nm).

      5. Remove the stop aligning tool.

      6. Install the three remaining stage 11 stator vane stops as given in Step to Step.

    31. SUBTASK 72-41-20-440-169-A00 Install the Stage 11 Case (Pre SBE 72-0343)

    1. Refer to Figure.

    2. Remove the eight slave nuts and bolts which attach the stage 11 rotor path ring HPC Ring Cases And Related Parts (72-41-21,04-550) to the stage 10 case HPC Ring Cases And Related Parts (72-41-21,04-350).

    3. Put the stage 11 case HPC Ring Cases And Related Parts (72-41-21,04-600) rear flange down on a clean work surface.

    4. Install the heating blanket on to the stage 11 case.

    5. Heat the stage 11 case to 167 deg F to 212 deg F (75 deg C to 100 deg C).

    6. Remove the heating blanket.

    7. WARNING

      YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE STAGE 11 CASE.

      Install the stage 11 case on to the stage 11 rotor path ring and stage 10 case. Align the dowel hole in the stage 11 case with the location dowel in the stage 10 case.

    8. Install eight slave nuts and bolts through the assembly joint flange. Space them at equal distances around the flange. Install the bolts from the stage 10 case flange.

    9. Tighten the nuts in the correct sequence to pull the stage 11 case on to the stage 11 rotor path ring.

    10. Let the assembly become cool then remove the eight slave nuts and bolts.

    32. SUBTASK 72-41-20-440-169-B00 Install the Stage 12 Rotor Path Case Assembly (SBE 72-0343)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

    2. Refer to Figure.

    3. Put the stage 12 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21,04-600) rear flange down on a clean work surface.

    4. Install the heating blanket on to the stage 12 rotor path case assembly.

    5. Heat the stage 12 rotor path case assembly to 167 deg F to 212 deg F (75 deg C to 100 deg C).

    6. Remove the heating blanket.

    7. WARNING

      YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE STAGE 12 ROTOR PATH CASE ASSEMBLY.

      Install the stage 12 rotor path case assembly on to the stage 11 rotor path case assembly. Align the dowel hole in the stage 12 rotor path case assembly with the location dowel in the stage 11 rotor path case assembly .

    8. Install eight slave nuts and bolts through the assembly joint flange. Space them at equal distances around the flange. Install the bolts from the stage 11 rotor path case assembly flange.

    9. Tighten the nuts in the correct sequence to pull the stage 12 rotor path case assembly on to the stage 11 rotor path case assembly .

    10. Let the assembly become cool then remove the eight slave nuts and bolts.

    33. SUBTASK 72-41-20-440-170-A00 Install the Flange Nuts and Bolts and the Stage 10 Rear Heatshield (Pre SBE 72-0343, SBE 72-0343 and Pre SBE 72-0477)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths

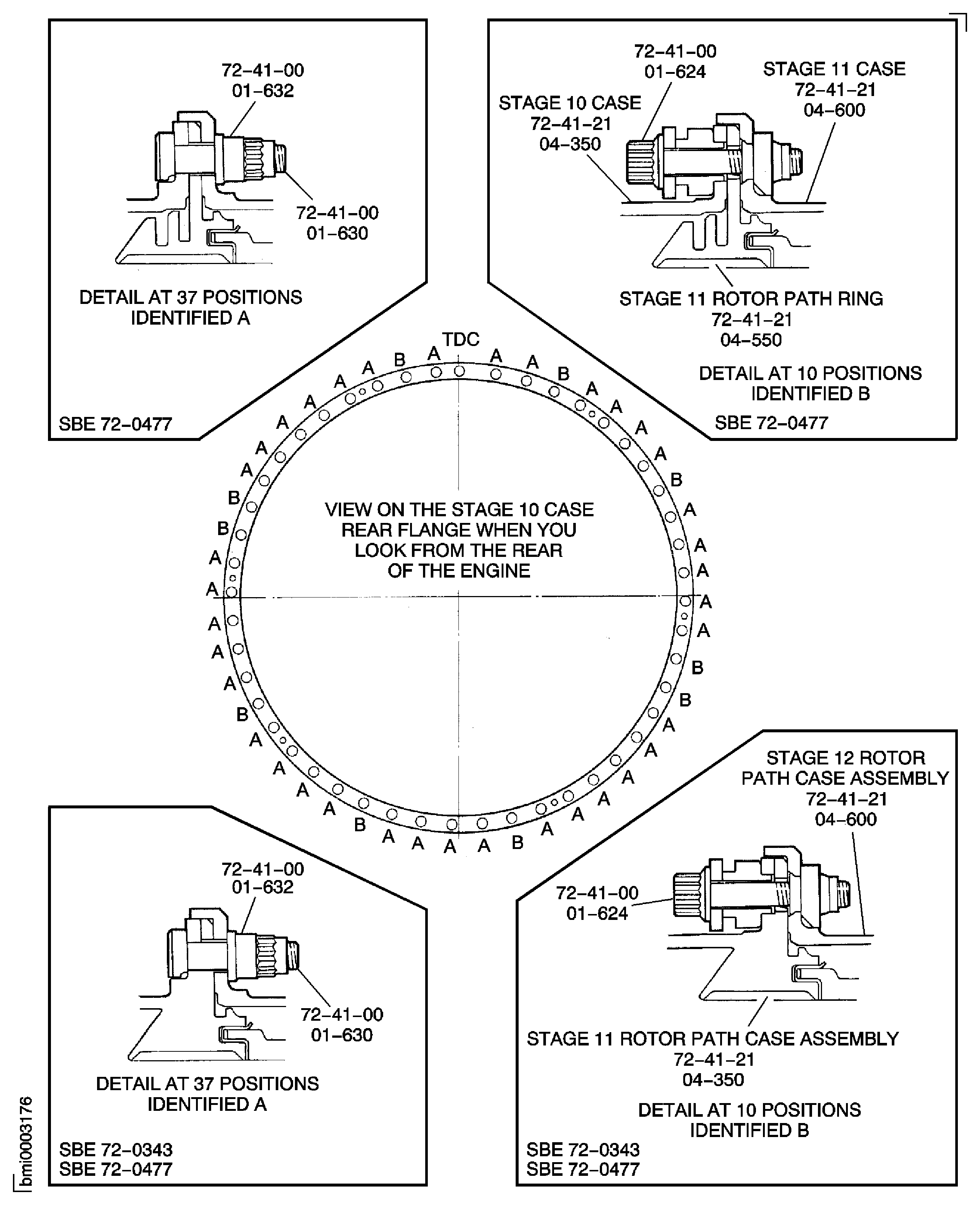

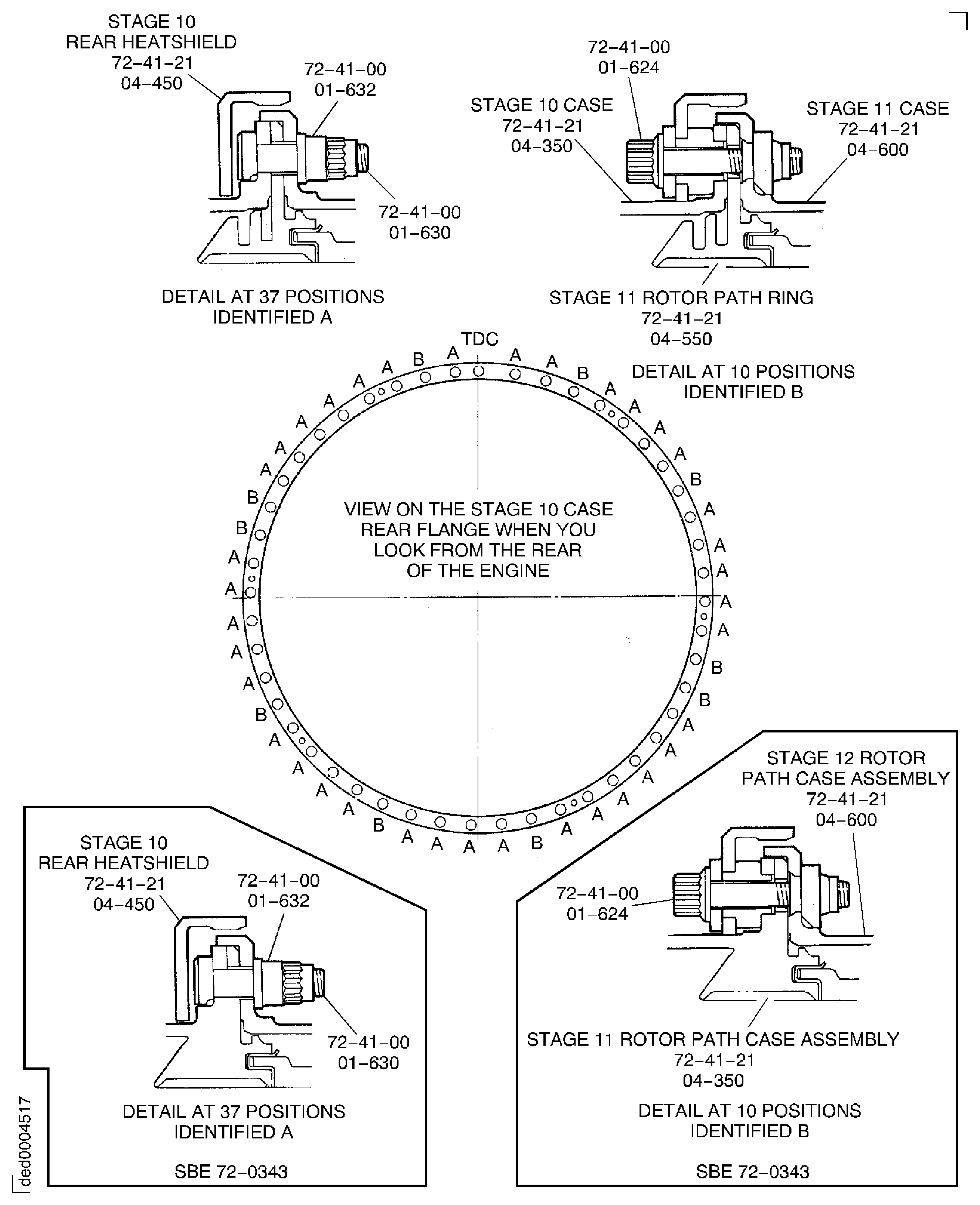

    2. Refer to Figure.

      3. Install the flange nuts and bolts.

      1. Pre SBE 72-0343: Install the 37 dee-headed bolts HPC Assembly (72-41-00,01-632) from the stage 10 case HPC Ring Cases And Related Parts (72-41-21,04-350) rear flange. Refer to the detail identified A. Make sure the bolts are correctly located on the stage 10 case rear flange.

      2. SBE 72-0343: Install the 37 dee-headed bolts HPC Assembly (72-41-00,01-632) from the stage 11 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21,04-350) rear flange. Refer to the detail identified A. Make sure the bolts are correctly located on the stage 11 rotor path case assembly rear flange.

      3. Install the 37 nuts HPC Assembly (72-41-00,01-630) on to the bolts.

      4. Torque the nuts in the correct sequence to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).

      4. Install the stage 10 rear heatshield HPC Ring Cases And Related Parts (72-41-21,04-450).

      1. Pre SBE 72-0343:Put the two halves of the stage 10 rear heatshield in to position on the stage 10 case. Locate the heatshield on the spacers and make sure the end plates are correctly located.

      2. SBE 72-0343:Put the two halves of the stage 10 rear heatshield in to position on the stage 11 rotor path case assembly. Locate the heatshield on the spacers and make sure the end plates are correctly located.

      3. Pre SBE 72-0343:Install the 10 bolts HPC Assembly (72-41-00,01-624) from the stage 10 case rear flange. Refer to the detail identified B.

      4. SBE 72-0343:Install the 10 bolts HPC Assembly (72-41-00,01-624) from the stage 11 rotor path case assembly rear flange. Refer to the detail identified B.

      5. Torque the bolts in the correct sequence to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).

    34. SUBTASK 72-41-20-440-170-B00 Install the Flange Nuts and Bolts (Pre SBE 72-0343, SBE 72-0343 and SBE 72-0477)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths

      SBE 72-0477: Engine - HP compressor ring cases - Deletion of the stage 8 to 11 heatshields

    2. Refer to Figure.

      3. Install the flange nuts and bolts.

      1. Pre SBE 72-0343:Install the 37 dee-headed bolts HPC Assembly (72-41-00,01-632) from the stage 10 case HPC Ring Cases And Related Parts (72-41-21,04-350) rear flange. Refer to the detail identified A. Make sure the bolts are correctly located on the stage 10 case rear flange.

      2. SBE 72-0343:Install the 37 dee-headed bolts HPC Assembly (72-41-00,01-632) from the stage 11 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21,04-350) rear flange. Refer to the detail identified A. Make sure the bolts are correctly located on the stage 11 rotor path case assembly rear flange.

      3. Install the 37 nuts HPC Assembly (72-41-00,01-630) on to the bolts.

      4. Torque the nuts in the correct sequence to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).

    35. SUBTASK 72-41-20-440-171 Install the Stage 11 Stator Vanes (Pre SBE 72-0441 and SBE 72-0441)

    1. SBE 72-0441: Deletion of retaining vanes.

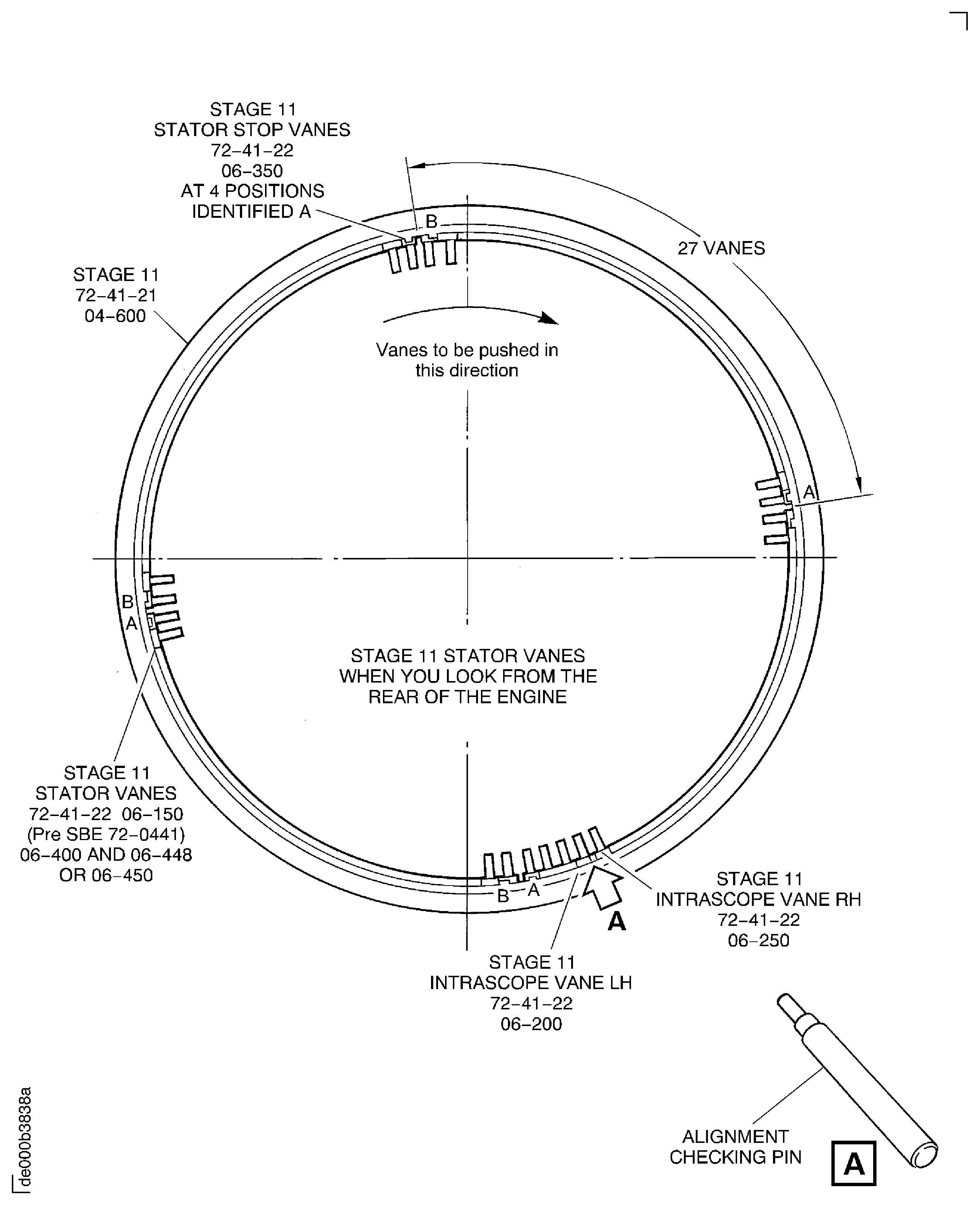

    2. Refer to Figure, Figure and Figure.

      3. Install the stage 11 stop vanes HPC Stator Vanes (72-41-22,06-350).

      1. Pre SBE 72-0343: Install the four stage 11 stop vanes in to the stage 11 rotor path ring HPC Ring Cases And Related Parts (72-41-21,04-550) at the stage 11 stator vane stops HPC Ring Cases And Related Parts (72-41-21,04-590). Engage the vanes in the stage 11 rotor path ring. Make sure the stage 11 stator vane stops are engaged in the slots in the stage 11 stop vanes.

      2. SBE 72-0343: Install the four stage 11 stop vanes in to the stage 11 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21,04-350) at the stage 11 stator vane stops HPC Ring Cases And Related Parts (72-41-21,04-590). Engage the vanes in the stage 11 rotor path case assembly. Make sure the stage 11 stator vane stops are engaged in the slots in the stage 11 stop vanes.

      3. Push each of the stage 11 stop vanes forward until the vane platform touches the stage 11 front liner HPC Ring Cases And Related Parts (72-41-21,04-540).

      4. Push each stage 11 stop vane in a clockwise direction until the slot in the vane platform touches the stage 11 stator vane stop.

      4. Install the stage 11 stator vanes.

      1. Pre SBE 72-0343: Install the vanes in a clockwise direction. Engage each of the vanes in the stage 11 rotor path ring. Make sure the platform of the first vane that is installed touches the platform of the stage 11 stop vane. Push each subsequent vane clockwise as it is installed until the vane platforms touch.

      2. SBE 72-0343: Install the vanes in a clockwise direction. Engage each of the vanes in the stage 11 rotor path case assembly. Make sure the platform of the first vane that is installed touches the platform of the stage 11 stop vane. Push each subsequent vane clockwise as it is installed until the vane platforms touch.

      3. Push each vane forward until the vane platform touches the stage 11 front liner.

        4. Install the stage 11 stator vanes between the two stage 11 stop vanes adjacent to the 11 o'clock and 2 o'clock positions. Use the subsequent sequence.

        1. Install two stage 11 stator vanes HPC Stator Vanes (72-41-22,06-400).

        2. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-448).

        3. Install two stage 11 stator vanes HPC Stator Vanes (72-41-22,06-400).

        4. Install one stage 11 undersize vane HPC Stator Vanes (72-41-22,06-450).

        5. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-400).

        6. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-448).

        7. Install two stage 11 stator vanes HPC Stator Vanes (72-41-22,06-400).

        8. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-448).

        9. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-400).

        10. Install one stage 11 undersize vane HPC Stator Vanes (72-41-22,06-450).

        11. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-400).

        12. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-448).

        13. Install two stage 11 stator vanes HPC Stator Vanes (72-41-22,06-400).

        14. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-448).

        15. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-400).

        16. Install one stage 11 undersize vane HPC Stator Vanes (72-41-22,06-450).

        17. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-400).

        18. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-448).

        19. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-400).

        20. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-448).

        21. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-400).

        22. Install two stage 11 stator vanes HPC Stator Vanes (72-41-22,06-400).

        23. Install one stage 11 retaining stator vane HPC Stator Vanes (72-41-22,06-150).

      5. Install the stage 11 stator vanes (72-41-22,06-150 (Pre SBE 72-0441)), HPC Stator Vanes (72-41-22,06-400), HPC Stator Vanes (72-41-22,06-448) and HPC Stator Vanes (72-41-22,06-450) between the stage 11 stop vanes adjacent to the 5 o'clock and 8 o'clock positions, and between the stage 11 stop vanes adjacent to the 8 o'clock and 11 o'clock positions. Use the sequence given in step (4).

        6. Install the stage 11 stator vanes between the two stage 11 stop vanes adjacent to the 2 o'clock and 5 o'clock positions. Use the subsequent sequence.

        1. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-400).

        2. Install one stage 11 stator vanes HPC Stator Vanes (72-41-22,06-448).

        3. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-400).

        4. Install the stage 11 left hand intrascope stator vane HPC Stator Vanes (72-41-22,06-200).

        5. Install the stage 11 right hand intrascope stator vane HPC Stator Vanes (72-41-22,06-250).

        6. Install two stage 11 stator vanes HPC Stator Vanes (72-41-22,06-400).

        7. Install one stage 11 stator vanes HPC Stator Vanes (72-41-22,06-448).

        8. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-400).

        9. Install one stage 11 undersize stator vane HPC Stator Vanes (72-41-22,06-450).

        10. Install one stage 11 stator vanes HPC Stator Vanes (72-41-22,06-448).

        11. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-400).

        12. Install one stage 11 stator vanes HPC Stator Vanes (72-41-22,06-448).

        13. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-400).

        14. Install one stage 11 undersize vane HPC Stator Vanes (72-41-22,06-450).

        15. Install one stage 11 stator vane HPC Stator Vanes (72-41-22,06-400).

        16. Install one stage 11 stator vanes HPC Stator Vanes (72-41-22, 06-448).

        17. Install one stage 11 stator vane HPC Stator Vanes (72-41-22, 06-400).

        18. Install one stage 11 stator vanes HPC Stator Vanes (72-41-22, 06-448).

        19. Install one stage 11 stator vane HPC Stator Vanes (72-41-22, 06-400).

        20. Install one stage 11 undersize vane HPC Stator Vanes (72-41-22, 06-450).

        21. Install two stage 11 stator vanes HPC Stator Vanes (72-41-22,06-400).

        22. Install one stage 11 stator vanes HPC Stator Vanes (72-41-22,06-448).

        23. Pre SBE 72-0441: Install one stage 11 stator vane HPC Stator Vanes (72-41-22, 06-400).

        24. Install two stage 11 stator vanes HPC Stator Vanes (72-41-22,06-400).

        25. Install one stage 11 retaining stator vane HPC Stator Vanes (72-41-22,06-150).

      7. Install IAE 1R18213 Alignment checking pin alignment checking pin 1 off through the stage 11 case borescope access hole. Make sure the alignment checking pin easily goes in to the intrascope vanes hole.

    36. SUBTASK 72-41-20-440-172 Install the Stage 12 Rotor Path Ring (Pre SBE 72-0343)

    1. Refer to Figure.

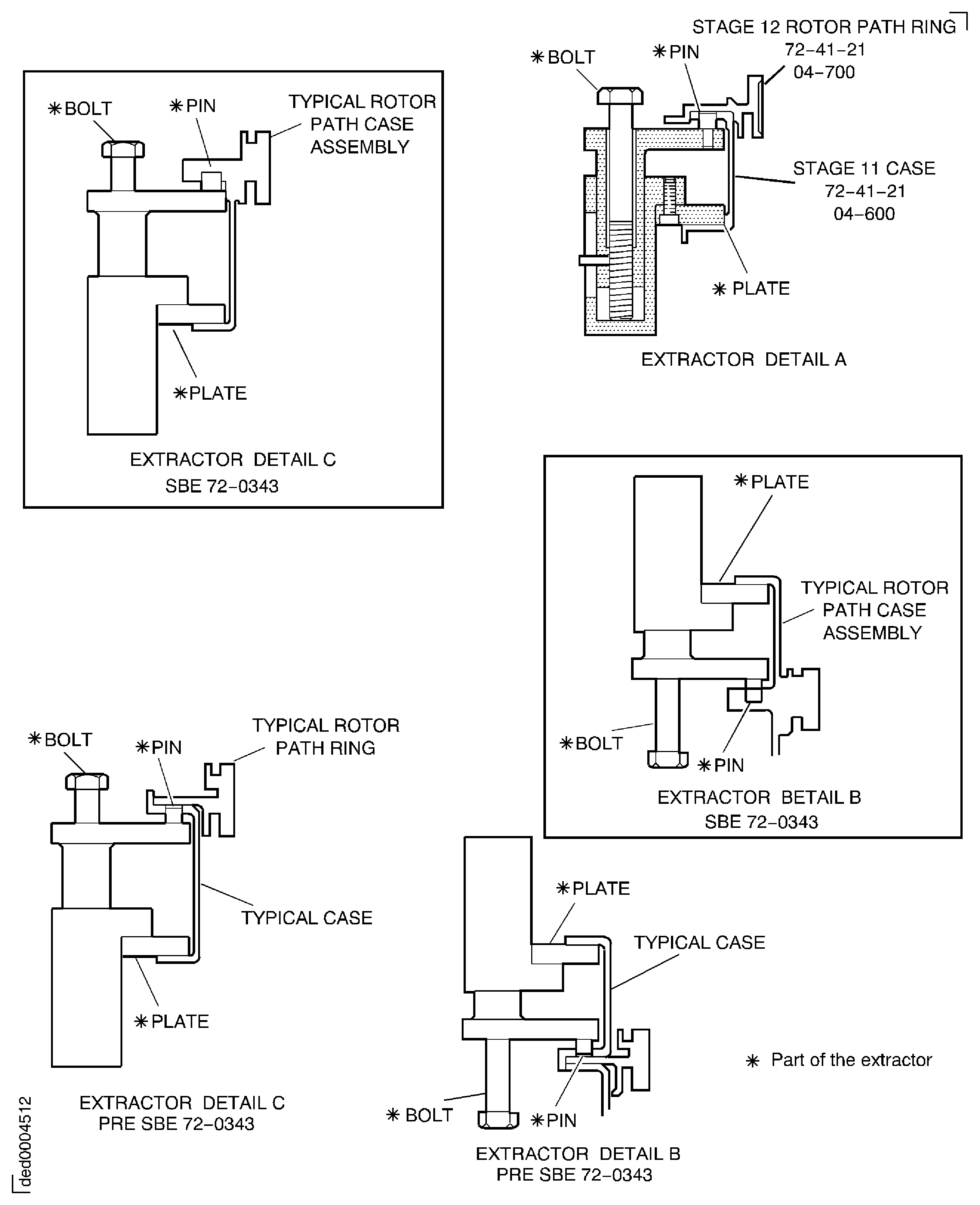

    2. Install the heating blanket on to the stage 11 case HPC Ring Cases And Related Parts (72-41-21,04-600).

    3. Heat the stage 11 case to 167 deg F to 212 deg F (75 deg C to 100 deg C).

    4. Remove the heating blanket.

    5. WARNING

      YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE STAGE 11 CASE.

      Lift the stage 12 rotor path ring HPC Ring Cases And Related Parts (72-41-21,04-700) on to the stage 11 case. Align the location dowel hole in the stage 12 rotor path ring with the location dowel in the stage 11 case.

    6. Install eight slave bolts to attach the stage 12 rotor path ring to the stage 11 case. Install the bolts from the stage 12 rotor path ring rear flange. Space them at equal distances around the flange.

    7. Tighten the bolts in the correct sequence to push the stage 12 rotor path ring on to the stage 11 case.

    8. Let the assembly become cool.

    9. Do a check to make sure all the stator vanes can be moved in their locations. Any stator vane which cannot be moved must be replaced.

    37. SUBTASK 72-41-20-440-173 Measure the Interplatform Clearances

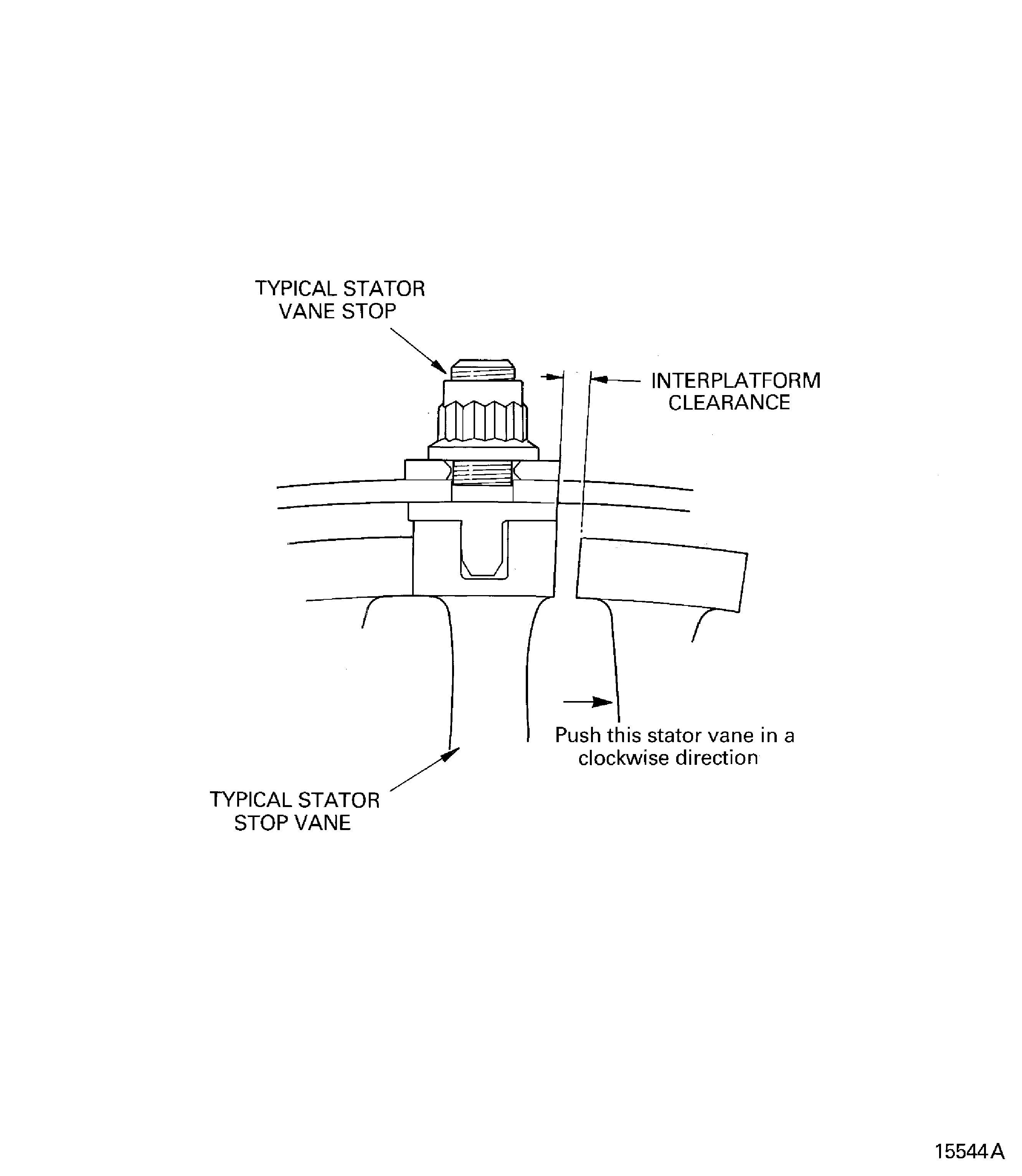

    1. Refer to Fig. 72-41-20-990-112.

      2. Measure and write down a record of the interplatform clearances at the stage 11 stop vanes. Measure all four clearances.

      1. At a stage 11 retaining stator vane adjacent to a stage 11 stop vane, push in a clockwise direction.

      2. Measure and write down a record of the clearance between the stop vane and the stator vane platforms. This must be 0.100 in. to 0.120 in. (2.60 mm to 3.00 mm).

      3. NOTE

        1. If the interplatform clearances are correct continue with SUBTASK 72-41-20-440-175.

        2. If the interplatform clearances are not correct continue with SUBTASK 72-41-20-440-174.

        Do Step and Step at the remaining three stage 11 stop vanes.

    38. SUBTASK 72-41-20-440-174-A00 Install the Stage 11 Undersize Vanes (Pre SBE 72-0343)

      NOTE

      To get the specified interplatform clearance at the four stage 11 stop vanes HPC Stator Vanes (72-41-22,06-350) use the stage 11 undersize vanes HPC Stator Vanes (72-41-22,06-450).
      A maximum of ten undersize vanes can be used between the two adjacent stop vanes. These must be set at equal distances between the stop vanes.

    1. Refer to Figure, Figure, Figure and Figure.

    2. Remove the eight slave nuts and bolts which attach the stage 12 rotor path ring HPC Ring Cases And Related Parts (72-41-21,04-700) to the stage 11 case HPC Ring Cases And Related Parts (72-41-21,04-600).

      3. Remove the stage 12 rotor path ring.

      1. Use IAE 1R18827 Extractor 3 off to remove the stage 12 rotor path ring.

      2. Engage the pins of the extractors in the extraction holes in the stage 11 case rear flange.

      3. Adjust the bolts of the extractors until the plates touch the stage 11 case rear flange.

      4. Continue to turn the bolts to remove the stage 12 rotor path ring. Turn the bolts in sequence by a small equal quantity to remove the stage 12 rotor path ring.

    4. CAUTION

      UNDERSIZE VANES MUST NOT BE INSTALLED ADJACENT TO THE STOP VANES, THE RETAINING VANES, THE INTRASCOPE VANES OR OTHER UNDERSIZE VANES.

      CAUTION

      UNDERSIZE VANES MUST NOT BE INSTALLED BETWEEN THE STAGE 11 INTRASCOPE VANES AND THE STAGE 11 STOP VANE ADJACENT TO THE 6 O'CLOCK POSITION.

      Remove the stage 11 stator vanes HPC Stator Vanes (72-41-22,06-448) and install the stage 11 undersize vanes as necessary. One stage 11 undersize vane will give an increase or decrease in the interplatform clearance of 0.016 in. (0.40 mm).

    39. SUBTASK 72-41-20-440-174-B00 Install the Stage 11 Undersize Vanes (SBE 72-0343)

      NOTE

      To get the specified interplatform clearance at the four stage 11 stop vanes HPC Stator Vanes (72-41-22,06-350) use the stage 11 undersize vanes HPC Stator Vanes (72-41-22,06-450).
      A maximum of ten undersize vanes can be used between the two adjacent stop vanes. These must be set at equal distances between the stop vanes.

    1. SBE 72-0343: Engine - HP Compressor ring cases - Introduction of integral HP Compressor cases and rotor paths.

    2. Refer to Figure, Figure, Figure and Figure.

    3. Remove the eight slave nuts and bolts which attach the stage 12 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21,04-600) to the stage 11 path case assembly HPC Ring Cases And Related Parts (72-41-21,04-350).

    4. Remove the stage 12 rotor path case assembly.

    5. CAUTION

      UNDERSIZE VANES MUST NOT BE INSTALLED ADJACENT TO THE STOP VANES, THE RETAINING VANES, THE INTRASCOPE VANES OR OTHER UNDERSIZE VANES.

      CAUTION

      UNDERSIZE VANES MUST NOT BE INSTALLED BETWEEN THE STAGE 11 INTRASCOPE VANES AND THE STAGE 11 STOP VANE ADJACENT TO THE 6 O'CLOCK POSITION.

      Remove the stage 11 stator vanes HPC Stator Vanes (72-41-22,06-448) and install the stage 11 undersize vanes as necessary. One stage 11 undersize vane will give an increase or decrease in the interplatform clearance of 0.016 in. (0.40 mm).

    40. SUBTASK 72-41-20-440-175-A00 Install the Stage 11 Heatshield and the Stage 12 Rotor Path Ring (Pre SBE 72-0343 and Pre SBE 72-0477)

    1. Refer to Figure.

    2. Remove the stage 12 rotor path ring as given in SUBTASK 72-41-20-440-174.

      3. Install the stage 11 heatshield HPC Ring Cases And Related Parts (72-41-21,04-520).

      1. Locate the stage 11 heatshield between the stage 10 rear heatshield HPC Ring Cases And Related Parts (72-41-21,04-450) and the stage 11 case HPC Ring Cases And Related Parts (72-41-21,04-600).

    4. Install the stage 12 rotor path ring HPC Ring Cases And Related Parts (72-41-21,04-700) as given in Step.

    5. Measure and write down a record of the interplatform clearances at the four stage 11 stop vanes as given in Step.

    6. Remove the eight slave nuts and bolts which attach the stage 12 rotor path ring to the stage 11 case.

    41. SUBTASK 72-41-20-440-175-B00 Install the Stage 11 Heatshield and the Stage 12 Rotor Path Case Assembly (SBE 72-0343 and Pre SBE 72-0477)

    1. SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

    2. Refer to Figure.

      3. Install the stage 11 heatshield HPC Ring Cases And Related Parts (72-41-21, 04-520).

      1. Locate the stage 11 heatshield between the stage 10 rear heatshield HPC Ring Cases And Related Parts (72-41-21,04-450) and the stage 12 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21,04-600).

    4. Measure and write down a record of the interplatform clearances at the four stage 11 stop vanes as given in Step.

    42. SUBTASK 72-41-20-440-176-A00 Install the Sealing Ring, the Cross Key Location Ring and the Stage 12 Rotor Path Ring Heatshields (Pre SBE 72-0280 and Pre SBE 72-0343)

    1. Refer to Figureand Figure.

    2. Locate the sealing ring HPC Ring Cases And Related Parts (72-41-21,04-745) on the stage 12 rotor path ring HPC Ring Cases And Related Parts (72-41-21,04-700).

      3. Install the cross key location ring HPC Ring Cases And Related Parts (72-41-21,04-750).

      1. Put the cross key location ring front flange down on a clean work surface.

      2. Install the heating blanket on to the cross key location ring.

      3. Heat the cross key location ring to 167 deg F to 212 deg F (75 deg C to 100 deg C).

      4. Remove the heating blanket.

      5. WARNING

        YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE CROSS KEY LOCATION RING.

        Install the cross key location ring on to the stage 12 rotor path ring. Align the dowel hole in the cross key location ring with the location dowel in the stage 11 case.

      6. Install eight slave bolts through the assembly joint flange. Space them at equal distances around the flange.

      7. Tighten the bolts in the correct sequence to push the cross key location ring on the the stage 12 rotor path ring.

      8. Let the assembly become cool then remove the eight slave bolts.

      4. Install the stage 12 LH and RH rotor path heatshields HPC Ring Cases And Related Parts (72-41-21,04-800) and HPC Ring Cases And Related Parts (72-41-21,04-820).

      1. Align the slot at the top of stage 12 RH rotor path heatshield with the location dowel in the stage 11 case.

      2. Install the stage 12 RH rotor path heatshield on to the stage 12 rotor path ring.

      3. Install the stage 12 LH rotor path heatshield on to the stage 12 rotor path ring. Make sure the lug on the stage 12 RH rotor path heatshield goes behind the stage 12 LH rotor path heatshield. The lug on the stage 12 LH rotor path heatshield goes behind the stage 12 RH rotor path heatshield.

      4. Install the 47 bolts HPC Assembly (72-41-00,01-644) through the heatshields and stage 12 rotor path ring. Lightly tighten the bolts.

      5. Adjust the positions of the heatshields so that the split line clearances are equal.

      6. Torque the 47 bolts in the correct sequence to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).

    43. SUBTASK 72-41-20-440-176-B00 Install the Sealing Ring, the Cross Key Location Ring and the Stage 12 Rotor Path Case Assembly Heatshields (SBE 72-0280 and SBE 72-0343)

    1. SBE 72-0280: Engine HP compressor ring cases - Introduction of HPC system with stage 12 heatshields deleted.

      SBE 72-0343: Engine - HP compressor ring cases - Introduction of integral HP compressor cases and rotor paths.

    2. Refer to Figure and Figure.

    3. Locate the sealing ring HPC Ring Cases And Related Parts (72-41-21,04-745) on the stage 12 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21,04-600).

      4. Install the cross key location ring HPC Ring Cases And Related Parts (72-41-21,04-750).

      1. Put the cross key location ring front flange down on a clean work surface.

      2. Install the heating blanket on to the cross key location ring.

      3. Heat the cross key location ring to 167 deg F to 212 deg F (75 deg C to 100 deg C).

      4. Remove the heating blanket.

      5. WARNING

        YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE CROSS KEY LOCATION RING.

        Install the cross key location ring on to the stage 12 rotor path case assembly. Align the dowel hole in the cross key location ring with the location dowel in the stage 12 rotor path case assembly.

      6. Install eight slave bolts through the assembly joint flange. Space them at equal distances around the flange.

      7. Tighten the bolts in the correct sequence to push the cross key location ring on the stage 12 rotor path case assembly.

      8. Let the assembly become cool then remove the eight slave bolts.

      5. Install the 47 bolts HPC Assembly (72-41-00, 01-644).

      1. Install the 47 bolts through the stage 12 rotor path ring. Lightly torque the bolts.

      2. Torque the 47 bolts, in the correct sequence to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).

    44. Figure: Pre SBE 72-0343: View Through the HP Compressor Rear Cases and Vanes

    Sheet 1

    Legend
    Pre SBE 72-0343: View Through the HP Compressor Rear Cases and Vanes

    Sheet 1

    Close

    Figure: SBE 72-0343: View Through the HP Compressor Rear Cases and Vanes

    Sheet 2

    Legend
    SBE 72-0343: View Through the HP Compressor Rear Cases and Vanes

    Sheet 2

    Close

    Figure: SBE 72-0343 and Pre SBE 72-0477: The Locations for the Fits and Clearances

    Sheet 1

    Legend
    SBE 72-0343 and Pre SBE 72-0477: The Locations for the Fits and Clearances

    Sheet 1

    Close

    Figure: SBE 72-0343 and SBE 72-0477: The Locations for the Fits and Clearances

    Sheet 2

    Legend
    SBE 72-0343 and SBE 72-0477: The Locations for the Fits and Clearances

    Sheet 2

    Close

    Figure: SBE 72-0343 and Pre SBE 72-0477: The Locations for the Fits and Clearances

    Sheet 3

    Legend
    SBE 72-0343 and Pre SBE 72-0477: The Locations for the Fits and Clearances

    Sheet 3

    Close

    Figure: SBE 72-0343 and SBE 72-0477: The Locations for the Fits and Clearances

    Sheet 4

    Legend
    SBE 72-0343 and SBE 72-0477: The Locations for the Fits and Clearances

    Sheet 4

    Close

    Figure: Install the Stage 11 Stator Vane Front and Rear Liners

    Install the Stage 11 Stator Vane Front and Rear Liners

    Figure: Install the Stage 11 Stator Vane Stops

    Install the Stage 11 Stator Vane Stops

    Figure: SBE 72-0343 and Pre SBE 72-0477: Install the Flange Nuts and Bolts and Stage 10 Rear Heatshield

    Sheet 1

    Legend
    SBE 72-0343 and Pre SBE 72-0477: Install the Flange Nuts and Bolts and Stage 10 Rear Heatshield

    Sheet 1

    Close

    Figure: SBE 72-0343 and SBE 72-0477: Install the Flange Nuts and Bolts

    Sheet 2

    Legend
    SBE 72-0343 and SBE 72-0477: Install the Flange Nuts and Bolts

    Sheet 2

    Close

    Figure: SBE 72-0343 and Pre SBE 72-0477: Install the Stage 11 Stator Vanes

    Sheet 1

    Legend
    SBE 72-0343 and Pre SBE 72-0477: Install the Stage 11 Stator Vanes

    Sheet 1

    Close

    Figure: SBE 72-0343 and SBE 72-0477: Install the Stage 11 Stator Vanes

    Sheet 2

    Legend
    SBE 72-0343 and SBE 72-0477: Install the Stage 11 Stator Vanes

    Sheet 2

    Close

    Figure: Install the Stage 11 Stator Vanes

    Sheet 3

    Legend
    Install the Stage 11 Stator Vanes

    Sheet 3

    Close

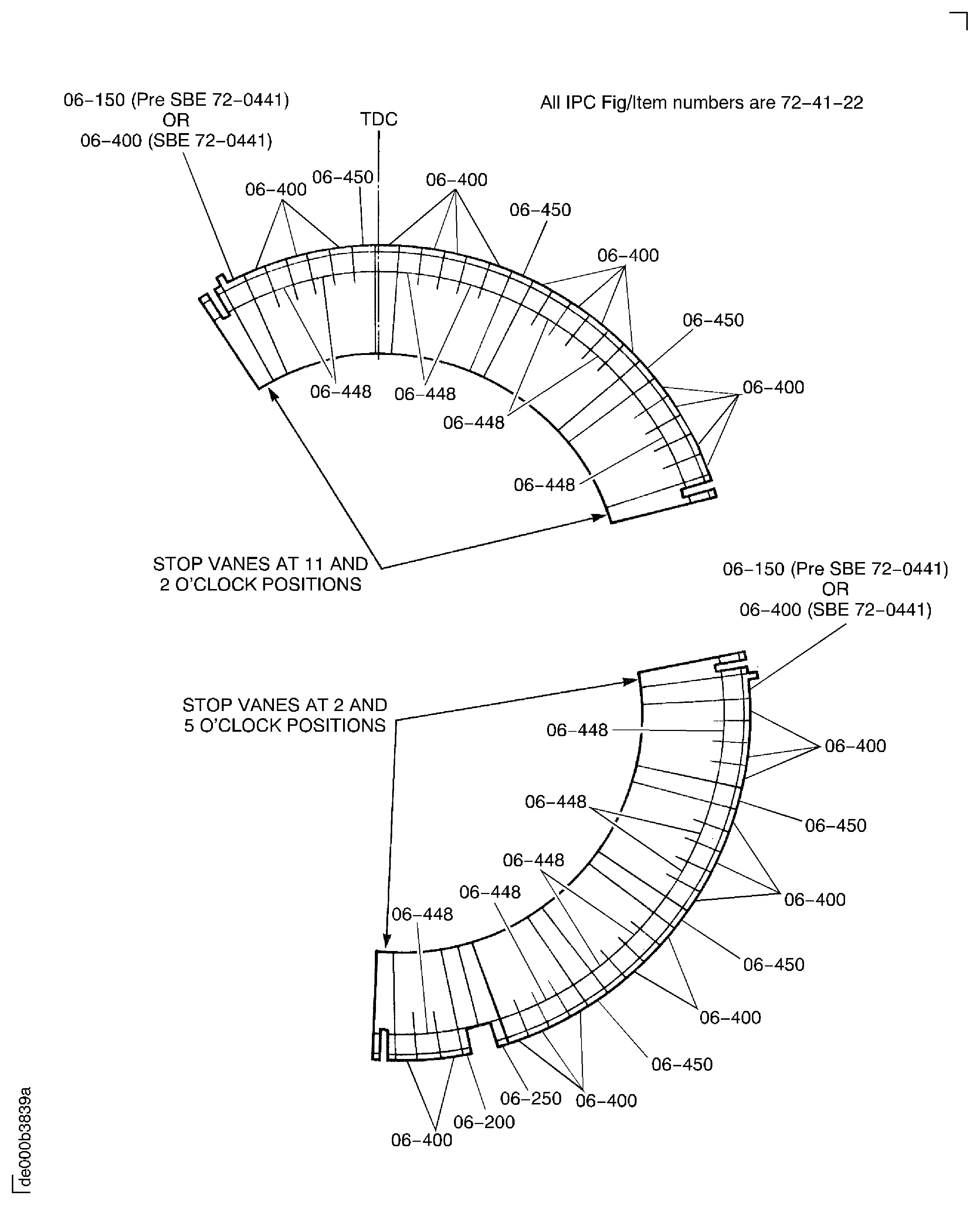

    Figure: Install the Stage 11 Stator Vanes

    Sheet 4

    Legend
    Install the Stage 11 Stator Vanes

    Sheet 4

    Close

    Figure: Measure the Stator Vane Interplatform Clearances

    Measure the Stator Vane Interplatform Clearances

    Figure: Remove the Stage 12 Rotor Path Ring

    Remove the Stage 12 Rotor Path Ring

    Figure: Pre SBE 72-0477 and Pre SBE 72-0280: Install the Stage 12 Rotor Path Heatshields

    Pre SBE 72-0477 and Pre SBE 72-0280: Install the Stage 12 Rotor Path Heatshields

    Figure: SBE 72-0343 and Pre SBE 72-0477: Install the Stage 11 Rotor Path Ring

    Sheet 1

    Legend
    SBE 72-0343 and Pre SBE 72-0477: Install the Stage 11 Rotor Path Ring

    Sheet 1

    Close

    Figure: SBE 72-0343 and SBE 72-0477: Install the Stage 11 Rotor Path Ring

    Sheet 2

    Legend
    SBE 72-0343 and SBE 72-0477: Install the Stage 11 Rotor Path Ring

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure to update fits and clearances limits. (19VG205)

Link not Found
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Link not Found
Link not Found
Manufacturer Code:00BB6
Supply Number:CoMat 07-038
Type:sp01
Supply Short Name:CoMat 07-038 AIR DRYING ENAMEL
Supply Name:CoMat 07-038 AIR DRYING ENAMEL
Specification Groups:
Doc NumberType
OMAT:7/22B (RR REF)IP9138 R1
JCR-029 (JAEC REF)
Suppliers:
ManufacturerRemarks
00BB6
K3504
Manufacturer Code:X333X
Supply Number:CoMat 10-077A
Type:sp01
Supply Short Name:CoMat 10-077A APPROVED ENGINE OIL
Supply Name:CoMat 10-077A APPROVED ENGINE OIL
Specification Groups:
Doc NumberType
DELETED
Suppliers:
ManufacturerRemarks
X333X
Manufacturer Code:LOCAL
Tool Number:Heating blanket
Tool Name:Heating blanket
Manufacturer Code:0AM53
Tool Number:IAE 1R18213
Tool Name:IAE 1R18213 Alignment checking pin
Manufacturer Code:0AM53
Tool Number:IAE 1R18501
Tool Name:IAE 1R18501 Stop alignment tool
Manufacturer Code:0AM53
Tool Number:IAE 1R18827
Tool Name:IAE 1R18827 Extractor
Manufacturer Code:0AM53
Tool Number:IAE 1R19693
Tool Name:IAE 1R19693 Assembly tool
Manufacturer Code:0AM53
Tool Number:IAE 1R19694
Tool Name:IAE 1R19694 Assembly tool
