TASK 72-32-00-430-010-C00 LPC/Intermediate Case Module - Install The LPC Booster Stage Assembly On To The LPC/Intermediate Case Module, Assembly-010

DMC:V2500-A0-72-32-0000-10B-710A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-00-430-010-C00 LPC/Intermediate Case Module - Install The LPC Booster Stage Assembly On To The LPC/Intermediate Case Module, Assembly-010

General

This TASK gives the procedure to install the LP compressor booster stage assembly on to the LP compressor/intermediate case module on which the HP system module and the external gearbox module are installed.

Where TASK 72-32-00-030-006-C00 (DISASSEMBLY-006, CONFIG-003) is used for removal of the LP compressor booster stage assembly, it is recommended to use this TASK for installation of the LP compressor booster stage assembly on to the LP compressor/intermediate case module.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501 and SPM TASK 70-41-02-400-501.

Special torque data is identified with the symbol * after the torque value.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1J12026 Turning handle0AM53IAE 1J120261
IAE 1J12105 Cantileer sling0AM53IAE 1J121051
IAE 1J12106 Aligning pin set0AM53IAE 1J121061
IAE 1J12108 Sling adapter0AM53IAE 1J121081
IAE 1J13109 0AM53 heater0AM53IAE 1J131091
IAE 6F10027 Heater control unit0AM53IAE 6F100271
IAE 1J12182 Retaining protector0AM53IAE 1J12182
IAE 1J13107 Holding support0AM53IAE 1J13107

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-031 ACETONE (CH3)2COLOCALCoMat 01-031
CoMat 01-124 ISOPROPYL ALCOHOLLOCALCoMat 01-124
CoMat 04-004 JOINTING COMPOUND, LIGHT GRADELOCALCoMat 04-004
CoMat 08-013 COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013
CoMat 08-045 SILICONE RUBBER COMPOUNDLOCALCoMat 08-045
CoMat 08-074 SEALANT, RTV SILICONE01139CoMat 08-074
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT0AM53CoMat 08-014
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-430-347 Make sure that the Engine is in a Horizontal Position

    1. Make sure that the engine is in a horizontal position. If not, turn the engine from the vertical to the horizontal position. Refer to TASK 72-00-40-560-002 (INSTALLATION-002) or TASK 72-00-50-560-004 (INSTALLATION-013).

    2. SUBTASK 72-32-00-430-348 Adjust the Angular Position of the LPC Stub Shaft

    1. Refer to Figure, Figure, Figure and Figure.

    2. Put a workmat in position in the fan case.

    3. NOTE

      The retaining protector is installed in TASK 72-32-00-030-006-C00 (DISASSEMBLY-006, CONFIG-003).

      Remove the retaining protector (IAE 1J12182 Retaining protector) from the LPC stub shaft.

    4. Install the three aligning pins (part of the IAE 1J12106 Aligning pin set 1 off) in to three of 24 nuts of the rotor center shaft through the holes B.

    5. Turn each aligning pin until the R mark line on the pin reaches the bottom of the curvic teeth.

      6. Adjust the angular position of the stub shaft.

      1. Install IAE 1J12026 Turning handle 1 off on to the stub shaft with the two wing bolts and washers (part of the turning handle).

      2. Turn the turning handle until the correlation U-slot in the stub shaft becomes at 12 o'clock position.

      3. Remove the turning handle.

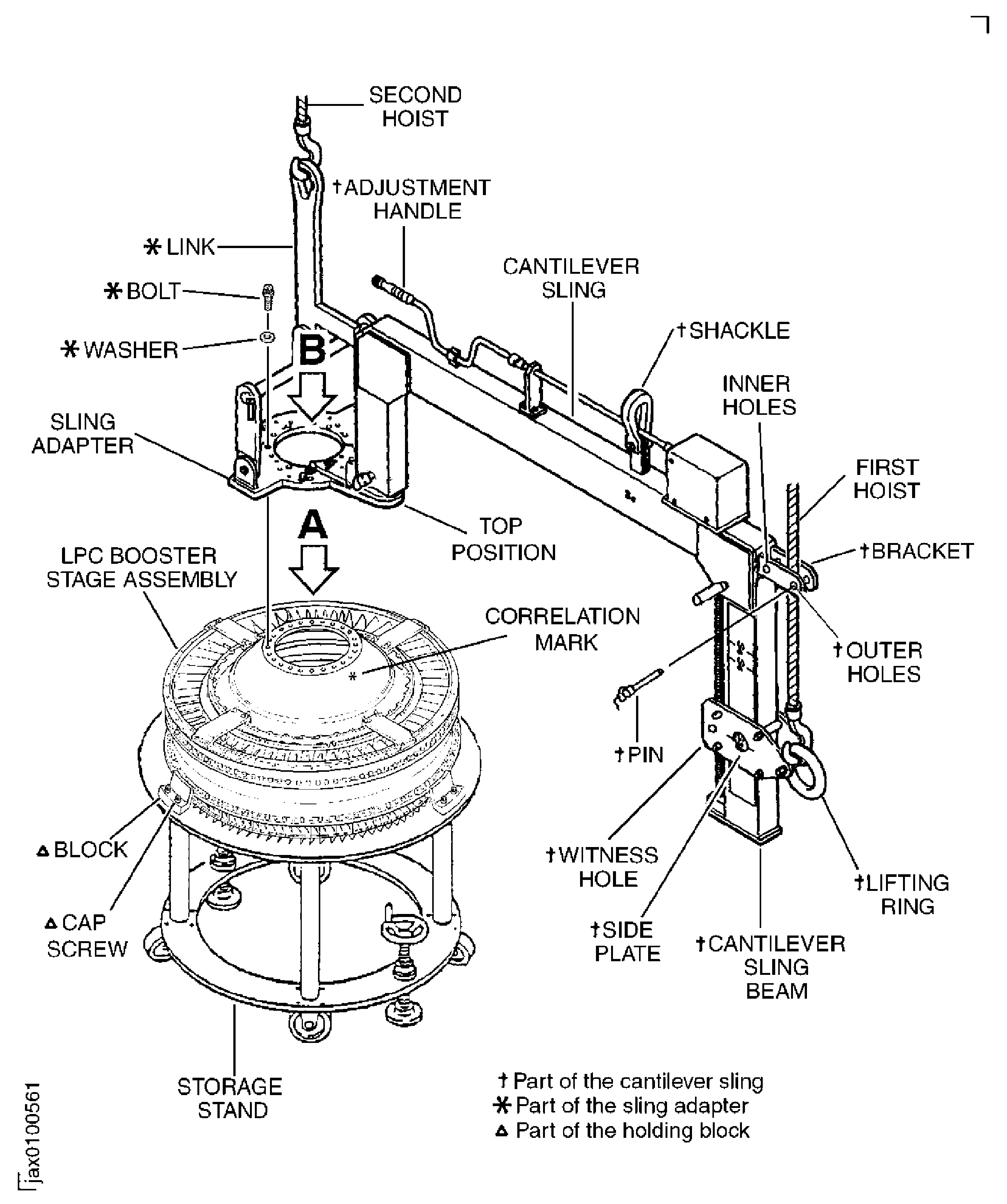

    3. SUBTASK 72-32-00-430-349 Prepare the Cantilever Sling and the Sling Adapter (Sling Assembly)

    1. Refer to Figure and Figure.

    2. Attach the first hoist to link of IAE 1J12108 Sling adapter 1 off and lift up.

    3. Move the sling adapter on to the work bench and remove the first hoist from the sling adapter.

    4. Attach the second hoist to the shackle (part of IAE 1J12105 Cantileer sling 1 off).

    5. Lift and attach the cantilever sling to the sling adapter and safety them with the pin.

    6. Attach the first hoist to the lifting ring of the cantilever sling.

    7. Engage the pin to the outer holes of bracket of the cantilever sling.

    8. Make the rope/chains of the first hoist tighter.

    9. Move the second hoist from the shackle of the cantilever sling to the link of sling adapter.

    10. Make the rope/chains of the second hoist tighter.

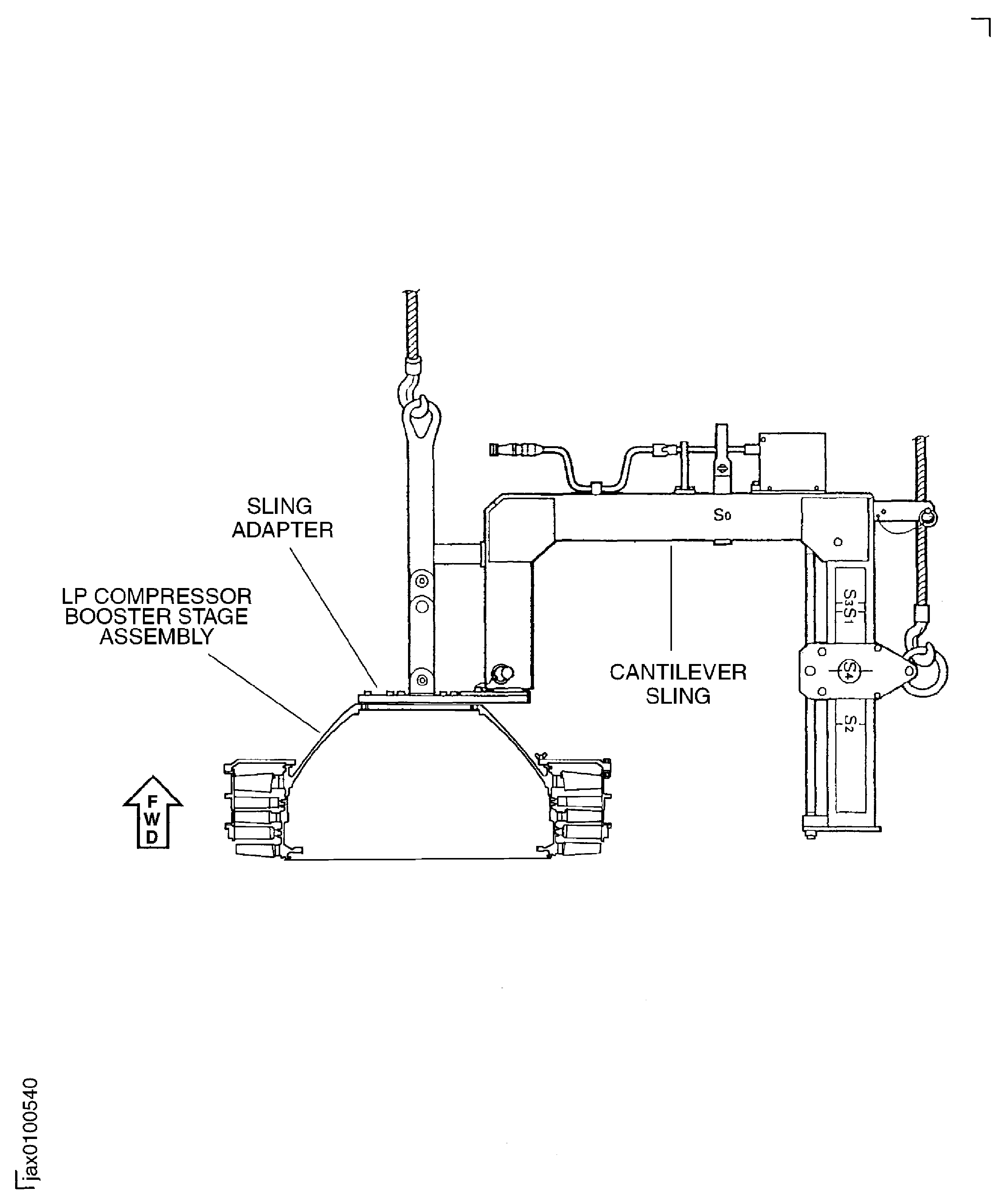

    4. SUBTASK 72-32-00-430-350 Install the Sling Assembly to the LP Compressor Booster Stage Assembly (LPC Assembly)

    1. Refer to Figure and Figure.

    2. NOTE

      The LPC assembly is installed on the storage stand in TASK 72-32-00-030-006-C00 (DISASSEMBLY-006, CONFIG-003) or TASK 72-32-80-440-001-A00 (ASSEMBLY, CONFIG-001).

      Move the sling assembly with the first hoist and the second hoist adjacent to the forward flange of the LPC assembly.

    3. Put the sling assembly on the LPC assembly.

    4. Attach the flange of the sling adapter to the forward flange of the LPC stage 1.5-2.5 disk with the six bolts and washers at the holes C. Tighten the bolts.

    5. SUBTASK 72-32-00-430-351 Move the LPC Assembly from the Storage Stand to Local Heater

    1. Refer to Figure, Figure and Figure.

    2. Remove the holding block from the storage stand.

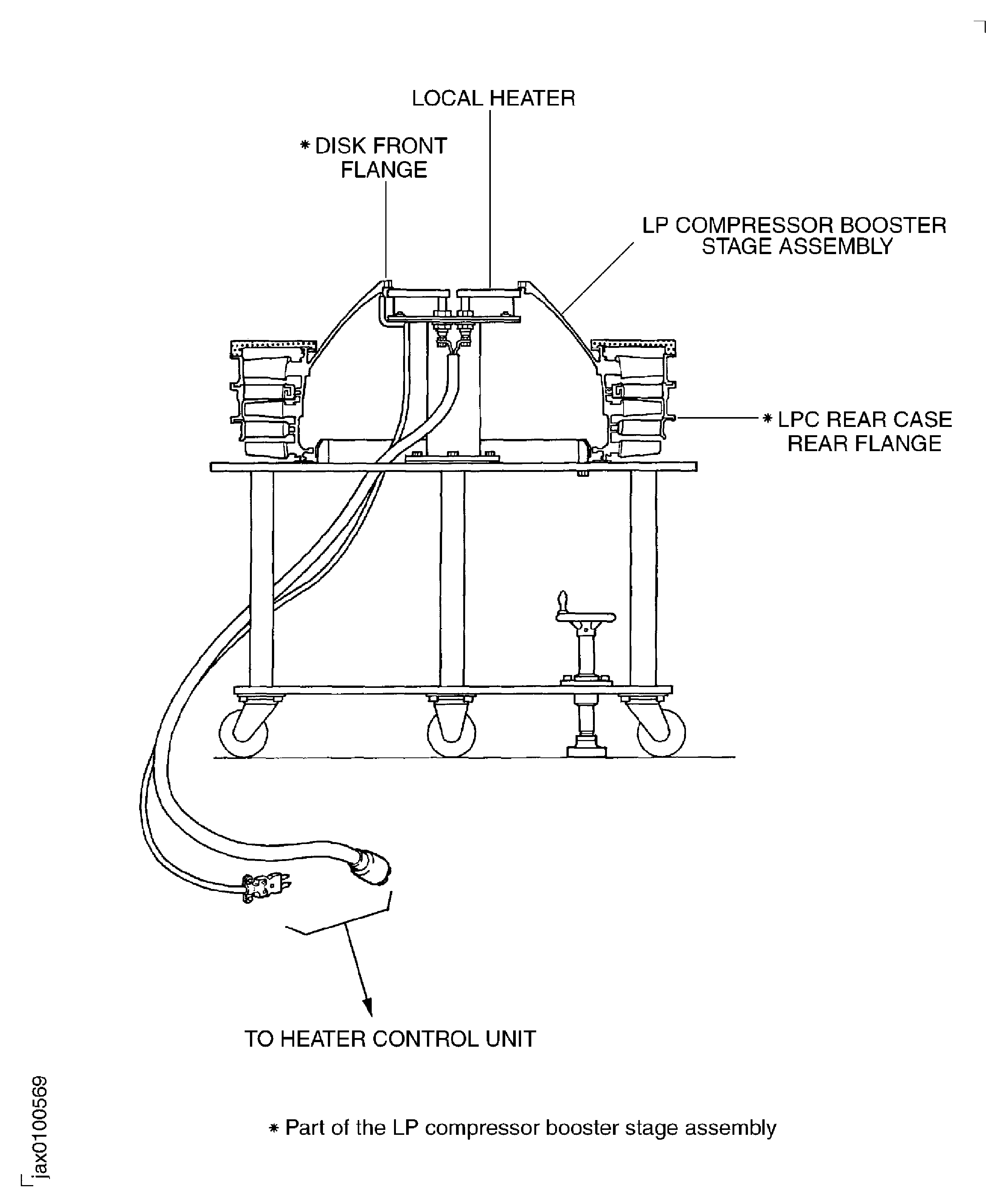

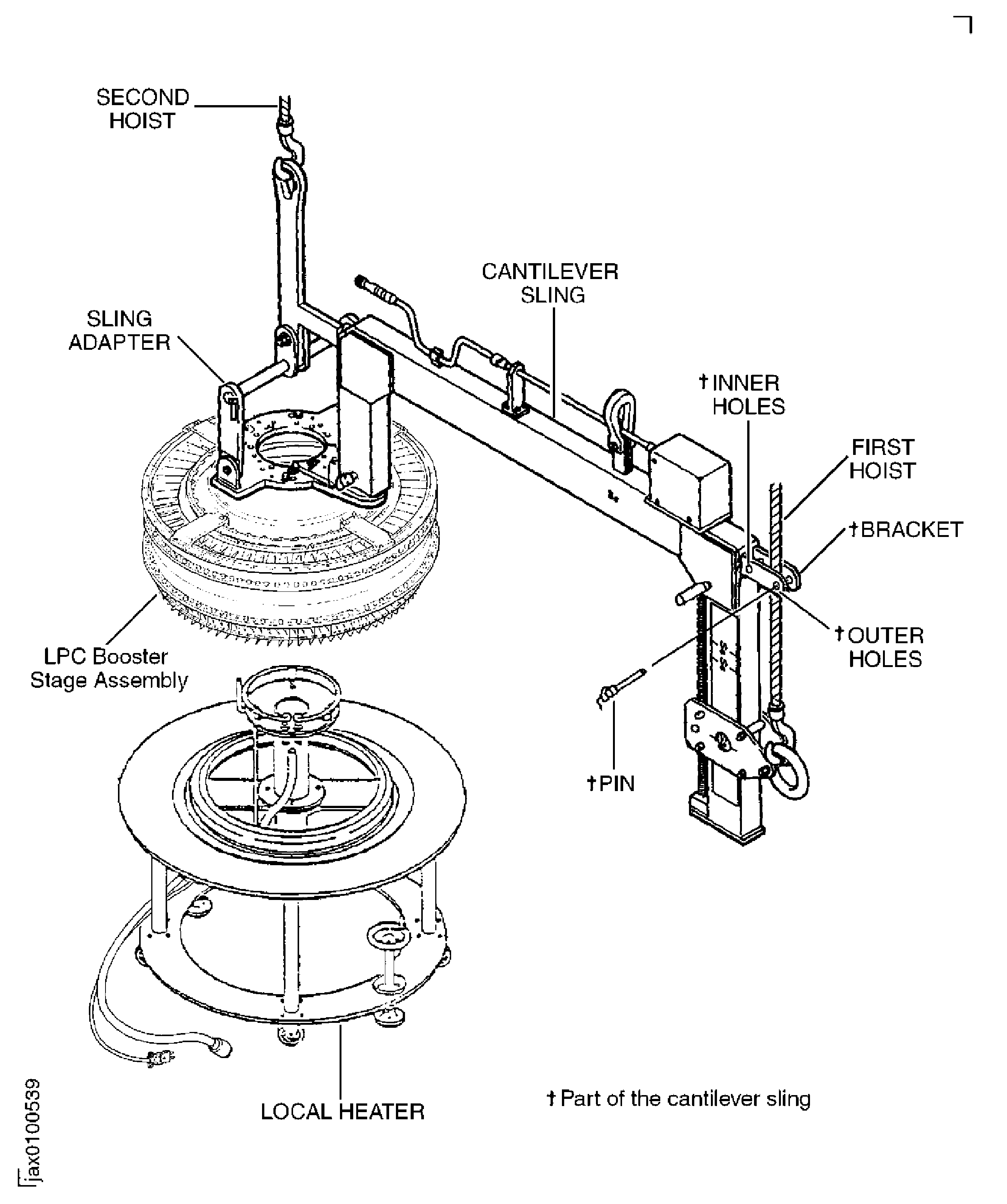

      3. Move the LPC assembly from the storage stand to IAE 1J13109 0AM53 heater 1 off.

      1. Slowly lift the LPC assembly until it is clear of the storage stand.

      2. Move the LPC assembly above the local heater and slowly lower the LPC assembly on to the local heater.

      4. Remove the sling assembly from the LPC assembly.

      1. Remove the six bolts and washers which attach the sling adapter to the LPC assembly.

      2. Lift the sling assembly.

    5. Connect the cables of the local heater to IAE 6F10027 Heater control unit 1 off.

    6. SUBTASK 72-32-00-430-352 Install the LPC Assembly to the Engine

      1. NOTE

        Install the LPC assembly to LPC stage 2.5 stator assembly (Stage 2.5 Stator) before the LPC assembly becomes cool and the jointing compound becomes dry.

        Increase the temperature of the LPC assembly and LPC rear case, Figure.

      1. Increase the temperature of the disk front flange of the LPC assembly to 248 deg F (120 deg C) with the local heater.

      2. Increase the temperature of the LP compressor rear case rear flange of the LPC assembly to 142 deg F (60 deg C) with a hot air gun.

      2. WARNING

        DO NOT TOUCH THE LPC ASSEMBLY WITHOUT PROTECTIVE GLOVES.

        WARNING

        HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.

        WARNING

        IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

        Install the sling assembly to the LPC assembly, Figure.

      1. Move the sling assembly with the first hoist and the second hoist adjacent to the forward flange of the LPC assembly.

      2. Adjust the position of the LPC assembly to align the top position of the sling adapter with the correlation mark * on the LPC stage 1.5-2.5 disk of LPC assembly, Figure.

      3. Put the sling assembly on the LPC assembly.

      4. Attach the flange of the sling adapter to the forward flange of the LPC stage 1.5-2.5 disk with the six bolts and washers at the holes C. Tighten the bolts.

      3. Remove the LPC assembly from the local heater, Figure.

      1. Slowly lift the two hoists equally at the same time until the LPC assembly is clear of the local heater.

      4. Adjust the center of the gravity of the sling assembly and the LPC assembly, Figure.

      1. Disengage the pin from the outer holes and engage to inner holes of the bracket of the cantilever sling.

      2. Turn the adjustment handle to align the witness hole in the side plate with the S4-mark on the cantilever sling beam.

      3. Lock the adjustment handle in position.

      4. Adjust the two hoists to turn the LPC assembly to the horizontal position.

      5. Remove the second hoist from the link of the sling adapter.

      5. Apply jointing compound to the mating faces on the stage 2.5 stator, Figure.

      1. Use a clean cloth made moist with CoMat 01-124 ISOPROPYL ALCOHOL to clean the mating faces.

      2. NOTE

        Do not get the jointing compound into the threaded holes of the clinch nuts on the stage 2.5 stator.

        Apply CoMat 04-004 JOINTING COMPOUND, LIGHT GRADE to the mating faces with a soft brush.

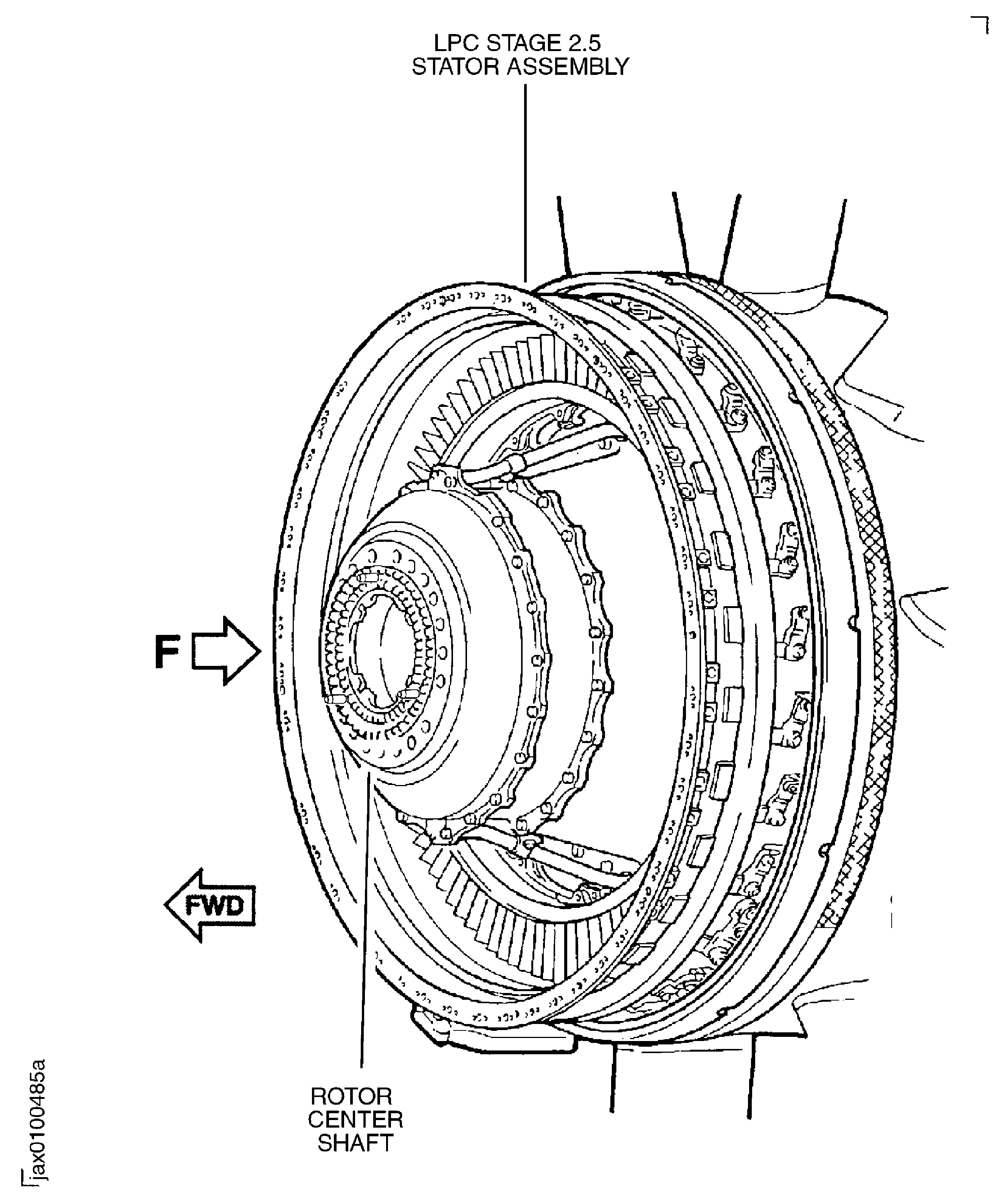

      6. Install the LPC assembly to the engine.

        1. Install the LPC assembly on to the rotor center shaft before the LPC assembly becomes cold.

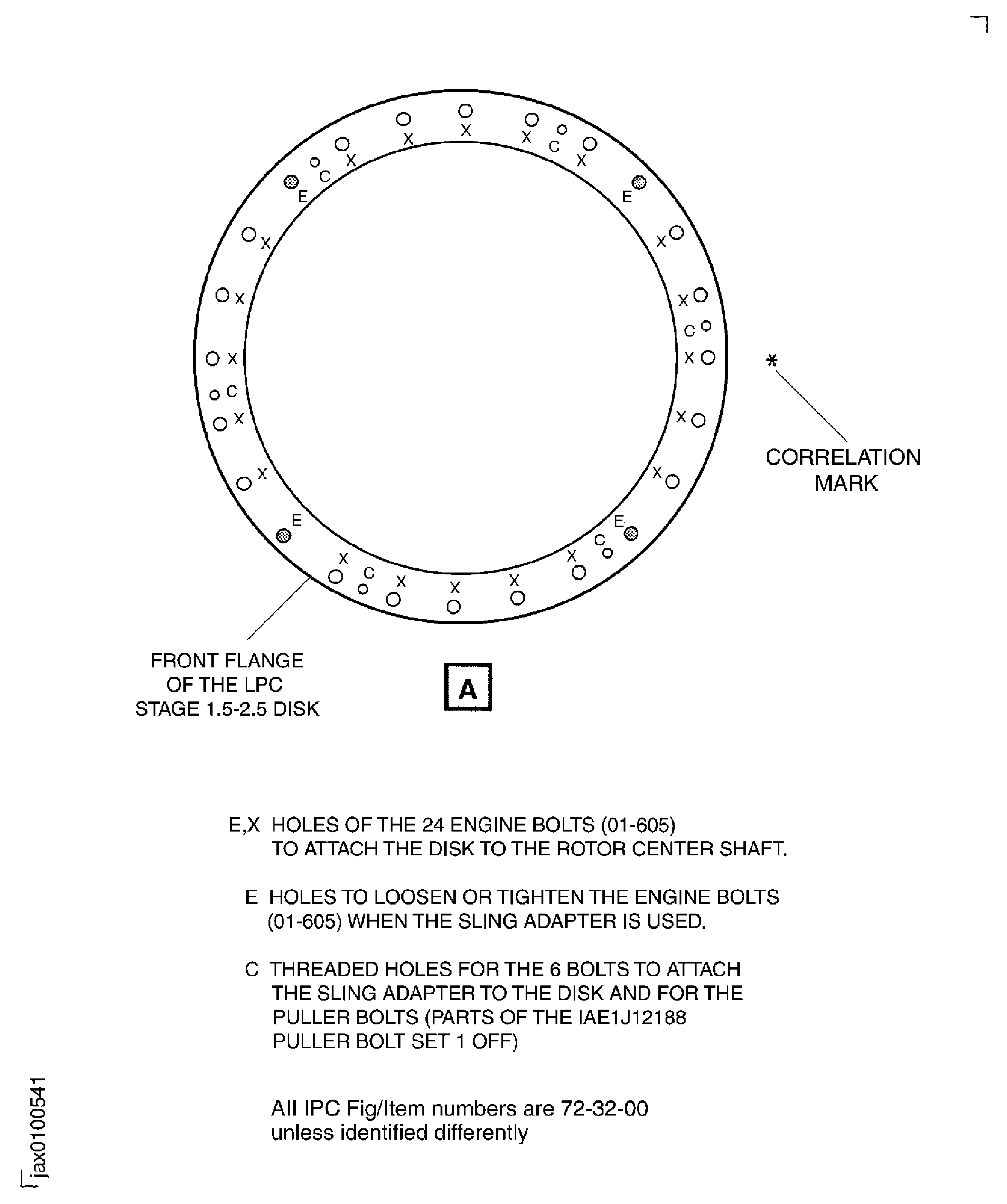

        1. Align the correlation mark * on the disk of the LPC assembly with the correlation U-slot in the stub shaft, Figure.

        2. Slowly move the LPC assembly on to the rotor center shaft through the aligning pins, Figure.

        3. Attach the LPC assembly to the rotor center shaft with the four of 24 bolts LP Compressor (LPC) - Intermediate Structure Module (72-32-00, 01-605) at the holes E. Tighten the bolts lightly, Figure and Figure.

          4. Remove the slinging assembly from the LPC assembly.

          1. Turn the adjustment handle to align the witness hole in the side plate with S3-mark on the beam (part of the cantilever sling), Figure.

          2. Remove the six bolts and washers (part of the sling adapter) which attach the sling adapter to the LPC assembly, Figure.

          3. Move the sling assembly forward until it is clear of the engine.

        5. Install the remaining 20 bolts LP Compressor (LPC) - Intermediate Structure Module (72-32-00, 01-605) which attach the LPC assembly to the rotor center shaft, Figure. Tighten the bolts lightly.

        2. Attach the LPC assembly to the stage 2.5 stator, Figure.

          1. NOTE

            The holding supports are installed to the LPC assembly in TASK 72-32-00-030-006-C00 (DISASSEMBLY-006, CONFIG-003) or TASK 72-32-80-440-A00 (ASSEMBLY, CONFIG-001).

            Remove the holding supports set (IAE 1J13107 Holding support) from the LPC assembly, Figure.

          1. Remove the screw, the two washers and the nuts which attach each support to the LP compressor front case of the LPC assembly.

          2. Remove the two wing nuts and adapters which attach each support to the front flange of the LPC assembly.

        2. Align the top position of the LP compressor front case with the TOP mark of the stage 2.5 stator, Figure.

        3. NOTE

          Do not install the bolts V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-720) and the brackets A, B, C, D, E, F, G and H in this SUBTASK. The bolts and the brackets are installed in Step (step 12).

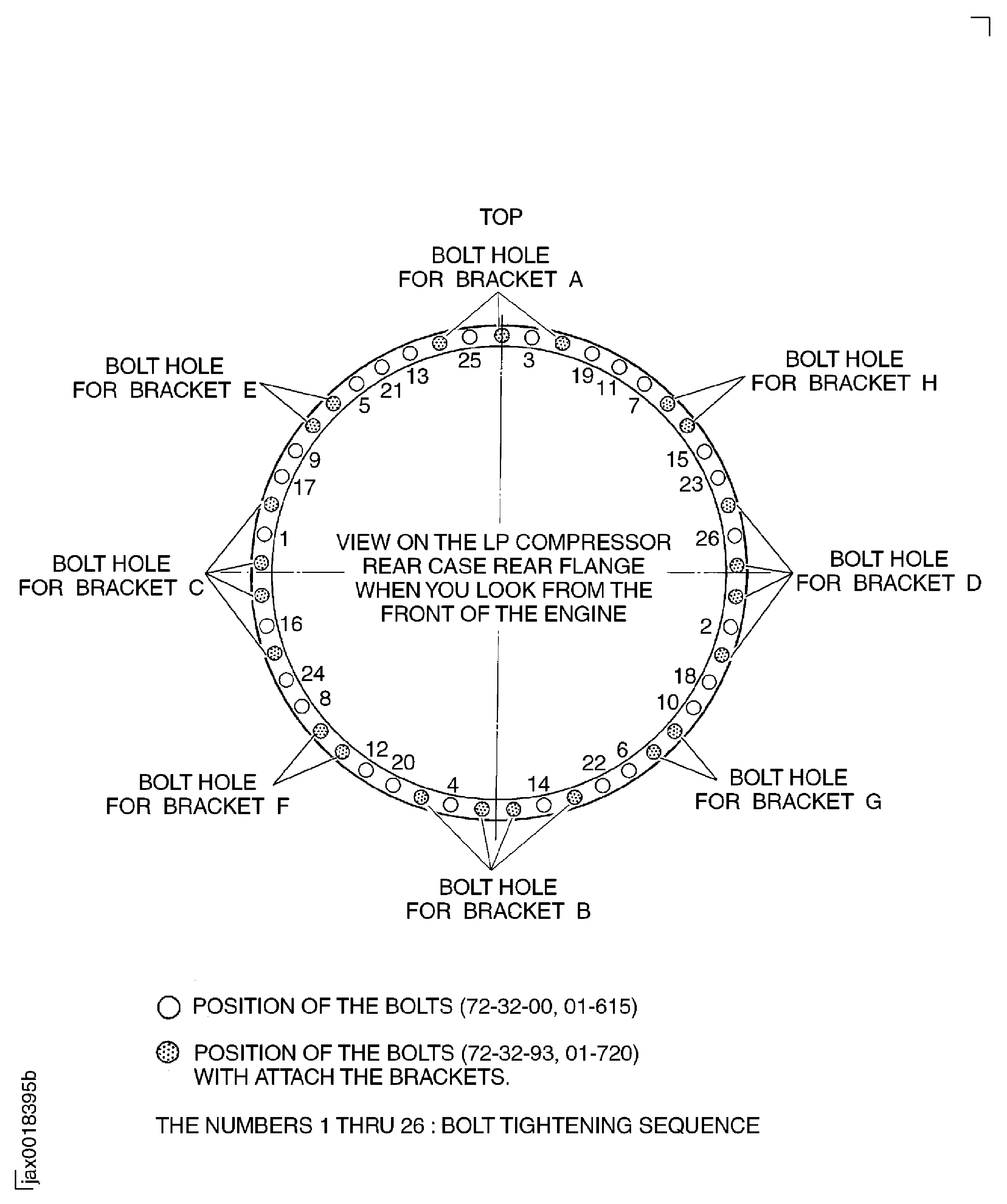

          Attach the LPC rear case to the stage 2.5 stator with the 26 bolts LP Compressor (LPC) - Intermediate Structure Module (72-32-00, 01-615) and washers LP Compressor (LPC) - Intermediate Structure Module (72-32-00, 01-618), Figure, Figure and Figure.

        4. Tighten the bolts lightly.

      3. When the LPC assembly becomes cool, loosen the 24 bolts LP Compressor (LPC) - Intermediate Structure Module (72-32-00, 01-605) fully.

      4. Torque the 24 bolts LP Compressor (LPC) - Intermediate Structure Module (72-32-00, 01-605) to between 180 and 220 lbfin (20.00 and 25.00 Nm).

      5. Torque the 26 bolts LP Compressor (LPC) - Intermediate Structure Module (72-32-00, 01-615) to between 36 and 45 lbfin (4.00 to 5.00 Nm) in the sequence given in Figure.

      6. Make sure that no gap between the LPC assembly and the rotor center shaft is found, Figure.

    7. SUBTASK 72-32-00-430-353 Install the Retaining Protector on to the Curvic Teeth of the Stub Shaft

    1. Refer to Figure and Figure.

    2. Remove the three aligning pins from the stub shaft.

    3. Align the three guide pin holes in IAE 1J12182 Retaining protector 1 off with the three guide pins of the stub shaft.

    4. Attach the retaining protector to the front face of the stub shaft flange with the three bolts (part of the retaining protector). Tighten the bolts.

    8. SUBTASK 72-32-00-430-354 Install the Bolts to the FEGV's (Pre SBE 72-0094)

    1. Refer to Figure.

      2. Install the 40 bolts LP Compressor (LPC) - Intermediate Structure Module (72-32-00, 01-377) in to the bushes of the stage 2.5 stator through the plate nuts of the FEGV's.

      1. Adjust the positions of the plate nuts and the FEGV's to align the plate nuts with the bush holes.

      2. Put the 40 washers LP Compressor (LPC) - Intermediate Structure Module (72-32-00, 01-375) and the bolts into positions and tighten the bolts lightly.

    3. Torque the 40 bolts LP Compressor (LPC) - Intermediate Structure Module (72-32-00, 01-377) to 160 to 200* lbfin (17.50 to 22.50 Nm).

    9. SUBTASK 72-32-00-430-355 Fill the Recesses in the FEGV's with Cold Curing Silicone Compound (Pre SBE 72-0094)

    1. Refer to Figure and Figure.

    2. Make a clean cloth or a soft brush moist with CoMat 01-031 ACETONE (CH3)2CO or CoMat 01-124 ISOPROPYL ALCOHOL.

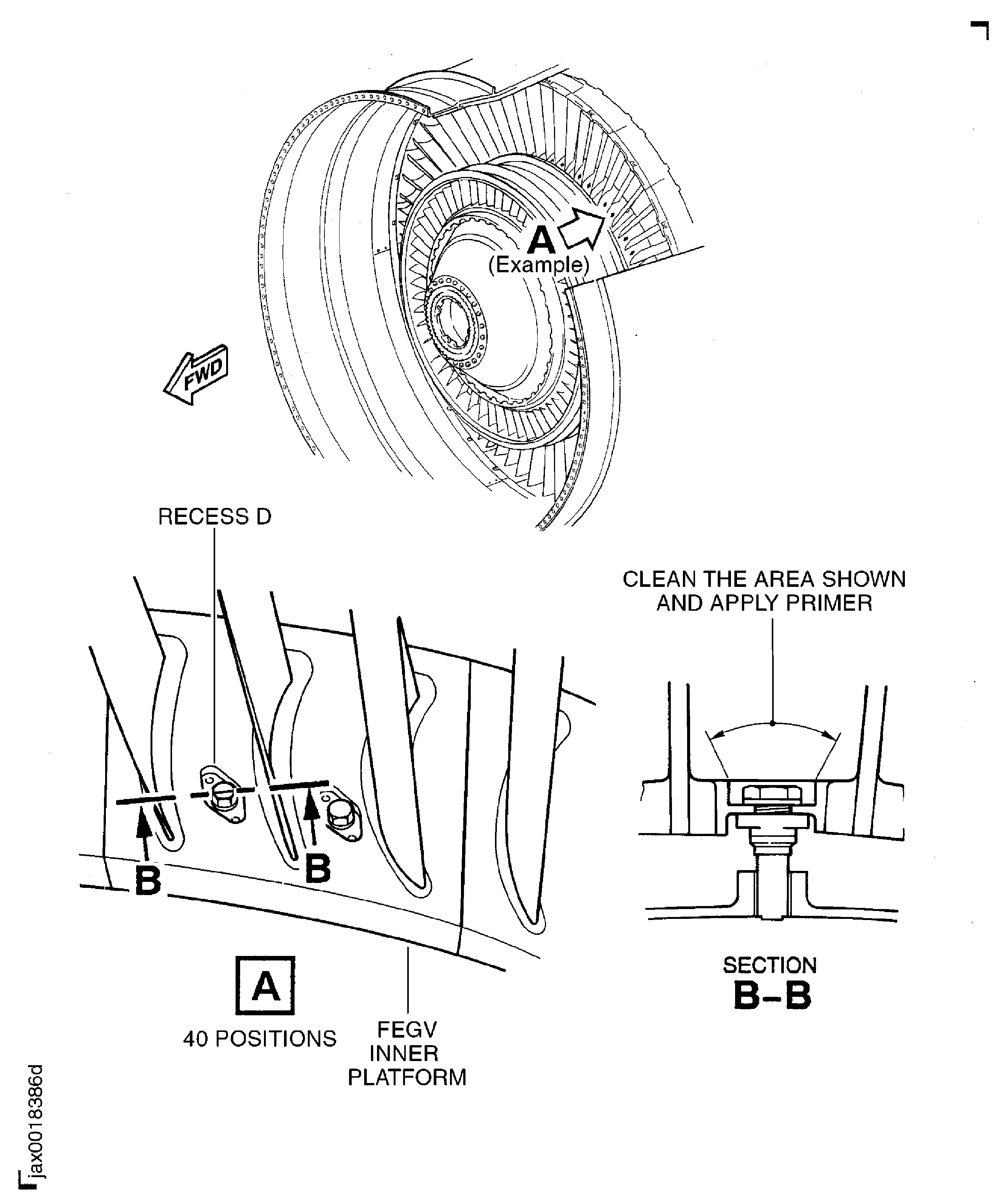

    3. Clean the surfaces of the 40 recesses D in the FEGV inner platforms with the clean cloth or the soft brush.

    4. NOTE

      Apply the primer in less than eight hours after the surfaces are cleaned.

      Apply thin layer of CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT to the face of the recesses D with a soft brush. Air dry for 30 minutes minimum.

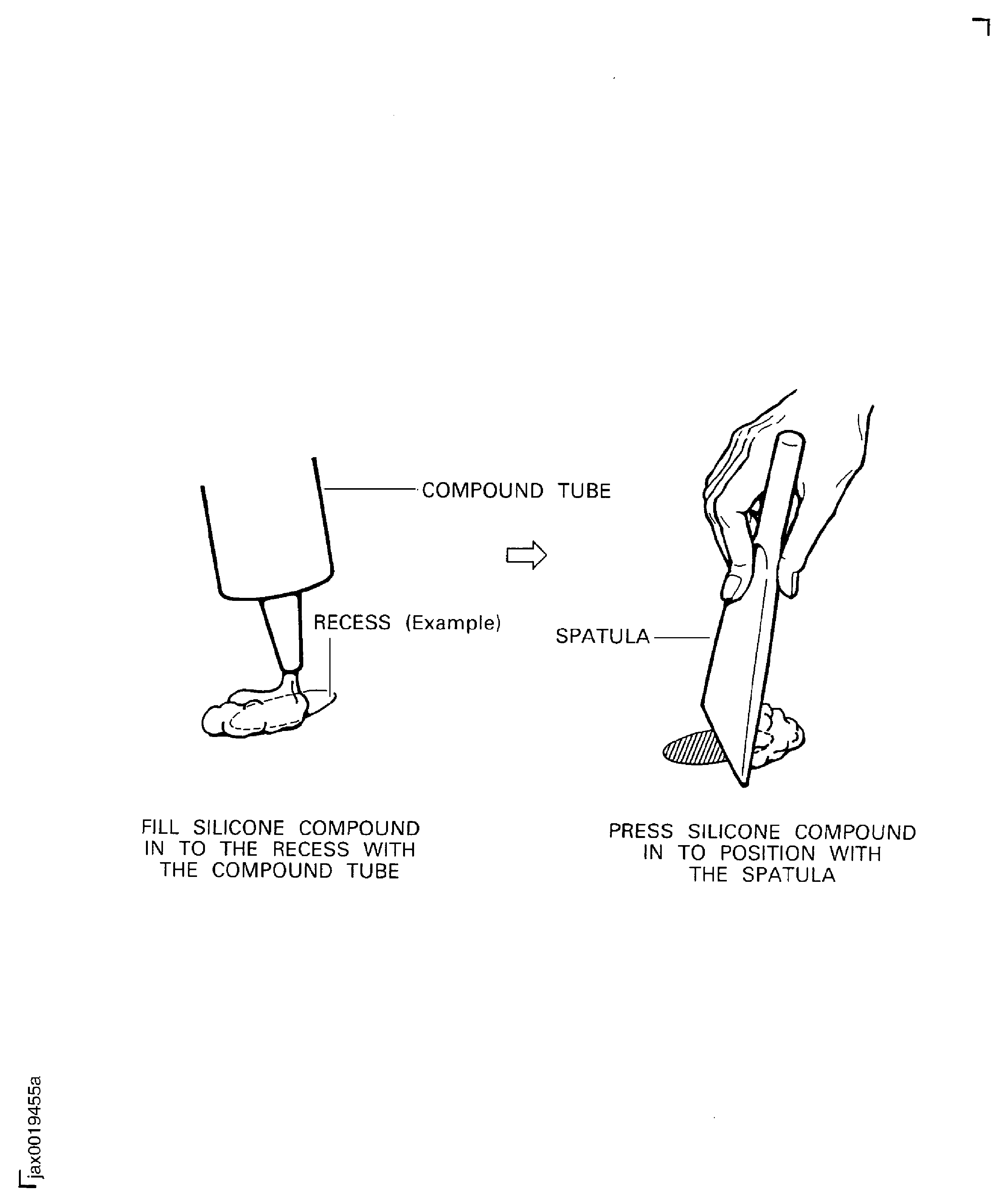

      1. Fill the silicone compound into the recesses D from the nozzle of the compound tube.

      2. NOTE

        Press the silicone compound into position immediately after it is applied to each recess.

        Press the silicone compound into position with a spatula.

    6. Cure the silicone compound at the room temperature for 48 hours. Do not push the silicone compound during the time.

    10. SUBTASK 72-32-00-430-356 Install the Brackets to the Engine

    1. Refer to Figure and Figure.

      2. Install the eight brackets A V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-600), B V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-675), C V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-645), D V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-630), E V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-705), F V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-615), G V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-690) and H V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-660).

      1. NOTE

        The brackets E, F, G and H are almost the same in their shapes. The distance between the two locating pins on each bracket is slightly different. Make sure of the Fig/Item numbers and part numbers to install them correctly.

        Attach the brackets to the engine with the 23 bolts V2500-A5-72-32-93-01A-941A-D (72-32-93, 01-720).

      2. Torque the bolts to 36 to 45 lbfin (4.00 to 5.00 Nm).

    11. SUBTASK 72-32-00-430-357 Install the Fan Outlet Inner Vane Assembly to the Engine

    1. Refer to Figure.

    2. Install the fan outlet inner vane assembly. Refer to TASK 72-32-00-430-013-A00.

    12. SUBTASK 72-32-00-430-358 Install the Front Fairings to the Engine

    1. Refer to Figure.

    2. Install the front fairing. Refer to TASK 72-32-00-430-014-A00 (ASSEMBLY-014, CONFIG-001).

    13. SUBTASK 72-32-00-430-359 Install the LP Compressor (Fan) Module

    1. Install the LP compressor (fan) module. Refer to TASK 72-00-31-420-001 (INSTALLATION).

    14. SUBTASK 72-32-00-430-360 Install the Inlet Cone and Inlet Cone Fairing

    1. Install the inlet cone fairing and inlet cone. Refer toTASK 72-38-11-420-001 (INSTALLATION).

    15. Figure: Sectional view of the LP compressor/intermediate case module

    Sectional view of the LP compressor/intermediate case module

    Figure: Remove the retaining protector from the LPC stub shaft

    Remove the retaining protector from the LPC stub shaft

    Figure: Install the aligning pins to the LPC stub shaft

    Sheet 1

    Legend
    Install the aligning pins to the LPC stub shaft

    Sheet 1

    Close

    Figure: Install the aligning pins to the LPC stub shaft

    Sheet 2

    Legend
    Install the aligning pins to the LPC stub shaft

    Sheet 2

    Close

    Figure: Install the turning handle on to the stub shaft

    Install the turning handle on to the stub shaft

    Figure: Assemble the sling adapter and the cantilever sling

    Assemble the sling adapter and the cantilever sling

    Figure: Install the sling assembly on to the LP compressor booster stage assembly

    Sheet 1

    Legend
    Install the sling assembly on to the LP compressor booster stage assembly

    Sheet 1

    Close

    Figure: Install the sling assembly on to the LP compressor booster stage assembly

    Sheet 2

    Legend
    Install the sling assembly on to the LP compressor booster stage assembly

    Sheet 2

    Close

    Figure: Lift the LP compressor booster stage assembly from the storage stand

    Lift the LP compressor booster stage assembly from the storage stand

    Figure: Install the LP compressor booster stage assembly on to the local heater

    Install the LP compressor booster stage assembly on to the local heater

    Figure: Increase the temperature of the LP compressor booster stage assembly

    Increase the temperature of the LP compressor booster stage assembly

    Figure: Apply jointing compound to the mating faces on the LPC stage 2.5 stator assembly

    Apply jointing compound to the mating faces on the LPC stage 2.5 stator assembly

    Figure: Turn the LP compressor booster stage assembly to horizontal position

    Turn the LP compressor booster stage assembly to horizontal position

    Figure: Install the LP compressor booster stage assembly on to the rotor center shaft and the LPC stage 2.5 stator assembly

    Install the LP compressor booster stage assembly on to the rotor center shaft and the LPC stage 2.5 stator assembly

    Figure: Remove the sling assembly from the LP compressor booster stage assembly

    Remove the sling assembly from the LP compressor booster stage assembly

    Figure: Remove the holding supports from the LP compressor booster stage assembly

    Remove the holding supports from the LP compressor booster stage assembly

    Figure: Gap between the LP compressor booster stage assembly and the rotor center shaft

    Gap between the LP compressor booster stage assembly and the rotor center shaft

    Figure: Position of the bolts and torque sequence

    Sheet 1

    Legend
    Position of the bolts and torque sequence

    Sheet 1

    Close

    Figure: Position of the bolts and torque sequence

    Sheet 2

    Legend
    Position of the bolts and torque sequence

    Sheet 2

    Close

    Figure: Pre SBE 72-0094: Install the bolts to the FEGV's

    Pre SBE 72-0094: Install the bolts to the FEGV's

    Figure: Pre SBE 72-0094: Clean and apply primer to the surfaces of the recesses in the FEGV inner platforms

    Pre SBE 72-0094: Clean and apply primer to the surfaces of the recesses in the FEGV inner platforms

    Figure: Pre SBE 72-0094: Fill and press silicone compound in to the recesses

    Pre SBE 72-0094: Fill and press silicone compound in to the recesses

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:01139
Enterprise Name:MOMENTIVE PERFORMANCE MATERIALS, INC
BU Name:MOMENTIVE PERFORMANCE MATERIALS, INC
Street:260 HUDSON RIVER RD
City:WATERFORD
State:NY
Zip Code:12188
Country:UNITED STATES OF AMERICA
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Supply Number:CoMat 01-031
Type:sp01
Supply Short Name:CoMat 01-031 ACETONE (CH3)2CO
Supply Name:CoMat 01-031 ACETONE (CH3)2CO
Specification Groups:
Doc NumberType
OMAT: 150 (RR REF)COMMERCIAL GRADE O-A-51
PMC 9008 (PW REF)COMMERCIAL GRADE O-A-51
JCR-041 (JAEC REF)COMMERCIAL GRADE O-A-51
MTH 169 (98%) (MTU REF)COMMERCIAL GRADE O-A-51
Suppliers:
ManufacturerRemarks
LOCAL
K6835
81348
K3504
U1185
24853
70657
Manufacturer Code:LOCAL
Supply Number:CoMat 01-124
Type:sp01
Supply Short Name:CoMat 01-124 ISOPROPYL ALCOHOL
Supply Name:CoMat 01-124 ISOPROPYL ALCOHOL
Specification Groups:
Doc NumberType
OMAT:1/40GPR TECHNICAL GRADE
PMC 9094GPR TECHNICAL GRADE
JCR-011GPR TECHNICAL GRADE
Suppliers:
ManufacturerRemarks
LOCAL
U1185
24853
K6835
Manufacturer Code:LOCAL
Supply Number:CoMat 04-004
Type:sp01
Supply Short Name:CoMat 04-004 JOINTING COMPOUND, LIGHT GRADE
Supply Name:CoMat 04-004 JOINTING COMPOUND, LIGHT GRADE
Specification Groups:
Doc NumberType
OMAT: 4/46 (REF RR)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
JCR-025 (JAEC REF)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
MSRR 9055 (RR REF)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
Suppliers:
ManufacturerRemarks
LOCAL
460Y4
CJ731
K3237
Manufacturer Code:X222X
Supply Number:CoMat 08-013
Type:sp01
Supply Short Name:CoMat 08-013 COLD CURING SILICONE COMPOUND
Supply Name:CoMat 08-013 COLD CURING SILICONE COMPOUND
Specification Groups:
Doc NumberType
If CoMat 08-013 is specified without an asterisk or a letter suffix, use one of the letter suffix alternative materials.
Suppliers:
ManufacturerRemarks
X222X
Manufacturer Code:X222X
Supply Number:CoMat 08-014
Type:sp01
Supply Short Name:CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT
Supply Name:CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT
Specification Groups:
Doc NumberType
Use the applicable letter suffix material. Refer to SPM TASK 70-36-02-360-501.
Suppliers:
ManufacturerRemarks
X222X
Manufacturer Code:LOCAL
Supply Number:CoMat 08-045
Type:sp01
Supply Short Name:CoMat 08-045 SILICONE RUBBER COMPOUND
Supply Name:CoMat 08-045 SILICONE RUBBER COMPOUND
Specification Groups:
Doc NumberType
RTV-103 (BLACK) JCR-246
RTV-103 (BLACK) JS-3019
Suppliers:
ManufacturerRemarks
LOCAL
U4065
K6835
IE146
IE505
IE521
Manufacturer Code:LOCAL
Supply Number:CoMat 08-074
Type:sp01
Supply Short Name:CoMat 08-074 SEALANT, RTV SILICONE
Supply Name:CoMat 08-074 SEALANT, RTV SILICONE
Specification Groups:
Doc NumberType
N/A
Suppliers:
ManufacturerRemarks
LOCAL
Manufacturer Code:X333X
Supply Number:CoMat 10-077
Type:sp01
Supply Short Name:CoMat 10-077 APPROVED ENGINE OILS
Supply Name:CoMat 10-077 APPROVED ENGINE OILS
Specification Groups:
Doc NumberType
For V2500-A1/A5/D5 models - Refer to V2500 Service Bulletin ENG-79-0108
For V2500-E5 model - Refer to Service Bulletin E5-79-0001
Suppliers:
ManufacturerRemarks
X333X
Manufacturer Code:0AM53
Tool Number:IAE 1J12026
Tool Name:IAE 1J12026 Turning handle
Manufacturer Code:0AM53
Tool Number:IAE 1J12105
Tool Name:IAE 1J12105 Cantileer sling
Manufacturer Code:0AM53
Tool Number:IAE 1J12106
Tool Name:IAE 1J12106 Aligning pin set
Manufacturer Code:0AM53
Tool Number:IAE 1J12108
Tool Name:IAE 1J12108 Sling adapter
Manufacturer Code:0AM53
Tool Number:IAE 1J12182
Tool Name:IAE 1J12182 Retaining protector
Manufacturer Code:0AM53
Tool Number:IAE 1J13107
Tool Name:IAE 1J13107 Holding support
Manufacturer Code:0AM53
Tool Number:IAE 1J13109
Tool Name:IAE 1J13109 0AM53 heater
Manufacturer Code:0AM53
Tool Number:IAE 6F10027
Tool Name:IAE 6F10027 Heater control unit
