TASK 72-32-60-200-001-B00 LPC Bleed Duct - Examine, Inspection-001

DMC:V2500-A0-72-32-6001-00B-300A-C|Issue No:003.00|Issue Date:2019-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-60-200-001-B00 LPC Bleed Duct - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-250

5W2231

01-250

5W2331

General

This TASK gives the procedure for the inspection of the LPC bleed duct assembly. For other bleed valve outlet case parts, refer to TASK 72-32-60-200-000 (INSPECTION-000).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for crack inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part can be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The procedure for crack test is given in Step. Do the test before the part is visually examined.

The practices and processes referred to in the procedure by the TASK number are in SPM.

References

Refer to SPM for data on these items.

Definition of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-00-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to SPM.

Method of Testing for Crack Indications,

Chemical Processes,

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent penetrant inspection equipmentLOCALFluorescent Penetrant Inspection Equipment

Medium sensitivity water washable (Refer to SPP TASK 70-23-02-230-501)

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-60-230-052 Examine the LPC Bleed Duct Assembly (01-250) for Cracks

    1. Clean the parts. Refer to TASK 72-32-60-100-000 (CLEANING-000).

      2. Do a crack test on the parts that are given below. Use applicable penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        LPC bleed duct assembly

        1. Cracked, except Area D, Locations 7, 8, 9 and 10.

        1. Reject.

        2. Cracked at Area D, Locations 8, 9 and 10.

        1. Repair, VRS1908 TASK 72-32-60-300-007 (REPAIR-007).

        3. Cracked at Location 7.

        1. Repair, VRS1514 TASK 72-32-60-300-016 (REPAIR-016).

    2. SUBTASK 72-32-60-220-063 Examine the LPC Bleed Duct Assembly (01-250) Surface

    1. Refer to Figure.

      2. Examine all the surfaces, except the identified locations.

        1. Nicked, dented or scratched.

          1. Not more than 0.005 in. (0.12 mm) in depth.

          1. Accept.

          2. More than in Step.

          1. Repair, VRS1908 TASK 72-32-60-300-007 (REPAIR-007).

        2. Pitted or corroded.

        1. Repair, VRS1908 TASK 72-32-60-300-007 (REPAIR-007).

      3. Examine the surface at Locations 8, 9 and 10.

        1. Nicked, dented or scratched.

          1. Not more than 0.005 in. (0.12 mm) in depth.

          1. Accept.

          2. More than in Step.

          1. Repair, VRS1908 TASK 72-32-60-300-007 (REPAIR-007).

        2. Cracked, missing, pitted, corroded or unspecified damage.

        1. Repair, VRS1908 TASK 72-32-60-300-007 (REPAIR-007).

    3. SUBTASK 72-32-60-220-064 Examine the LPC Bleed Duct Assembly (01-250) Locating Pins

    1. Refer to Figure.

      2. Examine the locating pins at Location 1.

        1. Damaged.

        1. Repair, VRS1909 TASK 72-32-60-300-008 (REPAIR-008).

    4. SUBTASK 72-32-60-220-065 Examine the LPC Bleed Duct Assembly (01-250) Inserts

    1. Refer to Figure.

      2. Examine the inserts at Location 2.

        1. Damaged.

        1. Repair, VRS1912 TASK 72-32-60-300-009 (REPAIR-009).

    5. SUBTASK 72-32-60-220-066 Examine the LPC Bleed Duct Assembly (01-250) Plate Nuts

    1. Refer to Figure.

      2. Examine the plate nuts at Location 3.

        1. Damaged.

        1. Repair, VRS1337 TASK 72-32-60-300-005 (REPAIR-005).

        2. Loosened rivet.

        1. Repair, VRS1337 TASK 72-32-60-300-005 (REPAIR-005).

    6. SUBTASK 72-32-60-220-067 Examine the LPC Bleed Duct Assembly (01-250) Rubber Seal

    1. Refer to Figure.

      2. Examine the rubber seal at Location 5.

        1. Deteriorated.

        1. Repair, VRS1338 TASK 72-32-60-300-014 (REPAIR-014).

        2. Damaged.

        1. Repair, VRS1338 TASK 72-32-60-300-014 (REPAIR-014).

        3. Un-bonded.

        1. Repair, VRS1338 TASK 72-32-60-300-014 (REPAIR-014).

    7. SUBTASK 72-32-60-220-068 Examine the LPC Bleed Duct Assembly (01-250) Teflon Coating

    1. Refer to Figure.

      2. Examine the teflon coating at location 6.

        1. Worn off.

        1. Repair, VRS1339 TASK 72-32-60-300-015 (REPAIR-015).

        2. Corroded or pitted.

        1. Repair, VRS1339 TASK 72-32-60-300-015 (REPAIR-015).

    8. SUBTASK 72-32-60-220-077 Examine the LPC Bleed Duct Assembly (01-250, Except P/N 5W2331) Insert

    1. Refer to Figure.

      2. Examine the insert at Location 4.

        1. Damaged.

        1. Repair, VRS1913 TASK 72-32-60-300-010 (REPAIR-010).

    9. SUBTASK 72-32-60-220-123 Examine the LPC Bleed Duct Assembly (01-250) Lug

    1. Refer to Figure.

      2. Examine the insert at location 7.

        1. Nicked, dented or scratched.

          1. Not more than 0.005 in. (0.12 mm) in depth.

          1. Accept.

          2. More than in Step.

          1. Repair, VRS1908 TASK 72-32-60-300-007 (REPAIR-007).

        2. Cracked, missing or unspecified damage.

        1. Repair, VRS1514 TASK 72-32-60-300-016 (REPAIR-016).

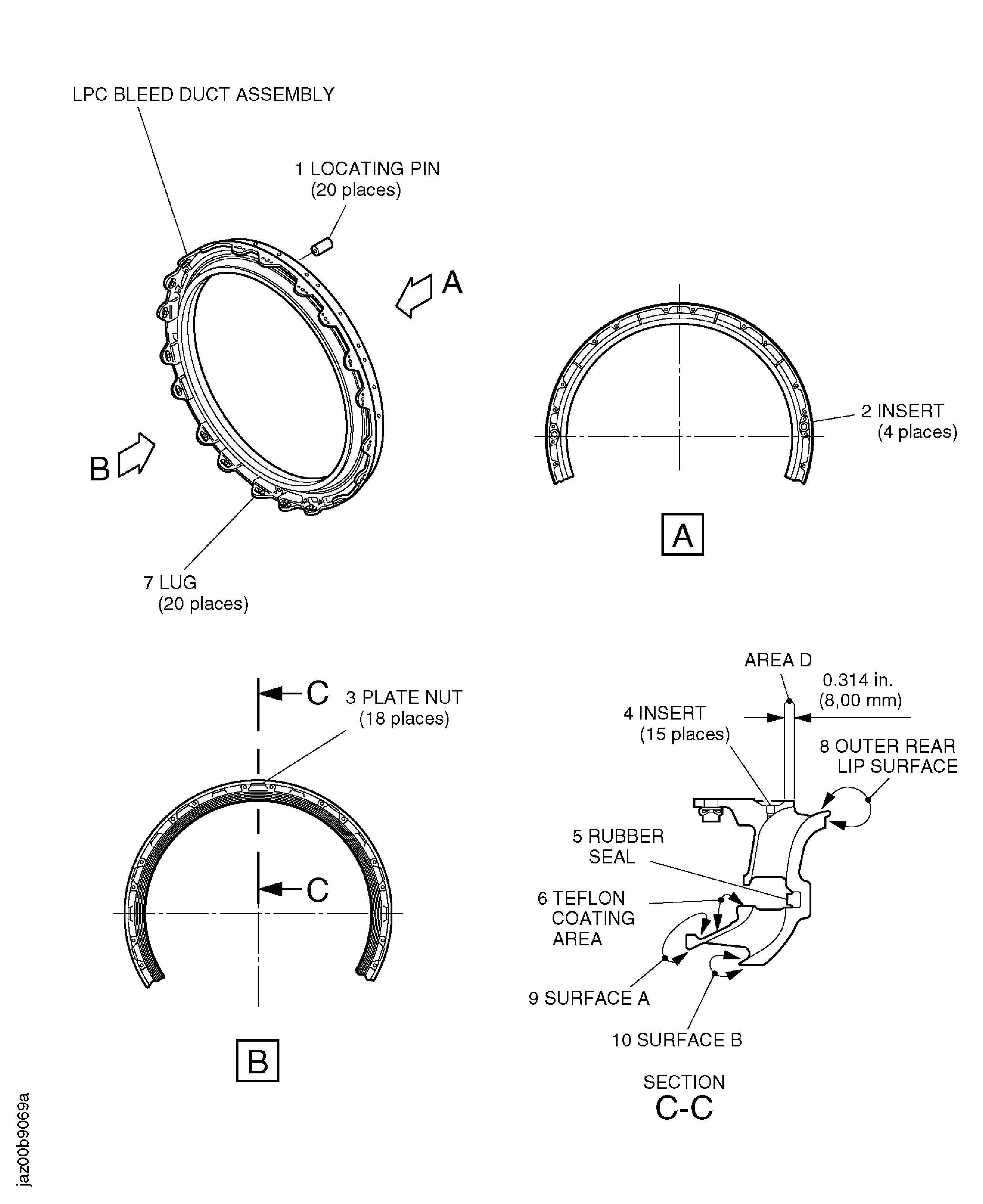

    10. Figure: Inspection of the LPC Bleed Duct Assembly

    Inspection of the LPC Bleed Duct Assembly

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure to update inspection requirements. (88VJ542N)
