TASK 72-32-76-200-001-A00 LPC Stage 2.5 Stator - Examine, Inspection-001

DMC:V2500-A0-72-32-7600-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-76-200-001-A00 LPC Stage 2.5 Stator - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-400

5R6088

General

This TASK gives the procedure for the inspection of the LP compressor stage 2.5 vanes.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All parts must be cleaned before any part is examined. Refer to TASK 72-32-76-100-000.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for the data on these items.

Definitions of damage, SPM TASK 70-02-02-350-501

Inspection of parts, SPM TASK 70-20-00-200-501

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-76-230-052 Examine the LP Compressor Stage 2.5 Vanes (01-400) for Cracks

    1. Clean the parts. Refer to TASK 72-32-76-100-000.

      2. Do the test for cracks on the parts that are given below. Use the applicable penetrant procedure.

        PART IDENT

        TASK/OP

        LP compressor stage 2.5 vanes

        1. Outer shroud ring.

          1. Cracked

          1. Reject

        2. Inner ring.

          1. Cracked

          1. Repair, VRS1357 TASK 72-32-76-300-008 (REPAIR-008)

        3. Vanes.

          1. Cracked

          1. Repair, VRS1350 TASK 72-32-76-300-003 (REPAIR-003)

    2. SUBTASK 72-32-76-220-058 Examine the LP Compressor Stage 2.5 Vanes (01-400) Airfoil

    1. Refer to Figure.

      2. Examine the airfoil leading edge at location 11.

        1. Any nicks or dents.

          1. Less than 0.045 in. (1.14 mm)

          1. Repair, VRS1348 TASK 72-32-76-300-006 (REPAIR-006)

          2. More than Step

          1. Repair, VRS1350 TASK 72-32-76-300-003 (REPAIR-003)

      3. Examine the airfoil trailing edge at location 6.

        1. Any nicks or dents.

          1. Less than 0.045 in. (1.14 mm)

          1. Repair, VRS1348 TASK 72-32-76-300-006 (REPAIR-006)

          2. More than Step

          1. Repair, VRS1350 TASK 72-32-76-300-003 (REPAIR-003)

      4. Examine the airfoil surface other than leading or trailing edge at location 5.

        1. Any nicks or dents.

          1. Less than 0.004 in. (0.10 mm)

          1. Repair, VRS1348 TASK 72-32-76-300-006 (REPAIR-006)

          2. More than Step

          1. Repair, VRS1350 TASK 72-32-76-300-003 (REPAIR-006)

    3. SUBTASK 72-32-76-220-059 Examine the LP Compressor Stage 2.5 Vanes (01-400) Vane Platform

    1. Refer to Figure.

      2. Examine the vane platform at location 7.

        1. Any nicks or dents.

          1. Less than 0.003 in. (0.07 mm)

          1. Repair, VRS1346 TASK 72-32-76-300-005 (REPAIR-005)

          2. More than Step

          1. Repair, VRS1350 TASK 72-32-76-300-003 (REPAIR-003)

    4. SUBTASK 72-32-76-220-060 Examine the LP Compressor Stage 2.5 Vanes (01-400) Outer Shroud Ring Surface

    1. Refer to Figure.

      2. Examine the outer shroud surface at location 3.

        1. Any nicks

        1. Repair, VRS1346 TASK 72-32-76-300-005 (REPAIR-005)

        2. Any scores

        1. Repair, VRS1346 TASK 72-32-76-300-005 (REPAIR-005)

    5. SUBTASK 72-32-76-220-061 Examine the LP Compressor Stage 2.5 Vanes (01-400) Inner Ring Surface

    1. Refer to Figure.

      2. Examine the inner ring surface at location 9.

        1. Any nicks or dents less than 0.005 in. (0.12 mm) in depth

        1. Repair, VRS1346 TASK 72-32-76-300-005 (REPAIR-005)

        2. More than Step

        1. Repair, VRS1357 TASK 72-32-76-300-008 (REPAIR-008)

    6. SUBTASK 72-32-76-220-062 Examine the LP Compressor Stage 2.5 Vanes (01-400) Sleeve

    1. Refer to Figure.

      2. Examine the sleeve at location 2.

        1. Damaged

        1. Repair, VRS1352 TASK 72-32-76-300-001 (REPAIR-001)

    7. SUBTASK 72-32-76-220-063 Examine the LP Compressor Stage 2.5 Vanes (01-400) Bolt Hole

    1. Refer to Figure.

      2. Examine the bolt holes at location 8.

        1. Scored

        1. Repair, VRS1346 TASK 72-32-76-300-005 (REPAIR-005)

    8. SUBTASK 72-32-76-220-064 Examine the LP Compressor Stage 2.5 Vanes (01-400) Abradable Rubber

    1. Refer to Figure.

      2. Examine the abradable rubber at location 12.

        1. Worn.

          1. Not more than 0.030 in. (0.76 mm) wear or erosion

          1. Accept

          2. More than Step

          1. Repair, VRS1354 TASK 72-32-76-300-007 (REPAIR-007)

        2. Damaged, deteriorated or unbonded

        1. Repair, VRS1354 TASK 72-32-76-300-007 (REPAIR-007)

    9. SUBTASK 72-32-76-220-065 Examine the LP Compressor Stage 2.5 Vanes (01-400) Potting Rubber

    1. Refer to Figure.

      2. Examine the potting rubber at location 4.

        1. Damaged or deteriorated

        1. Repair, VRS1355 TASK 72-32-76-300-002 (REPAIR-002)

    10. SUBTASK 72-32-76-220-066 Examine the LP Compressor Stage 2.5 Vanes (01-400) Captive Nut

    1. Refer to Figure.

      2. Examine the captive nut at location 1.

        1. Damaged or loose

        1. Repair, VRS1356 TASK 72-32-76-300-004 (REPAIR-004)

    11. SUBTASK 72-32-76-220-067 Examine the LP Compressor Stage 2.5 Vanes (01-400) Airfoil and Platform Fillet Area

    1. Refer to Figure.

      2. Examine the Airfoil and Platform Fillet Area at location 10.

        1. Any damage

        1. Repair, VRS1350 TASK 72-32-76-300-003 (REPAIR-003)

    12. SUBTASK 72-32-76-220-097 Examine the LP Compressor Stage 2.5 Vanes (01-400) Nuts,

    1. Refer to Figure and Figure.

      2. Examine the nuts at location 13.

        1. Damaged or loose

        1. Repair, VRS1353 TASK 72-32-76-300-019 (REPAIR-019)

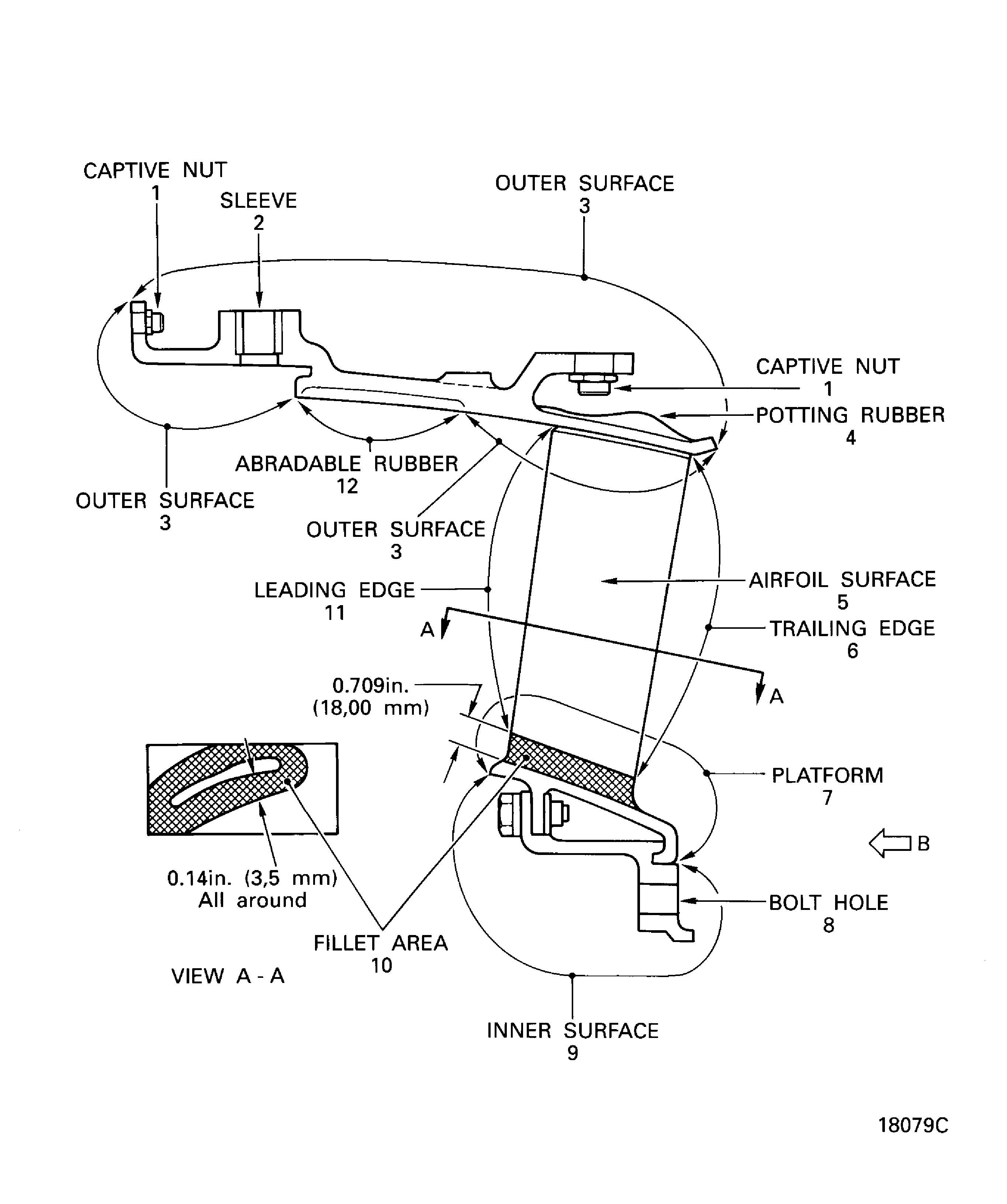

    13. Figure: Location on the LP compressor stage 2.5 stator assembly

    Location on the LP compressor stage 2.5 stator assembly

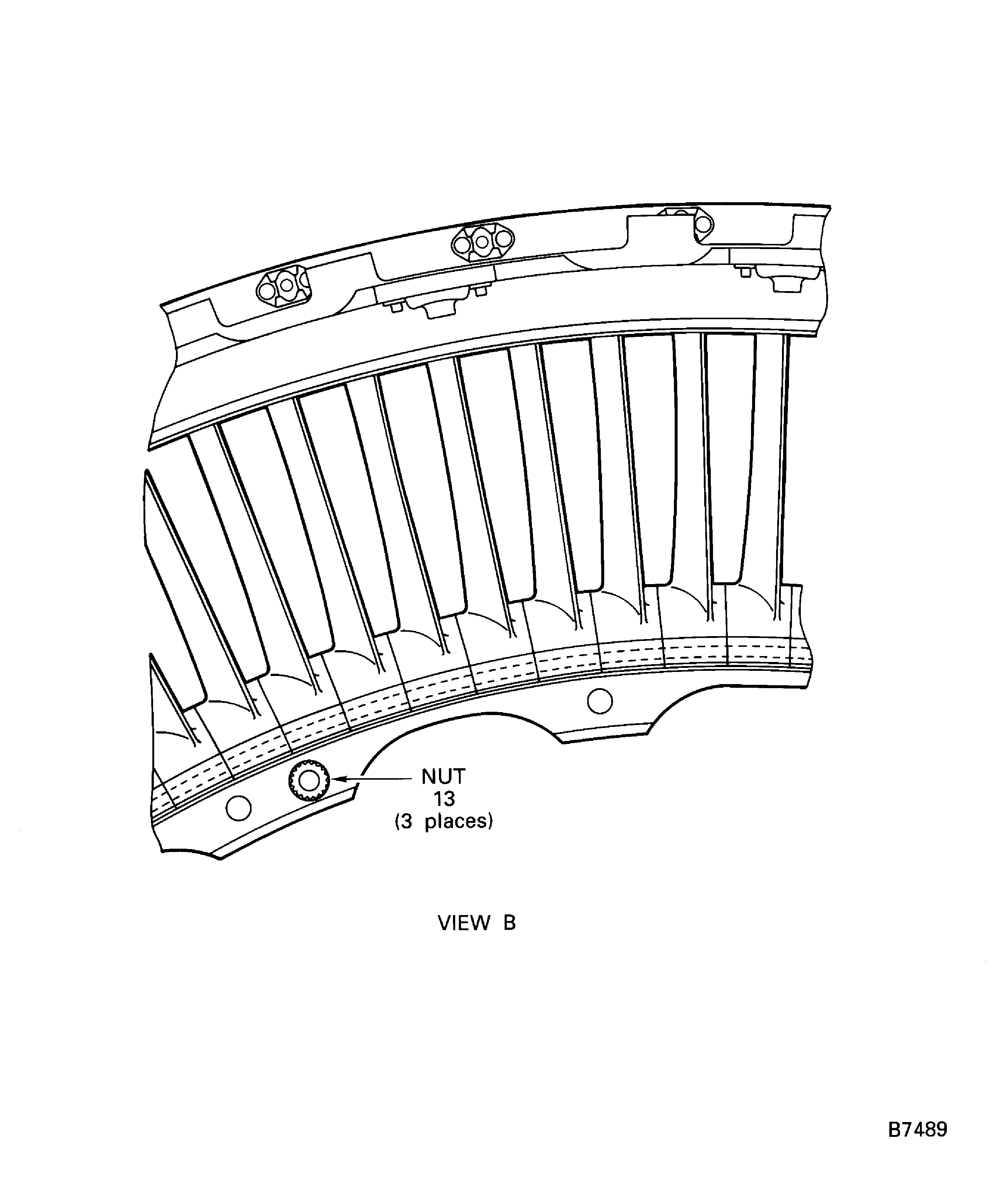

    Figure: Location on the LP compressor stage 2.5 stage assembly

    Location on the LP compressor stage 2.5 stage assembly

Requirements After Job Completion

Follow-On Conditions

NONE
