TASK 72-32-85-200-001-B00 Fan Case - Examine, Inspection-001

DMC:V2500-A0-72-32-8501-00B-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-85-200-001-B00 Fan Case - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-100

5W0124

01-100

5W0168

01-100

5W0171

01-100

5W0191

01-100

5W0192

01-100

5W0193

01-100

5W0206

01-100

5W0207

01-100

5W0208

01-100

5W0214

01-100

5W0215

01-100

5W0216

01-100

5W0306

General

This TASK gives the procedure for the inspection of the fan case assembly.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for the data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-00-200-501.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 2J13056 Gage, wear0AM53IAE 2J130561

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-224 SILICONE ADHESIVE POLYESTERTAPELOCALCoMat 02-224

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-85-230-054 Examine the Fan Case Assembly for Cracks

    1. NOTE

      For the method to clean the part, refer to the SPM TASK 70-11-26-300-503.

      Clean the part. Refer to TASK 72-32-85-100-000 (CLEANING-000).

      2. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        Fan case assembly

        NOTE

        Use CoMat 02-224 SILICONE ADHESIVE POLYESTERTAPE and polyethylene sheet to protect anti-ice impact, attrition and acoustic linings.

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-85-220-074 Examine the Fan Case Assembly (01-100) Flange

    1. Refer to Figure.

      2. Examine the flange at location 1.

        1. Galled

        1. Repair, VRS1554 TASK 72-32-85-300-016 (REPAIR-016)

        2. Bolt hole edge burred

        1. Repair, VRS1554 TASK 72-32-85-300-016 (REPAIR-016)

    3. SUBTASK 72-32-85-220-075 Examine the Fan Case Assembly (01-100) Outer Surface and Inner Surface

    1. Refer to Figure.

      2. Examine the outer surface and inner surface at location 2 and 3.

        1. Nicked or dented

        1. Repair, VRS1554 TASK 72-32-85-300-016 (REPAIR-016)

        2. Bolt hole edge burred

        1. Repair, VRS1554 TASK 72-32-85-300-016 (REPAIR-016)

    4. SUBTASK 72-32-85-220-076 Examine the Fan Case Assembly (01-100) Hook

    1. Refer to Figure.

      2. Examine the hook at location 4.

        1. Scored or dented

        1. Repair, VRS1554 TASK 72-32-85-300-016 (REPAIR-016)

    5. SUBTASK 72-32-85-220-077 Examine the Fan Case Assembly (01-100) Flexible Ring Surface

    1. Refer to Figure.

      2. Examine the flexible ring surface at location 5.

        1. Nicked, dented or scored

        1. Repair, VRS1554 TASK 72-32-85-300-016 (REPAIR-016)

    6. SUBTASK 72-32-85-220-078 Examine the Fan Case Assembly (01-100) Attrition Lining

    1. Refer to Figure and Figure.

      2. Examine the attrition lining at location 6. Use IAE 2J13056 Gage, wear 1 off.

        1. Worn

          1. Less than 0.100 in. (2.54 mm) in depth around circumference

          1. Accept

          2. More than in Step and damaged to the depth of the Glass Reinforced Composite (GRC) layer

          1. Repair, VRS1556 TASK 72-32-85-300-017 (REPAIR-017)

        2. Damaged

          1. Damage to the depth of the GRC layer

          1. Repair, VRS1556 TASK 72-32-85-300-017 (REPAIR-017)

          2. Damaged deeper than the GRC layer and not more than 4 sqin (25.8 sq cm) attrition lining

          1. Repair, VRS1557 TASK 72-32-85-300-018 (REPAIR-018)

          3. More than in Step

          1. Repair, VRS1538 TASK 72-32-85-300-022 (REPAIR-022)

    7. SUBTASK 72-32-85-220-079 Examine the Fan Case Assembly (01-100) Anti Ice Impact Panel

    1. Refer to Figure.

      2. Examine the anti ice impact panel at location 7.

        1. Damaged.

          1. Less than 20 percent of each anti ice impact panel

          1. Repair, VRS1555 TASK 72-32-85-300-023 (REPAIR-023)

          2. More than in Step

          1. Repair, VRS1539 TASK 72-32-85-300-024 (REPAIR-024)

        2. Loose

        1. Repair, VRS1539 TASK 72-32-85-300-024 (REPAIR-024)

    8. SUBTASK 72-32-85-220-080 Examine the Fan Case Assembly (01-100) Acoustic Lining

    1. Refer to Figure.

      2. Examine the acoustic lining at location 8.

        1. Damaged.

          1. Less than 20 percent of each acoustic lining

          1. Repair, VRS1559 TASK 72-32-85-300-021 (REPAIR-021)

          2. More than in Step

          1. Repair, VRS1540 TASK 72-32-85-300-025 (REPAIR-025)

        2. Loose

        1. Repair, VRS1540 TASK 72-32-85-300-025 (REPAIR-025)

    9. SUBTASK 72-32-85-220-081 Examine the Fan Case Assembly (01-100) Blue Filler

    1. Refer to Figure.

      2. Examine the blue filler at location 9.

        1. Erosion

        1. Repair, VRS1560 TASK 72-32-85-300-026 (REPAIR-026)

    10. SUBTASK 72-32-85-220-123 Examine the Fan Case Assembly (01-100) Bushes

    1. Refer to Figure.

      2. Examine the bushes at location 10.

        1. Worn on the bore.

          1. If the diameter is up to 0.633 in. (16.1 mm)

          1. Accept

          2. More than in Step

          1. Repair, VRS1712, TASK 72-32-85-300-046 (REPAIR-046)

        2. Nicked, dented, scored and scratched on the bore.

          1. Up to 0.02 in. (0.50 mm)

          1. Accept

          2. More than in Step

          1. Repair, VRS1712, TASK 72-32-85-300-046 (REPAIR-046)

        3. Axially loose or missing bushes

        1. Repair, VRS1712 TASK 72-32-85-300-046). Rotation of the bush is permissible.

    11. SUBTASK 72-32-85-220-124 Examine the Fan Case Assembly (01-100) V Groove

    1. Refer to Figure.

      2. Examine the V groove at location 11.

        1. Nicked, dented, pitted, galled or scored

        1. Repair, VRS1800, TASK 72-32-85-300-055 (REPAIR-055)

    12. SUBTASK 72-32-85-220-125 Examine the Fan Case Assembly (01-100) Oil Seal Mounting Land

    1. Refer to Figure.

      2. Examine the wire thread inserts at Location 12.

        1. Loose or damaged

        1. Repair, VRS1419, TASK 72-32-85-300-013 (REPAIR-013)

    13. SUBTASK 72-32-85-220-126 Examine the Fan Case Assembly (01-100) Tower Shaft Tube Bore

    1. Refer to Figure.

      2. Examine the tower shaft tube bore at location 13.

        1. Worn.

          1. If the diameter is up to 2.189 in. (55.61 mm)

          1. Accept

          2. More than in Step

          1. Repair, VRS1413, TASK 72-32-85-300-047 (REPAIR-047)

    14. SUBTASK 72-32-85-220-127 Examine the Fan Case Assembly (01-100) Bushes

    1. Refer to Figure.

      2. Examine the bushes at location 14.

        1. Worn on the bore.

          1. If the diameter is up to 0.194 in. (4.95 mm)

          1. Accept

          2. More than in Step

          1. Repair, VRS1712, TASK 72-32-85-300-046 (REPAIR-046)

        2. Nicked, dented, scored and scratched on the bore.

          1. Up to 0.02 in. (0.50 mm)

          1. Accept

          2. More than in Step

          1. Repair, VRS1712, TASK 72-32-85-300-046 (REPAIR-046)

        3. Axially loose or missing bushes

        1. Repair, VRS1712 TASK 72-32-85-300-046 (REPAIR-046). Rotation of the bush is permissible.

    15. SUBTASK 72-32-85-220-128 Examine the Fan Case Assembly (01-100) Anchor Nuts

    1. Refer to Figure.

      2. Examine the anchor nuts at Location 15.

        1. Loose or damaged

        1. Repair, VRS1418, TASK 72-32-85-300-012 (REPAIR-012)

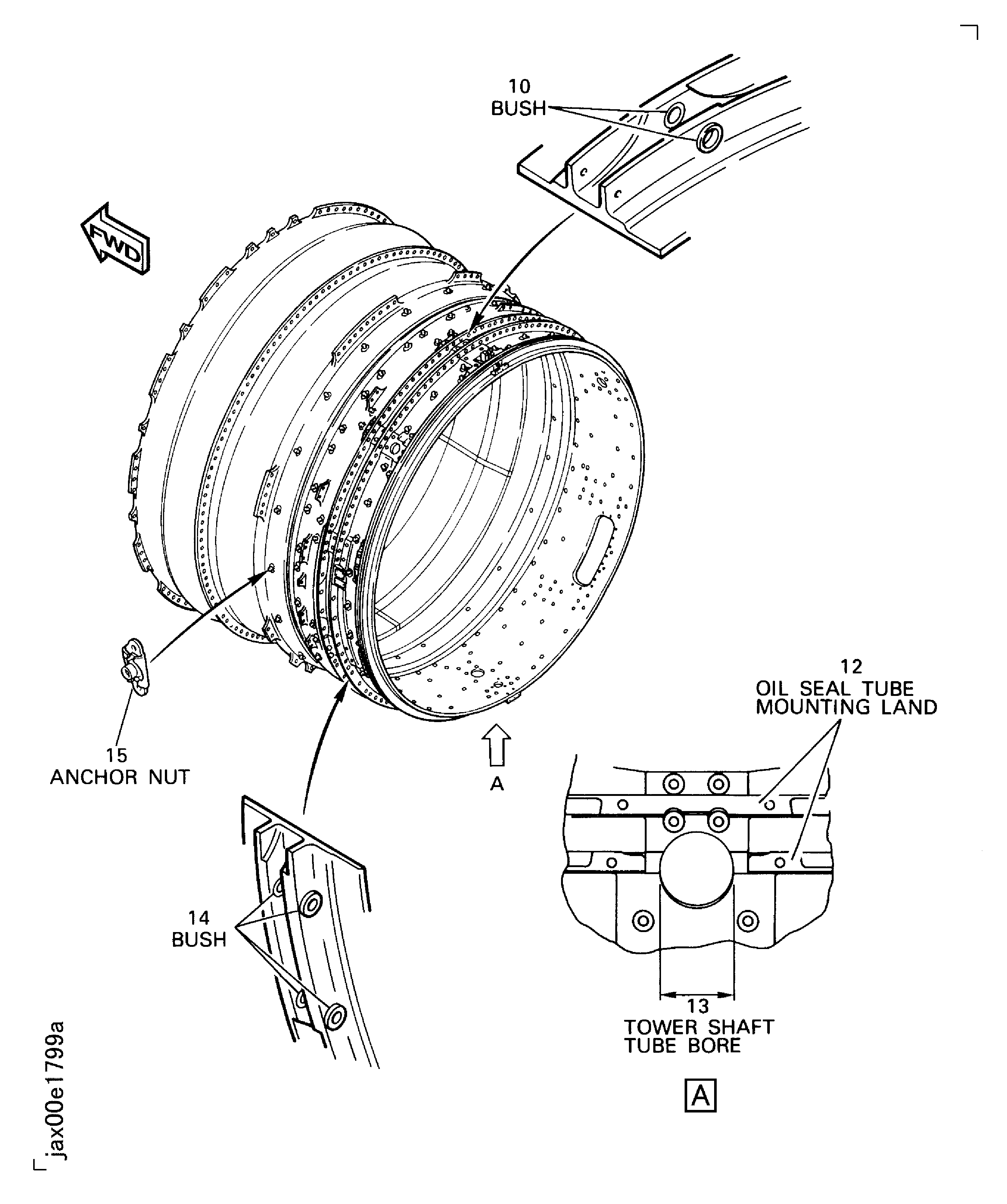

    16. Figure: Fan Case Assembly

    Fan Case Assembly

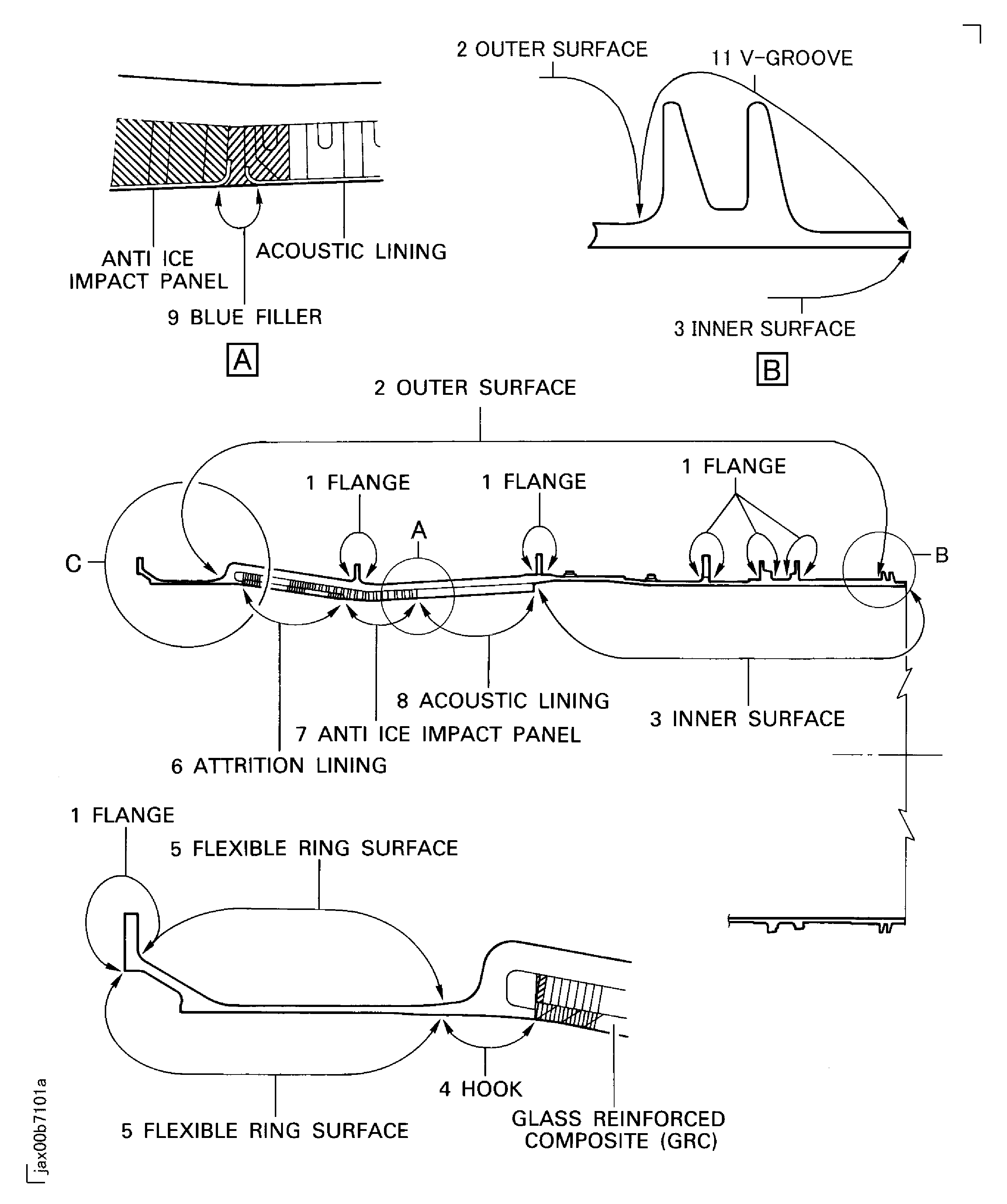

    Figure: Locations on the Fan Case Assembly

    Locations on the Fan Case Assembly

    Figure: Inspection Tool of the Attrition Lining

    Inspection Tool of the Attrition Lining

Requirements After Job Completion

Follow-On Conditions

NONE
