TASK 72-32-85-200-001-C00 Fan Case - Examine, Inspection-001

DMC:V2500-A0-72-32-8501-00C-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-85-200-001-C00 Fan Case - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-100

5W0144

01-100

5W0154

01-100

5W0194

01-100

5W0196

01-100

5W0217

01-100

5W0219

01-100

5W0222

01-100

5W0224

General

This TASK gives the procedure for the inspection of the fan case assembly.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the parts are visually examined. Limits for cracks are given in the SUBTASK for each part.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for the data on these items.

Definitions of damages, SPM TASK 70-02-02-350-501.

Inspection of parts, SPM TASK 70-20-01-200-501.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 2J13056 Gage, wear0AM53IAE 2J130561

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-224 SILICONE ADHESIVE POLYESTERTAPELOCALCoMat 02-224

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-85-230-057 Examine the Fan Case Assembly for Cracks

    1. NOTE

      For the method to the part, refer to the SPM TASK 70-11-26-300-503.

      Clean the part. Refer to TASK 72-32-85-100-000 (CLEANING-000).

      2. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        Fan case assembly

        NOTE

        Use CoMat 02-224 SILICONE ADHESIVE POLYESTERTAPE and polyethylene sheet to protect anti ice impact, attrition and acoustic linings.

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-85-220-132 Examine the Fan Case Assembly (01-100) Flange

    1. Refer to Figure.

      2. Examine the flange at location 1.

        1. Galled

        1. Repair, VRS1818 TASK 72-32-85-300-044 (REPAIR-044)

        2. Bolt hole edge burred

        1. Repair, VRS1818 TASK 72-32-85-300-044 (REPAIR-044)

    3. SUBTASK 72-32-85-220-133 Examine the Fan Case Assembly (01-100) Outer Surface and Inner Surface

    1. Refer to Figure.

      2. Examine the outer surface and inner surface at locations 2 and 3.

        1. Nicked or dented

        1. Repair, VRS1818 TASK 72-32-85-300-044 (REPAIR-044)

        2. Bolt hole edge burred

        1. Repair, VRS1818 TASK 72-32-85-300-044 (REPAIR-044)

    4. SUBTASK 72-32-85-220-134 Examine the Fan Case Assembly (01-100) Blue Filler

    1. Refer to Figure.

      2. Examine the blue filler at location 4.

        1. Erosion

        1. Repair, VRS1823 TASK 72-32-85-300-039 (REPAIR-039)

    5. SUBTASK 72-32-85-220-135 Examine the Fan Case Assembly (01-100) Hook

    1. Refer to Figure.

      2. Examine the hook at location 5.

        1. Scored or dented

        1. Repair, VRS1818 TASK 72-32-85-300-044 (REPAIR-044)

    6. SUBTASK 72-32-85-220-136 Examine the Fan Case Assembly (01-100) Flexible Ring Surface

    1. Refer to Figure.

      2. Examine the flexible ring surface at location 6.

        1. Nicked, dented or scored

        1. Repair, VRS1818 TASK 72-32-85-300-044 (REPAIR-044)

    7. SUBTASK 72-32-85-220-137 Examine the Fan Case Assembly (01-100) Attrition Lining

    1. Refer to Figure and Figure.

      2. Examine the attrition lining at location 8.

        1. Worn.

          1. Use IAE 2J13056 Gage, wear 1 off. Less than 0.158 in. (4.00 mm) in depth around circumference

          1. Accept

          2. More than in Step and damaged to the depth of the Glass Reinforced Composite (GRC) layer

          1. Repair, VRS1819 TASK 72-32-85-300-019 (REPAIR-019)

        2. Damaged.

          1. Damage to the depth of the GRC layer

          1. Repair, VRS1819 TASK 72-32-85-300-019 (REPAIR-019)

          2. Damaged deeper than the GRC layer and not more than 4 sqin. (25.8 sqcm) attrition lining

          1. Repair, VRS1820 TASK 72-32-85-300-043 (REPAIR-043)

          3. More than in Step

          1. Repair, VRS1840 TASK 72-32-85-300-036 (REPAIR-036)

    8. SUBTASK 72-32-85-220-138 Examine the Fan Case Assembly (01-100) Anti Ice Impact Panel

    1. Refer to Figure.

      2. Examine the anti ice impact panel at location 9.

        1. Damaged.

          1. Less than 20 percent of each anti ice impact panels

          1. Repair, VRS1821 TASK 72-32-85-300-037 (REPAIR-037)

          2. More than in Step

          1. Repair, VRS1841 TASK 72-32-85-300-038 (REPAIR-038)

        2. Loose

        1. Repair, VRS1841 TASK 72-32-85-300-038 (REPAIR-038)

    9. SUBTASK 72-32-85-220-139 Examine the Fan Case Assembly (01-100) Acoustic Lining

    1. Refer to Figure.

      2. Examine the acoustic lining at location 10.

        1. Damaged.

          1. Less than 20 percent of each acoustic linings

          1. Repair, VRS1822 TASK 72-32-85-300-040 (REPAIR-040)

          2. More than in Step

          1. Repair, VRS1842 TASK 72-32-85-300-041 (REPAIR-041)

        2. Loose

        1. Repair, VRS1842 TASK 72-32-85-300-041 (REPAIR-041)

    10. SUBTASK 72-32-85-220-140 Examine the Fan Case Assembly (01-100) Groove

    1. Refer to Figure.

      2. Examine the groove at location 7.

        1. Galled, scored or scratched

        1. Repair, VRS1818 TASK 72-32-85-300-044 (REPAIR-044)

    11. SUBTASK 72-32-85-220-166 Examine the Fan Case Assembly (01-100) Tower Shaft Tube Bore

    1. Refer to Figure.

      2. Examine the tower shaft tube bore at location 11.

        1. Worn

          1. If the diameter is up 2.189 in. (55.61 mm)

          1. Accept

          2. More than in Step

          1. Repair, VRS1413 TASK 72-32-85-300-047 (REPAIR-047)

    12. SUBTASK 72-32-85-220-167 Examine the Fan Case Assembly (01-100) Bushes

    1. Refer to Figure.

      2. Examine the bushes at location 12.

        1. Worn on the bore.

          1. If the diameter is up to 0.633 in. (16.1 mm)

          1. Accept

          2. More than in Step

          1. Repair, VRS1712 TASK 72-32-85-300-046 (REPAIR-046)

        2. Nicked, dented, scored and scratched on the bore.

          1. Up to 0.02 in. (0.5 mm)

          1. Accept

          2. More than in Step

          1. Repair, VRS1712 TASK 72-32-85-300-046 (REPAIR-046)

        3. Axially loose or missing bushes

        1. Repair, VRS1712 TASK 72-32-85-300-046 (REPAIR-046). Rotation of the bush is permissible.

    13. SUBTASK 72-32-85-220-168 Examine the Fan Case Assembly (01-100) Bushes

    1. Refer to Figure.

      2. Examine the bushes at location 13.

        1. Worn on the bore.

          1. If the diameter is up to 0.194 in. (4.95 mm)

          1. Accept

          2. More than Step

          1. Repair, VRS1712 TASK 72-32-85-300-046 (REPAIR-046)

        2. Nicked, dented, scored and scratched on the bore.

          1. Up to 0.02 in. (0.50 mm)

          1. Accept

          2. More than in Step

          1. Repair, VRS1712 TASK 72-32-85-300-046 (REPAIR-046)

        3. Axially loose or missing bushes

        1. Repair, VRS1712 TASK 72-32-85-300-046 (REPAIR-046). Rotation of the bush is permitted.

    14. SUBTASK 72-32-85-220-169 Examine the Fan Case Assembly (01-100) Anchor Nuts

    1. Refer to Figure.

      2. Examine the anchor nuts at location 14.

        1. Loose or damaged

        1. Repair, VRS 1418 TASK 72-32-85-300-012 (REPAIR-012)

    15. SUBTASK 72-32-85-220-170 Examine the Fan Case Assembly (01-100) Screw Thread Inserts of the Oil Seal Tube Mount Land

    1. Refer to Figure.

      2. Examine the screw thread inserts at location 15.

        1. Loose or damaged

        1. Repair, VRS1419 TASK 72-32-85-300-013 (REPAIR-013)

    16. SUBTASK 72-32-85-220-191 Examine the Fan Case Assembly (01-100) V-Groove

    1. Refer to Figure.

      2. Examine the V-Groove at location 16.

        1. Nicked, dented, pitted, galled or scored

        1. Repair, VRS1800 TASK 72-32-85-300-055 (REPAIR-055)

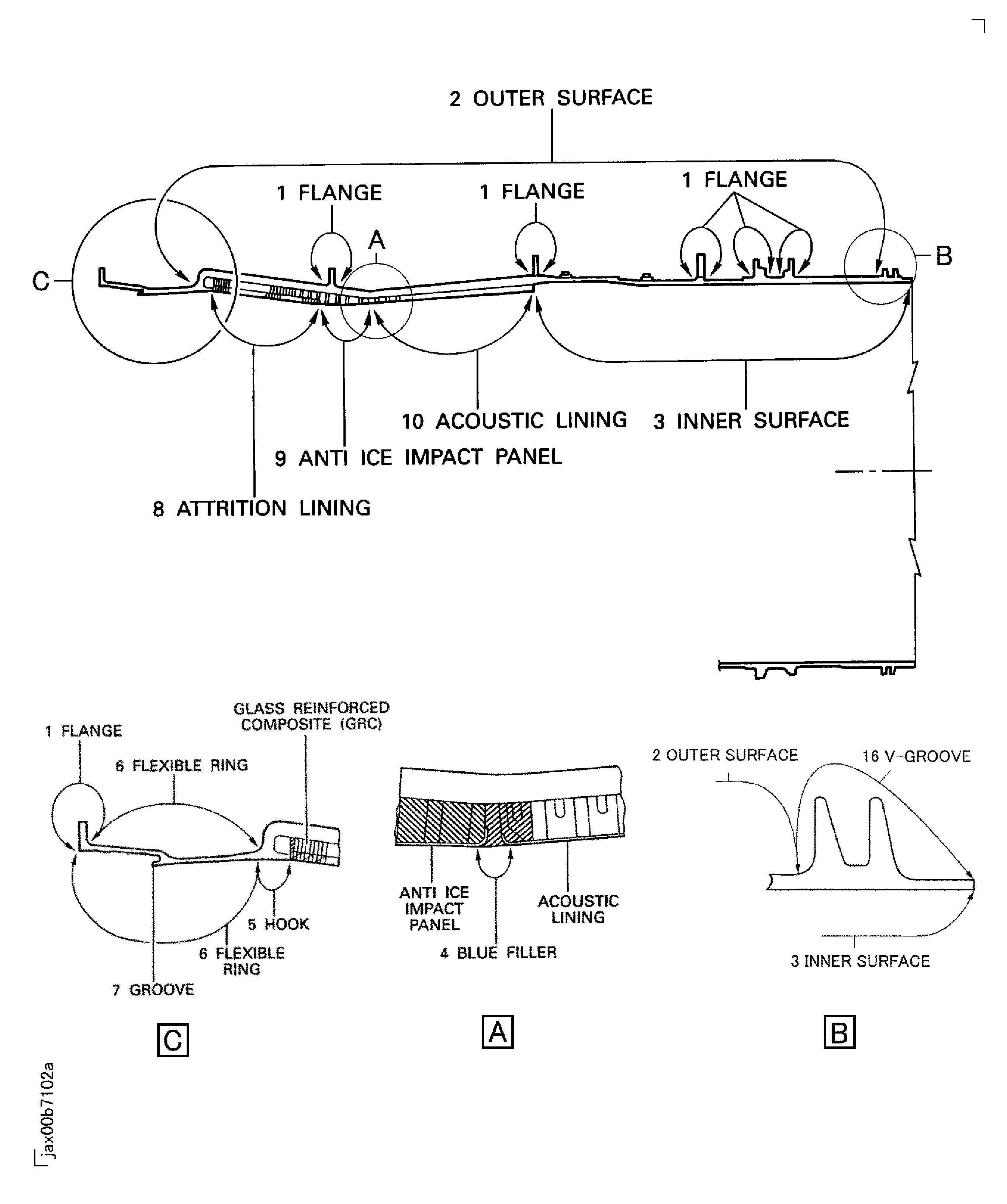

    17. Figure: Fan Case Assembly - Inspection/Check

    Fan Case Assembly - Inspection/Check

    Figure: Inspection Tool of Attrition Lining

    Inspection Tool of Attrition Lining

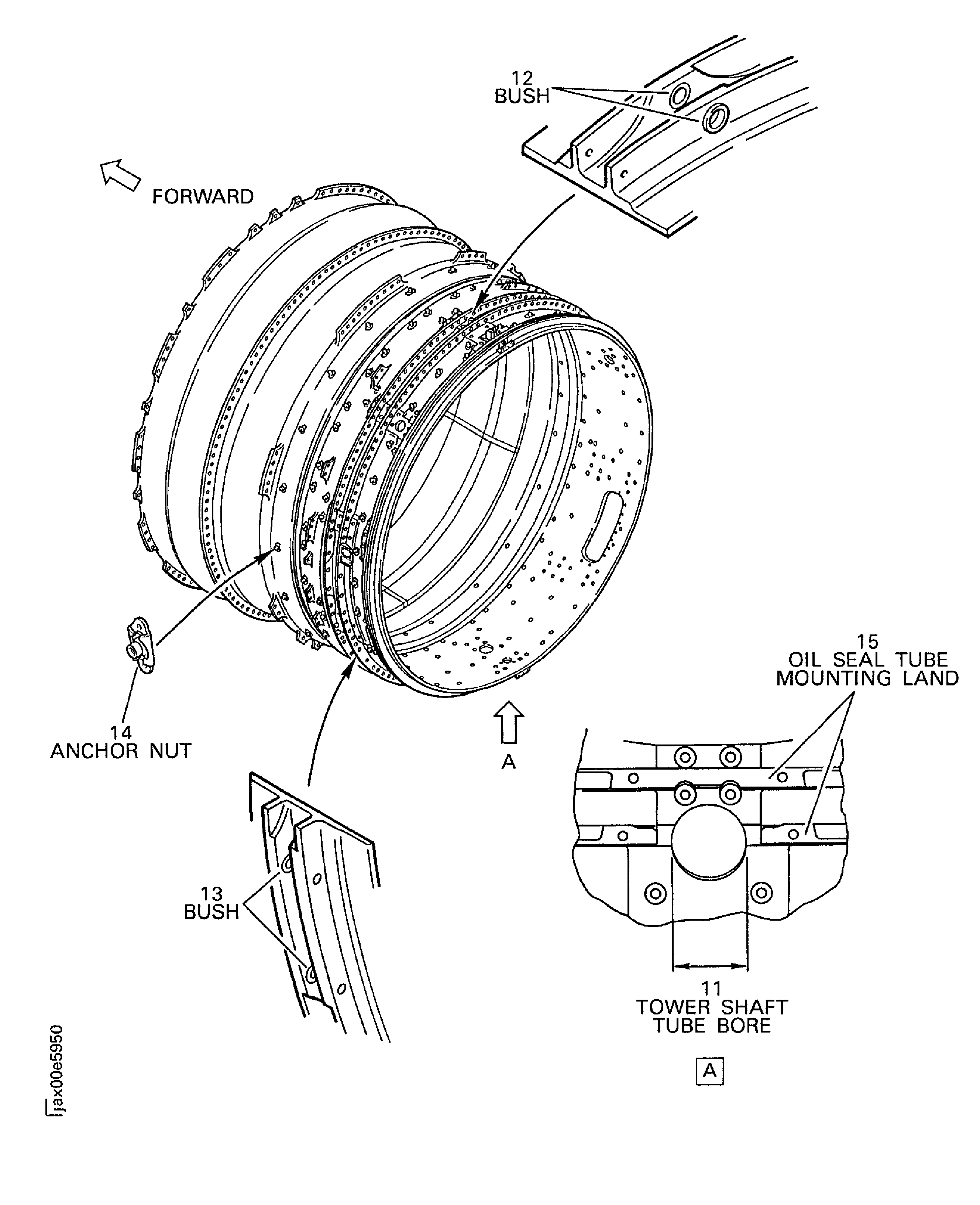

    Figure: Locations on the Fan Case Assembly

    Locations on the Fan Case Assembly

Requirements After Job Completion

Follow-On Conditions

NONE
