TASK 72-41-15-200-004-B00 HPC Stage 6 Rotor Blade - Examine, Inspection-004

DMC:V2500-A0-72-41-1506-00B-300A-C|Issue No:006.00|Issue Date:2021-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-15-200-004-B00 HPC Stage 6 Rotor Blade - Examine, Inspection-004

Effectivity

FIG/ITEM

PART NO.

02-170

6A7406

Deleted

Deleted

02-170

6A8322

02-170

6A8797

02-185

6A7407

Deleted

Deleted

02-185

6A8323

02-185

6A8798

02-200

6A7405C01

Deleted

Deleted

02-200

6A8320

02-200

6A8732

02-215

6A7405C01

Deleted

Deleted

02-215

6A8320

02-215

6A8732

02-216

6B1494

02-217

6A7405C02

Deleted

Deleted

02-217

6A8321

02-217

6A8733

General

This TASK gives the procedure for the inspection of the HP compressor stage 6 rotor blades.

Nicks and dents 0.005 in. (0.13 mm) or less are acceptable without limit to the airfoil and gas washed surface of the platforms.

Fig/item numbers in parentheses in the procedure agree with those given in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which must be discarded can be held although no repair is available. The repair of a discarded part can be shown to be necessary at a subsequent date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK number are in the SPM.

References

Refer to the SPM for data on these items:

Definition of Damage, SPM TASK 70-02-02-350-501,

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM:

Method of Testing for Crack Indications,

Chemical Processes,

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-15-230-111 Examine the Stage 6 Rotor Blades for Cracks

    1. Clean the parts. Refer to TASK 72-41-15-100-000 (CLEANING-000).

      2. Do the test for cracks on the parts that are given below.

        PART IDENT

        TASK/SUBTASK

        Stage 6 Rotor Blades

        1. Leading edge.

          1. Cracked.

          1. Refer to Step.

        2. Airfoil tips.

          1. Cracked.

          1. Refer to Step.

        3. All remaining areas.

          1. Cracked

          1. Reject

    2. SUBTASK 72-41-15-220-301 Examine the Stage 6 Rotor Blades Concave and Convex Airfoil Surfaces at Locations 1 and 2

    1. Refer to Figure.

      2. Nicks or dents

        1. Up to 0.005 in. (0.13 mm) in depth

        1. Accept

        2. More than in Step

        1. Repair, VRS6012 TASK 72-41-15-300-004 (REPAIR-004)

      3. Eroded

      1. Repair, VRS6012 TASK 72-41-15-300-004 (REPAIR-004)

      4. Scored.

        1. Along the Airfoil Chord - Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

          1. If stylus does not hesitate or catch along the airfoil chord.

          1. Accept.

          2. If stylus hesitates or catches on the airfoil chord.

          1. Reject.

        2. Along the Span of the Airfoil Surface.

        1. Reject.

    3. SUBTASK 72-41-15-220-302-001 Examine the Stage 6 Rotor Blades Concave and Convex Airfoil Surface Finish at Locations 1 and 2, Platform at Location 8 and Root Radius at Location 9 (Pre SBE 70-0714, SBE 70-0726 and SBE 72-0471)

    1. Refer to Figure.

      2. Mean surface finish of 16 microinches (0.40 micrometers) or less.

      1. Accept.

      3. Mean surface finish greater than 16 microinches (0.40 micrometers).

      1. Repair, VRS6150 TASK 72-41-15-300-040 (REPAIR-040).

    4. SUBTASK 72-41-15-220-302-002 Examine the Stage 6 Rotor Blades Concave and Convex Airfoil Surface Finish at Locations 1 and 2 (SBE 72-0560 and/or SBE 70-1006)

    1. Refer to Figure.

      2. Mean surface finish of 10 microinches (0.25 micrometers) or less.

      1. Accept.

      3. Mean surface finish greater than 10 microinches (0.25 micrometers).

      1. Repair, VRS6150 TASK 72-41-15-300-040 (REPAIR-040).

    5. SUBTASK 72-41-15-220-303 Examine the Stage 6 Rotor Blades Leading Edge at Location 3

    1. Refer to Figure.

      2. Cracked

      1. Repair, VRS6012 TASK 72-41-15-300-004 (REPAIR-004)

      3. Nicks or dents

        1. Up to 0.005 in. (0.13 mm) in depth

        1. Accept

        2. More than in Step

        1. Repair, VRS6012 TASK 72-41-15-300-004 (REPAIR-004)

      4. Eroded

      1. Repair, VRS6012 TASK 72-41-15-300-004 (REPAIR-004)

    6. SUBTASK 72-41-15-220-304 Examine the Stage 6 Rotor Blades Trailing Edge at Location 4

    1. Refer to Figure.

      2. Nicks or dents.

        1. Up to 0.005 in. (0.13 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Repair, VRS6012 TASK 72-41-15-300-004 (REPAIR-004).

      3. Eroded.

      1. Repair, VRS6012 TASK 72-41-15-300-004 (REPAIR-004).

    7. SUBTASK 72-41-15-220-305 Examine the Stage 6 Rotor Blades Tips at Location 1049

    1. Refer to Figure.

      2. Cracked

      1. Repair, VRS6052 TASK 72-41-15-300-014 (REPAIR-014) or Repair, VRS6534 TASK 72-41-15-300-055 (REPAIR-055).

      3. Rubbed or worn.

        NOTE

        This is an alternative to Step. If measurements taken during limits from disassembly (TASK 72-41-10-040-001-B00 or TASK 72-41-10-040-001-C00) have not been supplied, Stepcan be skipped.

        1. Within the limits in TASK 72-41-10-040-001-B00 (DISASSEMBLY-001) or TASK 72-41-10-040-001-C00 (DISASSEMBLY-001).

        1. Accept.

        2. Identified as too short in TASK 72-41-10-040-001-B00 (DISASSEMBLY-001) or TASK 72-41-10-040-001-C00 (DISASSEMBLY-001).

        1. Repair, VRS6052 TASK 72-41-15-300-014 (REPAIR-014) or Repair, VRS6534 TASK 72-41-15-300-055 (REPAIR-055).

    8. SUBTASK 72-41-15-220-306 Examine the Stage 6 Rotor Blades Dovetail at Location 5

      NOTE

      Damage of any kind is not allowed on the bedding areas (pressure faces) of the dovetail other than what is permitted in Step.

    1. Refer to Figure.

      2. Scored

        1. Inspect the dovetail with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

          1. If stylus does not hesitate or catch.

          1. Accept.

          2. If stylus hesitates or catches.

          1. Reject.

      3. Galled.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than Step

        1. Reject

      4. Imperfections - Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

        1. If stylus does not hesitate or catch and the imperfection does not display sharp edges, raised material, burrs, or a dark bottom.

        1. Accept.

        2. If stylus hesitates or catches, the imperfection displays sharp edges, raised material, burrs, or a dark bottom or the imperfection is located on the bedding area (pressure face).

        1. Reject.

      5. Nicks or dents - Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

        1. If stylus does not hesitate or catch and the nick or dent does not display sharp edges, raised material, or burrs.

        1. Accept.

        2. If stylus hesitates or catches, the nick or dent displays sharp edges, raised material, burrs, or the nick or dent is located on the bedding area (pressure face).

        1. Reject.

    9. SUBTASK 72-41-15-220-307 Examine the Stage 6 Rotor Blades Cheeks at Locations 6 and 7

    1. Refer to Figure.

      2. Galled.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

      3. Scored.

        1. Scored - Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

          1. If stylus does not hesitate or catch.

          1. Accept.

          2. If stylus hesitates or catches.

          1. Reject.

      4. Imperfections - Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

        1. If stylus does not hesitate or catch and the imperfection does not display sharp edges, raised material, burrs, or a dark bottom.

        1. Accept.

        2. If stylus hesitates or catches, the imperfection displays sharp edges, raised material, burrs, or a dark bottom.

        1. Reject.

      5. Nicks or dents - Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

        1. If stylus does not hesitate or catch and the nick or dent does not display sharp edges, raised material, or burrs.

        1. Accept.

        2. If stylus hesitates or catches, the nick or dent displays sharp edges, raised material, or burrs.

        1. Reject.

    10. SUBTASK 72-41-15-220-308 Examine the Stage 6 Rotor Blades Platform at Location 8

    1. Refer to Figure.

      2. Nicks or dents

        1. On top/gas washed face of the platform.

          1. Up to 0.005 in. (0.13 mm) in depth.

          1. Accept.

          2. More than in Step.

          1. Reject.

        2. On the bottom/non-gas washed face of the platform - Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

          1. If stylus does not hesitate or catch and the nick or dent does not display sharp edges, raised material, or burrs.

          1. Accept.

          2. If stylus hesitates or catches, the nick or dent displays sharp edges, raised material, or burrs.

          1. Reject.

      3. Scored.

        1. On top/gas washed face of the platform - Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

          1. If stylus does not hesitate or catch on the platform surface.

          1. Accept.

          2. If stylus hesitates or catches on the platform surface.

          1. Reject.

        2. On the bottom/non-gas washed face of the platform - Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

          1. If stylus does not hesitate or catch on the platform surface and one or more of the following criteria is met.

            One score of any length.

            Two adjacent scores, one of which is less than 0.472 in. (12 mm) in length and the scores are clearly separated.

          1. Accept.

          2. If stylus hesitates or catches on the platform surface or the criteria in Step is not maintained.

          1. Reject.

      4. Imperfections.

        1. On the bottom/non-gas washed face of the platform - Inspect with SPM TASK 70-21-00-220-501 with 0.020 in. (0.50 mm) radius stylus.

          1. If stylus does not hesitate or catch and the imperfection does not display sharp edges, raised material, burrs, or a dark bottom.

          1. Accept.

        2. If stylus hesitates or catches, the imperfection displays sharp edges, raised material, burrs, or a dark bottom.

        1. Reject.

      5. Fretted.

        1. Front section on the bottom/non-gas washed face of the platform.

          1. Up to 0.008 in. (0.20 mm) in depth

          1. Accept

          2. More than in Step.

          1. Reject

        2. Rear section on the bottom/non-gas washed face of the platform.

          1. Up to 0.012 in. (0.30 mm) in depth

          1. Accept

          2. More than in Step.

          1. Reject

    11. SUBTASK 72-41-15-220-428 Examine the Stage 6 Rotor Blades Platform Surface Finish at Location 8 (SBE 72-0560 and/or SBE 70-1006)

    1. Refer to Figure.

      2. Mean surface finish of 16 microinches (0.40 micrometers) or less.

      1. Accept.

      3. Mean surface finish greater than 16 microinches (0.40 micrometers).

      1. Repair, VRS6150 TASK 72-41-15-300-040 (REPAIR-040).

    12. SUBTASK 72-41-15-220-309 Examine the Stage 6 Rotor Blades Root Radius at Location 9

    1. Refer to Figure.

      2. Nicks or dents

        1. Up to 0.005 in. (0.13 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

      3. Scored.

        1. Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

          1. If stylus does not hesitate or catch along the chord.

          1. Accept.

          2. If stylus hesitates or catches on the chord.

          1. Reject.

      4. Imperfections - Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

        1. If stylus does not hesitate or catch and the imperfection does not display sharp edges, raised material, burrs, or a dark bottom.

        1. Accept.

        2. If stylus hesitates or catches, the imperfection displays sharp edges, raised material, burrs, or a dark bottom.

        1. Reject.

    13. SUBTASK 72-41-15-220-310 Examine the Stage 6 Rotor Locking Blades Slots at Locations 10

    1. Refer to Figure.

      2. Galled.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

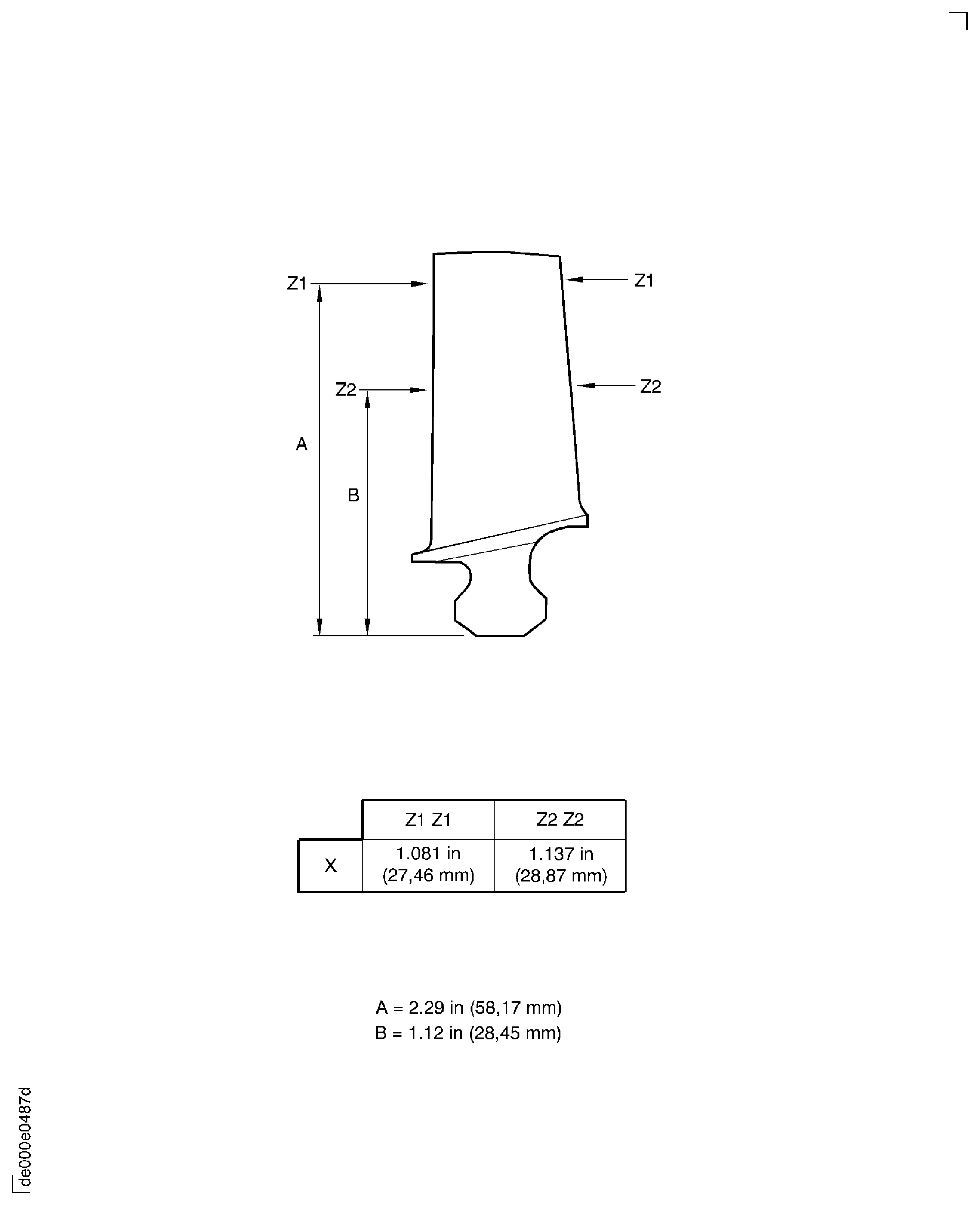

    14. SUBTASK 72-41-15-220-311 Examine the Stage 6 Rotor Blades Chordal Checks

    1. Refer to Figure.

      2. Minimum chord at Z1 and Z2 at location A and B to the value of X.

      1. Accept.

      3. Less than value X.

      1. Reject.

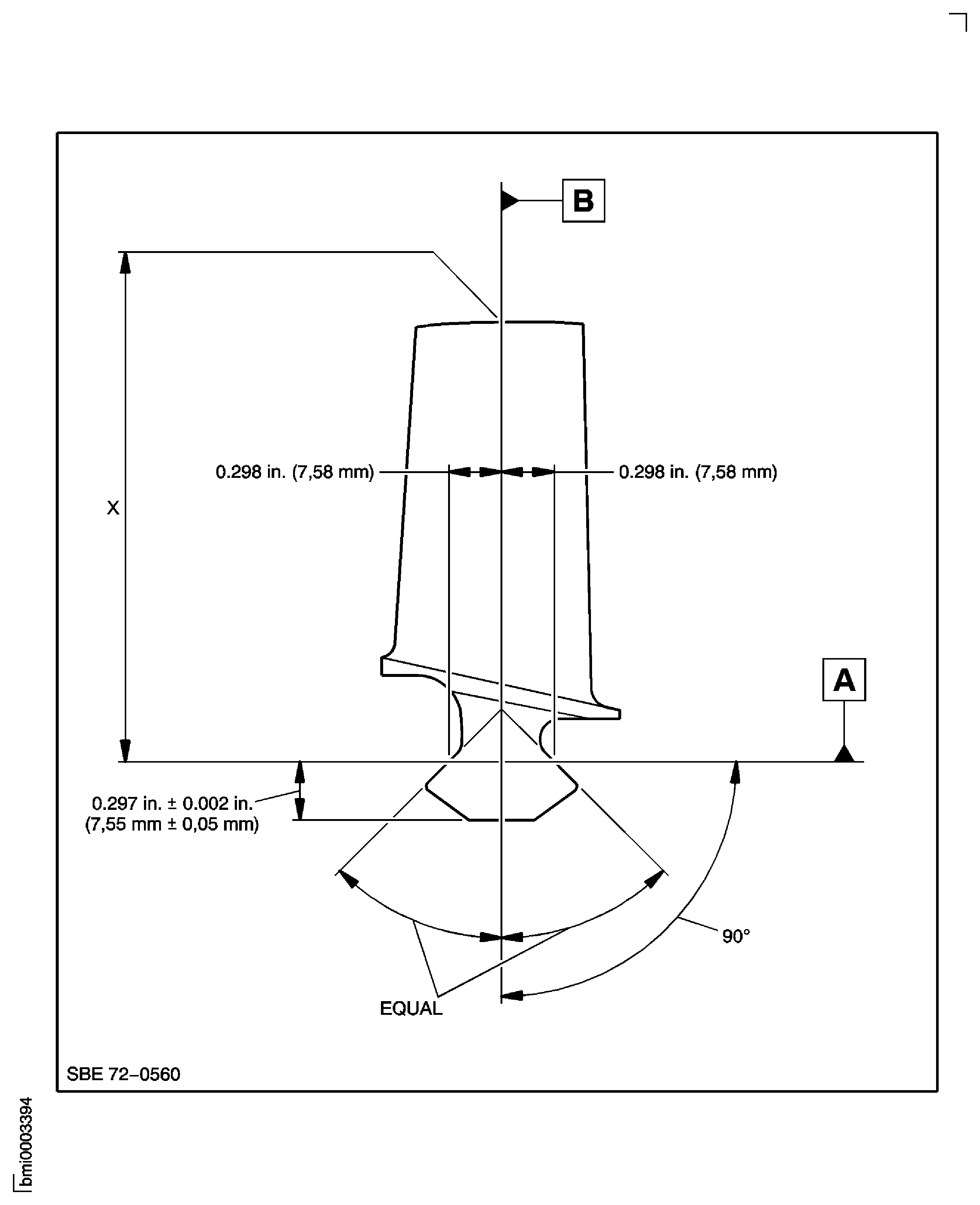

    15. SUBTASK 72-41-15-220-457 Examine the Stage 6 Rotor Blades, Length Checks

      NOTE

      This is an alternative to measurements taken during disassembly (TASK 72-41-10-040-001-B00 or TASK 72-41-10-040-001-C00). If Step. has been accomplished, Step can be skipped.

    1. Refer to Figure and Figure.

    2. Measure the blade length "X".

      3. Between 2.3630 in. and 2.3710 in. (60.020 mm and 60.223 mm).

      1. Accept.

      4. Between 2.3330 in. and 2.3620 in. (59.258 mm and 59.995 mm).

      1. Repair, VRS6052 TASK 72-41-15-300-014 (REPAIR-014) or Repair, VRS6534 TASK 72-41-15-300-055 (REPAIR-055).

      5. Less than the minimum repair limit given in Repair, VRS6052 TASK 72-41-15-300-014 (REPAIR-014) or Repair, VRS6534 TASK 72-41-15-300-055 (REPAIR-055).

      1. Reject.

    16. SUBTASK 72-41-15-220-616 Examine the Stage 6 Rotor Blades Front and Rear Lip at Location 11

    1. Refer to Figure.

      2. Scored - Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

        1. If stylus does not hesitate or catch.

        1. Accept.

        2. If stylus hesitates or catches.

        1. Reject.

      3. Imperfections - Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

        1. If stylus does not hesitate or catch and the imperfection does not display sharp edges, raised material, burrs, or a dark bottom.

        1. Accept.

        2. If stylus hesitates or catches, the imperfection displays sharp edges, raised material, burrs, or a dark bottom.

        1. Reject.

      4. Nicks and dents - Inspect with SPM TASK 70-21-00-220-501 with a 0.020 in. (0.50 mm) radius stylus.

        1. If stylus does not hesitate or catch and the nick or dent does not display sharp edges, raised material, or burrs.

        1. Accept.

        2. If stylus hesitates or catches, the nick or dent displays sharp edges, raised material, or burrs.

        1. Reject.

    17. SUBTASK 72-41-15-380-127 Replace the Dry Film Lubricant

      1. Apply the dry film lubricant to the blade dovetail

      1. Repair, VRS6495 TASK 72-41-15-300-049 (REPAIR-049)

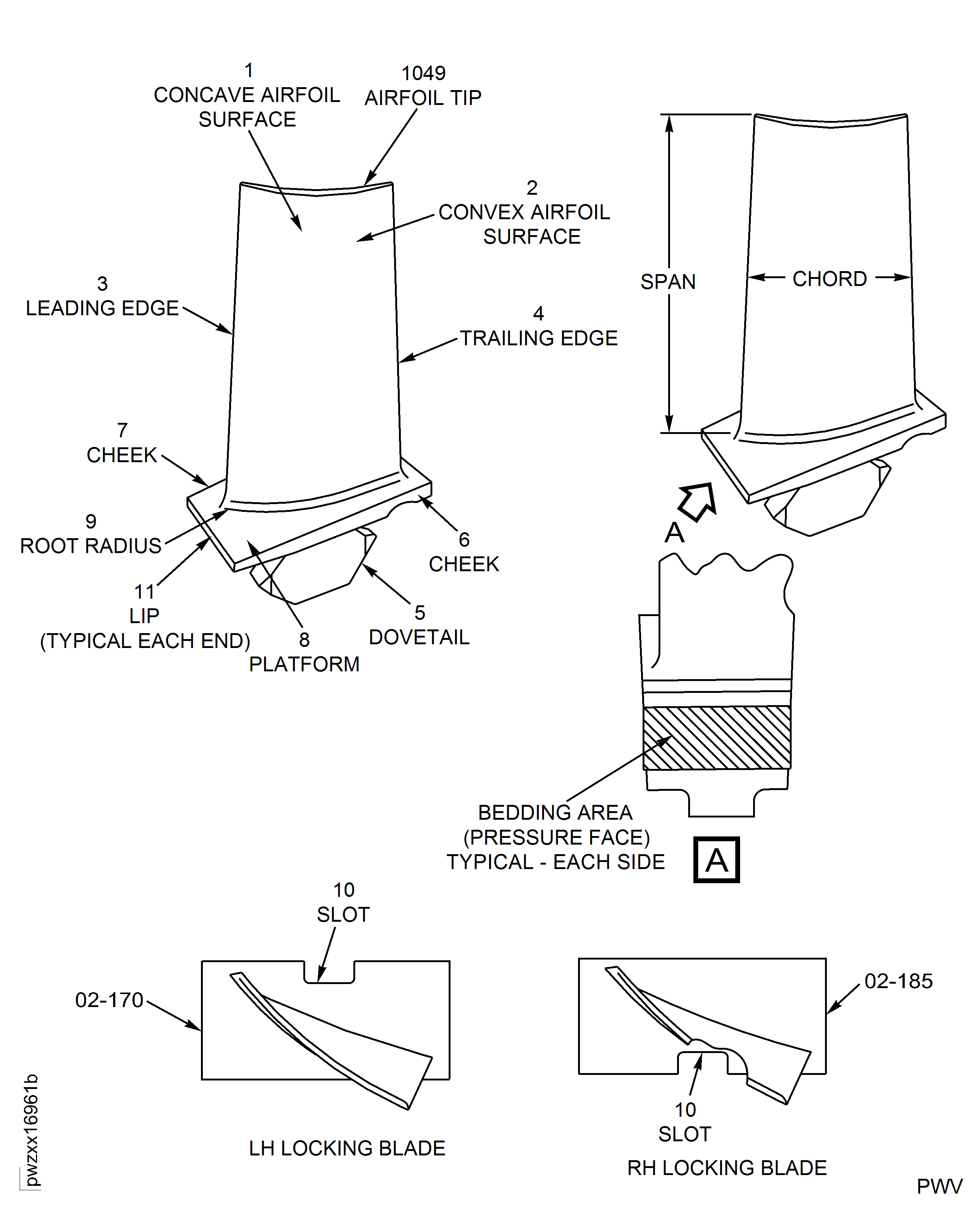

    18. Figure: Stage 6 rotor blades - Inspection Locations and Orientation

    Stage 6 rotor blades - Inspection Locations and Orientation

    Figure: Stage 6 rotor blades - chordal checks

    Stage 6 rotor blades - chordal checks

    Figure: Pre SBE 72-0560: Stage 6 Rotor Blades

    Pre SBE 72-0560: Stage 6 Rotor Blades

    Figure: SBE 72-0560: Stage 6 Rotor Blades

    SBE 72-0560: Stage 6 Rotor Blades

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedural steps to add repair reference. (19VG308)

Change Type:

Revised effectivity table, procedure and figure. (20VG156)
