Common Information
TASK 72-44-30-300-002 Inner Combustion Chamber Liner - Repair The Plasma Coat on The Rear Flange-To-Vane Platform Seal Face, Repair-002 (VRS3265)
Effectivity
FIG/ITEM | PART NO. |
|---|---|
01-401 | 2A0549-01 |
01-401 | 2A1374 |
01-401 | 2A1398 |
01-401 | 2A1617 |
01-401 | 2A2034 |
01-401 | 2A2034-001 |
01-401 | 2A2722-01 |
01-401 | 2A2838-01 |
01-401 | 2A3344-01 |
01-401 | 2A3344-001 |
01-401 | 2A3344-002 |
01-401 | 2A3344-003 |
01-401 | 2A3344-004 |
01-401 | 2A3344-005 |
01-401 | 2A3344-006 |
01-401 | 2A3344-007 |
01-401 | 2A3351-01 |
01-401 | 2A3351-003 |
01-401 | 2A3351-004 |
01-401 | 2A4283-01 |
01-401 | 2A4311-01 |
01-401 | 2A4313-01 |
01-401 | 2A4315-01 |
01-401 | 2A4315-001 |
01-420 | 2A2718-01 |
Material of component
DESCRIPTION | SYMBOL | MATERIAL |
|---|---|---|
Combustion chamber - inner liner | Wrought non-hardenable | |
nickel base alloy |
Pre-requisites
Remove the liner segments and the gangnut channels.
Refer to Repair, VRS3173 TASK 72-44-30-300-001 (REPAIR-001) and Repair, VRS3264 TASK 72-44-30-300-003 (REPAIR-003).
Remove coating on the rear mounting flange.
Refer to Repair, VRS3170 TASK 72-44-30-300-004 (REPAIR-004).
Preliminary Requirements
Pre-Conditions
| Action/Condition | Data Module/Technical Publication |
|---|---|
| Make sure that the cleaning and inspection procedures are done before this repair. |
Support Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| DELETED | LOCAL | DELETED | ||
| CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5) | 33870 | CoMat 03-089 | ||
| CoMat 03-096 PLASMA SPRAY POWDER | LOCAL | CoMat 03-096 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Remove the wear and coat from the rear flange-to-vane platform seal face to the limits in Figure and one or more of the methods that follow.
Refer to SPM TASK 70-15-01-160-501.
Remove plasma coat by high pressure water blast stripping.
Refer to SPM TASK 70-32-07-100-501
Remove wear and plasma coat.
SUBTASK 72-44-30-350-062 Remove the Wear and Coat from the Rear Flange-to-Vane Platform Seal Face on the Combustion Chamber Inner Liner
Refer to SPM TASK 70-11-03-300-503.
Clean the part by Aqueous Degrease.
SUBTASK 72-44-30-100-001 Clean the Part by Aqueous Cleaning Method
Do a fluorescent penetrant inspection of the repair area by SPM TASK 70-23-03-230-501.
Do a fluorescent penetrant inspection of the repair area by SPM TASK 70-23-08-230-501.
If grinding was used to remove plasma coating, do a fluorescent penetrant inspection of the repair area by one of the methods that follow.
SUBTASK 72-44-30-230-064 Fluorescent Penetrant Inspect the Repair Area
Refer to Figure.
Refer to SPM TASK 70-34-18-380-501 and Figure.
Grit blast out of the repair area shown is not permitted. Use masks. Shot peen is not required.
Prepare the part for coating.
SUBTASK 72-44-30-380-007 Prepare the Combustion Chamber Inner Liner
Refer to Figure.
Apply sufficient coating to get the finish requirements after finishing of the coating.
Refer to SPM TASK 70-34-03-340-501.
Unless specified differently, coat out of the repair area is not permitted. If necessary, apply masking. Refer to Figure.
Coat the repair area by IAE 53-18, IAE 53-37 or IAE 53-47.
SUBTASK 72-44-30-340-051 Apply Plasma Coating to the Rear Flange-to-Vane Platform Seal Face of the Combustion Chamber Inner Liner
Refer to SPM TASK 70-11-26-300-503.
After the coat is applied and the part is cool, remove the mask or maskants.
SUBTASK 72-44-30-110-064 Remove the Masks or Maskants
Refer to Figure.
Refer to SPM TASK 70-32-07-100-501 and Figure.
Finish coat thickness must be 0.003 in to 0.020 in. (0.08 mm to 0.51 mm).
Finish the repaired area to the limits shown.
Refer to SPM TASK 70-35-03-300-501 and Figure.
As necessary, blend to remove any overspray on the outer diameter flush with parent material.
SUBTASK 72-44-30-320-005 Finish the Repair Area
Refer to SPM TASK 70-11-03-300-503.
Clean part by Aqueous Degrease.
SUBTASK 72-44-30-110-065 Clean the Combustion Chamber Inner Liner Assembly
Refer to SPM TASK 70-34-03-340-501-002.
Do a visual inspection of the coating by IAE 53.
SUBTASK 72-44-30-220-076 Do a Visual and a Dimensional Inspection of the Plasma Coating on the Rear Flange-to-Vane Platform Seal Face on the Combustion Chamber Inner Liner
Make a permanent mark by SPM TASK 70-09-00-400-501.
Use only "Electrolytic Etch, Deep", "Metal Stamp, Press or Roll", "Vibration Peen, Manual or Mechanical", "Engrave, Manual or Mechanical", "Drag Impression" and "Dot Peen, Deep" only.
Identify the Repair.
Refer to Repair, VRS3170 TASK 72-44-30-300-004 (REPAIR-004).
Apply plasma coating on the rear mounting flange.
Refer to Repair, VRS3173 TASK 72-44-30-300-001 (REPAIR-001) and Repair, VRS3264 TASK 72-44-30-300-003 (REPAIR-003).
Install the liner segments and the gangnut channels.
SUBTASK 72-44-30-350-063 Postrequisites

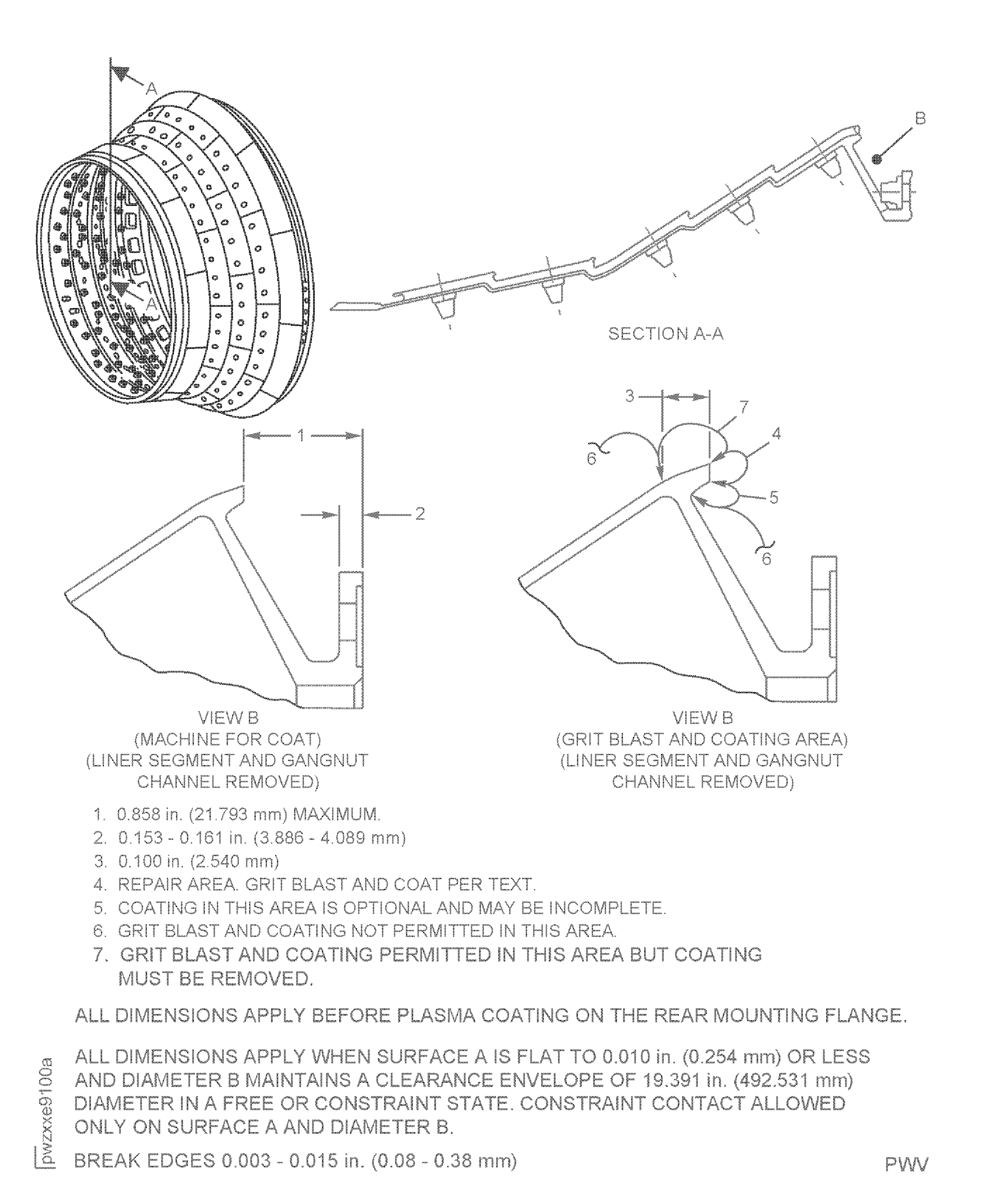

Figure: Repair Details and Dimensions
Repair Details and Dimensions

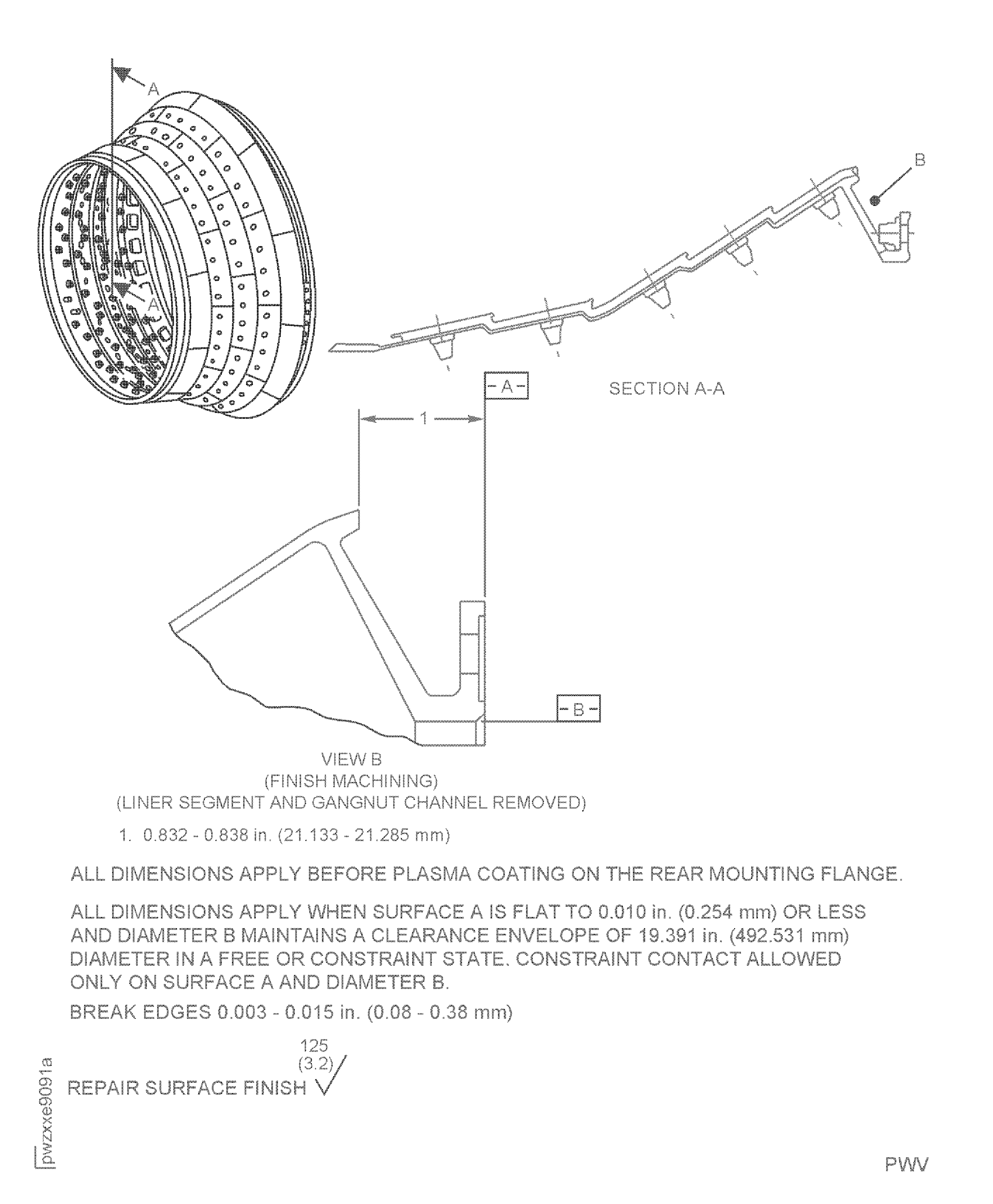

Figure: Repair Details and Dimensions
Repair Details and Dimensions
