TASK 72-45-33-200-001-A00 HPT Stage 2 Blade Retaining Plate - Examine, Inspection-001

DMC:V2500-A0-72-45-3301-00A-300A-C|Issue No:004.00|Issue Date:2020-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-33-200-001-A00 HPT Stage 2 Blade Retaining Plate - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-020

2A0160

General

This TASK gives the procedure for the inspection of the stage 2 HPT blade retaining plate. For the other parts of the stage 2 HPT blade retaining plate, refer to TASK 72-45-33-200-000 (INSPECTION-000).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do not test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications.

Chemical Processes.

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-45-33-230-051-001 Examine the Stage 2 HPT Blade Retaining Plate (01-020) for Cracks

    1. Refer to Figure and Figure.

    2. Clean the part. Refer to TASK 72-45-33-100-000 (CLEANING-000).

      NOTE

      When you inspect the blade retaining plate for cracks, make sure the areas shown in Figure are examined.

      3. Do the crack test on the part that is given below. Look carefully at areas around the front diameter fillet radius, web radius, the knife-edge area and the bayonet lock slot fillet radii. Use the applicable penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        Stage 2 HPT blade retaining plate

        (Dip or Spray)

        1. Cracks.

        1. Reject.

    2. SUBTASK 72-45-33-220-097 Examine the Stage 2 HPT Blade Retaining Plate (01-020) for Surface Damage and Wear

    1. Refer to Figure.

      2. Surface damage and wear.

        1. Locations 1, 3 and 4.

          1. Galling, dents, nicks, scratches, rolled-over edges and wear up to 0.002 in. (0.051 mm) in depth.

          1. Accept.

          2. Other than Step.

          1. Repair, VRS3255 TASK 72-45-33-300-002 (REPAIR-002).

        2. Location 5.

          1. Surface damage and wear.

          1. Reject.

        3. Location 6.

          NOTE

          Deleted.

          1. Dents, nicks, tool marks, galling and wear up to 0.001 in. (0.026 mm) in depth at Location 6.

          1. Accept and mark the slot with "X" by the procedure given in the SPM TASK 70-09-00-400-501. Marking must be accomplished with only deep electrolytic etch, vibration peen, or deep dot peen.

          2. No raised material allowed.

          2. Other than Step.

          1. Repair, VRS3255 TASK 72-45-33-300-002 (REPAIR-002).

        4. Location 7.

          NOTE

          Deleted.

          1. Dents, nicks, tool marks, galling and wear up to 0.002 in. (0.051 mm) in depth in Location 7.

          1. Accept and mark the slot with "X" by the procedure given in the SPM TASK 70-09-00-400-501. Marking must be accomplished with only deep electrolytic etch, vibration peen, or deep dot peen.

          2. No raised material allowed.

          2. Other than Step.

          1. Repair, VRS3255 TASK 72-45-33-300-002 (REPAIR-002).

        5. Diameter 8.

          1. Galling.

          1. Repair, VRS3255 TASK 72-45-33-300-002 (REPAIR-002).

        6. Location 10.

          1. Dents, nicks, tool marks, galling and wear up to 0.002 in. (0.051 mm) in depth at Location 10.

          1. Accept.

          2. No raised material allowed.

          2. Other than Step.

          1. Repair, VRS3255 TASK 72-45-33-300-002 (REPAIR-002) or Repair, VRS3853 TASK 72-45-33-300-008 (REPAIR-008).

        7. Location 11.

          1. Dents, nicks, tool marks, galling and wear up to 0.001 in. (0.026 mm) in depth at Location 11.

          1. Accept and mark the slot with "X" by the procedure given in the SPM TASK 70-09-00-400-501. Marking must be accomplished with only deep electrolytic etch, vibration peen, or deep dot peen.

          2. No raised material allowed.

          2. Other than Step.

          1. Repair, VRS3255 TASK 72-45-33-300-002 (REPAIR-002) or Repair, VRS3853 TASK 72-45-33-300-008 (REPAIR-008).

    3. SUBTASK 72-45-33-220-098 Examine the Stage 2 HPT Blade Retaining Plate (01-020) Surfaces for Corrosion

    1. Refer to Figure.

      2. Examine the retaining plate surfaces for corrosion.

        1. Corrosion.

        1. Repair, VRS3255 TASK 72-45-33-300-002 (REPAIR-002).

    4. SUBTASK 72-45-33-220-057-001 Examine the Stage 2 HPT Blade Retaining Plate (01-020) Front Diameter

      NOTE

      1. Do this procedure only if the part number at Location 1 is 2A0160 through 2A0160E.

      2. If the measured diameter in a free condition is not satisfactory, a held condition is permitted. The dimensions apply when Surface F is flat by 0.001 in. (0.025 mm) and Diameter G maintains a clearance envelope of 17.385 in. (441.630 mm) in a free or held condition. Hold the part only on Surfaces F, H, S, T and Diameter G.

      3. Do not make the part straight.

    1. Refer to Figure.

      2. Examine the retaining plate at Location 1506, for the front diameter.

        1. If the front diameter is between 17.3815 in. and 17.3845 in. (441.491 mm and 441.566 mm).

        1. Accept.

        2. Write down the dimension of the diameter.

        2. Other than in Step

        1. Repair, VRS3323 TASK 72-45-33-300-003 (REPAIR-003).

    5. SUBTASK 72-45-33-220-057-002 Examine the Stage 2 HPT Blade Retaining Plate (01-020) Front Diameter

      NOTE

      1. Do this procedure only if the part number at Location 1 is 2A0160F or 2A0160G.

      2. If the measured diameter in a free condition is not satisfactory, a held condition is permitted. The dimensions apply when Surface F is flat by 0.001 in. (0.025 mm) and Diameter G maintains a clearance envelope of 17.387 in. (441.630 mm) in a free or held condition. Hold the part only on Surfaces F, H, S, T and Diameter G.

      3. Do not make the part straight.

    1. Refer to Figure.

      2. Examine the retaining plate at Location 1506, for the front diameter.

        1. If the front diameter is between 17.3805 in. and 17.3865 in. (441.465 mm and 441.617 mm).

        1. Accept.

        2. Write down the dimension of the diameter.

        2. Other than Step

        1. Repair, VRS3323 TASK 72-45-33-300-003 (REPAIR-003).

    6. SUBTASK 72-45-33-220-058 Examine the Stage 2 HPT Blade Retaining Plate (01-020) Knife-Edge Seal Diameter

    1. Refer to Figure.

      NOTE

      1. If the measured diameter in a free condition is not satisfactory, a held condition is permitted. All dimensions apply when Surface F is flat by 0.001 in. (0.025 mm) and Diameter G maintains a clearance envelope of 17.387 in. (441.630 mm) in a free or held condition. Hold the blade retaining plate only on Surfaces F, H, S, T and Diameter G.

      2. Do not make the part straight.

      2. Examine the retaining plate Location 2255, knife-edge seal diameter.

        1. If the knife-edge seal diameter is between 19.807 in. and 19.812 in. (503.10 mm and 503.22 mm).

        1. Accept.

        2. If the knife-edge seal diameter is between 19.797 in. and 19.812 in. (502.84 mm and 503.22 mm).

        1. Accept for select fit only.

        2. Write down the dimension of the diameter.

          NOTE

          This part can be used only if the mating part has a diameter that will result in fit of reference No. 5623. Refer to TASK 72-00-45-420-001-A01 (INSTALLATION-001) or TASK 72-00-45-420-001-A02 (INSTALLATION-002).

        3. Other than Step and Step.

        1. Reject.

    7. SUBTASK 72-45-33-220-059-001 Examine the Stage 2 HPT Blade Retaining Plate (01-020) Dimension Between the Outer Diameter Front Contact Surface and the Bayonet Slot Rear Surface

      NOTE

      1. Do this procedure only if the part number at Location 1 is 2A0160 through 2A0160E.

      2. If the measured dimension in a free condition is not satisfactory, a held condition is permitted. The dimensions apply when Surface F is flat by 0.001 in. (0.025 mm) and Diameter G maintains a clearance envelope of 17.385 in. (441.630 mm) in a free or held condition. Hold the part only on Surfaces F, H and Diameter G.

      3. Do not make the part straight.

    1. Refer to Figure.

      2. Examine the retaining plate at Location 3, for the dimension between the outer diameter front contact surface and the bayonet slot rear surface.

        1. If the dimension is between 0.230 in. and 0.239 in. (5.842 mm and 6.070 mm).

        1. Accept.

        2. Other than Step.

        1. Repair, VRS3515 TASK 72-45-33-300-004 (REPAIR-004).

    8. SUBTASK 72-45-33-220-059-002 Examine the Stage 2 HPT Blade Retaining Plate (01-020) Dimension Between the Outer Diameter Front Contact Surface and the Bayonet Slot Rear Surface

      NOTE

      1. Do this procedure only if the part number at Location 1 is 2A0160F or 2A0160G.

      2. If the measured diameter in a free condition is not satisfactory, a held condition is permitted. The dimensions apply when Surface F is flat by 0.001 in. (0.025 mm) and Diameter G maintains a clearance envelope of 17.387 in. (441.630 mm) in a free or held condition. Hold the part only on Surfaces F, H and Diameter G.

      3. Do not make the part straight.

    1. Refer to Figure.

      2. Examine the retaining plate at Location 3, for the dimension between the outer diameter front contact surface and the bayonet slot rear surface.

        1. If the dimension is between 0.232 in. and 0.242 in. (5.89 mm and 6.15 mm).

        1. Accept.

        2. If the dimension is between 0.225 in. and 0.232 in. (5.715 mm and 5.893 mm).

        1. Measure the dimension at Location 2.

          2. If the dimension is 0.000 in. to 0.010 in. (0.000 mm to 0.254 mm) more then the dimension you measured at Location 2.

          1. Accept.

        3. Other than Step or Step.

        1. Repair, VRS3515 TASK 72-45-33-300-004 (REPAIR-004).

    9. SUBTASK 72-45-33-220-060-001 Examine the Stage 2 HPT Blade Retaining Plate (01-020) Dimension Between the Inner Diameter Front Contact Surface and the Bayonet Slot Rear Surface

      NOTE

      1. Do this procedure only if the part number at Location 1 is 2A0160 through 2A0160E.

      2. If the measured dimension in a free condition is not satisfactory, a held condition is permitted. The dimensions apply when Surface F is flat by 0.001 in. (0.025 mm) and Diameter G maintains a clearance envelope of 17.385 in. (441.630 mm) in a free or held condition. Hold the part only on Surfaces F, H and Diameter G.

      3. Do not make the part straight.

    1. Refer to Figure.

      2. Examine the retaining plate at Location 2, for the dimension between the inner diameter front contact surface and the bayonet slot rear surface.

        1. If the dimension is between 0.230 in. and 0.234 in. (5.842 mm and 5.943 mm).

        1. Accept.

        2. Other than Step.

        1. Reject.

    10. SUBTASK 72-45-33-220-060-002 Examine the Stage 2 HPT Blade Retaining Plate (01-020) Dimension Between the Inner Diameter Front Contact Surface and the Bayonet Slot Rear Surface

      NOTE

      1. Do this procedure only if the part number at Location 1 is 2A0160F or 2A0160G.

      2. If the measured diameter in a free condition is not satisfactory, a held condition is permitted. The dimensions apply when Surface F is flat by 0.001 in. (0.025 mm) and Diameter G maintains a clearance envelope of 17.387 in. (441.630 mm) in a free or held condition. Hold the part only on Surfaces F, H and Diameter G.

      3. Do not make the part straight.

    1. Refer to Figure.

      2. Examine the retaining plate at Location 2, for the dimension between the inner diameter front contact surface and the bayonet slot rear surface.

        1. If the dimension is between 0.224 in. and 0.234 in. (5.69 mm and 5.94 mm).

        1. Accept.

        2. If the dimension is between 0.222 in. and 0.224 in. (5.639 mm and 5.689 mm).

        1. Measure the dimension at Location 2.

          2. If the dimension is 0.000 in. to 0.010 in. (0.000 mm to 0.254 mm) more than the dimension you measured at Location 2.

          1. Accept.

        3. Other than Step or Step.

        1. Reject.

    11. SUBTASK 72-45-33-220-061 Examine the Stage 2 HPT Blade Retaining Plate (01-020) for the Cycle Time of the Part

      NOTE

      The assembly level part number will be marked at Location X or Y.

    1. Refer to Figure.

    2. Examine the retaining plate, Location 9, for the cycle time of the part at each disassembly.

      3. Calculate the new engine run cycles.

      1. Get the part cycles from the engine records since the last shop visit (disassembly) and write the cycles down.

      2. Write down the engine run cycles marked on the part at Location 9.

      3. Add the results of Step and Step. The result is the new engine run cycles.

      4. Make a mark for the new cycle time of the parts on the blade retaining plate.

      1. Use deep electrolytic etch, vibration peen (manual or mechanical) or deep dot peen method to mark the part. Refer to SPM TASK 70-09-00-400-501.

      2. Make a mark on the blade retaining plate at Location 9, which is located not more than 0.250 in. (6.35 mm) from the outer diameter of the retaining plate. The electrical contact is only permitted at Location 2.

        3. Examine the electrical contact area, Location 2, for burns, pitting and selective attack.

          1. Burns, pitting or selective attack.

          1. Reject.

    5. Do not use the part if the total cycles are greater than the maximum cycles given for the part in TASK 5-10-01-200-001-A00 (GROUP A PARTS LIVES, CONFIG-001).

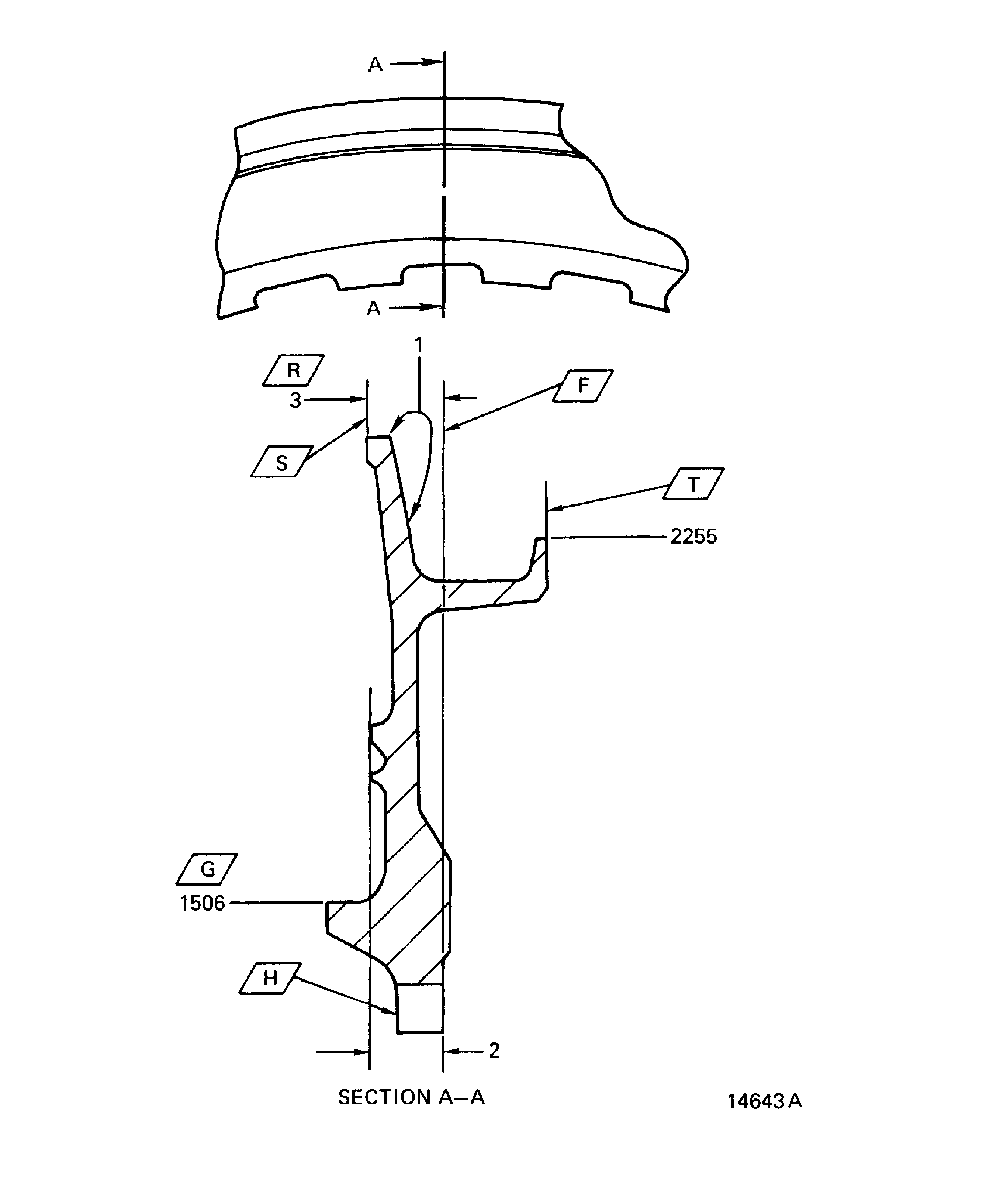

    12. Figure: Stage 2 HPT Blade Retaining Plate Inspection Locations

    Stage 2 HPT Blade Retaining Plate Inspection Locations

    Figure: Stage 2 HPT Blade Retaining Plate Inspection Locations

    Stage 2 HPT Blade Retaining Plate Inspection Locations

    Figure: Stage 2 HPT Blade Retaining Plate, Important FPI Inspection Locations

    Stage 2 HPT Blade Retaining Plate, Important FPI Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure to update location details and figure. (18VC415)
