TASK 72-60-28-200-002 Generator Drive Gear Housing - Examine, Inspection-002

DMC:V2500-A0-72-60-2804-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-28-200-002 Generator Drive Gear Housing - Examine, Inspection-002

Effectivity

FIG/ITEM PART NO.

01-450

4B0161

01-450

4B0271

01-450

4B0281

01-450

4B0312

01-450

4B0348

01-450

4B0370

General

This TASK gives the procedure for inspection of the IDG drive housing.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items:

Definitions of Damage, SPM TASK 70-02-02-350-501,

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501,

Inspection of Parts, SPM TASK 70-20-00-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM:

Method of Testing for Crack Indications,

Chemical Processes,

Surface Protection.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001
CoMat 06-063 FLUORESCENT PENETRANT (POST-EMULSIFIED MEDIUM SENSITIVITY)LOCALCoMat 06-063

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-28-230-051 Examine the IDG Housing (01-450) for Cracks

    1. Clean the part. Refer to TASK 72-60-28-100-000.

      2. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT TASK/OP

        IDG drive housing

        1. Cracks

        1. Reject

        2. Through porosity

        1. Reject

    2. SUBTASK 72-60-28-220-058 Examine the IDG Housing (01-450) Studs/Lockrings

    1. Refer to Figure.

      2. Perpendicularity.

        1. More than 0.0138 in. (0.350 mm) each 3.937 in. (100.00 mm). No axial movement is permitted (moved by hand).

        1. Repair VRS5059, TASK 72-60-28-300-006

      3. Thread damage or not there

      1. Repair VRS5059, TASK 72-60-28-300-006

    3. SUBTASK 72-60-28-220-059 Examine the IDG Housing (01-450) Threaded Inserts/Lockrings

    1. Refer to Figure.

      2. Loose, not there or with the internal thread damaged

      1. Repair VRS5060, TASK 72-60-28-300-007

    4. SUBTASK 72-60-28-220-060 Examine the IDG Housing (01-450) Adaptor Mating Surface at Location 1

    1. Refer to Figure.

      2. Parallelism.

        1. In 0.002 in. (0.05 mm) in relation to Surface A

        1. Accept

        2. More than (1)

        1. Repair VRS5061, TASK 72-60-28-300-008

    5. SUBTASK 72-60-28-220-061 Examine the IDG Housing (01-450) IDG Seat at Location 2

    1. Refer to Figure.

      2. Diameter.

        1. Between 6.6039 and 6.6059 in. (167.740 and 167.790 mm)

        1. Accept

        2. More than 6.6059 in. (167.790 mm)

        1. Repair VRS5064, TASK 72-60-28-300-009

      3. Runout.

        1. In 0.002 in. (0.05 mm) FIR. in relation to Surfaces A and B

        1. Accept

        2. More than (1)

        1. Repair VRS5064, TASK 72-60-28-300-009

          NOTE

          The drain hole is located on the internal corner of location 2, in the 6 o'clock position when the housing is installed.

      4. Drain hole.

        1. Make sure that the drain hole is free of dirt

        1. Cleaning, SPM TASK 70-11-03-300-503

    6. SUBTASK 72-60-28-220-062 Examine the IDG Housing (01-450) Seal Housing Seat at Location 3

    1. Refer to Figure.

      2. Diameter.

        1. Between 3.2303 and 3.2343 in. (82.049 and 82.151 mm)

        1. Accept

        2. More than 3.2343 in. (82.151 mm)

        1. Repair VRS5065, TASK 72-60-28-300-010

      3. Runout.

        1. In 0.002 in. (0.05 mm) FIR. in relation to Surfaces A and B

        1. Accept

        2. More than (1)

        1. Repair VRS5065, TASK 72-60-28-300-010

    7. SUBTASK 72-60-28-220-063 Examine the IDG Housing (01-450) Seal Housing Mating Surface at Location 4

    1. Refer to Figure.

      2. Parallelism.

        1. In 0.002 in. (0.05 mm) in relation to Surface A

        1. Accept

        2. More than (1)

        1. Repair VRS5062, TASK 72-60-28-300-011

    8. SUBTASK 72-60-28-220-064 Examine the IDG Housing (01-450) Mounting Face at Location 5

    1. Refer to Figure.

      2. Planarity.

        1. In 0.0014 in. (0.035 mm) or less

        1. Accept

        2. More than (1)

        1. Repair VRS5067, TASK 72-60-28-300-013

    9. SUBTASK 72-60-28-220-065 Examine the IDG Housing (01-450) Bearing Seat at Location 6

    1. Refer to Figure.

      2. Diameter.

        1. Between 3.1894 and 3.1903 in. (81.012 and 81.034 mm)

        1. Accept

        2. More than 3.1903 in. (81.034 mm)

        1. Repair VRS5066, TASK 72-60-28-300-012

      3. Runout.

        1. In 0.001in. (0.025 mm) FIR. in relation to Surfaces A and C

        1. Accept

        2. More than (1)

        1. Repair VRS5066, TASK 72-60-28-300-012

    10. SUBTASK 72-60-28-220-066 Examine the IDG Housing (01-450) Bearing Mating Surface at Location 7

    1. Refer to Figure.

      2. Perpendicularity.

        1. In 0.0010 in. (0.025 mm) in relation to Surface B

        1. Accept

        2. More than (1)

        1. Repair VRS5063, TASK 72-60-28-300-014

    11. SUBTASK 72-60-28-220-067 Examine the IDG Housing (01-450) Small Piloting Diameter at Location 8

    1. Refer to Figure.

      2. Diameter.

        1. Between 7.0075 and 7.0059 in. (177.990 and 177.950 mm)

        1. Accept

        2. Less than 7.0059 in. (177.950 mm)

        1. Repair VRS5069, TASK 72-60-28-300-016

      3. Perpendicularity.

        1. In 0.002 in. (0.05 mm) FIR. in relation to Surface A

        1. Accept

        2. More than (1)

        1. Repair VRS5069, TASK 72-60-28-300-016

      4. Runout.

        1. In 0.0010 in. (0.025 mm) FIR. in relation to Surfaces A and B

        1. Accept

        2. More than (1)

        1. Repair VRS5069, TASK 72-60-28-300-016

    12. SUBTASK 72-60-28-220-068 Examine the IDG Housing (01-450) Large Piloting Diameter at Location 9

    1. Refer to Figure.

      2. Diameter.

        1. Between 7.0866 and 7.0827 in. (180.000 and 179.900 mm)

        1. Accept

        2. Less than 7.0827 in. (179.900 mm)

        1. Repair VRS5068, TASK 72-60-28-300-015

      3. Runout.

        1. In 0.002 in. (0.05 mm) FIR. in relation to Surfaces A and C

        1. Accept

        2. More than (1)

        1. Repair VRS5068, TASK 72-60-28-300-015

    13. SUBTASK 72-60-28-220-069 Examine the IDG Housing (01-450) All Areas

      1. Cracks.

      1. Reject.

    14. SUBTASK 72-60-28-220-070 Examine the IDG Housing (01-450) Rough Surfaces at Location 10

    1. Refer to Figure.

      2. Nicks, scores, dents or scratches.

        1. All quantity, all length, not more than 0.0138 in. (0.350 mm) in depth

        1. Accept.

        2. More than (1)

        1. Repair VRS5058, TASK 72-60-28-300-017

    15. SUBTASK 72-60-28-220-071 Examine the IDG Housing (01-450) Machined Seal Surfaces at Location 11

    1. Refer to Figure.

      2. Nicks, scores, dents or scratches.

        1. All quantity, all length, not more than 0.0039 in. (0.100 mm) in depth, not extended across the seal surface

        1. Accept.

        2. More than (1)

        1. Repair VRS5058, TASK 72-60-28-300-017

    16. SUBTASK 72-60-28-220-072 Examine the IDG Housing (01-450) Machined not Seal Surfaces at Location 12

    1. Refer to Figure.

      2. Nicks, scores, dents or scratches.

        1. All quantity, all length, not more than 0.008 in. (0.20 mm) in depth

        1. Accept.

        2. More than (1)

        1. Repair VRS5058, TASK 72-60-28-300-017

    17. SUBTASK 72-60-28-220-059 Examine the IDG Housing (72-60-28,01-450) Helicoil Inserts (SBE 72-0492)

      1. Loose, missing or with internal thread damaged

      1. Repair VRS5672, TASK 72-60-28-300-XXX (REPAIR XXX)**

    18. SUBTASK 72-60-28-220-177 Examine the IDG Housing (72-60-28,01-450) Screw Head Inserts (SBE 72-0492 and SBE 70-0950)

      1. Loose, missing or with internal thread damaged

      1. Repair VRS5673, TASK 72-60-28-300-028 (REPAIR-028)

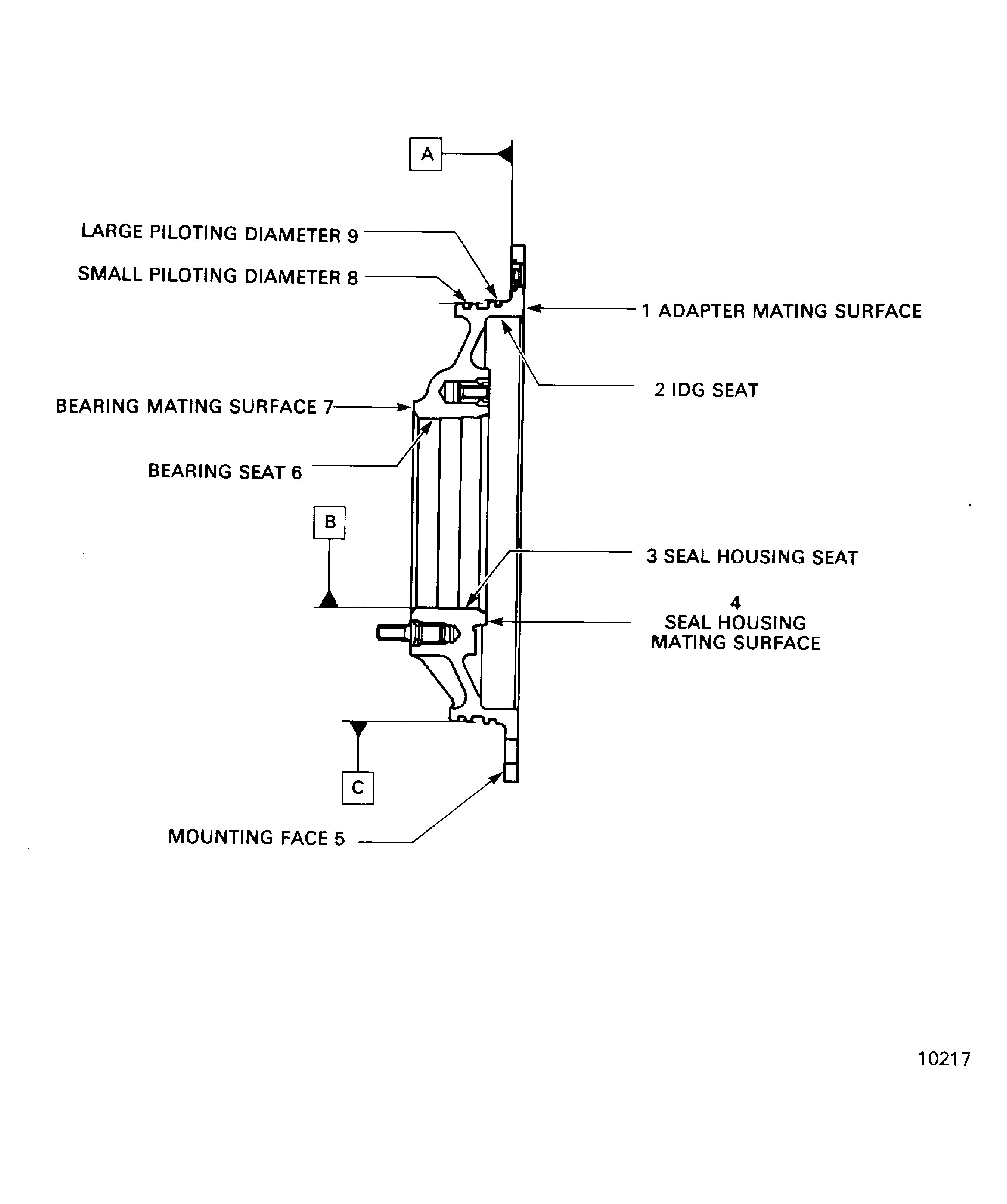

    19. Figure: Locations on the IDG Housing

    Sheet 1

    Legend
    Locations on the IDG Housing

    Sheet 1

    Close

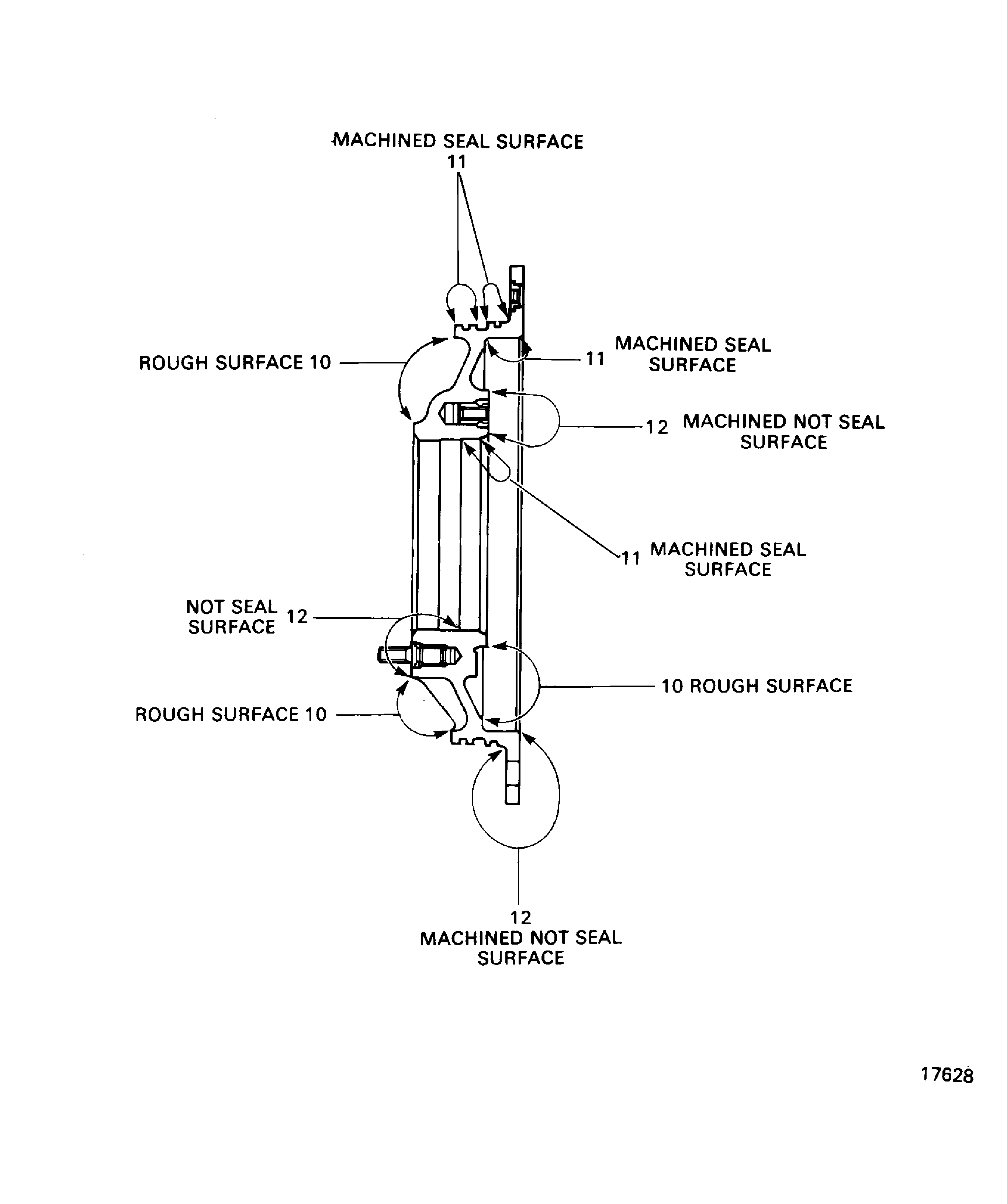

    Figure: Locations on the IDG Housing

    Sheet 2

    Legend
    Locations on the IDG Housing

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
