DMC:V2500-A1-71-00-0200-26A-520A-B|Issue No:002|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 71-00-02-000-027-A00 (A1-PPBU) - Remove The LP Compressor/Intermediate Case Brackets, Removal-027

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all the parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

Apply the approved penetrating oil before the removal of threaded parts and parts with an interference fit. Let the parts soak before removal. For the approved oils and procedures, refer to the SPM TASK 70-64-00-640-501.

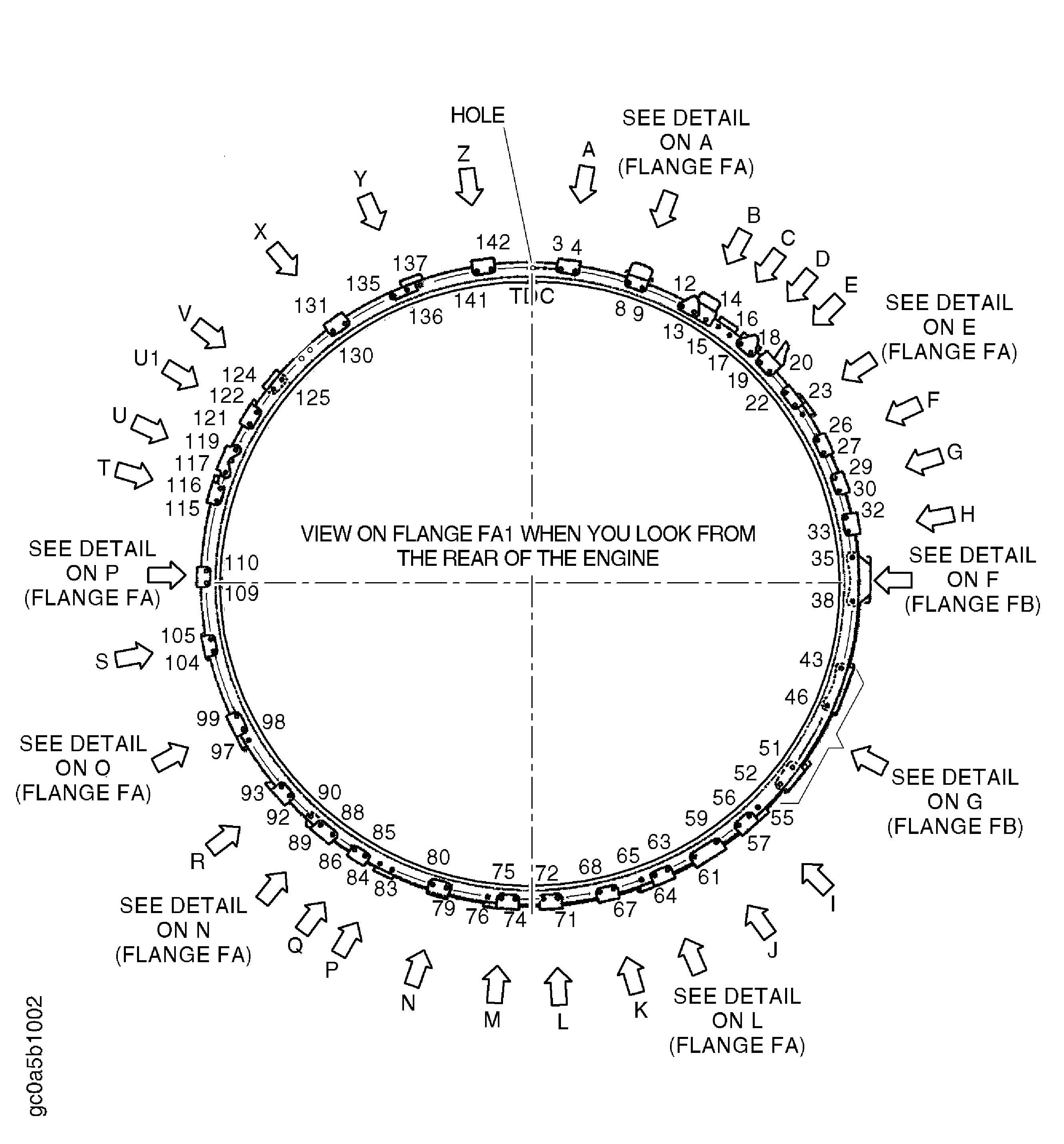

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

Refer to Figure for details of the module flanges given in this procedure.

NOTE

Consumable materials are given in the related SPM TASK.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification	Quantity	Remark
ACR Torq-Set bit 212-1/4-ACR	LOCAL	Torq-Set

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure and Figure.
2. 1. Remove the two bolts which attach the bracket ICE AND RAIN PROTECTION-ANTI-ICE DUCTS (30-21-49, 01-200) to the raft.
  2. Remove the two bolts and the two nuts which attach the bracket and the raft to holes 8 and 9 on the flange FA1.
  3. Remove the two bolts which attach the raft to the bracket BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN (71-51-50, 01-880).
  4. Remove the two screws, the two washers and the two nuts which attach the bracket and the packing piece to the holes 3 and 4.
  5. Temporarily attach the bracket/raft assembly to the flange FA1 with a bolt and a nut at hole 8. Tighten the nut.

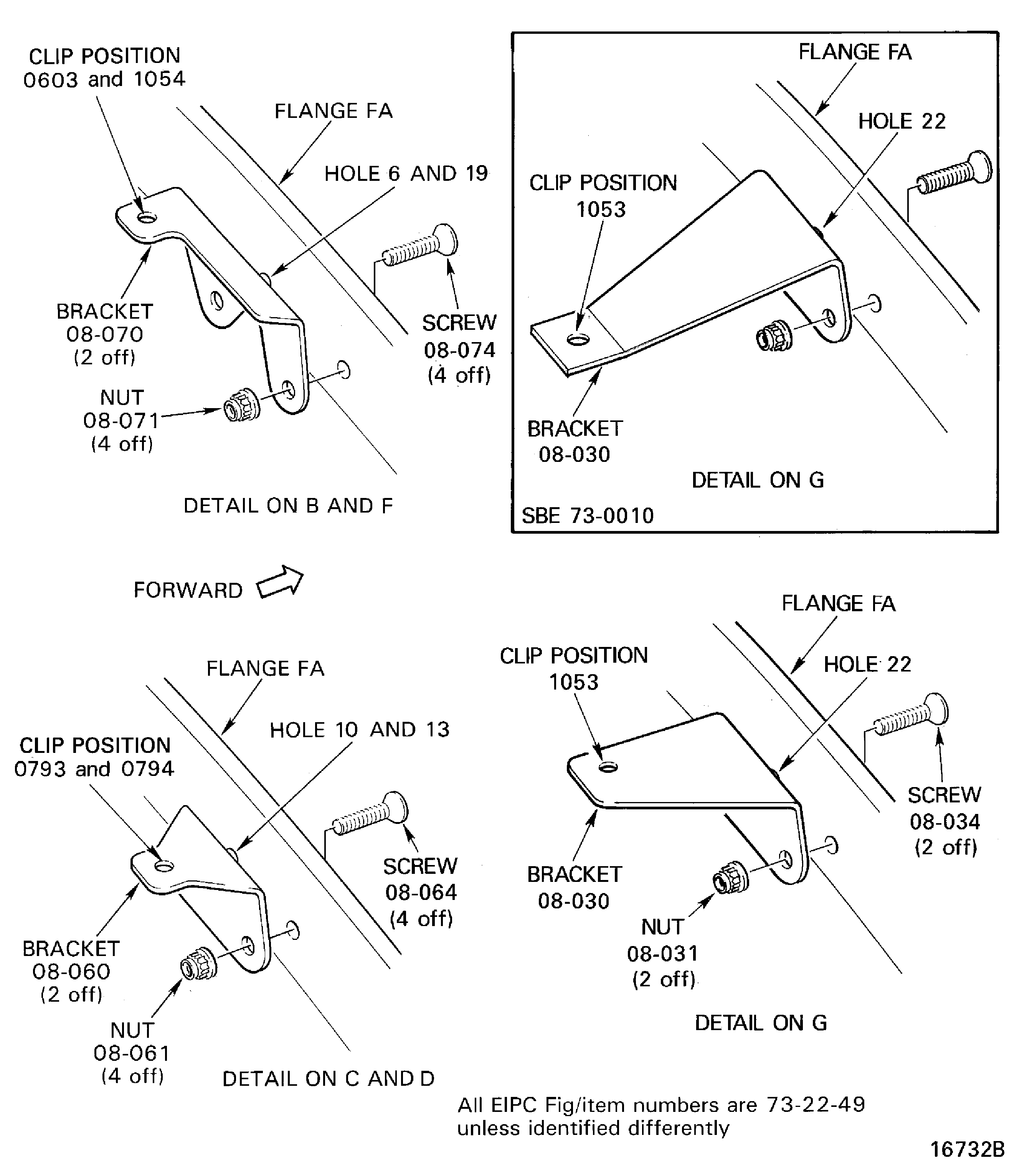

3. 1. Remove the four screws and the four nuts which attach the two brackets at the holes 6, 8 and 19, 20 with the ACR Torq-Set bit 212-1/4-ACR 1 off.
4. 1. Remove the four screws and the four nuts which attach the two brackets at the holes 10, 11 and 13, 14 with the ACR Torq-Set bit 212-1/4-ACR 1 off.
5. 1. Remove the two screws and the two nuts which attach the bracket at the holes 22 and 23 with the ACR Torq-Set bit 212-1/4-ACR 1 off.

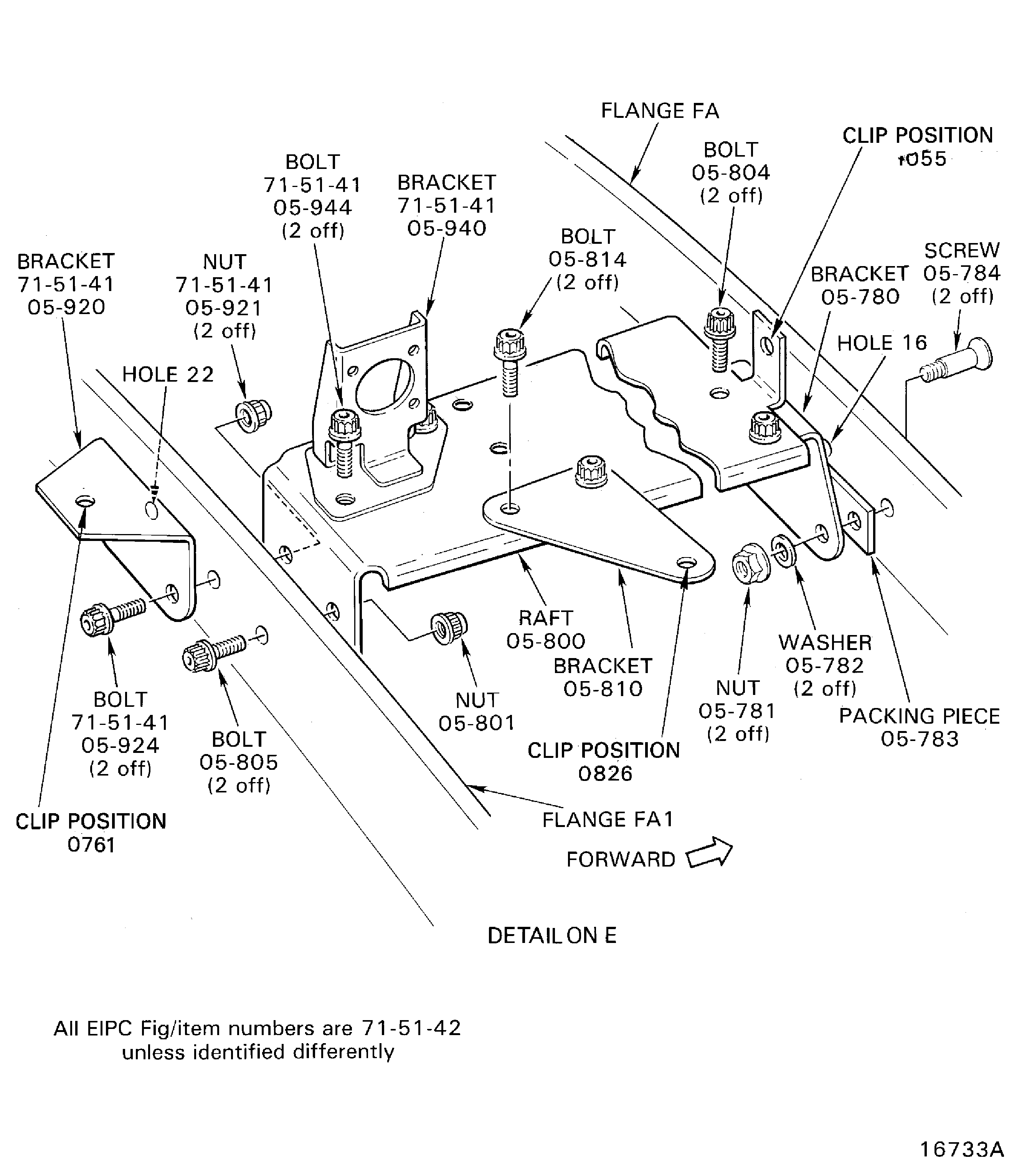

6. 1. Pre SBE 71-0070: Remove the two bolts which attach the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-810) to the raft.
  2. Remove the two bolts which attach the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-940) to the raft.
  3. Remove the three bolts and the three nuts which attach the bracket and the raft at the holes 22 to 24 on the flange FA1.
  4. Remove the two bolts which attach the raft to the bracket ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS (71-51-42, 05-780).
  5. Remove the two screws, the two washers and the two nuts which attach the bracket and the packing piece at the holes 22 and 23.
7. 1. Remove the four screws, the four washers and the four nuts which attach the two brackets and the two packing pieces.
8. 1. Remove the bracket AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-500). Refer to TASK 72-00-32-020-005-A00, SUBTASK 72-00-32-020-129-A00 or SUBTASK 72-00-32-020-129-B00, the detail on G.
  2. Remove the two bolts and the two nuts which attach the raft AIR-STAGE 10 AIR SOLENOID VALVE (75-23-52, 01-600) at the holes 51 and 52 on the flange FA1.
  3. Remove the two bolts which attach the link bracket and the raft to the flange FA attachment angle. Remove the link bracket and the raft.
  4. Remove the two screws and the two nuts which attach the attachment angle and the packing piece. Remove the attachment angle and the packing piece.
9. 1. Remove the four screws, the four washers and the four nuts which attach the two brackets and the two packing pieces at the holes 39, 41, 46 and 47.

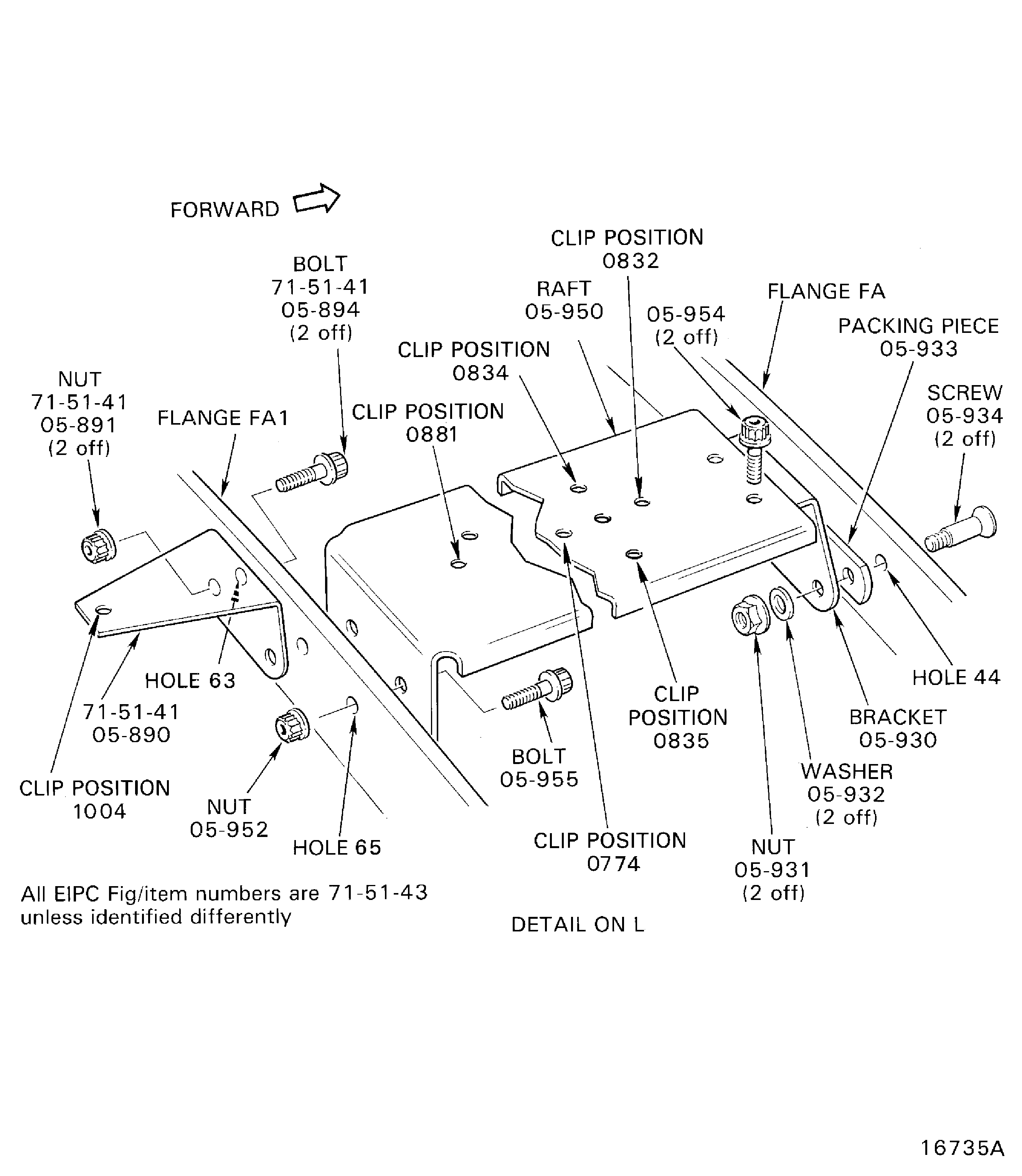

10. 1. Remove the three bolts and the three nuts which attach the bracket and the raft at the holes 63 to 65 on the flange FA1.
  2. Remove the two bolts which attach the raft to the bracket ELECT HARNESS-LIGHT DUTY-GEN SERVICES HARNESS (71-51-43, 05-930).
  3. Remove the two screws, the two washers and the two nuts which attach the bracket and the packing piece at the holes 43 and 44.
11. 1. Pre SBE 71-0110.
    Remove the four bolts which attach the raft to the flange attachment angles.
    Remove the three bolts and the three nuts which attach the attachment angle and the bracket at the holes 88 to 90 on the flange FA1.
    Remove the two screws and the two nuts which attach the attachment angle and the packing piece at the holes 56 and 57.
12. 1. SBE 71-0110: Provide rerouted oil tubes for the ACOC and the oil tank assembly.
    Remove the four bolts which attach the raft and the bracket to the flange attachment angles.

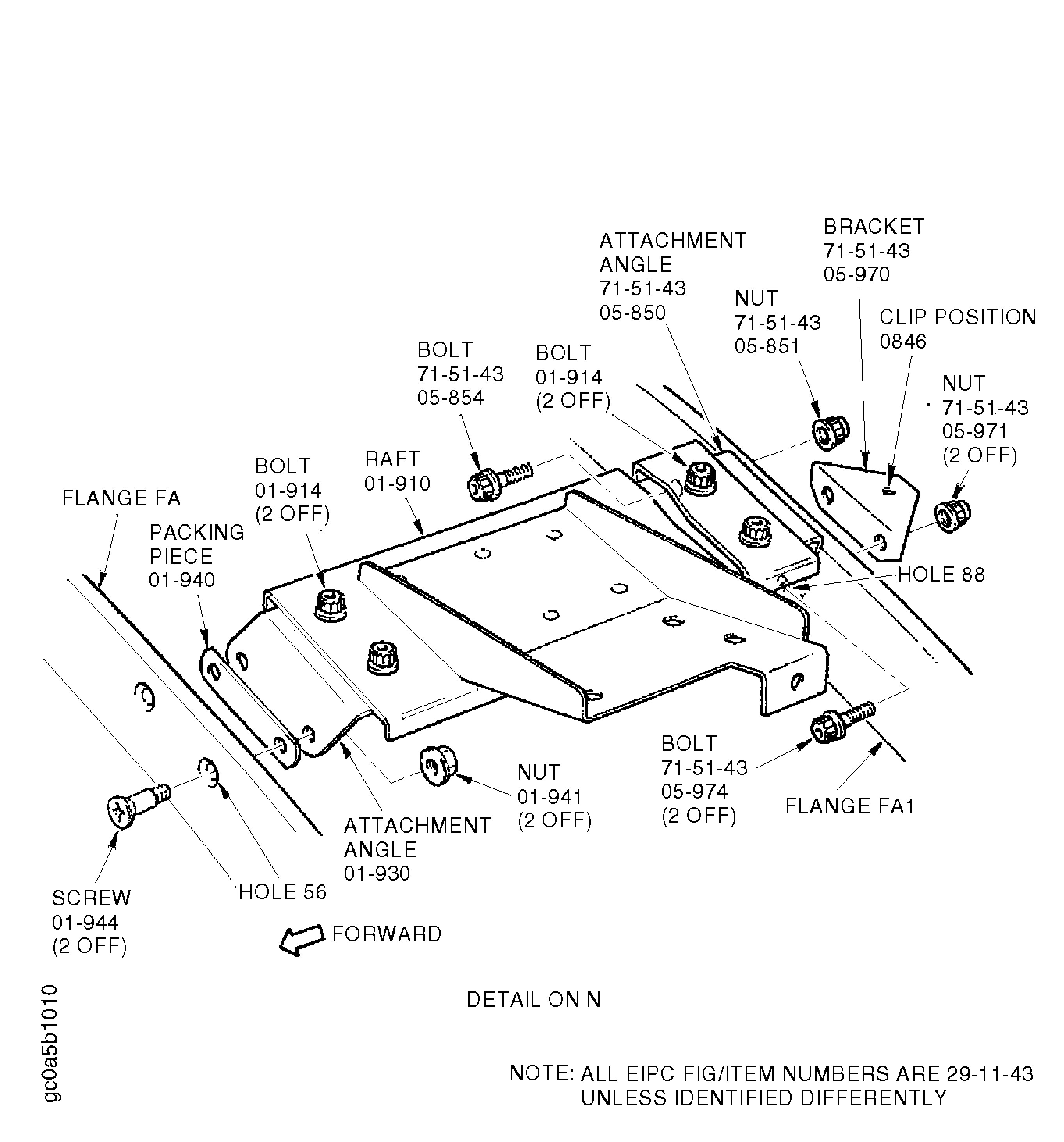

    Remove the two bolts and the two nuts which attach the attachment angle and the bracket at the holes 88 and 89 on the flange FA1.
    Remove the two screws and the two nuts which attach the attachment angle and the packing piece at the holes 56 and 57.
13. 1. Remove the three bolts and the three nuts which attach the raft and the bracket at the holes 97 to 99 on the flange FA1.
  2. Remove the two bolts which attach the raft to the attachment angle OIL-SCAVENGE OIL TUBES-ENGINE (79-22-49, 14-880).
  3. Remove the two screws, the two washers and the two nuts which attach the attachment angle and the packing piece at the holes 60 and 61.
14. 1. Remove the four bolts which attach the raft to the flange attachment angles.
  2. Remove the two bolts and the two nuts which attach the attachment angle and the bracket at the holes 109 and 110 on the flange FA1.
  3. Remove the two screws, the two washers and the two nuts which attach the attachment angle and the packing piece at the holes 65 and 66.
1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure and Figure.
2. 1. Remove the two bolts and the two nuts which attach the bracket at the holes 3 and 4. Refer to the detail on A.
  2. Remove the two bolts and the two nuts which attach the bracket at the holes 15 and 16. Refer to the detail on C.
  3. Remove the two bolts, the two washers and the two nuts which attach the bracket and the two support brackets at the holes 17 and 18. Refer to the detail on D.
3. 1. Remove the three bolts, the two washers, the spacer and the three nuts which attach the three brackets at the holes 12 to 14.
  2. Remove the two bolts and the two washers which attach the raft to the bracket.
  3. Remove the two bolts, and the two nuts which attach the raft at the holes 5 and 6 on the flange FB.
4. 1. Remove the two bolts and the two nuts which attach the two brackets at the holes 19 and 20.
5. 1. Remove the two bolts and the two nuts which attach the bracket at the holes 26 and 27. Refer to the detail on F.
  2. Remove the two bolts and the two nuts which attach the two brackets at the holes 29 and 30. Refer to the detail on G.
  3. Remove the two bolts and the two nuts which attach the bracket at the holes 32 and 33. Refer to the detail on H.
6. 1. Remove the three bolts and the three nuts which attach the two brackets at the holes 55 to 57. Refer to the detail on I.
  2. Remove the two bolts and the two nuts which attach the two brackets at the holes 59 and 61. Refer to the detail on J.
7. 1. Remove the two bolts and the two nuts which attach the two brackets at the holes 67 and 68. Refer to the detail on K.
  2. Remove the two bolts and the two nuts which attach the two brackets at the holes 71 and 72. Refer to the detail on L.
8. 1. Remove the three bolts and the three nuts which attach the two brackets at the holes 74 to 76. Refer to the detail on M.
  2. Remove the two bolts and the two nuts which attach the bracket at the holes 79 and 80. Refer to the detail on N.
9. 1. Remove the two bolts and the two nuts which attach the bracket at the holes 85 and 86. Refer to the detail on Q.
  2. Remove the two bolts and the two nuts which attach the bracket at the holes 83 and 84. Refer to the detail on P.
10. 1. Remove the two bolts and the two nuts which attach the two brackets at the holes 92 and 93. Refer to the detail on R.
  2. Remove the two bolts which attach the two brackets at the holes 104 and 105. Refer to the detail on S.

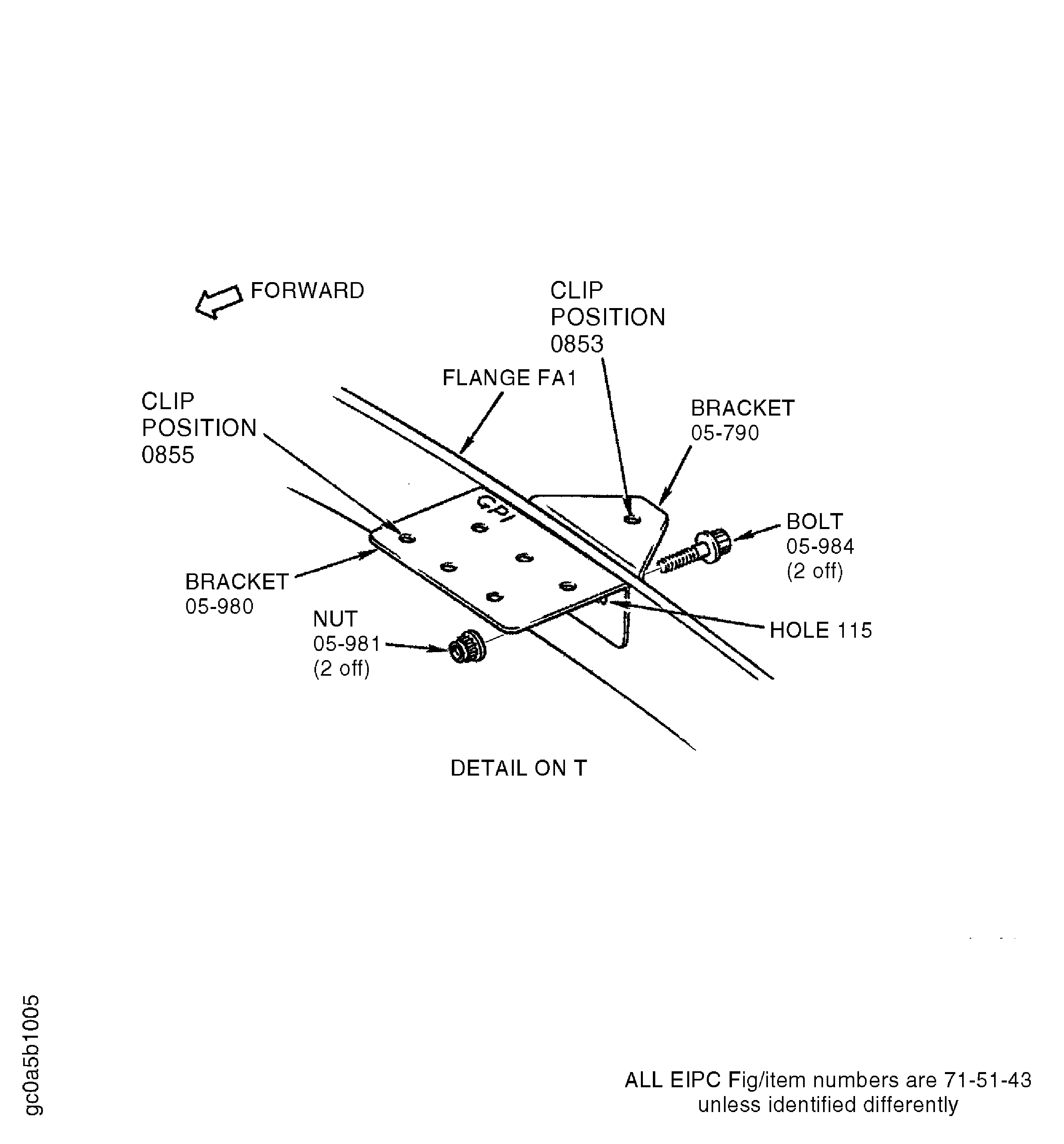

11. 1. Remove the two bolts and the two nuts which attach the two brackets at the holes 115 and 116. Refer to the detail on T.
12. 1. Remove the four bolts which attach the raft to the flange attachment angles.
  2. Remove the three bolts, the three washers and the three nuts which attach the attachment angle and the bracket at the holes 43 to 45 on the flange FB.
    SBE 75-0010: Remove the two bolts, the two washers and the two nuts that attach the attachment angle and the bracket at the holes 43 and 45 on the flange FB.
    SBE 79-0020: Remove the two bolts, the two washers and the two nuts that attach the bonding lead, the attachment angle and the bracket at the holes 43 and 45 on the flange FB.
  3. Remove the two bolts, the two washers and the two nuts which attach the attachment angle at the holes 117 and 119.
13. 1. Remove the two bolts and the two nuts which attach the attachment angle and the bracket at the holes 121 and 122.
14. 1. Remove the four bolts and the four nuts which attach the two brackets at the holes 124, 125 and 130, 131. Refer to the detail on V and X.

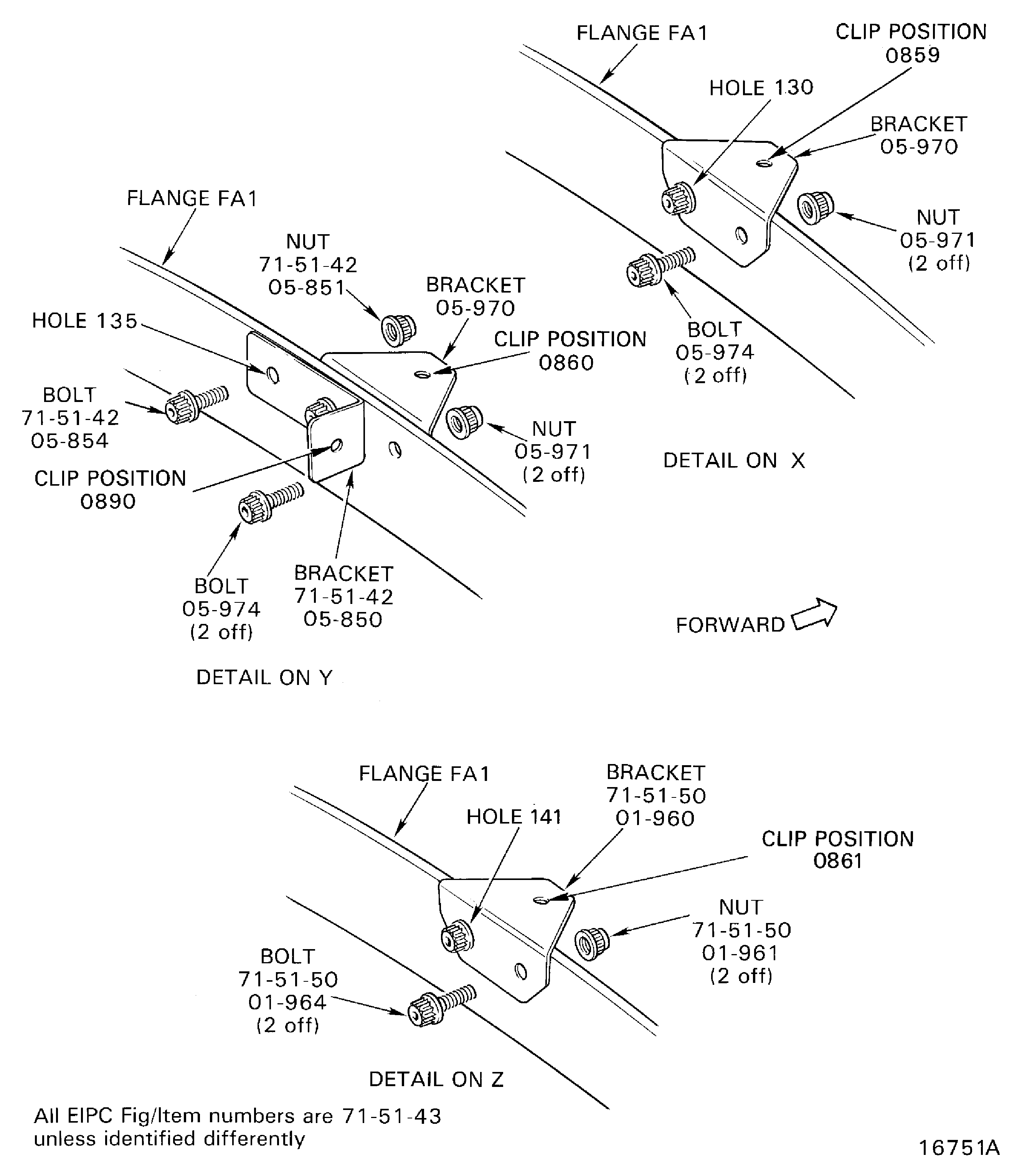

  2. Remove the three bolts and the three nuts which attach the two brackets at the holes 135 to 137. Refer to the detail on Y.
  3. Remove the two bolts and the two nuts which attach the bracket at the holes 141 and 142. Refer to the detail on Z.
1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure and Figure.
2. 1. Remove the two bolts and the two nuts which attach the two brackets at the holes 11 and 12.
3. 1. Remove the two bolts and the two nuts which attach the bracket at the holes 23 and 24. Refer to the detail on B.
  2. Remove the two bolts and the two nuts which attach the bracket at the holes 28 and 29. Refer to the detail on C.
4. 1. Remove the two bolts and the two nuts which attach the bracket at and the holes 38 and 39.

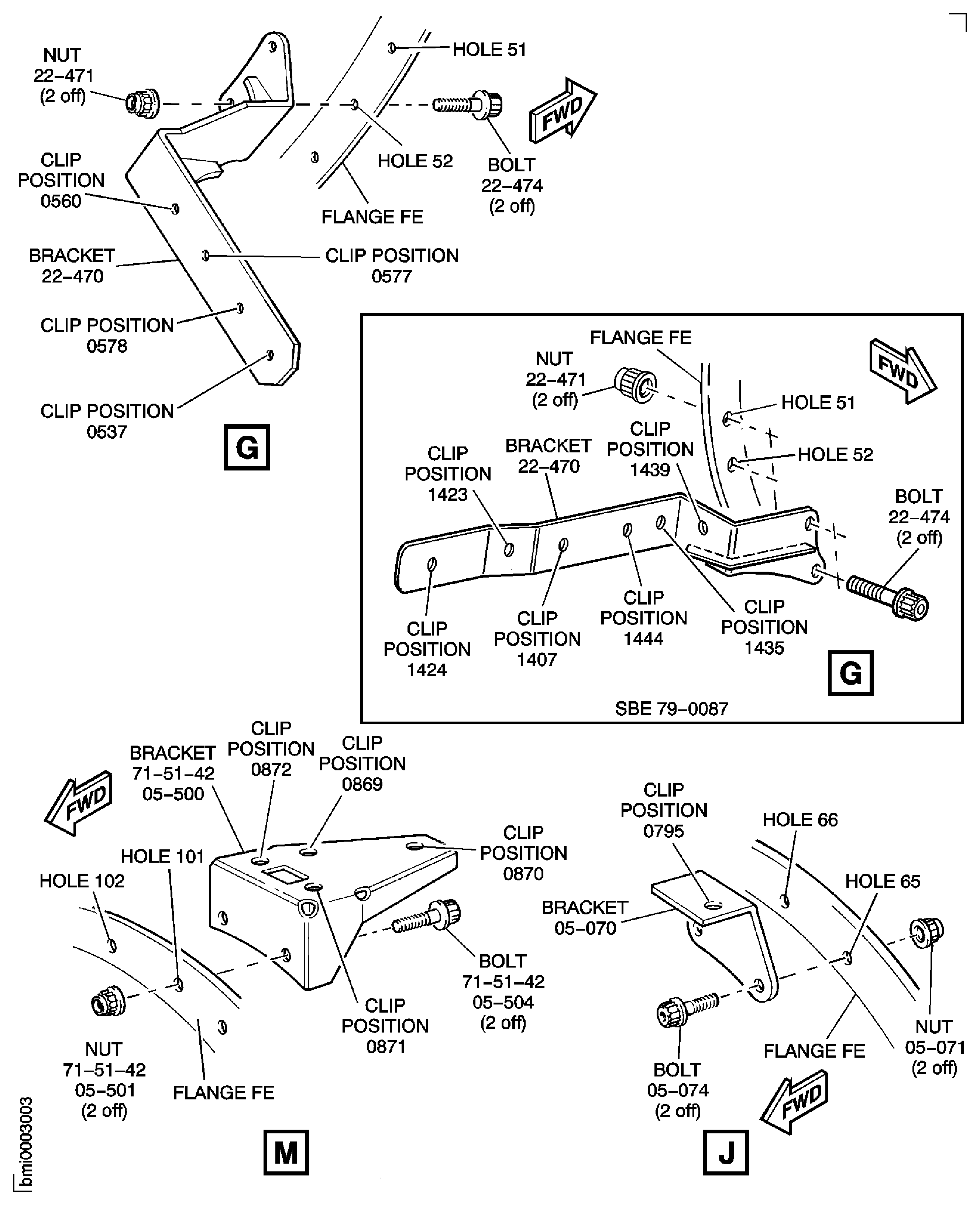

5. 1. Pre SBE 79-0087 and SBE 79-0087: Remove the two bolts and the two nuts which attach the bracket at the holes 51 and 52. Refer to the detail on G.

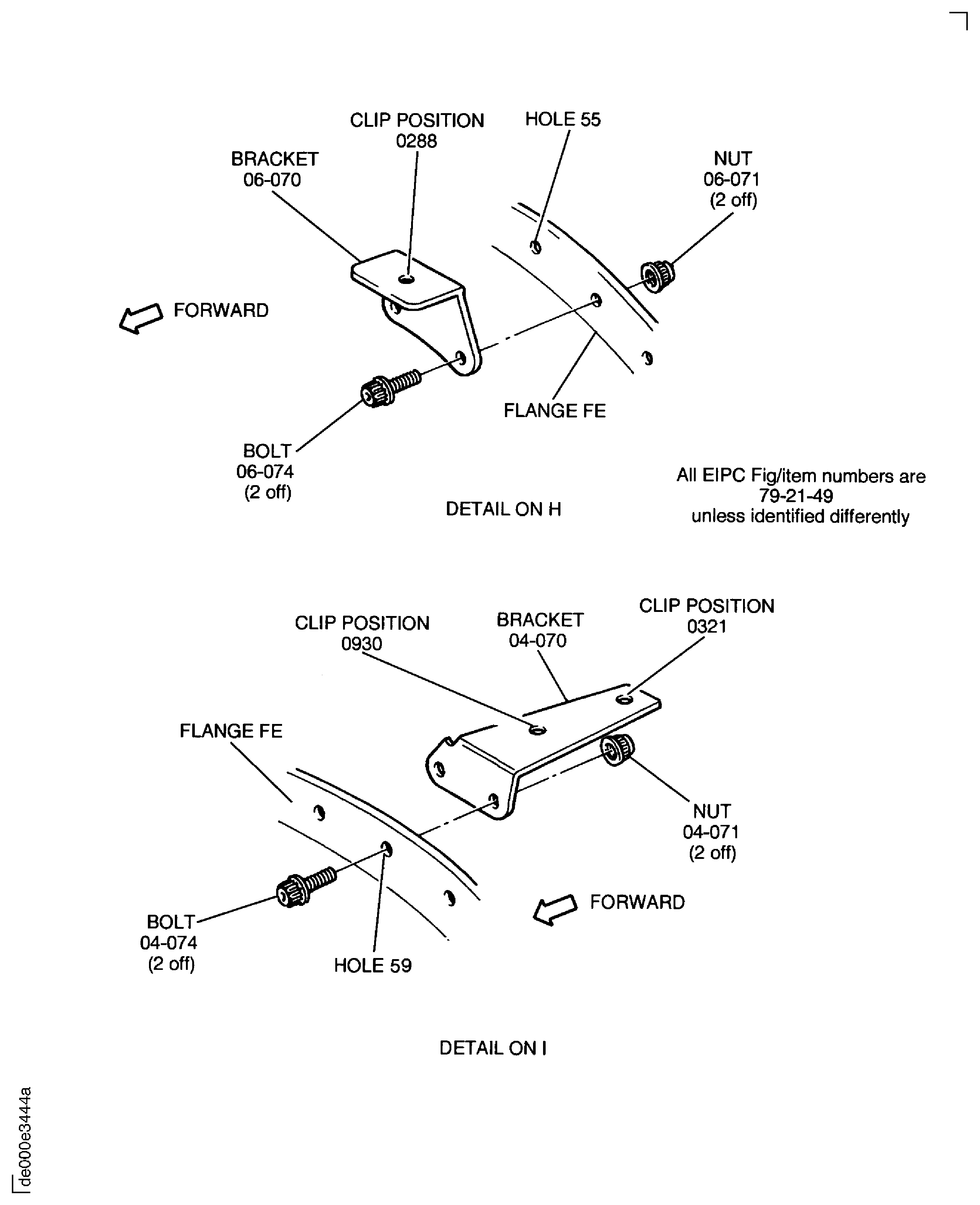

  2. Remove the two bolts and the two nuts which attach the bracket at the holes 54 and 55. Refer to the detail on H.
  3. Remove the two bolts and the two nuts which attach the bracket at the holes 59 and 60. Refer to the detail on I.

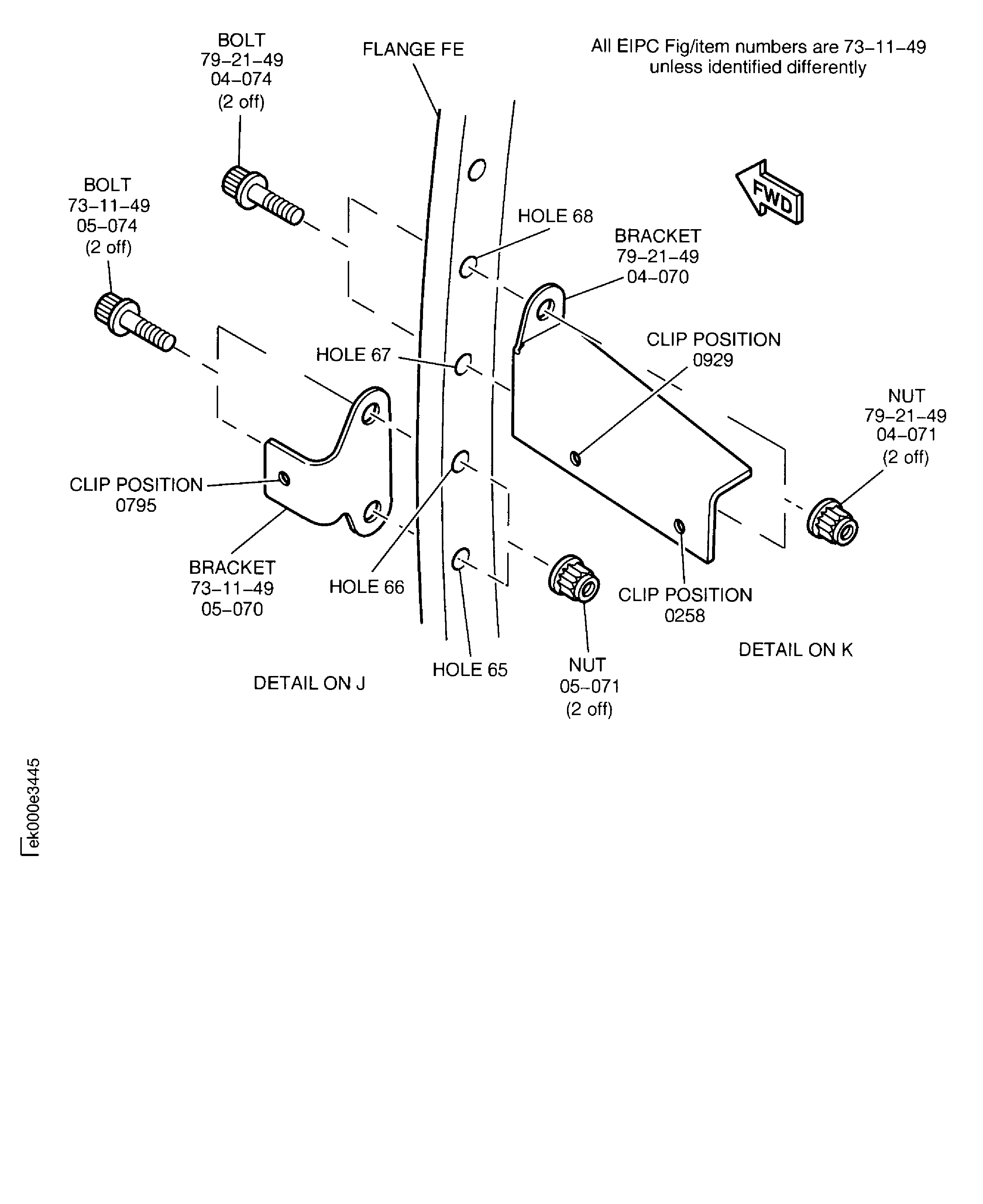

  4. Remove the two bolts and the two nuts which attach the bracket at the holes 65 and 66. Refer to the detail on J.
  5. Pre SBE 73-0040: Remove the two bolts and the two nuts which attach the bracket at the holes 67 and 68. Refer to the detail on K.
  6. SBE 73-0040: Remove the two bolts, the four washers and the two nuts that attach the two brackets at the holes 67 and 68. Refer to the detail on K.
  7. SBE 73-0040: Remove the two bolts, the two washers and the two nuts that attach the bracket at the holes 63 and 64. Refer to the detail on 1I.
6. 1. Remove the two bolts and the two nuts which attach the bracket at the holes 101 and 102.
