DMC:V2500-A1-72-00-5000-03C-720A-B|Issue No:003|Issue Date:2017-03-23

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1 and Post SBE 72-0063

Common Information

TASK 72-00-50-420-003-B00 LPT Module - Install The Turbine Exhaust Case (TEC) (Horizontal) - Method 2, Installation-004 - SBE 72-0063

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

Special torque data is identified by the * symbol after the torque value.

Assembly tolerances are included in the procedure.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

To identify, lubricate and install seal rings, refer to the SPM TASK 70-64-02-640-501.

After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and attach parts. Use the correct color of air drying enamel. Refer to the SPM TASK 70-38-21-380-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

Transportation covers/blanks must be removed immediately before installation of the components.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification	Quantity
Electronic balance crane	LOCAL	Electronic balance crane
IAE 1F10016 Mechanical wrench	0AM53	IAE 1F10016	1
IAE 1F10026 Hydraulic hand pump	0AM53	IAE 1F10026	1
IAE 1F10033 Hydraulic installation pusher	0AM53	IAE 1F10033	1
IAE 1F10034 Hydraulic installation pusher	0AM53	IAE 1F10034	1
IAE 1F10038 Torque wrench	0AM53	IAE 1F10038	1
IAE 1F10039 Anti-torque adapter	0AM53	IAE 1F10039	1
IAE 1F10040 Anchor wrench plate	0AM53	IAE 1F10040	1
IAE 1F10051 Two cable sling	0AM53	IAE 1F10051	1
IAE 1F10073 remove/installation fixture	0AM53	IAE 1F10073	1
IAE 1F10074 Guide pogo stick	0AM53	IAE 1F10074	1
IAE 1F10075 Support pedestal	0AM53	IAE 1F10075	2
IAE 1F10076 Locking collar	0AM53	IAE 1F10076	1
IAE 1F10153 Installation rod	0AM53	IAE 1F10153	1
IAE 1F10178 Storage and Turnover adapter	0AM53	IAE 1F10178	1
IAE 6F10029 Air flow test cart	0AM53	IAE 6F10029	1
IAE 6F10030 Vacuum test cart	0AM53	IAE 6F10030	1
IAE 1J12221 Impact hammer	0AM53	IAE 1J12221	1
IAE 1J12243 Sizing sleeve	0AM53	IAE 1J12243	1
IAE 1J12259 Seal slider	0AM53	IAE 1J12259	1
IAE 1J12522 Seal slider	0AM53	IAE 1J12522	1
IAE 1M14086 Supporting fixture	0AM53	IAE 1M14086	1
IAE 1P16354 Vacuum Test Adapter	0AM53	IAE 1P16354	1
IAE 1P16374 Wrench support	0AM53	IAE 1P16374	1
IAE 1P16426 remove/installation driver	0AM53	IAE 1P16426	1
IAE 1P17523 Blank-off Plate	0AM53	IAE 1P17523	1

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification
CoMat 07-038 AIR DRYING ENAMEL	k3504	CoMat 07-038
CoMat 10-045 LEAK CHECK FLUID, BUBBLES-TYPE	03530	CoMat 10-045
CoMat 10-045A LEAK CHECK FLUID, BUBBLES-TYPE	LOCAL	CoMat 10-045A
CoMat 10-077 APPROVED ENGINE OILS	LOCAL	CoMat 10-077
CoMat 10-129 ANTI-SEIZE PASTE	34568	CoMat 10-129
CoMat 02-141 LOCKWIRE	LOCAL	CoMat 02-141

Spares

Name	Manufacturer	Part Number / Identification	Quantity	Remark
Sealing ring			1
Toroidal sealing ring			2
Metallic seal			1

Safety Requirements

NONE

Procedure

1. Make sure that the replacement TEC is fully interchangeable with the mini module that it replaces and with the modules to which it is to be installed. Refer to the SPM for Module Identification and Interchangeability.
1. Examine the LP Turbine Module Interface E-50/50. Refer to TASK 72-00-50-200-004 (INSPECTION-004).
1. Examine the TEC mini module externally and examine the non-modular parts.

SUBTASK 72-00-50-220-178 Reference Fits and Clearances of the Stage 6 Inner Turbine Air Seal and the No. 5 Bearing Housing at Location 2275

Refer to Figure.

Reference the clearance at location 2275. If required, use the data written as a note in TASK 72-50-53-200-000 (INSPECTION-000) and TASK 72-50-00-200-000 (INSPECTION-000).

Table 1. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2275
No. 5 Bearing Housing ENGINE-EXHAUST CASE AND FITTINGS (72-50-53, 21-350)
Stage 6 Inner Turbine Air Seal ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE (72-50-00, 01-240)
No. 5 Bearing Housing	5.5512	Clear
	5.5551	0.0315
Stage 6 Inner Turbine Air Seal	5.5157	0.0394
	5.5197	Clear

Table 2. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2275
No. 5 Bearing Housing ENGINE-EXHAUST CASE AND FITTINGS (72-50-53, 21-350)
Stage 6 Inner Turbine Air Seal ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE (72-50-00, 01-240)
No. 5 Bearing Housing	141.001	Clear
	141.099	0.800
Stage 6 Inner Turbine Air Seal	140.099	1.001
	140.200	Clear

SUBTASK 72-00-50-220-179 Reference the Fits and Clearances of the LP Turbine Case and the TEC at Location 2277

Refer to Figure.

Reference the interference at location 2277. If required, use the data written as a note in TASK 72-50-10-200-000 (INSPECTION-000) and TASK 72-50-53-200-000 (INSPECTION-000).

Table 3. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2277
LP Turbine Case ENGINE-LP TURBINE CASE AND ROTOR (72-50-10, 01-010)
Turbine Exhaust Case ENGINE-EXHAUST CASE AND FITTINGS (72-50-53, 21-300)
LP Turbine Case Diameter	38.6587	Intf	38.6480
	38.6642	0.0000	38.6642	0.0244
Turbine Exhaust Case Bore	38.6524	0.0118	38.6524	0.0118 Intf
	38.6587	Intf	38.6724

Table 4. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2277
LP Turbine Case ENGINE-LP TURBINE CASE AND ROTOR (72-50-10, 01-010)
Turbine Exhaust Case ENGINE-EXHAUST CASE AND FITTINGS (72-50-53, 21-300)
LP Turbine Case Diameter	981.93	Intf	981.66
	982.07	0.000	982.07	0.62
Turbine Exhaust Case Bore	981.77	0.300	981.77	0.30 Intf
	981.93	Intf	982.28

SUBTASK 72-00-50-220-180 Reference Fits and Clearances of the LP Turbine Shaft and the No.5 Bearing at Location 2271

Refer to Figure.

Reference the interference at location 2271. If required, use the data written as a note in TASK 72-50-41-200-000 (INSPECTION-000) and TASK 72-50-52-200-000 (INSPECTION-000).

Table 5. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2271
LP Turbine Shaft ENGINE-LP TURBINE SHAFT (72-50-41, 01-200)
No. 5 Bearing ENGINE-NO.5 BEARING PLATE AND OIL DEFLECTOR (72-50-52, 20-060)
LP Turbine Shaft Diameter	3.6224	Intf
	3.6228	0.0003
No. 5 Bearing Bore	3.6217	0.0011
	3.6220	Intf

Table 6. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2271
LP Turbine Shaft ENGINE-LP TURBINE SHAFT (72-50-41, 01-200) No. 5 Bearing ENGINE-NO.5 BEARING PLATE AND OIL DEFLECTOR (72-50-52, 20-060)
LP Turbine Shaft Diameter	92.0090	Intf
	92.0191	0.0080
No. 5 Bearing Bore	91.9912	0.0279
	91.9988	Intf

SUBTASK 72-00-50-220-181 Reference Fits and Clearances of the LP Turbine Shaft and the No.5 Bearing Seal Spacer at Location 2272

Refer to Figure.

Reference the clearance at location 2272. If required, use the data written as a note in TASK 72-50-41-200-000 (INSPECTION-000) andTASK 72-50-42-200-000 (INSPECTION-000).

Table 7. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2272
LP Turbine Shaft ENGINE-LP TURBINE SHAFT (72-50-41, 01-200)
No. 5 Bearing Seal Spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-120)
LP Turbine Shaft Diameter	3.7392	Clear
	3.7398	0.0004
No. 5 Bearing Seal Spacer	3.7402	0.0019
	3.7411	Clear

Table 8. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2272
LP Turbine Shaft ENGINE-LP TURBINE SHAFT (72-50-41, 01-200)
No. 5 Bearing Seal Spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-120)
LP Turbine Shaft Diameter	94.9757	Clear
	94.9909	0.011
No. 5 Bearing Seal Spacer	95.0011	0.048
	95.0239	Clear

SUBTASK 72-00-50-220-182-A00 Reference Fits and Clearances of the LP Turbine Shaft and the No. 5 Bearing Seal Spacer at Location 2273 (Pre SBE 72-0165)

Refer to Figure.

Reference the clearance at location 2273. If required, use the data written as a note in TASK 72-50-41-200-000 (INSPECTION-000) and TASK 72-50-42-200-000 (INSPECTION-000).

Table 9. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2273
LP Turbine Shaft ENGINE-LP TURBINE SHAFT (72-50-41, 01-200)
No. 5 Bearing Seal Spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-160)
LP Turbine Shaft Diameter	3.739	Clear
	3.740	0.008
No. 5 Bearing Seal Spacer	3.748	0.019
	3.758	Clear

Table 10. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2273 LP Turbine Shaft ENGINE-LP TURBINE SHAFT (72-50-41, 01-200) No. 5 Bearing Seal Spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-160)
LP Turbine Shaft Diameter	94.971	Clear
	94.996	0.200
No. 5 Bearing Seal Spacer	95.200	Clear
	95.450	Clear

SUBTASK 72-00-50-220-182-B00 Reference Fits and Clearances of the LP Turbine Shaft and the No. 5 Bearing Seal Spacer at Location 2273 (SBE 72-0165)

Refer to Figure.

Reference the clearance at location 2273. If required, use the data written as a note in TASK 72-50-41-200-000 (INSPECTION-000) and TASK 72-50-42-200-000 (INSPECTION-000).

Table 11. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2273
LP Turbine Shaft ENGINE-LP TURBINE SHAFT (72-50-41, 01-200)
No. 5 Bearing Seal Spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-160)
LP Turbine Shaft Diameter	3.739	Clear
	3.740	0.004
No. 5 Bearing Seal Spacer	3.744	0.006
	3.745	Clear

Table 12. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2273
LP Turbine Shaft ENGINE-LP TURBINE SHAFT (72-50-41, 01-200)
No. 5 Bearing Seal Spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-160)
LP Turbine Shaft Diameter	94.971	Clear
	94.946	0.102
No. 5 Bearing Seal Spacer	95.098	0.152
	95.123	Clear

SUBTASK 72-00-50-220-183 Reference Fits and Clearances of the No.5 Bearing Seal Spacers at Location 2274

Refer to Figure.

Reference the clearance at location 2274. If required, use the data written as a note in TASK 72-50-42-200-000 (INSPECTION-000).

Table 13. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2274
No. 5 Bearing Seal Spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-120)
No. 5 Bearing Seal Spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-160)
No. 5 Bearing Seal Spacer	4.0645	Clear
	4.0655	0.002
No. 5 Bearing Seal Spacer	4.0675	0.004
	4.0685	Clear

Table 14. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2274
No. 5 Bearing Seal Spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-120)
No. 5 Bearing Seal Spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-160)
No. 5 Bearing Seal Spacer	103.238	Clear
	103.264	0.051
No. 5 Bearing Seal Spacer	103.314	0.102
	103.340	Clear

SUBTASK 72-00-50-220-184 Fits and Clearances of the No. 5 Bearing Nozzle and the TEC at location 2283

Refer to Figure.

Reference the clearance at location 2283. If required, use the data written as a note in TASK 72-58-02-200-000 (INSPECTION-000) and TASK 72-50-53-200-000 (INSPECTION-000).

Table 15. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2283
No. 5 Bearing Nozzle NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-070)
Turbine Exhaust Case ENGINE-EXHAUST CASE AND FITTINGS (72-50-53, 21-300)
No. 5 Bearing Nozzle	0.534	Clear
	0.536	0.002
Turbine Exhaust Case	0.538	0.008
	0.542	Clear

Table 16. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2283
No. 5 Bearing Nozzle NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-070)
Turbine Exhaust Case ENGINE-EXHAUST CASE AND FITTINGS (72-50-53, 21-300)
No. 5 Bearing Nozzle	13.564	Clear
	13.614	0.051
Turbine Exhaust Case	13.655	0.203
	13.767	Clear

SUBTASK 72-00-50-220-185 Reference Fits and Clearances of the No. 5 Bearing Transfer Tube and the TEC at Location 2284

Refer to Figure.

Reference the clearance at location 2284. If required, use the data written as a note in TASK 72-58-02-200-000 (INSPECTION-000) and TASK 72-50-53-200-000 (INSPECTION-000).

Table 17. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2284
No. 5 Bearing Transfer Tube NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-030)
Turbine Exhaust Case ENGINE-EXHAUST CASE AND FITTINGS (72-50-53, 21-300)
No. 5 Bearing Transfer Tube	0.359	Clear
	0.361	0.017
Turbine Exhaust Case	0.378	0.023
	0.382	Clear

Table 18. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2284
No. 5 Bearing Transfer Tube NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-030)
Turbine Exhaust Case ENGINE-EXHAUST CASE AND FITTINGS (72-50-53, 21-300)
No. 5 Bearing Transfer Tube	9.119	Clear
	9.169	0.432
Turbine Exhaust Case	9.601	0.584
	9.703	Clear

SUBTASK 72-00-50-220-186 Reference Fits and Clearances of the No. 5 Bearing Transfer Tube and the No.5 Bearing Nozzle at Location 2285

Refer to Figure.

Reference the clearance at location 2285. If required, use the data written as a note in TASK 72-58-02-200-000 (INSPECTION-000).

Table 19. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2285
No. 5 Bearing Transfer Tube NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-030)
No. 5 Bearing Nozzle NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-070)
No. 5 Bearing Transfer Tube	0.359	Clear
	0.361	0.017
No. 5 Bearing Nozzle	0.378	0.023
	0.382	Clear

Table 20. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2285
No. 5 Bearing Transfer Tube NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-030)
No. 5 Bearing Nozzle NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-070)
No. 5 Bearing Transfer Tube	9.119	Clear
	9.169	0.432
No. 5 Bearing Nozzle	9.601	0.584
	9.703	Clear

SUBTASK 72-00-50-220-187 Reference Fits and Clearances of the No. 5 Bearing Transfer Tube and the No.5 Bearing Nozzle at Location 2286

Refer to Figure.

Reference the clearance at location 2286. If required, use the data written as a note in (INSPECTION-000).

Table 21. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2286
No. 5 Bearing Transfer Tube NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-030)
No. 5 Bearing Nozzle NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-070)
No. 5 Bearing Transfer Tube	0.394	Clear
	0.396	0.017
No. 5 Bearing Nozzle	0.413	0.023
	0.417	Clear

Table 22. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 2286
No. 5 Bearing Transfer Tube NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-030)
No. 5 Bearing Nozzle NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-070)
No. 5 Bearing Transfer Tube	10.008	Clear
	10.058	0.432
No. 5 Bearing Nozzle	10.490	0.584
	10.592	Clear

SUBTASK 72-00-50-220-189 Reference Fits and Clearances of the Stage 7 LP Turbine Blade and the TEC at Location 3792

Refer to Figure.

Reference the interference at location 3792. If required, use the data written as a note in TASK 72-50-32-200-000 (INSPECTION-000) and TASK 72-50-53-200-000 (INSPECTION-000).

Table 23. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 3792
Stage 7 LP Turbine Blade (72-50-32, 01-010) Turbine Exhaust Case ENGINE-EXHAUST CASE AND FITTINGS (72-50-53, 21-300)
Stage 7 LP Turbine Blade	0.0740
Turbine Exhaust Case	0.1770

Table 24. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	(Non-select)	REJECT IF MORE THAN
LOCATION 3792
Stage 7 LP Turbine Blade ENGINE-LP TURBINE BLADES (72-50-32, 01-010)
Turbine Exhaust Case ENGINE-EXHAUST CASE AND FITTINGS (72-50-53, 21-300)
Stage 7 LP Turbine Blade	1.879
Turbine Exhaust Case	4.493

1. Refer to Figure.
2. Install the carbon seal to the rear end of the LP Turbine Shaft. Make sure that the groove of the carbon seal points to the rear.
3. Install the IAE 1F10033 Hydraulic installation pusher 1 off on the rear end of the LP Turbine Shaft. Attach the reaction adapter (part of the hydraulic installation pusher) to the rear thread of the LP Turbine Shaft.
4. Tighten the knurled nut (part of the hydraulic installation pusher).
5. Connect the IAE 1F10026 Hydraulic hand pump 1 off to the coupler of the pusher.
6. Operate the hydraulic pump to move the carbon seal into the correct position.
7. 1. Disconnect the hydraulic pump from the hydraulic installation pusher.
  2. Release the knurled nut and remove the hydraulic installation pusher.
1. Refer to Figure.
2. 1. Make sure that the radial thickness is 0.234 in. to 0.238 in. (5.944 mm to 6.045 mm).
    NOTE
    The old No. 5 Bearing face seals have a radial thickness of 0.388 in. to 0.346 in. (8.585 mm to 8.788 mm). Do not use these seals.
3. 1. Use a No. 5 Bearing carbon seal from the seal option ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-140).
  2. Soak the carbon seal in hot CoMat 10-077 APPROVED ENGINE OILS for ten minutes.
  3. Install the front seal plate with the flat surface forward.
  4. Install the carbon seal. Use light pressure and push forward.
  5. Install the rear seal plate. Make sure the groove points to the rear.
1. Refer to Figure.
2. CAUTION
  MAKE SURE THE LIP OF THE NO. 5 BEARING SEAL SPACER POINTS TOWARD THE REAR.
  Install the No. 5 Bearing seal spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-160) to the rear end of the LP Turbine Shaft.
3. Apply a thin layer of CoMat 10-077 APPROVED ENGINE OILS approved engine oils with a lint-free cloth to the No. 5 Bearing carbon seal ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-140).
4. Install the carbon seal to the rear end of the LP Turbine Shaft.
5. Install the No. 5. Bearing seal spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-120) to the rear end of the LP Turbine Shaft.
6. Install the IAE 1F10033 Hydraulic installation pusher 1 off on the rear end of the LP Turbine Shaft. Attach the reaction adapter (part of the hydraulic installation pusher) to the rear thread of the LP Turbine Shaft.
7. Tighten the knurled nut (part of the hydraulic installation pusher).
8. Connect the IAE 1F10026 Hydraulic hand pump 1 off to the coupler of the pusher.
9. Operate the hydraulic pump to move the carbon seal in to the correct position.
10. 1. Disconnect the hydraulic pump from the hydraulic installation pusher.
  2. Release the knurled nut and remove the hydraulic installation pusher.
1. Refer to Figure.
2. Install the No. 5 Bearing seal spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-160) to the rear end of the LP Turbine Shaft.
3. Apply a thin layer of CoMat 10-077 APPROVED ENGINE OILS approved engine oils with a lint-free cloth to the No. 5 Bearing Carbon Seal ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-140).
4. Install the carbon seal to the rear end of the LP Turbine Shaft.
5. Install the No. 5 Bearing Seal Spacer ENGINE-NO.5 BEARING ASSEMBLY AND SEAL (72-50-42, 20-120) to the rear end of the LP Turbine Shaft.
6. Install the IAE 1F10033 Hydraulic installation pusher 1 off on the rear end of the LP Turbine Shaft. Attach the reaction adapter (part of the hydraulic installation pusher) to the rear thread of the LP Turbine Shaft.
7. Tighten the knurled nut (part of the hydraulic installation pusher).
8. Connect the IAE 1F10026 Hydraulic hand pump 1 off to the coupler of the pusher.
9. Operate the hydraulic pump to move the carbon seal into the correct position.
10. 1. Disconnect the hydraulic pump from the hydraulic installation pusher.
  2. Release the knurled nut and remove the hydraulic installation pusher.
1. Refer to Figure.
2. Heat the inner race of the No. 5 Bearing ENGINE-NO.5 BEARING PLATE AND OIL DEFLECTOR (72-50-52, 20-060) to approximately 212 deg F (100 deg C).
3. WARNING
  USE GLOVES TO INSTALL THE HOT INNER RACE OF THE NO. 5 BEARING.
  Install the inner race of the No. 5 Bearing to the LP Turbine Shaft.
4. Install the IAE 1F10034 Hydraulic installation pusher 1 off on the rear end of the LP turbine shaft. Attach the reaction adapter (part of the hydraulic installation pusher) to the rear thread of the LP Turbine Shaft.
5. Tighten the knurled nut (part of the hydraulic installation pusher).
6. Connect the IAE 1F10026 Hydraulic hand pump 1 off to the coupler of the pusher.
7. Operate the hydraulic pump to move the inner race of the No. 5 Bearing into the correct position.
8. 1. Disconnect the hydraulic pump from the hydraulic installation pusher.
  2. Release the knurled nut and remove the hydraulic installation pusher.
1. Refer to Figure.
2. Heat the inner race of the No. 5 Bearing ENGINE-TURBINE EXHAUST CASE ASSEMBLY(72-50-50, 20-060) to approximately 212 deg F (100 deg C).
3. WARNING
  USE GLOVES TO INSTALL THE HOT INNER RACE OF THE NO. 5 BEARING.
  Install the inner race of the No. 5 Bearing to the LP Turbine Shaft.
4. Install the IAE 1F10034 Hydraulic installation pusher 1 off on the rear end of the LP Turbine Shaft. Attach the reaction adapter (part of the hydraulic installation pusher) to the rear thread of the LP Turbine Shaft.
5. Tighten the knurled nut (part of the hydraulic installation pusher).
6. Connect the IAE 1F10026 Hydraulic hand pump 1 off to move the inner race of the No. 5 Bearing into the correct position.
7. Operate the hydraulic pump to move the inner race of the No. 5 Bearing into the correct position.
8. 1. Disconnect the hydraulic pump from the hydraulic installation pusher.
  2. Release the knurled nut and remove the hydraulic installation pusher.
1. Refer to Figure.
2. Install the IAE 1F10074 Guide pogo stick 1 off into the inner diameter of the LP Turbine Shaft. Use an applicable webbing sling.
3. Make sure that the centering diameter of the guide pogo stick is installed correctly to the LP Turbine Shaft. Turn the screw clockwise at the rear end of the guide pogo stick to connect the guide pogo stick to the LP Turbine Shaft.
4. Put the IAE 1F10075 Support pedestal 1 off below the guide pogo stick. Move the support pedestal A near to the rear flange of the LP Turbine Case.
5. Turn the handwheel A until the end of the pedestal-screw touches the guide pogo stick. Lock the pedestal-screw with the handwheel B.
1. Refer to Figure.
2. Attach hoist equipment to the upper supports of the IAE 1F10073 remove/installation fixture 1 off.
3. Install the remove/installation fixture to the rear flange of the TEC. Attach the remove/installation fixture with the 13 bolts and washers. Tighten the bolts.
4. Remove the hoist equipment.
1. Refer to Figure.
2. Attach an electronic balance crane to the hoist equipment. Attach the IAE 1F10051 Two cable sling 1 off to the electronic balance crane. Connect the two cables sling to the spools of the IAE 1F10073 remove/installation fixture 1 off.
3. Lift the TEC from the IAE 1F10178 Storage and Turnover adapter 1 off.
4. Read and write down the weight shown on the electronic balance crane.
5. CAUTION
  IN THE FOLLOWING STEPS, THE ELECTRONIC BALANCE CRANE MUST STAY AT APPROXIMATELY THE SAME WEIGHT.
  Lift the TEC and engage it to the IAE 1F10074 Guide pogo stick 1 off. Move the TEC forward.
6. Install the IAE 1F10075 Support pedestal 1 off behind the TEC to the rear end of the guide pogo stick. Refer to Step.
1. Release the two hand knobs that attach the two clamps (part of the IAE 1M14086 Supporting fixture 1 off) to the Turbine Stage 7 Disk.
2. Release the four screws that attach the supporting fixture to the LP Turbine Case. Remove the supporting fixture from the rear flange of the LP Turbine Case, refer to Figure.
1. Refer to Figure.
2. Remove the IAE 1F10075 Support pedestal 1 off.
3. Release the handwheel B of the IAE 1F10075 Support pedestal 1 off. Turn the handwheel A until the electronic balance crane shows the initial weight. Refer to Step.
  NOTE
  This step is necessary, because the weight of the LP Turbine Rotor increases the weight shown on the electronic balance crane.

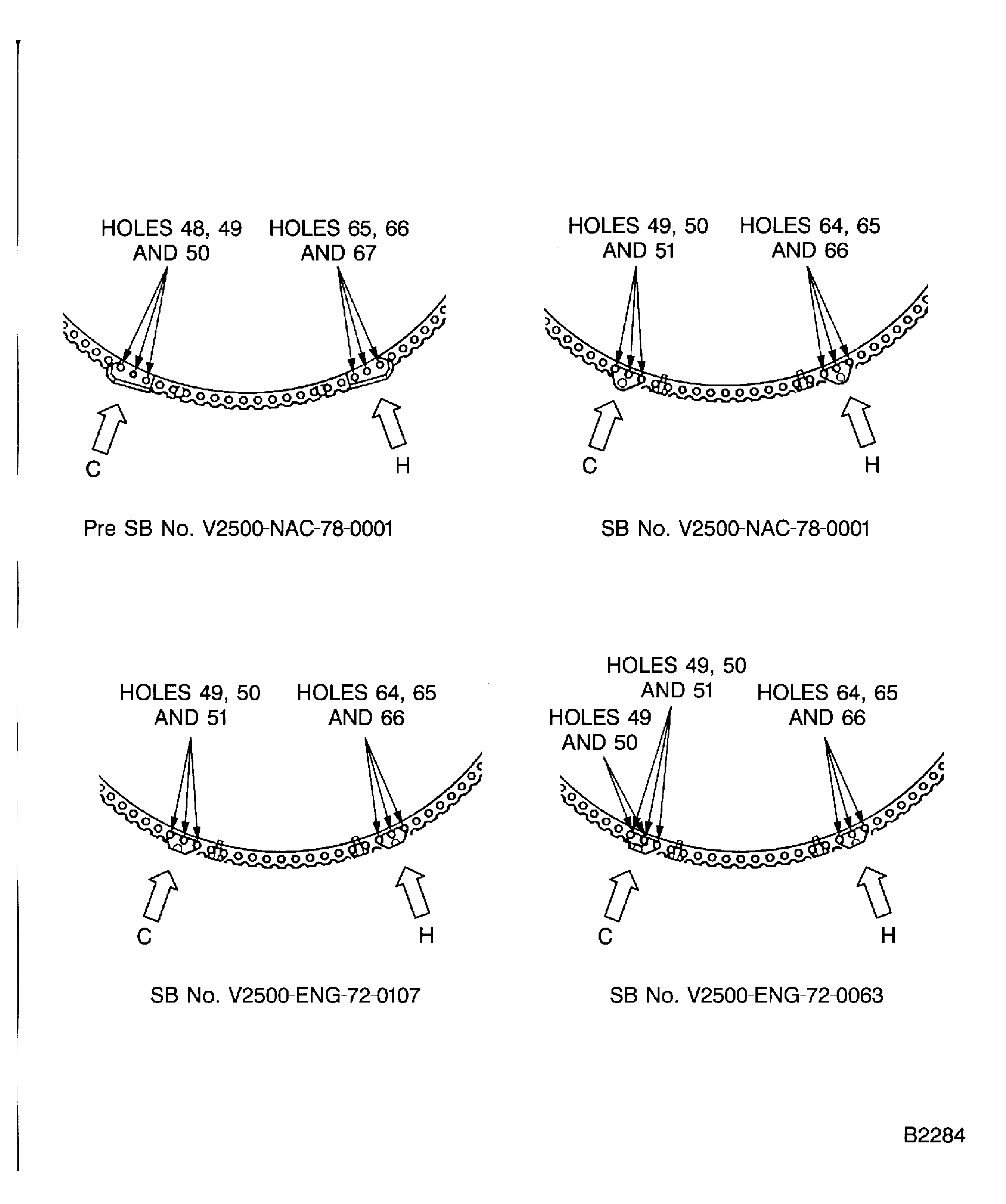

4. Move the TEC forward to the rear flange of the LP Turbine Case. Align the dowel pins.
5. Turn the jackscrew (part of the remove/installation fixture) clockwise to the stop position. Lock the jackscrew in this position with the IAE 1F10076 Locking collar 1 off.
6. CAUTION
  MAKE SURE THAT THE NO. 5 BEARING AND THE NO. 5 BEARING SEAL SPACERS ENGAGE CORRECTLY.
  Turn the jackscrew counter-clockwise until the flanges of the LP Turbine Case and the TEC engage correctly.
7. 1. CAUTION
    INCORRECT ASSEMBLY OF THE BOLT AND THE NUT CAN CAUSE OIL TUBE DAMAGE.
    Assemble the bolt at hole No. 75 in an opposite direction to give more space between the bolt end and the oil tube.
  2. Torque the nuts to 85* lbfin to 95* lbfin (9.60* Nm to 10.73* Nm).
8. 1. Remove the two cables sling and the electronic balance crane from the remove/installation fixture.
  2. Install hoist equipment to the upper supports of the remove/installation fixture.
  3. Remove the locking collar and the support pedestal B.
  4. Release the 19 screws which attach the remove/installation fixture to the rear flange of the TEC. Remove the remove/installation fixture.
  5. Remove the guide pogo stick.
1. Refer to Figure.
2. Install the rear lock nut to the LP Turbine Shaft and hand-tighten the nut.
3. Attach the IAE 1P16374 Wrench support 1 off to the inner rear flange of the TEC.
4. Install the IAE 1F10038 Torque wrench 1 off through the wrench support. Engage the torque wrench with the rear lock nut.
5. Install the IAE 1F10039 Anti-torque adapter 1 off through the torque wrench. Lock the anti-torque adapter to the LP Turbine Shaft.
6. Install the IAE 1F10016 Mechanical wrench 1 off to the torque wrench. Safety the anti-torque adapter to the mechanical wrench with the IAE 1F10040 Anchor wrench plate 1 off.
7. Operate the mechanical wrench and torque the rear lock nut to 4000 lbfin to 6000 lbfin (452 Nm to 678 Nm).
8. Put a five to eight degree angle of return to the rear lock nut.
9. Operate the mechanical wrench to release the torque until the torque value is zero.
10. Torque the rear lock nut again to 4000 lbfin to 6000 lbfin (452 Nm to 678 Nm).
11. Make a correlation mark between the mechanical wrench and the torque wrench.
12. Put a five to eight degree angle of return to the rear lock nut.
13. Do Step again.
14. Do Step again and check the correlation mark. The correlation mark must be not more than two degrees maximum from the same place.
15. If the correlation mark is in the limit, apply the last five to eight degrees angle of turn to the rear lock nut.
16. If the correlation mark is out of limit, delete the correlation mark and do Step to Step again until the correlation mark is in the limit.
17. Apply the last five to eight degree angle of turn to the rear lock nut.
18. Align the slot of the rear lock nut with the slot of the LP Turbine Shaft rear end. The alignment of the rear lock nut must be in the torque direction.
19. 1. Remove the anchor wrench plate and the mechanical wrench.
  2. Disengage the lock mechanism of the anti-torque adapter and remove the adapter.
  3. Remove the torque wrench.
  4. Remove the wrench support.
20. Safety the rear lock nut with the locking ring and the internal retaining ring.
1. Refer to Figure.
2. Install the new packing NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-040) and the No. 5 Bearing packing transfer tube NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-030).
3. Install the new packing NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-080) on to the Bearing Nozzle.
4. Install the No. 5 Bearing nozzle into the No. 5 Bearing Compartment.
5. Attach the Bearing Nozzle with two bolts NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-060).
6. Torque the bolts to between 85 lbfin to 105 lbfin (9.60 Nm to 11.86 Nm).
7. Install the two washers NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-020) and the two bolts NO.5 BEARING OIL JET AND FILTER (72-58-02, 01-010) to attach the transfer tube to the Bearing Nozzle.
8. Torque the bolts to between 85 lbfin to 105 lbfin (9.60 Nm to 11.86 Nm).
1. Refer to Figure.
2. Attach the loop clamp bracket ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-020) to the external flange of the TEC with two bolts ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-040) and two nuts ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-030).
3. Torque the nuts to between 85 lbfin to 105 lbfin (9.60 Nm to 11.86 Nm).
4. Attach the No. 5 Bearing pressure tube ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-010) to the bracket. Install a nut ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-015) and bolt ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-017) to the clamp and support assembly ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-016).
5. Torque the nut to between 36 lbfin to 45 lbfin (4.07 Nm to 5.08 Nm).
6. Attach the No. 5 Bearing pressure tube ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-176) to the nipple.
7. Torque the coupling nut to between 200 lbfin to 225 lbfin (22.597 Nm to 25.422 Nm).
8. Safety the nut with CoMat 02-141 LOCKWIRE.
9. Attach the loop clamp bracket ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-200) to the tube heat shield with two washers ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-215), nut ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-210) and bolt ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-220).
10. Torque the bolt to between 36 lbfin to 45 lbfin (4.07 Nm to 5.08 Nm).
11. Attach the bracket to the inner support of the TEC with two bolts ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-190) and two nuts ENGINE - EXHAUST CASE AND FITTINGS (72-50-53, 20-180).
12. Torque the bolts to between 85 lbfin to 105 lbfin (9.60 Nm to 11.86 Nm).
13. Prove the No. 5 Pressure Tube Passage is clear by blowing air through from the outer case fitting end ensuring it is exiting the jets in the compartment.
1. Refer to Figure, Figure, Figure, Figure and Figure.
  NOTE
  Use of the IAE 1J12259 Seal slider seal slider without the IAE 1J12243 Sizing sleeve sizing sleeve is not permitted.
2. 1. Put the blind cap ENGINE-LP TURBINE SHAFT (72-50-41, 01-150) on to a work bench with the rear end down.
  2. Install the IAE 1J12259 Seal slider 1 off on to the blind cap.
  3. Lubricate the new ENGINE-LP TURBINE SHAFT (72-50-41, 01-160) sealing ring with CoMat 10-077 APPROVED ENGINE OILS.
  4. Lubricate the outer diameter faces of the seal slider and the blind cap with CoMat 10-077 APPROVED ENGINE OILS.
  5. Put the sealing ring on to the seal slider. The open side of the sealing ring must be in the down direction.
  6. CAUTION
    MOVE THE SEALING RING SMOOTHLY AND EQUALLY OVER THE CIRCUMFERENCE. IF NOT SO, THE SEALING RING IS EXTENDED LOCALLY. LOCAL EXTENSION CAN CAUSE DAMAGE TO THE SEALING RING.
    Push the sealing ring down with four or more fingers until it is installed into the groove of the blind cap.
  7. Remove the seal slider from the blind cap.
3. 1. Put the sizing sleeve on to the work bench with the front end down.
  2. Lubricate the inner diameter face of the sizing sleeve and the outer diameter of the sealing ring with CoMat 10-077 APPROVED ENGINE OILS.
  3. Put the blind cap into the sizing sleeve. The diaphragm of the blind cap must be in a down direction.
  4. Slowly push down the blind cap until it touches the work bench.
  5. Keep the blind cap in the sizing sleeve for ten or more minutes.
  6. Remove the sizing sleeve from the blind cap.
4. 1. Make sure that there is no damage on the surface.
  2. CAUTION
    DO NOT CORRECT A TWISTED CONDITION OF THE SEALING RING. DISCARD THE TWISTED SEALING RING.
    Make sure that the sealing ring is not twisted.
5. Install the blind cap on the LP Turbine Shaft. Use the IAE 1J12221 Impact hammer 1 off.
6. Install the internal retaining ring ENGINE-LP TURBINE SHAFT (72-50-41, 01-100).
1. Refer to Figure, Figure, Figure and Figure.
2. 1. Put the blind cap on to a work bench with the front end down.
  2. Install the IAE 1J12522 Seal slider 1 off on the blind cap.
  3. Lubricate the sealing ring with CoMat 10-077 APPROVED ENGINE OILS.
  4. Lubricate the outer diameter faces of the seal slider and the blind cap with CoMat 10-077 APPROVED ENGINE OILS.
  5. Put the sealing ring on the seal slider. The open side of the sealing ring must be in the up direction.
  6. CAUTION
    MOVE THE SEALING RING SMOOTHLY AND EQUALLY OVER ALL THE CIRCUMFERENCE. IF NOT SO, THE SEALING RING IS EXTENDED LOCALLY, LOCAL EXTENSION CAN CAUSE DAMAGE TO THE SEALING RING.
    Put the sealing ring down with four or more fingers until it is installed into the groove of the blind cap.
  7. Remove the seal slider from the blind cap.
3. 1. Make sure that there is no damage on the surface.
  2. CAUTION
    DO NOT CORRECT A TWISTED CONDITION OF THE SEALING RING. DISCARD THE TWISTED SEALING RING.
    Make sure that the sealing ring is not twisted. Refer to Figure.
4. Install the blind cap to the LP Turbine Shaft. Use the IAE 1J12221 Impact hammer 1 off.
5. CAUTION
  DO NOT USE THE INTERNAL RETAINING RING P/N RR 295 WITH THE BLIND CAP P/N 5A1703.
  Install the internal retaining ring ENGINE-LP TURBINE SHAFT (72-50-41, 01-100).
1. Refer to Figure.
2. Install a new packing ENGINE-NO.5 BEARING COMPARTMENT COVER (72-58-01, 20-160) on to the No. 5 Bearing Compartment Cover ENGINE-NO.5 BEARING COMPARTMENT COVER (72-58-01, 20-120).
3. Install the No. 5 Bearing compartment cover to the TEC.
4. 1. WARNING
    IF YOU DO NOT SECURE THE COMPARTMENT COVER DURING THE LEAK TEST THERE IS A RISK OF PERSONAL INJURY FROM THE RELEASED COVER.
    Install 13 work bolts to the compartment cover. Tighten the bolts.
  2. Install the IAE 1P17523 Blank-off Plate 1 off to the No. 5 Bearing outer oil feed tube. Refer to Figure.
  3. Install the IAE 1P16354 Vacuum Test Adapter 1 off to the No. 5 Bearing oil scavenge tube outlet with three bolts (part of the adapter). Tighten the bolts. Refer to Figure.
  4. Attach the hose on the IAE 6F10029 Air flow test cart 1 off to the adapter.
  5. Control the air pressure to the adapter to 10 PSI (68.95 kPa).
  6. Apply CoMat 10-045 LEAK CHECK FLUID, BUBBLES-TYPE or CoMat 10-045A LEAK CHECK FLUID, BUBBLES-TYPE A around the cover and oil tube interfaces to check for leaks. Replace the seal of any leaking interface with a new seal.
  7. Do the leak test again.
  8. Remove the 13 work bolts.
5. Install the No. 5 Bearing shields ENGINE-NO.5 BEARING COMPARTMENT COVER (72-58-01, 20-100 and ENGINE-NO.5 BEARING COMPARTMENT COVER72-58-01, 20-080) on to the cover. Align the boltholes.
6. Apply CoMat 10-129 ANTI-SEIZE PASTE to the threads and underside of head of the bolts at assembly.
7. Install the 13 bolts. Torque the bolts to 62 lbfin to 72 lbfin (7.0 Nm to 8.1 Nm). Wipe off too much paste.
1. 1. Make sure that the adapter has no damage.
  2. Lubricate the bolts, nuts and washers with CoMat 10-077 APPROVED ENGINE OILS.
  3. Attach the adapter to the No. 5 Bearing outer oil scavenge tube with four bolts. Torque the bolts to between 85 lbfin to 105 lbfin (9.60 Nm to 11.86 Nm).
2. 1. Make sure that the plate has no damage.
  2. Lubricate the bolts, nuts and washers with CoMat 10-077 APPROVED ENGINE OILS.
  3. Attach the plate to the No. 5 Bearing outer oil feed with 3 bolts. Torque the bolts to between 85 lbfin to 105 lbfin (9.60 Nm to 11.86 Nm).
1. Refer to Figure.
2. Connect the hose of the IAE 6F10030 Vacuum test cart 1 off to the nipple of the IAE 1P16354 Vacuum Test Adapter 1 off.
3. Attach the cart vacuum gage hose to the plug of the vacuum test adapter.
  NOTE
  Refer to the manufacturers manual for the operation of the vacuum test cart.
4. Set the air pressure at the test port to -20inHg (-508 mmHg gage). Based on the ambient pressure, refer to the table below for the vacuum pressure in psia.
  Ambient Pressure of teh Day (psia)
  Vacuum Pressure (psia)
  14.7
  4.9
  14.5
  4.7
  14.3
  4.5
  14.1
  4.3
  13.9
  4.1
  13.7
  3.9
  13.5
  3.7
  13.3
  3.5
  13.1
  3.3
  Vacuum pressure (psia) = Ambient pressure of the day (psia) - 9.8 psia
5. Read the airflow indicated by the rotor meters on the vacuum test cart.
6. Record the indicated airflow.
7. If the indication is more than 10 PPH (4.54 kg per hour), reject the module.
8. Stop the vacuum pump.
1. Refer to Figure, Figure and Figure.
2. Disconnect the hoses of the vacuum test cart from the vacuum test adapter. Refer to Figure.
3. Remove the plate and the adapter. Refer to Figure and Figure.
1. Install the module dressings. Refer to TASK 72-00-50-420-005 (INSTALLATION-007).

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Install the Guide Pogo Stick to the LP Turbine Shaft

Install the Remove/Installation Fixture

Sheet 1

Sheet 2

Sheet 3

Sheet 4

Sheet 5

Sheet 6

Sheet 7

Install the No. 5 Bearing Nozzle

Connect the No. 5 Bearing Tube Assembly

Install the Turbine Shaft Rear Lock Nut

Install the Blind Cap

Installation of the No. 5 Bearing Compartment Cover

Installation of the Adapter to No. 5 Bearing Outer Oil Scavenge Tube

Installation of the Plate No. 5 Bearing Outer Oil Feed Tube

Connect the Fitting of the Vacuum Test Cart to the Adapter

Sheet 1

Sheet 2

Sheet 3

Pre SBE 72-0227: Installation of the Sealing Ring into the Sizing Sleeve

SBE 72-0037: Installed Condition of the Sealing Ring

Example of Incorrect Installation of the Sealing Ring on to the Blind Cap

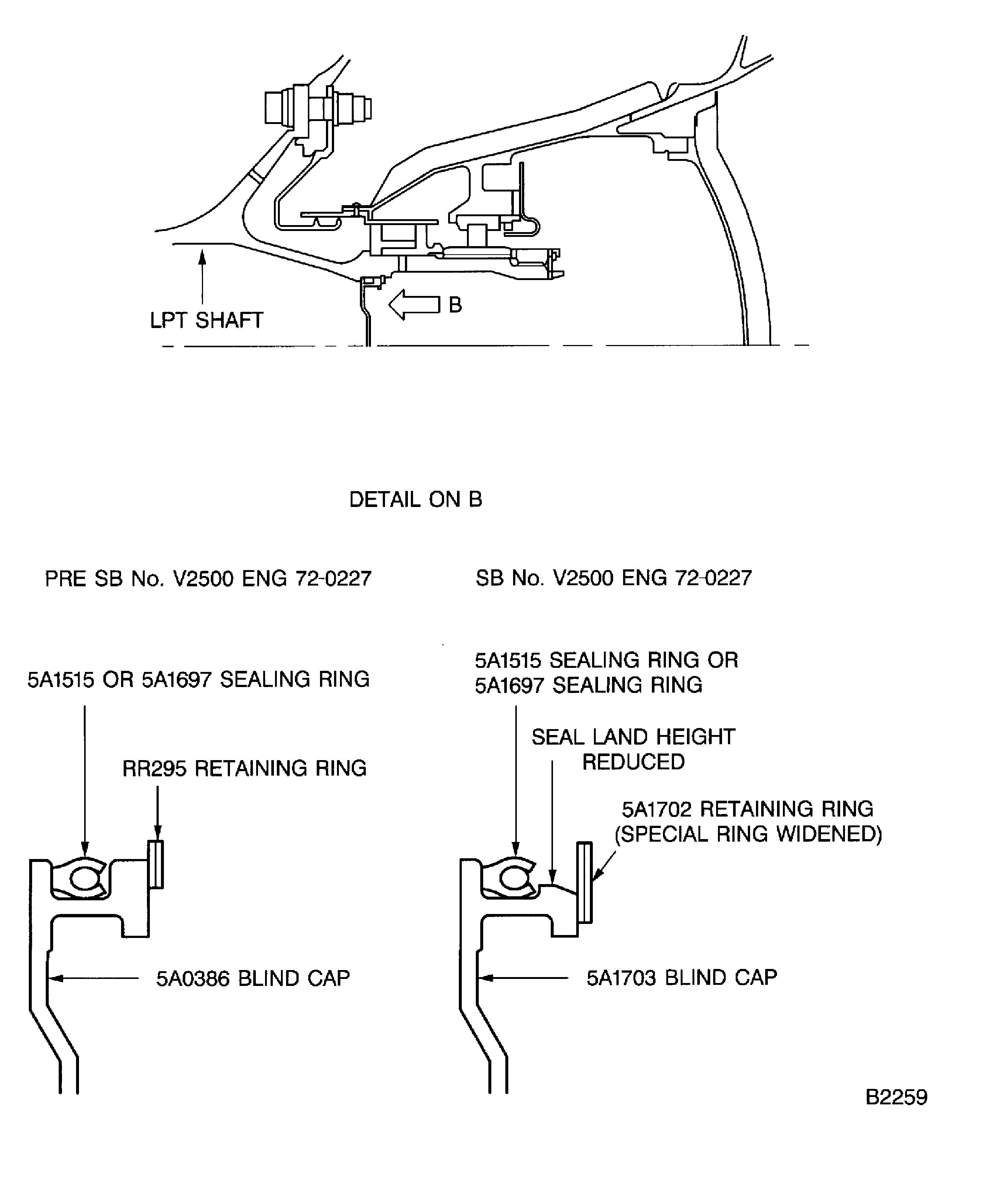

SBE 72-0037: Installation of Blind Cap and Retaining Ring

Requirements After Job Completion

Follow-On Conditions

NONE

Manufacturer Code:	03530
Enterprise Name:	AMERICAN GAS AND CHEMICAL CO LTD
BU Name:	AMERICAN GAS AND CHEMICAL CO LTD
Street:	220 PEGASUS AVE
City:	NORTHVALE
State:	NJ
Zip Code:	07647
Country:	USA
Phone Number:	1-201-767-7300, 1-800-526-1008
Fax Number:	1-201-767-1741
Internet:	www.amgas.com

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	34568
Enterprise Name:	TIODIZE CO., INC.
BU Name:	TIODIZE CO., INC.
Street:	5858 ENGINEER DRIVE
City:	HUNTINGTON BEACH
State:	CA
Zip Code:	92649
Country:	USA
Phone Number:	1-714-898-4377
Fax Number:	1-714-891-7467
Internet:	www.tiodize.com

Manufacturer Code:	LOCAL
Enterprise Name:	LOCALLY SUPPLIED

Ambient Pressure of teh Day (psia)	Vacuum Pressure (psia)
14.7	4.9
14.5	4.7
14.3	4.5
14.1	4.3
13.9	4.1
13.7	3.9
13.5	3.7
13.3	3.5
13.1	3.3

Manufacturer Code:	LOCAL
Tool Number:	Electronic balance crane
Tool Name:	Electronic balance crane

TASK 72-00-50-420-003-B00 LPT Module - Install The Turbine Exhaust Case (TEC) (Horizontal) - Method 2, Installation-004 - SBE 72-0063

Export Control

Copyright

Applicability

Common Information

TASK 72-00-50-420-003-B00 LPT Module - Install The Turbine Exhaust Case (TEC) (Horizontal) - Method 2, Installation-004 - SBE 72-0063

General

NOTE

NOTE

Preliminary Requirements

Pre-Conditions

Support Equipment

Consumables, Materials and Expendables

Spares

Safety Requirements

Procedure

SUBTASK 72-00-50-420-227 Identify the Turbine Exhaust Case (TEC) Mini Module

SUBTASK 72-00-50-220-176 Examine the Module Interfaces

SUBTASK 72-00-50-220-177 Examine the TEC Mini Module Externally and Examine the Non-Modular Parts

SUBTASK 72-00-50-220-178 Reference Fits and Clearances of the Stage 6 Inner Turbine Air Seal and the No. 5 Bearing Housing at Location 2275

SUBTASK 72-00-50-220-179 Reference the Fits and Clearances of the LP Turbine Case and the TEC at Location 2277

SUBTASK 72-00-50-220-180 Reference Fits and Clearances of the LP Turbine Shaft and the No.5 Bearing at Location 2271

SUBTASK 72-00-50-220-181 Reference Fits and Clearances of the LP Turbine Shaft and the No.5 Bearing Seal Spacer at Location 2272

SUBTASK 72-00-50-220-182-A00 Reference Fits and Clearances of the LP Turbine Shaft and the No. 5 Bearing Seal Spacer at Location 2273 (Pre SBE 72-0165)

SUBTASK 72-00-50-220-182-B00 Reference Fits and Clearances of the LP Turbine Shaft and the No. 5 Bearing Seal Spacer at Location 2273 (SBE 72-0165)

SUBTASK 72-00-50-220-183 Reference Fits and Clearances of the No.5 Bearing Seal Spacers at Location 2274

SUBTASK 72-00-50-220-184 Fits and Clearances of the No. 5 Bearing Nozzle and the TEC at location 2283

SUBTASK 72-00-50-220-185 Reference Fits and Clearances of the No. 5 Bearing Transfer Tube and the TEC at Location 2284

SUBTASK 72-00-50-220-186 Reference Fits and Clearances of the No. 5 Bearing Transfer Tube and the No.5 Bearing Nozzle at Location 2285

SUBTASK 72-00-50-220-187 Reference Fits and Clearances of the No. 5 Bearing Transfer Tube and the No.5 Bearing Nozzle at Location 2286

SUBTASK 72-00-50-220-189 Reference Fits and Clearances of the Stage 7 LP Turbine Blade and the TEC at Location 3792

SUBTASK 72-00-50-420-228-A00 Install the Carbon Seal to the LP Turbine Shaft,. Detail A (Pre SBE 72-0162)

SUBTASK 72-00-50-420-228-B00 Install the Carbon Seal to the LP Turbine Shaft,. Detail B (SBE 72-0162)

NOTE

SUBTASK 72-00-50-420-228-C00 Install the No. 5 Bearing Seal and Spacers on to the LP Turbine Shaft (Pre SBE 72-0165)

CAUTION

SUBTASK 72-00-50-420-228-D00 Install the No. 5 Bearing Seal and Spacers on to the LP Turbine Shaft

SUBTASK 72-00-50-420-229-A00 Install the No. 5 Bearing Inner Race (Pre SBE 72-0165)

WARNING

SUBTASK 72-00-50-420-229-B00 Install the No. 5 Bearing Inner Race (SBE 72-0165)

WARNING

SUBTASK 72-00-50-420-230 Install the Guide Pogo Stick to the LP Turbine Shaft

SUBTASK 72-00-50-420-231 Install the Remove/Installation Fixture to the Turbine Exhaust Case (TEC)

SUBTASK 72-00-50-420-232 Install the Turbine Exhaust Case (TEC) to the Guide Pogo Stick

CAUTION

SUBTASK 72-00-50-420-233 Remove the Supporting Fixture

SUBTASK 72-00-50-420-234 Install the TEC to the LP Turbine Case

NOTE

CAUTION

CAUTION

CAUTION

SUBTASK 72-00-50-420-235 Install the Rear Lock Nut to the LP Turbine Shaft

SUBTASK 72-00-50-420-236 Install the No. 5 Bearing Nozzle

SUBTASK 72-00-50-420-237 Connect the No. 5 Bearing Pressure Tube Assembly

SUBTASK 72-00-50-420-238-B00 Install the Blind Cap to the LP Turbine Shaft (SBE 72-0037 and Pre SBE 72-0227)

NOTE

CAUTION

CAUTION

CAUTION

SUBTASK 72-00-50-420-238-D00 Install the Blind Cap to the LP Turbine Shaft (SBE 72-0227)

CAUTION

CAUTION

CAUTION

SUBTASK 72-00-50-420-239 Install the Compartment Cover

WARNING

SUBTASK 72-00-50-420-240 Install the Adapter and the Plate to the TEC

SUBTASK 72-00-50-420-241 Do an Evacuation Check for the No. 5 Bearing Compartment

NOTE

SUBTASK 72-00-50-420-242 Remove the Vacuum Test Cart, the Adapter and the Plate

SUBTASK 72-00-50-420-243 Install the Module Dressings

Figure: Fits and Clearances at Interface N-50/10 and N-50/50

Sheet 1

Figure: Fits and Clearances at Interface N-50/10 and N50/50

Sheet 2

Figure: Fits and Clearances at Interface N-50/10 and N50/50

Sheet 3

Figure: Fits and Clearances of the No. 5 Bearing and the Turbine Exhaust Case

Sheet 4

Figure: Install the Carbon Seal and the Inner Race of the No. 5 Bearing

Sheet 1
