TASK 72-00-41-020-001 HPC Assembly - Remove The HPC Assembly, Removal-001

General

This TASK gives the procedure to remove the HP compressor assembly with the maximum horizontal method and the horizontal/vertical method of the engine disassembly/assembly.

To remove the HP compressor assembly with the maximum horizontal method, do the SUBTASKS identified in Figure in sequence.

To remove the HP compressor assembly with the horizontal/vertical method, do the SUBTASKS identified in Figure in sequence.

The procedure to remove the HP compressor assembly with the major module replacement method and the maximum vertical method is given in TASK 72-40-00-030-006.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-41-020-051 Remove the Inlet Cone and the LP Compressor (Fan) Module

    1. Remove the inlet cone. Refer to TASK 72-38-11-020-001.

    2. Remove the LP compressor (fan) module. Refer to TASK 72-00-31-020-001.

    2. SUBTASK 72-00-41-020-052-001 Remove the LP Turbine Module, (Horizontal) Method 1

    1. Remove the components, the external harnesses and the tubes from the LP turbine module. Refer to TASK 72-00-50-020-001.

    2. Remove the LP turbine module. Refer to TASK 72-00-50-020-002.

    3. Turn the LP turbine module from horizontal to vertical. Refer to TASK 72-00-50-560-001.

    3. SUBTASK 72-00-41-020-052-002 Remove the LP Turbine Module, (Horizontal) Method 2

    1. Remove the components, the external harnesses and the tubes from the LP turbine module. Refer to TASK 72-00-50-020-001.

    2. Remove the turbine exhaust case assembly. Refer to TASK 72-00-50-020-003.

    3. Remove the LP turbine case and rotor assembly. Refer to TASK 72-00-50-020-004.

    4. SUBTASK 72-00-41-020-053-001 Remove the HP Turbine Rotor and Stator Assembly, (Horizontal) Method 1

    1. Remove the components, the external harnesses and the tubes from the HP system module. Refer to TASK 72-00-40-020-001.

    2. Remove the HP turbine rotor and stator assembly. Refer to TASK 72-00-45-020-001-001.

    5. SUBTASK 72-00-41-020-053-002 Remove the HP Turbine Rotor and Stator Assembly, (Vertical) Method 2

    1. Remove the components, the external harnesses and the tubes from the HP system module. Refer to TASK 72-00-40-020-001.

    2. Remove the HP turbine rotor and stator assembly. Refer to TASK 72-00-45-020-001-002.

    6. SUBTASK 72-00-41-020-054-001 Remove the Stage 1 Turbine Nozzle Assembly and Combustion Chamber Inner Liner, (Horizontal) Method 1

    1. Remove the stage 1 turbine nozzle assembly and combustion chamber inner liner. Refer to TASK 72-00-44-020-001-001.

    7. SUBTASK 72-00-41-020-054-002 Remove the Stage 1 Turbine Nozzle Assembly and Combustion Chamber Inner Liner, (Vertical) Method 2

    1. Remove the stage 1 turbine nozzle assembly and combustion chamber inner liner. Refer to TASK 72-00-44-020-001-002.

    8. SUBTASK 72-00-41-020-055-001 Remove the Outer Combustion Chamber Assembly, (Horizontal) Method 1

    1. Remove the outer combustion chamber assembly. Refer to TASK 72-00-42-020-001-001.

    9. SUBTASK 72-00-41-020-055-002 Remove the Outer Combustion Chamber Assembly, (Vertical) Method 2

    1. Remove the outer combustion chamber assembly. Refer to TASK 72-00-42-020-001-002.

    10. SUBTASK 72-00-41-580-051 Turn the LP Compressor/Intermediate Case Module and the Partial HP System Module from Horizontal to Vertical

    1. Turn the LP compressor/intermediate case module and the partial HP system module from horizontal to vertical. Refer to TASK 72-00-40-580-001.

    11. SUBTASK 72-00-41-020-056 Remove the Partial HP System Module

    1. Remove the partial HP system module. Refer to TASK 72-00-40-020-002.

    12. SUBTASK 72-00-41-020-057 Remove the No. 4 Bearing and Rear Compartment

    1. Remove the No. 4 bearing and rear compartment. Refer to TASK 72-00-43-020-001.

    13. SUBTASK 72-00-41-020-058 Remove the Diffuser Case Assembly

    1. Remove the diffuser case assembly. Refer to TASK 72-00-42-020-002.

    14. SUBTASK 72-00-41-580-052 Turn the LP Compressor/Intermediate Case Module and the HP System Module from Horizontal to Vertical

    1. Turn the LP compressor/intermediate case module and the HP system module from horizontal to vertical. Refer to TASK 72-00-40-560-005.

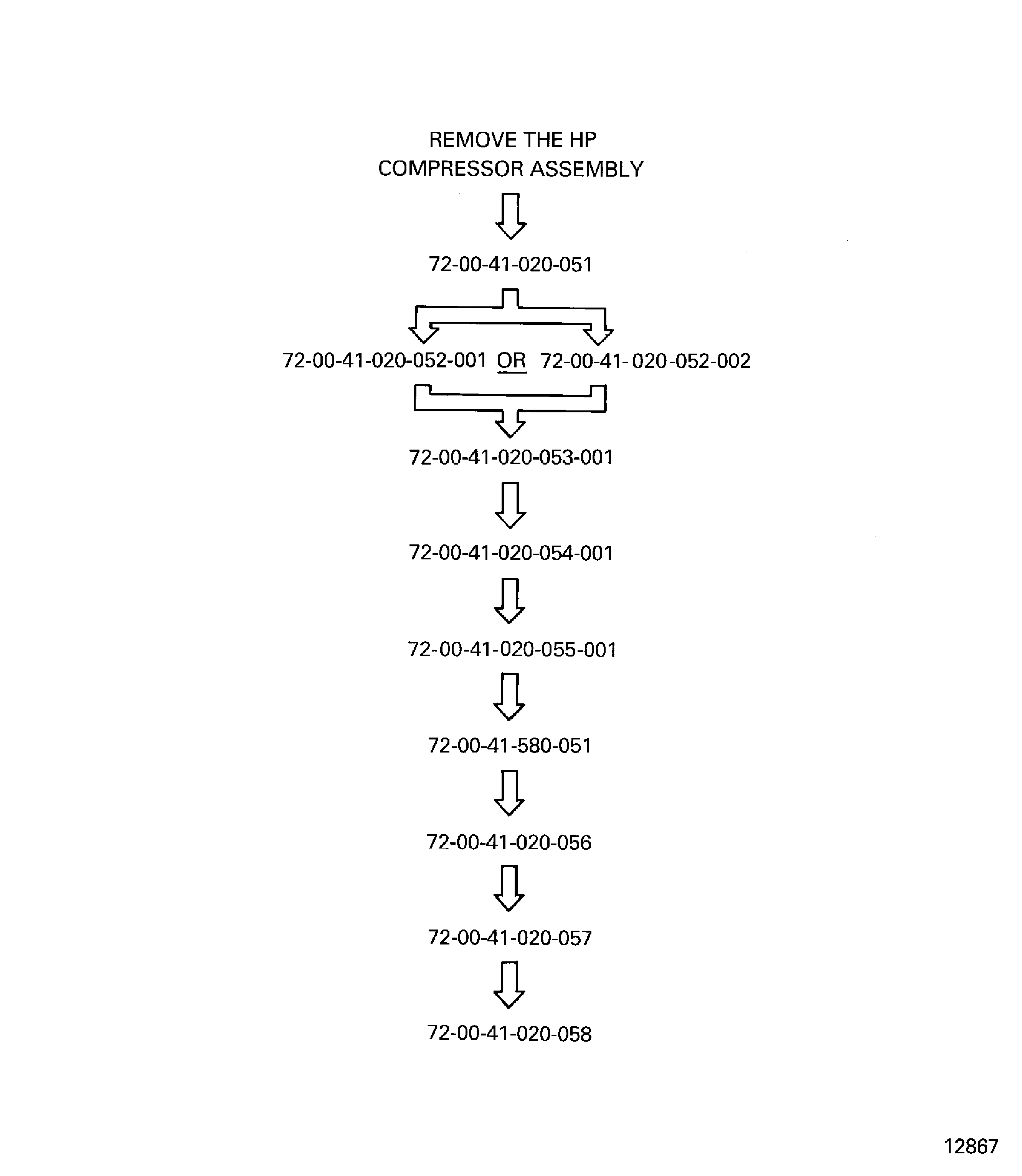

    15. Figure: Sequence of SUBTASKS to remove the HP compressor assembly with the maximum horizontal method

    Sequence of SUBTASKS to remove the HP compressor assembly with the maximum horizontal method

    Figure: Sequence of SUBTASKS to remove the HP compressor assembly with the horizontal/vertical method

    Sequence of SUBTASKS to remove the HP compressor assembly with the horizontal/vertical method

Requirements After Job Completion

Follow-On Conditions

NONE
