TASK 72-32-22-200-001-A00 No. 3 Bearing Seal Support - The Table Of Part Numbers/Task Numbers, Inspection-001

DMC:V2500-A0-72-32-2200-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-22-200-001-A00 No. 3 Bearing Seal Support - The Table Of Part Numbers/Task Numbers, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-040

2A0421

General

This TASK gives the procedure for the inspection of the No.3 bearing seal support assembly.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in SUBTASK 72-32-22-230-051. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-22-230-051-001 Examine the No. 3 Bearing Seal Support Assembly (01-040) for Cracks

    1. Clean the part. Refer to TASK 72-32-22-100-000 (CLEANING-000).

      2. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        No. 3 bearing seal support assembly

        (Dip or Spray)

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-22-230-051-002 Examine the No. 3 Bearing Seal Support Assembly (01-040) for Cracks

    1. Clean the part. Refer to TASK 72-32-22-100-000 (CLEANING-000).

      2. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        No.3 bearing seal support assembly

        (Dip or Spray)

        1. Cracked

        1. Reject

    3. SUBTASK 72-32-22-220-051 Examine the No. 3 Bearing Seal Support Assembly (01-040) Rear Flange for High Metal and Surface Damage on the Front and Rear Faces

    1. Refer to Figure, Figure, Figure and Figure.

      2. Examine the seal support assembly rear flange at locations 3 and 4 for high metal and surface damage.

        1. Surface damage and high metal

        1. Repair, VRS3001 TASK 72-32-22-300-001 (REPAIR-001)

        2. High metal around the 0.3224 to 0.3236 in. (8.189 to 8.219 mm) diameter holes at location 2400 each side (18 locations)

        1. Repair, VRS3001 TASK 72-32-22-300-001 (REPAIR-001)

    4. SUBTASK 72-32-22-220-052 Examine the No. 3 Bearing Seal Support Assembly (01-040) Front Flange for High Metal and Surface Damage on the Front and Rear Faces

    1. Refer to Figure, Figure, Figure and Figure.

      2. Examine the seal support assembly at locations 7 and 8 for high metal and surface damage.

        1. High metal and surface damage

        1. Repair, VRS3001 TASK 72-32-22-300-001 (REPAIR-001)

    5. SUBTASK 72-32-22-220-053 Examine the No. 3 Bearing Seal Support Assembly (01-040) for Wear and Damage on the Inner Diameter Slots and the Radii

    1. Refer to Figure, Figure, Figure and Figure.

      2. Examine the seal support assembly at locations 1 and 2 for wear and damage on the liner diameter slots and the radii.

        1. Dents in Area D to the following dimensions

        1. Accept

        2. 0.0984 in. (2.500 mm) maximum axial dimension.

        3. 0.059 in. (1.500 mm) maximum circumferential dimension.

        4. 0.004 in. (0.100 mm) maximum depth.

        2. Nicks in Area E to 0.012 in. (0.300 mm) maximum depth

        1. Accept

        3. Wear and damage on the slots inner diameter (four locations) and the radii (eight locations)

        1. Repair, VRS3005 TASK 72-32-22-300-005 (REPAIR-005)

    6. SUBTASK 72-32-22-220-054 Examine the No. 3 Bearing Seal Support Assembly (01-040) for Wear, Cracks and Voids on the Inner Diameter Nickel Plate

    1. Refer to Figure, Figure, Figure and Figure.

      2. Examine the seal support assembly at location 5 for wear, cracks and voids on the inner diameter nickel plate.

        1. Wear (surface damage) up to 0.240 in. (6.096 mm) axially, 0.400 in. (10.160 mm) circumferentially and 0.020 in. (0.508 mm) in depth. One location is permitted. Damage must be a maximum of 0.080 in. (2.032 mm) axially from the oil feed hole. Refer to Figure

        1. Accept

        2. Wear, cracks and voids other than Step

        1. Repair, VRS3004 TASK 72-32-22-300-004 (REPAIR-004)

    7. SUBTASK 72-32-22-220-055 Examine the No. 3 Bearing Seal Support Assembly (01-040) for Damage and Installation Depth of the Inserts

    1. Refer to Figure, Figure, Figure and Figure.

      2. Examine the seal support assembly at location 10 for damage and installation depth of the inserts (nine locations).

        1. Damage

        1. Repair, VRS3003 TASK 72-32-22-300-003 (REPAIR-003)

        2. Installation depth

          1. Up to 1 to 1.5 pitch below the surface

          1. Accept

          2. Other than Step

          1. Repair, VRS3003 TASK 72-32-22-300-003 (REPAIR-003)

    8. SUBTASK 72-32-22-220-056 Examine the No. 3 Bearing Seal Support Assembly (01-040) for Wear on the Inner Diameter of the Rear Flange Holes

    1. Refer to Figure, Figure, Figure and Figure.

      2. Examine the seal support assembly inner diameter for wear at location 2400.

        1. If the dimension is between 0.3224 and 0.3236 in. (8.189 and 8.219 mm) and there is no high metal

        1. Accept

        2. Write down the dimension of the diameter

        2. Other than Step

        1. Reject

    9. SUBTASK 72-32-22-220-057 Examine the No. 3 Bearing Seal Support Assembly (01-040) for the Thickness of the Front Flange

    1. Refer to Figure, Figure, Figure and Figure.

      2. Examine the seal support assembly at location 9 for the thickness of the front flange.

        1. Thickness.

          1. If the dimension is between 0.235 and 0.237 in. (5.969 and 6.019 mm)

          1. Accept

          2. Other than Step

          1. Repair, VRS3281 TASK 72-32-22-300-006 (REPAIR-006) or Repair, VRS3282 TASK 72-32-22-300-012 (REPAIR-012)

    10. SUBTASK 72-32-22-220-058 Examine the No. 3 Bearing Seal Support Assembly (01-040) for the Diameters and the True Position

      NOTE

      If the measured diameter in a free condition is not satisfactory, a held condition is permitted. All dimensions apply when Surface J is flat by 0.001 in. (0.025 mm) and Diameter K maintains a clearance envelope of 11.345 in. (0.025 mm) and Diameter K maintains a clearance envelope of 11.345 in. (288.163 mm) in a free or held condition. Hold the spacer only on Surfaces J, G and Diameter K.

    1. Refer to Figure, Figure, Figure and Figure.

      2. Examine the seal support assembly outer front flange rear diameter at location 2405.

        1. If the diameter is between 11.332 and 11.336 in. (287.833 and 287.934 mm). The true position can change up to 0.001 in. (0.025 mm)

        1. Accept

        2. Write down the dimension of the diameter

        2. Other than Step

        1. Repair, VRS3284 TASK 72-32-22-300-007 (REPAIR-007)

      3. Examine the seal support assembly rear flange inner diameter at location 2408.

        1. If the diameter is between 8.359 and 8.361 in. (212.319 and 212.369 mm). The true position can change up to 0.001 in. (0.025 mm)

        1. Accept

        2. Write down the dimension of the diameter

        2. Other than Step

        1. Repair, VRS3283 TASK 72-32-22-300-011 (REPAIR-011)

      4. Examine the seal support assembly at location 6 for the front inner diameter and the true position.

        1. If the diameter is between 10.799 and 10.801 in. (274.295 and 274.345 mm). The true position can change up to 0.001 in. (0.025 mm)

        1. Accept

        2. Other than Step

        1. Repair, VRS3004 TASK 72-32-22-300-004 (REPAIR-004)

      5. Examine the seal support assembly outer front flange front diameter at location 2406.

        1. If the diameter is between 10.982 and 10.986 in. (278.943 and 279.044 mm). The true position can change up to 0.001 in. (0.025 mm)

        1. Accept

        2. Write down the dimension of the diameter

        2. Other than Step

        1. Repair, VRS3002 TASK 72-32-22-300-002 (REPAIR-002)

      6. Examine the seal support assembly outer front flange rear diameter at location 2404.

        1. If the diameter is between 11.340 and 11.344 in. (288.036 and 288.137 mm). The perpendicularity can change up to 0.001 in. (0.025 mm)

        1. Accept

        2. Write down the dimension of the diameter

        2. Other than Step

        1. Repair, VRS3285 TASK 72-32-22-300-008 (REPAIR-008)

    11. SUBTASK 72-32-22-220-059 Examine the No. 3 Bearing Seal Support Assembly (01-040) for the Parallelism of the Rear Flange Front Face

    1. Refer to Figure, Figure, Figure and Figure.

      2. Examine the seal support assembly at location 4 for the parallelism of the rear flange front face.

        1. Parallelism.

          1. If the parallelism is 0.001 in. (0.025 mm) or less

          1. Accept

          2. Other than Step(a)

          1. Reject

    12. SUBTASK ---- Examine the No. 3 Bearing Seal Support Assembly (01-040) for Nicks and Dents on the Damper

    1. Refer to Figure, Figure, Figure and Figure.

      2. Examine the seal support assembly at locations 11 and 12 for nicks and dents.

        1. Nicks.

          1. 0.011 in. (0.3 mm) deep

          1. Accept

          2. Other than in Step

          1. Reject

        2. Dents.

          1. 0.059 in. to 0.098 in. (1.5 to 2.5 mm) long. 0.003 in (0.1 mm) deep

          1. Accept

          2. Other than in Step

          1. Reject

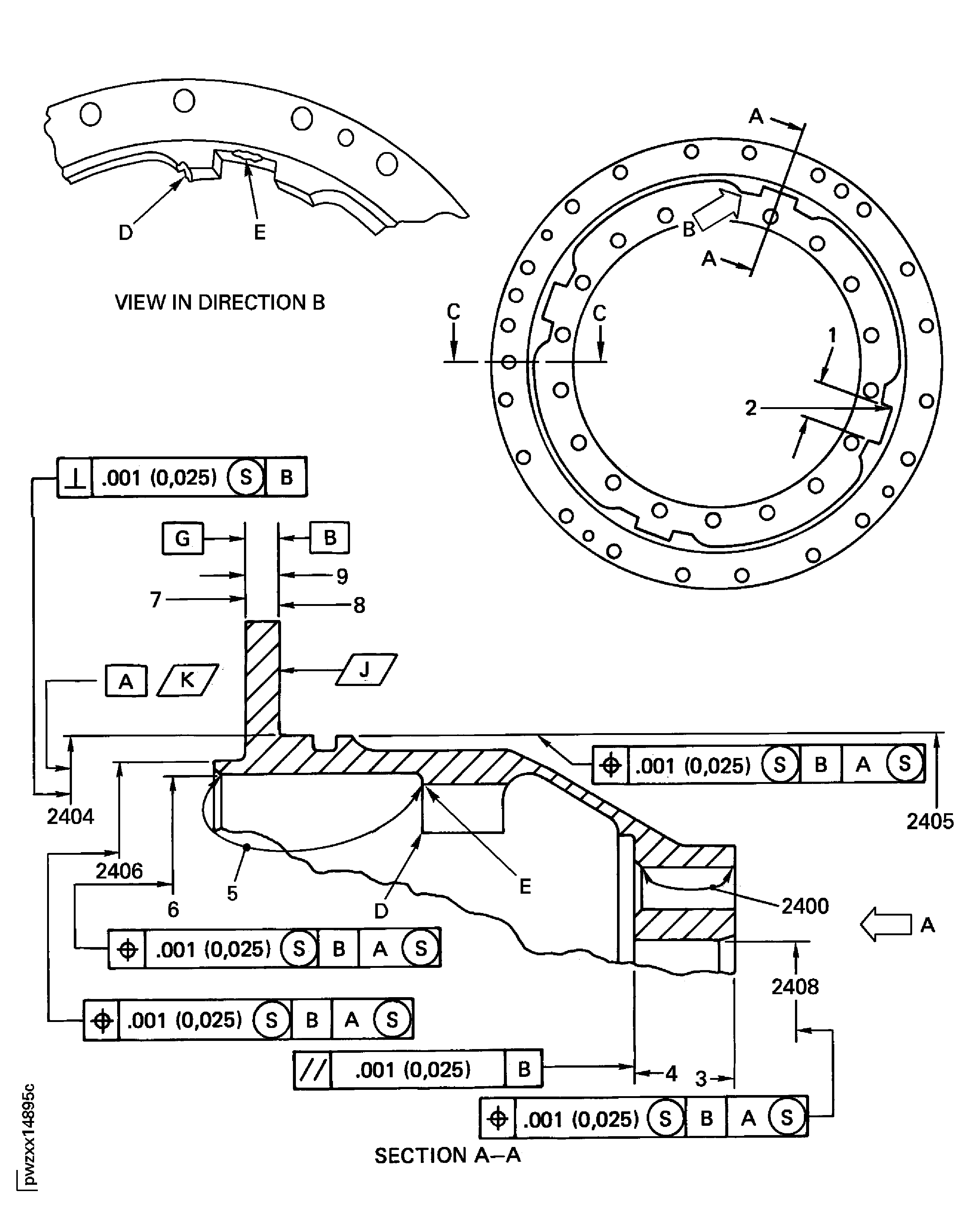

    13. Figure: No. 3 bearing seal support assembly inspection locations

    Sheet 1

    Legend
    No. 3 bearing seal support assembly inspection locations

    Sheet 1

    Close

    Figure: No. 3 bearing seal support assembly inspection locations

    Sheet 2

    Legend
    No. 3 bearing seal support assembly inspection locations

    Sheet 2

    Close

    Figure: No. 3 bearing seal support assembly inspection locations

    Sheet 3

    Legend
    No. 3 bearing seal support assembly inspection locations

    Sheet 3

    Close

    Figure: No. 3 bearing seal support assembly inspection locations

    Sheet 4

    Legend
    No. 3 bearing seal support assembly inspection locations

    Sheet 4

    Close
