DMC:V2500-A0-72-41-2000-04B-710A-B|Issue No:003|Issue Date:2020-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-20-440-004-A00 HPC Rear Cases And Vanes Assembly - Assemble The HPC Stage 10 Stator Vanes To The Cases, Assembly-004

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures refer to the SPM TASK 70-41-00-400-501 and SPM TASK 70-41-01-400-501.

Special torque data and assembly tolerances are included in the procedure.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS unless other lubricants are referred to in the procedure.

After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and parts used to attach. Use the correct colour of the air drying enamel. Refer to the SPM TASK 70-63-02-380-501.

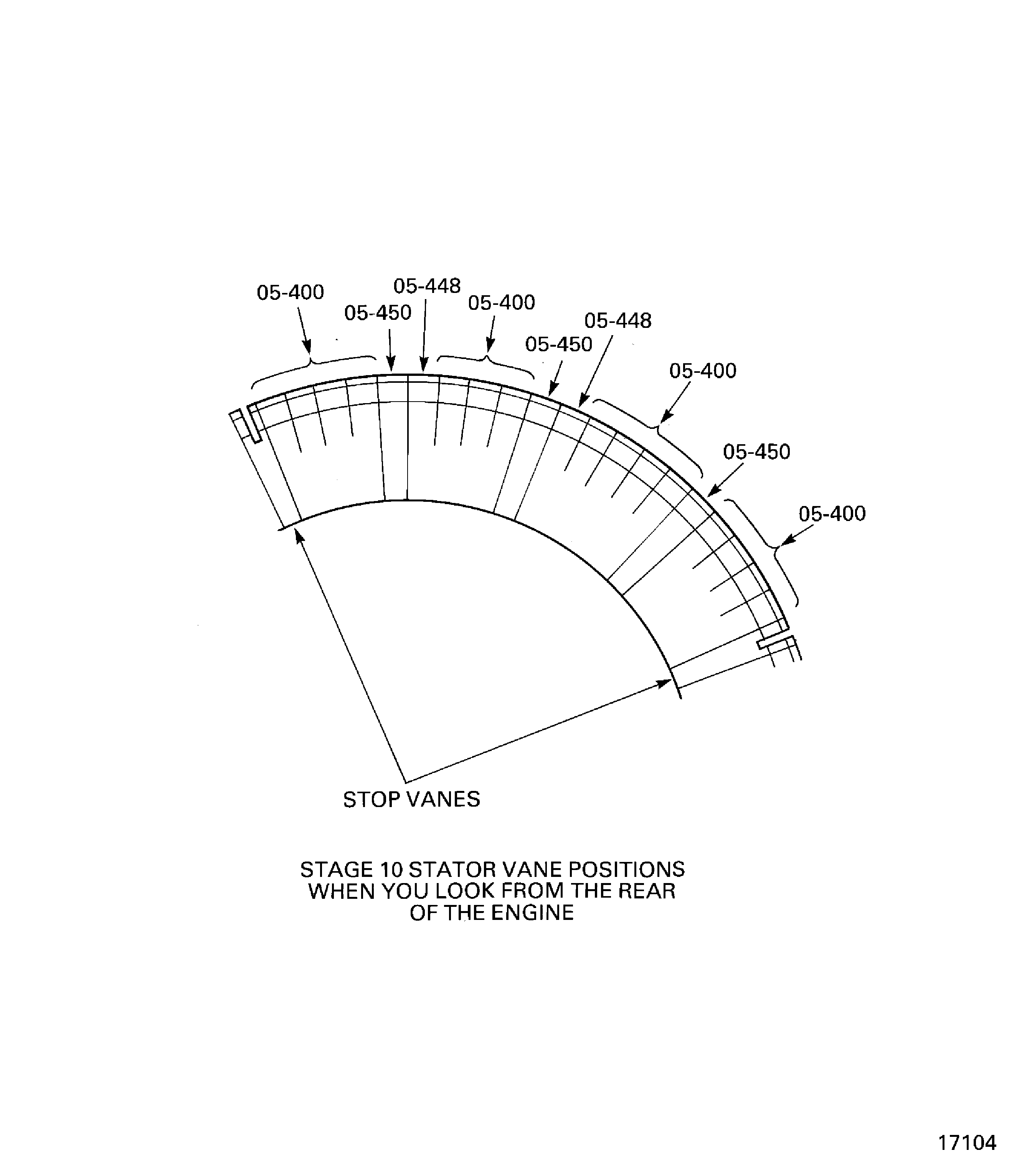

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

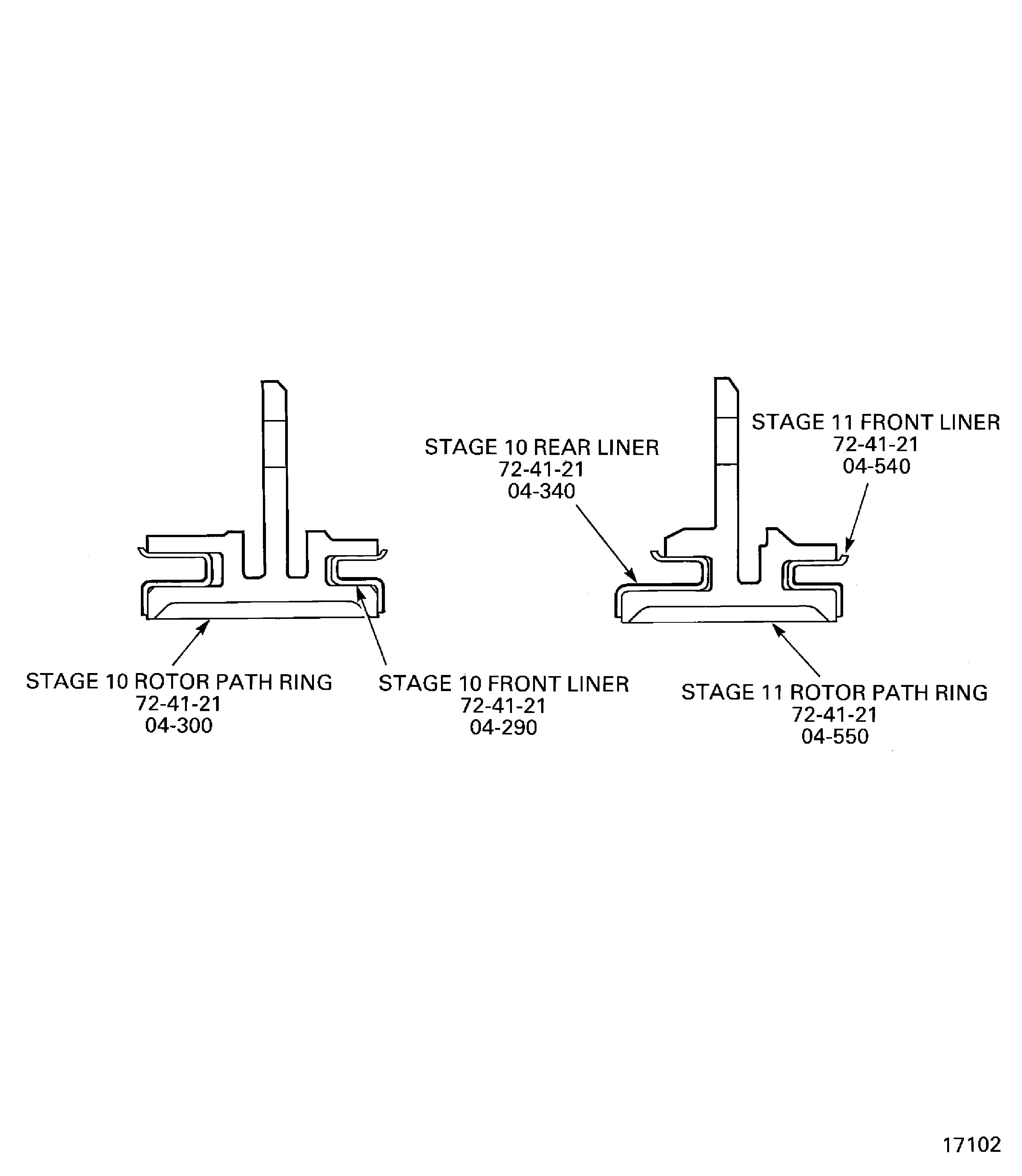

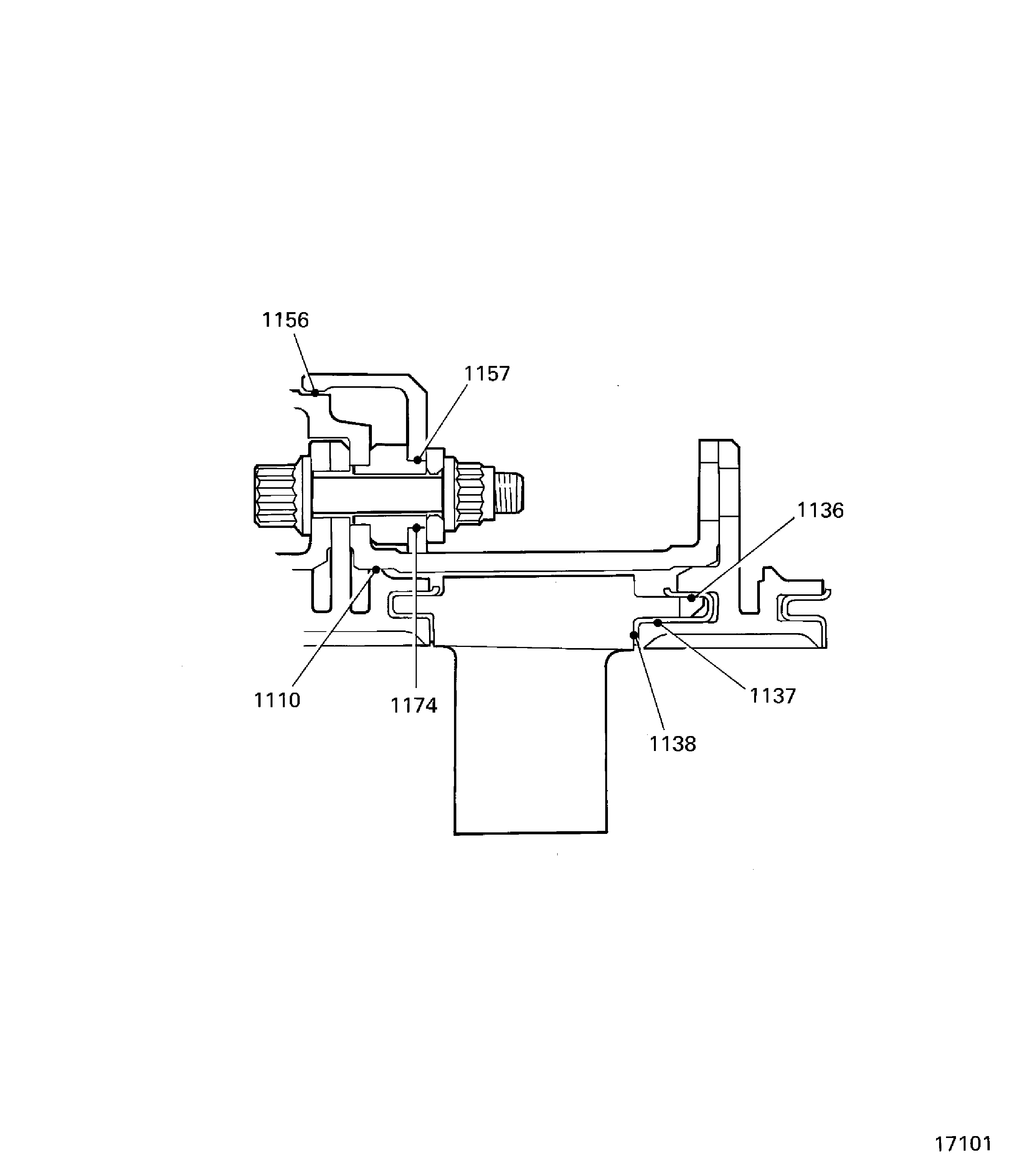

Refer to Figure for a sectional view of the HP compressor rear cases and vanes.

Make sure all the flange faces and tool faces that touch are very clean.

The Fits and Clearances, NEW PART DIMENSIONS and REJECT IF MORE THAN columns will be used by most operators. This permits the full use of the maximum wear allowance and a reduction in the number of parts which are rejected, is possible.

The column WORN PART DIMENSIONS (Non-select) is included for operators who want to have full interchangeability. If this column is used an increase in the number of parts which are rejected is possible.

After the part has been in service for some time the REJECT IF MORE THAN and WORN PART DIMENSIONS could be changed. The operator must tell IAE and if agreed the manual will be changed.

The abbreviation Intf shows an interference or tight fit. This causes REJECT IF MORE THAN to become REJECT IF LESS THAN.

The abbreviation clear shows a clearance fit.

This TASK gives the procedures to assemble the HP compressor stage 10 case, the vanes, the liners and the stator vane stops. The subsequent TASKS give the procedures to assemble the remaining HP compressor rear cases and vanes.

Assemble the HP Compressor Stage 7 Cases and Stator Vanes by TASK 72-41-20-440-001-A00 (ASSEMBLY-001).

Assemble the HP Compressor Stage 8 Stator Vanes by TASK 72-41-20-440-002-A00 (ASSEMBLY-002).

Assemble the HP Compressor Stage 9 Stator Vanes by TASK 72-41-20-440-003-A00 (ASSEMBLY-003).

Assemble the HP Compressor Stage 11 Stator Vanes by TASK 72-41-20-440-005-A00 (ASSEMBLY-005).

Machine the Stator Vane Tips and the Rotor Path Ring Liners by TASK 72-41-20-440-006-A01 (ASSEMBLY-006).

Disassemble the HP Compressor Rear Cases and Vanes by TASK 72-41-20-440-007-A01 (ASSEMBLY-007).

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification	Quantity
IAE 1R18240 Extractor	0AM53	IAE 1R18240	1
IAE 1R18297 Assembly tool	0AM53	IAE 1R18297	1
IAE 1R18298 Installation drift	0AM53	IAE 1R18298	1
IAE 1R18501 Stop alignment tool	0AM53	IAE 1R18501	1
IAE 1R18635 Spanner wrench	0AM53	IAE 1R18635	1
IAE 1R18636 Spanner Wrench	0AM53	IAE 1R18636	1
IAE 1R18637 Spanner Wrench	0AM53	IAE 1R18637	1

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification	Quantity	Remark
CoMat 07-038 AIR DRYING ENAMEL	k3504	CoMat 07-038
CoMat 10-077 APPROVED ENGINE OILS	LOCAL	CoMat 10-077

Spares

Name	Manufacturer	Part Number / Identification	Quantity	Remark
Stage 10 rear liner			1
Stage 11 front liner			1

Safety Requirements

NONE

Procedure

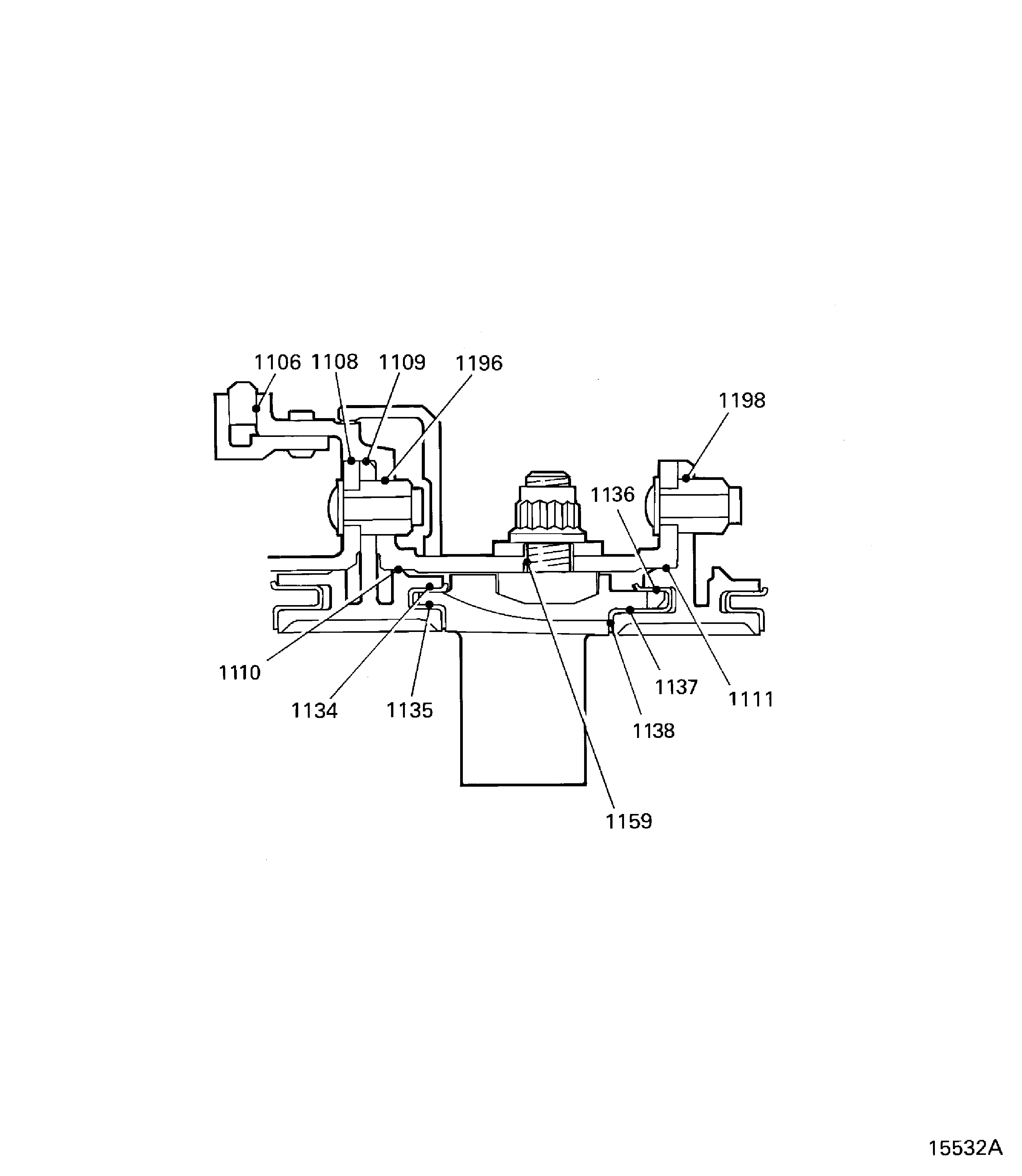

SUBTASK 72-41-20-220-086 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1134

Refer to Figure.

Reference dimensions at location 1134. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION-000).

Table 1. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1134
Stage 10 Front Liner HPC Ring Cases And Related Parts (72-41-21, 04-290)
Location In The Stage 10 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-300)
Stage 10 Front Liner Outer Diameter	0.112
	0.115	0.0000
Stage 10 Rotor Path Ring Inner (Liner) Diameter	0.115	0.007
	0.119

Table 2. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1134
Stage 10 Front Liner HPC Ring Cases And Related Parts (72-41-21, 04-290)
Location In The Stage 10 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-300)
Stage 10 Front Liner Outer Diameter	2.85
	2.93	0.00
Stage 10 Rotor Path Ring Inner (Liner) Diameter	2.93	0.16
	3.01

SUBTASK 72-41-20-220-087 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes Location 1136

Refer to Figure.

Reference dimensions at location 1136. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION-000).

Table 3. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1136
Stage 10 Rear Liner HPC Ring Cases And Related Parts (72-41-21, 04-340)
Location In The Stage 11 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-550)
Stage 10 Rear Liner Outer Diameter	0.1319
	0.1350	0.0000
Stage 11 Rotor Path Ring Inner (Liner) Diameter	0.1350	0.0051
	0.1370

Table 4. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1136
Stage 10 Rear Liner HPC Ring Cases And Related Parts (72-41-21, 04-340)
Location In The Stage 11 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-550)
Stage 10 Rear Liner Outer Diameter	3.35
	3.43	0.00
Stage 11 Rotor Path Ring Inner (Liner) Diameter	3.43	0.13
	3.48

SUBTASK 72-41-20-220-088 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes Location 1159

Refer to Figure.

Reference dimensions at location 1159. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION-000).

Table 5. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1159
Stage 10 Stator Vane Stop HPC Ring Cases And Related Parts (72-41-21, 04-330)
Location In The Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Stage 10 Stator Vane Stop Shank Diameter	0.2474
	0.2494	0.0010
Stage 10 Case Stop Location Bore	0.2504	0.0061
	0.2535

Table 6. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1159
Stage 10 Stator Vane Stop HPC Ring Cases And Related Parts (72-41-21, 04-330)
Location In The Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Stage 10 Stator Vane Stop Shank Diameter	6.285
	6.335	0.025
Stage 10 Case Stop Location Bore	6.360	0.155
	6.440

SUBTASK 72-41-20-220-089 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1135

Refer to Figure.

Reference dimensions at location 1135. If required use the data written as a Note in TASK 72-41-22-200-000 (INSPECTION-000) and TASK 72-41-21-200-000 (INSPECTION-000).

Table 7. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1135
Stage 10 Front Liner HPC Ring Cases And Related Parts (72-41-21, 04-290)
Location With The Stage 10 Stator Vanes
Stage 10 Front Liner Inner Width	0.0807
	0.0878	0.0020
Stage 10 Stator Vane Platform Thickness	0.0755	0.0123
	0.0787

Table 8. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1135
Stage 10 Front Liner HPC Ring Cases And Related Parts (72-41-21, 04-290)
Location With The Stage 10 Stator Vanes
Stage 10 Front Liner Inner Width	2.05
	2.23	0.05
Stage 10 Stator Vane Platform Thickness	1.92	0.31
	2.00

SUBTASK 72-41-20-220-090 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1137

Refer to Figure.

Reference dimensions at location 1137. If required use the data written as a Note in TASK 72-41-22-200-000 (INSPECTION-000) and TASK 72-41-21-200-000 (INSPECTION-000).

Table 9. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1137
Stage 10 Rear Liner HPC Ring Cases And Related Parts (72-41-21, 04-340)
Location With The Stage 10 Stator Vanes
Stage 10 Rear Liner Inner Width	0.1004
	0.1075	0.0020
Stage 10 Stator Vane Platform Thickness	0.0953	0.0122
	0.0984

Table 10. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1137
Stage 10 Rear Liner HPC Ring Cases And Related Parts (72-41-21, 04-340)
Location With The Stage 10 Stator Vanes
Stage 10 Rear Liner Inner Width	2.55
	2.73	0.05
Stage 10 Stator Vane Platform Thickness	2.42	0.31
	2.50

SUBTASK 72-41-20-220-091 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1138

Refer to Figure.

Reference dimensions at location 1138. If required use the data written as a Note in TASK 72-41-22-200-000 (INSPECTION-000) and TASK 72-41-21-200-000 (INSPECTION-000).

Table 11. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1138
Stage 10 Rear Liner HPC Ring Cases And Related Parts (72-41-21, 04-340)
Axial Clearance With The Stage 10 Stator Vane
Stage 10 Rear Liner Front Face Dimension	1.7092
	1.7210	0.0109
Stage 10 Stator Vane Platform Rear Face Dimension	1.7319	0.0267
	1.7358

Table 12. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1138
Stage 10 Rear Liner HPC Ring Cases And Related Parts (72-41-21, 04-340)
Axial Clearance With The Stage 10 Stator Vanes
Stage 10 Rear Liner Front Face Dimension	43.414
	43.714	0.276
Stage 10 Stator Vane Platform Rear Face Dimension	43.990	0.676
	44.090

SUBTASK 72-41-20-220-092 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1111

Refer to Figure.

Reference dimensions at location 1111. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION-000) and TASK 72-41-22-200-000 (INSPECTION-000).

Table 13. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1111
Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Location With The Stage 11 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-550)
Stage 10 Case Bore	21.150	Intf
	21.154	0.003
Stage 11 Rotor Path Ring Front Flange Diameter	21.157	0.011
	21.161

Table 14. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1111
Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Location With The Stage 11 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-550)
Stage 10 Case Bore	537.22	Intf
	537.30	0.08
Stage 11 Rotor Path Ring Front Flange Diameter	537.38	0.28
	537.5

SUBTASK 72-41-20-220-093 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1198

Refer to Figure.

Reference dimensions at location 1198. If requred use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION-000).

Table 15. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1198
Stage 11 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-550)
Location With The Stage 10 Case Location Dowel HPC Ring Cases And Related Parts (72-41-21, 04-375)
Stage 11 Rotor Path Ring Location Hole Bore	0.315
	0.329	0.010
Stage 10 Case Location Dowel Outer Diameter	0.303	0.026
	0.305

Table 16. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1198
Stage 11 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-550)
Location With The Stage 10 Case Location Dowel HPC Ring Cases And Related Parts (72-41-21, 04-375)
Stage 11 Rotor Path Ring Location Hole Bore	8.00
	8.36	0.25
Stage 10 Case Location Dowel Outer Diameter	7.70	0.66
	7.75

SUBTASK 72-41-20-220-132 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1108

Refer to Figure.

Reference dimensions at location 1108. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION-000).

Table 17. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1108
Stage 9 Case HPC Ring Cases And Related Parts (72-41-21, 03-800)
Location With The Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Stage 9 Case Outer Diameter	22.3583
	22.3661	0.0178
Stage 10 Case Flange Location Bore	22.3839	0.0334
	22.3917

Table 18. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1108
Stage 9 Case HPC Ring Cases And Related Parts (72-41-21, 03-800)
Location With The Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Stage 9 Case Outer Diameter	567.90
	568.10	0.4495
Stage 10 Case Flange Location Bore	568.55	0.8509
	568.75

SUBTASK 72-41-20-220-133 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1109

Refer to Figure.

Reference dimensions at location 1109. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION-000).

Table 19. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1109
Stage 10 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-300)
Location With The Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Stage 10 Rotor Path Ring Outer Diameter	22.3583
	22.3661	0.0178
Stage 10 Case Front Bore	22.3838	0.0334
	22.3917

Table 20. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1109
Stage 10 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-300)
Location With The Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Stage 10 Rotor Path Ring Outer Diameter	567.90
	568.10	0.4495
Stage 10 Case Front Bore	568.55	0.8509
	568.75

SUBTASK 72-41-20-220-134 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1110

Refer to Figure.

Reference dimensions at location 1110. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION-000).

Table 21. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1110
Stage 10 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-300)
Location With The Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Stage 10 Rotor Path Ring Rear Flange Outer Diameter	21.157	Intf
	21.161	0.011
Stage 10 Case Front Bore	21.150	0.003
	21.154

Table 22. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1110
Stage 10 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 04-300)
Location With The Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Stage 10 Rotor Path Ring Rear Flange Outer Diameter	537.38	Intf
	537.5	0.28
Stage 10 Case Front Bore	537.22	0.08
	537.30

SUBTASK 72-41-20-220-135 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1196

Refer to Figure.

Reference dimensions at location 1196. If required use the data written as a Note in TASK 72-41-21-200-000 (72-41-21, INSPECTION-00).

Table 23. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1196
Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Location With The Stage 9 Case Location Dowel HPC Ring Cases And Related Parts (72-41-21, 03-825)
Stage 10 Case Location Dowel Hole Bore	0.315
	0.316	0.010
Stage 9 Case Location Dowel Outer Diameter	0.303	0.013
	0.305

Table 24. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1196
Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Location With The Stage 9 Case Location Dowel HPC Ring Cases And Related Parts (72-41-21, 03-825)
Stage 10 Case Location Dowel Hole Bore	8.000
	8.022	0.250
Stage 9 Case Location Dowel Outer Diameter	7.700	0.322
	7.750

SUBTASK 72-41-20-220-136 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1156

Refer to Figure.

Reference dimensions at location 1156. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION-000).

Table 25. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1156
Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Location With The Stage 10 Front Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-500)
Stage 10 Case Outer Diameter	22.784
	22.807	0.004
Stage 10 Front Heatshield Bore When Assembled	22.811	0.051
	22.835

Table 26. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1156
Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Location With The Stage 10 Front Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-500)
Stage 10 Case Outer Diameter	578.70
	579.30	0.10
Stage 10 Front Heatshield Bore When Assembled	579.40	1.30
	580.00

SUBTASK 72-41-20-220-137 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1157

Refer to Figure.

Reference dimensions at location 1157. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION-000).

Table 27. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1157
Stage 10 Case Bush HPC Ring Cases And Related Parts (72-41-21, 03-514)
Location In The Stage 10 Front Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-500)
Stage 10 Case Bush Diameter	0.3161
	0.3164	0.00051
Stage 10 Front Heatshield Hole Bore	0.3169	0.003
	0.3192

Table 28. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1157
Stage 10 Case Bush HPC Ring Cases And Related Parts (72-41-21, 03-514)
Location In The Stage 10 Front Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-500)
Stage 10 Case Bush Diameter	8.028
	8.037	0.013
Stage 10 Front Heatshield Hole Bore	8.050	0.08
	8.108

SUBTASK 72-41-20-220-138 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1174

Refer to Figure.

Reference dimensions at location 1174. If required use the data written as a Note in TASK 72-41-21-200-000 (INSPECTION-000).

Table 29. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1174
Stage 10 Front Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-500)
Location With The Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Stage 10 Front Heatshield Bore	21.299
	21.311	0.0039
Stage 10 Case Diameter	21.287	0.0236
	21.295

Table 30. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1174
Stage 10 Front Heatshield HPC Ring Cases And Related Parts (72-41-21, 04-500)
Location With The Stage 10 Case HPC Ring Cases And Related Parts (72-41-21, 04-350)
Stage 10 Front Heatshield Bore	541.00
	541.30	0.10
Stage 10 Case Diameter	540.70	0.60
	540.90

1. Refer to Figure.
2. 1. Put the stage 11 rotor path ring rear flange down on a clean work surface.
  2. Use IAE 1R18297 Assembly tool 1 off to install the stage 10 rear liner. Make sure the liner touches the stage 11 rotor path ring front flange.
  3. Measure and write down a record of the stage 10 rear liner split line clearance. The split line clearance. The split line clearance must be 0.169 in. to 0.201 in. (4.30 mm to 5.10 mm).
3. 1. Put the stage 11 rotor path ring front flange down on a clean work surface.
  2. Use IAE 1R18298 Installation drift 1 off to install the stage 11 front liner. Make sure the liner touches the stage 11 rotor path ring rear flange.
  3. Measure and write down a record of the stage 11 front liner split line clearance. The split line clearance must be 0.185 in. to 0.217 in. (4.70 mm to 5.50 mm).
1. Refer to Figure.
2. 1. Put one of the stage 10 stator vane stops in to position in the stage 10 case.
  2. Use the IAE 1R18501 Stop alignment tool 1 off and align the stage 10 stator vane stop in the stage 10 case.
  3. Install a washer HPC Ring Cases And Related Parts (72-41-21, 04-329) and a nut HPC Ring Cases And Related Parts (72-41-21, 04-328) on to the stage 10 stator vane stop.
  4. Torque the nut to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).
  5. Remove the stop aligning tool.
  6. Install the three remaining stage 10 stator vane stops as given in Step to Step.
1. Refer to Figure.
2. Remove the eight slave nuts and bolts which attach the stage 10 rotor path ring HPC Ring Cases And Related Parts (72-41-21, 04-550) to the stage 9 case HPC Ring Cases And Related Parts (72-41-21, 03-800).
3. Put the stage 10 case HPC Ring Cases And Related Parts (72-41-21, 04-350) front flange down onto a clean work surface.
4. Measure the clearance at location 1106. The clearance between the sealing ring HPC Ring Cases And Related Parts (72-41-21, 04-406) and the stage 10 case must be 0.003 in. (0.08 mm).
5. Install the heating blanket on to the stage 10 case.
6. Heat the stage 10 case to 167 deg F to 212 deg F (75 deg C to 100 deg C).
7. Remove the heating blanket.
8. WARNING
  YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE STAGE 10 CASE.
  Install the stage 10 case onto the stage 10 rotor path ring and stage 9 case. Align the dowel hole in the stage 10 case with the location dowel in the stage 9 case.
9. Install eight slave nuts and bolts through the assembly joint flange. Space them at equal distances around the flange. Install the bolts from the stage 10 case flange.
10. Tighten the nuts in the correct sequence to pull the stage 10 case onto the stage 10 rotor path ring.
11. Let the assembly become cool then remove the eight slave nuts and bolts.
12. 1. Install the 37 D - headed bolts HPC Assembly (72-41-00, 01-612) from the stage 10 case HPC Ring Cases And Related Parts (72-41-21, 04-350) front flange. Refer to the detail identified A. Make sure the bolts are correctly located on the stage 10 case front flange.
  2. Install the 37 nuts HPC Assembly (72-41-00, 01-610) onto the bolts.
  3. Use IAE 1R18636 Spanner Wrench 1 off to tighten the nuts.
  4. Use IAE 1R18637 Spanner Wrench 1 off to torque the nuts. Torque the nuts in the correct sequence to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).
1. Refer to Figure.
2. 1. Install the four stage 10 stop vanes into the stage 10 rotor path ring at the stage 10 stator vane stops. Engage the vanes in the stage 10 front liner HPC Ring Cases And Related Parts (72-41-21, 04-290). Make sure the stage 10 stator vane stops are engaged in the slots in the stage 10 stop vanes.
  2. Push each of the stage 10 stop vanes forward until the vane platform touches the stage 10 front liner.
  3. Push each stage 10 stop vane in a clockwise direction, until the slot in the vane platform touches the stage 10 stator vane stop.
3. 1. Install the vanes in a clockwise direction. Engage each of the vanes in the stage 10 rotor path ring. Make sure the platform of the first vane that is installed touches the platform of the stage 10 stop vane. Push each subsequent vane clockwise as it is installed until the vane platforms touch.
  2. Push each vane forward until the vane platform touches the stage 10 front liner.
  3. Install the stage 10 stator vanes between the two stage 10 stop vanes adjacent to the 12 and 3 o'clock positions. Use the subsequent sequence.
    Install four stage 10 stator vanes HPC Stator Vanes (72-41-22, 05-400).
    Install one stage 10 undersize stator vane HPC Stator Vanes (72-41-22, 05-450).
    Install four stage 10 stator vanes HPC Stator Vanes (72-41-22, 05-400).
    Install one stage 10 stator vane HPC Stator Vanes (72-41-22, 05-448).
    Install one stage 10 undersize stator vane HPC Stator Vanes (72-41-22, 05-450).
    Install three stage 10 stator vanes HPC Stator Vanes (72-41-22, 05-400).
    Install one stage 10 stator vane HPC Stator Vanes (72-41-22, 05-448).
    Install one stage 10 undersize stator vane HPC Stator Vanes (72-41-22, 05-450).
    Install four stage 10 stator vanes HPC Stator Vanes (72-41-22, 05-400).
  4. Install the stage 10 stator vanes HPC Stator Vanes (72-41-22, 05-400 , 05-480 and 05-450) between the stage 10 stop vanes in the remaining three segments. Use the sequence given in Step to Step.
1. Refer to Figure.
2. 1. Install the heating blanket onto the stage 10 case HPC Ring Cases And Related Parts (72-41-21, 04-350) rear flange.
  2. Heat the stage 10 case to 167 deg F to 212 deg F (75 deg C to 100 deg C).
  3. Remove the heating blanket.
  4. WARNING
    YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE STAGE 10 CASE.
    Align the location dowel hole in the stage 11 rotor path ring with location dowel in the stage 10 case.
  5. Install the stage 11 rotor path ring onto the stage 10 case and stator vanes. Engage the stage 10 stator vanes rear platform in the liner in the front of the stage 11 rotor path ring.
  6. Install eight slave bolts and nuts to attach the stage 11 rotor path ring to the stage 10 case. Install the bolts from the stage 10 case rear flange. Space them at equal distances around the flange.
  7. Tighten the nuts in the correct sequence to pull the stage 11 rotor path ring onto the stage 10 case.
  8. Let the assembly become cool.
  9. Do a check to make sure all the stator vanes can be moved in their location. Any vanes which cannot be moves must be replaced.
  10. Measure and write down a record of the clearance at location 1138. The clearance must be 0.011 in. to 0.027 in. (0.27 mm to 0.68 mm). Refer to Figure.
1. Refer to Figure.
2. 1. At the stage 10 stator vane adjacent to a stage 10 stop vane push in a clockwise direction.
  2. NOTE
    If the interplatform clearances are correct continue with Step.
    If the interplatform clearances are not correct continue with Step.
    Measure and write down a record of the clearance between the stop vane and the stator vane platforms. This must be 0.079 in. to 0.095 in. (2.00 mm to 2.40 mm).
  3. Do Step and Step at the remaining three stage 10 stop vanes.
1. NOTE
  To get the specified interplatform clearance at the four stage 10 stop vanes HPC Stator Vanes (72-41-22, 05-350) use stage 10 undersize vanes HPC Stator Vanes (72-41-22, 04-450) as necessary.
  A maximum of five undersize vanes can be used between two adjacent stop vanes. These must be set at equal distances between the stop vanes.
  Refer to Figure and Figure.
2. Remove the eight slave nuts and bolts which attach the stage 11 rotor path ring HPC Ring Cases And Related Parts (72-41-21, 04-550) to the stage 10 case HPC Ring Cases And Related Parts (72-41-21, 04-350).
3. 1. Use IAE 1R18240 Extractor 3 off to remove the stage 11 rotor path ring.
  2. Engage the pins of the extractors in the extraction holes in the stage 10 case rear flange.
  3. Adjust the bolts of the extractors until the plates touch the stage 10 case front flange.
  4. Continue to turn the bolts to remove the stage 11 rotor path ring. Turn the bolts in sequence by a small equal quantity to remove the stage 11 rotor path ring.
4. CAUTION
  UNDERSIZE VANES MUST NOT BE INSTALLED ADJACENT TO THE STOP VANES OR OTHER UNDERSIZE VANES.
  Remove the stage 10 stator vanes HPC Stator Vanes (72-41-22, 05-448) and install the stage 10 undersize vanes as necessary. One stage 10 undersize vane will give an increase in the interplatform clearance of 0.016 in. (0.40 mm).
5. Install the stage 11 rotor path ring as given in Step.
6. Measure and write down a record of the interplatform clearances at the four stage 10 stop vanes as given in Step.
1. Refer to Figure.
2. Put the two halves of the stage 10 front heatshield HPC Ring Cases And Related Parts (72-41-21, 04-500) into position on the stage 10 case HPC Ring Cases And Related Parts (72-41-21, 04-350). Locate the heatshield on the spacers and make sure the end plates are correctly located.
3. Install the 10 bolts HPC Assembly (72-41-00, 01-604), from the stage 9 case rear flange, through the heatshields.
4. Install the 10 washers HPC Assembly (72-41-00, 01-606) and 10 nuts HPC Assembly (72-41-00, 01-600) onto the bolts installed in Step.
5. Use IAE 1R18635 Spanner wrench 1 off to torque the nuts. Torque the nuts in the correct sequence to 36 lbfin to 45 lbfin (4.00 Nm to 5.00 Nm).

View through the HP compressor rear cases and vanes

Sheet 1

Sheet 2

Sheet 1

Sheet 2

Install the stage 10 stator vane stops

Install the flange bolts and nuts and the stage 10 front heatshield

Sheet 1

Sheet 2

Sheet 3

Measure the stator vane interplatform clearances

Remove the stage 11 rotor path ring

Requirements After Job Completion

Follow-On Conditions

NONE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	LOCAL
Enterprise Name:	LOCALLY SUPPLIED

Manufacturer Code:	0AM53
Tool Number:	IAE 1R18240
Tool Name:	IAE 1R18240 Extractor

TASK 72-41-20-440-004-A00 HPC Rear Cases And Vanes Assembly - Assemble The HPC Stage 10 Stator Vanes To The Cases, Assembly-004

Export Control

Copyright

Applicability

Common Information

TASK 72-41-20-440-004-A00 HPC Rear Cases And Vanes Assembly - Assemble The HPC Stage 10 Stator Vanes To The Cases, Assembly-004

General

NOTE

NOTE

Preliminary Requirements

Pre-Conditions

Support Equipment

Consumables, Materials and Expendables

Spares

Safety Requirements

Procedure

SUBTASK 72-41-20-220-086 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1134

SUBTASK 72-41-20-220-087 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes Location 1136

SUBTASK 72-41-20-220-088 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes Location 1159

SUBTASK 72-41-20-220-089 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1135

SUBTASK 72-41-20-220-090 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1137

SUBTASK 72-41-20-220-091 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1138

SUBTASK 72-41-20-220-092 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1111

SUBTASK 72-41-20-220-093 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1198

SUBTASK 72-41-20-220-132 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1108

SUBTASK 72-41-20-220-133 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1109

SUBTASK 72-41-20-220-134 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1110

SUBTASK 72-41-20-220-135 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1196

SUBTASK 72-41-20-220-136 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1156

SUBTASK 72-41-20-220-137 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1157

SUBTASK 72-41-20-220-138 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1174

SUBTASK 72-41-20-440-073 Install the Stage 10 Stator Vane Rear Liner and the Stage 11 Stator Vane Front Liner

SUBTASK 72-41-20-440-074 Install the Stator Vane Stops in the Stage 10 Case

SUBTASK 72-41-20-440-107 Install the Stage 10 Case

WARNING

SUBTASK 72-41-20-440-075 Install the Stage 10 Stator Vanes

SUBTASK 72-41-20-440-076 Install the Stage 11 Rotor Path Ring

WARNING

SUBTASK 72-41-20-440-077 Measure the Interplatform Clearances

NOTE

SUBTASK 72-41-20-440-078 Install the Stage 10 Undersize Vanes

NOTE

CAUTION

SUBTASK 72-41-20-440-108 Install the Stage 10 Front Heatshield

Figure: View through the HP compressor rear cases and vanes

View through the HP compressor rear cases and vanes

Figure: The locations for the fit and clearances

Sheet 1

Figure: The locations for the fits and clearances

Sheet 2

Figure: Install the stage 10 stator vane front and rear liners

Sheet 1

Figure: Install the stage 10 front and rear liners

Sheet 2

Figure: Install the stage 10 stator vane stops

Install the stage 10 stator vane stops

Figure: Install the flange bolts and nuts and the stage 10 front heatshield

Install the flange bolts and nuts and the stage 10 front heatshield

Figure: Install the stage 10 stator vanes

Sheet 1

Figure: Install the stage 10 stator vanes

Sheet 2

Figure: Install the stage 10 stator vanes

Sheet 3

Figure: Measure the stator vane interplatform clearances

Measure the stator vane interplatform clearances

Figure: Remove the stage 11 rotor path ring

Remove the stage 11 rotor path ring

Requirements After Job Completion

Follow-On Conditions
