TASK 72-41-34-200-004-A00 HPC Variable Stator Vane Levers - Examine, Inspection-004

DMC:V2500-A0-72-41-3421-00A-300A-C|Issue No:002.00|Issue Date:2016-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-34-200-004-A00 HPC Variable Stator Vane Levers - Examine, Inspection-004

Effectivity

FIG/ITEM

PART NO.

02-100

6A3130

02-100

6A7467

02-120

6A3132

02-120

6A7469

02-140

6A3131

02-140

6A7468

03-100

6A3321

03-100

6A7460

03-120

6A3322

03-120

6A6547

03-140

6A3323

03-140

6A7461

04-100

6A3330

04-100

6A7462

04-120

6A3331

04-120

6A4345

04-120

6A7463

05-100

6A3324

05-100

6A7464

05-120

6A3325

05-120

6A4346

05-120

6A7465

05-140

6A3326

05-140

6A4347

05-140

6A7466

06-100

6A3327

06-120

6A3328

06-140

6A3329

General

This TASK gives the procedure for the inspection of the variable stator vane levers.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig./item numbers are used. For the service bulletin alpha variants refer to the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for the parts which must have a crack test is given in Step Do a crack test before a part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part can be shown to be necessary at a subsequent date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK number are in the SPM.

References

Refer to SPM for data on these items:

Definition of Damage, SPM TASK 70-02-02-350-501,

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM:

Methods of Testing for Crack Indications,

Chemical Processes,

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-34-230-053 Examine the Variable Stator Vane Levers for Cracks

    1. Clean the parts. Refer to TASK 72-41-34-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below.

        PART IDENT

        TASK/SUBTASK

        Variable Stator Vane Levers

        1. Cracked

        1. Reject

    2. SUBTASK 72-41-34-220-069-A00 Examine the Variable Inlet Guide Vane Levers Pins at Location 1 (Pre SBE 72-0336)

    1. Refer to Figure.

        1. Loose

        1. Repair, VRS6190 TASK 72-41-34-300-001 (REPAIR-001)

      2. Wear.

        3. If the diameter of the pin is 0.234 in. (5.95 mm).

        1. Accept

        4. If the diameter of the pin is less than in step (2)(a)

        1. Repair, VRS6190 TASK 72-41-34-300-001 (REPAIR-001)

        1. Loose

        1. Repair, VRS6192 TASK 72-41-34-300-003 (REPAIR-003)

      2. Wear.

        3. If the diameter of the pin is 0.234 in. (5.95 mm).

        1. Accept

        4. If the diameter of the pin is less than in step (2)(a)

        1. Repair VRS6192 TASK 72-41-34-300-003 (Repair,-003)

    3. SUBTASK 72-41-34-220-069-B00 Examine the Variable Inlet Guide Vane Levers Pins at Location 1 (SBE 72-0336)

    1. Refer to Figure.

        1. Loose.

        1. Reject

        2. Wear.

          1. If the diameter of the pin is 0.234 in. (5.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in step (2)(a)

          1. Reject

        1. Loose.

        1. Reject

        2. Wear.

          1. If the diameter of the pin is 0.234 in. (5.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in Step

          1. Reject

    4. SUBTASK 72-41-34-220-070 Examine the Variable Inlet Guide Vane Levers Surfaces at Location 2 and 3

    1. Refer to Figure.

    2. (72-41-34,02-100), (72-41-34,02-120) and (72-41-34,02-140).

      3. Scored.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step.

        1. Repair, VRS6110 TASK 72-41-34-300-011 (REPAIR-011)

      4. Galled

      1. Reject

      5. Wear

      1. Reject

    5. SUBTASK 72-41-34-220-148 Examine the Variable Inlet Guide Vane Levers Bodies at Location 4

    1. Refer to Figure.

      2. Nicked.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

      3. Scored.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

    6. SUBTASK 72-41-34-220-071 Examine the Stage 3 Variable Vane Levers Bodies at Location 4

    1. Refer to Figure.

      2. Nicked.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

      3. Scored.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

    7. SUBTASK 72-41-34-220-072-A00 Examine the Stage 3 Variable Vane Levers Pins at Location 1 (Pre SBE 72-0269 and Pre SBE 72-0334)

    1. Refer to Figure.

        1. Loose

        1. Repair VRS6190 TASK 72-41-34-300-001 (Repair,-001)

        2. Wear.

          1. If the diameter of the pin is 0.234 in. (5.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in Step

          1. Repair VRS6190 TASK 72-41-34-300-001 (Repair,-001)

        1. Loose

        1. Repair, VRS6192 TASK 72-41-34-300-003 (REPAIR-003)

        2. Wear.

          1. If the diameter of the pin is 0.234 in. (5.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in Step

          1. Repair, VRS6192 TASK 72-41-34-300-003 (REPAIR-003)

    8. SUBTASK 72-41-34-220-072-B00 Examine the Stage 3 Variable Vane Levers Pins at Location 1 (SBE 72-0269 and SBE 72-0334)

    1. Refer to Figure.

        1. Loose

        1. Reject

        2. Wear.

          1. If the diameter of the pin is 0.234 in. (5.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in Step

          1. Reject

        1. Loose

        1. Reject

        2. Wear.

          1. If the diameter of the pin is 0.234 in. (5.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in Step

          1. Reject

    9. SUBTASK 72-41-34-220-073 Examine the Stage 3 Variable Vane Levers Surfaces at Locations 2 and 3

    1. Refer to Figure.

    2. (72-41-34,03-100), (72-41-34,03-120) and (72-41-34,03-140).

      3. Scored.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step.

        1. Repair, VRS6110 TASK 72-41-34-300-011 (REPAIR-011)

      4. Galled.

      1. Reject

      5. Wear.

      1. Reject

    10. SUBTASK 72-41-34-220-074 Examine the Stage 4 Variable Vane Levers Bodies at Location 4

    1. Refer to Figure.

      2. Nicked.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

      3. Scored.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step C.(1)

        1. Reject

    11. SUBTASK 72-41-34-220-075-A00 Examine the Stage 4 Variable Vane Levers Pins at Location 1 (Pre SBE 72-0027 and Pre SBE 72-0334)

    1. Refer to Figure.

        1. Loose

        1. Repair, VRS6194 TASK 72-41-34-300-005 (REPAIR-005)

        2. Wear.

          1. If the diameter of the pin is 0.195 in. (4.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in Step

          1. Repair, VRS6194 TASK 72-41-34-300-005 (REPAIR-005)

        1. Loose

        1. Repair, VRS6196 TASK 72-41-34-300-007 (Repair,-007)

        2. Wear.

          1. If the diameter of the pin is 0.195 in. (4.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in Step

          1. Repair, VRS6196 TASK 72-41-34-300-007 (REPAIR-007)

    12. SUBTASK 72-41-34-220-075-B00 Examine the Stage 4 Variable Vane Levers Pins at Location 1 (SBE 72-0027 and SBE 72-0334)

    1. Refer to Figure.

        1. Loose.

        1. Reject

        2. Wear.

          1. If the diameter of the pin is 0.195 in. (4.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in Step

          1. Reject

        1. Loose

        1. Reject

        2. Wear.

          1. If the diameter of the pin is 0.195 in. (4.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in Step

          1. Reject

    13. SUBTASK 72-41-34-220-076 Examine the Stage 4 Variable Vane Levers Surfaces at Locations 2 and 3

    1. Refer to Figure.

    2. (72-41-34,04-100), (72-41-34,04-120) and (72-41-34,04-140).

      3. Scored.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Repair, VRS6110 TASK 72-41-34-300-011 (REPAIR-011)

      4. Galled

      1. Reject

      5. Worn excessively

      1. Reject

    14. SUBTASK 72-41-34-220-077 Examine the Stage 5 Variable Vane Levers Bodies at Location 4

    1. Refer to Figure.

      2. Nicked.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

      3. Scored.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

    15. SUBTASK 72-41-34-220-078-A00 Examine the Stage 5 Variable Vane Levers Pins at Location 1 (Pre SBE 72-0027 and Pre SBE 72-0335)

    1. Refer to Figure.

        1. Loose

        1. Repair, VRS6196 TASK 72-41-34-300-007 (REPAIR-007)

        2. Wear.

          1. If the diameter of the pin is 0.195 in. (4.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in Step

          1. Repair, VRS6196 TASK 72-41-34-300-007 (REPAIR-007)

        1. Loose

        1. Repair, VRS6194 TASK 72-41-34-300-005 (REPAIR-005)

        2. Wear.

          1. If the diameter of the pin is 0.195 in. (4.95 mm).

          1. Accept

          2. Less than in Step

          1. Repair, VRS6194 TASK 72-41-34-300-005 (REPAIR-005)

    16. SUBTASK 72-41-34-220-078-B00 Examine the Stage 5 Variable Vane Levers Pins at Location 1 (SBE 72-0027 and SBE 72-0335)

    1. Refer to Figure.

        1. Loose

        1. Reject

        2. Wear.

          1. If the diameter of the pin is 0.195 in. (4.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in Step

          1. Reject

        1. Loose

        1. Reject

        2. Wear.

          1. If the diameter of the pin is 0.195 in. (4.95 mm).

          1. Accept

          2. Less than in Step

          1. Reject

    17. SUBTASK 72-41-34-220-079 Examine the Stage 5 Variable Vane Levers Surfaces at Locations 2 and 3

    1. Refer to Figure.

    2. (72-41-34,05-100), (72-41-34,05-120) and (72-41-34,05-140).

      3. Scored.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Repair, VRS6110 TASK 72-41-34-300-011 (REPAIR-011)

      4. Galled

      1. Reject

      5. Worn excessively

      1. Reject

    18. SUBTASK 72-41-34-220-080 Examine the Stage 6 Variable Vane Levers Bodies at Location 4

    1. Refer to Figure.

      2. Nicked.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

      3. Scored.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

    19. SUBTASK 72-41-34-220-081 Examine the Stage 6 Variable Vane Levers Pins at Location 1

    1. Refer to Figure.

      2. (72-41-34,06-120) and (72-41-34,06-140).

        1. Loose

        1. Repair, VRS6196 TASK 72-41-34-300-007 (REPAIR-007)

        2. Wear.

          1. If the diameter of the pin is 0.195 in. (4.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in Step

          1. Repair, VRS6196 TASK 72-41-34-300-007 (REPAIR-007)

      3. (72-41-34,06-100).

        1. Loose

        1. Repair, VRS6194 TASK 72-41-34-300-005 (REPAIR-005)

        2. Wear.

          1. If the diameter of the pin is 0.195 in. (4.95 mm).

          1. Accept

          2. If the diameter of the pin is less than in Step

          1. Repair, VRS6194 TASK 72-41-34-300-005 (REPAIR-005)

    20. SUBTASK 72-41-34-220-082 Examine the Stage 6 Variable Vane Levers Surfaces at Locations 2 and 3

    1. Refer to Figure.

    2. (72-41-34,06-100), (72-41-34,06-120) and (72-41-34,06-140).

      3. Scored.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than Step

        1. Repair, VRS6110 TASK 72-41-34-300-011 (REPAIR-011)

      4. Galled

      1. Reject

      5. Worn excessively

      1. Reject

    21. SUBTASK 72-41-34-220-168 Examine the Variable Vane Levers Holes at Location 5

    1. Refer to Figure.

      2. Scored.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in Step

        1. Reject

      3. Wear.

        1. If the diameter is between 0.283 to 0.291 in. (7.20 to 7.40 mm)

        1. Accept

        2. More than in Step

        1. Reject

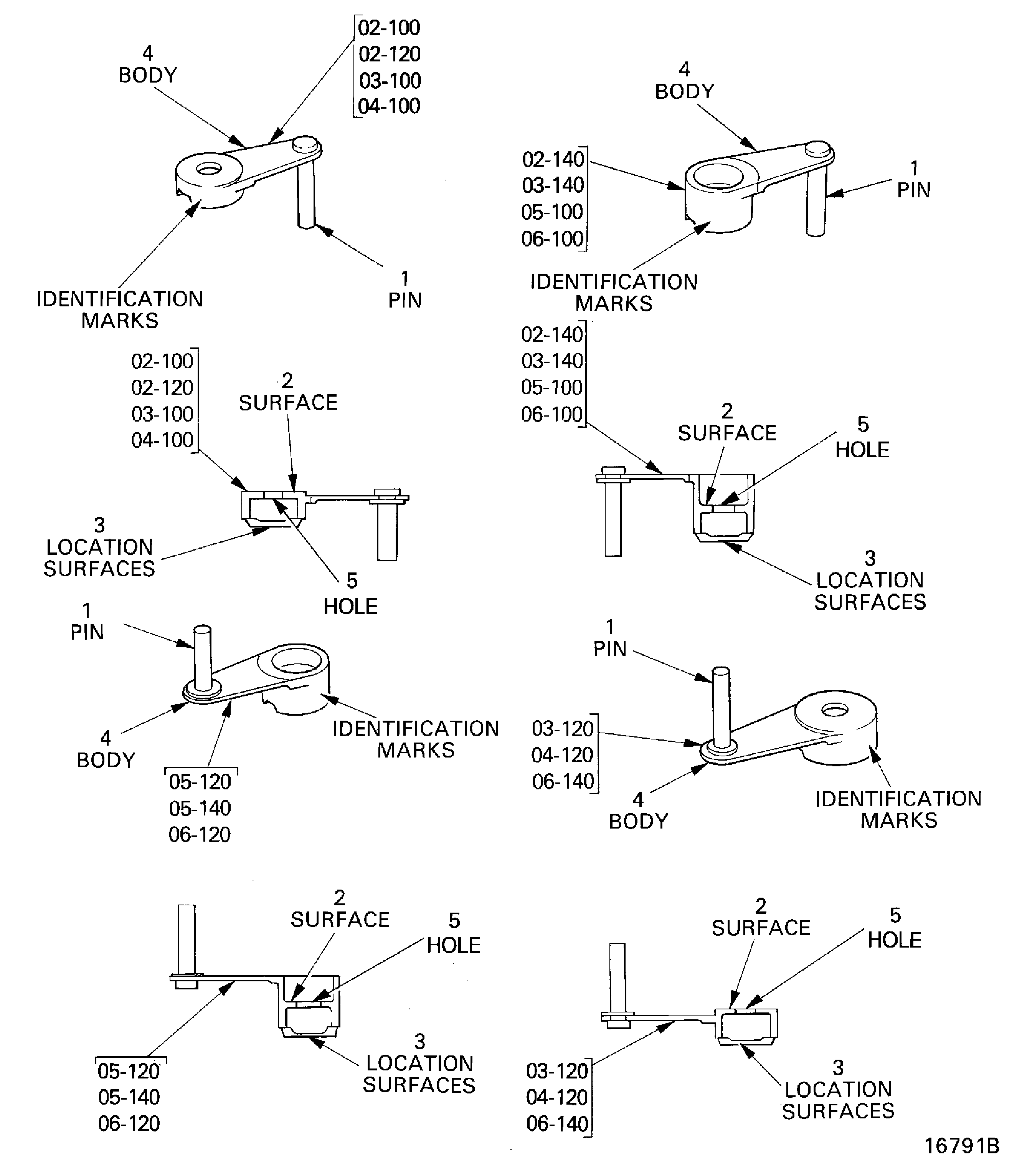

    22. Figure: Variable stator vane levers - inspection locations

    Variable stator vane levers - inspection locations

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure to change inspection limit for wear. (12VR780)
