TASK 72-45-00-200-002-B00 HPT Stage 2 Air Seal - Examine, Inspection-002

DMC:V2500-A0-72-45-0012-00B-300A-C|Issue No:002.00|Issue Date:2017-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-45-00-200-002-B00 HPT Stage 2 Air Seal - Examine, Inspection-002

Effectivity

FIG/ITEM

PART NO.

01-080

2A1159

General

This TASK gives the procedure for the inspection of the stage 2 HPT air seal. For the other parts of the HP turbine rotor and stator assembly refer to TASK 72-45-00-200-000 (INSPECTION-000).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-45-00-100-000 (CLEANING-000).

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in SUBTASK 72-45-00-230-056. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available.

The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Record and Control of the Lives of Parts SPM TASK 70-05-00-220-501.

Inspection of Parts, SPM TASK 70-20-00-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Balancing fixtureLOCALBalancing fixture

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

CAUTION

THIS PART MUST BE INSPECTED BY THE FOLLOWING STEPS BEFORE IT IS REPLACED. THIS INSPECTION IS REQUIRED TO CONFIRM THAT NO IRREGULAR SERVICE EXPERIENCE OCCURRED. FAILURE TO COMPLY WITH THESE REQUIREMENTS WILL RESULT IN DAMAGE TO THE ENGINE AND/OR AIRCRAFT.
PERFORM SUBTASK 72-45-00-220-161TO EXAMINE FOR THE PRESENCE OF SOOT AND OIL.
CLEAN THE PART BY TASK 72-45-00-100-002.
FPI THE PART FOR CRACK INDICATIONS BY SUBTASK 72-45-00-230-056-001.
PERFORM THE SUBTASK 72-45-00-220-113 TO INSPECT BORE AXIAL DIMENSION.
IF THE BORE AXIAL DIMENSION WAS OUT OF LIMITS, PERFORM ALL THE SUBTASKS OF THIS INSPECTION AND REPORT ALL FINDINGS TO IAE TECH SERVICES.

Procedure

    1. SUBTASK 72-45-00-220-161 Examine the Stage 2 HPT Air Seal (01-080) for Soot and Oil

      CAUTION

      MAKE SURE THAT YOU DO THIS INSPECTION BEFORE YOU CLEAN THE PART OR CLEANING PROCEDURE WILL REMOVE THE INDICATION OF SOOT AND OIL.

    1. Refer to Figure.

      2. Examine the air seal for soot and soil at location 1.

        1. No soot or oil

        1. Accept

        2. Soot or oil

        1. Do inspection of HPT for possible oil ignition event. Refer to TASK 72-45-00-200-801. Report all findings to IAE Technical Services.

    2. SUBTASK 72-45-00-230-056-001 Examine the Stage 2 HPT Air Seal (01-080) for Cracks

    1. Refer to Figure.

    2. Clean the Part. Refer to TASK 72-45-00-100-000 (CLEANING-000).

      NOTE

      When you inspect the seal for cracks make sure you check the important areas. These areas are shown in Figure.

      3. Do the test for cracks on the part that is given below. Carefully examine fillet radii, the knife-edge seals at location 1, the web at location 5, and the tab at location 6. Use the applicable penetrant procedure.

        PART IDENT

        TASK/SUBTASK

        Stage 2 HPT Air Seal

        1. Cracks that go into the base metal at the knife edges, Location 1

        1. Repair, VRS3207 TASK 72-45-00-300-004 (REPAIR-004)

        2. Cracks found in the front fillet radius

        1. Reject

          NOTE

          If the crack originates at the fillet radius (outer diameter side) and extends through to the inner diameter side, reject the HPT stage 1 hub HPT Stage 1 Hub (72-45-11, 01-011), HPT stage 2 hub ENGINE-STAGE 2 TURBINE HUB (72-45-31, 01-011) and HPT stage 1 airseal - rear ENGINE-STAGE 1 AIR SEAL (REAR) (72-45-15, 01-020).

        3. Cracks that go into the base metal at locations other than the knife edges or front fillet radius

        1. Reject

          NOTE

          Refer to Step for coating on the knife-edge seals.

    3. SUBTASK 72-45-00-220-086 Examine the Stage 2 (HPT) Air Seal (01-080) for Scratches, Nicks, Dents and Corrosion

      1. Examine the air seal for scratches, nicks, dents and corrosion.

        1. Scratches, nicks, dents, or corrosion

        1. Repair, VRS3208 TASK 72-45-00-300-002 (REPAIR-002)

    4. SUBTASK 72-45-00-220-087 Examine the Stage 2 (HPT) Air Seal (01-080) for Chipped or Cracked Plasma Spray Coating on the Knife-Edge Seals

    1. Refer to Figure

      2. Examine the air seal at location 1, for chipped or cracked plasma spray coating on the knife-edge seal (4 locations).

        1. Chipped coating.

          1. If the base metal does not show

          1. Accept

          2. Other than (a)

          1. Repair, VRS3209 TASK 72-45-00-300-003 (REPAIR-003) or Repair, VRS3207 TASK 72-45-00-300-004 (REPAIR-004)

        2. Cracked coating.

          1. If the cracks do not look like they go into the base metal

          1. Repair, VRS3209 TASK 72-45-00-300-003 (REPAIR-003), Repair, VRS3207 TASK 72-45-00-300-004 (REPAIR-004)

          2. Cracks that go into the knife edge base metal

          1. Repair, VRS3207, TASK 72-45-00-300-004 (REPAIR-004)

          3. Cracks that go into the pedestal

          1. Reject

    5. SUBTASK 72-45-00-220-085 Examine the Stage 2 (HPT) Air Seal (01-080) for Missing or Damaged Metering Plugs

    1. Refer to Figure

      2. Examine the air seal at location 2, for missing or damaged metering plugs (2 locations).

        1. Missing plug

        1. Repair, VRS3335 TASK 72-45-00-300-009 (REPAIR-009)

        2. Damaged plug.

          1. Corrosion, burning or nicks that are on the surface

          1. Accept

          2. Other than (a)

          1. Repair, VRS3335 TASK 72-45-00-300-009 (REPAIR-009)

    6. SUBTASK 72-45-00-220-088 Examine the Stage 2 (HPT) Air Seal (01-080) for Wear on the Rear Contact Faces

    1. Refer to Figure

      2. Examine the air seal at location 4, for wear on the rear contact face.

        1. Wear

        1. Repair, VRS3208 TASK 72-45-00-300-002 (REPAIR-002)

      3. Examine the air seal at location 3, for wear on the rear contact face.

        1. Wear up to 0.002 in. (0.051 mm)

        1. Accept

        2. Other than (1)

        1. Repair, VRS3208 TASK 72-45-00-300-002 (REPAIR-002)

    7. SUBTASK 72-45-00-220-089 Examine the Stage 2 (HPT) Air Seal (01-080) for Wear on the Sides of the Front Tabs

    1. Refer to Figure

      2. Examine the air seal at location 6, for wear on the sides of the front tabs.

        1. Wear.

          1. Up to 0.005 in. (0.127 mm) in depth

          1. Accept

          2. Other than (a)

          1. Reject

    8. SUBTASK 72-45-00-220-090 Examine the Stage 2 (HPT) Air Seal (01-080) for Wear on the Front Contact Faces

    1. Refer to Figure

      2. Examine the air seal at location 7, for wear on the front contact faces (4 locations).

        1. Wear.

          1. Up to 0.002 in (0.051 mm) in depth

          1. Accept

          2. More than (a)

          1. Repair, VRS3208 TASK 72-45-00-300-002 (REPAIR-002) and/or VRS3211, TASK 72-45-00-300-006 (REPAIR-006)

    9. SUBTASK 72-45-00-220-162 Examine the Stage 2 HPT Air Seal (01-080) for Wear Marks on the Bore

    1. Refer to Figure and Figure.

      2. Examine the air seal for wear marks on the bore.

        1. No wear marks

        1. Accept

        2. Wear marks

        1. Do inspection of HPT for possible oil ignition event. Refer to TASK 72-45-00-200-801. Report all findings to IAE Technical Services.

    10. SUBTASK 72-45-00-220-091 Examine the Stage 2 (HPT) Air seal (01-080) for the Axial Length

    1. Refer to Figure.

      NOTE

      If the measured axial length in a free condition is not satisfactory, a held condition is permitted. All dimensions apply when surfaces F and G and flat by 0.002 in. (0.051 mm), Diameter D maintains a clearance envelope of 17.135 in. (436.36 mm) diameter, and Diameter E maintains a clearance envelope of 18.126 in. (460.40 mm) diameter in a free or held condition. Hold the air seal only on Surface F and G and Diameters D and E.

      2. Examine the air seal at location 1, for the axial length.

        1. Axial length.

          1. If the axial length is between 2.739 and 2.749 in. (69.57 and 69.82 mm)

          1. Accept

          2. More than (a)

          1. Reject

      2. Record the average dimension as AB. This recorded dimension AB will be used during assembly process.

    11. SUBTASK 72-45-00-220-092 Examine the Stage 2 (HPT) Air Seal (01-080) for Wear on the Front Flange Diameter, the Knife-Edge Seal Diameters and the Rear Flange Diameter

      NOTE

      If the measured diameter in a free condition are not satisfactory, a held condition is permitted. All dimensions apply when Surfaces F and G are flat by 0.002 in. (0.051 mm), Diameter D maintains a clearance envelope of 17.135 in. (436.23 mm) diameter, and Diameter E maintains a clearance envelope of 18.126 in. (460.40 mm) diameter in a free or held condition. Hold the air seal only on Surfaces F and G and Diameters D and E.

    1. Refer to Figure

      2. Examine the air seal at location 1505, for wear on the rear flange diameter.

        1. If the diameter is between 17.126 and 17.1355 in. (435.000 and 435.242 mm)

        1. Accept

        2. Write down the dimension of the diameter.

          NOTE

          This part can be used only if the mating part has a diameter that will result in fit of reference No. 1505. Refer to TASK 72-45-00-430-001-A00 (ASSEMBLY, CONFIG-001) or TASK 72-45-00-430-001-B00 (ASSEMBLY, CONFIG-002).

        2. Other than Step.

        1. Repair, VRS3315 TASK 72-45-00-300-007 (REPAIR-007)

      3. Examine the air seal at location 1579, for wear on the knife-edge seal diameters (4 locations).

        1. If the average diameter of the four knife-edges is 19.146 in. (486.305 mm) or more, no diameters are less than 19.142 in. (486.207 mm) and the coating is not fully worn from the tips of the knife-edges

        1. Accept

        2. Write down the dimension of the diameters.

        2. More than (1)

        1. Repair, VRS3209 TASK 72-45-00-300-003 (REPAIR-003)

      4. Examine the air seal at location 1503, for wear on the front flange diameter.

        1. If the diameter is between 18.117 and 18.1265 in. (460.172 and 460.413 mm)

        1. Accept

        2. Write down the dimension of the diameter.

          NOTE

          This part can be used only if the mating part has a diameter that will result in fit of reference No. 1503. Refer to TASK 72-45-00-430-001-A00 (ASSEMBLY, CONFIG-001) or TASK 72-45-00-430-001-B00 (ASSEMBLY, CONFIG-002).

        2. More than (1)

        1. Repair, VRS3210 TASK 72-45-00-300-008 (REPAIR-008)

    12. SUBTASK 72-45-00-220-093 Examine the Stage 2 (HPT) Air Seal (01-080) for the Engine Cycles of the Part

    1. Refer to Figure

    2. Examine the air seal at Location 2, for the total engine cycles that was marked before (at each disassembly).

      NOTE

      You can get the new engine cycles from the engine operating records.

      3. Calculate the new total number of engine cycles for the air seal.

      1. Add the new engine cycles since the last inspection to the engine cycles that is marked on the air seal.

    4. Do not install the air seal if the total number of engine cycles is more than the maximum cycles given in TASK 05-10-01-200-001-A00 (GROUP A PARTS LIVES, CONFIG-001).

      5. Mark the new total number of engine cycles on the air seal.

      1. Electrical contact is only permitted at location 5.

      2. Mark the air seal at location 2.

        3. Examine the air seal at location 5, for electrical contact, burns, pitting and selective attack.

          1. Electrical contact

          1. Accept

          2. Burns, pitting, or selective attack

          1. Reject

    13. SUBTASK 72-45-00-220-113 Examine the Stage 2 HPT Air Seal (01-080) for the Bore Axial Position

    1. Refer to Figure

    2. Measure and make a record of the dimension at location 4 at six places circumferentially. The measurements must be equally spaced and at an 8.200 in. (208.28 mm) radius reference location.

    3. Measure and make a record of the dimension at location 3 at six places circumferentially. The measurements must be equally spaced at the same location as the dimension at location 4.

      4. Subtract the dimension at location 3 from the dimension at location 4 at each circumferential location.

        1. If the dimension is between 0.570 and 0.614 in. (14.48 and 15.60 mm)

        1. Accept

        2. Other than Step.

        1. Do inspection of HPT for possible oil ignition event. Refer to TASK 72-45-00-200-801. Report all findings to IAE Technical Services.

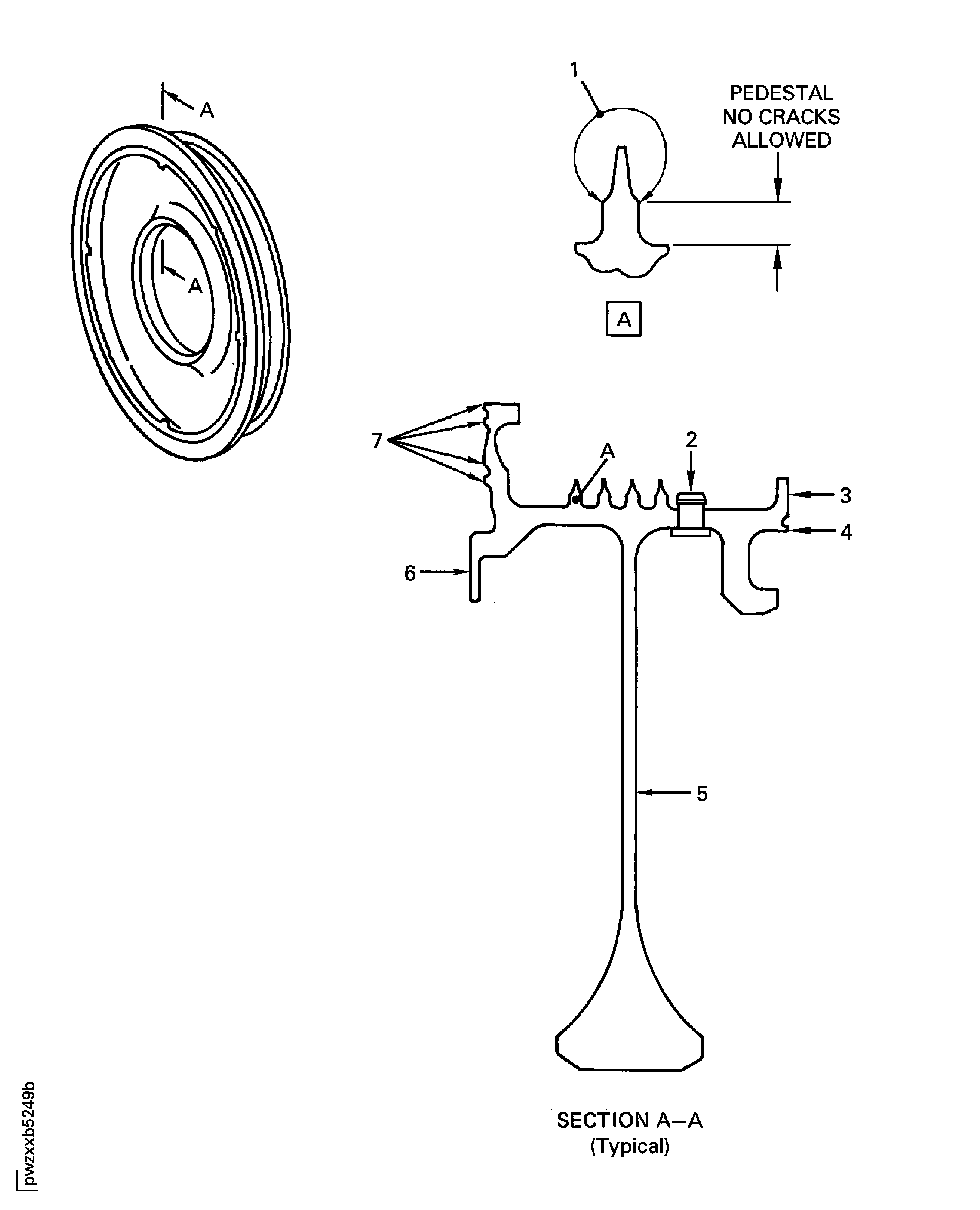

    14. Figure: Stage 2 HPT Air Seal Inspection Locations

    Sheet 1

    Legend
    Stage 2 HPT Air Seal Inspection Locations

    Sheet 1

    Close

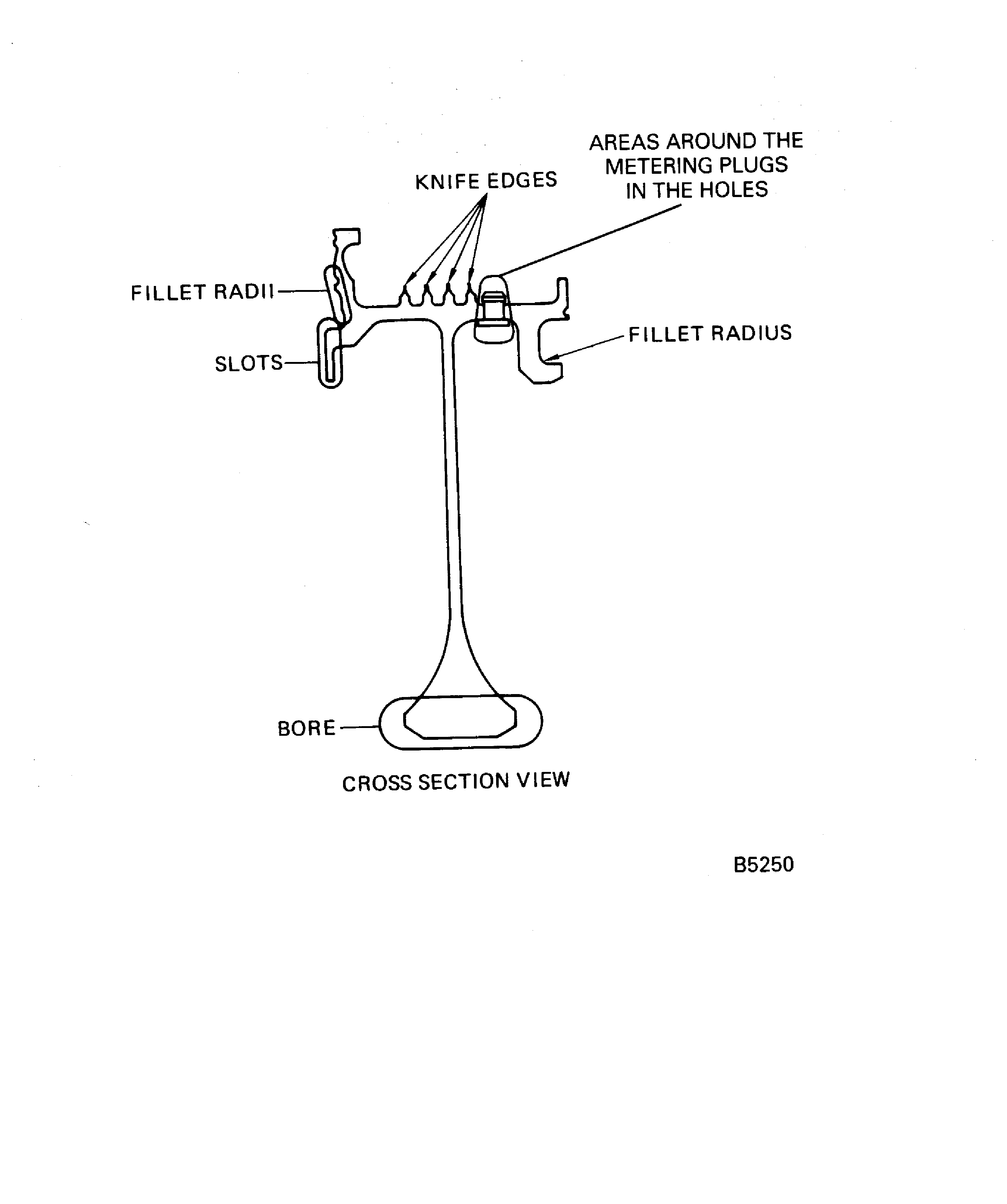

    Figure: Stage 2 HPT Air Seal Inspection Locations

    Sheet 2

    Legend
    Stage 2 HPT Air Seal Inspection Locations

    Sheet 2

    Close

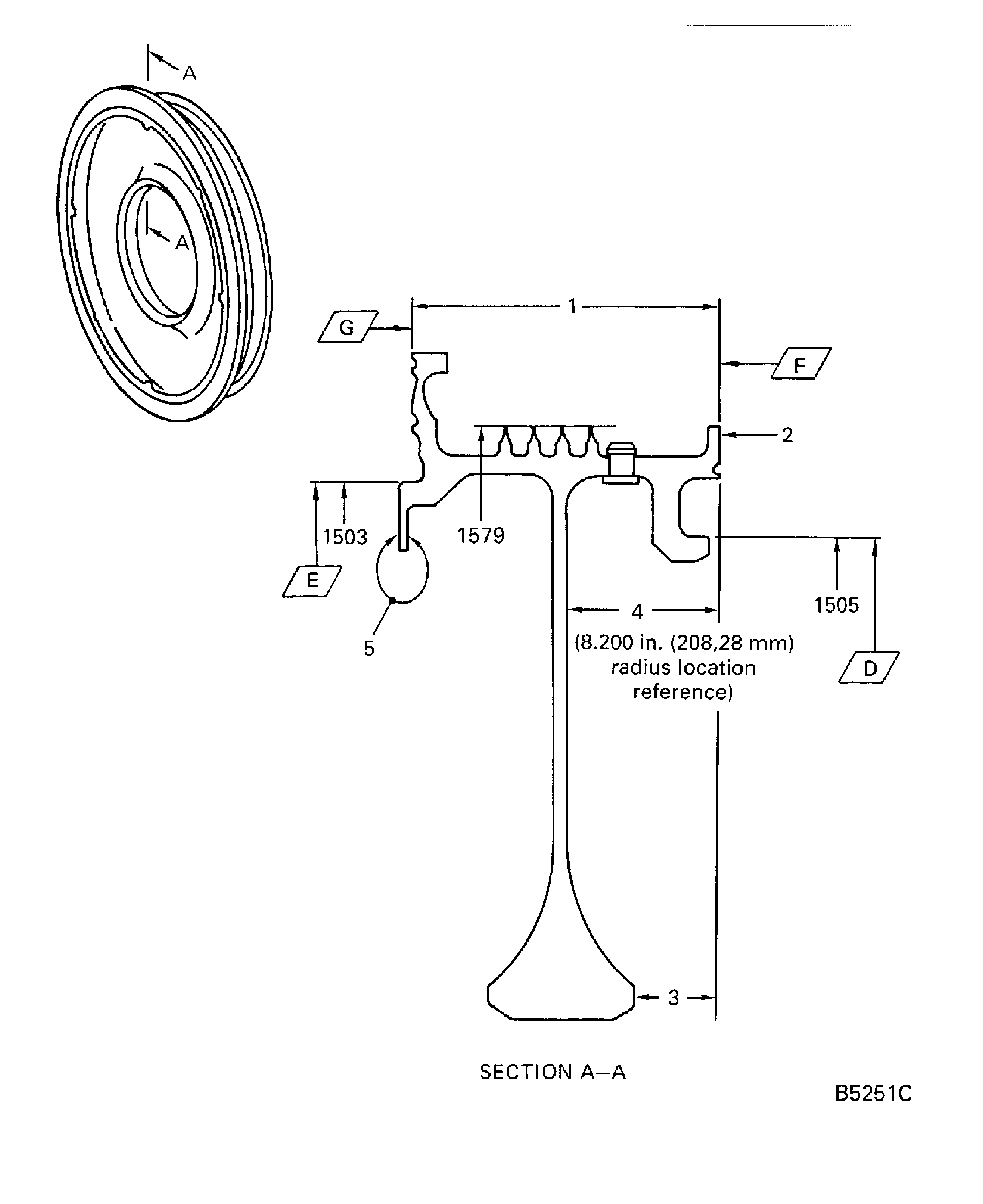

    Figure: Stage 2 HPT Air Seal Inspection Location

    Stage 2 HPT Air Seal Inspection Location

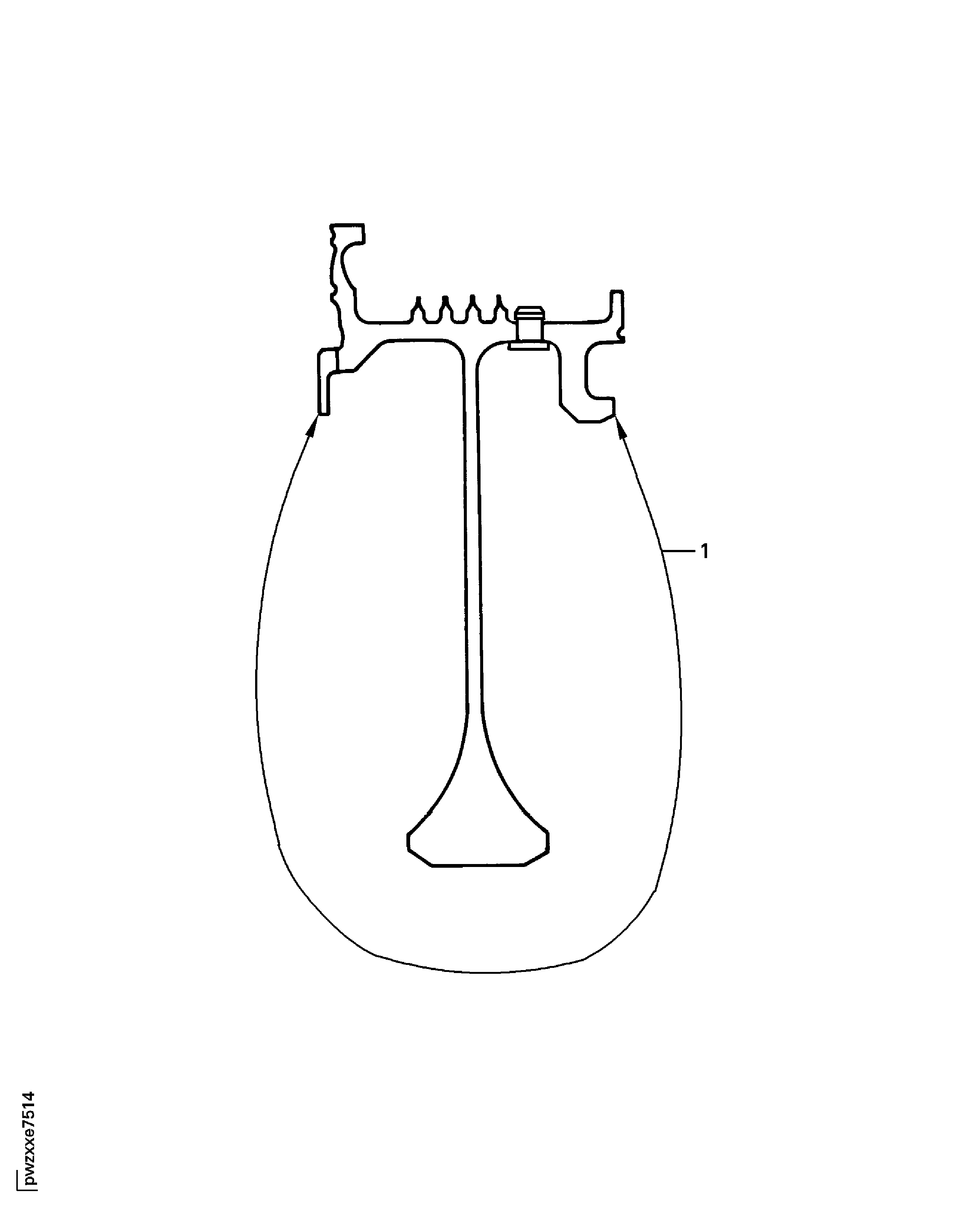

    Figure: Stage 2 HPT Air Seal Inspection Locations

    Stage 2 HPT Air Seal Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure to add inspection criteria. (16VC282)
