TASK 72-32-00-430-007-A00 LPC/Intermediate Case Module - Install The No. 1 Bearing Front Seal Support, Front Air Seal Assembly, No. 1 Bearing Compartment Air Tubes, And No.1 Bearing Compartment Scavenge Oil Tube, Assembly-000 - Pre SBE 72-0132

DMC:V2500-A1-72-32-0000-07A-710A-B|Issue No:003.00|Issue Date:2017-03-23

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1 AND Pre SBE 72-0132

Common Information

TASK 72-32-00-430-007-A00 LPC/Intermediate Case Module - Install The No. 1 Bearing Front Seal Support, Front Air Seal Assembly, No. 1 Bearing Compartment Air Tubes, And No.1 Bearing Compartment Scavenge Oil Tube, Assembly-000 - Pre SBE 72-0132

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501 and TASK 70-41-02-400-501.

To identify, lubricate and install seal rings, refer to the SPM TASK 70-64-02-640-501.

Special torque data and assembly tolerances are included in the procedure.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

The abbreviation Intf shows an interference or tight fit. This causes REJECT IF MORE THAN, to become REJECT IF LESS THAN. The abbreviation Clear shows a clearance fit.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

The No. 1 Strut, which is the top position strut of the Fan Frame Assembly, is identified by the five pressure tubes on the No. 1 Strut leading edge.

This TASK gives the procedure to install the Seal Support, the Front Bearing Compartment front Air Seal Assembly, the No. 1 Bearing Compartment Air Tubes and the No. 1 Bearing Compartment Scavenge Oil Tube.

For other parts of the LP Compressor/Intermediate Case Module refer to TASK 72-32-00-430-000, ASSEMBLY-000).

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1J12442 Guide pin set0AM53IAE 1J124421

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Sealing ring1
Sealing ring1
Sealing ring1
Sealing ring2
Packing1

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-220-130 Reference Fits and Clearances of the No. 1 Bearing Support and the No. 1 Ball Bearing at Location 0301

    1. Refer to Figure.

    2. Reference dimensions at location 0301. If required, use data written as a note in TASK 72-32-41-200-000 (INSPECTION-000) and TASK 72-32-54-200-000 (INSPECTION-000).

      Table 1. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 0301

      No. 1 Bearing Support (72-32-41, 01-240), Inside Diameter

      No. 1 Bearing ENGINE-NO.1 BEARING (72-32-54, 01-150), Outer Diameter

      No. 1 Bearing Support Inside Diameter

      12.7947

      12.7938

      0.0000

      No. 1 Ball Bearing Outer Diameter

      12.7952

      12.7947

      0.0014

      Intf

      Table 2. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 0301

      No. 1 Bearing Support (72-32-41, 01-240), Inside Diameter

      No. 1 Ball Bearing (72-32-54, 01-150), Outer Diameter

      No. 1 Bearing Support Inside Diameter

      324.985

      324.960

      0.0000

      No. 1 Ball Bearing Outer Diameter

      325.000

      324.985

      0.04

      Intf

    2. SUBTASK 72-32-00-430-111 Turn the Fan Frame Assembly Vertical with the Front End Up

    1. Refer to Figure.

    2. Make sure that the Fan Frame Assembly is installed horizontally on the turnover stand. Refer to TASK 72-32-00-430-006 (ASSEMBLY-006).

    3. Release the lock pin from the holes in the handle and the Support C of the turnover stand.

    4. Turn the handle to set the Fan Frame Assembly vertical with the front end up.

    5. Install the lock pin in to position to lock the handle.

      NOTE

      Make sure that the hole in the Support C and one of the eight holes in the handle are aligned. If necessary, turn the handle to make the two holes aligned.

    3. SUBTASK 72-32-00-430-112 Install the Seal No. 1 Bearing Front Support and the Air Feed Brackets to the No.1 Bearing Support

    1. Refer to Figure.

      2. Attach the No. 1 Bearing Front Seal Support ENGINE-NO.1 BEARING COMPARTMENT FRONT OIL SEAL (72-32-55, 01-100) to the No. 1 Bearing Front Oil Seal.

      1. Lubricate ENGINE-NO.1 BEARING FRONT SEAL (72-32-53, 01-400) packing 1 off with the CoMat 10-077 APPROVED ENGINE OILS.

      2. Install the packing in to the groove in the No. 1 Bearing Front Oil Seal.

      3. Lubricate ENGINE-LP COMP/INTERMEDIATE CASE MODULE (72-32-00, 02-130) sealing ring 1 off with the CoMat 10-077 APPROVED ENGINE OILS engine oils.

      4. Install the sealing ring in to the groove in the No. 1 Bearing Support.

      5. Align the top of the No. 1 Bearing Front Seal Support with top of the No. 1 Bearing Front Oil Seal. Make sure that three of 15 scallops in the No. 1 Bearing Front Seal Support are aligned with the three lugs of the seal holder.

        NOTE

        The seal holder is installed to the No. 1 Bearing Front Seal in TASK 72-32-50-440-001 (ASSEMBLY-001).

      6. Lower the No. 1 Bearing Front Seal Support on to the No. 1 Bearing Front Oil Seal.

      7. Safety the No. 1 Bearing Front Seal Support with the 18 bolts (02-151). Torque the bolts to 85 lbfin to 105 lbfin (10.00 Nm to 12.00 Nm).

    3. Replace the three bolts (part of the seal holder) with the three guide pins (part of IAE 1J12442 Guide pin set 1 off).

      NOTE

      Hold the weight of the No. 1 Bearing Front Seal Support and the No. 1 Bearing Front Oil Seal by your hands during Step, Step and Step.

      4. Install the No. 1 Bearing Front Seal Support on to the No. 1 Bearing Support.

      1. Align the boltholes in the No. 1 Bearing Front Seal Support with the boltholes in the No. 1 Bearing Support.

      2. Slowly lower the No. 1 Bearing Front Seal Support on to the No. 1 Bearing Support.

      3. Attach the No. 1 Bearing Front Seal Support with the 17 bolts (02-120) and nuts (02-110). Tighten the bolts lightly.

    5. Remove the six screws (part of the seal holder) which attach the seal holder to the LP Shaft, No. 1 and No. 2 Bearing Assembly. Remove the seal holder.

    6. Remove the three guide pins from the No. 1 Bearing Front Oil Seal.

    7. Install the two air Feed Brackets (02-094 and 02-096) to the No. 1 Bearing Support and attach with the four bolts (02-105) and nuts (02-102). Tighten the bolts lightly.

    8. Torque the bolts (02-105 and 02-120) to 85 lbfin to 105 lbfin (10.00 Nm to 12.00 Nm).

    4. SUBTASK 72-32-00-430-113 Install the Brush Seal and the Retaining Ring into the FBC Front Air Seal

    1. Refer to Figure.

    2. Put the FBC Front Air Seal ENGINE-NO.1 BEARING COMPARTMENT FRONT AIR SEAL (72-32-56, 01-150) on a work bench with the front end down.

      3. Install the Brush Seal ENGINE-NO.1 BEARING COMPARTMENT FRONT AIR SEAL (72-32-56, 01-160) into the FBC Front Air Seal.

      1. Align the two locating pins on the brush seal with the two locating holes in the FBC Front Air Seal.

      2. Put the brush seal into position in the FBC Front Air Seal.

    4. Install the retaining ring ENGINE-NO.1 BEARING COMPARTMENT FRONT AIR SEAL (72-32-56, 01-100) into the groove in the FBC Front Air Seal.

    5. SUBTASK 72-32-00-430-114 Install the FBC Front Air Seal on to the No. 1 Bearing Front Seal Support

    1. Refer to Figure.

      2. Install the FBC Front Air Seal on to the No. 1 Bearing Front Seal Support.

      1. Align the TOP mark of the FBC Front Air Seal Assembly with the TOP mark of the No. 1 Bearing Front Seal Support.

      2. Attach the FBC Front Air Seal to the No. 1 Bearing Front Seal Support and safety with the 18 bolts (01-980) and nuts (01-960). Torque the bolts to 85 lbfin to 105 lbfin (10.00 Nm to 12.00 Nm).

    6. SUBTASK 72-32-00-430-115 Install the No. 1 Bearing Compartment Air Tubes

    1. Refer to Figure.

    2. Install the two nuts (03-114) onto the two brackets on the No. 1 Bearing Support.

    3. Lubricate ENGINE-LP COMP/INTERMEDIATE CASE MODULE (72-32-00, 03-129) sealing rings 2 off with CoMat 10-077 APPROVED ENGINE OILS and install them into the grooves in the two No. 1 Bearing Compartment Air Tubes ENGINE-NO.1 BEARING COMPARTMENT AIR TUBES (72-32-57, 01-100).

    4. Install each air tube into the hole in the Fan Frame Assembly. Attach the adapter of each air tube to the connection in the No. 1 Bearing Front Seal Support. Attach each air tube with the two bolts (03-127) and nuts (03-125). Torque the bolts to 85 lbfin to 105 lbfin (10.00 Nm to 12.00 Nm).

      5. Attach the air tubes to the brackets.

      1. Attach the plastic bushing (03-118) around each air tube adjacent to the bracket.

      2. Install the inner spring tension clip (03-117) and outer spring tension clip (03-116) onto each plastic bushing and attach with the bolt (03-110) and the washer (03-112).

      3. Torque the bolts to 85 lbfin to 105 lbfin (10.00 Nm to 12.00 Nm).

    7. SUBTASK 72-32-00-430-116 Install the No. 1 Bearing Compartment Scavenge Oil Tube

    1. Refer to Figure.

    2. Lubricate ENGINE-LP COMP/INTERMEDIATE CASE MODULE (72-32-00, 01-865) sealing ring 1 off with CoMat 10-077 APPROVED ENGINE OILS and install it in to the hole in the No. 1 Bearing Front Seal Support.

    3. Lubricate ENGINE-LP COMP/INTERMEDIATE CASE MODULE (72-32-00, 01-870) sealing ring 1 off with CoMat 10-077 APPROVED ENGINE OILS engine oils and install it into the groove in the oil tube NO.1 BEARING COMPARTMENT SCAVENGE OIL TUBE (72-32-58, 01-100).

    4. Install the oil tube into the hole in the Fan Frame Assembly.

    5. Install the adapter of the oil tube to the connection in the No. 1 Bearing Front Seal Support and attach with the three bolts (01-860). Torque the bolts to 85 lbfin to 105 lbfin (10.00 Nm to 12.00 Nm).

    8. Figure: Install the Lock Pin into Position to Lock the Handle of the Turnover Stand

    Install the Lock Pin into Position to Lock the Handle of the Turnover Stand

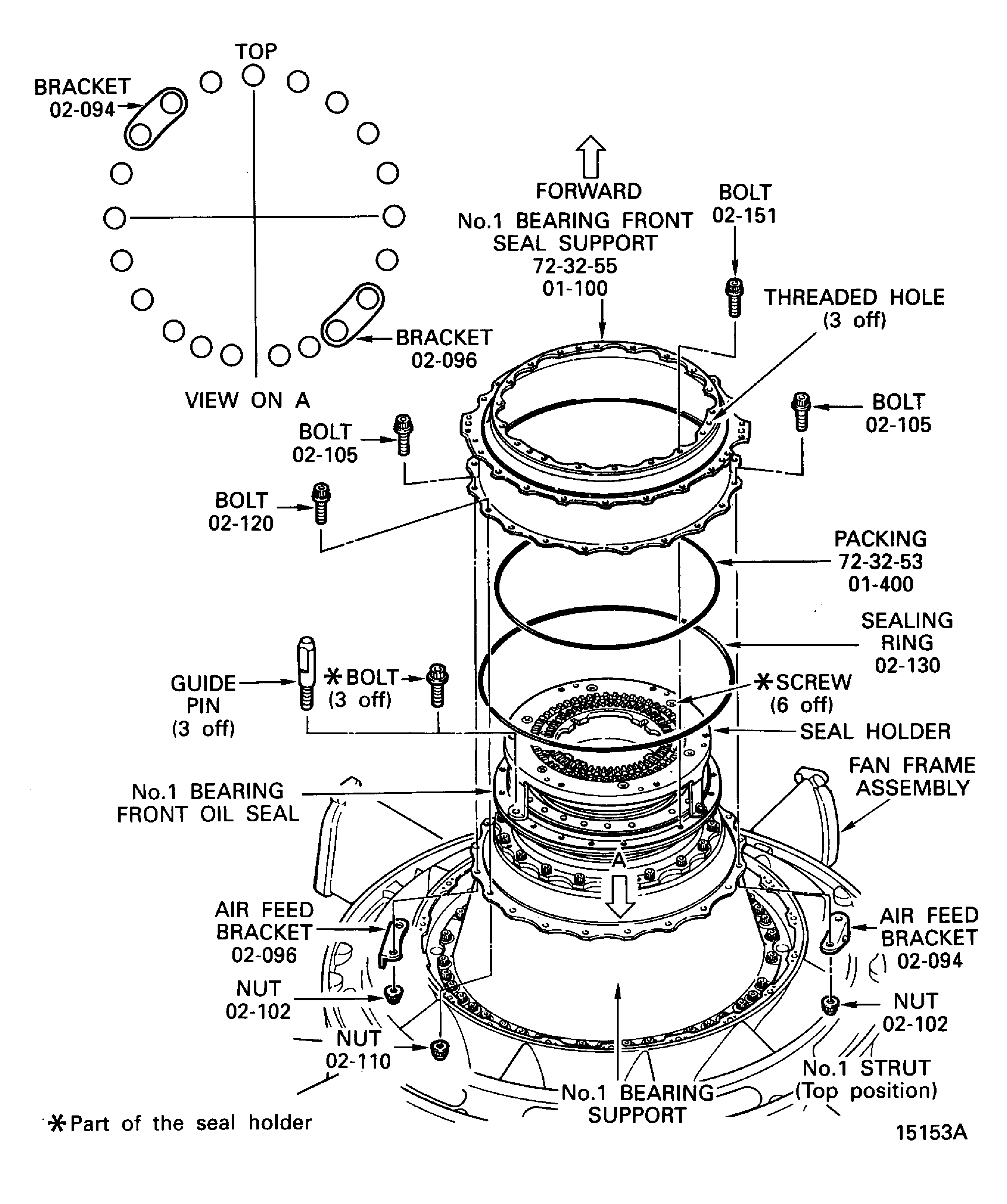

    Figure: Install the No. 1 Bearing Front Seal Support and the Air Feed Brackets onto the No. 1 Bearing Support
