TASK 72-41-20-440-001-C00 HPC Rear Cases And Vanes Assembly - Assemble The HPC Stage 7 Case And Stator Vanes, Assembly-001 (SBE 72-0627)

DMC:V2500-A5-72-41-2000-06A-710A-B|Issue No:005.00|Issue Date:2020-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5 and Post SBE 72-0627

Common Information

TASK 72-41-20-440-001-C00 HPC Rear Cases And Vanes Assembly - Assemble The HPC Stage 7 Case And Stator Vanes, Assembly-001 (SBE 72-0627)

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures refer to SPM TASK 70-41-00-400-501, SPM TASK 70-41-01-400-501 and SPM TASK 70-41-02-410-501.

Special torque data and assembly tolerances are included in the procedure.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS unless other lubricants are referred to in the procedure.

After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and parts used to attach. Use the correct color of the air drying enamel. Refer to SPM TASK 70-63-02-380-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless otherwise specified in the procedure.

Refer to Figure for a sectional view of the HP compressor rear cases and vanes.

Make sure all the flange faces and tool faces that touch are very clean.

The Fits and Clearances, NEW PART DIMENSIONS and REJECT IF MORE THAN columns will be used by most operators. This permits the full use of the maximum wear allowance and a reduction in the number of parts which are rejected, is possible.

The column WORN PART DIMENSIONS (Non-select) is included for operators who want to have full interchangeability. If this column is used an increase in the number of parts which are rejected is possible.

After the part has been in service for some time the REJECT IF MORE THAN and WORN PART DIMENSIONS could be changed. The operator must tell IAE and if agreed the manual will be changed.

The abbreviation Intf shows an interference or tight fit. This causes REJECT IF MORE THAN to become REJECT IF LESS THAN.

The abbreviation clear shows a clearance fit.

This TASK gives the procedure to assemble the HP Compressor Stage 7 case, the vanes, the liners and the stator vane stops. The subsequent TASKS give the procedures to assemble the remaining HP Compressor rear cases and stator vanes.

Assemble the HP Compressor Stage 8 Case and Stator Vanes. TASK 72-41-20-440-002-C00 (ASSEMBLY-002).

Assemble the HP Compressor Stage 9 Case and Stator Vanes. TASK 72-41-20-440-003-C00 (ASSEMBLY-003).

Assemble the HP Compressor Stage 10 Case and Stator Vanes. TASK 72-41-20-440-004-C00 (ASSEMBLY-004).

Assemble the HP Compressor Stage 11 Case and Stator Vanes.TASK 72-41-20-440-005-C00 (ASSEMBLY-005).

Machine the Stator Vane Tips and the Rotor Path Ring Liners. TASK 72-41-20-440-006-C01 (ASSEMBLY-006).

Disassemble the HP Compressor Rear Cases and Vanes. TASK 72-41-20-440-007-B01 (ASSEMBLY-007) or TASK 72-41-20-440-007-B02 (ASSEMBLY-007).

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

NOTE

IAE 1R18684 Case extractor is not suitable for pre SBE 72-0296 standard.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Heating blanketLOCALHeating blanket
GlovesLOCALGloves

Heat resistant

IAE 1R18501 Stop alignment tool0AM53IAE 1R185011
IAE 1R18434 Case extractor0AM53IAE 1R184343
IAE 1R18636 Spanner Wrench0AM53IAE 1R186361
IAE 1R18637 Spanner Wrench0AM53IAE 1R186371
IAE 1R18684 Case extractor0AM53IAE 1R186841
IAE 1R19685 Assembly tool0AM53IAE 1R196851
IAE 1R19686 Assembly tool0AM53IAE 1R196861
IAE 1R18706 Assembly tool0AM53IAE 1R187061

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 07-038 AIR DRYING ENAMELk3504CoMat 07-038
CoMat 10-077 APPROVED ENGINE OILSX333XCoMat 10-077

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
PIN - SHOULDER, HEADLESS, .0.1159 X 0.122 X 0.265LOCAL53069411
PIN - SHOULDER, HEADLESS, .0.1159 X 0.122 X 0.265LOCAL53069411

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-20-220-219 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1147

    1. Refer to Figure.

    2. Reference dimensions at Location 1147. If necessary, use the data written as a Note in TASK 72-41-21-200-000.

      Table 1. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1147

      Stage 7 Stator Vane Stop HPC Ring Cases And Related Parts (72-41-21, 03-480) Location In The

      Stage 7 Stator Vane Stop Shank Diameter

      0.2474

      Clear

      0.2494

      0.0010

      Stage 7 Case Stop Location Bore

      0.2504

      0.0061

      0.2535

      Clear

      Table 2. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1147

      Stage 7 Stator Vane Stop HPC Ring Cases And Related Parts (72-41-21, 03-480) Location In The

      Stage 7 Stator Vane Stop Shank Diameter

      6.285

      Clear

      6.335

      0.025

      Stage 7 Case Stop Location Bore

      6.360

      0.155

      6.440

      Clear

    2. SUBTASK 72-41-20-220-220 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1187

    1. Refer to Figure.

    2. Reference dimensions at Location 1187. If necessary, use the data written as a Note in TASK 72-41-21-200-000.

      Table 3. Fits and Clearances (all dimensions are in millimeters)

      REFERENCE

      WORN PART

      DIMENSIONS

      DIMENSIONS

      DESCRIPTION

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1187

      Stage 8 Case HPC Ring Cases And Related Parts (72-41-21, 03-500) Location With The

      Front Support Cone Shoulder Pin HPC Ring Cases And Related Parts (72-41-21, 03-313)

      Stage 8 Rotor Path Case Shoulder Pin Hole Bore

      0.1638

      Clear

      0.1709

      0.0054

      Shoulder Pin Diameter

      0.1580

      0.0129

      0.1584

      Clear

      Table 4. Fits and Clearances (all dimensions are in millimeters)

      REFERENCE

      WORN PART

      DIMENSIONS

      DIMENSIONS

      DESCRIPTION

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1187

      Stage 8 Case HPC Ring Cases And Related Parts (72-41-21, 03-500) Location With The

      Front Support Cone Shoulder Pin HPC Ring Cases And Related Parts (72-41-21, 03-313)

      Stage 8 Rotor Path Case Shoulder Pin Hole Bore

      4.16

      Clear

      4.34

      0.136

      Shoulder Pin diameter

      4.012

      0.328

      4.024

      Clear

    3. SUBTASK 72-41-20-220-221 Reference Fits and Clearances of the HP Compressor Rear Cases and Vanes at Location 1180

    1. Refer to Figure.

    2. Reference dimensions at Location 1180. If necessary, use the data written as a Note in TASK 72-41-21-200-000.

      Table 5. Fits and Clearances (all dimensions are in millimeters)

      REFERENCE

      WORN PART

      DIMENSIONS

      DIMENSIONS

      DESCRIPTION

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1180

      Stage 8 Case HPC Ring Cases And Related Parts (72-41-21, 03-500) Location On The

      Stage 7 Rotor Path Ring Shoulder Pin HPC Ring Cases And Related Parts (72-41-21, 03-300)

      Stage 8 Case Inner Front Bore

      21.344

      Clear

      21.348

      0.002

      Stage 7 Case Rear Outer Diameter

      21.350

      0.011

      Flange Diameter

      21.355

      Clear

      Table 6. Fits and Clearances (all dimensions are in millimeters)

      REFERENCE

      WORN PART

      DIMENSIONS

      DIMENSIONS

      DESCRIPTION

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 1180

      Stage 8 Case HPC Ring Cases And Related Parts (72-41-21, 03-500) Location On The

      Stage 7 Rotor Path Ring HPC Ring Cases And Related Parts (72-41-21, 03-300)

      Stage 8 Case Inner Front Bore

      542.13

      Clear

      542.25

      0.05

      Stage 7 Case Rear Outer Diameter

      542.30

      0.29

      Flange Diameter

      542.42

      Clear

    4. SUBTASK 72-41-20-440-255 Install the Liners in the Stage 7 and Stage 8 Rotor Path Cases

    1. Refer to Figure.

      2. Install the new HPC Ring Cases And Related Parts (72-41-21, 03-440) stage 7 front liner in to the slot in the rear of the stage 7 rotor path case HPC Ring Cases And Related Parts (72-41-21, 03-300).

      1. Put the Stage 7 rotor path case front flange down on a clean work surface.

      2. Use IAE 1R19685 Assembly tool to install the stage 7 front liner. Make sure the liner touches the stage 7 rotor path case rear face at location A. Refer to Figure.

      3. Measure and write down a record of the stage 7 front liner split line clearance. The split line clearance must be 0.047 in. to 0.079 in. (1.20 mm to 2.00 mm).

      3. Install the new HPC Ring Cases And Related Parts (72-41-21, 03-490) Stage 7 rear liner in to the slot in the Stage 7 and Stage 8 rotor path case HPC Ring Cases And Related Parts (72-41-21, 03-500).

      1. Put the Stage 8 case rear flange down on a clean work surface.

      2. Use IAE 1R19686 Assembly tool to install the Stage 7 rear liner. Make sure the liner touches the Stage 8 case at Location B. Refer to Figure.

      3. Measure and write down a record of the Stage 7 rear liner split line clearance. The split line clearance must be 0.047 in. to 0.079 in. (1.20 mm to 2.00 mm).

    5. SUBTASK 72-41-20-440-256 Install the Stator Vane Stops in the Stage 8 Rotor Path Case

    1. Refer to Figure.

      2. Install the Stage 7 stator vane stops HPC Ring Cases And Related Parts (72-41-21, 03-480) in the Stage 8 rotor path case HPC Ring Cases And Related Parts (72-41-21, 03-500).

      1. Put one of the Stage 7 stator vane stops in to position in the Stage 8 rotor path case.

      2. Use the IAE 1R18501 Stop alignment tool and align the stage 7 stator vane stop in the Stage 8 rotor path case.

      3. Install a washer HPC Ring Cases And Related Parts (72-41-21, 03-479) and a nut HPC Ring Cases And Related Parts (72-41-21, 03-478) on to the Stage 7 stator vane stop.

      4. Torque the nut to 85 lbfin to 105 lbfin. (10.00 Nm to 12.00 Nm).

      5. Remove the stop aligning tool.

      6. Install the three remaining Stage 7 stator vane stops as given in Step to Step.

    6. SUBTASK 72-41-20-440-257 Install the Stage 7 Stator Vanes (Pre SBE 72-0441 and SBE 72-0441)

    1. Refer to Figure, Figure and Figure.

      2. Install the Stage 7 stop vanes HPC Stator Vanes (72-41-22, 02-350).

      1. Install the four Stage 7 stop vanes in to the Stage 8 rotor path case HPC Ring Cases And Related Parts (72-41-21, 03-500) at the Stage 7 stator vane stops HPC Ring Cases And Related Parts (72-41-21, 03-480). Engage the vanes in the Stage 7 rear liner HPC Ring Cases And Related Parts (72-41-21, 03-490). Make sure the Stage 7 stator vane stops are engaged in the slots in the Stage 7 stop vane platforms.

      2. Push each Stage 7 stop vane rearward until the vane platform touches the Stage 7 rear liner.

      3. Push each Stage 7 stop vane in a counter-clockwise direction until the slot in the vane platform touches the Stage 7 stator vane stop.

      3. Install the Stage 7 stator vanes (HPC Stator Vanes 72-41-22, 02-150 (Pre SBE 72-0441), HPC Stator Vanes 02-400, HPC Stator Vanes 02-448 and HPC Stator Vanes 02-450) between the stage 7 stop vanes at the 10 o'clock and 1 o'clock positions.

      1. Install the vanes in a counter-clockwise direction. Engage each of the vanes in the Stage 7 rear liner. Make sure the platform of the first vane that is installed touches the platform of the Stage 7 stop vane. Push each subsequent vane counter-clockwise as it is installed, until the vane platforms touch.

      2. Push each vane rearward until the vane platform touches the Stage 7 rear liner.

        3. Install the Stage 7 stator vanes in the subsequent sequence.

        1. Install three Stage 7 stator vanes HPC Stator Vanes (72-41-22, 02-400).

        2. Install one Stage 7 undersize stator vanes HPC Stator Vanes (72-41-22, 02-450).

        3. Install one Stage 7 stator vane HPC Stator Vanes (72-41-22, 02-400).

        4. Install one Sstage 7 stator vane HPC Stator Vanes (72-41-22, 02-448).

        5. Install one Stage 7 stator vane HPC Stator Vanes (72-41-22, 02-400).

        6. Install one Stage 7 stator vane HPC Stator Vanes (72-41-22, 02-448).

        7. Install one Stage 7 stator vane HPC Stator Vanes (72-41-22, 02-400).

        8. Install one Stage 7 stator vane HPC Stator Vanes (72-41-22, 02-448).

        9. Install two Stage 7 stator vanes HPC Stator Vanes (72-41-22, 02-400).

        10. Install one Stage 7 undersize stator vane HPC Stator Vanes (72-41-22, 02-450).

        11. Install three Stage 7 stator vanes HPC Stator Vanes (72-41-22, 02-400).

        12. Install one Stage 7 undersize stator vane HPC Stator Vanes (72-41-22, 02-450).

        13. Install four Stage 7 stator vanes HPC Stator Vanes (72-41-22, 04-400).

    4. Install the Stage 7 stator vanes (HPC Stator Vanes 72-41-22, 02-150 (Pre SBE 72-0441), HPC Stator Vanes 02-400, HPC Stator Vanes 02-448 and HPC Stator Vanes 02-450) between the Stage 7 stop vanes in the remaining three segments. Use the sequence given in Step.

    7. SUBTASK 72-41-20-440-258 Install the Stage 7 Cone and Rotor Path Assembly to the Stage 8 Rotor Path Case Assembly

    1. Refer to Figure and Figure.

    2. Put the Stage 8 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-500) rear flange down on to a clean work surface.

    3. Install the heating blanket on to the Stage 8 rotor path case assembly HPC Ring Cases And Related Parts (72-41-21, 03-500).

    4. Heat the Stage 8 rotor path case to 167 deg F to 212 deg F (75 deg C to 100 deg C).

    5. Remove the heating blanket.

    6. WARNING

      YOU MUST PUT ON THE CORRECT PROTECTIVE GLOVES BEFORE YOU TOUCH THE STAGE 8 ROTOR PATH CASE ASSEMBLY.

      Align the shoulder pin in the Stage 7 cone and rotor path assembly HPC Ring Cases And Related Parts (72-41-21, 03-300) with the shoulder pin hole in the Stage 8 rotor path case assembly front flange.

    7. Install the Stage 7 cone and rotor path assembly on to the Stage 8 rotor path case assembly and stator vanes. Engage the Stage 7 stator vanes front platforms in the liner in the Stage 7 cone and rotor path assembly.

    8. Install eight slave bolts to attach the Stage 7 cone and rotor path assembly to the Stage 8 rotor path case assembly. Install the bolts from the Stage 8 rotor path case assembly. Stage them at equal distances around the flange.

    9. Tighten the nuts in the correct sequence to pull the Stage 8 rotor path case assembly on to the Stage 7 cone and rotor path case assembly.

    10. Let the assembly become cool.

    11. Do a check to make sure all the Stage 7 stator vanes can be moved in their locations. Any vane that cannot be moved must be replaced.

    8. SUBTASK 72-41-20-220-222 Measure the Interplatform Clearances

    1. Refer to Figure.

      2. Measure and write down a record of the interplatform clearances at the Stage 7 stop vanes. Measure all four clearances at the same time.

      1. Push the Stage 7 stator vane adjacent to a Stage 7 stop vane in a counterclockwise direction.

      2. Measure and write down a record of the clearance between the stop vane and the stator vane platforms. This must be 0.042 in. to 0.058 in. (1.07 mm to 1.47 mm).

        NOTE

        If the interplatform clearances are not correct, continue with Step.

        NOTE

        If the interplatform clearances are correct, continue with Step.

      3. Do Step and Step at the remaining three Stage 7 stop vanes.

    9. SUBTASK 72-41-20-440-259 Install the Stage 7 Undersize Vanes

    1. NOTE

      To get the specified interplatform clearance at the four Stage 7 stop vanes HPC Stator Vanes(72-41-22, 02-350), use the Stage 7 undersize stator vanes HPC Stator Vanes(72-41-22, 02-450) or Stage 7 stator vanes HPC Stator Vanes (72-41-22, 02-448) as necessary.

      NOTE

      A maximum of six undersize vanes can be used between the two adjacent stop vanes. These must be set at equal distances between the stop vanes.

      Refer to Figure and Figure.

    2. Remove the eight slave bolts installed in Step.

      3. Remove the Stage 7 cone and rotor path assembly.

      1. Install the heating blanket around the front flange of the Stage 8 rotor path case assembly.

      2. Heat the stage 8 rotor path case assembly to 167 deg F to 212 deg F (75 deg C to 100 deg C).

      3. Remove the heating blanket.

      4. WARNING

        YOU MUST PUT ON HEAT RESISTANT GLOVES BEFORE YOU TOUCH THE STAGE 7 ROTOR PATH RING.

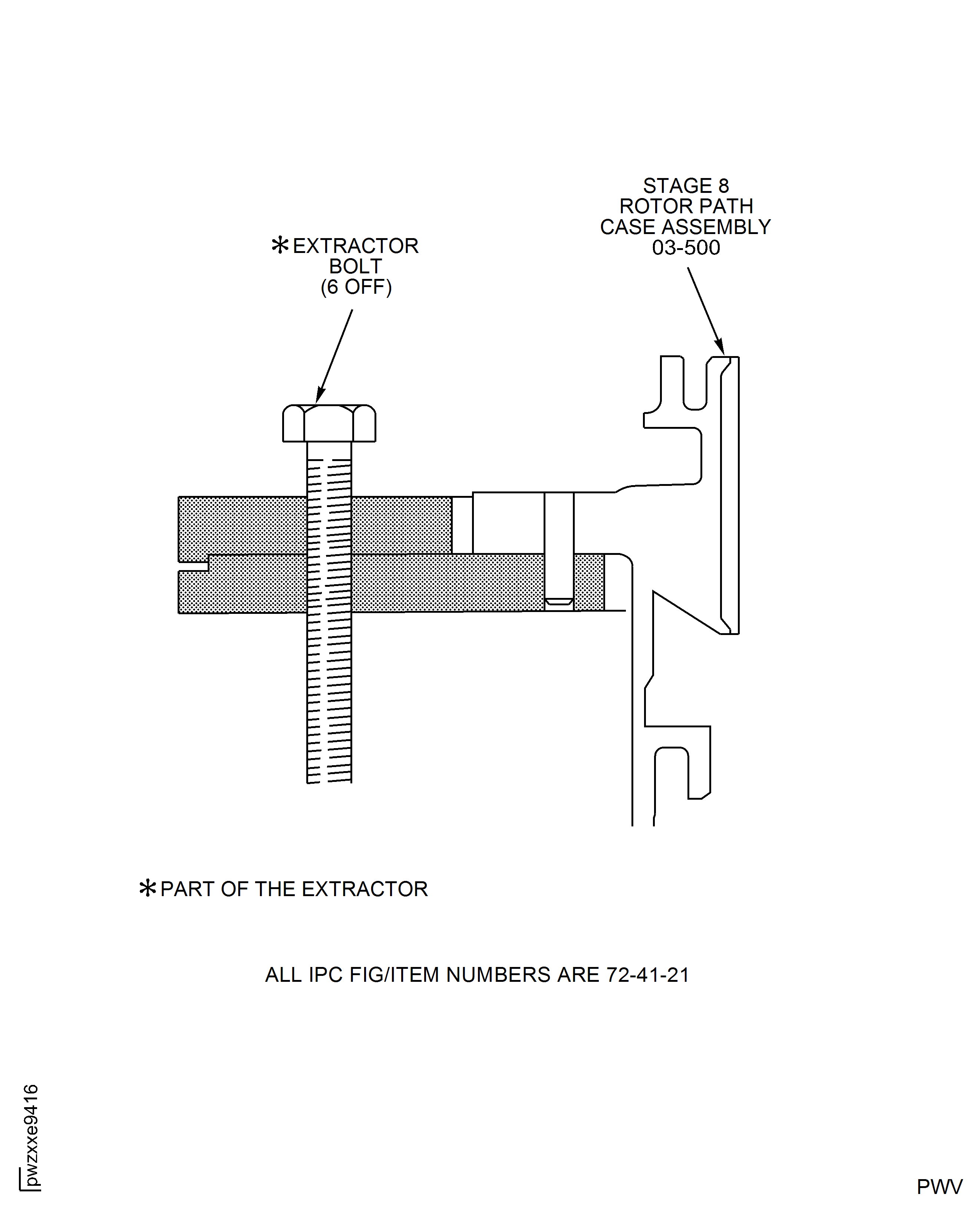

        Install IAE 1R18684 Case extractor or IAE 1R18434 Case extractor, equally spaced. Refer to Figure.

      5. Adjust the extractor bolts to make contact with the assembly.

      6. Continue to turn the extractor bolts a small equal amount to remove the Stage 7 cone and rotor path assembly.

    4. CAUTION

      UNDERSIZE VANES MUST NOT BE INSTALLED ADJACENT TO THE STOP VANES, THE BORESCOPE POSITION OR OTHER UNDERSIZE VANES.

      Remove the Stage 7 stator vanes HPC Stator Vanes (72-41-22, 02-448 or HPC Stator Vanes 02-450) and install the Stage 7 undersize vanes as necessary. One Stage 7 undersize stator vane will give an increase or decrease in the interplatform clearance of 0.016 in. (0.40 mm).

    5. Install the Stage 7 cone and rotor path assembly as given in Step.

    6. Measure and write a record of the interplatform clearances at the Stage 7 stop vanes as given in Step.

    10. SUBTASK 72-41-20-440-260 Install the Bolts, and the Nuts in the Stage 8 Rotor Path Case Assembly Front Flange

    1. Refer to Figure and Figure.

    2. Install the 47 bolts HPC Assembly (72-41-00, 01-552) from the stage 7 cone and rotor path case assembly HPC Ring Cases And Related Parts (72-41-21,03-300). front flange. Make sure the bolts are correctly installed on the stage 8 rotor path case assembly front flange.

    3. Install the 47 nuts HPC Assembly (72-41-00, 01-550) on bolts.

    4. Use the IAE 1R18636 Spanner Wrench to tighten the nuts.

    5. Use the IAE 1R18637 Spanner Wrench to torque the nuts. Torque the nuts in the correct sequence to 36 lbfin to 45 lbfin. (4.00 Nm to 5.00 Nm).

    11. Figure: View Through The HP Compressor Rear Cases And Vanes

    View Through The HP Compressor Rear Cases And Vanes

    Figure: The Locations For The Fits And Clearances

    The Locations For The Fits And Clearances

    Figure: Install The Stage 7 Liners

    Install The Stage 7 Liners

    Figure: Install The Stage 7 Stator Vane Stops

    Install The Stage 7 Stator Vane Stops

    Figure: Assemble The Front Support Cone And The Stage 7 Rotor Path Ring And Case

    Assemble The Front Support Cone And The Stage 7 Rotor Path Ring And Case

    Figure: Assemble The Front Support Cone And The Stage 8 Rotor Path Case

    Assemble The Front Support Cone And The Stage 8 Rotor Path Case

    Figure: Install The Stage 7 Stator Vanes

    Install The Stage 7 Stator Vanes

    Figure: Install The Stage 7 Stator Vanes

    Install The Stage 7 Stator Vanes

    Figure: Measure The Stator Vane Interplatform Clearances

    Measure The Stator Vane Interplatform Clearances

    Figure: Remove The Stage 7 Rotor Path Ring

    Remove The Stage 7 Rotor Path Ring

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure to update fits and clearances limits. (19VG205)

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:X333X
Enterprise Name:REFER TO V2500 SB ENG-79-0108
Link not Found
Link not Found
Manufacturer Code:00BB6
Supply Number:CoMat 07-038
Type:sp01
Supply Short Name:CoMat 07-038 AIR DRYING ENAMEL
Supply Name:CoMat 07-038 AIR DRYING ENAMEL
Specification Groups:
Doc NumberType
OMAT:7/22B (RR REF)IP9138 R1
JCR-029 (JAEC REF)
Suppliers:
ManufacturerRemarks
00BB6
K3504
Manufacturer Code:X333X
Supply Number:CoMat 10-077
Type:sp01
Supply Short Name:CoMat 10-077 APPROVED ENGINE OILS
Supply Name:CoMat 10-077 APPROVED ENGINE OILS
Specification Groups:
Doc NumberType
For V2500-A1/A5/D5 models - Refer to V2500 Service Bulletin ENG-79-0108
For V2500-E5 model - Refer to Service Bulletin E5-79-0001
Suppliers:
ManufacturerRemarks
X333X
Manufacturer Code:LOCAL
Tool Number:Gloves
Tool Name:Gloves
Manufacturer Code:LOCAL
Tool Number:Heating blanket
Tool Name:Heating blanket
Manufacturer Code:0AM53
Tool Number:IAE 1R18434
Tool Name:IAE 1R18434 Case extractor
Manufacturer Code:0AM53
Tool Number:IAE 1R18501
Tool Name:IAE 1R18501 Stop alignment tool
Manufacturer Code:0AM53
Tool Number:IAE 1R18636
Tool Name:IAE 1R18636 Spanner Wrench
Manufacturer Code:0AM53
Tool Number:IAE 1R18637
Tool Name:IAE 1R18637 Spanner Wrench
Manufacturer Code:0AM53
Tool Number:IAE 1R18684
Tool Name:IAE 1R18684 Case extractor
Manufacturer Code:0AM53
Tool Number:IAE 1R18706
Tool Name:IAE 1R18706 Assembly tool
Manufacturer Code:0AM53
Tool Number:IAE 1R19685
Tool Name:IAE 1R19685 Assembly tool
Manufacturer Code:0AM53
Tool Number:IAE 1R19686
Tool Name:IAE 1R19686 Assembly tool
