TASK 72-41-30-440-003-C00 HPC Front Case And Vane Assembly - Install The Variable Inlet Guide Vanes, Assembly-003 - SBE 72-0564 And SBE 72-0571 (Select One Production Standard)

General

Install the HP Compressor Stage 4 and 5 Rotor Path Rings and Stage 6 Rotor Ring Segments TASK 72-41-30-440-001-C00 (ASSEMBLY-001).

Measure and then machine Stage 6 Stator Vanes and the Stage 4, 5 and 6 Rotor Path Rings TASK 72-41-30-440-002-B00 (ASSEMBLY-002).

Install the Stage 3 VSV TASK 72-41-30-440-004-C00 (ASSEMBLY-004).

Install the Stage 4 VSV TASK 72-41-30-440-005-C00 (ASSEMBLY-005).

Install the Stage 5 VSV TASK 72-41-30-440-006-C00 (ASSEMBLY-006).

Install the Stage 6 Stator Vanes TASK 72-41-30-440-007-B00 (ASSEMBLY-007).

Install the VIGV and the Stage 3 to 5 Bridge Pieces TASK 72-41-30-440-008-C00 (ASSEMBLY-008).

Measure the HP Compressor Front Cases TASK 72-41-30-440-009-C00 (ASSEMBLY-009).

Disassemble the HP Compressor Front Cases TASK 72-41-30-440-010-C00 (ASSEMBLY-010).

Check and Set VSV System with Optimised Build and Setting Clearances TASK 72-41-30-440-011-C00 (ASSEMBLY-011).

Fig/item numbers in parentheses in the procedure agree with those used in the EIPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the EIPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures, refer to SPM TASK 70-41-01-400-501 and SPM TASK 70-41-02-400-501.

Special torque data and assembly tolerances are included in the procedure.

Lubricate all threads and touch faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

To identify, lubricate and install seal rings, refer to SPM TASK 70-44-01-400-501.

After assembly apply CoMat 07-038 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and parts used to attach. Use the correct colour of the air drying enamel. Refer to SPM TASK 70-63-02-380-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

Refer to Figure for a sectional view of the HP Compressor front case.

The Fits and Clearances, NEW PARTS DIMENSIONS and REJECT IF MORE THAN columns will be used by most operators. This permits the full use of the maximum wear allowance and a reduction in the number of parts which are rejected, is possible.

As long as REJECT IF MORE THAN columns do not include reject values, NEW PART DIMENSIONS do not have to be measured before assembly, as there are no reject-if criteria. Values are only valid for new parts, not for worn parts.

The column WORN PART DIMENSION (Non-select) is included for operators who want to have full interchangeability. If this column is used an increase in the number of parts which are rejected is possible.

After the part has been in service for some time the REJECT IF MORE THAN and WORN PART DIMENSIONS could be changed. The operator must tell IAE and if agreed the manual will be changed.

The abbreviation Intf shows an interference or tight fit. This causes REJECT IF MORE THAN to become REJECT IF LESS THAN.

The abbreviation clear shows a clearance fit.

This task gives the procedure to install the HP Compressor variable inlet guide vanes (VIGV) for: The engines which have SBE 72-0560 (A5 Standard, SelectOne(TM) Retrofit Standard) incorporated or the engines which have SBE 72-0560, SBE 72-0564, SBE 72-0571 and SBE 72-0573 (SelectOne(TM) Production Standard) incorporated. The subsequent TASKs give the procedure to assemble HP Compressor front cases.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification	Quantity
IAE 1R18423 Rigging pin	0AM53	IAE 1R18423	6
IAE 1R18892 Rigging pin	0AM53	IAE 1R18892	6
IAE 1R19633 Split ring assembly	0AM53	IAE 1R19633	1
IAE 1R19828 Bushing installation tool	0AM53	IAE 1R19828	1

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification
CoMat 07-038 AIR DRYING ENAMEL	k3504	CoMat 07-038
CoMat 10-077 APPROVED ENGINE OILS	X333X	CoMat 10-077
CoMat 10-108 HIGH PERFORMANCE PENETRATING LUBRICANT WITH TEFLON (R)	LOCAL	CoMat 10-108

Spares

NONE

Safety Requirements

NONE

Procedure

SUBTASK 72-41-30-220-484 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1201

Refer to Figure.

Reference dimensions at location 1201. If necessary use the data written as a note in TASK 72-41-31-200-000 and TASK 72-41-32-200-000.

Table 1. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1201
VIGV (HPC Variable Stator Vanes (72-41-32, 01-500) And HPC Variable Stator Vanes (72-41-32, 01-600))
Spindle Location In The VIGV Bush (HP COMPRESSOR SPLIT CASE (72-41-31, 01-244) And HP COMPRESSOR SPLIT CASE (72-41-31, 01-248))
VIGV Spindle Diameter	0.5472
	0.5493	0.0027
VIGV Bush Bore	0.5520	0.0063
	0.5535

Table 2. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1201
VIGV (HPC Variable Stator Vanes (72-41-32, 01-500) And HPC Variable Stator Vanes (72-41-32, 01-600))
Spindle Location In The VIGV Bush (HP COMPRESSOR SPLIT CASE (72-41-31, 01-244) And HP COMPRESSOR SPLIT CASE (72-41-31, 01-248))
VIGV Spindle Diameter	13.900
	13.952	0.070
VIGV Bush Bore	14.022	0.160
	14.060

SUBTASK 72-41-30-220-485 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1205

Refer to Figure.

Reference dimensions at location 1205. If necessary use the data written as a note in TASK 72-41-32-200-000 and TASK 72-41-33-200-000.

Table 3. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1205
VIGV (HPC Variable Stator Vanes (72-41-32, 01-500) And HPC Variable Stator Vanes (72-41-32, 01-600))
Spindle Location In The Bush (HPC Variable Stator Vane Shrouds And Related Part(72-41-33, 01-190))
VIGV Spindle Diameter	0.2709
	0.2730	0.0026
Bush Bore	0.2756	0.0056
	0.2765

Table 4. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1205
VIGV (HPC Variable Stator Vanes (72-41-32, 01-500) and HPC Variable Stator Vanes (72-41-32, 01-600))
Spindle Location In The Bush (HPC Variable Stator Vane Shrouds And Related Part (72-41-33, 01-190))
VIGV Spindle Diameter	6.881
	6.933	0.067
Bush Bore	7.000	0.141
	7.022

SUBTASK 72-41-30-220-486 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1206

Refer to Figure.

Reference dimensions at location 1206. If necessary use the data written as a note in TASK 72-41-32-200-000 and TASK 72-41-33-200-000.

Table 5. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1206
VIGV (HPC Variable Stator Vanes (72-41-32, 01-500) And HPC Variable Stator Vanes (72-41-32, 01-600))
Inner Spindle Location In The Bush (HPC Variable Stator Vane Shrouds And Related Part (72-41-33, 01-190))
VIGV Inner Spindle Length	5.1440
	5.1520	0.015
Bush Outer Length	5.1670	0.0236
	5.1677

Table 6. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1206
VIGV (HPC Variable Stator Vanes (72-41-32, 01-500) And HPC Variable Stator Vanes (72-41-32, 01-600))
Inner Spindle Location In The Bush HPC Variable Stator Vane Shrouds And Related Part (72-41-33, 01-190)
VIGV Inner Spindle Length	130.660
	130.856	0.384
Bush Outer Length	131.240	0.600
	131.260

SUBTASK 72-41-30-220-487 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1208

Refer to Figure.

Reference dimensions at location 1208. If necessary use the data written as a note in TASK 72-41-32-200-000 and TASK 72-41-33-200-000.

Table 7. Fits and Clearances (all dimensions are in inches)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1208
VIGV (HPC Variable Stator Vanes (72-41-32, 01-500) and HPC Variable Stator Vanes (72-41-32, 01-600))
Inner Spindle Location In The Bush (HPC Variable Stator Vane Shrouds And Related Part (72-41-33, 01-190))
VIGV Inner Spindle Length	5.8780
	5.8820	0.0117
Bush Outer Length	5.8612	0.0205
	5.8664

Table 8. Fits and Clearances (all dimensions are in millimeters)
	NEW PART		WORN PART
	DIMENSIONS		DIMENSIONS
PART IDENT	Size	Clearance	Non-select	REJECT IF MORE THAN
LOCATION 1208
VIGV (HPC Variable Stator Vanes (72-41-32,01-500) And HPC Variable Stator Vanes (72-41-32,01-600))
Inner Spindle Location In The Bush (HPC Variable Stator Vane Shrouds And Related Part (72-41-33, 01-190))
VIGV inner spindle length	149.303
	149.399	0.297
Bush Outer Length	148.876	0.523
	149.006

1. For the assembly procedure refer to TASK 72-41-30-440-003-B00.
SUBTASK 72-41-30-440-270-002 Assemble the VIGV Actuating Rings (SBE 72-0564 only)
NOTE
For accomplishment instructions that contain the content of SBE 72-0564 standard only, please refer to IAE Technical Services.
1. Refer to Figure.
2. 1. Put the four centralizing support assemblies in to position in the upper VIGV actuating ring.
  2. Install the three self locking nuts HPC Variable Stator Vane Actuation System (72-41-34, 02-689) to attach the three centralizing support assemblies HPC Variable Stator Vane Actuation System (72-41-34, 02-680) and the two self locking nuts HPC Variable Stator Vane Actuation System (72-41-34, 02-743) to attach the centralizing support assembly HPC Variable Stator Vane Actuation System (72-41-34, 02-730) to the upper VIGV actuating ring.
  3. Tighten the nuts.
3. 1. Do Step to Step to install the three centralizing support assemblies HPC Variable Stator Vane Actuation System (72-41-34, 02-680) and the centralizing support assembly HPC Variable Stator Vane Actuation System (72-41-34, 02-730) into the lower VIGV actuating ring.
1. For the assembly procedure refer to TASK 72-41-30-440-003-B00.
SUBTASK 72-41-30-440-271-002 Install the VIGV Spindle Bushes (SBE 72-0564 only)
NOTE
For accomplishment instructions that contain the content of SBE 72-0564 standard only, please refer to IAE Technical Services.
1. Refer to Figure and Figure.
  NOTE
  Install the two VIGV bushes HP COMPRESSOR SPLIT CASE (72-41-31,01-244) at the positions 10 and 11.
2. 1. Put one of the bushes on the IAE 1R19828 Bushing installation tool. Make sure that the bush installation tool is correctly aligned to the spindle boss on the HPC front case assembly inner side.
  2. Use a soft mallet to hit the bush installation tool, until the bush is fully installed in the HPC front case assembly.
  3. Remove the bush installation tool.
  4. Do Step to Step again to install the remaining 39 bushes.
1. For the assembly procedure refer to TASK 72-41-30-440-003-B00.
SUBTASK 72-41-30-440-273-002 Install the VIGV in the HP Compressor Front Case (SBE 72-0564 only)
NOTE
For accomplishment instructions that contain the content of SBE 72-0564 standard only, please refer to IAE Technical Services.
1. Refer to Figure, Figure and Figure.
2. Apply CoMat 10-108 HIGH PERFORMANCE PENETRATING LUBRICANT WITH TEFLON (R) on the inner and mating faces of the VIGV spindle bushes.
3. 1. Install the 18 guide vanes HPC Variable Stator Vanes (72-41-32, 01-500) and the two guide vanes HPC Variable Stator Vanes (72-41-32, 01-600) in to the bushes.
4. 1. NOTE
    The position information given in this procedure indicates that you must look from the front to the rear of the module.
    NOTE
    There are no short spindled guide vanes installed in the lower half HP compressor front case.
    Install the 20 guide vanes HPC Variable Stator Vanes (72-41-32, 01-500) as given in Step.
1. Refer to Figure.
2. Apply CoMat 10-108 HIGH PERFORMANCE PENETRATING LUBRICANT WITH TEFLON (R) on the inner vane spindles and mating faces of the inner bushes.
3. 1. Install the 20 bushes HPC Variable Stator Vane Shrouds And Related Part (72-41-33, 01-190) onto the stator vanes.
  2. Install the guide vanes half shroud on to the rear of the guide vanes at the inner pivot point.
  3. Install one half of IAE 1R19633 Split ring assembly on to the front of the guide vanes at the inner pivot point.
  4. Install the three bolts and nuts, part of the split ring assembly, to attach the split ring assembly to the guide vane half shroud.
  5. Tighten the nuts.
4. 1. Install the rear lower half of the guide vane half shroud and split ring assembly as given in Step to Step.
1. For the assembly procedure refer to TASK 72-41-30-440-003-B00.
1. Refer to Figure, Figure, Figure, Figure and Figure.
  NOTE
  It is not necessary to lubricate the VIGV locations with CoMat 10-108 HIGH PERFORMANCE PENETRATING LUBRICANT WITH TEFLON (R) during this SUBTASK.
2. 1. If all lever arm holes are within 0.4843 in. (12.300 mm) or less in the largest diameter, continue with Step.
  2. If one or more lever arm hole is above the limits reject the part and continue with a serviceable part.
    NOTE
    "If the measurement has been previously accomplished or if a new part is installed then TASK 72-41-34-200-005-D00, Step 3.B can be skipped."
3. 1. If all lever arm balls are within 0.4768 in. and 0.4787 in. (12.110 mm and 12.160 mm), continue with Step.
  2. If any lever arm ball is above the limits reject the part and continue with a serviceable part.
    NOTE
    "If the measurement has been previously accomplished or if a new part is installed then TASK 72-41-34-200-004-B00, Step 15.C can be skipped."
4. 1. Put the upper guide vane actuating ring in to position on the upper half HP Compressor front case.
    NOTE
    The position information given in this procedure indicates that you must look from the front to the rear of the module.
    NOTE
    Set the upper guide vane actuating ring adjacent to the guide vanes at the positions 1 to 20.
  2. Install three of IAE 1R18423 Rigging pin 3 off or IAE 1R18892 Rigging pin 3 off to attach the actuating ring to the HP Compressor front case at the positions C.
5. 1. Install the lower guide vane actuating ring on to the lower half HP compressor front case. Use the procedure given in Step to Step.
  2. To attach the actuating ring to the lower half HP Compressor front case use the other three of IAE 1R18423 Rigging pin 3 off or IAE 1R18892 Rigging pin 3 off.
6. 1. CAUTION
    MAKE SURE THAT THE VANE SPINDLE IS FULLY ENGAGED INTO THE LEVER AND THAT THE VANE TRAILING EDGE POINTS REARWARD. THIS WILL HELP TO PREVENT DAMAGE TO THE ENGINE.
    NOTE
    The position information given in this procedure indicates that you must look from the front to the rear of the module.
    Install the 40 guide vane actuating levers on the spindles of the guide vanes and in to their locations in the actuating ring.
    The two actuating levers HPC Variable Stator Vane Actuation System (72-41-34, 02-140) go at the positions 10 and 11.
    The 38 actuating levers HPC Variable Stator Vane Actuation System (72-41-34, 02-100) go at the positions 1 to 9, and 12 to 40.
  2. NOTE
    The guide vane actuating levers must be parallel with the casing center line when you torque the bolts. This is the null position.
    Install the 38 bolts HPC Variable Stator Vane Actuation System (72-41-34, 02-102) and two bolts HPC Variable Stator Vane Actuation System (72-41-34, 02-142) to attach the actuating levers to the guide vanes. The two bolts HPC Variable Stator Vane Actuation System (72-41-34, 02-142) go at the positions 10 and 11. Torque the bolts to 85 to 105 lbfin (10 to 12 Nm).
  3. Do a check for correct assembly of the levers.
    Make sure that the spindles fully engage into the levers, there is no gap permitted between the lever and spindle mating faces.
    Make sure that the lever balls do not protrude out of their actuating ring holes.
    Make sure that the vane trailing edges point rearward.
  4. Remove the rigging pins from the guide vane actuating ring.

View Through the HP Compressor Front Cases

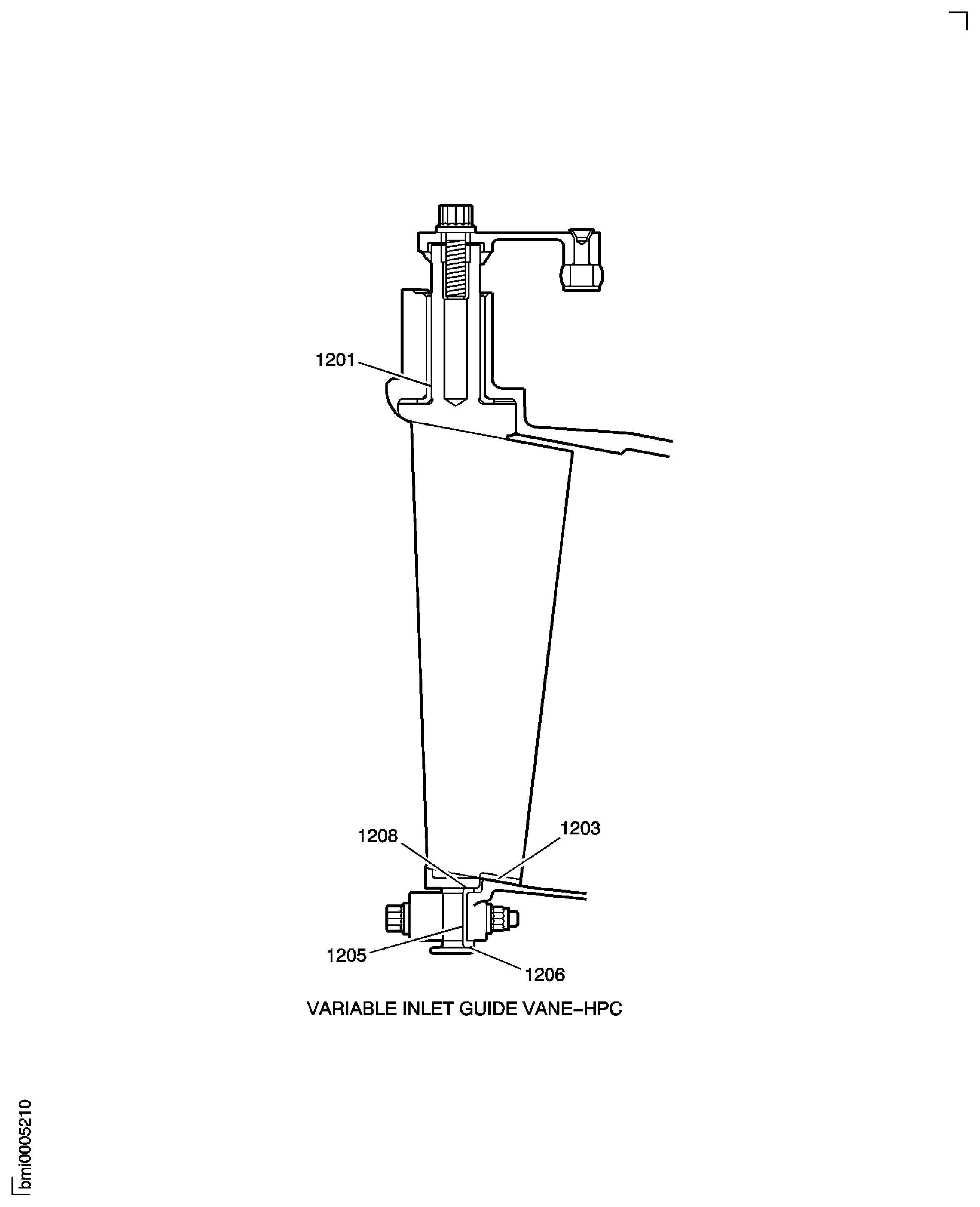

Locations for the Fits and Clearances

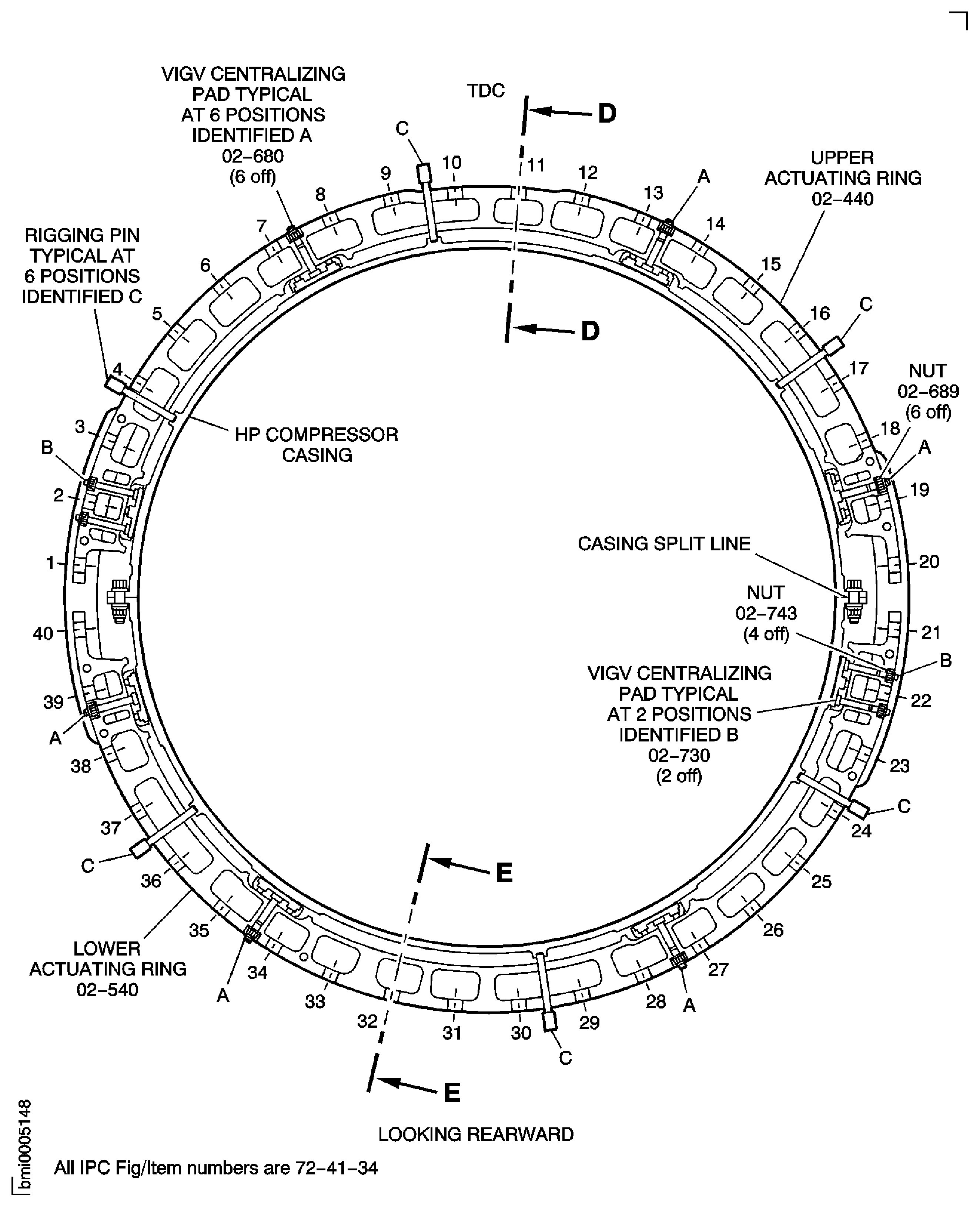

Install the Centralizing Support Assemblies

Install the Variable Inlet Guide Vanes

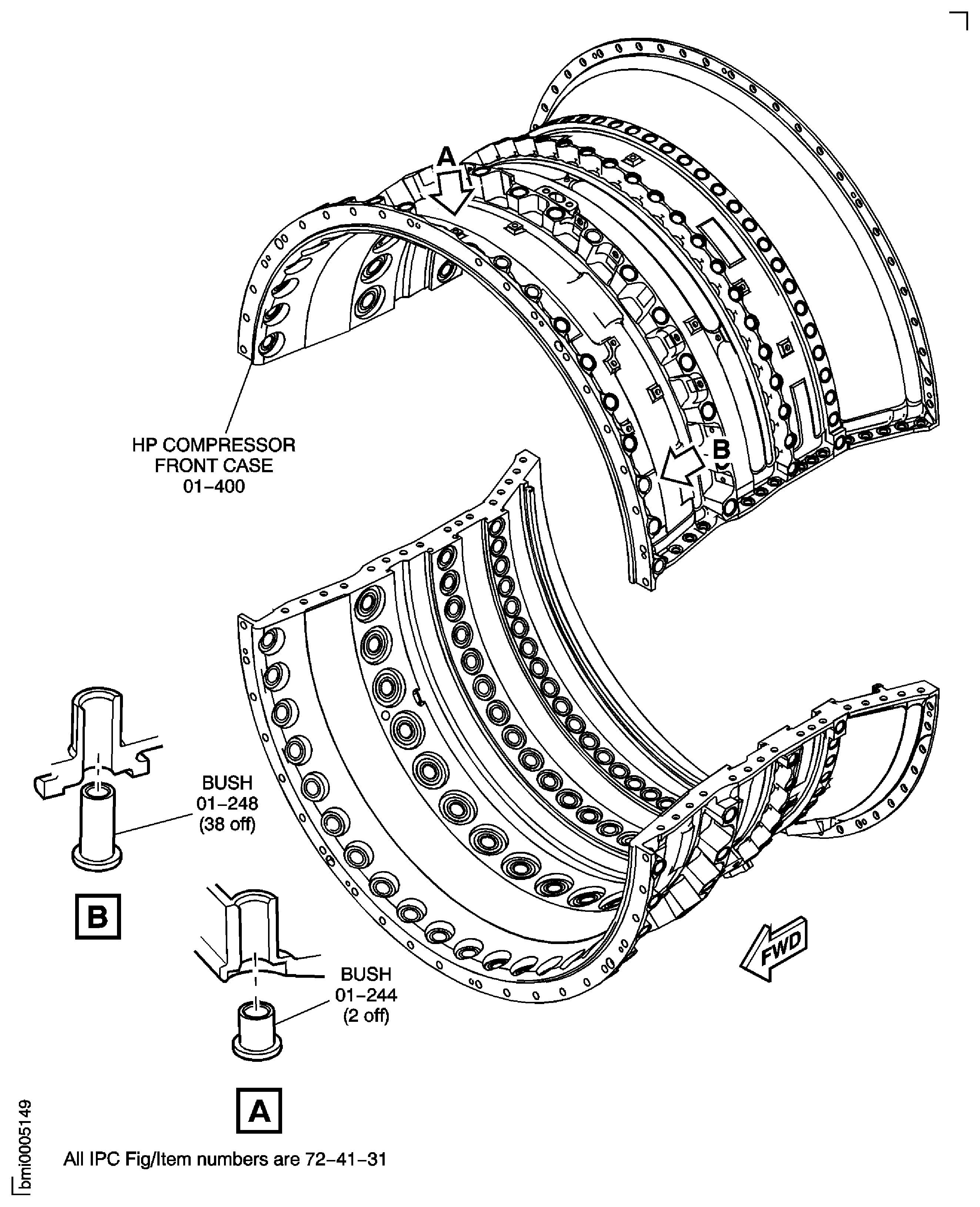

Tools to Install the Spindle Location Bushes

SBE 72-0564: Install the Variable Inlet Guide Vanes Spindle Bushes

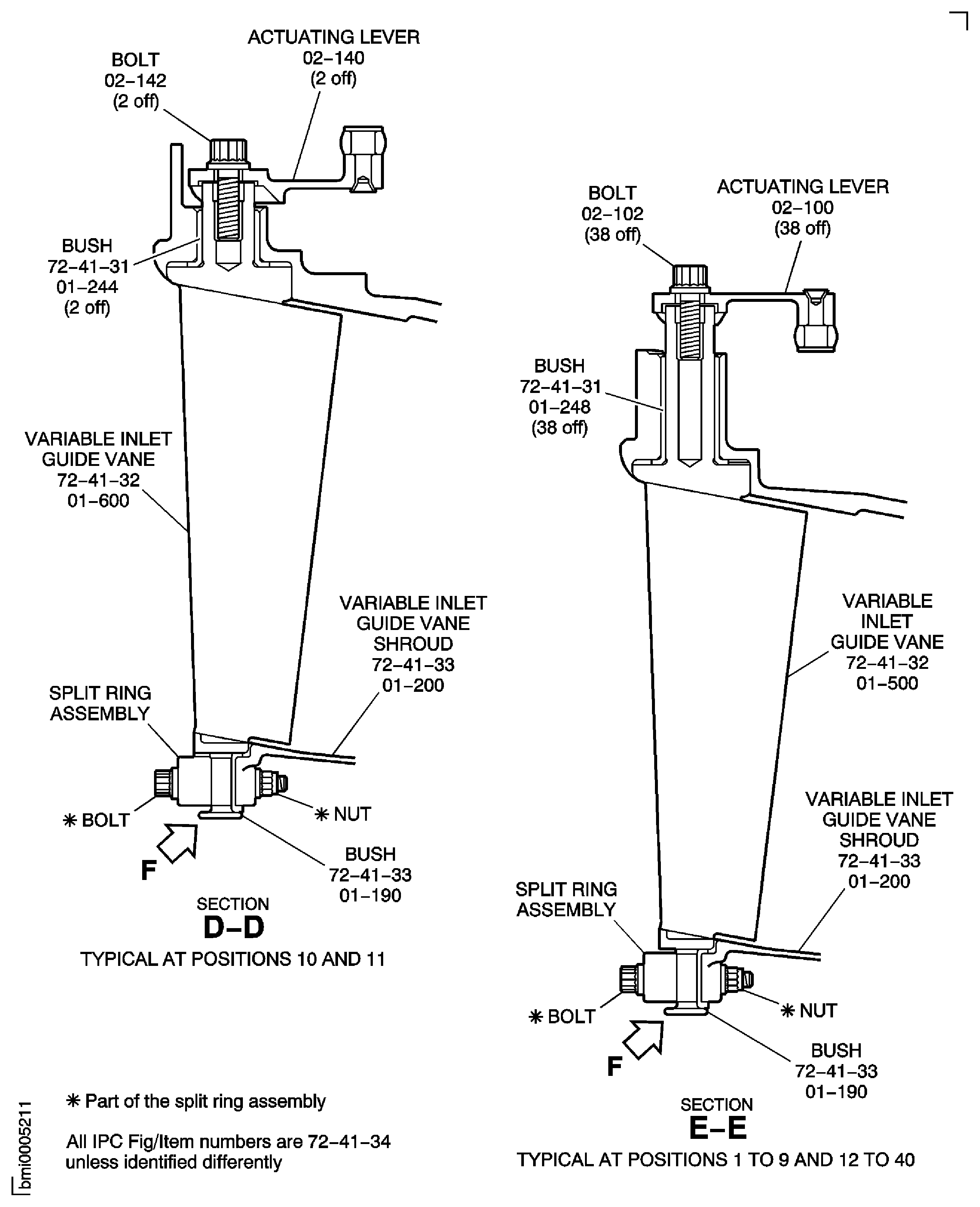

Position for the Variable Inlet Guide Vanes

Install the VIGV Actuating Levers

VIGV Unison Ring Lever Arm Hole Location

Lever Arm Ball Location

Requirements After Job Completion

Follow-On Conditions

NONE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	LOCAL
Enterprise Name:	LOCALLY SUPPLIED

Manufacturer Code:	X333X
Enterprise Name:	REFER TO V2500 SB ENG-79-0108

Manufacturer Code:	0AM53
Tool Number:	IAE 1R18423
Tool Name:	IAE 1R18423 Rigging pin

TASK 72-41-30-440-003-C00 HPC Front Case And Vane Assembly - Install The Variable Inlet Guide Vanes, Assembly-003 - SBE 72-0564 And SBE 72-0571 (Select One Production Standard)

Export Control

Copyright

Applicability

Common Information

TASK 72-41-30-440-003-C00 HPC Front Case And Vane Assembly - Install The Variable Inlet Guide Vanes, Assembly-003 - SBE 72-0564 And SBE 72-0571 (Select One Production Standard)

General

NOTE

NOTE

Preliminary Requirements

Pre-Conditions

Support Equipment

Consumables, Materials and Expendables

Spares

Safety Requirements

Procedure

SUBTASK 72-41-30-220-484 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1201

SUBTASK 72-41-30-220-485 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1205

SUBTASK 72-41-30-220-486 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1206

SUBTASK 72-41-30-220-487 Reference Fits and Clearances of the HP Compressor Front Cases and Vanes at Location 1208

SUBTASK 72-41-30-440-270-001 Assemble the VIGV Actuating Rings

NOTE

SUBTASK 72-41-30-440-270-002 Assemble the VIGV Actuating Rings (SBE 72-0564 only)

NOTE

SUBTASK 72-41-30-440-270-003 Assemble the VIGV Actuating Rings (SBE 72-0564 and SBE 72-0573)

SUBTASK 72-41-30-440-271-001 Install the VIGV Spindle Bushes

NOTE

SUBTASK 72-41-30-440-271-002 Install the VIGV Spindle Bushes (SBE 72-0564 only)

NOTE

SUBTASK 72-41-30-440-271-003 Install the VIGV Spindle Bushes (SBE 72-0564 and SBE 72-0573)

NOTE

NOTE

SUBTASK 72-41-30-440-273-001 Install the VIGV in the HP Compressor Front Case

NOTE

SUBTASK 72-41-30-440-273-002 Install the VIGV in the HP Compressor Front Case (SBE 72-0564 only)

NOTE

SUBTASK 72-41-30-440-273-003 Install the VIGV in the HP Compressor Front Case (SBE 72-0571 and SBE 72-0573)

NOTE

NOTE

NOTE

NOTE

NOTE

SUBTASK 72-41-30-440-275 Install the VIGV Shroud (SBE 72-0560 and SBE 72-0573)

SUBTASK 72-41-30-440-274-001 Install the VIGV Upper and Lower Actuating Rings

NOTE

SUBTASK 72-41-30-440-274-003 Install the VIGV Upper and Lower Actuating Rings (SBE 72-0564, SBE 72-0571 and SBE 72-0573)

NOTE

NOTE

NOTE

NOTE

NOTE

NOTE

NOTE

CAUTION

NOTE

NOTE

Figure: View Through the HP Compressor Front Cases

View Through the HP Compressor Front Cases

Figure: Locations for the Fits and Clearances

Locations for the Fits and Clearances

Figure: Install the Centralizing Support Assemblies

Install the Centralizing Support Assemblies

Figure: Install the Variable Inlet Guide Vanes

Install the Variable Inlet Guide Vanes

Figure: Install the Variable Inlet Guide Vanes

Install the Variable Inlet Guide Vanes

Figure: Tools to Install the Spindle Location Bushes

Tools to Install the Spindle Location Bushes

Figure: SBE 72-0564: Install the Variable Inlet Guide Vanes Spindle Bushes

SBE 72-0564: Install the Variable Inlet Guide Vanes Spindle Bushes

Figure: SBE 72-0564: Install the Variable Inlet Guide Vanes Spindle Bushes

SBE 72-0564: Install the Variable Inlet Guide Vanes Spindle Bushes

Figure: Position for the Variable Inlet Guide Vanes

Position for the Variable Inlet Guide Vanes

Figure: Install the VIGV Actuating Levers

Install the VIGV Actuating Levers

Figure: VIGV Unison Ring Lever Arm Hole Location

VIGV Unison Ring Lever Arm Hole Location

VIGV Unison Ring Lever Arm Hole Location

Figure: Lever Arm Ball Location
