DMC:V2500-A5-71-00-0200-06B-720A-B|Issue No:003|Issue Date:2020-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 71-00-02-400-007-B00 (A5-PPBU) - Install The Drains Mast And The LP Compressor/Intermediate Case Module Drains, Installation-007

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures, refer to SPM TASK 70-41-00-400-501 and SPM TASK 70-41-02-400-501.

Special torque data and assembly tolerances are included in the procedure.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

Transportation covers/blanks must be removed immediately before installation of the components.

For lockwire data and procedures refer to SPM TASK 70-42-05-400-501.

After assembly apply CoMat 07-032 ENAMEL, POLYURETHANE, AIR-DRYING, TWO-PART, GREY to any damaged surface protection, joint flanges and attach parts. Use the correct color of the air drying enamel. Refer to SPM TASK 70-38-07-380-501.

Loosely assemble the tubes together and the clip positions during the installation procedure. This will give flexibility and movement and not put strain on the tubes. Where access allows, fully torque the tube nuts and then the clip positions when all the tubes are connected and installed. Torque the nuts securing the tubes at the bifurcation panel after all the tubes have been installed. Refer to each specific step for the torque values and procedure at the point of application.

Torque the tube nuts and clips so that the tubes are free of preload and have a minimum clearance of 0.25 in. (6.4 mm) with adjacent components and structure. A minimum clearance of 0.02 in. (0.5 mm) is permitted between clip positions 0950 and 0951, between the gearbox and the air starter drain tube (221) and IDG drain tube (229). A minimum clearance of 0.06 in. (1.5 mm) is permitted between the gearbox and the FMU drain tube (225) on the collector plate assembly. Refer to SPM TASK 70-42-01-400-501 to tighten tube end connectors. Make sure that the tubes always have support to prevent unwanted strain.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification
CoMat 02-126 LOCKWIRE	K6835	CoMat 02-126
CoMat 02-147 LOCKWIRE	LOCAL	CoMat 02-147
CoMat 07-032 ENAMEL, POLYURETHANE, AIR-DRYING, TWO-PART, GREY	LOCAL	CoMat 07-032
CoMat 10-077 APPROVED ENGINE OILS	X333X	CoMat 10-077

Spares

Name	Manufacturer	Part Number / Identification	Quantity
PIN - SHOULDER, HEADLESS, .0.1159 X 0.122 X 0.265	LOCAL	5306941	1
PIN - SHOULDER, HEADLESS, .0.1159 X 0.122 X 0.265	LOCAL	5306941	1
PIN - SHOULDER, HEADLESS, .0.1159 X 0.122 X 0.265	LOCAL	5306941	1
PIN - SHOULDER, HEADLESS, .0.1159 X 0.122 X 0.265	LOCAL	5306941	1

Safety Requirements

NONE

Procedure

1. Refer to Figure.
2. Hold the collector plate assembly POWER PLANT-DRAIN TUBE MAST (71-71-42, 01-050) and the drains mast POWER PLANT-DRAIN TUBE MAST (71-71-42, 01-010) on the engine in the correct position for installation.
3. Loosely install the four bolts POWER PLANT-DRAIN TUBE MAST (71-71-42, 01-020) to hold the drains mast assembly to the engine.
4. 1. Drain mast position/Connection.
    Oil tank/Drain tube "OIL,HYDRAULIC AND WATER DRAIN TUBES-POWER PLANT (71-73-48, 01-100).
    Fuel pump/Drain tube POWER PLANT-FUEL DRAIN TUBES-POWER PLANT (71-71-48, 03-100).
    Hydraulic pump/Drain tube "OIL,HYDRAULIC AND WATER DRAIN TUBES-POWER PLANT (71-73-48, 01-500).
    Fuel monitor unit/Drain tube POWER PLANT-FUEL DRAIN TUBES-POWER PLANT (71-71-48, 02-500).
    Air starter/Drain tube TUBES OIL HYDRAULIC WATER (71-73-48, 02-100).
    Fuel diverter unit/Drain tube POWER PLANT-FUEL DRAIN TUBES-POWER PLANT (71-71-48, 02-100).
    Integrated drive generator/Drain tube TUBES OIL HYDRAULIC WATER (71-73-48, 02-500).
    Core drain (bifurcation panel)/Drain tube POWER PLANT-FUEL DRAIN TUBES-POWER PLANT (71-71-48, 03-700).
    Air cooled oil cooler/Drain tube OIL,HYDRAULIC AND WATER DRAIN TUBES-POWER PLANT (71-73-48, 03-500).
5. Torque tighten the bolts POWER PLANT-DRAIN TUBE MAST (71-71-42, 01-020) to 100 lbfin. (11.3 Nm).
6. 1. Hold the tube with an applicable wrench.
  2. Tighten the nut to the standard torque value.
  3. Safety the connection with CoMat 02-126 LOCKWIRE or CoMat 02-147 LOCKWIRE.
  4. Do again Step thru Step for the other connections.
1. Refer to Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, Figure, and Figure.
2. Attach the drains mast POWER PLANT-DRAIN TUBE MAST (71-71-42, 01-010) and the collector plate assembly POWER PLANT-DRAIN TUBE MAST (71-71-42, 01-050) to the brackets Angle Gearbox Assembly and External Gearbox Module 72-60-00, 01-202) on the angle gearbox with the four bolts POWER PLANT-DRAIN TUBE MAST (71-71-42, 01-020). Torque the bolts to 85 lbfin. to 105 lbfin. (10 Nm to 12 Nm).
3. 1. Lightly lubricate a new sealing ring TUBES OIL HYDRAULIC WATER (71-73-48, 02-505) 1 off with CoMat 10-077 APPROVED ENGINE OILSs and install it on the banjo coupling TUBES OIL HYDRAULIC WATER (71-73-48, 02-501). Install the banjo coupling in the gearbox (adjacent to the IDG interface) and torque to 155 lbfin. to 165 lbfin. (17.5 Nm to 18.6 Nm). Safety with CoMat 02-126 LOCKWIRE.
  2. Connect the tube 229 to the banjo coupling and the collector plate assembly. Torque the collector plate connector and the tube connector to 140 lbfin. to 160 lbfin. (15.8 Nm to 18.0 Nm). Safety with CoMat 02-126 LOCKWIRE.
4. 1. Loosely connect the tube 218 to the ACOC air modulating valve and to the tube 219. Tighten by hand. Loosely connect the tube 219 to the collector plate assembly and tighten by hand.
  2. Assemble clip positions 0949, 0952, 0953 and 0954. Torque the three nuts and the bolt to 36 lbfin. to 45 lbfin. (4 Nm to 5 Nm).
  3. Torque the tube 218 connector to the ACOC air modulating valve to 135 lbfin. to 150 lbfin. (15.2 Nm to 17.0 Nm). Torque the tube 219 and collector plate connectors to 105 lbfin. to 115 lbfin. (11.8 Nm to 13.0 Nm). Safety the connectors with CoMat 02-126 LOCKWIRE.
5. 1. Lightly lubricate a new "OIL,HYDRAULIC AND WATER DRAIN TUBES-POWER PLANT (71-73-48, 02-105) packing 1 off with CoMat 10-077 APPROVED ENGINE OILSs and install it on the union "OIL,HYDRAULIC AND WATER DRAIN TUBES-POWER PLANT (71-73-48, 02-101).
  2. Install the union in the gearbox (adjacent to the air starter interface) and torque to 155 lbfin. to 165 lbfin. (17.5 Nm to 18.6 Nm).
  3. Loosely connect the tube 221 to the union and to the collector plate assembly and tighten by hand.
  4. Assemble clip positions 0950 and 0951. Torque the nut and the bolt to 36 lbfin. to 45 lbfin. (4 Nm to 5 Nm).
  5. Torque the tube connectors to 105 lbfin. to 115 lbfin. (11.8 Nm to 13.0 Nm) and safety with CoMat 02-126 LOCKWIRE.
6. 1. Lightly lubricate a new "OIL,HYDRAULIC AND WATER DRAIN TUBES-POWER PLANT (71-73-48, 01-505) packing 1 off with CoMat 10-077 APPROVED ENGINE OILSs and install it on the union "OIL,HYDRAULIC AND WATER DRAIN TUBES-POWER PLANT (71-73-48, 01-501).
  2. Install the union in the gearbox (adjacent to the hydraulic pump interface) and torque to 155 lbfin. to 165 lbfin. (17.5 Nm to 18.6 Nm).
  3. NOTE
    Pre SBN 71-0312
    Tube 222 is attached at clip position 0943 when tube 223 is installed, and at clip position 0959 when the fire detector assembly is installed.
    NOTE
    SBN 71-0312:
    Tube 222 is attached at clip position 1491 when tube 224 is installed, and at clip position 0959 when the fire detector assembly is installed.
    Connect the tube 222 to the union and the collector plate assembly and torque the tube connectors to 105 lbfin. to 115 lbfin. (11.8 Nm to 13.0 Nm). Safety with CoMat 02-126 LOCKWIRE.
7. 1. Lightly lubricate a new "OIL,HYDRAULIC AND WATER DRAIN TUBES-POWER PLANT (71-73-48, 01-105) packing 1 off with CoMat 10-077 APPROVED ENGINE OILS and install it on the union "OIL,HYDRAULIC AND WATER DRAIN TUBES-POWER PLANT (71-73-48, 01-101).
  2. Install the union on the oil tank (adjacent to the filler cap) and torque to 230 lbfin. to 250 lbfin. (26.0 Nm to 28.2 Nm).
  3. Loosely connect the tube 223 to the union and the collector plate assembly and tighten by hand.
  4. Pre SBN 71-0312: Assemble the clip positions 0938, 0939, 0940 and 0943. Torque the three bolts and the nut to 36 lbfin. to 45 lbfin. (4 Nm to 5 Nm).
  5. NOTE
    Tube 223 is attached at clip position 0941 when the fire detector assembly is installed, and at clip position 0942 when tube 224 is installed.
    SBN 71-0312: Assemble the clip positions 0938, 0939, 0940 and 1491. Torque the three bolts and the nut to 36 lbfin. to 45 lbfin. (4 Nm to 5 Nm).
  6. Torque the tube connector and the collector plate connector to 160 lbfin. to 180 lbfin. (18.0 Nm to 20.3 Nm). Safety the connectors with CoMat 02-126 LOCKWIRE.
8. 1. Lightly lubricate a new POWER PLANT-FUEL DRAIN TUBES-POWER PLANT (71-71-48, 03-105) packing 1 off with CoMat 10-077 APPROVED ENGINE OILS and install it on the union POWER PLANT-FUEL DRAIN TUBES-POWER PLANT (71-71-48, 03-102).
  2. Install the union in the gearbox (adjacent to the fuel pump interface) and torque to 155 lbfin. to 165 lbfin. (17.5 Nm to 18.6 Nm).
  3. Loosely connect the tube 224 to the union and the collector plate assembly and tighten by hand.
  4. Pre SBN 71-0312: Assemble the clip position 0942. Torque the nut and the bolt to 36 lbfin. to 45 lbfin. (4 Nm to 5 Nm).
  5. SBN 71-0312: Assemble the clip positions 0942 and 1491. Torque the nuts and the bolts to 36 lbfin. to 45 lbfin. (4 Nm to 5 Nm).
  6. Torque the tube connectors to 105 lbfin. to 115 lbfin. (11.8 Nm to 13.0 Nm) and safety with CoMat 02-126 LOCKWIRE.
9. 1. Loosely connect the tube 225 to the FMU and the collector plate assembly and tighten by hand.
  2. Assemble clip positions 1132, 1140 and 0322. Torque the nuts to 36 lbfin. to 45 lbfin. (4 Nm to 5 Nm).
  3. Torque the tube connectors to the FMU 159 lbfin. to 177 lbfin. (18 Nm to 20 Nm) and safety with CoMat 02-126 LOCKWIRE.
  4. NOTE
    A minimum clearance of 0.06 in. (1.5 mm) is permitted between the gearbox and the FMU drain tube (225) on the collector plate assembly.
    Torque the tube connector to the collector plate assembly to 105 lbfin. to 115 lbfin. (11.8 Nm to 13.0 Nm) and safety with CoMat 02-126 LOCKWIRE.
10. 1. Loosely connect the tube 226 to the collector plate assembly and tighten by hand. Connect the tube 227 to the tube 226 and tighten by hand. Connect the tube 228 to the tube 227 and the fuel diverter and tighten by hand.
  2. Pre SBN 71-0273: Assemble the clip positions 0948, 0932, 0973, 0915, 0317, 0919, 0920, 0925, 0924, 0252, 0927 and 0946. Torque the nuts to 36 lbfin. to 45 lbfin. (4 Nm to 5 Nm).
  3. SBN 71-0273: Assemble the clip positions 0948, 0932, 0973, 0915, 0317, 0919, 0920, 0925, 0924, 1465, 1464 and 0946. Torque the nuts to 36 lbfin. to 45 lbfin. (4 Nm to 5 Nm).
  4. Torque the tube connector to the fuel diverter to 135 lbfin. to 150 lbfin. (15.2 Nm to 17.0 Nm) and safety with CoMat 02-126 LOCKWIRE.
  5. Torque the tube connectors together and to the collector plate assembly to 105 lbfin. to 115 lbfin. (11.8 Nm to 13.0 Nm) and safety with CoMat 02-126 LOCKWIRE.
11. 1. Loosely connect the tube 217 to the collector plate assembly and tighten by hand. Connect the tube 216 to the tube 217 and the tube 45 (at the bifurcation panel) and tighten by hand.
  2. Pre SBN 71-0273:
    Assemble clip positions 0937, 0968, 1396 and 1169 and torque the nuts to 36 lbfin. to 45 lbfin. (4 Nm to 5 Nm).
  3. SBN 71-0273: Assemble clip positions 0937, 1455 and 1454 and torque the nuts to 36 lbfin. to 45 lbfin. (4 Nm to 5 Nm).
  4. Install the two bolts POWER PLANT-FUEL DRAIN TUBES-POWER PLANT (71-71-48, 03-410) and nuts POWER PLANT-FUEL DRAIN TUBES-POWER PLANT (71-71-48, 03-415) that attach the tube 216 to the bifurcation panel and torque the nuts to 90 lbfin. to 110 lbfin. (10.1 Nm to 12.4 Nm).
  5. Torque the tube connectors to 105 lbfin. to 115 lbfin. (11.8 Nm to 13.0 Nm) and safety with CoMat 02-126 LOCKWIRE.

Install the Drain Mast

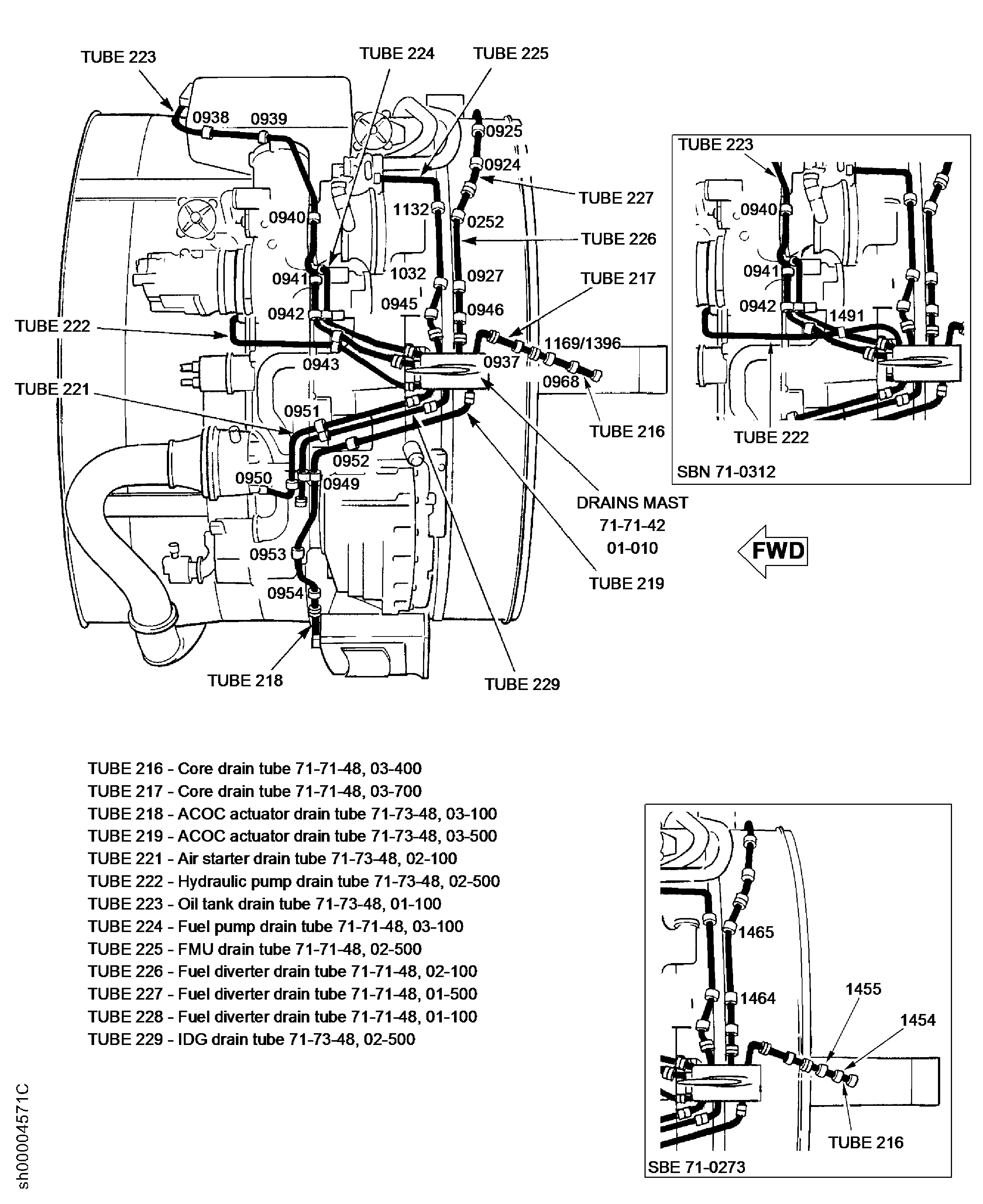

Sheet 1

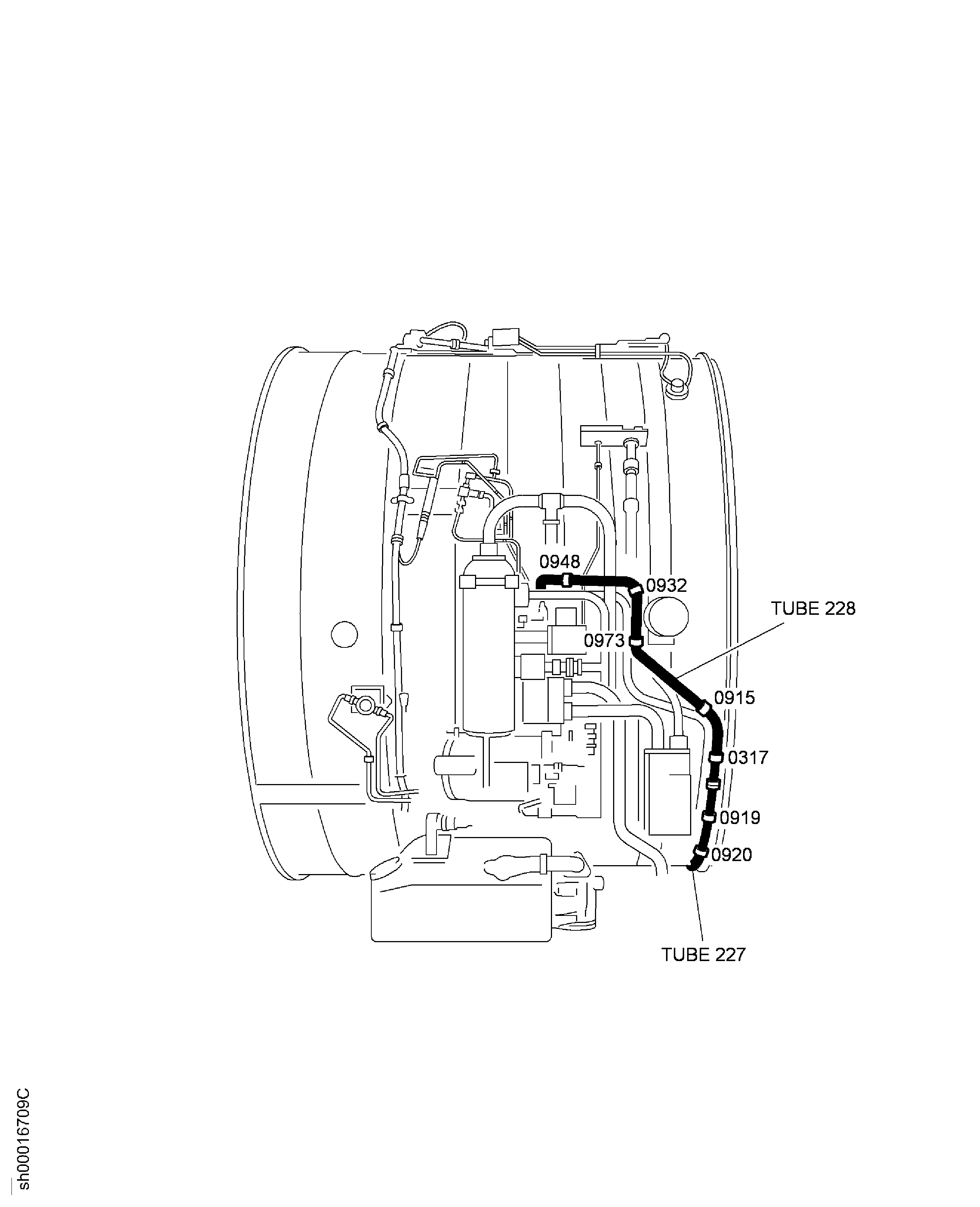

Sheet 2

Sheet 3

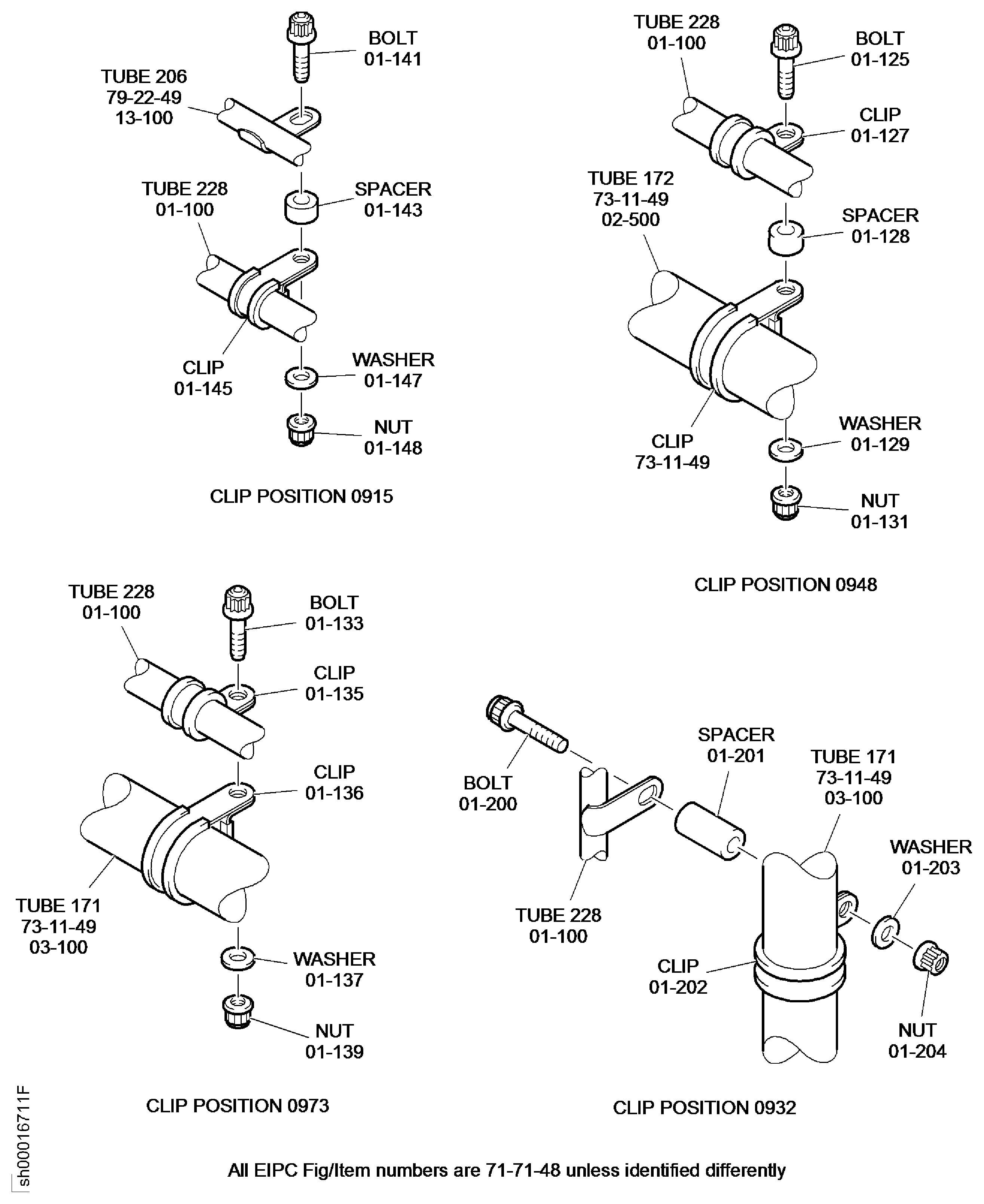

Sheet 4

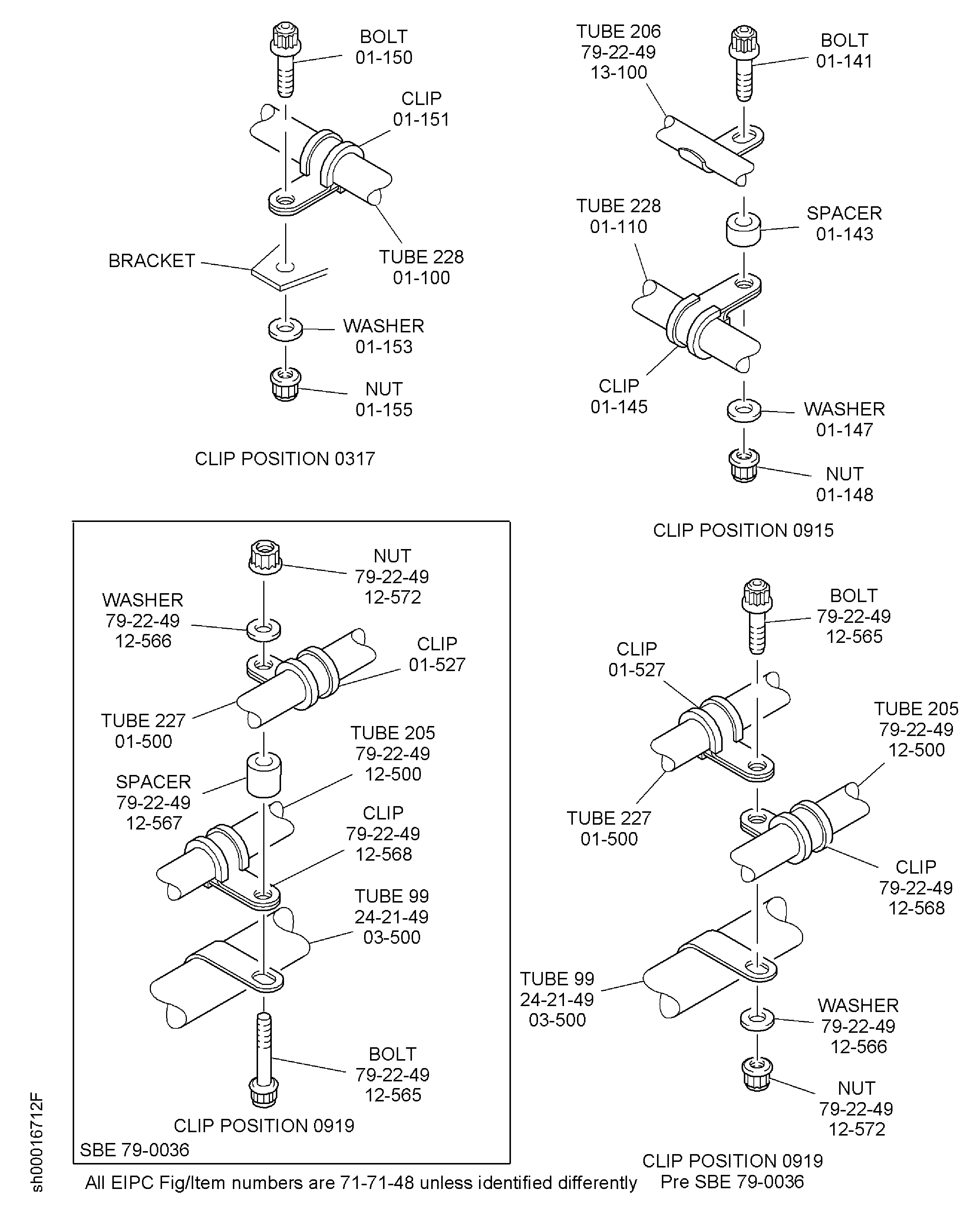

Sheet 5

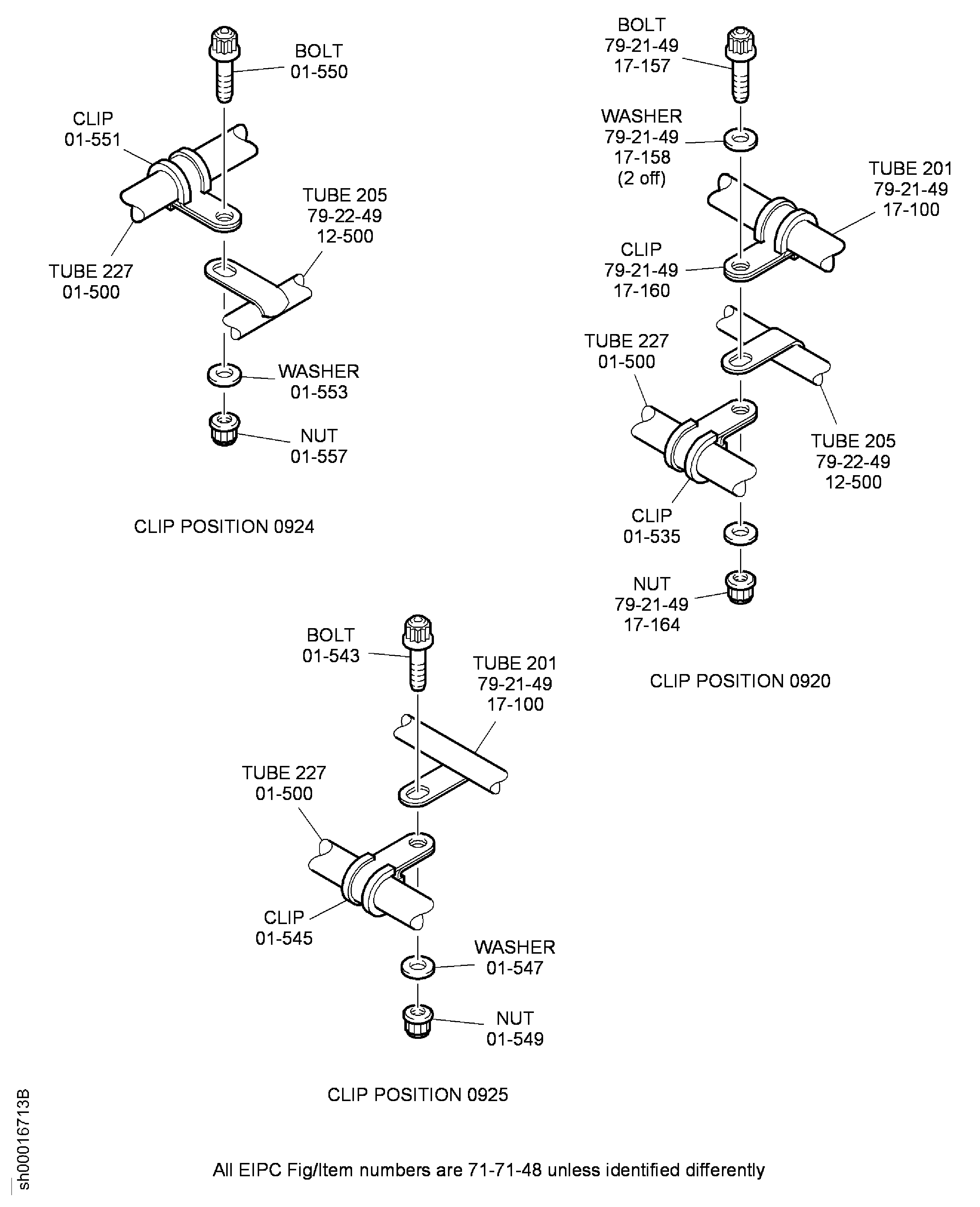

Sheet 6

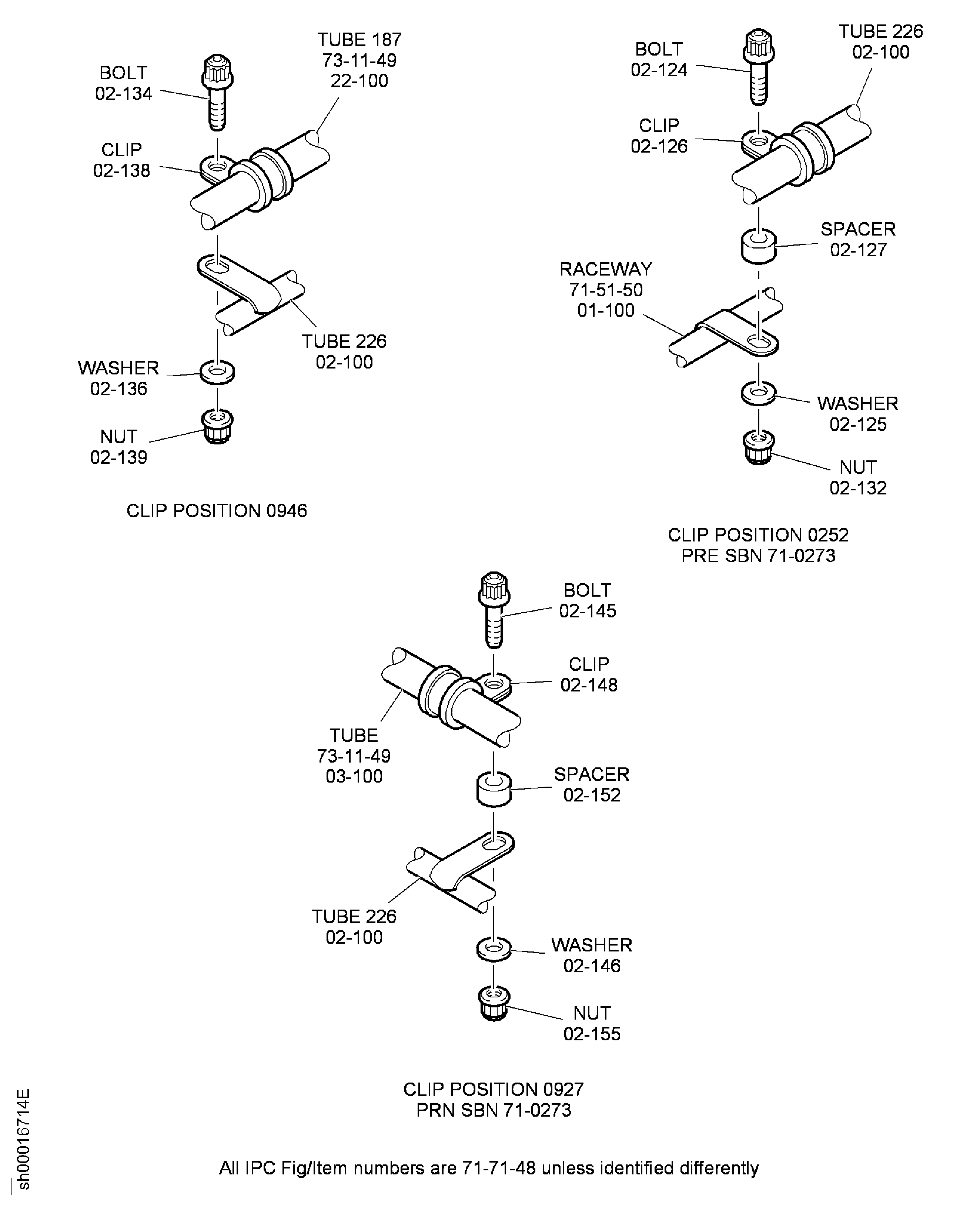

Sheet 7

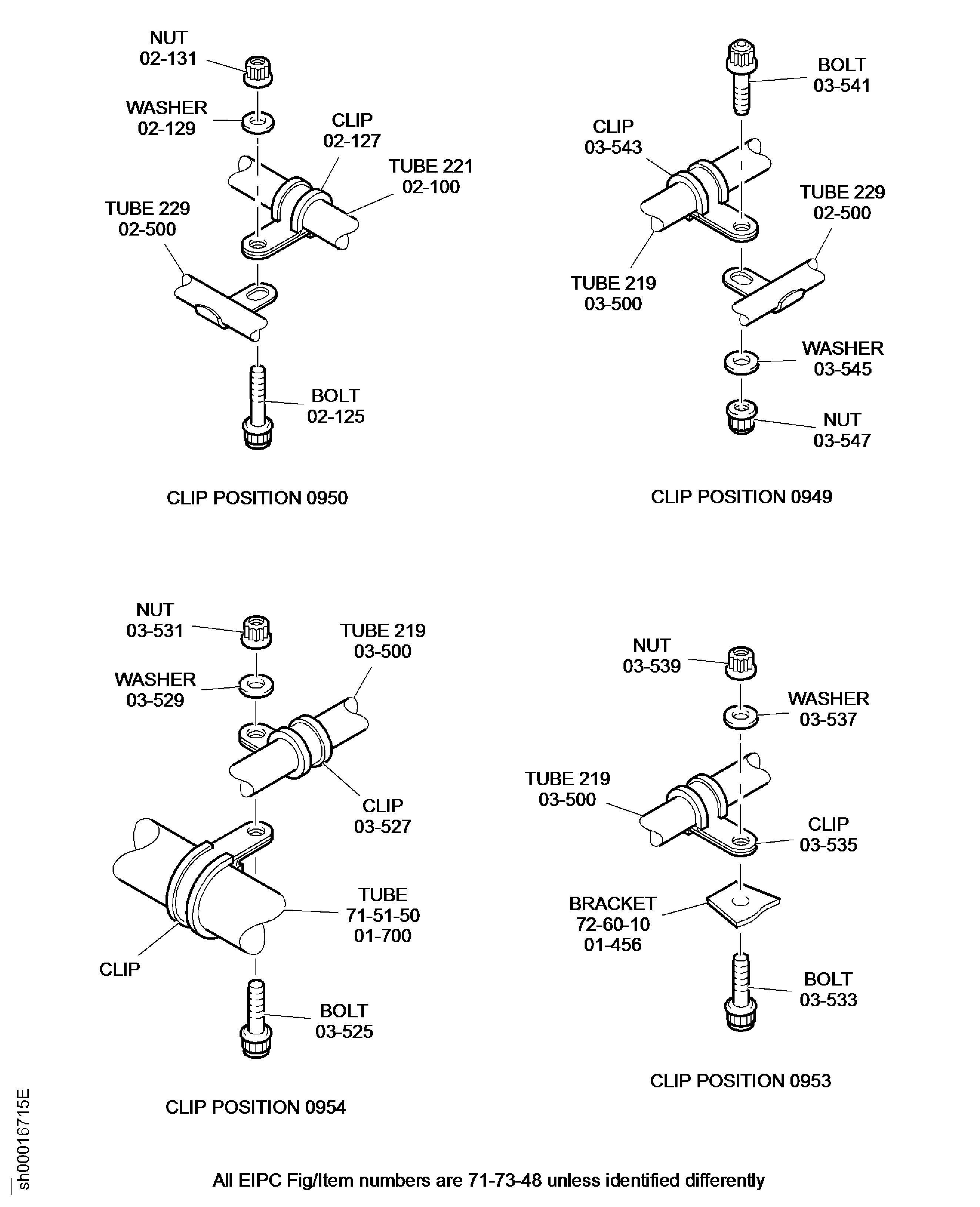

Sheet 8

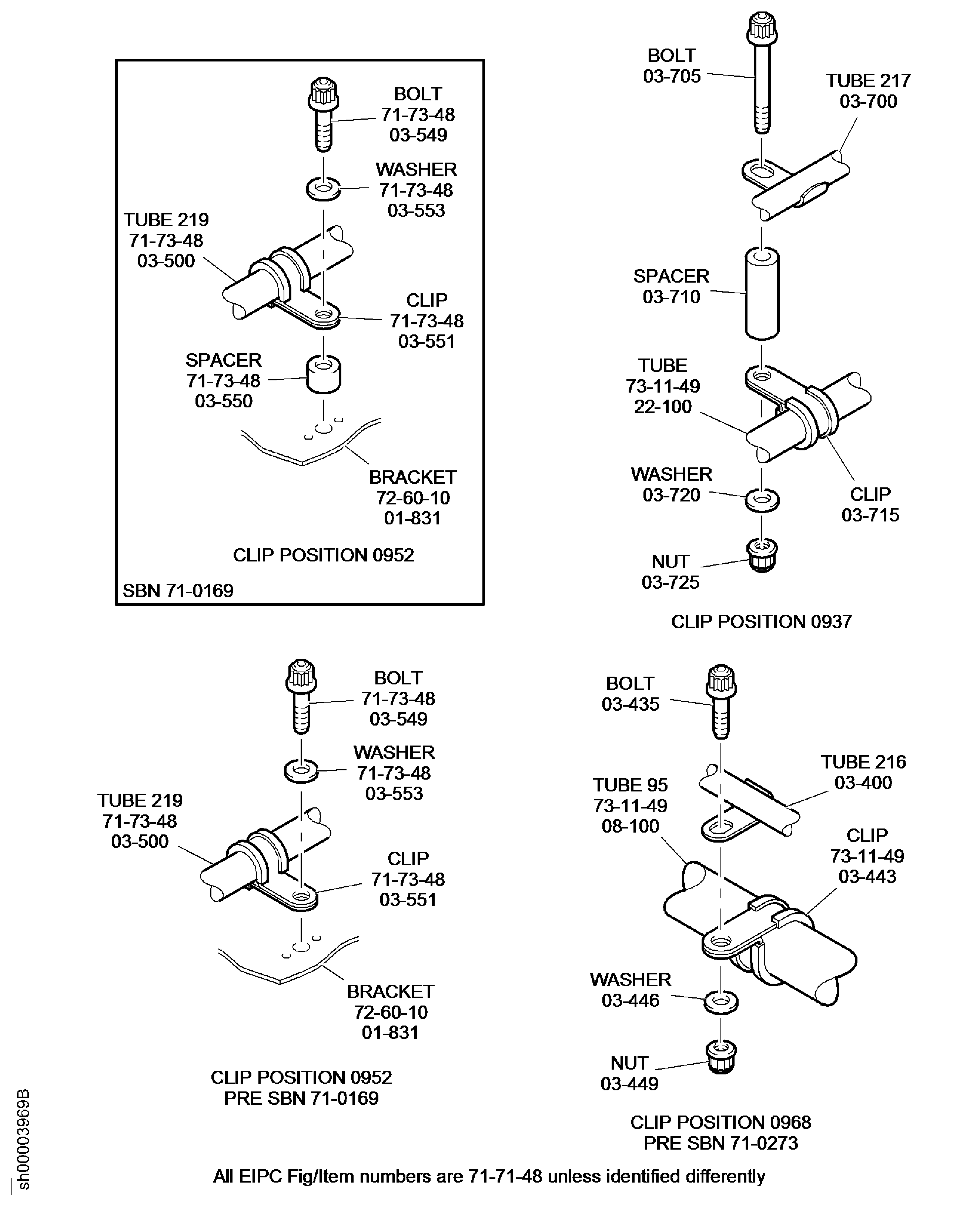

Sheet 9

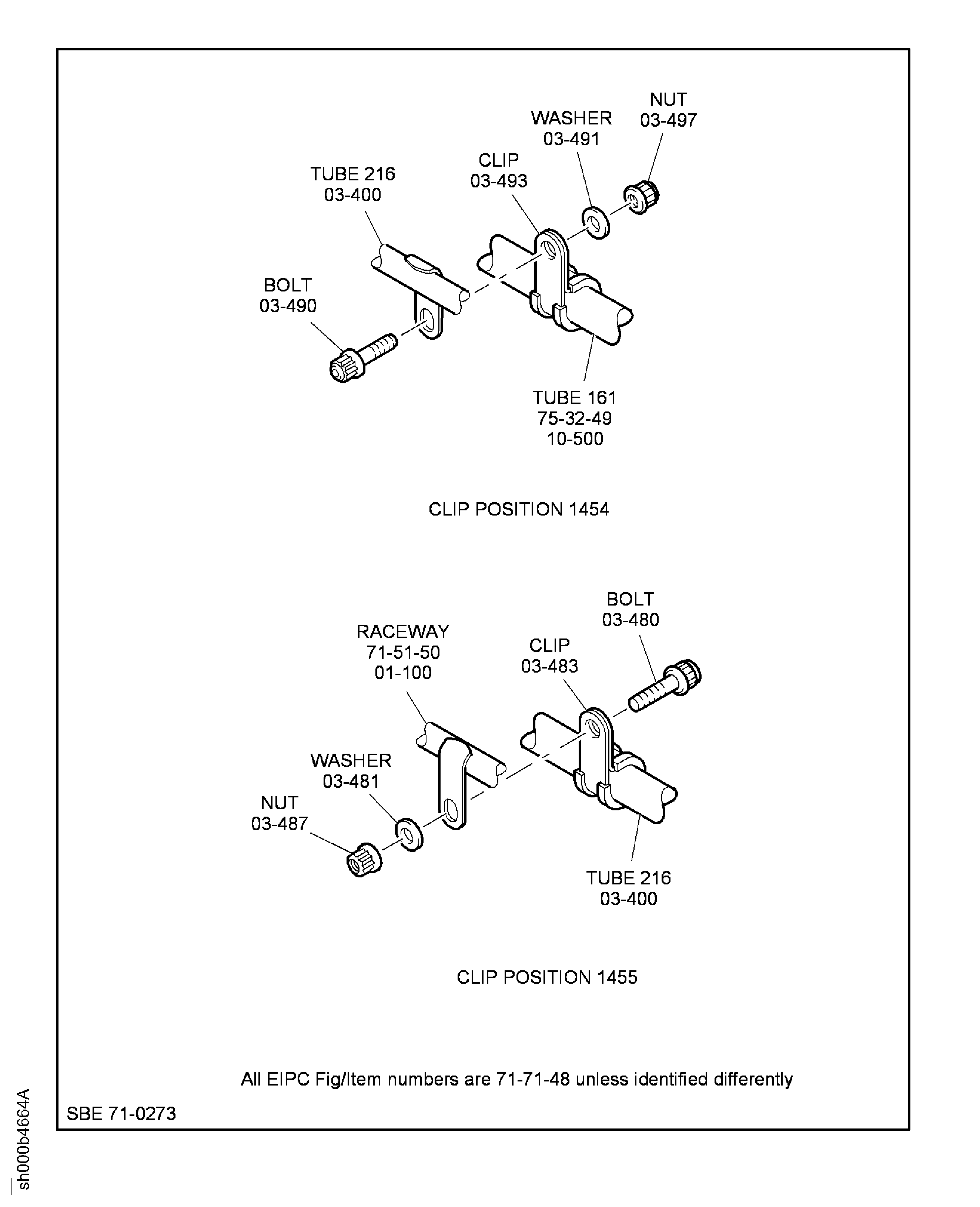

Sheet 10

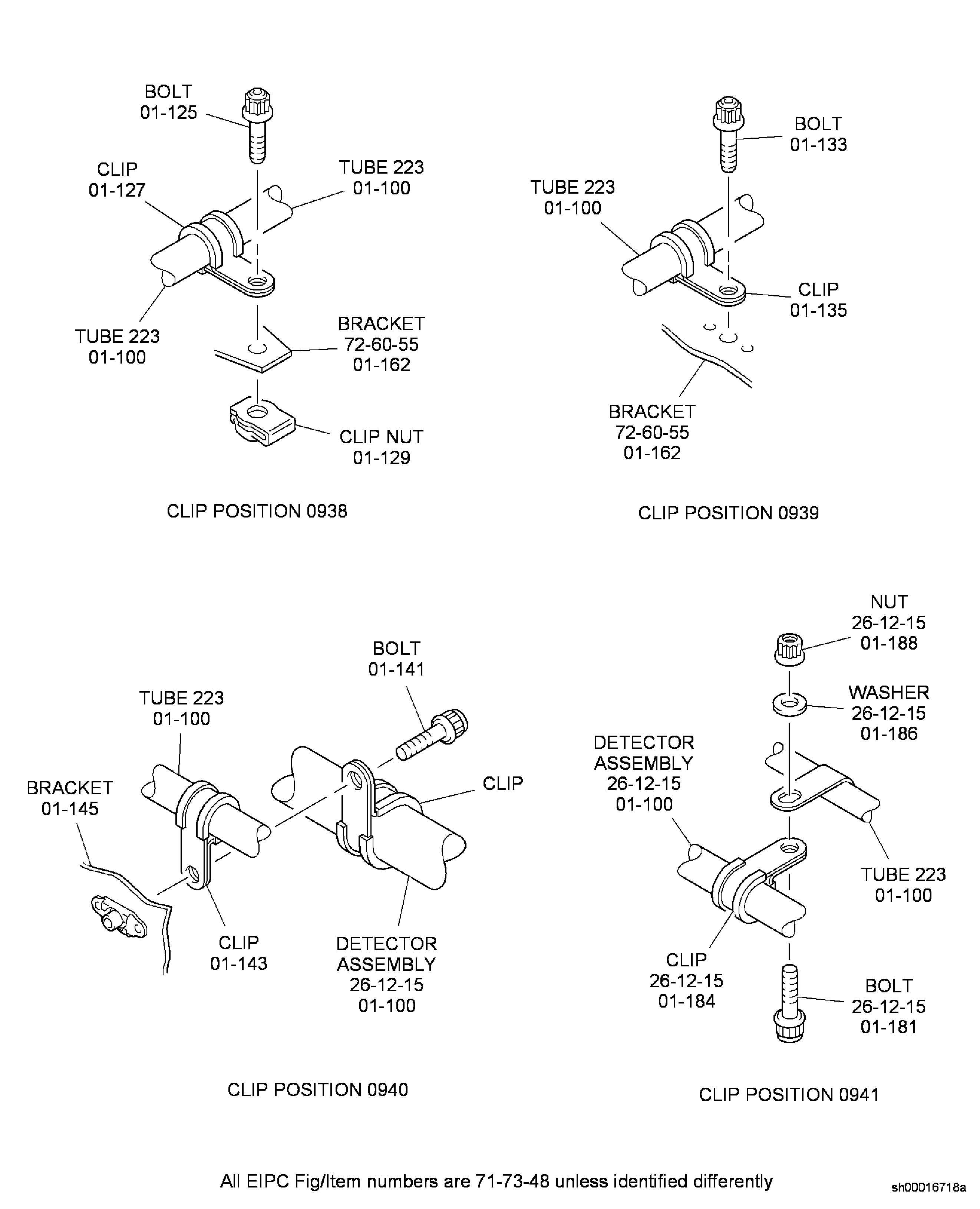

Sheet 11

Sheet 12

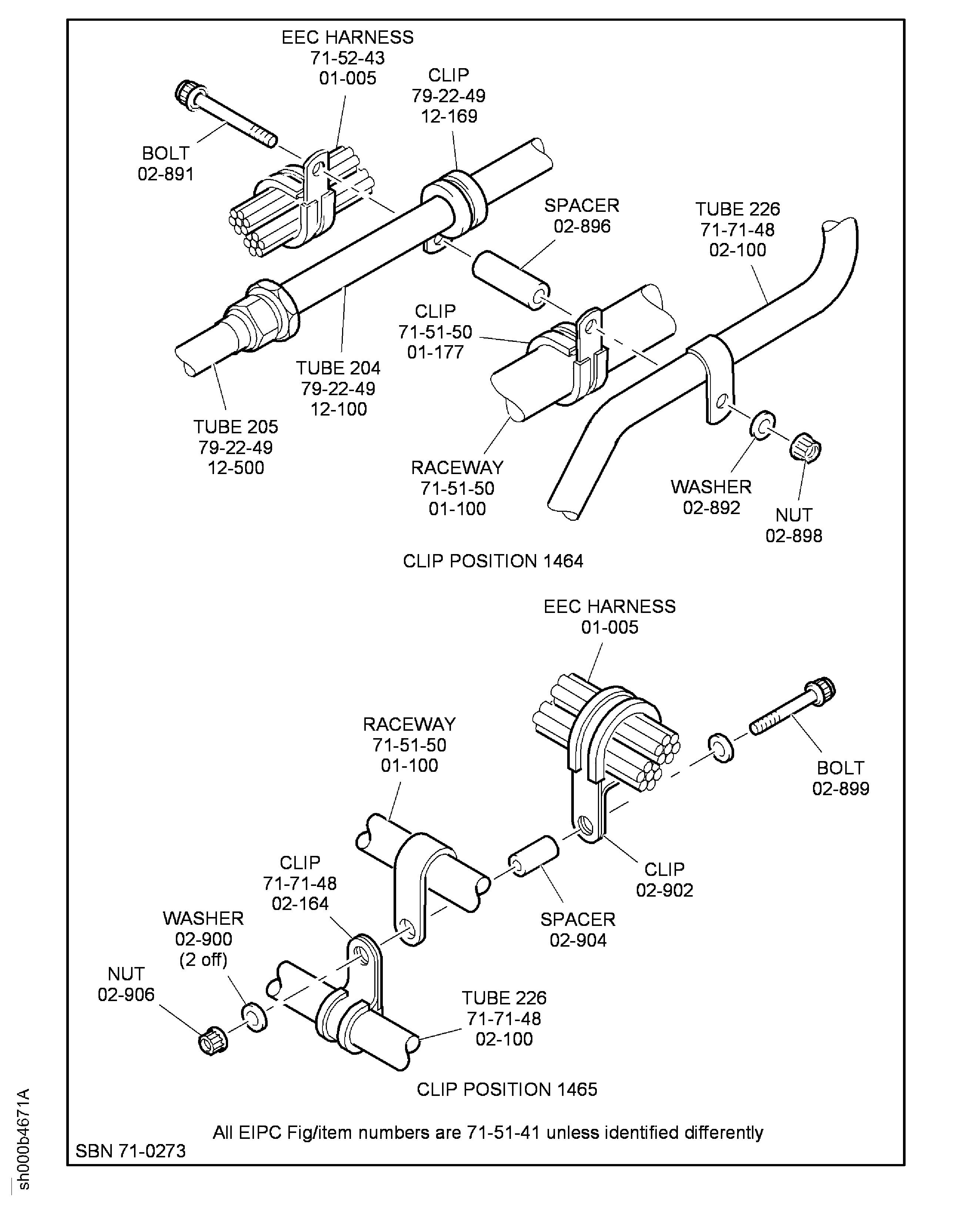

Sheet 13

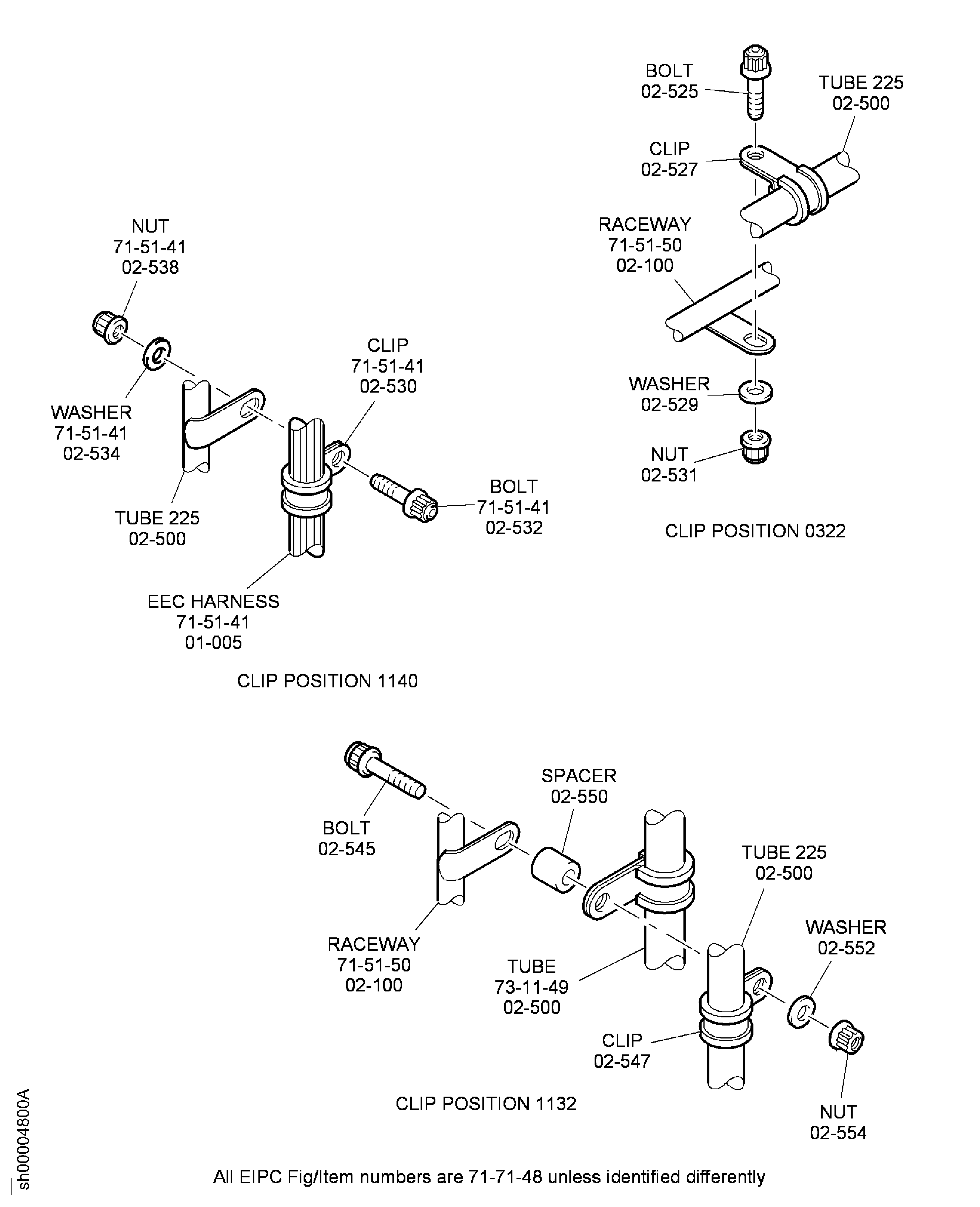

Sheet 14

Sheet 15

Sheet 16

Sheet 17

Requirements After Job Completion

Follow-On Conditions

NONE

Manufacturer Code:	K6835
Enterprise Name:	MED-LAB LTD
BU Name:	MED-LAB LTD
Street:	COPELAND ST
City:	DERBY
Zip Code:	DE1 2PU
Country:	GREAT BRITAIN
Phone Number:	44-1332-349094
Fax Number:	44-1332-371237
Email:	sales@med-lab.co.uk
Internet:	www.med-lab.co.uk

Manufacturer Code:	LOCAL
Enterprise Name:	LOCALLY SUPPLIED

Manufacturer Code:	X333X
Enterprise Name:	REFER TO V2500 SB ENG-79-0108
